What tools do we use to diagnose tankless water heater issues?
We start every diagnostic by pulling the unit’s error code, then move to electrical and gas-pressure testing to isolate the failure. Here’s the process.
Error code reading and visual inspection
- First five minutes: We begin every tankless water heater repair by reading the unit’s error code — Rinnai uses 2-digit codes (11 = flow sensor, 12 = ignition failure), while Navien uses 3-digit codes (001, 003, 016).
- Visual walkaround: We inspect the venting for blockages, check the condensate drain line for kinks or freezing, and look for visible leaks around the water and gas connections.
- Screen and burner check: The inlet water filter screen gets pulled and inspected for sediment — in NYC brownstones we often find it packed with debris. The burner assembly is checked for sooting or flame impingement.
- Pattern recognition: A recurring error code that clears after resetting often points to an intermittent issue like gas pressure fluctuation rather than a failed component — the manometer test confirms this.
Electrical and gas pressure testing
- Multimeter diagnostics: We use a Fluke 87V multimeter to test thermistor resistance (expected 10kΩ at 77°F) and check flow sensor continuity — a break in the circuit explains intermittent no-hot-water calls.

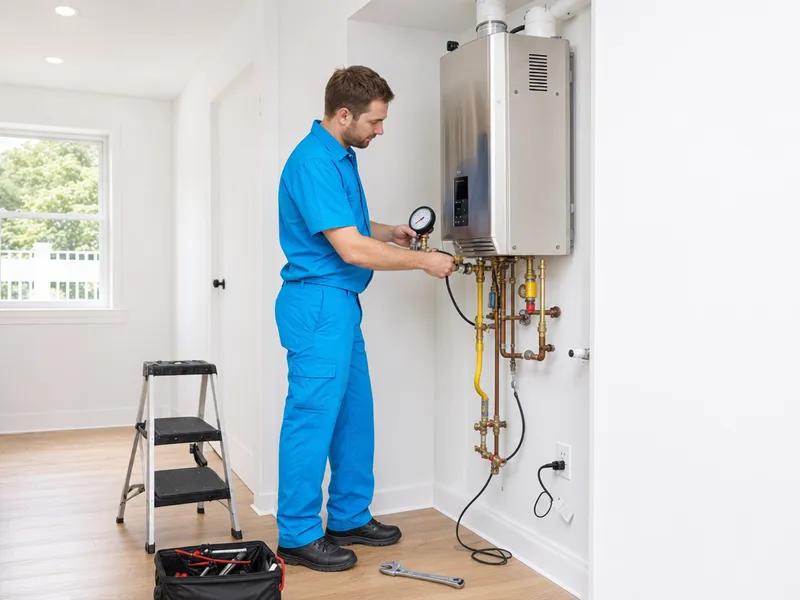

- Gas supply check: A digital manometer measures gas pressure at the inlet — natural gas needs 5–7″ WC to fire correctly. We also check manifold pressure against the unit’s spec plate.
- Component-level tests: The gas valve solenoid resistance is tested (typically 50–100Ω depending on brand), and the PCB board gets a visual check for burnt traces or bulging capacitors.
- Flow rate measurement: We time how many gallons per minute the unit receives at the shower — if flow drops below the unit’s minimum activation rate (usually 0.5–0.8 GPM), the burner won’t fire.
- NYC-specific finding: Low gas pressure below 5″ WC is common in certain NYC neighborhoods and causes flame failure that looks like a unit defect but is actually a supply issue — the manometer catches this in two minutes.
Can a frozen tankless water heater be repaired?
Freezing is one of the most damaging issues for tankless units in NYC — especially in unheated basements. The answer depends on which component froze.
Heat exchanger cracks from freezing
A heat exchanger that cracked from freezing cannot be repaired — it’s a single welded assembly, and welding cracks introduces leak and CO risks. We replace the heat exchanger for $800–$1,500 in parts plus labor on most Rinnai and Navien models. The crack typically forms along the water tube bundle where ice expands inside the copper or stainless steel passages. On units installed in Brooklyn brownstone basements or exterior wall chases, we see this most winters after a power outage stops the recirculation pump. If the unit is 10+ years old and the heat exchanger is cracked, replacement of the entire unit ($2,400–$3,500) is often more cost-effective than a $1,500+ heat exchanger swap.
Repairable freeze damage: pipes, condensate, and PCB
- Cracked water supply lines: Copper pipe repair runs $200–$400 — we cut out the burst section, sweat in a new coupling, and pressure-test the line. Most common on the cold-water inlet side where ice forms first.
- Frozen condensate drain: Replacement is $100–$200. The condensate drain freezes in unheated basements when the unit runs in cold weather and the ½-inch PVC line lacks insulation or proper slope.
- PCB board water damage: If water from a burst pipe reaches the board, we can often dry and salvage it if caught within 24 hours — after that, board replacement ($200–$500) is needed. On Navien units we’ve seen the 3-digit error code 001 appear after a condensate backup flooded the lower compartment.
- Bypass valve seized from ice: The valve can be freed with gentle heat (heat gun, not torch) and lubricant — no replacement needed unless the stem snapped. We’ve freed stuck bypass valves on Rheem units in about 20 minutes.
Signs your tankless water heater needs descaling
NYC water runs moderately hard at 7–10 grains per gallon, so scale accumulates inside your tankless unit over time. Here’s how to spot it before a breakdown hits.
Flow reduction and temperature swings
| Symptom | What you’ll notice | Likely cause |
|---|---|---|
| Reduced flow | Shower drops from 2.5 GPM to 1.5 GPM | Scale restricting heat exchanger passages |
| Temperature swings | Water fluctuates more than ±5°F during use | Scale insulating heat exchanger surfaces |
| Error codes | Rinnai code 11 or Navien code 001/003 | Flow sensor or heat exchanger scaling |
| Long time to heat | Unit takes longer to reach set temperature | Reduced heat transfer from scale buildup |
How often to descale in NYC
- Heavy use (4+ people): Every 6 months — that’s the interval we recommend for households in Queens and Brooklyn where water runs harder. Manufacturer spec for Rinnai, Navien, and Rheem calls for annual descaling, but NYC’s 7–10 grain hardness accelerates buildup.
- Moderate use (2–3 people): Every 12 months. A yearly descaling keeps efficiency in the 92–96% range, which is where condensing units operate best.
- Light use (1 person): Every 18 months — but only if you’re not seeing flow drop or error codes.
- Why it matters: Skipping descaling for 2+ years reduces efficiency by 10–20% and shortens the unit’s lifespan from 20+ years down to 15 years or less. The descaling process takes 45–60 minutes with a pump kit.
Professional descaling vs DIY

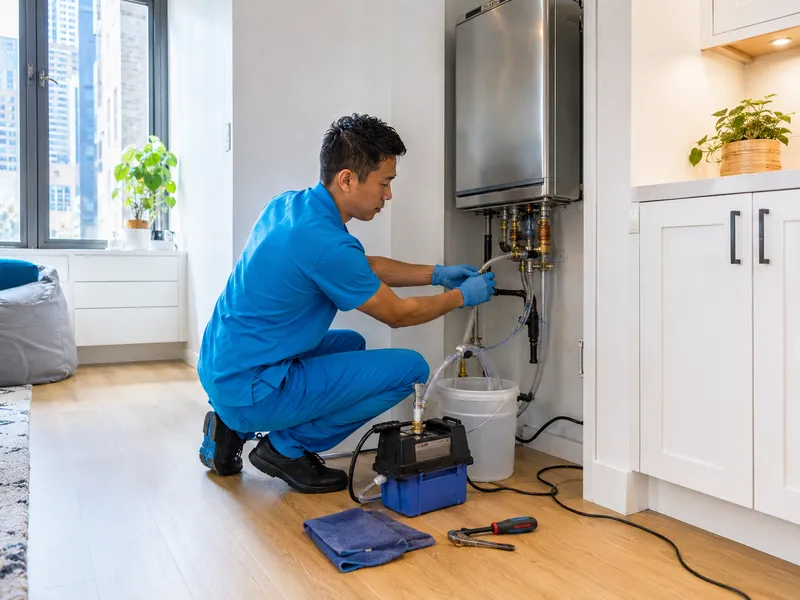

- Professional descaling ($150–$250): We bring a pump kit and descaler, isolate the unit, circulate the solution for 45 minutes, flush, and restore service. Done in one visit — no tools to buy, no mess.
- DIY descaling ($20–$30): You buy a gallon of white vinegar or descaler concentrate and rent a pump from a hardware store. The math works on paper, but the bypass valve is where it goes wrong.
- The common mistake: We’ve shown up to calls where a homeowner installed the bypass valve backwards during DIY descaling — that blocks water flow entirely. It’s a 15-minute fix for us, but frustrating if you’re mid-project with a cold shower waiting.
- Bottom line: Professional descaling includes a full system check — gas pressure, venting, condensate drain — that a DIY vinegar flush doesn’t cover.
Is it worth repairing your tankless water heater or replacing it?
When your tankless unit breaks down, the first question is whether to repair or replace. The answer depends on the failed part, the unit’s age, and NYC installation costs.
Repair cost vs replacement cost by component
| Failed component | Repair cost (parts + labor) | Worth repairing? |
|---|---|---|
| Flow sensor | $50–$100 | Always — it’s a 30-minute fix, and the unit has 20+ years of life left |
| PCB board | $200–$500 | Yes, on any unit under 15 years old |
| Gas valve | $200–$400 | Yes, on units under 15 years |
| Heat exchanger | $800–$1,500+ | Only if the unit is under 10 years old |
| Recirculation pump (Navien) | $200–$400 | Yes — the pump typically fails at 5–7 years, but the unit has years left |
When replacement makes more sense
A full tankless replacement in NYC runs $2,400–$3,500 for a gas unit installed — if your unit is 15+ years old and needs a heat exchanger ($1,500+), replacement is the smarter financial move. Rinnai and Rheem units are modular and worth repairing up to 15–18 years, while older Navien units (pre-2018) with PCB board failures may have recurring issues that make replacement more reliable. The tankless water heater replacement cost at that point is a one-time investment for another 20 years of service, which beats paying $1,500+ every couple of years on a dying chassis. In our practice, we recommend running the math: if the repair bill exceeds 50% of a replacement quote, swap it out.

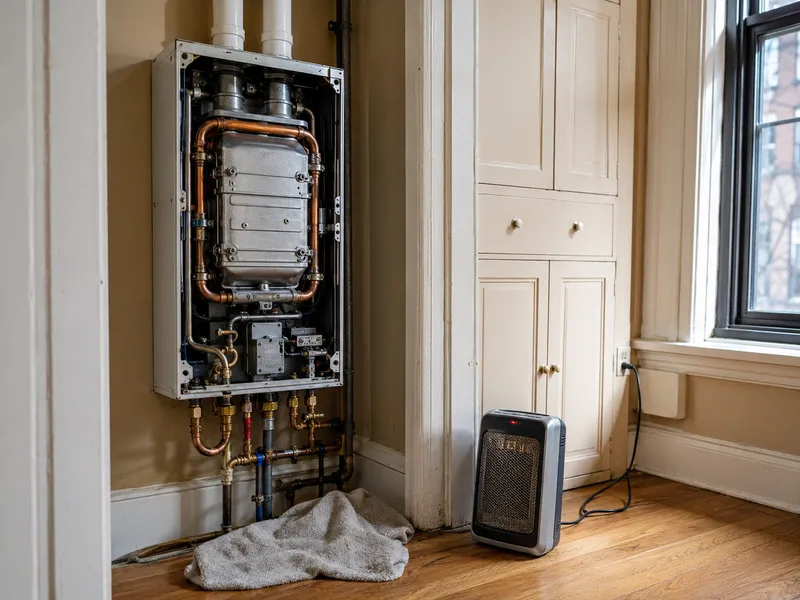

Tankless water heater repair in Brooklyn brownstones
Brooklyn brownstones present unique challenges for tankless water heater repair — from undersized gas lines to tight basement access. Here’s what we encounter most.
Gas line and water supply constraints
- Undersized gas lines: Many Brooklyn brownstones have 1/2″ gas lines that can’t supply enough BTU for a tankless unit — we often find that flame failure and shutdown are caused by undersized gas supply, not a defective unit.
- Water supply limits: Older brownstones still run on 1/2″ copper supply lines. If your hot water flow is weak, we check supply line size first — a 3/4″ repipe may be needed before the unit can perform.
- Gas pressure fluctuations: Shared building supply in multi-unit brownstones causes pressure drops below 5″ WC. A manometer test at the inlet confirms whether gas delivery is the bottleneck.
- Upgrade cost reality: If your tankless unit shuts off during high-demand times (morning showers), the gas line likely needs upgrading to 3/4″ or 1″ — a separate plumbing job that costs $500–$1,500.
Access, venting, and condensate challenges
- Tight basement access: Brownstone basements often have limited headroom (6′ or less) and no floor drain — we carry compact tools for tight spaces and may need to install a condensate pump ($100–$200) if there’s no drain.
- Venting constraints: Shared masonry chimneys in brownstones can’t be used for tankless venting — we need dedicated Category IV stainless steel venting, which may require a new vent run through the sidewall.
- Condensate freeze risk: Unheated basements cause condensate lines to freeze in winter. We insulate them with heat tape or reroute to a heated area — a $20–$50 fix that prevents unit shutdown.
- Permit and license requirements: NYC DOB permits are mandatory for gas line work and water heater replacement in brownstones. Our NY Master Plumber handles that — it’s not a DIY job.
Final thoughts on tankless water heater care in NYC
Main takeaways
Tankless water heaters are built to last 20+ years with proper maintenance, but NYC’s hard water, aging building infrastructure, and freezing winters create specific failure patterns that are predictable and preventable. The lifespan depends less on the brand — whether it’s Rinnai, Navien, or Rheem — and more on how aggressively you manage scale and protect the unit from temperature extremes. On older Brooklyn brownstones with unheated basements, freeze damage is the primary risk; in co-ops with shared gas risers, undersized supply lines cause flame failure. And here’s the thing — the most common breakdowns, clogged flow sensors, scale buildup, and gas supply issues, are inexpensive to fix if caught early. Ignoring annual descaling or freeze protection can lead to heat exchanger failure that costs more than the unit is worth.
