Foundation Waterproofing Contractors in NYC

Signs your foundation needs waterproofing

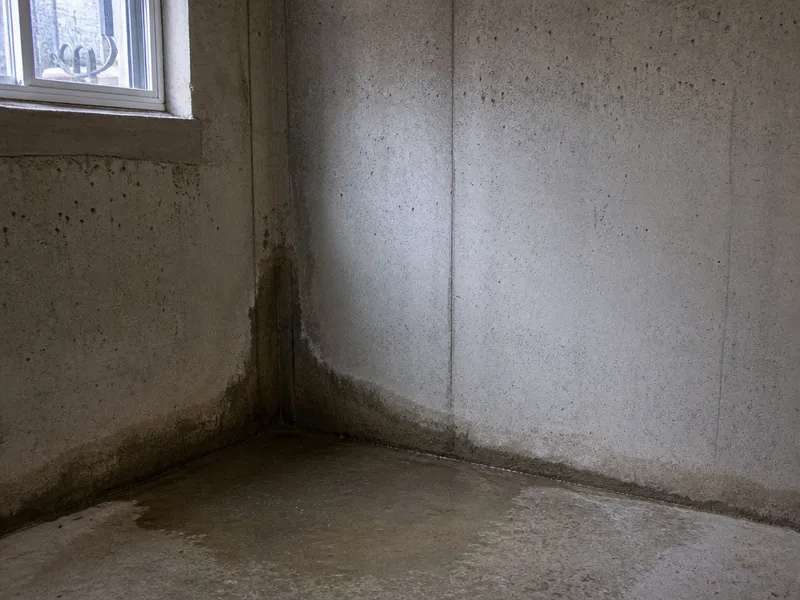

Water stains, efflorescence, peeling paint, and musty odors are the most common signs that moisture is penetrating your foundation — here’s what to look for in your basement.

What visible signs indicate foundation water problems?

• Water stains and discoloration: Dark patches on basement walls, usually near the floor or along mortar joints, indicate water has been seeping through the concrete.

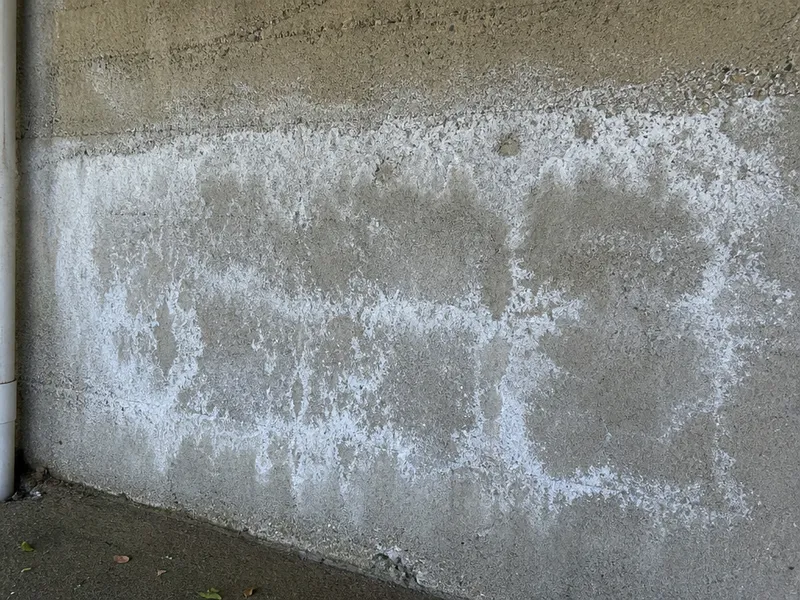

• Efflorescence: A white, powdery mineral deposit on foundation walls — it forms when water moves through the concrete and leaves salt behind as it evaporates.
• Peeling paint and flaking coatings: When moisture pushes through a painted foundation wall, the paint blisters and peels, often in patches that reappear after repainting.
• Mold and mildew growth: Black, green, or white spots on walls, baseboards, or stored items signal a persistent moisture problem that supports fungal growth.
• Spalling or chipping concrete: The surface of the foundation flakes away in small chips — freeze-thaw cycles in NYC winters accelerate this, widening the pathways water uses.

Efflorescence alone isn’t structural damage, but it confirms moisture is moving through the concrete — if ignored, freeze-thaw cycles in NYC winters can widen the pathways. That’s why catching these signs early and scheduling a foundation waterproofing evaluation matters before the damage compounds.

What non-visual clues suggest foundation moisture issues?

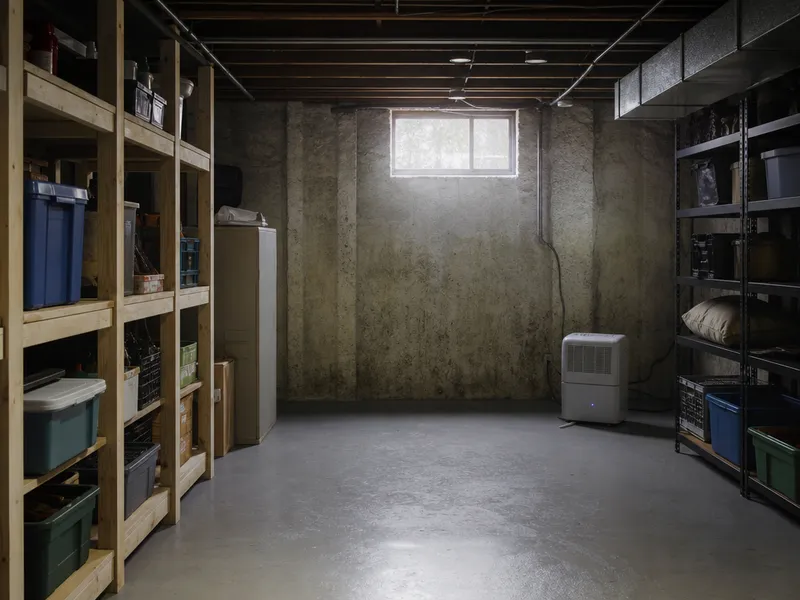

A musty basement odor and consistently high humidity (above 60%) are strong indicators that moisture is entering through the foundation, even if you don’t see standing water. The smell comes from microbial growth — mold and mildew thrive in damp concrete environments where air circulation is limited. A hygrometer reading that stays above 60% for more than a day, especially after running a dehumidifier, points to active water entry rather than seasonal dampness. Hydrostatic pressure drives moisture through foundation walls invisibly; the water molecules move through capillary action in the concrete pores, saturating the wall without forming visible droplets. High humidity from foundation seepage can trigger mold growth within 24-48 hours, so a musty smell that persists after dehumidifying points to active water entry rather than simple dampness.

When should a professional inspect your foundation?

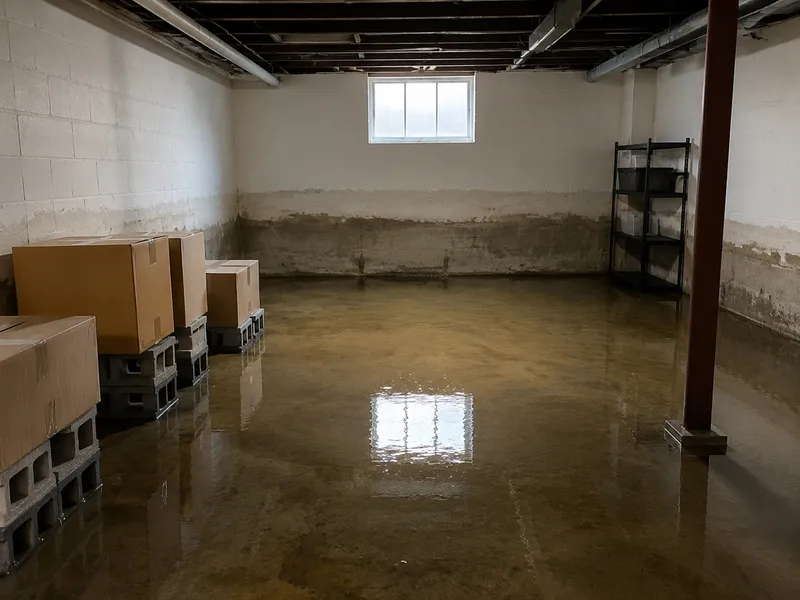

We recommend a professional inspection when you see horizontal or stair-step cracks, bowing walls, standing water after rain, or any foundation that’s over 20 years old without a known waterproofing history. In NYC, foundations in brownstones (typically brick or rubble) and pre-war block buildings are especially prone to hidden moisture issues — the hollow cores in block walls can transport water laterally for feet before it emerges. A professional uses a moisture meter to check wall saturation levels, inspects the exterior grade for negative slope, and looks for signs of hydrostatic pressure like bulging mortar joints. Horizontal cracks are more concerning than vertical ones — they indicate lateral hydrostatic pressure pushing against the wall, which can lead to structural failure if left unaddressed.

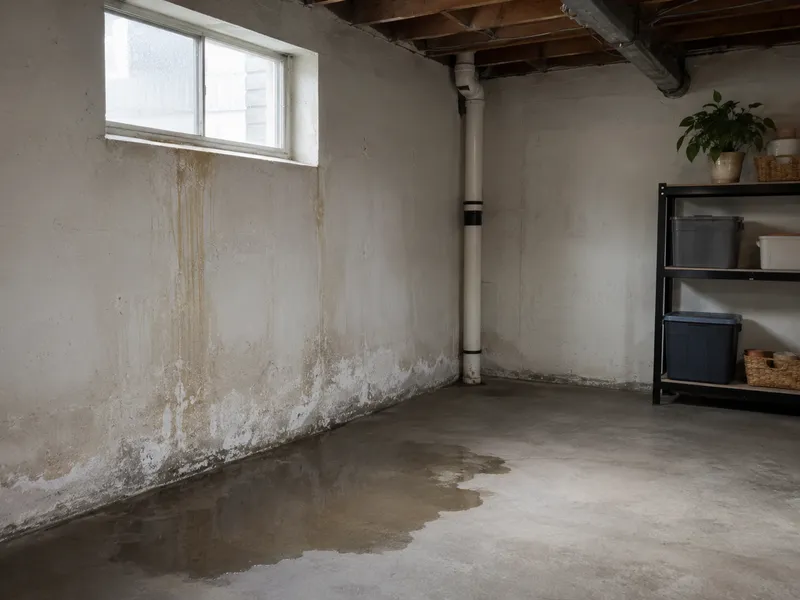

What causes foundation leaks in NYC basements?

NYC’s unique building stock and urban environment create specific leak causes — from hydrostatic pressure to shared wall issues — that differ from suburban homes.

How does hydrostatic pressure cause foundation leaks?

Hydrostatic pressure — the force of groundwater pushing against your foundation walls — is the most common cause of basement leaks in NYC, especially after heavy rain when the water table rises. The soil around a foundation acts like a sponge; after a storm, it becomes saturated, and the weight of that water-laden soil exerts lateral force against the wall. In areas of Brooklyn and Queens with high water tables, the pressure can be strong enough to push water through solid poured concrete, not just through cracks — which is why exterior drainage is often necessary even on intact walls.

Why do block foundations leak differently than poured concrete?

What role do gutters, grading, and window wells play?

• Clogged gutters and downspouts: A downspout discharging within 3 feet of the foundation can saturate the soil enough to create hydrostatic pressure against the wall — extending it to 6 feet often eliminates the problem without any foundation work.
• Negative grade slope: When the ground slopes toward the house instead of away from it, every rain event directs water straight to the base of the foundation wall. The fix — regrading to a minimum 6-inch drop over 10 feet — costs far less than interior waterproofing.
• Undrained window wells: Window wells collect rainwater like buckets; without a drain at the bottom or a cover on top, that water has nowhere to go but against the window frame and through the foundation opening.

Interior vs exterior waterproofing: which is right for you?

The choice between interior and exterior waterproofing comes down to addressing the root cause of hydrostatic pressure versus managing water within your existing access constraints — and the cost and lifespan differences are substantial.

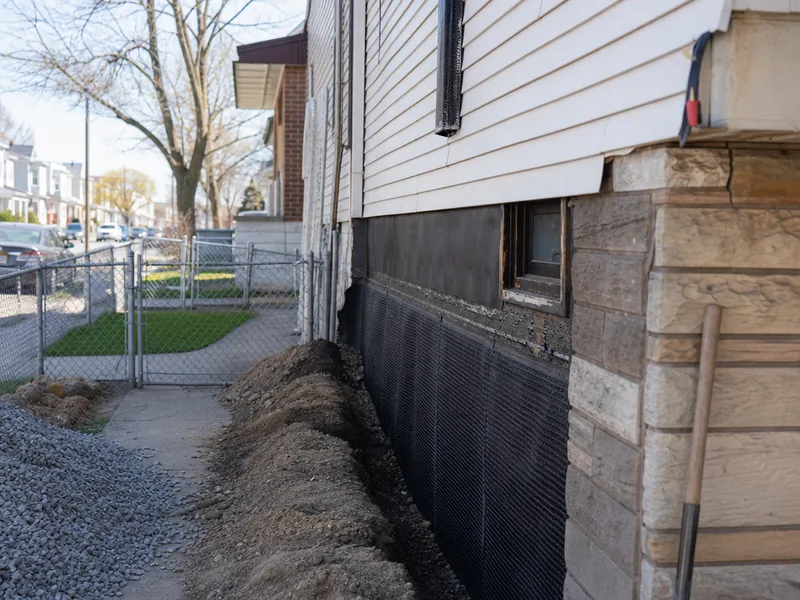

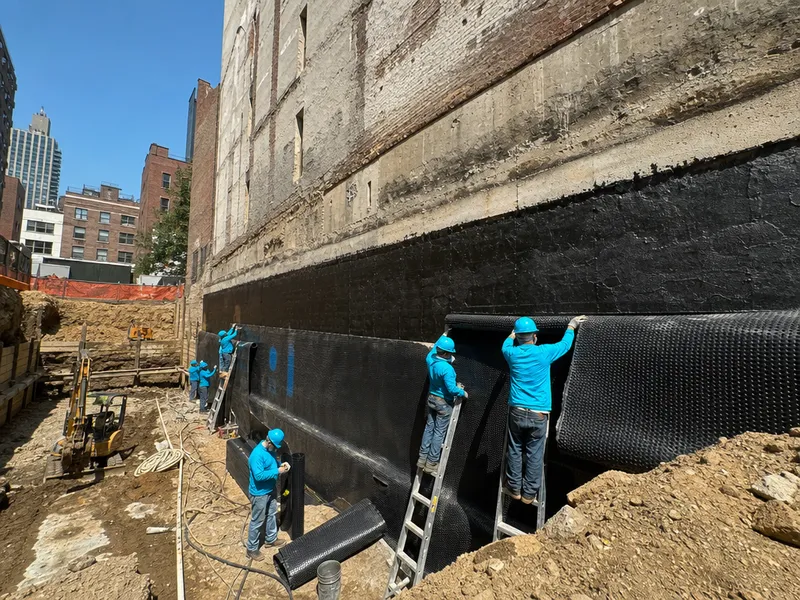

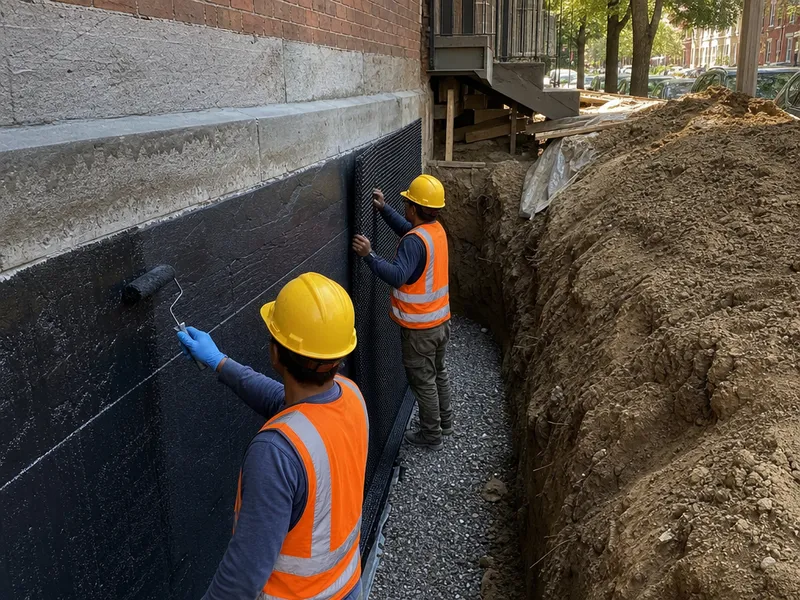

What does exterior waterproofing involve?

• Excavation to the footing: We dig down 4–8 feet to expose the foundation wall, working with hand tools or a mini-excavator depending on yard access in Brooklyn or Queens row houses.

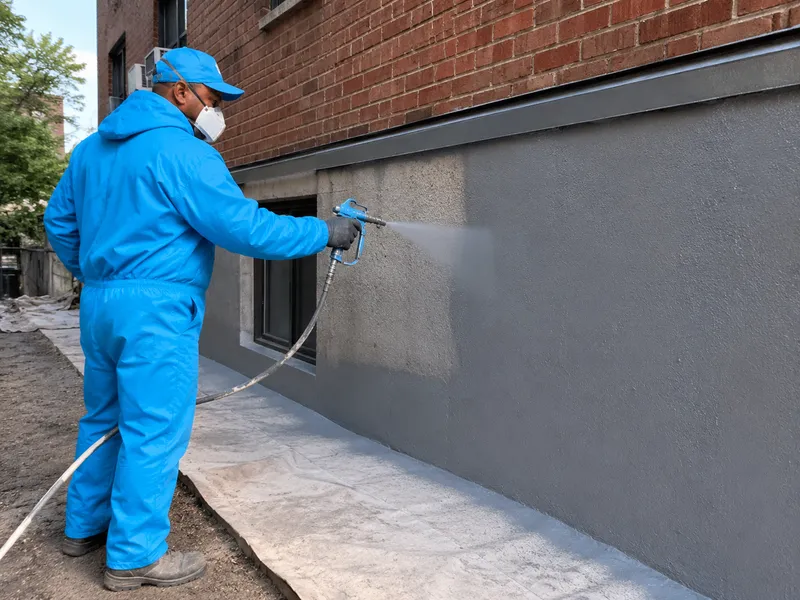

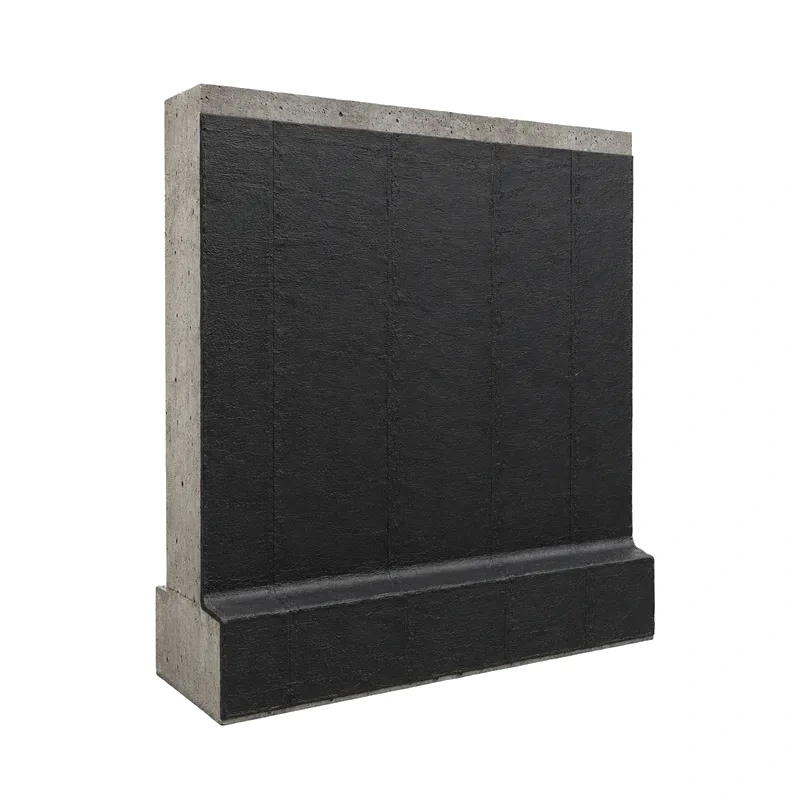

• Foundation wall prep and membrane: After pressure-washing the wall and repairing surface defects, we apply a self-adhered sheet membrane — Grace Bituthene or equivalent — overlapping seams 3–4 inches for a continuous seal.

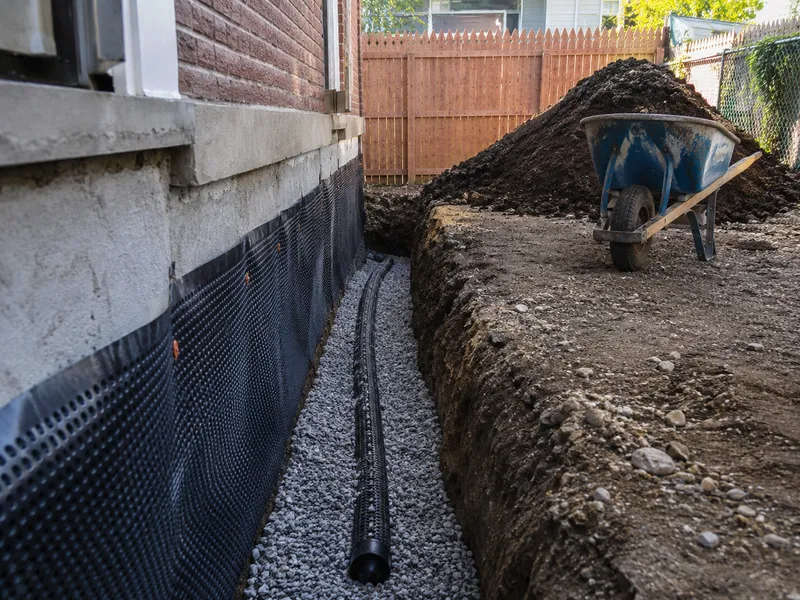

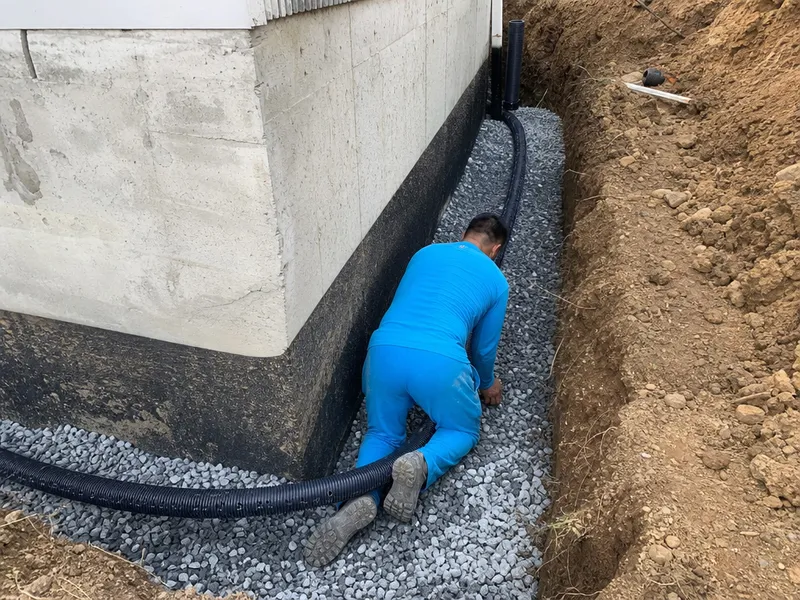

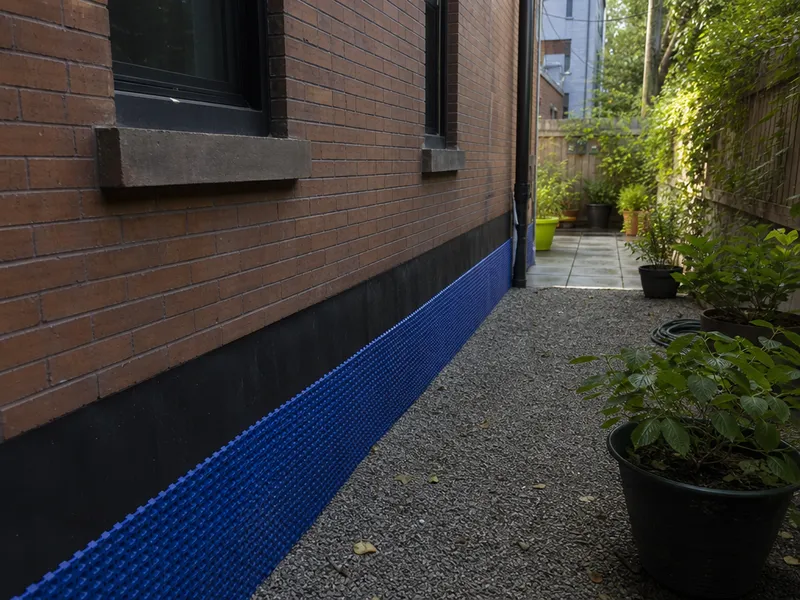

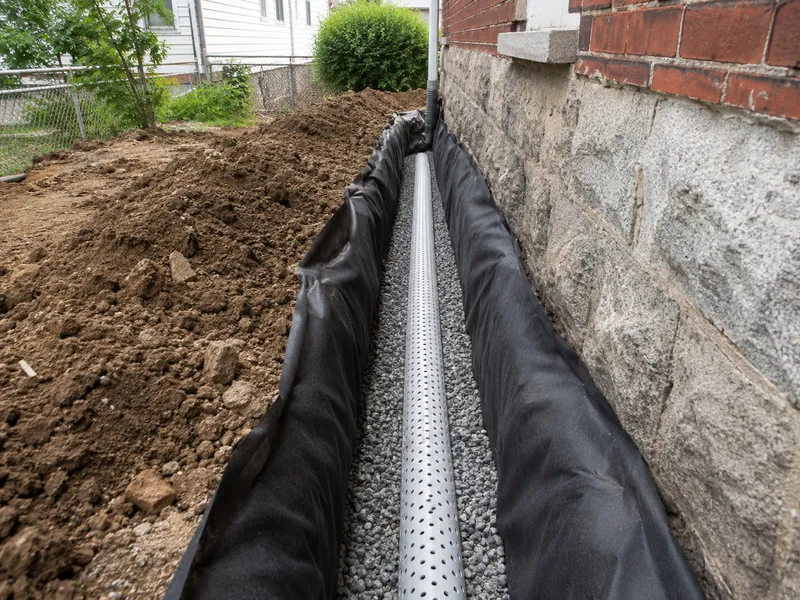

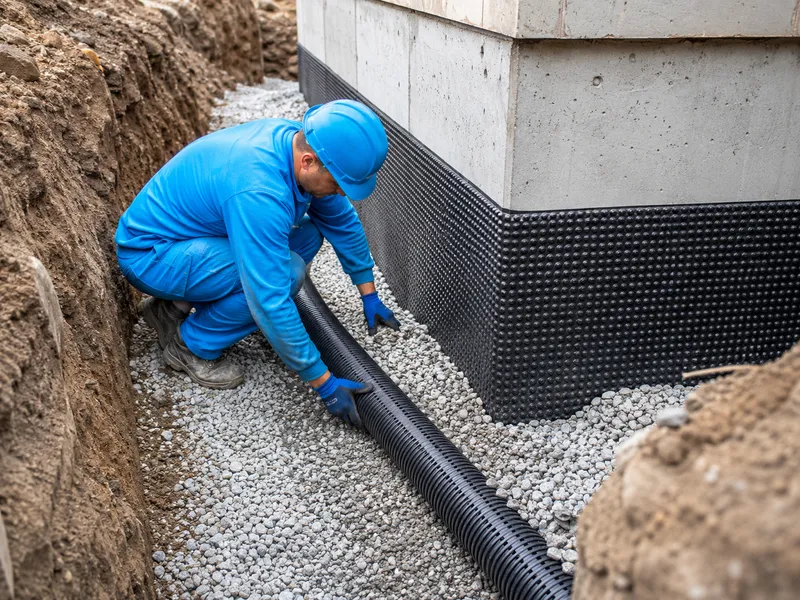

• Drainage board and perimeter drain: A dimpled drainage board (Delta-MS) goes over the membrane, and we install a 4-inch perforated PVC drain pipe at the footing level, sloped ⅛ inch per foot toward the discharge point.
• Backfill and grade restoration: The excavation is backfilled with gravel around the drain pipe, then soil compacted in 6-inch lifts, with the final grade sloping away from the foundation at least 6 inches over 10 feet.
• Why drainage matters as much as the membrane: The membrane alone can’t stop water if hydrostatic pressure builds behind it — that’s why we always install drainage board and the perimeter drain to relieve that pressure and channel water away.

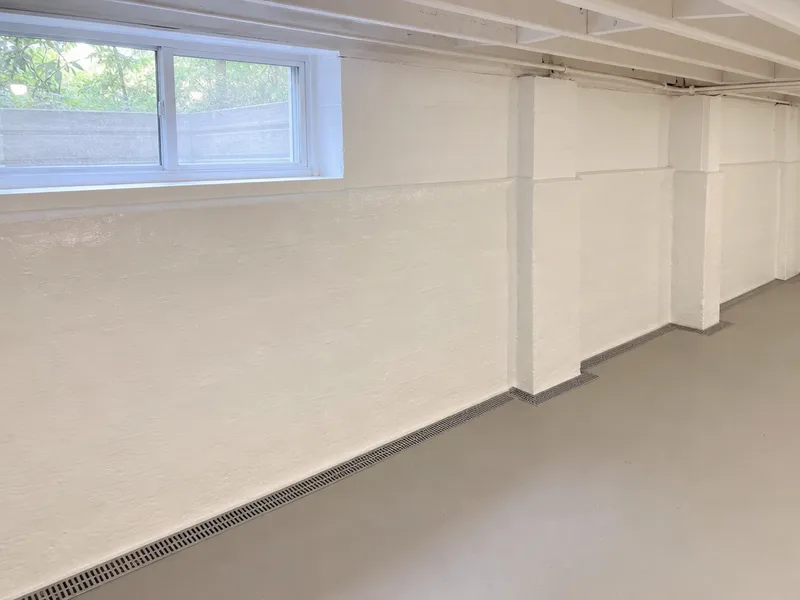

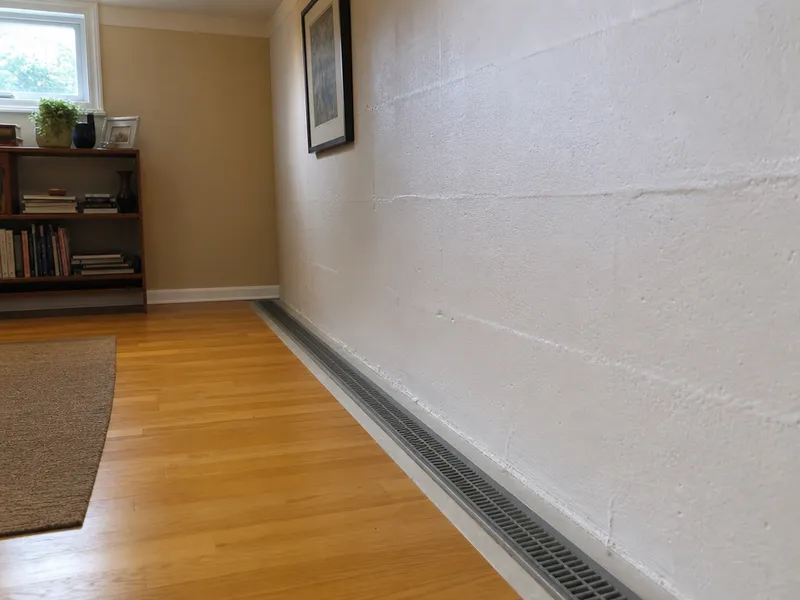

What does interior waterproofing involve?

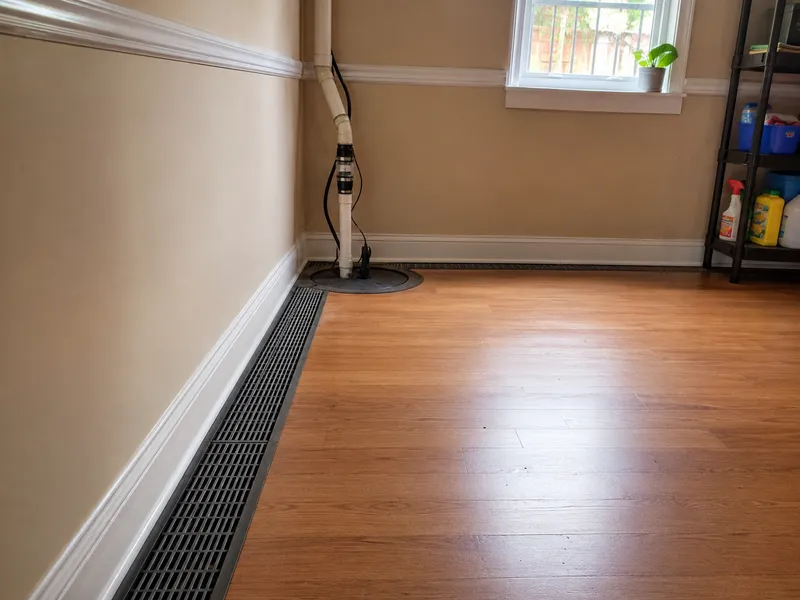

• Concrete cutting and channel excavation: We cut a 6–8 inch wide channel along the basement perimeter, typically 4–6 inches deep to the footing, then remove concrete and soil to make room for the drainage pipe.

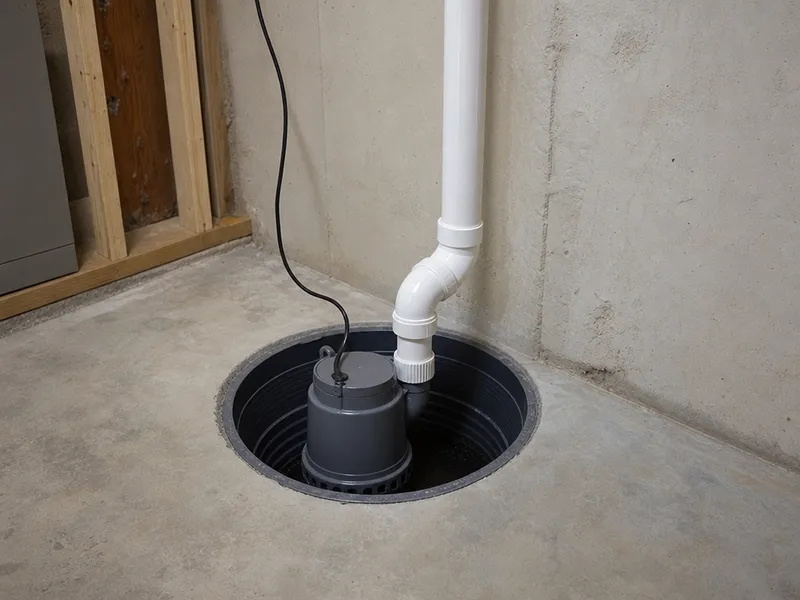

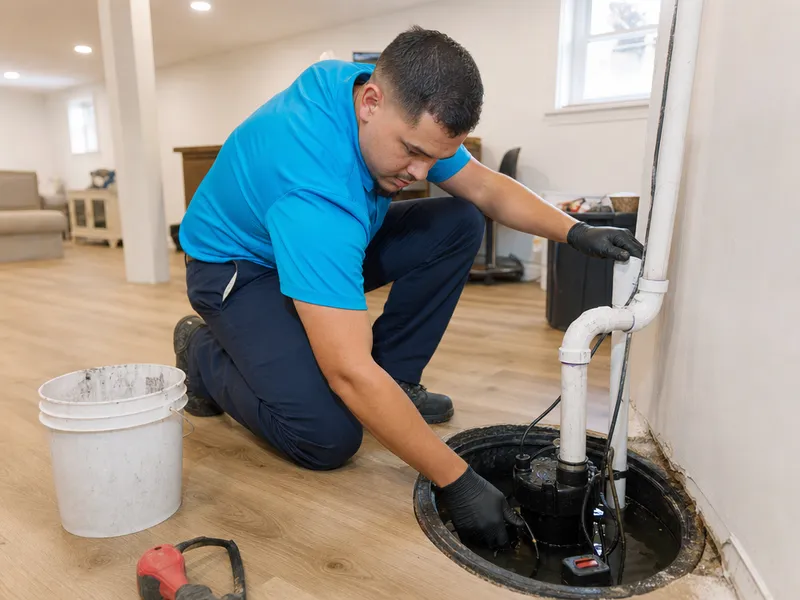

• Drainage pipe and sump pit installation: A 4-inch PVC perforated pipe goes into the channel, sloping toward a sump pit (18–24 inch diameter, 24–36 inches deep) where we install a Zoeller M53 or Liberty P382 pump with a check valve on the 1.5-inch discharge line.
• Concrete restoration and wall vapor barrier: New concrete is poured over the drainage channel, finished to match the existing floor, and a vapor barrier (CleanSpace or equivalent) is sealed along the interior foundation walls from floor to ceiling.
• What interior doesn’t do: Interior drainage doesn’t stop water from entering — it manages water after it’s already inside — so it’s best paired with a sump pump that has battery backup for NYC’s common storm-related power outages.

How do costs and lifespans compare?

Can you waterproof a foundation from the inside only?

Yes, interior-only waterproofing works in specific situations — particularly when exterior excavation is impossible — but homeowners need to understand its limitations before choosing this approach.

When is interior-only waterproofing the right choice?

• Shared-wall row houses: When your foundation abuts a neighbor’s — common in Brooklyn brownstones — there’s no exterior wall to excavate. Interior drainage is the only feasible method.
• Attached condos and co-ops: Buildings where the neighbor’s property line sits against your foundation leave zero access for exterior work. Interior systems manage water that enters through the shared wall.
• Structures built on property lines: Some older NYC buildings sit directly on the lot boundary. Exterior excavation would require entering the adjacent property, which is rarely granted.
• Below-grade additions: Basements under rear extensions where the addition abuts a retaining wall or another structure — exterior access doesn’t exist, so interior drainage is the default.
• When the water source is a high water table: In parts of Queens and Staten Island, groundwater sits close to the slab year-round. Interior drainage with a sump pump continuously evacuates water that exterior waterproofing alone can’t stop.

Important nuance: In NYC row houses, waterproofing one side of a shared foundation wall can push groundwater toward the neighbor’s basement, so we coordinate with both property owners when possible to avoid unintended water migration.

What are the limitations of interior-only waterproofing?

Interior-only waterproofing does not stop water from entering the foundation — it manages water that’s already inside — and it won’t address structural damage caused by ongoing hydrostatic pressure against the wall. The interior drainage system we install (a perimeter channel cut into the slab, feeding a sump pit) captures water that seeps through the foundation and pumps it out before it spreads across the basement floor. But the wall itself remains exposed to groundwater pressure, which can worsen existing cracks, cause spalling, or accelerate freeze-thaw damage in block foundations. Applying interior sealants like Drylok over actively leaking walls is a common mistake — the coating peels within months because hydraulic pressure pushes water through the concrete faster than the sealant can bond.

Does NYC building code allow interior waterproofing?

Yes, NYC building code approves interior drainage systems as a legitimate waterproofing method — they’re listed as an acceptable approach in the NYC Construction Codes for existing buildings. The code requires that the system includes a properly sized sump pump with a check valve and a discharge line that runs to an approved location (typically a storm drain or drywell, not the sanitary sewer — that’s a violation every time). Interior drainage systems generally don’t require a DOB permit, unlike exterior excavation over 4 feet deep. But here’s the catch we see regularly: DIY installations often skip the battery backup on the sump pump, which means the system fails during the exact storm that causes the most groundwater pressure. A power outage at 2 AM leaves the basement unprotected — we always recommend a battery backup or water-powered backup pump as part of the interior system.

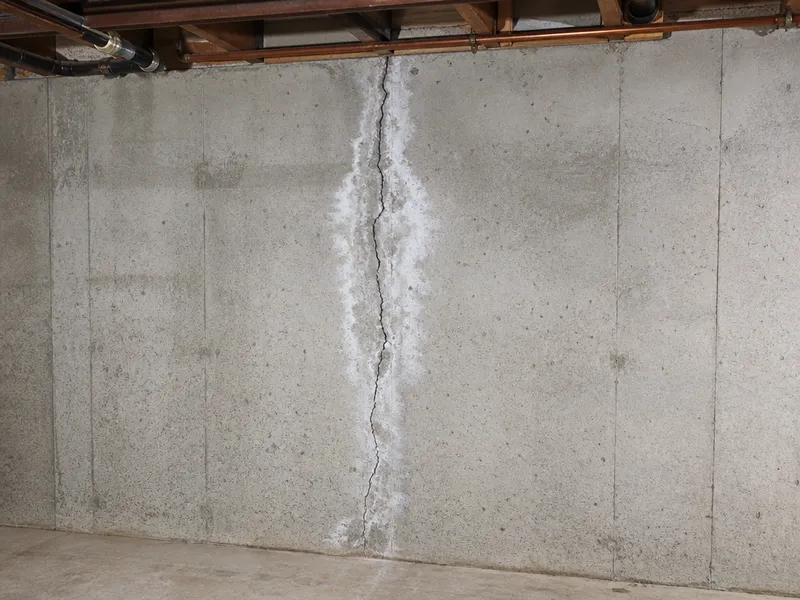

How we fix a cracked foundation wall

Foundation crack repair isn’t a one-size-fits-all job—the right approach depends on whether the crack is actively leaking, structural, or just a surface hairline, and the material choice follows from that diagnosis.

How do we diagnose the crack type?

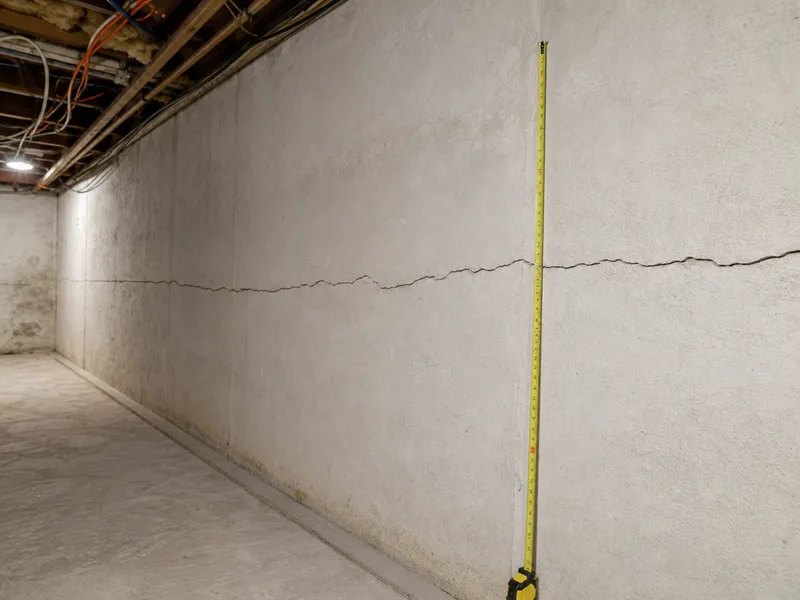

• Crack width measurement: We gauge the crack at its widest point with a crack-monitoring gauge—anything under 1/8 inch is usually non-structural, but we still check for active water.
• Active leak test: On a dry day, we press a moisture meter into the crack face; if readings spike above 15%, we treat it as an active leak regardless of width.
• Structural vs non-structural: Horizontal or stair-step cracks, or any crack wider than 1/4 inch with vertical displacement, gets flagged for structural assessment before injection.
• In our practice, we also check the crack’s profile with a feeler gauge—V-shaped cracks (wider at the surface) are usually shrinkage; uniform-width cracks suggest ongoing movement.
• Actionable takeaway: Hairline cracks under 1/8 inch are usually non-structural, but if they’re actively leaking water, they still need polyurethane injection—waiting lets freeze-thaw cycles widen them each NYC winter.

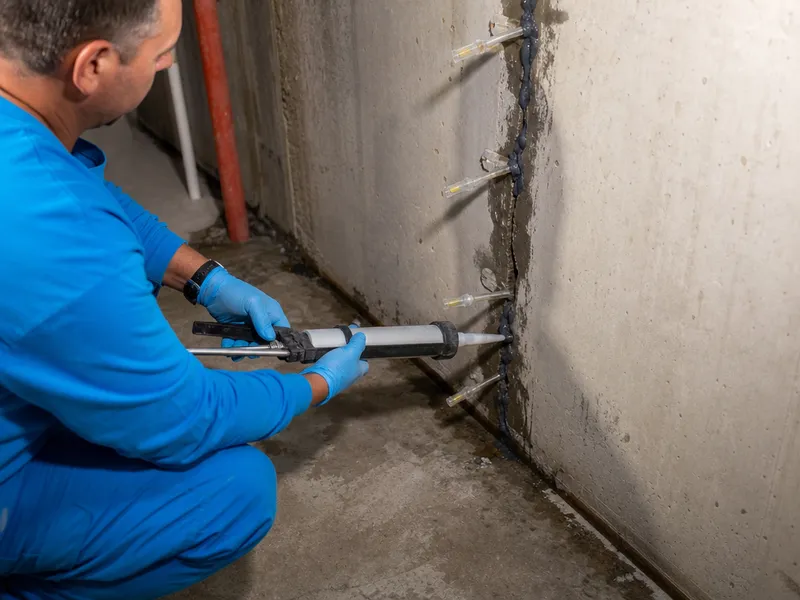

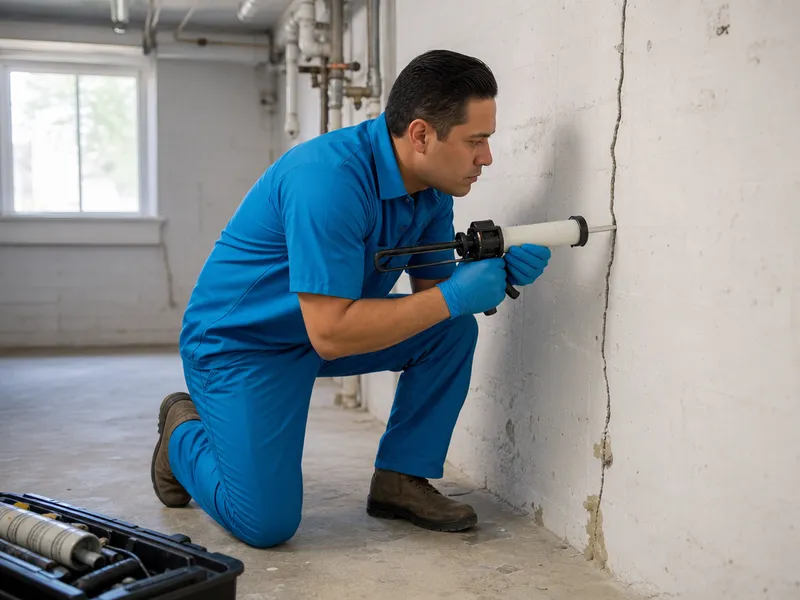

What’s the crack injection process step by step?

• Surface prep: We chip out loose concrete with a masonry chisel and blow the crack clean with compressed air—no debris allowed in the repair zone.
• Port placement: We drill and install injection ports every 6–12 inches along the crack, then seal the surface between ports with hydraulic cement so the injectant stays inside.
• Injection sequence: Starting at the lowest port, we inject polyurethane (for active leaks) or epoxy (for structural cracks) at low pressure—material must exit the next port above before we move the gun up.
• Cure and finish: After 24–72 hours of cure (epoxy takes the full 72), we snap off the ports and grind the surface flush with an angle grinder.
• Actionable takeaway: We always inject from the bottom up so the material displaces water and air ahead of it—injecting from the top traps air pockets that leave voids in the repair.

When is crack injection not enough?

Crack injection alone won’t fix a wall that’s bowing or bulging inward, nor will it address multiple horizontal cracks or a gap wider than 1/4 inch paired with floor heaving—those are signs the wall is failing structurally and needs carbon fiber straps or foundation underpinning, not sealant. For bowing walls, we install vertical carbon fiber straps every 4 feet, epoxy-bonded to the concrete, which restrain further movement without excavation. Underpinning, by contrast, extends the foundation to stable soil and is reserved for settlement cracks wider than 1/2 inch with visible floor slope. But here’s what I see on the ground: injecting a crack without fixing the underlying drainage issue is a temporary fix—hydrostatic pressure will either reopen the same crack or create a new one nearby within 1–2 years.

How deep do we excavate for exterior waterproofing?

Excavation depth for exterior waterproofing is determined by the footing depth, which varies by building type and age in NYC.

How deep do we excavate for different NYC building types?

What safety and permit requirements apply to excavation?

• NYC DOB permit threshold: Any excavation over 4 feet deep requires a NYC DOB permit before work begins — no exceptions for brownstone rear yards.
• Shoring requirement: Excavations over 5 feet deep need trench shoring per OSHA and NYC DOB standards; this applies to full basement excavations.
• Utility location: We call 811 (NYC Dig Safely) before every excavation regardless of depth — hitting a gas line or electrical conduit can shut down the job and trigger fines.
• Inspection: A DOB inspector visits during excavation to verify depth, shoring, and backfill compliance for permitted work.

How long does excavation take for a typical brownstone?

For a typical NYC brownstone, excavation takes 1–2 days using hand-digging in tight rear yards or a mini-excavator where access allows, with the full exterior waterproofing process taking 3–5 days total. We hand-dig when the gap between buildings is under 4 feet — common in Brooklyn and Queens attached homes. A mini-excavator speeds things up in detached houses with yard access, cutting excavation to a single day. Hand-digging takes longer but is often the only option in brownstone rear yards where equipment can’t fit — we factor this into the timeline so homeowners can plan around the disruption.

Best foundation waterproofing method for NYC brownstones

Brownstone foundations — rubble, brick, or block — sit on shared property lines under landmark restrictions. A single waterproofing method rarely fits; the right approach depends on which wall you can access and what it’s made of.

Why are brownstone foundations uniquely challenging?

Brownstone foundations are uniquely challenging because they’re built from rubble or brick (pre-1900) or concrete block (early 1900s), and they share walls with neighboring row houses — so exterior access is limited to the rear only. The rubble walls have irregular surfaces that waterproofing membranes can’t adhere to directly; we apply a cement parging coat first to create a smooth substrate, which adds 1-2 days to the project. Block foundations let water travel through their hollow cores laterally, entering through mortar joints rather than a single crack. That lateral movement means a leak on one side of a shared wall can surface on your side even if the source is next door. For thorough assessment, foundation waterproofing contractors NYC rely on moisture meters and core samples rather than visual inspection alone. Rubble foundations demand that extra parging step — without it, membrane adhesion fails within a season.

What’s the recommended approach for brownstone waterproofing?

• Exterior waterproofing (rear wall): Excavation to the footing, self-adhered membrane (Grace Bituthene or equivalent), dimpled drainage board, and a 4-inch perforated perimeter drain — this stops hydrostatic pressure at the source on the accessible side.
• Interior drainage (shared side walls): A 6–8 inch perimeter channel cut into the slab, 4-inch PVC drain pipe sloped to a sump pit, and a Zoeller M53 sump pump with battery backup — manages water that enters from the neighbor’s side where we can’t excavate.
• Weep holes for block foundations: We drill 1/2-inch weep holes through the block cores at 4-foot intervals, 6 inches above the floor slab, to relieve hydrostatic pressure into the interior drainage system — this prevents water from building up behind the neighbor’s shared wall.
• Window well drains: Each window well gets a 3-inch PVC drain connected to the perimeter system, plus a polycarbonate cover — without these, window wells collect runoff and direct it straight to the foundation footing.

Do landmarked brownstones have additional requirements?

Landmarked brownstones and buildings in historic districts may require approval from the NYC Landmarks Preservation Commission (LPC) before any exterior work visible from the street can begin. LPC review adds 4-8 weeks to the timeline, so we recommend starting the approval process while we’re still diagnosing the interior scope — that way exterior and interior work can proceed back-to-back.

Permits and regulations for foundation waterproofing in NYC

NYC has specific permit requirements for foundation work that homeowners often don’t know about — and skipping them can cause problems during property sale.

When do you need a NYC DOB permit for foundation waterproofing?

• Permit required: Any excavation over 4 feet deep, structural foundation work, or underpinning needs a NYC DOB permit before breaking ground.
• Permit not required: Interior drainage systems, sump pump installations, and non-structural crack injection typically don’t need a permit — these are considered alterations, not structural work.
• Brownstone exception: Exterior waterproofing on a rear wall of a row house usually involves excavation to the footing at 4–6 feet — that’s over the DOB threshold and requires a permit.
• The fine you risk: Unpermitted excavation can trigger a stop-work order and fines starting at $5,000, and it can also create issues when you sell the property — buyers’ attorneys routinely check DOB records for open violations.

What’s the permit application process and timeline?

• Plans and stamps: Submit plans signed by a NYC Registered Architect or Professional Engineer — no exceptions for residential work.
• Timeline: Approval typically takes 2–6 weeks depending on DOB workload and whether the plans need revisions.
• Inspections: DOB inspectors check shoring depth, excavation depth, and backfill compaction — failing any inspection means re-excavating at your expense, so we always pre-mark utility lines and verify shoring before the inspector arrives.

What other approvals might be needed?

Beyond DOB permits, you may need co-op or condo board approval for interior work, LPC approval for landmarked buildings, and a permit from the NYC Department of Transportation if excavation affects the sidewalk or street. In a Brooklyn brownstone in a historic district, the LPC review alone can add 4–8 weeks to the timeline. Co-op boards often require proof of contractor insurance ($1M+ general liability and workers’ comp) and a signed indemnity agreement — we provide these documents as part of our standard contract package.

Final thoughts on foundation waterproofing in NYC

Main takeaways

Foundation waterproofing in NYC requires matching the method to your building’s foundation type, access constraints, and regulatory requirements — there’s no universal solution that works for every brownstone, row house, or pre-war building. A rubble foundation in a Brooklyn brownstone demands a different approach than a poured-concrete wall in a Queens post-war house, and shared-wall row houses limit exterior access to one side. The most effective approach is often a combination of exterior waterproofing where accessible and interior drainage where it’s not, paired with proper grading and gutter maintenance to reduce hydrostatic pressure at the source.
