What is low voltage wiring and what does it include?
Low voltage wiring covers any cable carrying 50V or less under NEC Class 2 — data networks, voice, video, security, audio, thermostat control, doorbells, and access control. It’s distinct from the 120V/240V line-voltage work that requires a Master Electrician license.
What types of wiring are considered low voltage?

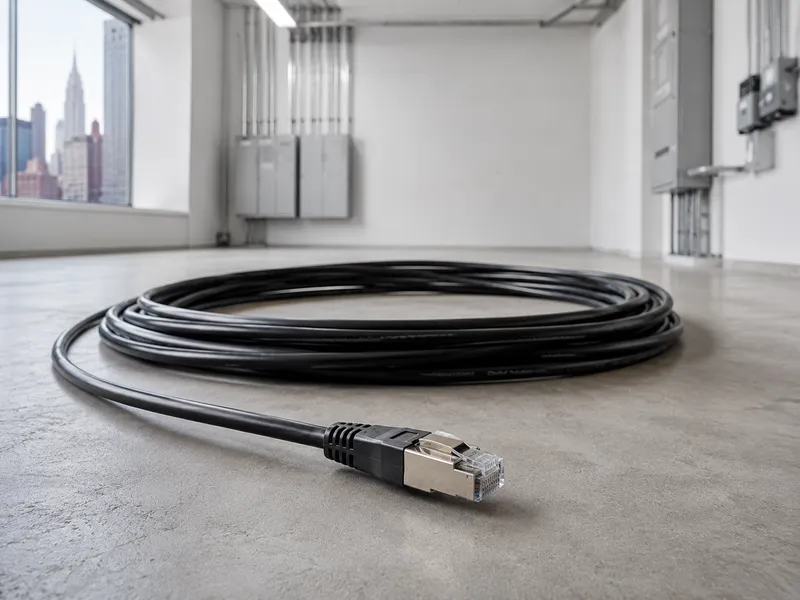

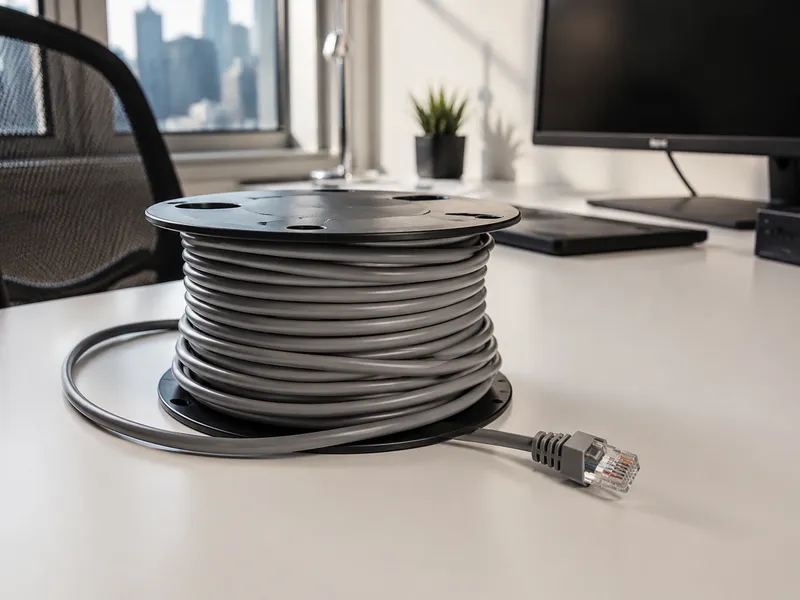

- Cat6 and Cat6a: The standard for data networks — 1 Gbps up to 100 meters, with Cat6a handling 10 Gbps at the same distance under TIA/EIA-568-C.2.

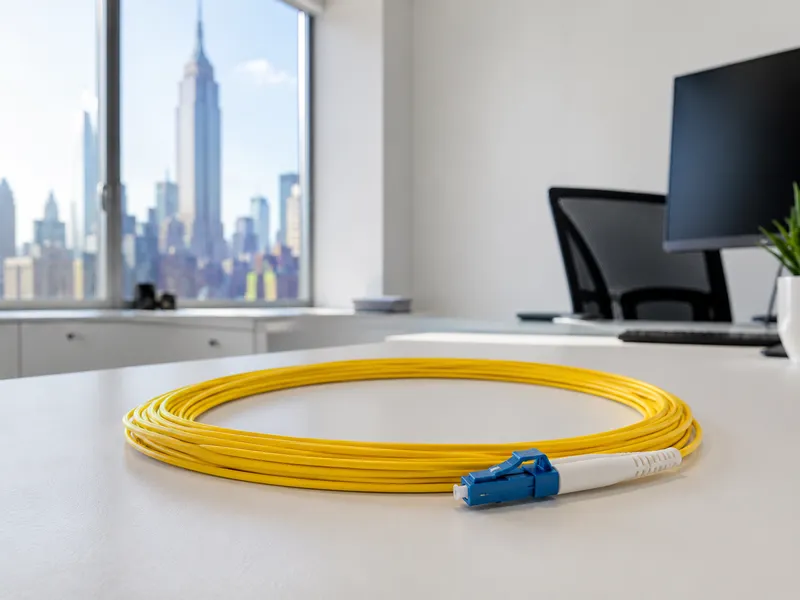

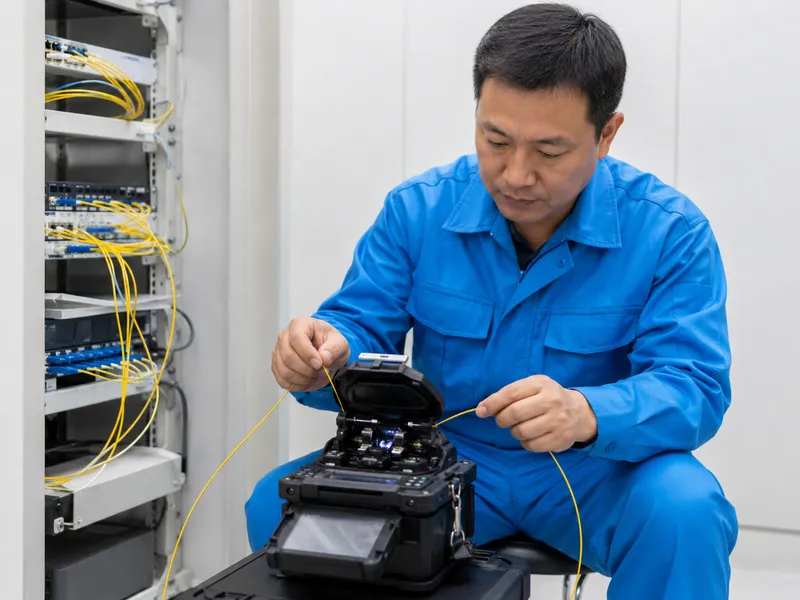

- Fiber optic: Singlemode (OS2) for backbone runs between floors or buildings; multimode (OM3/OM4) for shorter high-speed links within a floor.

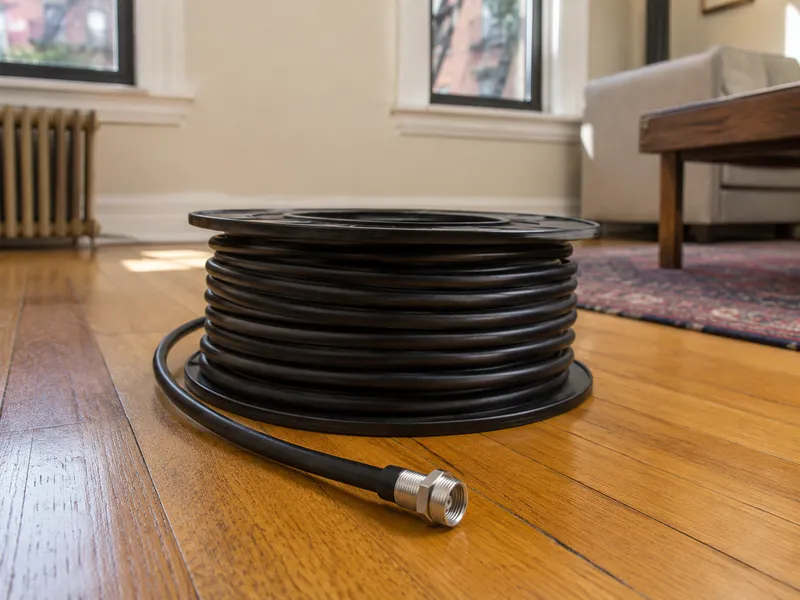

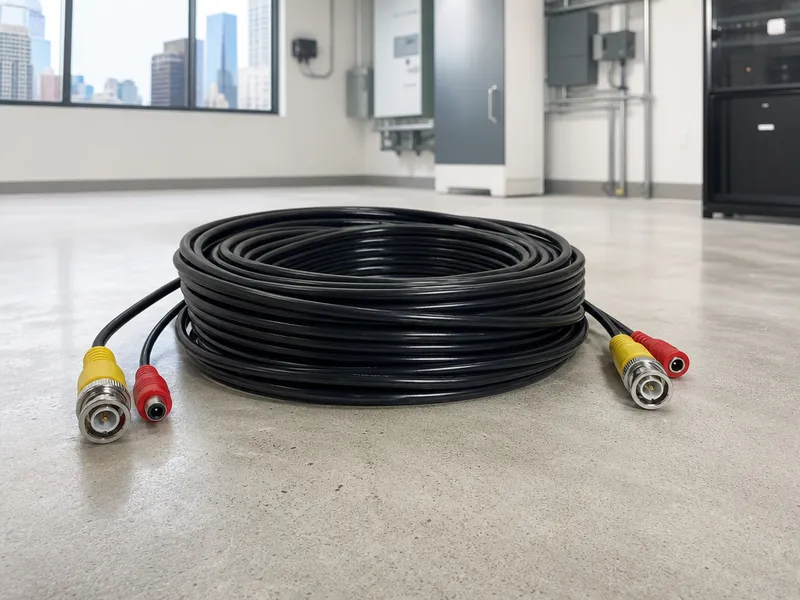

- Coaxial cable: RG6 for cable TV and internet from the ISP demarc; RG59 for older analog security cameras.

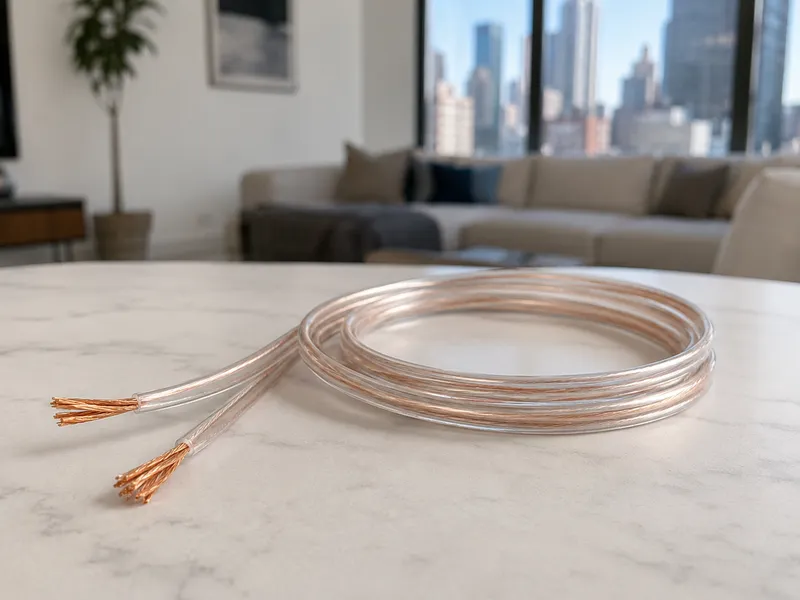

- Speaker wire: 14–16 AWG, CL2 or CL3 rated for in-wall runs to distributed audio zones.

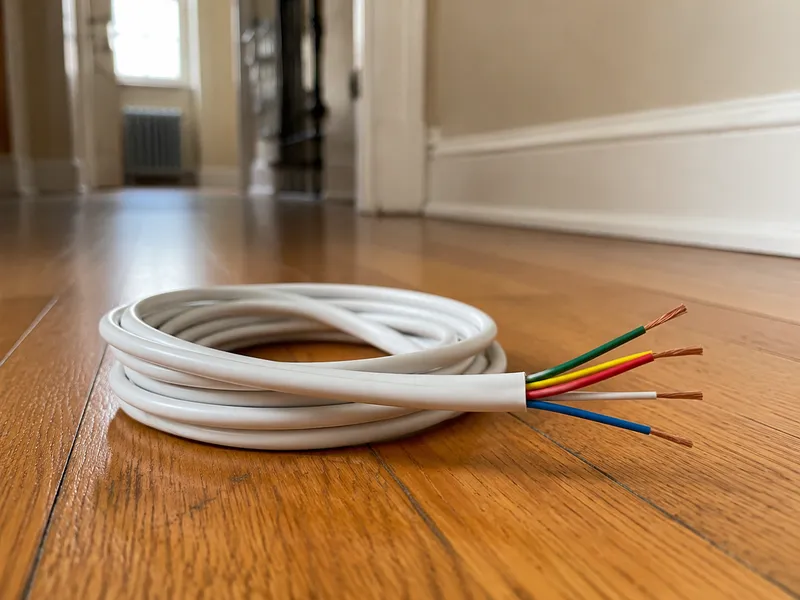

- Thermostat wire: 18/5 or 18/7 for HVAC control — supplies 24V to the thermostat and carries signals to the air handler or boiler.
- Doorbell wire: 18/2 for video doorbells like Ring and Nest — carries 16–24V AC from the transformer.
In NYC apartments, most homeowners don’t realize their video doorbell and smart thermostat already use low voltage wiring — but adding Cat6 drops during a renovation saves thousands in retrofit costs later.
How is low voltage wiring different from standard electrical wiring?
Low voltage wiring operates at 50V or less under NEC Class 2 and doesn’t require a Master Electrician license to install — unlike 120V/240V circuits that power your outlets, lights, and appliances. We handle both low voltage cabling and any line voltage work needed alongside it, with our NYC Master Electrician license covering the high-voltage side. The key distinction comes down to power limitation: NEC Class 2 circuits are limited to 100VA, so there’s no arc-flash risk or heavy-gauge conduit requirement. That’s why a Cat6 drop can run through a wall cavity with a simple low-voltage bracket, while a 120V outlet needs a junction box, conduit, and a licensed electrician. A common mistake is running Cat6 parallel to electrical lines without maintaining 12-inch separation — the electromagnetic interference can drop your network speed from 1 Gbps to under 100 Mbps.

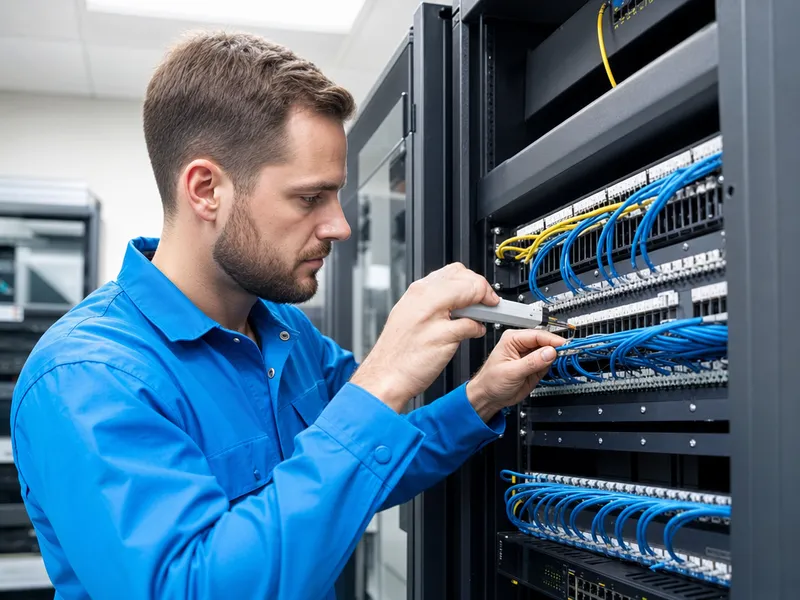

What is structured cabling and why is it important?
Structured cabling is a TIA/EIA-568 standardized system with patch panels and horizontal runs to each outlet. It replaces messy point-to-point wiring with organized, scalable infrastructure — essential for NYC apartments and commercial spaces.
What’s included in a structured cabling system?
| Component | Function | Typical NYC Location |
|---|---|---|
| Patch panel | Central termination point for all horizontal cables | Utility closet, basement, or media cabinet |
| Cat6 horizontal cabling | Connects patch panel to each work area outlet | Runs through ceiling, walls, or conduit |
| Keystone jacks | Female RJ45 connectors at each outlet | Wall plates in every room |
| Fiber backbone | High-speed link between floors or buildings | Riser shafts or cable trays |
| PoE switch | Powers devices over Cat6 — cameras, access points | Next to patch panel in network closet |
Why choose structured cabling over point-to-point wiring?
Structured cabling beats point-to-point wiring because every outlet runs back to a central patch panel — moves, adds, and changes become a simple re-patch instead of pulling a new line through the wall. We install TIA/EIA-568-C.2 compliant structured cabling and certify every drop with a Fluke tester. The star topology means a single failed cable takes down one outlet, not the whole network. In NYC co-ops and condos, pre-wired Cat6 to every room boosts resale value — new owners don’t need to open walls for smart home or high-speed internet.
Can you install Cat6 cabling in my NYC apartment?
Yes — Cat6 is the standard for NYC apartment network installations. We run cable from the ISP entry point to a router, then drops to each room. Pre-war and modern buildings require different approaches.

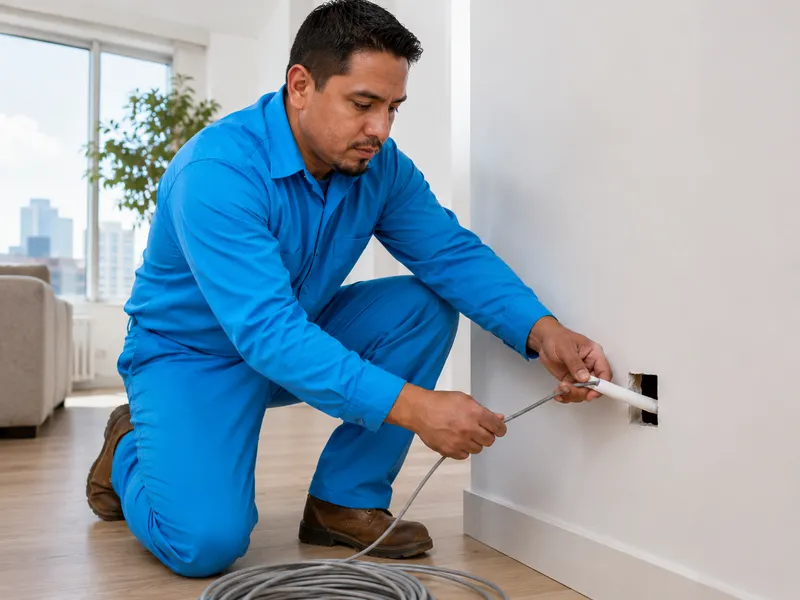

How do you run Cat6 in a modern NYC apartment?
- Path planning: We map the route from your ISP entry point to a central patch panel location, then plan individual drops to each room — 4–6 drops for a typical 1-bedroom.
- Cable pulling: Through accessible ceilings or drywall, we pull Cat6 using fish tape or glow rods, leaving a 3–5 foot service loop at each end. Each drop takes 30–60 minutes.
- Termination: Both ends get punched down to keystone jacks using the T568B standard, then mounted in wall plates. We label every jack at source and destination.
- Certification: Every drop is tested with a Fluke DSX-5000 cable analyzer — verifying continuity, wiremap, length, NEXT, and return loss. Results are documented.
- Time-saver for modern buildings: If the builder ran empty conduit from the basement to your apartment, we can pull Cat6 through it in under 15 minutes per drop instead of cutting into walls.
What does a Cat6 installation include?
- Site survey: We inspect the cable path, check wall construction (drywall vs plaster), locate existing conduit, and verify access points — typically 15–20 minutes.
- Cable pulling and termination: Solid copper Cat6 (never CCA) is run through walls or ceilings, terminated with T568B keystone jacks, and fitted with wall plates at every outlet.
- Fluke certification: Every drop is tested with a Fluke DSX-5000 — verifying wiremap, length, NEXT, PSNEXT, and return loss. You get documented results.
- 1-year warranty: All parts and labor are covered for 365 days. If a drop fails certification or develops a fault, we return and fix it at no charge.
- Why solid copper matters: CCA (Copper-Clad Aluminum) violates TIA/EIA standards, fails certification, and creates a fire hazard in wall cavities — we only use solid copper Cat6.
Do you offer low voltage wiring for smart home systems?
Yes — we install wiring for all major smart home systems. Typical bundle per media location includes 2x Cat6, 2x coax, and 2x speaker wire. We support Lutron, Sonos, Control4, Ring, Nest, and Ecobee.

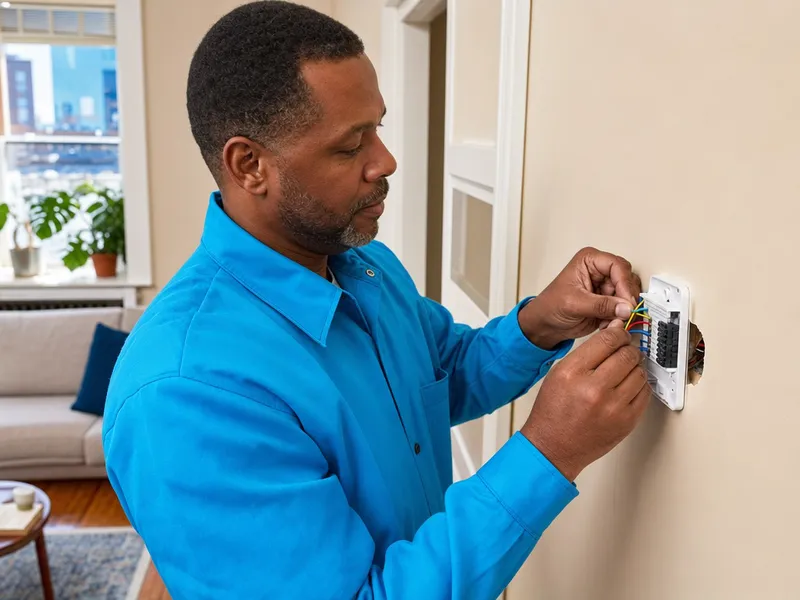

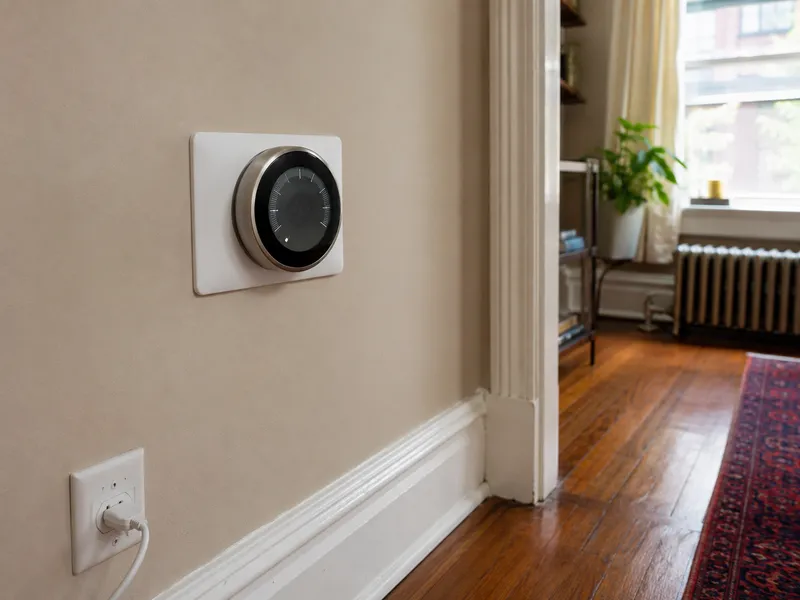

What wiring do smart thermostats and video doorbells need?
Smart thermostats like Nest and Ecobee need a 24V C-wire (typically 18/5 thermostat wire), while video doorbells from Ring and Nest require 16–24V AC doorbell wire — both are low voltage and easy to retrofit in most NYC apartments. The most common call I get for smart thermostats is “it keeps losing Wi-Fi.” Ninety percent of the time the issue isn’t the thermostat — it’s the existing 2-wire setup without a C-wire. We fix that in under 30 minutes by running a new 18/5 cable. If you’re planning smart home wiring NYC, adding a C-wire now saves a service call later.

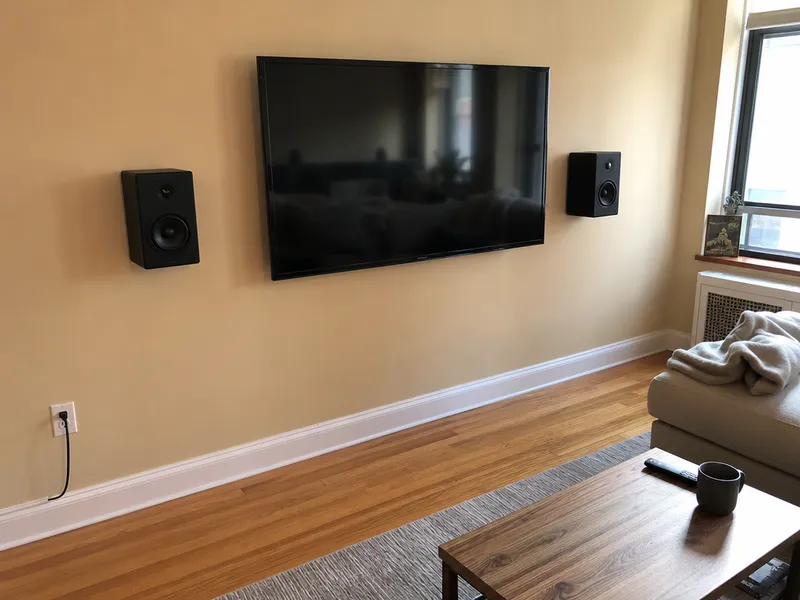

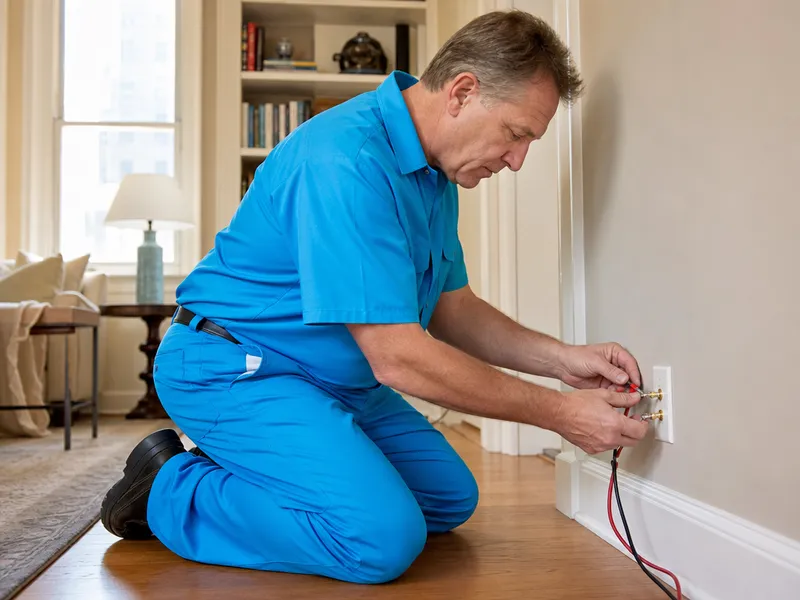

How do you wire smart lighting and multi-room audio?
| Smart Home System | Wiring Required | Typical NYC Installation |
|---|---|---|
| Lutron Caséta / RadioRA | Cat5e/Cat6 for wired keypads + 18/2 for shades | Media cabinet with structured panel |
| Sonos multi-room audio | Cat6 for network + 14 AWG speaker wire per zone | Central amp location, speaker wire to each room |
| Control4 / Crestron | Cat6 for controllers + 18/4 for keypads + speaker wire | Structured cabling to head-end rack |
| Ring / Nest doorbells | 18/2 doorbell wire (16–24V AC) | From transformer to door location |

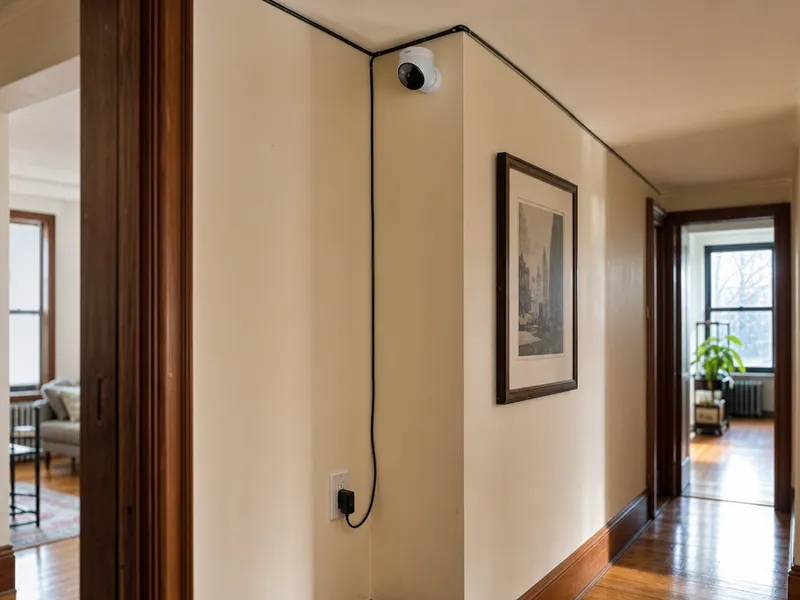

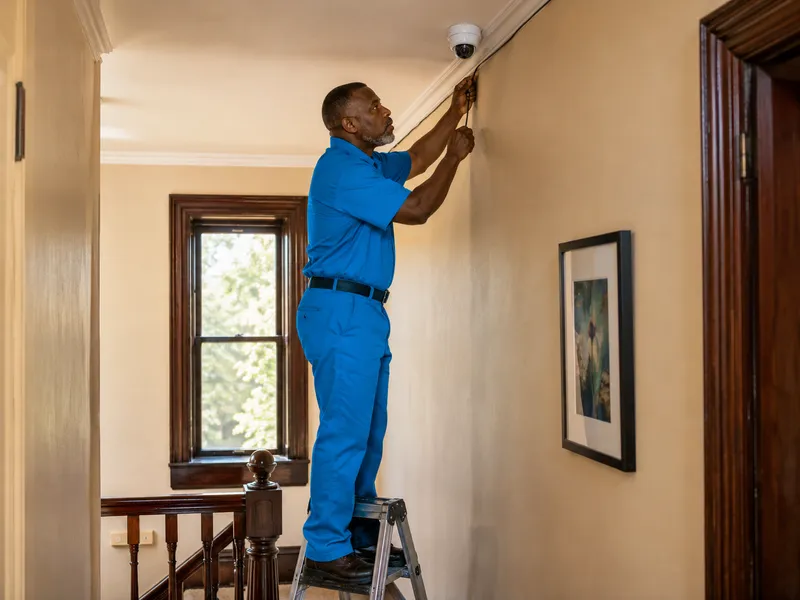

Do you provide low voltage wiring for security cameras?
Yes — we install wiring for IP security cameras (PoE) and analog cameras. PoE advantage: a single Cat6 cable carries data and power. Supported brands include Hikvision, Dahua, Axis, Ubiquiti, Ring, and Nest.
What cable do IP security cameras need?
IP security cameras use Cat6 cable with Power over Ethernet (PoE) — a single cable delivers both data and power, supporting 802.3af (15.4W) for basic cameras and 802.3at (30W) for PTZ models. We run Cat6 from each camera to a PoE switch at the NVR location. Cameras from Hikvision and Dahua typically draw 8–12W, while Axis PTZs with heaters can pull the full 30W. Outdoor cameras in NYC need outdoor-rated Cat6 (CMX/CMR) or conduit — I’ve seen standard plenum cable jacket crack within a year on exposed rooflines, causing intermittent connection loss that’s hard to trace. For security camera wiring NYC jobs, the outdoor-run decision is the most common mistake we correct during site surveys.
How many cameras can you wire in a typical NYC apartment?
- Typical install: 4–8 cameras with Cat6 drops to a central PoE switch and NVR — the whole job runs 2–4 hours including cable routing, termination, camera mounting, and system testing.
- Co-op and condo rules: Common area camera runs need board approval and may require fire-rated cabling through risers — we handle the paperwork and code compliance so you don’t get fined.
- Pre-war building factor: Plaster-and-lath walls add 15–20 minutes per drop for glow-rod work and firestopping every penetration with intumescent putty.
Can you run low voltage cable through walls in a pre-war building?
Yes — but pre-war buildings with plaster-and-lath walls, no conduit, and firestops at every floor penetration require specialized techniques that add 30–60 minutes per drop compared to modern construction.
What makes pre-war buildings different for cable runs?
- Plaster-and-lath walls: These crack and crumble under steel fish tape — we use glow rods exclusively; they’re flexible, non-conductive, and won’t shatter a century-old wall surface.
- No conduit pathways: Cable must be secured to joists or studs every 4.5 feet per NEC 725.136 using J-hooks — you can’t just drop a line through an empty chase.
- Firestops at every floor: Each penetration through a fire-rated assembly needs intumescent sealant afterward, adding roughly 10 minutes per hole for proper firestopping.
- Shared wall cavities: These often hide old knob-and-tube wiring, gas pipes, or asbestos — we run a borescope inspection before drilling to identify hazards.
- Extra labor per drop: Expect 15–30 minutes additional time per cable run compared to a modern drywall building with conduit.
How do you handle firestopping in pre-war buildings?
Every penetration through a fire-rated assembly in a pre-war building must be sealed with intumescent putty or fire-rated caulk to maintain the building’s fire rating — we use firestop sealant at every hole we drill and document each penetration for the building management. The NYC Building Code requires that any opening created for cable routing be restored to its original fire-resistance rating. In the field, I’ve seen co-op boards reject a contractor’s work because they used standard caulk instead of intumescent sealant — which means cutting the wall open again to fix it. So we photograph and label every firestop before we close up the wall, giving the board a clear record of compliance.
Do you repair existing low voltage wiring?
Yes — we diagnose and repair existing low voltage wiring for Cat5e, Cat6, Cat6a, coaxial, speaker wire, thermostat wire, and doorbell wire in all five NYC boroughs. Here is what we fix and how the process works.
What types of low voltage wiring faults do you fix?
- Damaged RJ45 plugs: A bent pin or broken tab kills the connection — we cut off the plug and re-terminate with a new 8P8C connector, about 10 minutes per end.
- Loose keystone jacks: Pairs that weren’t fully punched down cause intermittent drops — we re-punch using a 110 impact tool, restoring continuity without replacing the jack.
- Cut cables and rodent damage: Mice chew through Cat6 jacket because the PVC insulation smells like food-grade plastic — a single chewed pair can drop your connection from 1 Gbps to 100 Mbps, and we either splice accessible sections or replace the entire drop.
- Water damage and broken wall plates: Leaks corrode copper pairs inside the jacket — we cut back to dry cable, re-terminate, and install a new wall plate with a low-voltage bracket.
Each repair takes 30–60 minutes, and we use a Fluke cable tester to identify opens, shorts, split pairs, and NEXT failures before we touch a tool. Rodent damage is surprisingly common in NYC basements and crawl spaces — if you’re seeing intermittent drops in a pre-war building, that’s the first thing we check.
Do you offer free diagnostics for low voltage wiring repairs?
We offer a free diagnostic when you book the repair — our technician brings a Fluke cable tester, identifies the fault type and location, and provides a fixed-price quote before any work begins. If you proceed with the repair, the diagnostic is included at no charge. A surprising number of “dead outlets” are just loose keystone jacks that need re-punching — that’s a 10-minute fix that costs nothing if you’re already having other work done, but most electricians charge a full service call for it.
Do you handle low voltage wiring for commercial spaces?
We provide low voltage wiring for NYC commercial spaces: offices, retail stores, restaurants, warehouses, medical offices, schools, and co-working spaces. The scope covers structured cabling, fiber backbone, access control, security cameras, and AV systems.
What permits and codes apply to commercial low voltage work?
- DOB permit: Required for new commercial low voltage systems in NYC — we handle the application and inspection scheduling.
- NYC Electrical Code: The 2025 code (based on NFPA 70, 2020) governs all installations; plenum-rated cable is mandatory in air-handling spaces.
- Firestop compliance: Every penetration through a 1-hour or 2-hour rated assembly needs intumescent sealant with a specific fire-rating label — not generic caulk.
- Our role: We pull all required permits, use plenum-rated CMP cable where code demands it, and document every firestop for the building’s records.
How long does a commercial low voltage installation take?
A typical install — 50 Cat6 drops, patch panels, cable trays, and a fiber backbone — runs 1–2 days, including termination, testing, and labeling. Larger projects with 200+ drops plus access control and security cameras take 3–5 days. The real bottleneck isn’t the cabling — it’s coordinating after-hours building access and elevator service. We schedule commercial work during off-hours to avoid disrupting tenants, which keeps the timeline predictable even in busy Manhattan high-rises.
Low Voltage Wiring: The Bottom Line for Your NYC Project
Main takeaways
Low voltage wiring is the invisible infrastructure that powers modern NYC living — from high-speed internet and smart thermostats to security cameras and multi-room audio. Whether you’re in a pre-war brownstone with plaster-and-lath walls or a new commercial build requiring structured cabling and DOB permits, the key is working with a team that understands both the technology and the local building codes. The right installation means every drop is certified, every penetration is firestopped, and every cable is labeled for future troubleshooting. A well-planned low voltage system pays for itself in reliability, resale value, and the ability to add new devices without tearing open walls.
