What size sump pump do I need for my NYC basement?
Pump sizing depends on your basement’s water volume, the vertical lift the pump must overcome, and your existing pit dimensions — we assess all three during a free site visit.
1/3 HP vs 1/2 HP sump pump — which is right for your basement?
| Pump size | Capacity at 10′ head | Best for | Common NYC application |
|---|---|---|---|
| 1/3 HP (Zoeller M53 or equivalent) | 2,500–3,000 GPH | Standard basements with moderate water intrusion | Manhattan high-rise basements, smaller brownstone cellars |
| 1/2 HP (Zoeller M63 or equivalent) | 3,500–4,500 GPH | Larger basements, high water table, french drain systems | Brooklyn brownstones, Queens flood-zone basements |
How we size your sump pump during the site visit
- Vertical head measurement: We measure from pump discharge to the exterior discharge point — NYC basements typically have 8–10′ of head, which determines the pump’s effective GPH at that lift.
- Water intrusion assessment: We check for perimeter drains, french drain tie-ins, and visible seepage patterns — a house with active french drains needs 50% more capacity than one with a single floor drain.
- Pit size check: We verify your existing pit is at least 18″ in diameter — undersized pits cause short cycling and premature pump failure within 2–3 years.
- Electrical verification: We confirm a dedicated GFCI circuit is available — the pump should be on its own 15-amp circuit, not sharing with other basement loads.
Why pit size matters for pump performance
A sump pit that’s too small — common in older NYC basements with 12–14″ diameter pits — forces the pump to cycle every 2–3 minutes during rain, which wears out the motor and float switch prematurely. The pump activates the moment a small volume of water enters, runs briefly, then shuts off, repeating hundreds of times per storm. That constant start-stop stress burns through the start capacitor and motor windings faster than continuous operation would. A properly sized pit (18″ minimum diameter × 24″ deep) stores enough water to give the pump a reasonable run cycle of 30–60 seconds, reducing wear by a factor of 10. We’ve seen undersized pits cause pump failure within 2 years — upsizing to 18″ during installation prevents this and costs only $200–500 if a new pit is needed.
Do you need a permit for sump pump installation in NYC?
NYC requires a DOB permit for sump pump installation because it alters the plumbing system, and only a licensed master plumber can pull that permit. Here is what you need to know about the process.
When is a NYC DOB permit required for sump pump work?
- Full installation — permit required: Installing a new sump pump with a new pit or a new discharge line always needs a NYC DOB permit — this counts as altering the plumbing system under the NYC Construction Codes.
- Replacement in the same spot — may not need a permit: Swapping an existing pump with the same model, same pit, and same discharge routing is often treated as a repair — but the moment you enlarge the pit, relocate the discharge line, or add a backup pump with a separate line, you cross into permit territory.
- Who pulls the permit: Only a NYC DOB Licensed Master Plumber can file the permit — homeowners cannot self-permit for plumbing work in NYC, and the DOB filing fee typically runs $50–$150.
- Consequences of skipping the permit: DOB fines can reach $5,000, a stop-work order can halt your entire basement project, and your homeowners insurance may deny a flood claim if unpermitted work is discovered after a loss.
- Inspection after installation: DOB may schedule an inspection once the work is complete — the master plumber who pulled the permit must be present, and the sump pump must discharge in compliance with NYC DEP rules.
Who can pull the permit and what does it cost?
Only a NYC DOB Licensed Master Plumber can pull the permit for sump pump installation — homeowners cannot self-permit for plumbing work in NYC, and the DOB filing fee typically runs $50–$150. We include that filing fee in our installation quote so there are no surprises at the permit counter. And when DOB schedules the required post-installation inspection, our master plumber is on-site with the permit card and the as-built discharge routing diagram. In my experience, the $50–$150 filing fee is a small hedge against the $5,000 fine you’d face for skipping it — and it keeps your insurance valid if the basement floods during a Nor’easter.
NYC DEP discharge regulations you need to know
NYC DEP prohibits discharging sump pump water onto sidewalks or streets — fines can reach $2,500 — and groundwater must not be routed into the sanitary sewer system. The DEP regulates this because stormwater overloads the combined sewer system during heavy rain, which is what triggers basement backups in neighborhoods like Park Slope and Astoria. Most NYC installations discharge into a dry well buried in the yard (a perforated container that lets water percolate into the soil) or into a storm sewer with a separate DEP permit. On brownstone jobs I’ve done in Carroll Gardens, the dry well was the only viable option — the combined sewer line was already at capacity during a 2-inch rain.

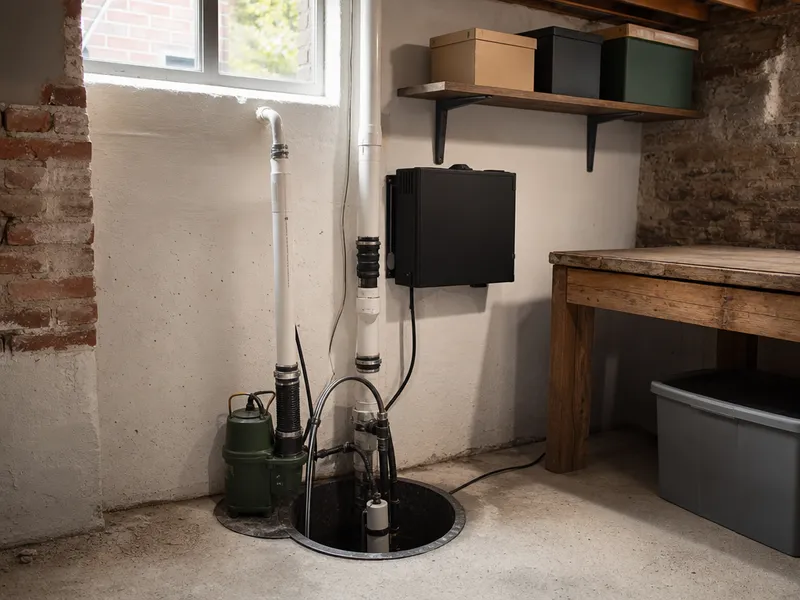

Can you install a sump pump in a Brooklyn brownstone?
Brooklyn brownstones present unique installation challenges — fieldstone foundations, limited headroom, and high water tables — but we have done hundreds of these installations across Park Slope, Carroll Gardens, and Cobble Hill.
What makes brownstone basements different for sump pump installation?
- Ceiling height: Most brownstone basements have 6–8′ ceilings, which means we excavate the sump pit with a mini-jackhammer and remove dirt by the bucket — no standing room for a full-size concrete saw.
- Foundation walls: Fieldstone and brick foundations leak water through mortar joints during heavy rain; the french drain we install along the footing directs that groundwater to the sump pit instead of letting it pool on the floor.
- Existing perimeter drains: Many brownstones have original clay tile drains that are crushed or clogged with silt — we snake them, install a new perforated pipe liner, and tie the whole run into the new pit.
- Narrow stair access: The typical brownstone stairwell is 28–30″ wide — we bring the pump, PVC pipe, and gravel in pieces and assemble everything in the basement, something national chains with single-truck crews often cannot manage.
- High water table: In flood-prone blocks near the Gowanus Canal or the East River, the water table sits 4–6′ below grade — a sump pump Brooklyn installation here needs a 1/2 HP unit with a battery backup because the pit fills fast.
Recommended pump setup for Brooklyn brownstones
| Component | Recommended model | Price range | Why it works for brownstones |
|---|---|---|---|
| Primary pump | Zoeller M63 (1/2 HP) | $200–$350 | Cast-iron construction handles continuous duty; 1/2 HP moves water from perimeter drains faster than 1/3 HP |
| Battery backup pump | Basement Watchdog BW1050 | $300–$500 | Automatic charging circuit keeps the 12V battery topped off; activates during power outages common in brownstone neighborhoods |
| Deep-cycle battery | Marine/RV 12V, group 27 or 31 | $100–$200 | Provides 8–12 hours of continuous pumping during a blackout — longer than a standard car battery |
Discharge options for brownstones without yards
Many Brooklyn brownstones have no backyard or only a small patio, so we route the discharge line to the combined sewer — with NYC DEP approval — or install a dry well in whatever outdoor space exists. The combined sewer connection requires a master plumber to tap into the building’s storm line inside the basement, then run the discharge through the foundation wall at least 6″ above grade. For attached brownstones with zero side yard, we have run discharge lines through party walls with the neighbor’s written permission or under front stoops using schedule 40 PVC sleeved in foam insulation to prevent freezing. Every job requires a site-specific routing plan — we have done installations where the only viable path was through a coal chute that had been sealed decades earlier.
What is the best sump pump for NYC basements?
The right pump depends on your basement’s water volume, pit size, and whether you need backup — but we have clear favorites based on NYC conditions.
Zoeller M53 vs M63 — which Zoeller pump should you choose?
| Model | Horsepower | GPH at 10′ head | Price range | Best for |
|---|---|---|---|---|
| Zoeller M53 | 1/3 HP | 2,500–3,000 | $150–$250 | Standard NYC basements with moderate water intrusion |
| Zoeller M63 | 1/2 HP | 3,500–4,500 | $200–$350 | High water table, french drain systems, larger basements |
The Zoeller M53 — our go-to for standard basements — handles typical Brooklyn brownstone water loads with a cast-iron body and vertical float switch. The M63 steps up for properties where a french drain or perimeter drain dumps more volume into the pit. Both use OEM-spec parts and carry our 1-year warranty on parts and labor. For the best sump pump for basement applications across NYC, we lean toward the M53 for most single-family setups and the M63 where the water table sits high — in Queens flood zones, for instance, the extra capacity makes a real difference during nor’easters.

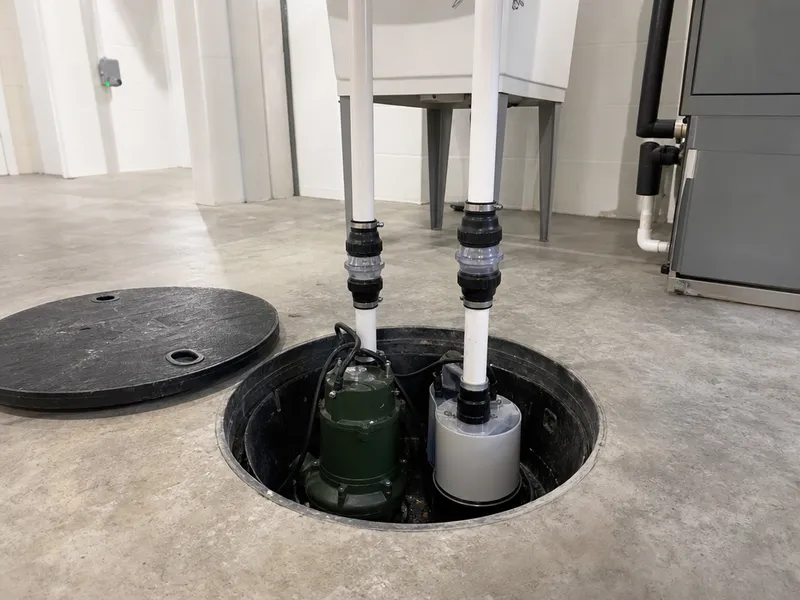

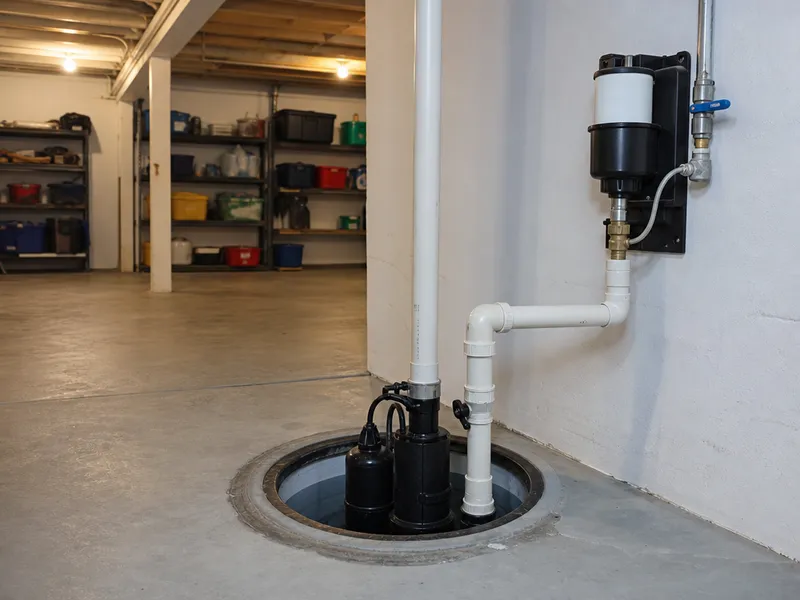

Battery backup vs water-powered backup — which is better for NYC?

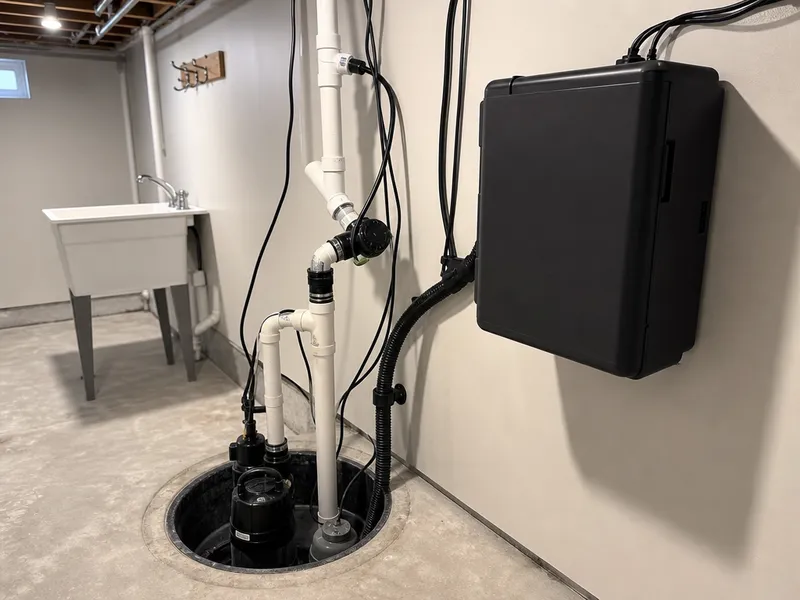

- Battery backup (Basement Watchdog BW1050, $300–$500): Works regardless of water pressure — critical in Manhattan high-rises where pressure drops on lower floors during peak demand. Requires a deep-cycle marine battery replaced every 3–5 years.

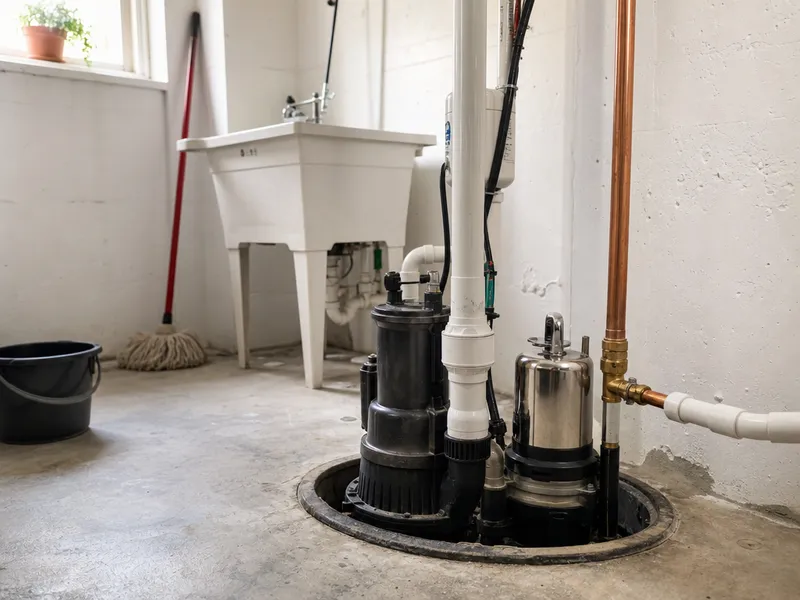

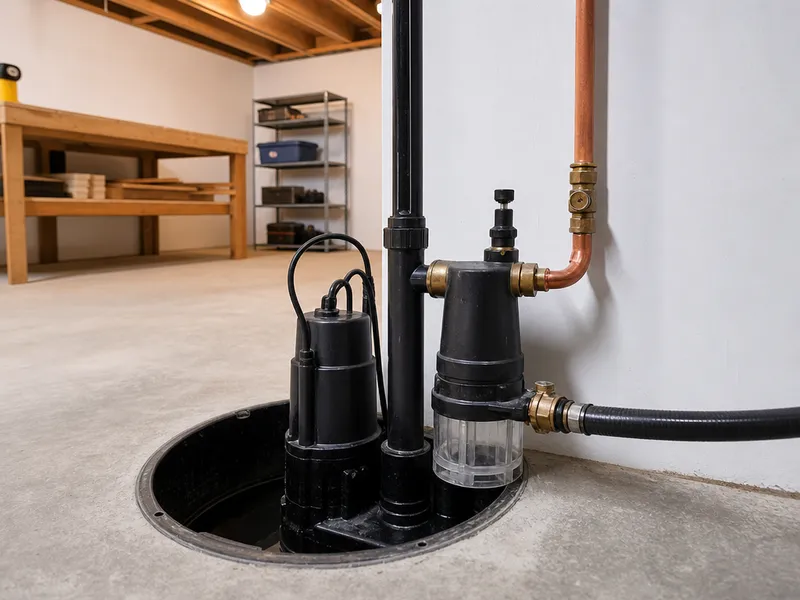

- Water-powered backup (Liberty Pumps SJ10, $200–$400): No battery to maintain, uses NYC’s 40–60 PSI municipal water pressure. Good for buildings where battery access is tight, but won’t work if city water pressure falls below 30 PSI.
- Our recommendation: Battery backup for most NYC basements — power outages during summer storms are common, and the BW1050’s automatic charging circuit keeps the battery topped off without intervention.
Battery backups need a deep-cycle marine battery replaced every 3–5 years — we include battery maintenance reminders with every installation.

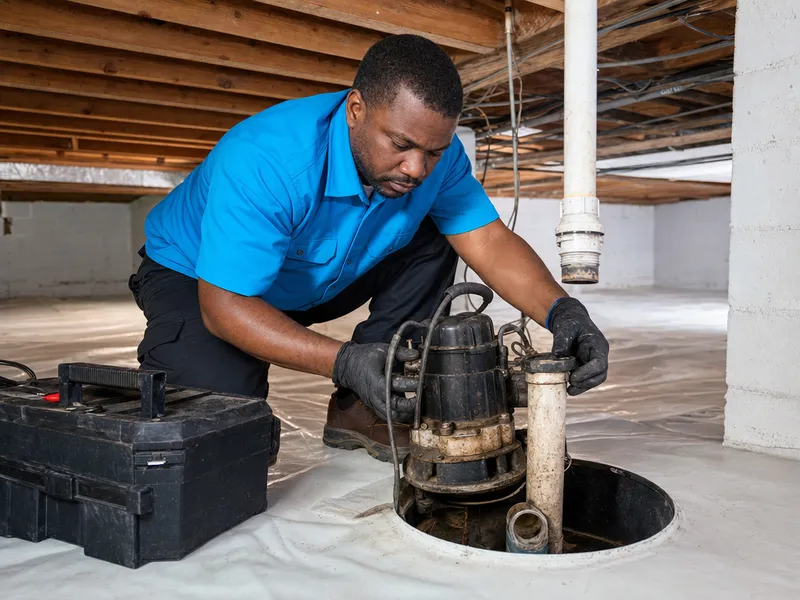

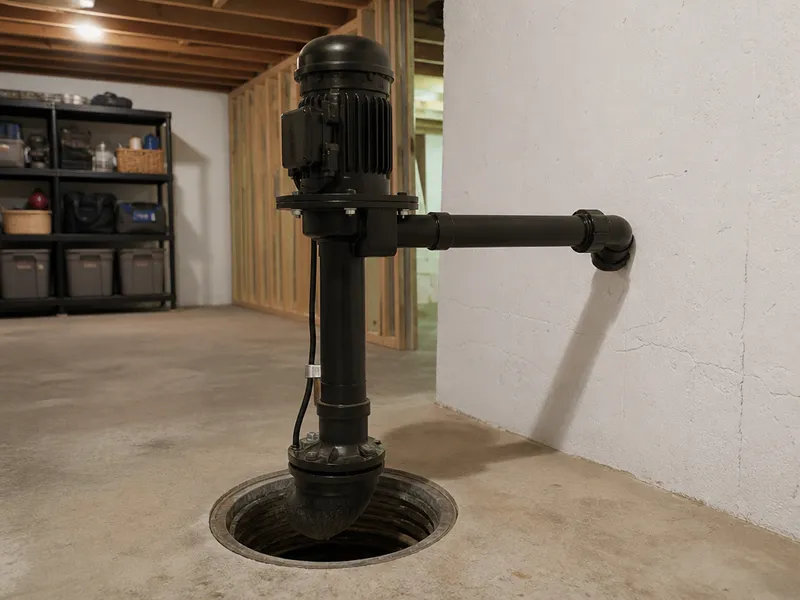

Why we don’t recommend pedestal pumps for NYC basements

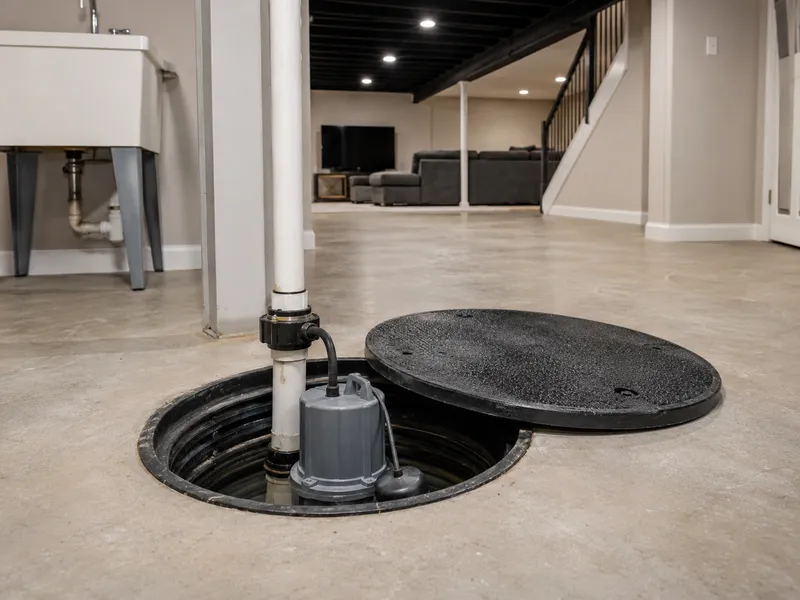

We don’t install pedestal sump pumps in NYC basements because the motor sits above the pit where basement humidity causes corrosion and electrical failures — submersible pumps are quieter, more efficient, and better suited to NYC’s damp basement conditions. In a typical Park Slope brownstone with 70% basement humidity year-round, a pedestal motor’s exposed windings corrode within 2–3 years. Submersible pumps like the Zoeller M53 seal everything inside a cast-iron housing that’s designed to sit in water. Pedestal pumps are also louder and take up floor space — in a tight Brooklyn basement, every inch counts.

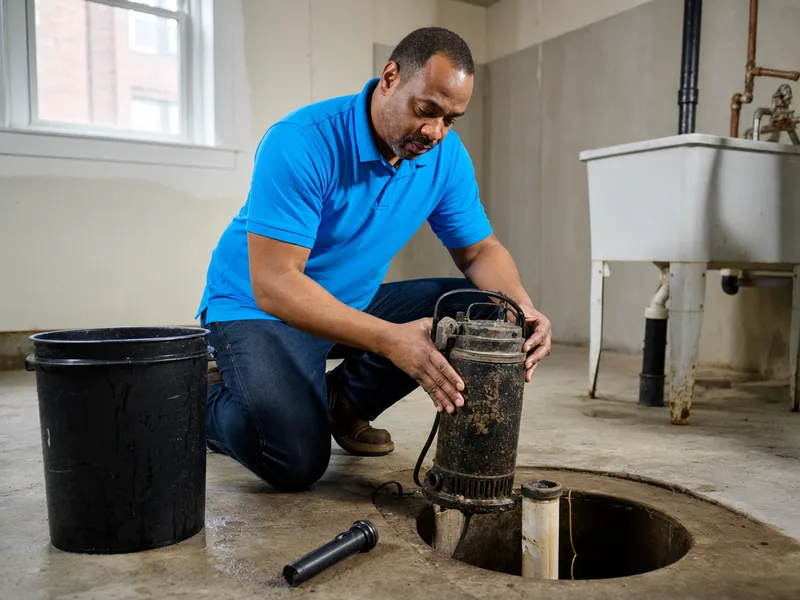

How do I know if my sump pump needs replacement?
Knowing when to replace a failing sump pump before your basement floods saves thousands in water damage. Here are the warning signs and our diagnostic process.
7 signs your sump pump is failing and needs replacement
- Age: Cast-iron pumps (Zoeller) last 7–10 years; plastic pumps (Wayne) last 3–5 years. If yours is past that range, replacement beats repair.
- Grinding or rattling noise: That sound means bearing failure or a seized impeller — the motor is done. A quiet hum with no pumping means the impeller is blocked.
- Short cycling: Pump turns on every 2–3 minutes during dry weather. The check valve likely failed, letting water drain back into the pit.
- Runs continuously during rain: Non-stop operation means the pump is undersized or the discharge line is partially blocked — it can’t keep up.
- Visible rust or corrosion: Heavy rust on the housing, discharge pipe, or electrical connections signals end-of-life. Corroded connections create fire risk.
- Float switch stuck: The tether catches on the pit wall, leaving the pump on or off. A stuck float in the “off” position means no pumping at all.
- Battery backup fails the test: Unplug the primary pump during a storm simulation. If the backup doesn’t kick on, the battery or charger is dead.
We offer a free diagnostic with repair — if we find the pump is failing, we’ll quote the sump pump replacement and credit the diagnostic fee toward the work.
What we check during a free sump pump diagnostic
- Pump operation test: We fill the pit with water and observe the pump’s activation, pumping performance, and shut-off cycle — looking for hesitation or failure to clear the pit.
- Float switch movement: We check that the float rises freely without catching on the pit wall or pump body. Tethered floats in narrow pits are common failure points.
- Check valve inspection: A failed check valve lets water drain back into the pit after each cycle, causing short cycling. We verify the valve holds pressure.
- Discharge line check: We inspect for blockages, frozen sections, or improper slope. A clogged discharge line forces the pump to run against back pressure.
- Pit condition assessment: We measure pit diameter and depth, check for sediment buildup at the bottom, and verify the pump is elevated 2–4 inches off the pit floor.
We’ve caught failing check valves that were causing the pump to run 3x more than necessary — replacing a $25 part saved the customer from a $400 pump replacement.
When to replace vs repair your sump pump
We recommend replacement when the pump is over 7 years old, the motor has seized, or the housing is heavily corroded. Repairs make sense for minor issues like a stuck float switch or failed check valve on a newer pump — those are quick fixes that cost $25–$75 in parts. But a pump that’s been running non-stop for hours during a storm has likely overheated the motor windings. Even if it works now, the damage is done, and replacement is the safer call — you don’t want it failing mid-storm next season.

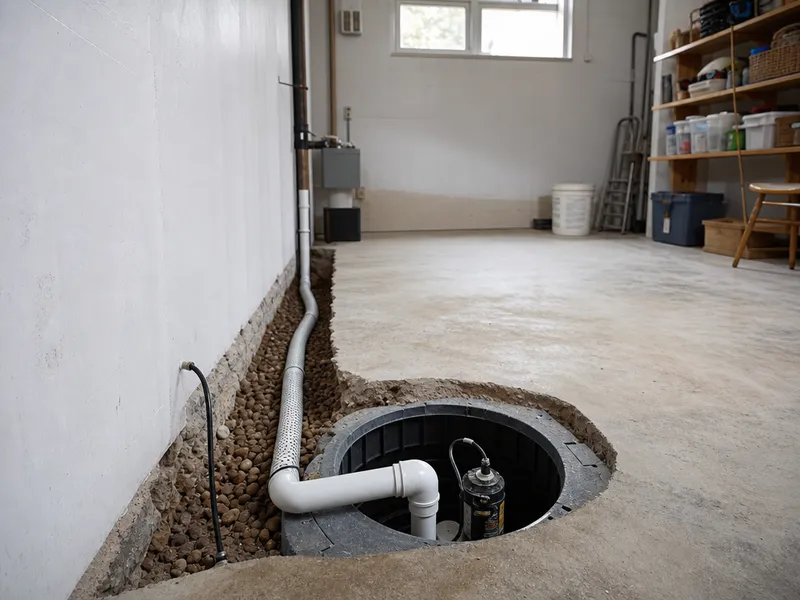

Can you install a sump pump with a french drain?
French drains and sump pumps are complementary systems — the drain collects groundwater and directs it to the sump pit, where the pump removes it. Together they form a complete perimeter water management solution for NYC basements.
How french drain and sump pump work together
- Collection: A french drain trench — 12–18″ wide, 18–24″ deep — runs along the foundation perimeter with 4″ perforated pipe wrapped in filter fabric, sloping ⅛” per foot toward the sump pit.
- Routing: Groundwater enters the perforated pipe through its openings, travels downslope, and terminates at the sump pit — the lowest point in the system — where the sump pump with french drain takes over.
- Discharge: The submersible pump activates when water in the pit reaches the float switch trigger level (typically 6–8″), pumps water through the discharge line, and expels it to an approved exterior point — a dry well or storm sewer with DEP permit.
- Why both matter: A french drain without a pump just fills the pit and overflows during heavy rain, while a pump without a drain only handles the water that naturally seeps through the slab — in our practice, we install both together because the combined system handles the full water load that NYC basements see during nor’easters.
Pump sizing requirements for french drain systems
| Parameter | Standard sump only | With french drain added |
|---|---|---|
| Minimum pump HP | ⅓ HP (Zoeller M53) | ½ HP (Zoeller M63 minimum) |
| Capacity at 10′ head | 2,500–3,000 GPH | 3,500–4,500 GPH |
| Pit diameter | 18″ | 24″ |
| Pit depth | 24″ | 30″ |
| Capacity increase factor | Baseline | +50% |
Combined system cost and permitting
A combined french drain and sump pump installation typically runs $3,000–8,000 depending on the linear footage of drain and depth of excavation — and requires a NYC DOB permit for both the plumbing work and the excavation. The french drain portion ($2,000–5,000) covers trenching, perforated pipe, filter fabric, and gravel backfill, while the sump pump portion ($800–2,500) includes the pit, pump, discharge line, check valve, and electrical connection. We handle both the plumbing and the electrical work in-house, so you have a single contractor for the complete system — no coordinating between a waterproofing company and an electrician, which is the common headache we see in Brooklyn brownstone projects.
Conclusion
Main takeaways for NYC sump pump installation
A properly sized sump pump with a correctly installed discharge line and check valve is the most effective defense against basement flooding in NYC. The right pump depends on your basement’s water volume, pit size, and whether you need backup protection during power outages. NYC requires a DOB permit for any sump pump installation that alters the plumbing system — only a licensed master plumber can pull that permit. Brooklyn brownstones and other older buildings often need larger pumps and french drain integration to handle the water load these foundations see. A free diagnostic can determine whether your current pump needs repair or replacement, and combined french drain and sump pump systems provide comprehensive water management for properties with persistent groundwater issues.
