How to Tell if Your Wiring Needs Upgrading
Most NYC homes over 40 years old have wiring that can’t handle modern electrical loads. Here are the most common visual and functional warning signs to watch for.
What Are the Most Common Signs of Faulty Wiring in NYC Homes?

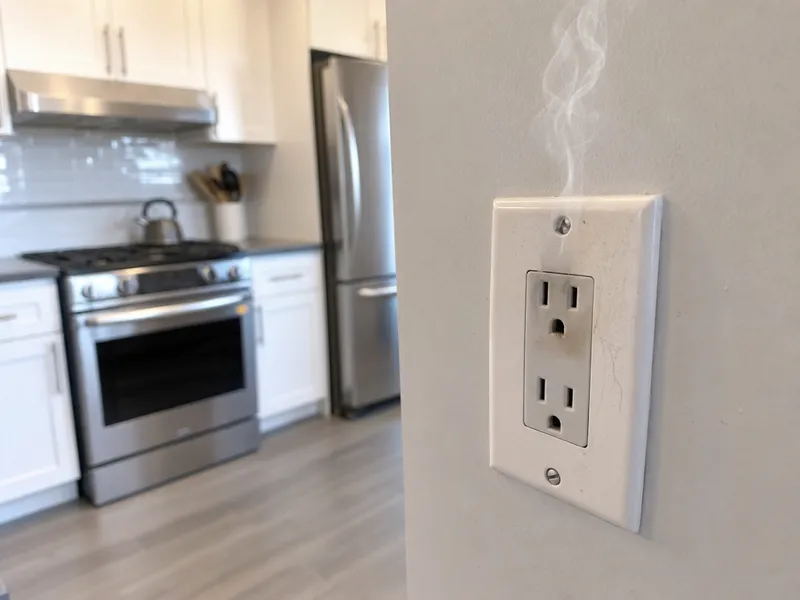

- Burning smell or visible sparks: We see faulty wiring daily in NYC homes — the most urgent signs are a burning smell from outlets, visible sparks, or breakers that trip immediately after resetting. If you smell burning near an outlet, call our 24/7 emergency line — that’s a fire risk that needs immediate disconnect, not a scheduled appointment.

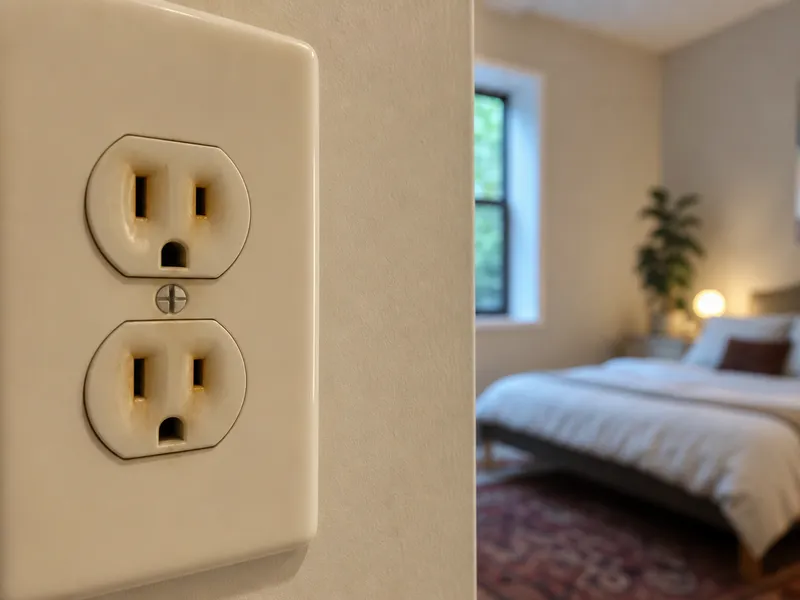

- Hot outlets or switches: Faceplates that feel warm to the touch indicate a loose connection or overloaded circuit behind the wall. This is common in older Manhattan brownstones where original 15A circuits now run a window AC plus a home office.

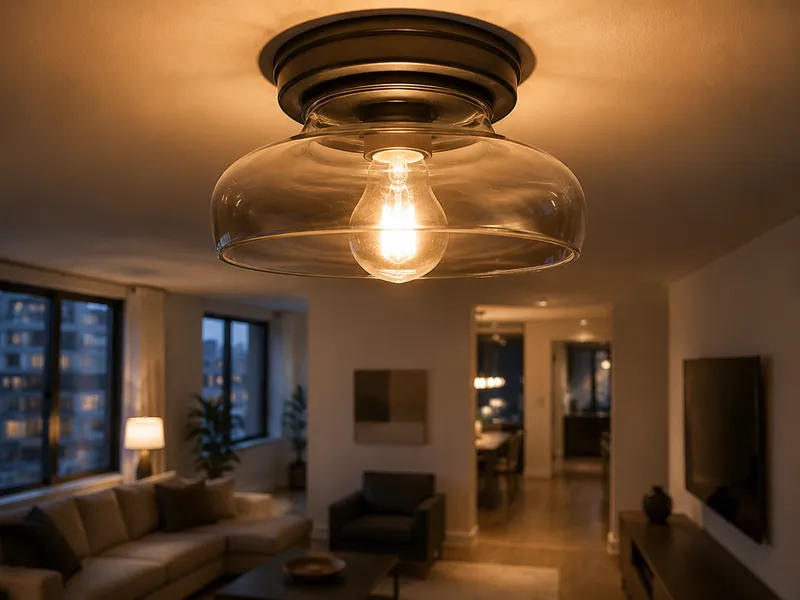

- Flickering or dimming lights: Lights that dip when the refrigerator or AC compressor kicks on point to voltage drop — a sign your service size or branch circuit conductors are undersized for the load.

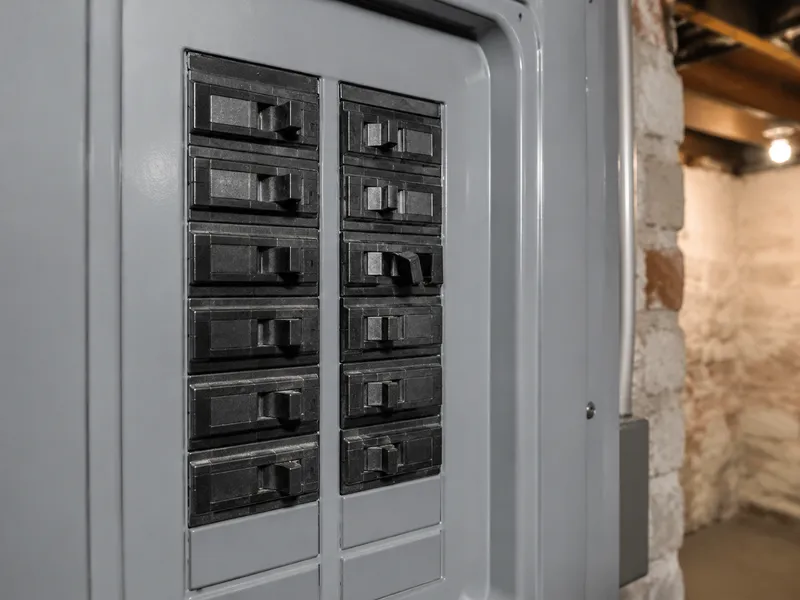

- Frequent breaker trips: A breaker that pops once a month is marginal; one that trips every few days means the circuit is overloaded or there’s a short. We offer 60–90 minute response for emergencies like this.

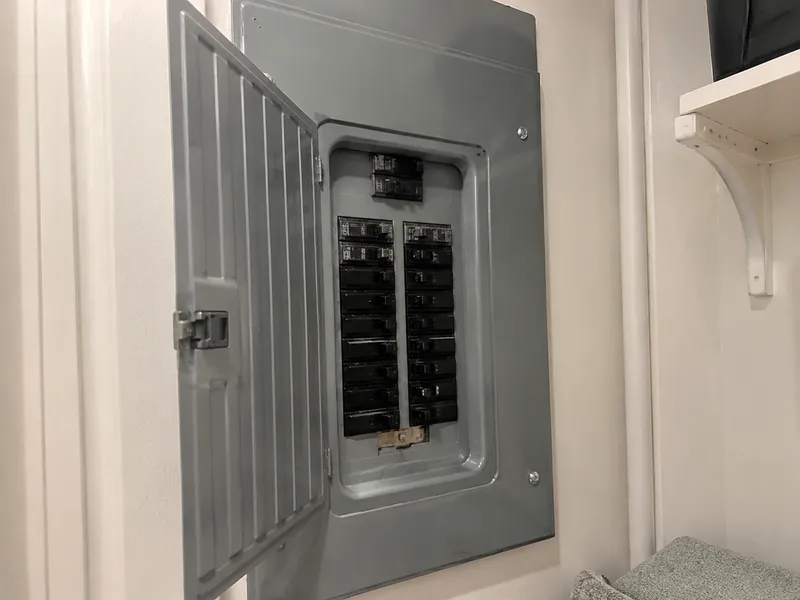

- Buzzing or crackling sounds: Audible noise from outlets, switches, or the panel means arcing inside — a precursor to electrical fires. This warrants immediate service.
How Do You Know if Your Home’s Wiring Is Outdated?
- Building age and wiring type: We check three things: the age of your building (pre-1940 likely has knob-and-tube, 1965–1975 likely has aluminum), your service size (60A can’t handle modern loads), and your panel brand (Federal Pacific or Zinsco are fire hazards).
- Service size limitations: A 60A service in a home with a modern kitchen, central AC, and home office will trip breakers daily — upgrading to 200A eliminates that and enables EV charger installation.

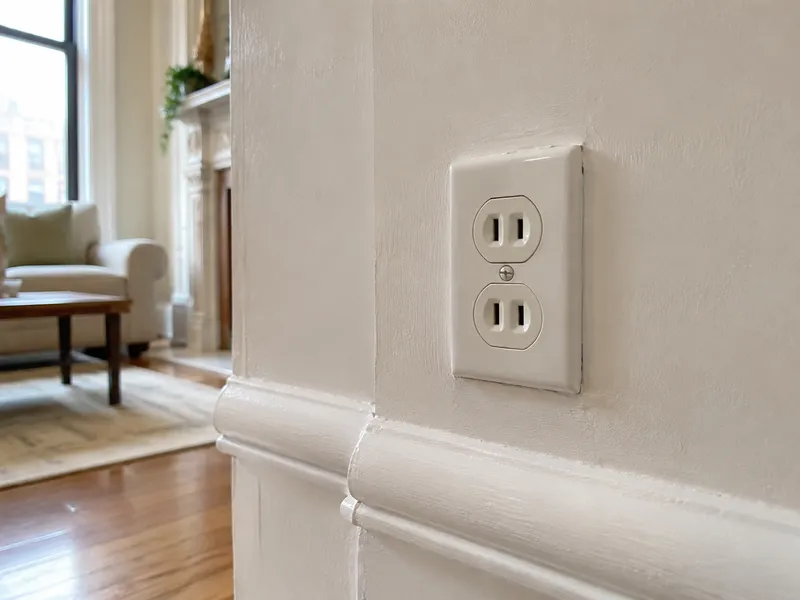

- Ungrounded outlets: Two-prong outlets throughout the home mean no equipment ground. Per code, these must be replaced with GFCI-protected outlets or fully rewired with grounded conductors.
- Extension cords as permanent wiring: Running power strips and extension cords because there aren’t enough outlets is a code violation and a trip hazard — it signals the home needs additional circuits.
- DIY splices visible: Exposed wire nuts without junction boxes, wrong wire colors, or electrical tape wrapped around connections are red flags we find in Brooklyn row houses and Bronx co-ops regularly.

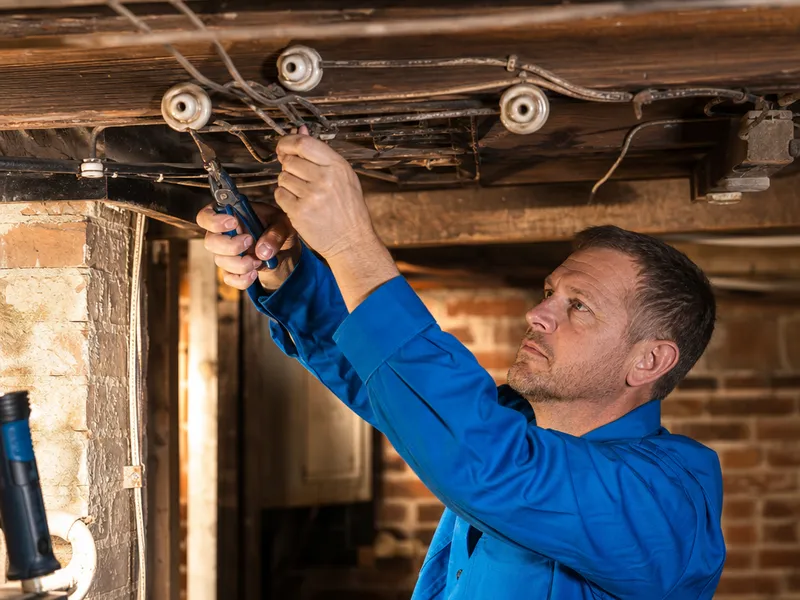

Knob-and-tube vs modern wiring: what’s the difference?

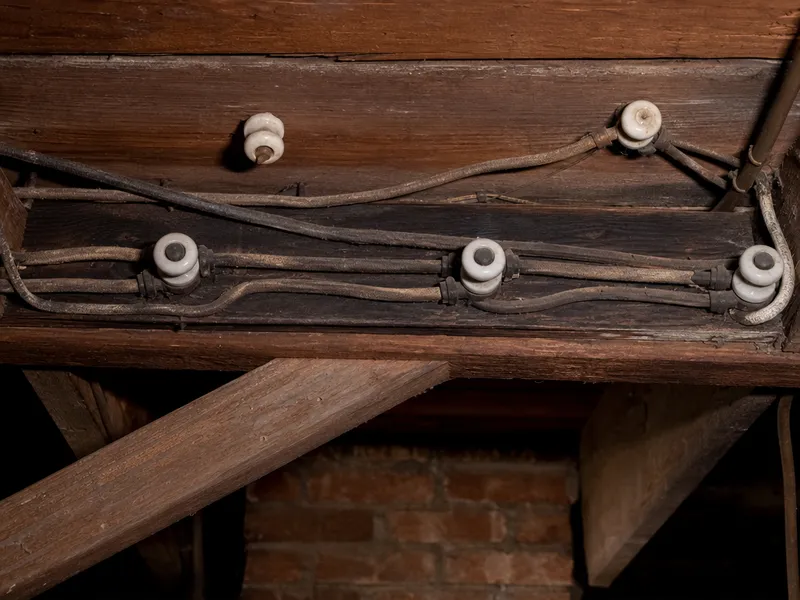

Knob-and-tube wiring was standard in NYC pre-war buildings but is now a fire hazard that must be fully removed per code.
What makes knob-and-tube wiring dangerous?
Knob-and-tube wiring has no ground wire, cloth insulation that crumbles after 80+ years, and is rated for only 15 amps — we replace it in nearly every pre-war brownstone we work on. The rubber wrapping degrades, leaving bare copper exposed inside walls. Homeowners often overload these circuits with modern appliances, drawing 20 amps through 14 AWG wire meant for 15. Splices get buried behind plaster, creating arcing points you can’t see. NYC DOB requires full removal of knob-and-tube during any major renovation — you can’t leave it in place even disconnected, because abandoned wiring still poses a fire risk.
How does modern wiring compare to knob-and-tube?
| Feature | Knob-and-tube wiring | Modern NM-B (Romex) wiring |
|---|---|---|
| Ground wire | None — shock hazard | Integrated ground conductor |
| Insulation | Cloth-wrapped rubber, brittle after 80+ years | PVC jacket, rated for 60°C–90°C |
| Ampacity | 15A max (14 AWG) | 15A (14 AWG) or 20A (12 AWG) |
| Code status | Must be removed per NYC DOB | Current standard |
| GFCI/AFCI compatible | No — no ground path | Yes — required by code |
| Typical lifespan | 80–100 years (deteriorating) | 40–50 years |
What does the NYC Electrical Code require for wiring upgrades?
The 2025 NYC Electrical Code took effect December 21, 2025, and all wiring work must be performed by a Licensed Master Electrician with DOB permits. Here is what the code requires and how we handle compliance.
What are the key NYC Electrical Code requirements for residential wiring?
- AFCI protection: The 2025 NYC Electrical Code requires AFCI breakers on all 15A and 20A branch circuits serving living spaces — bedrooms, living rooms, and dens all need arc-fault protection.

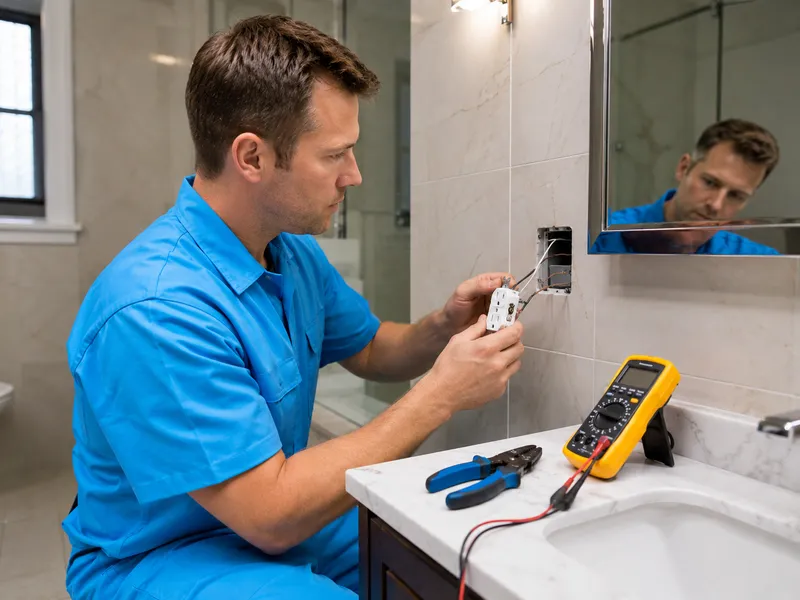

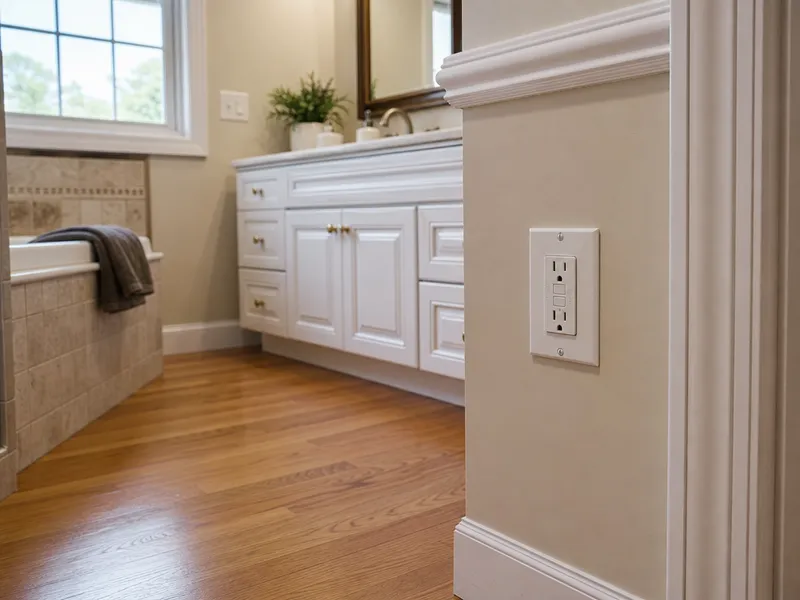

- GFCI outlets: Must be installed within 6 feet of any water source — kitchens, bathrooms, basements, and outdoor locations all require ground-fault protection per NEC Article 210.8.
- Tamper-resistant outlets: Every outlet in living spaces must be tamper-resistant, a requirement that covers bedrooms, hallways, and common areas in NYC residences.
- Conduit in basements: NYC code requires EMT or rigid metal conduit in exposed basement locations — Romex NM-B is permitted only inside finished interior walls.

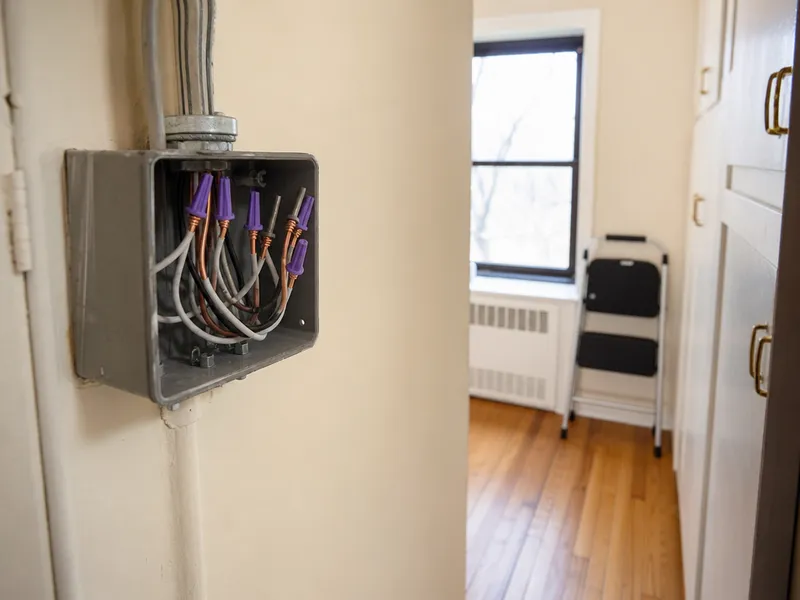

- Accessible junction boxes: Every splice must be inside a junction box with a removable cover that remains accessible — burying boxes behind drywall is a code violation we see in older brownstones.
- NYC Electrical Code requirements from the 2025 update (which replaces the 2011 NEC baseline) mean older homes previously grandfathered may now need upgrades — we check this during every inspection.
What permits and inspections are required for a wiring upgrade?
- DOB permit filing: We handle all DOB permit filings for wiring upgrades — permits are mandatory for panel upgrades, new circuits, service entrance changes, and whole-home rewires.
- Two inspections: A rough-in inspection before drywall closure and a final inspection after all devices are installed; the DOB inspector verifies code compliance at both stages.
- Certificate of Electrical Inspection: NYC DOB issues this final sign-off after the inspector approves the completed work — we deliver it to you as proof of compliance.
- Con Edison coordination: The utility requires 48-hour notice for service disconnect — we schedule this window so your power is off for the shortest possible time.
- Permit fee range: $200–$500 depending on scope, included in our pricing for panel upgrades and full rewires.
What’s included in a full home wiring upgrade
A full home wiring upgrade covers load calculation, service entrance upgrade, a new 200A panel, branch circuit rewiring, and new devices throughout — with all DOB permits and inspections handled start to finish.
What steps are included in a full home wiring upgrade?
- Load calculation and permit filing: We calculate total connected load per NEC Article 220, then file the DOB permit — processing takes 1–3 days through DOB NOW, and the permit fee runs $200–$500 depending on scope.

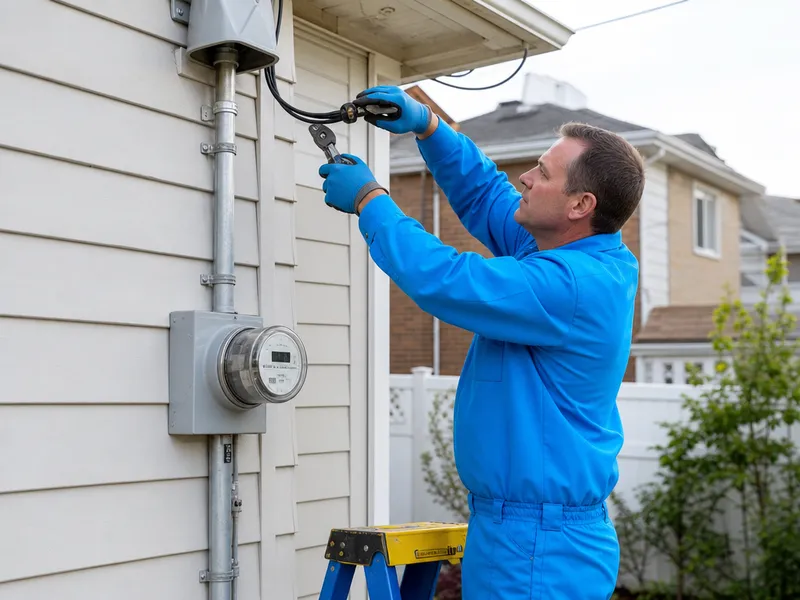

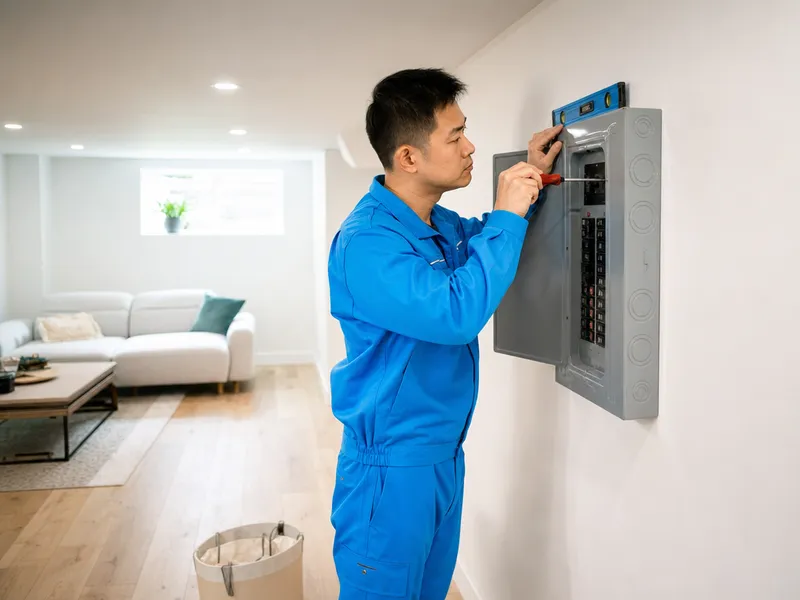

- Service entrance and panel replacement: Con Edison requires 48-hour notice for the service disconnect; we install a new 200A panel, meter socket, main disconnect, and grounding electrode system — the rod must be driven 8 feet into earth per code.

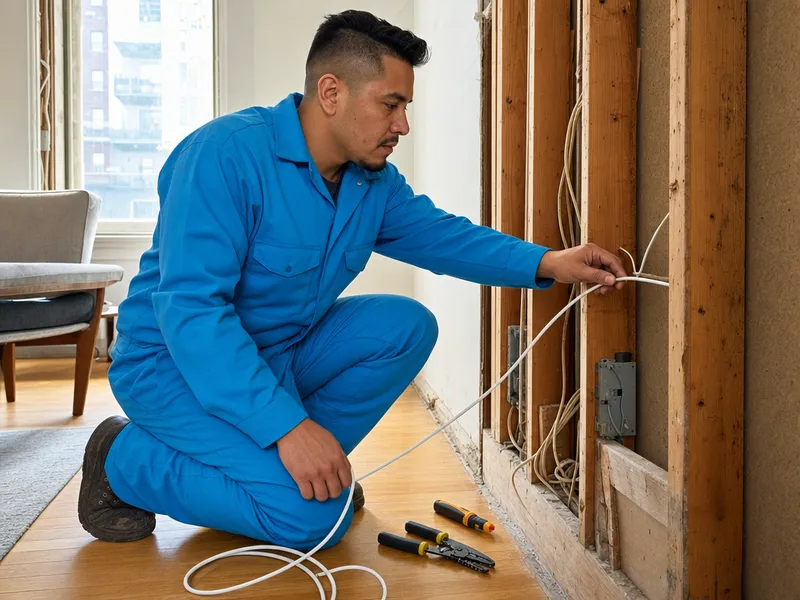

- Branch circuit rewiring: Old wiring (knob-and-tube or aluminum) is removed; new Romex NM-B cable is run for each circuit, with AFCI breakers on all 15A and 20A living-space circuits and GFCI outlets within 6 feet of every water source.
- Device installation and inspection: New outlets and switches go in — tamper-resistant in bedrooms, GFCI in wet zones — then a DOB inspector verifies code compliance and issues the Certificate of Electrical Inspection.
What is NOT included in a standard wiring upgrade?
- Drywall repair and painting: We cut minimal access holes when fishing wires through lath-and-plaster walls, but patching and painting are separate — budget for a plasterer if you’re in a pre-war building.

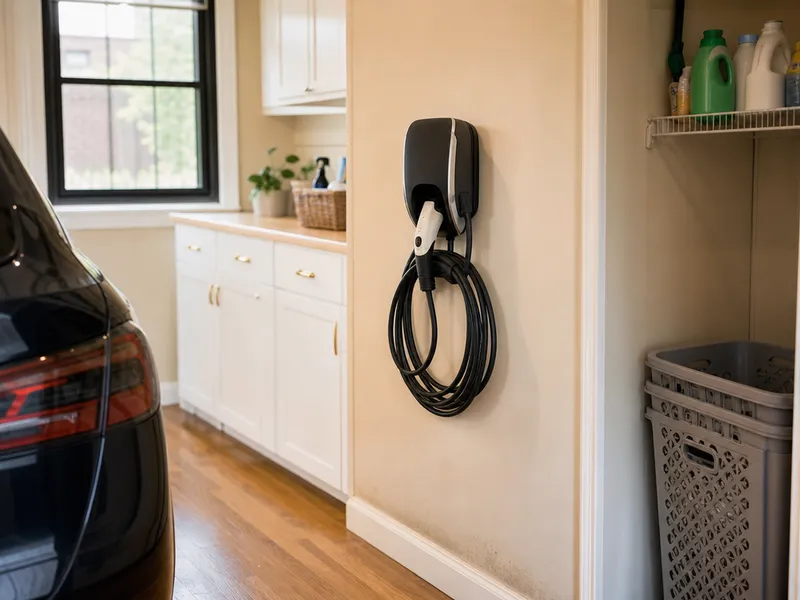

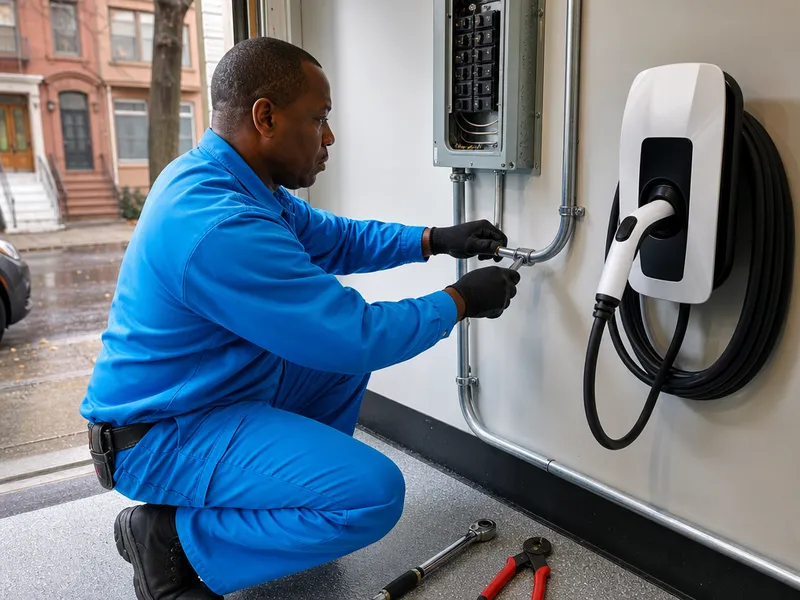

- New light fixtures and EV charger wiring: Fixture installation starts at $150–$400 per unit; EV charger circuits are a separate scope with their own load calculation and permit.

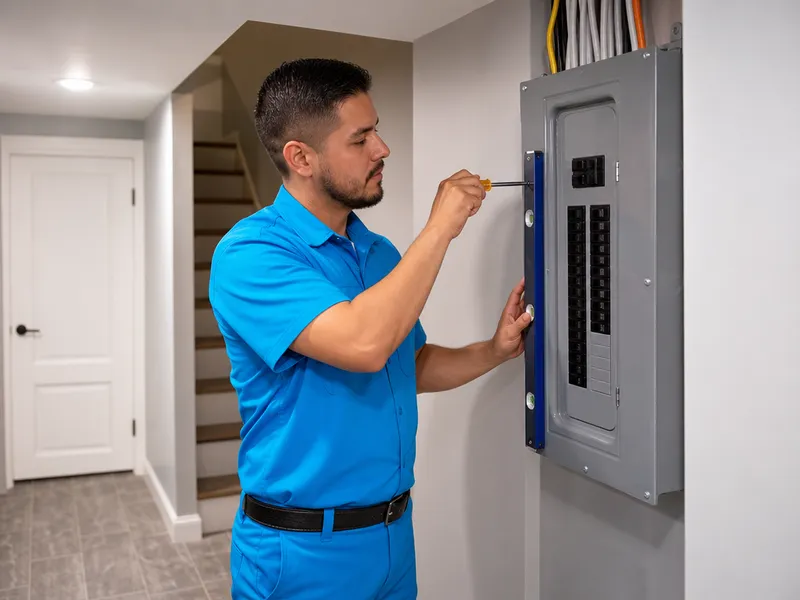

- Smart home wiring and subpanels: If you want a subpanel for a finished basement or a structured-wiring panel for home automation, we quote those during the initial assessment — they’re not part of the base full home wiring upgrade scope.
How much does a full home wiring upgrade cost in NYC?
| Service | Cost range | What’s included |
|---|---|---|
| Panel upgrade 100A → 200A | $4,500–$6,500 | New 200A panel, meter socket, grounding, permits |
| Full home rewire (1,500–2,500 sq ft) | $8,000–$20,000 | Panel upgrade + all branch circuits + devices + inspection |
| Wiring repair per room | $350–$1,500 | Replace faulty wiring in one room, new outlets |
| GFCI outlet installation | $290–$500 per outlet | GFCI outlet, box, wiring, code-compliant install |
| Circuit breaker replacement | $100–$250 per breaker | AFCI or standard breaker, testing |

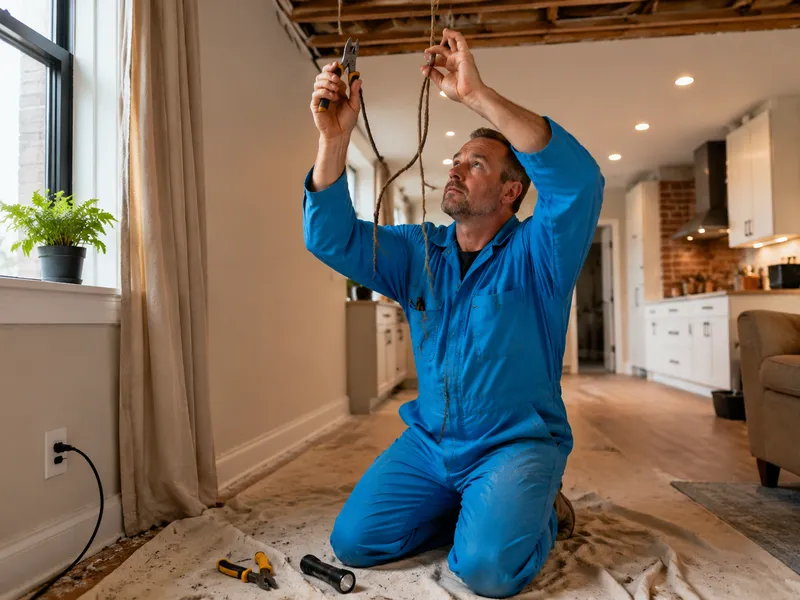

Wiring upgrade in Manhattan brownstones
Manhattan brownstones are typically pre-war with knob-and-tube wiring, 60A service, and lath-and-plaster walls — requiring specialized rewiring techniques that differ from standard NYC apartment work.
Can you upgrade wiring in a Manhattan brownstone?
Yes — we perform wiring upgrades in Manhattan brownstones every week, replacing 60A knob-and-tube systems with 200A modern service, including new panels, grounding, and full rewiring through lath-and-plaster walls. The process takes 5–10 days for a typical 3,000–5,000-square-foot brownstone and runs $8,000–$20,000 depending on floor count and wall finish. Lath-and-plaster construction increases rewiring time by 2–3x compared to drywall because we fish each cable through narrow stud cavities using glow rods and flex bits — cutting minimal access holes rather than opening entire walls. Con Edison coordinates the service disconnect, which requires 48-hour notice. A Manhattan brownstone wiring upgrade means planning each floor’s circuits independently since shared party walls prevent running cables through the neighbor’s side, and we install separate conduits for each unit in multi-family configurations.
What brownstone-specific challenges do you handle?
- Shared neutral circuits: Many 1950s–70s brownstones have neutrals shared across units — we separate them so AFCI breakers function properly.
- Meters inside units: Con Edison may require relocation to the exterior for a service upgrade; we include this coordination in our quote.
- Con Edison coordination: The utility needs 48-hour notice for service disconnect — missed windows can push the project back 1–2 weeks.
- Lath-and-plaster patching: We cut 2-inch access holes at each stud bay, but plaster repair is separate — budget for a plasterer familiar with brownstone finishes.

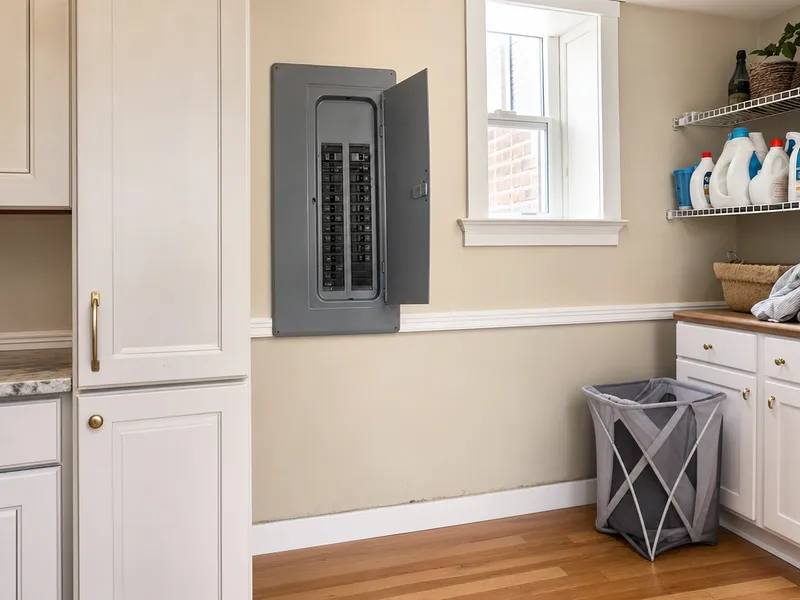

Wiring upgrade in Brooklyn row houses
Brooklyn row houses — typically 2–4 family buildings — present distinct wiring challenges tied to their construction eras: aluminum wiring from the 1965–1975 period or older knob-and-tube from pre-1940s, often with shared service entrances between units.
Can you upgrade wiring in a Brooklyn row house?
Yes — we upgrade wiring in Brooklyn row houses regularly, handling everything from 100A to 200A service upgrades, aluminum wiring replacement, and tenant-occupied unit coordination across all 3–4 floors. A full rewire of a 2,500–4,000 sq ft row house runs $8,000–$18,000 and takes 5–10 days depending on wall finish and number of units. The 1965–1975 vintage aluminum wiring we encounter frequently requires anti-oxidant compound at every connection — a step we torque-spec with a calibrated screwdriver. On the 3–4 story vertical runs, voltage drop often exceeds the 3% NEC limit, so we upsize branch circuit conductors to 10 AWG on 20A circuits instead of the standard 12 AWG. Row houses with shared service entrances between two units require careful load calculation and separate metering — we coordinate with Con Edison to split the service properly.
What row house wiring issues do you find most often?

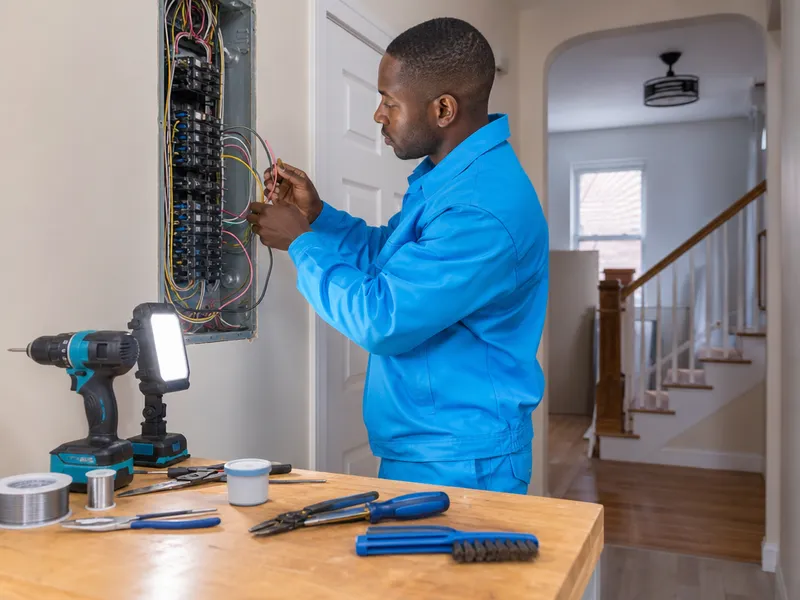

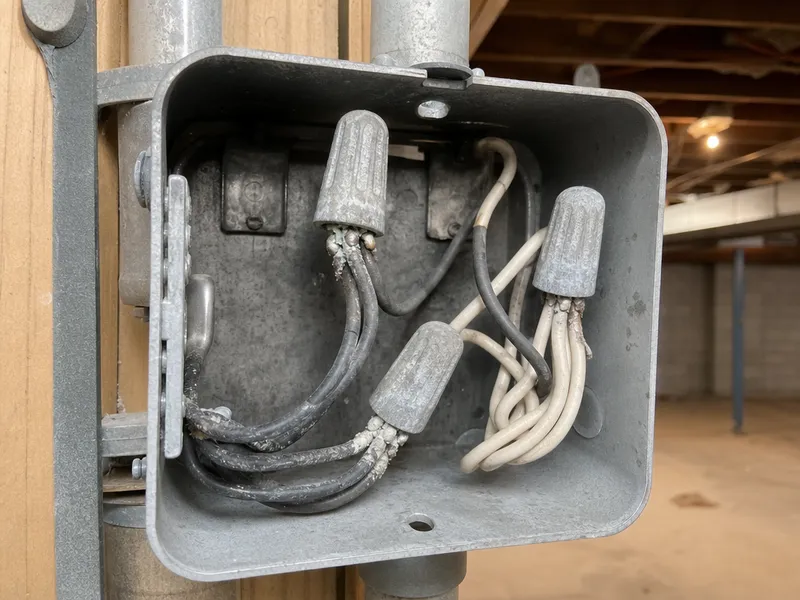

- Aluminum wiring at connections: The 1965–1975 vintage wire oxidizes at terminals — we treat every connection with anti-oxidant compound and torque to spec.
- Voltage drop on long vertical runs: Basement-to-top-floor runs in 4-story row houses often exceed 3% drop — we upsize to 10 AWG conductors to stay code-compliant.
- Shared neutral circuits: Many 1950s–1970s row houses have neutrals shared across units or floors, which prevents AFCI breaker installation — we separate them into dedicated neutrals per circuit.
- Knob-and-tube in attic spaces: Pre-1940s row houses often have abandoned K&T in attics that must be fully removed per NYC code — it can’t stay buried.
- Undersized 60A service: Original service entrance cable can’t handle modern loads — we upgrade to 200A with a new meter socket and grounding electrode system.
Wrapping Up: What a Wiring Upgrade Means for Your NYC Home
Main takeaways
Outdated wiring in NYC homes is common and poses real fire risks — the 2025 NYC Electrical Code requires modern protection devices like AFCI breakers and GFCI outlets throughout the home. A full rewire includes panel replacement, new branch circuits, grounding electrode installation, and DOB permit filing, with rough-in and final inspections required for code compliance. Brownstones and row houses have specific challenges: knob-and-tube in pre-war buildings, aluminum wiring in 1965–1975 construction, shared neutral circuits in multi-family units, and lath-and-plaster walls that double the time for wire runs. The investment in a wiring upgrade pays off in safety — eliminating fire hazards from deteriorated insulation and overloaded 60A service — and in the ability to run modern appliances, EV chargers, and heat pumps without tripping breakers.
