Replace Circuit Breaker Switch in NYC

Signs Your Circuit Breaker Switch Needs Replacement

Recognizing the warning signs of a failing breaker early can prevent electrical fires and costly panel damage in NYC homes.

Physical signs of a failing breaker

• Burn marks and discoloration: We look for brown scorching on the breaker face — this means internal arcing has already damaged the component.
• Cracked or melted casing: A Square D QO breaker with melted plastic around the terminal screw cannot be safely reset and must be replaced immediately.
• Corrosion on contacts: Moisture in Brooklyn basements or Bronx rooftop panels causes rust on bus bar connection points, which mimics breaker failure.
• Warped plastic body: Heat damage distorts the casing on GE THQL breakers, preventing proper seating in the panel slot.
• Loose mounting tab: A breaker that wobbles in the panel has a broken retention clip — this creates intermittent contact and arcing at the bus bar.

Behavioral signs: tripping and reset failures

We see breakers that trip immediately after reset — even with no load connected — or that won’t stay in the ON position and flop back to OFF. An AFCI breaker that nuisance-trips on a vacuum cleaner or refrigerator compressor isn’t necessarily bad — brushed motors create normal arcing that older AFCI models misinterpret. But a GFCI breaker that won’t hold its reset button when no device is plugged in has failed internally. A breaker that feels warm to the touch at room temperature has developed internal resistance and is degrading, even if it hasn’t tripped yet.

Auditory signs: buzzing and humming

We identify failing breakers by a buzzing or humming sound from the panel — this indicates loose internal connections or arcing contacts on the bus bar. The buzzing is the sound of electricity jumping a gap, which generates heat that can melt the breaker casing. A clicking sound from the breaker without tripping means the internal mechanism is worn and the breaker should be replaced before it fails completely. And a loud pop when the breaker trips suggests a short circuit, not a breaker defect — the breaker did its job, but the cause needs investigation.

How to Tell If Your Breaker Is Bad

You can diagnose a failing breaker with a few simple checks before calling a pro — here are the tests we use on every service call across NYC.

The smell test and touch test

• Burning smell near the panel: We tell homeowners to trust their nose — a burning smell near the panel means a failing breaker or bus bar, and you need an electrician immediately.
• Hot breaker face: Use the back of your hand to carefully touch the breaker face; if it’s hot to the touch, the internal contacts are arcing and the breaker is failing.
• Discoloration or melting: Brown scorching on the plastic face — common on older GE THQL breakers in 1980s–2000s NYC co-ops — means internal arcing has already damaged the component.
• Audible buzzing: A low hum from inside the panel indicates loose bus bar connections, not necessarily a bad breaker — but the bus bar corrosion causes intermittent tripping that mimics breaker failure.

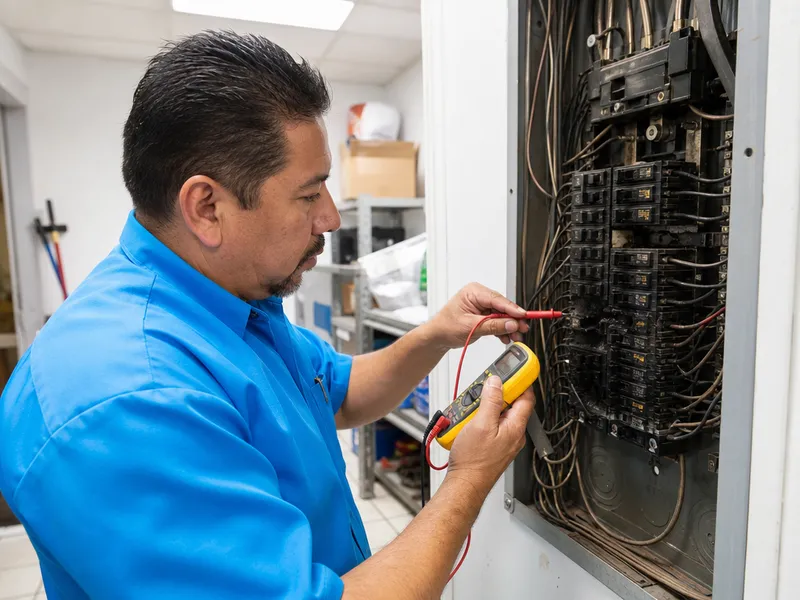

The multimeter test

We use a Fluke 117 multimeter to check voltage at the breaker’s load terminal — a single-pole breaker should read 120V to neutral, and zero or erratic voltage means the breaker has failed. For double-pole breakers (dryer, range, AC), you’re looking for 240V across the two poles. A Square D QO breaker uses a quick-open trip mechanism, but even that can develop internal arcing that shows up as fluctuating voltage on the meter. A breaker that shows fluctuating voltage readings has internal arcing and must be replaced, even if it still holds the ON position — that’s the single most reliable way to catch bad circuit breaker symptoms before a fire starts.

The reset test

We test breakers by flipping them fully to OFF, then firmly to ON — if the breaker doesn’t click into place, the internal trip mechanism is broken. On an AFCI breaker, the reset action should produce a distinct snap; a mushy feel or a flop back to OFF means the mechanism has failed. But here’s the nuance: a breaker that trips frequently is not necessarily bad — it may be protecting against an overload or short circuit, and the problem may be the connected load, not the breaker. AFCI breakers, for instance, nuisance-trip on brushed motor appliances like vacuum cleaners and laser printers, which is a compatibility issue, not a defective breaker.

What Causes a Circuit Breaker to Trip Frequently?

Frequent breaker trips in NYC homes typically trace back to overloads, short circuits, ground faults, or nuisance tripping from AFCI breakers. Here is what we find most often.

Overload and short circuit causes

• Overload: A 15A circuit running a window AC (12A) plus microwave (10A) plus lights (2A) pulls 24A — the breaker trips because the load exceeds its rating. We see this daily in NYC apartments.
• Short circuit: A hot wire contacts neutral or ground, producing a loud POP and immediate trip. Damaged appliance cords or rodent-chewed wiring in NYC basements are common causes.
• Shared neutral (MWBC): Two circuits sharing one neutral require a double-pole breaker or handle tie. Without it, servicing one circuit while the other is live can deliver 240V across the neutral — dangerous and code-violating.
• Appliance failure: A failing motor (refrigerator compressor, AC fan) draws high starting current and trips the breaker. The breaker is protecting the circuit — the appliance needs repair, not the breaker.
• Loose bus bar connection: A breaker that isn’t making full contact with the bus bar creates resistance and heat, causing thermal tripping. The bus bar must be inspected — if damaged, a panel replacement may be needed.

Ground faults and arc faults

Nuisance tripping on AFCI breakers

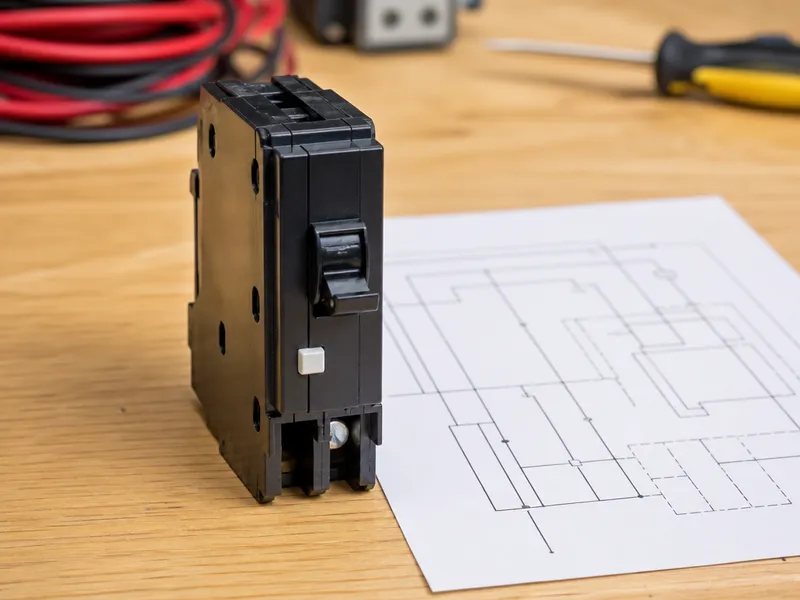

We replace nuisance-tripping AFCI breakers with newer-generation models like Siemens QAF2 or Eaton BRP that have better filtering for brushed motor appliances. The first-generation AFCI breakers (pre-2015) are especially prone to tripping on vacuum cleaners, laser printers, and older refrigerators — the AFCI misinterprets the normal arcing from brushes as a dangerous arc. A newer-generation AFCI uses digital signal processing to distinguish between harmless commutation arcing and dangerous series/parallel arcs. In our experience, upgrading to a QAF2 resolves about 80% of nuisance trip calls in NYC co-ops. Never replace an AFCI breaker with a standard breaker to stop nuisance tripping — this removes arc fault protection and creates a fire risk.

How to Choose the Right Breaker for Your Panel

Selecting the correct breaker for your NYC electrical panel means matching brand, amperage, and configuration — a mismatch is a code violation and a fire hazard.

Match the brand and panel type

Match amperage and wire gauge

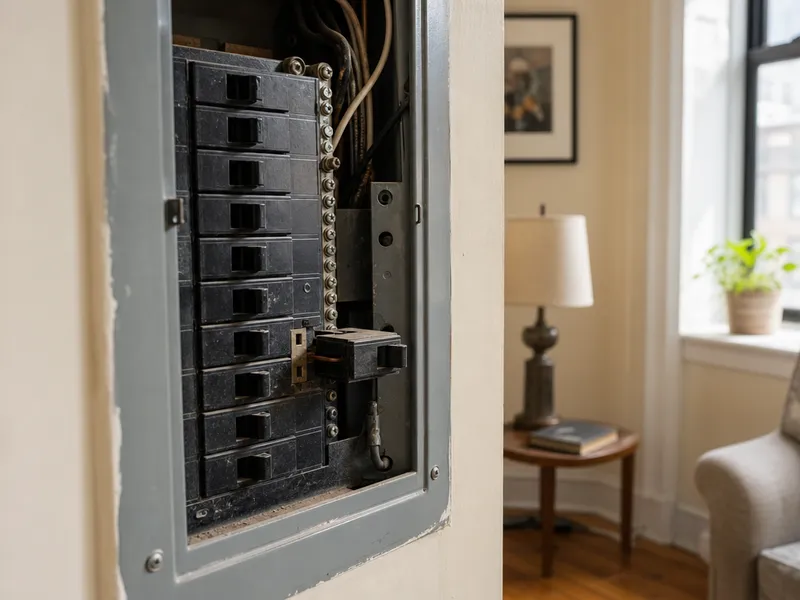

• 15A breaker + 14 AWG wire: Standard for lighting circuits and general outlets in NYC apartments — this is the most common pairing in pre-2000 buildings.
• 20A breaker + 12 AWG wire: Required for kitchen counter circuits, bathroom outlets, and garage receptacles per current NYC Electrical Code.
• 30A breaker + 10 AWG wire: Used for electric dryers and some window AC units in older Manhattan co-ops.

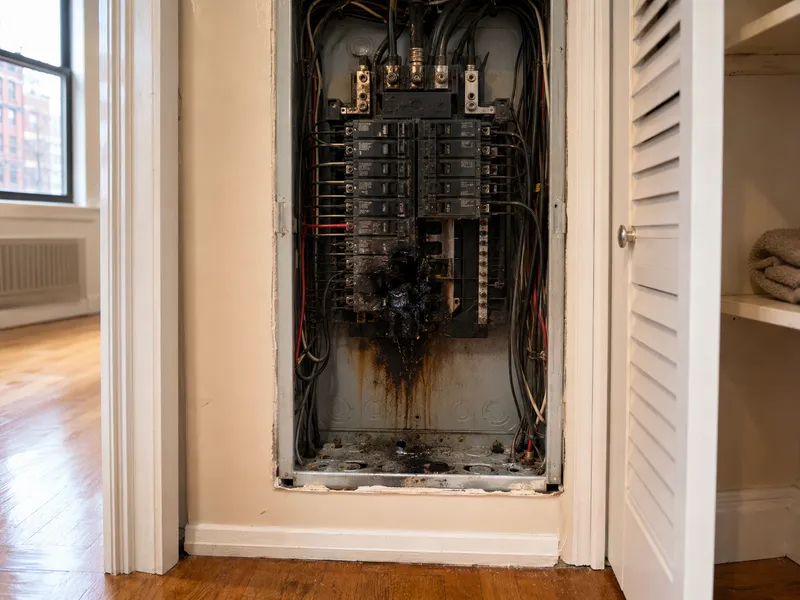

• 40A–50A breaker + 8–6 AWG wire: For ranges, central AC units, and EV chargers — these circuits need a dedicated double-pole breaker.
• How to choose a circuit breaker by wire gauge: the breaker must protect the wire, not the appliance — using a 20A breaker on 14 AWG wire creates a fire hazard because the wire will overheat before the breaker trips.

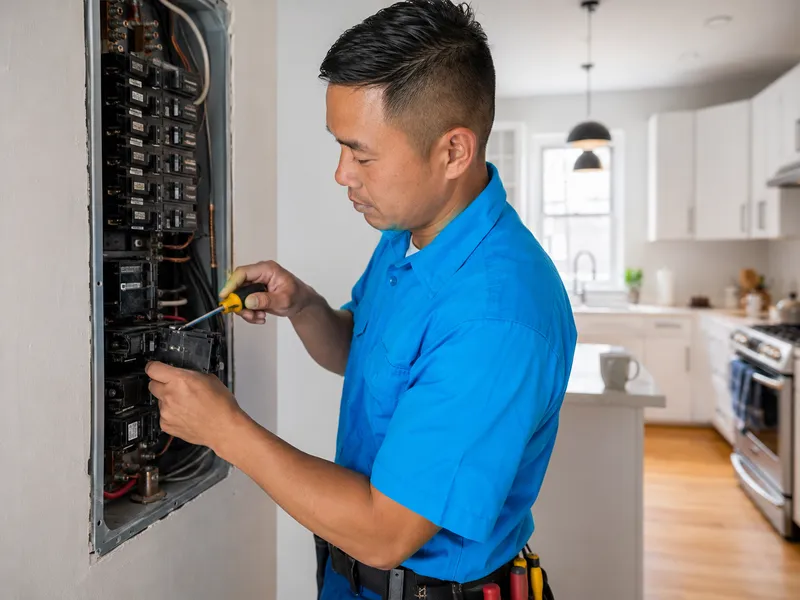

Single-pole vs double-pole vs tandem breakers

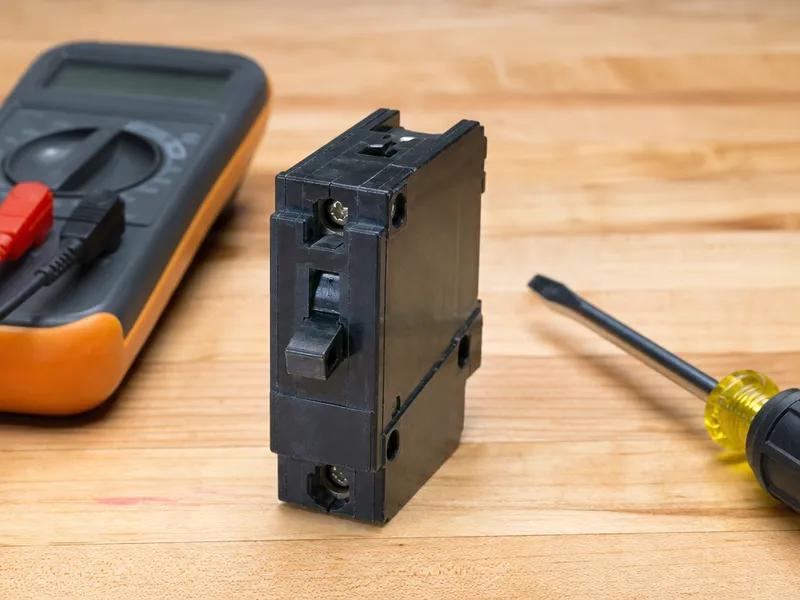

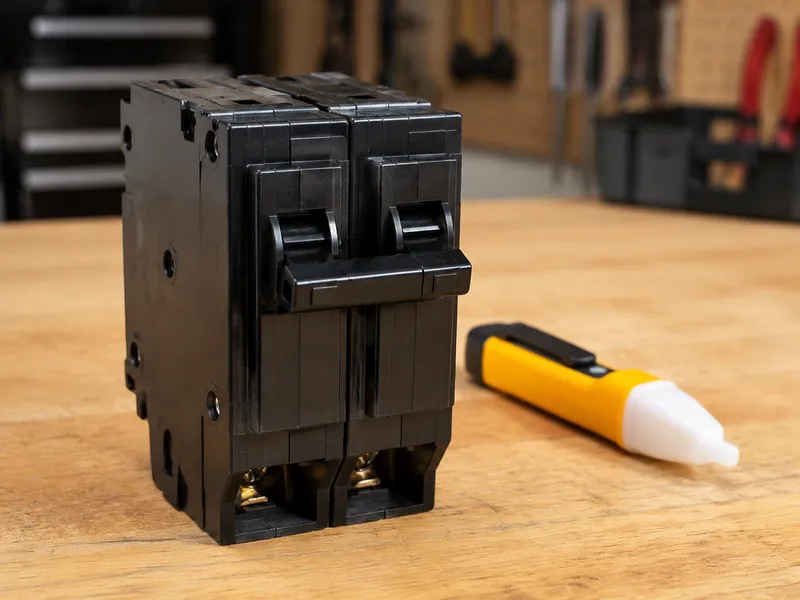

We install single-pole breakers for 120V circuits — lights, general outlets, and bathroom GFCI circuits in NYC apartments — and double-pole breakers for 240V circuits like dryers, ranges, central AC units, and EV chargers. A single-pole breaker occupies one slot on the bus bar and delivers 120V; a double-pole breaker occupies two adjacent slots and delivers 240V by connecting to both hot legs. Tandem breakers squeeze two independent circuits into one slot, which is useful when the panel is full — but they only work in panels specifically listed for them. On my read, checking the panel label before installing a tandem is non-negotiable; if the panel has rejection tabs or isn’t UL-listed for tandems, installing one voids the listing and creates an inspection failure.

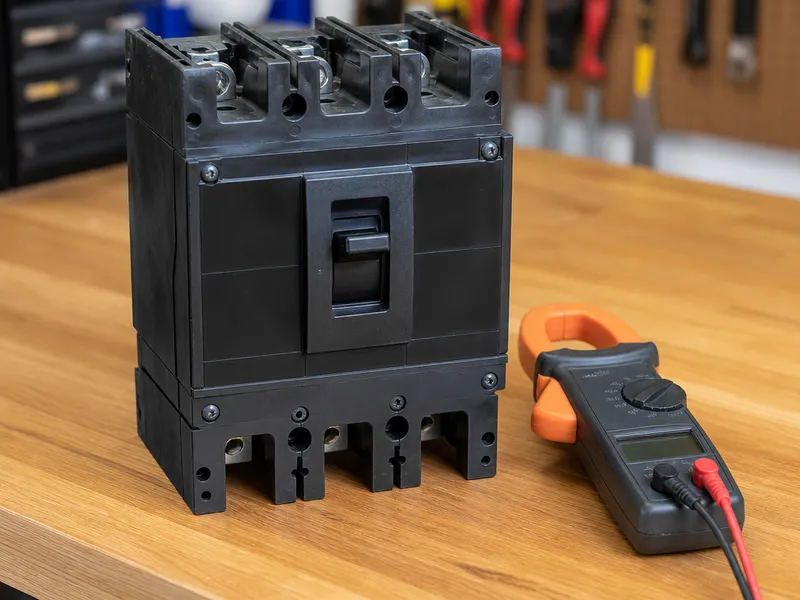

What’s Involved in Replacing a Main Breaker?

Replacing a main breaker is a specialized process that requires Con Edison coordination, specific tools, and professional expertise—this is not a DIY job for NYC homeowners.

Con Edison disconnect and reconnect

• Utility coordination: We coordinate with Con Edison to disconnect service by pulling the meter — this costs $200–$400 and homeowners must never pull the meter seal themselves.
• Verification step: After the meter is pulled, we use a non-contact voltage tester on the main breaker’s line-side lugs to confirm zero voltage before touching anything.
• Reconnect timing: Con Edison typically takes 1–4 hours to return and re-seal the meter after we finish the swap, so the total main breaker replacement cost includes both the electrician labor and this utility fee.
• Penalty warning: Breaking the Con Edison meter seal yourself carries fines up to $5,000 and potential criminal charges for theft of service.

Main breaker removal and installation

We use a socket wrench — typically ½-inch or 9/16-inch — to remove the bolted main breaker from the bus bar, then inspect the bus bar for burn marks or pitting before installing the new one. For Square D QO panels, the main breaker is a plug-in type that requires a flathead screwdriver to press the retaining clip; for Eaton CH panels, the breaker pulls straight out after the bolts are removed. We torque the new breaker’s lugs to manufacturer spec, usually 40–50 in-lbs for the main connections. If the bus bar is damaged, the entire panel may need replacement — a main breaker swap alone won’t fix a corroded connection point.

Total cost and timeline

We charge $400–$800 for main breaker replacement, which includes the electrician labor and Con Edison disconnect fee, with a total time of 1.5–2.5 hours from the moment we arrive. The diagnostic is waived when the repair proceeds — we inspect the bus bar, verify the panel condition, and confirm the new breaker seats properly before calling Con Edison for the reconnect. Many older NYC buildings have fused main disconnects instead of breakers — replacing a fuse block with a main breaker requires a DOB permit and panel upgrade, not a simple swap.

Special Considerations for Older NYC Buildings

Older buildings across the five boroughs present unique electrical challenges that require specific knowledge and equipment — here is what we look for before any service call.

Knob-and-tube wiring (pre-1940 buildings)

We find knob-and-tube wiring in many Manhattan and Brooklyn brownstones — the cloth-insulated wiring is brittle and breaker replacement is dangerous because the wiring may arc inside the walls. The system uses porcelain knobs and tubes to route individual conductors through wall cavities without a ground wire, meaning there is no equipment ground for modern three-prong outlets or appliances. When we open a panel in a pre-1940 building, we check for cloth-covered wires entering the box — if we see them, we stop and explain that a full rewire is required before any panel work can proceed. Knob-and-tube wiring cannot be connected to modern AFCI/GFCI breakers — these devices require a neutral conductor and a ground path that the old system simply does not provide.

Aluminum wiring (1965–1975 buildings)

• AL-CU rated breakers: We use breakers marked AL-CU for aluminum wiring common in 1965–1975 NYC buildings — aluminum expands and contracts more than copper, so standard breakers can develop loose connections over time.
• Noalox compound: We apply Noalox anti-oxidant compound to every aluminum wire connection before tightening the terminal screw — this prevents oxidation that creates resistance and heat at the connection point.
• Annual inspection recommended: Loose aluminum connections cause arcing and are a leading cause of electrical fires in older NYC buildings — we recommend an annual inspection of all aluminum terminations by a licensed electrician.
• Circuit breaker replacement NYC: When performing a circuit breaker replacement NYC in a building with aluminum wiring, we verify the panel is rated for AL-CU connections and torque every terminal to manufacturer spec using a calibrated torque screwdriver.

Shared neutrals and co-op board approval

We handle shared neutrals (MWBC) common in 1950s–1970s NYC buildings by installing double-pole breakers or handle ties — working on one circuit without turning off the other can deliver 240V across the neutral, which is lethal and can destroy electronics. These multi-wire branch circuits share a single neutral conductor between two hot legs, and we identify them by checking for two breakers feeding one cable sheath in the panel. In the field, I have seen DIYers replace a single breaker on an MWBC without realizing the second circuit was still live — the neutral carried the return current from the other leg and the person got a shock when disconnecting it. Many NYC co-ops require board approval for electrical work — we provide proof of insurance and our NY Master Electrician license to satisfy their requirements before any job starts.

Tools a Professional Electrician Uses for Breaker Replacement

We carry a specific set of professional-grade tools for safe and accurate breaker replacement, from diagnostic meters to torque screwdrivers.

Diagnostic and safety tools

• Fluke 117 multimeter: We use this for voltage testing at the breaker’s load terminal — it confirms 120V or 240V and catches erratic readings that indicate a failing breaker.
• Non-contact voltage tester (NCVT): This pen-style tester beeps when near live wires; we sweep every lug and terminal with it before touching anything inside the panel.
• Insulated screwdrivers (flathead and Phillips): We use the flathead to press the clip on Square D QO breakers and the Phillips for terminal screws — the rubber insulation protects against accidental contact.
• Safety glasses and insulated gloves: We wear both on every panel job — a dropped screw or a slip with a screwdriver near a live bus bar can cause injury or a short.

A non-contact voltage tester is the #1 safety tool — we never work on a panel without confirming zero voltage at every lug and terminal. The electrician tools for breaker replacement we carry are the same ones used across the trade, from diagnostic gear to installation hardware.

Installation and torque tools

We use a ¼-inch nut driver for panel cover screws, a torque screwdriver set to 20–25 in-lbs for 12 AWG terminal screws, and a socket wrench set for main breaker bolts. The nut driver is faster than a screwdriver when you’re removing and replacing four to six cover screws on every job — it saves about two minutes per panel. For the Square D QO breaker, we press the release clip with a flathead screwdriver rather than prying, which protects the bus bar from damage. Overtorquing a terminal screw strips the threads and creates a loose connection — we torque every screw to manufacturer spec to prevent arcing.

Specialty tools for NYC panels

We carry spare panel cover screws because many NYC panels have missing or stripped screws, and a headlamp for dark basements and closets where panels are often located. The headlamp frees both hands — you need one hand for the screwdriver and one to hold the cover while you line up the screws, especially in cramped Brooklyn brownstone basements with low ceilings. For Square D QO breakers, we use a flathead screwdriver to press the clip that releases the breaker from the bus bar — prying without releasing the clip damages the bus bar and can crack the breaker casing.

Can a Faulty Breaker Cause an Electrical Fire?

A faulty breaker can start a fire through internal arcing, loose connections, or welded contacts — here are the mechanisms, the warning signs, and when we tell NYC homeowners to call right away.

Internal arcing and bus bar connection failures

• Internal arcing: A cracked breaker casing or worn contacts generate an arc that reaches 5,000°F — enough to ignite dust, insulation, and wood framing inside the panel.
• Loose bus bar connection: A breaker not fully seated on the bus bar creates resistance, which generates heat over time and can melt both the bus bar and the breaker — this is the most common fire mechanism we find in NYC panels.

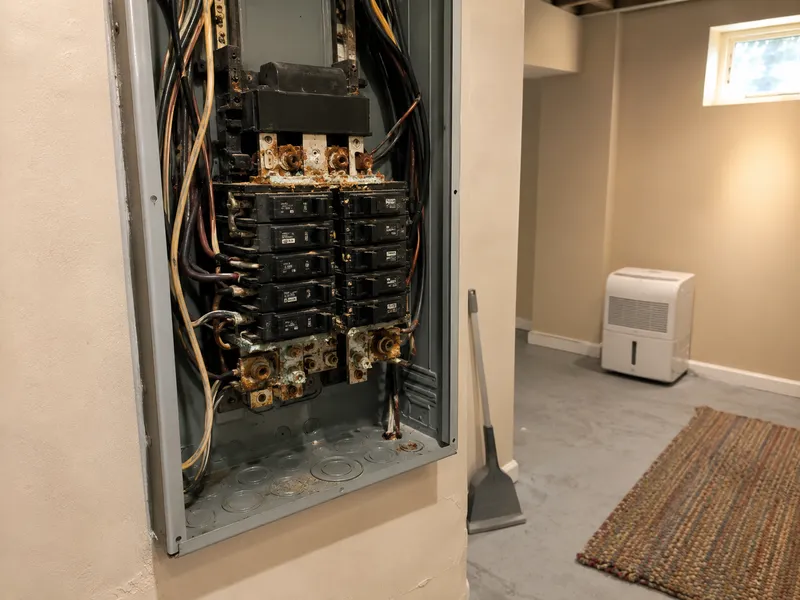

• Corrosion on bus bar: Moisture from Brooklyn basements or Bronx rooftop panels corrodes the bus bar contact point, causing intermittent arcing that degrades the connection until it fails catastrophically. Bus bar corrosion is often mistaken for a breaker defect.
• faulty circuit breaker fire risk: Any breaker with visible cracks, burn marks, or a loose fit in the panel slot should be replaced immediately — the internal components are already compromised and can arc at any time.

Failure to trip — the most dangerous failure mode

We identify breakers with welded contacts that stay stuck in the ON position — they won’t trip during an overload, causing the wire to overheat and ignite insulation. This is the most dangerous failure mode because the breaker looks fine from the outside; the internal contacts have fused from repeated arcing or a high-current short circuit. The wire heats silently — there’s no tripping sound, just a slow temperature rise that eventually chars the insulation. On a recent call in a Queens co-op, we found a 20-year-old GE THQL breaker whose contacts had welded shut; the 12 AWG wire was hot enough to discolor the jacket. Homeowners who replace an AFCI breaker with a standard breaker to stop nuisance tripping remove arc fault protection entirely — an undetected arc fault can start a fire inside the wall without the breaker ever knowing.

Warning signs and prevention

We tell homeowners to call us immediately if they hear buzzing, feel heat, see discoloration, or smell burning near their panel — do not wait and see. A buzzing sound means internal arcing is already happening; heat on the breaker face means the connection is degrading; any burning smell means insulation is actively charring. These symptoms escalate fast — what starts as a warm breaker at 8 AM can become a panel fire by midnight. Have a licensed electrician inspect your panel every 5–10 years and replace breakers that are 20+ years old — proactive replacement prevents the vast majority of electrical fires before they start.

Main Takeaways: When to Call a Licensed Electrician

Main takeaways

A faulty circuit breaker switch shows clear warning signs — frequent tripping, heat, burn marks, buzzing sounds, or failure to reset — and should never be ignored. We covered the physical, behavioral, and auditory symptoms that signal a failing breaker, the common causes behind nuisance tripping, and the process of choosing the right replacement. The most dangerous failure mode is a breaker with welded contacts that won’t trip during an overload, allowing wires to overheat and ignite insulation. If you notice any of these signs in your panel, call a licensed NYC electrician — don’t wait, and don’t attempt a DIY fix on a live panel.
