French Drain Installation in NYC

Signs You Need a French Drain in Your NYC Home

Water issues in NYC homes often go unnoticed until damage is done, and catching the early signs can save thousands in foundation repair.

What are the signs I need a French drain?

• Basement water stains: Dark marks on walls 1–3 feet above the floor, white efflorescence deposits, and standing water after rain are the clearest indicators you need a French drain.
• Musty smell: A persistent damp odor in the basement that doesn’t dry out between storms signals trapped moisture behind walls or under the slab.
• Horizontal foundation cracks: Cracks running side to side across basement walls mean hydrostatic pressure is pushing inward — a structural issue that triples repair costs if ignored.
• Sticking windows or doors: When the foundation shifts from water pressure, door frames rack and windows bind in their jambs — a sign the problem has moved beyond surface water.
• Neighbor context: If neighbors on your block have French drains or sump pumps, your lot likely sits on the same high water table — expect similar issues.

In the field, I see homeowners wait until horizontal foundation cracks appear — that’s hydrostatic pressure already doing structural damage, and repair costs triple at that point.

Exterior signs: pooling water and soggy lawn

• Pooling water: Water that stands in your yard for more than 24 hours after rain means the soil is saturated — it has nowhere to go but through your foundation wall.
• Soggy lawn near foundation: A consistently wet strip of grass or mud along the house perimeter means downspout water or groundwater is pooling against the wall instead of draining away.
• Eroded soil: Washout areas around the foundation, exposed roots, or soil splashed up onto siding indicate that rainwater is running toward the house, not away from it.
• Downspout discharge: Water pouring from downspouts that flows toward the foundation rather than 10 feet away is one of the most fixable exterior signs — regrading or extending the pipe often resolves it.

In NYC’s clay-heavy soil, water that doesn’t drain in 24 hours has nowhere to go but through your foundation wall — French drains intercept it before it gets there.

Can You Install a French Drain Around an Existing Foundation?

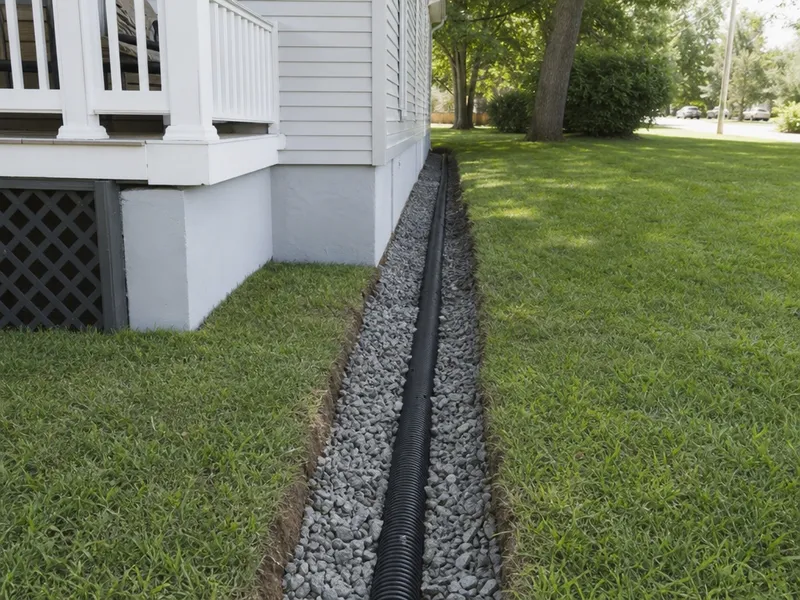

Installing a French drain around an existing foundation is the most common exterior application in NYC, but it requires careful hand-digging near walls and proper discharge planning.

Can you install a French drain around an existing foundation?

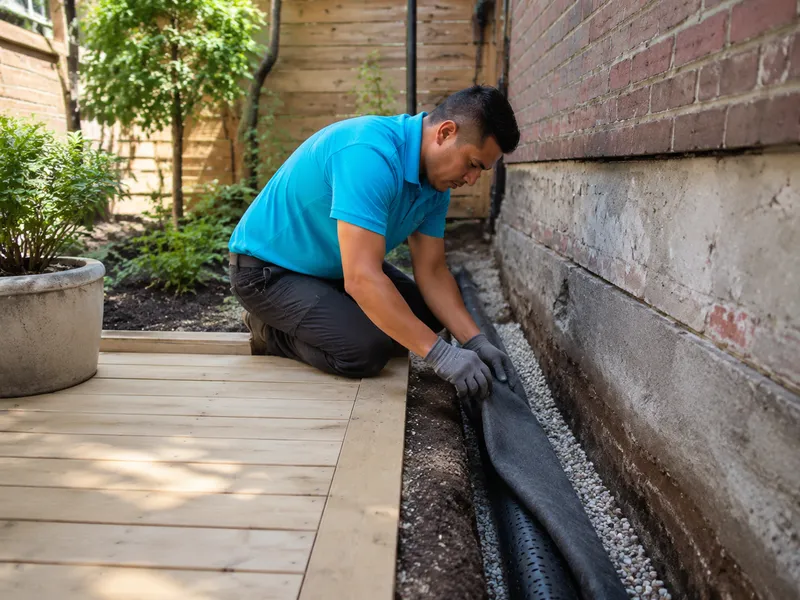

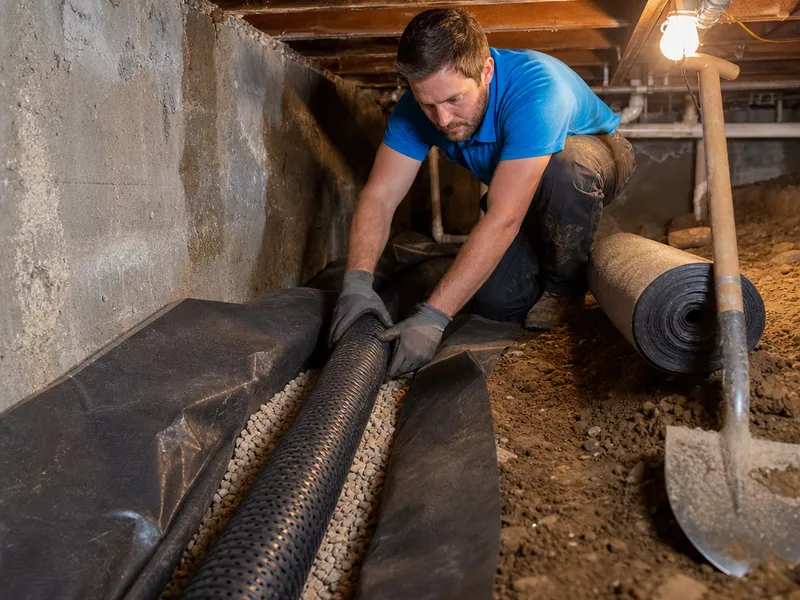

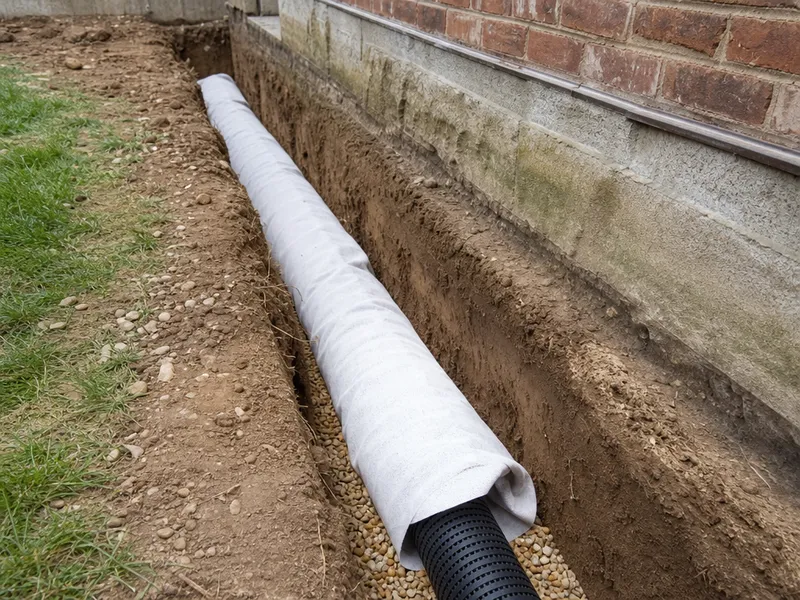

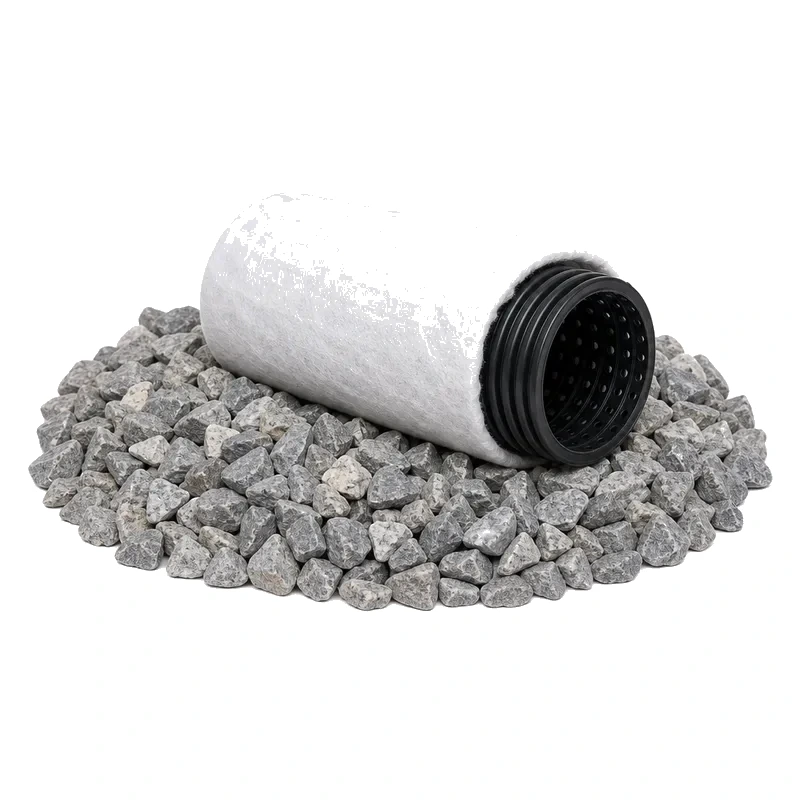

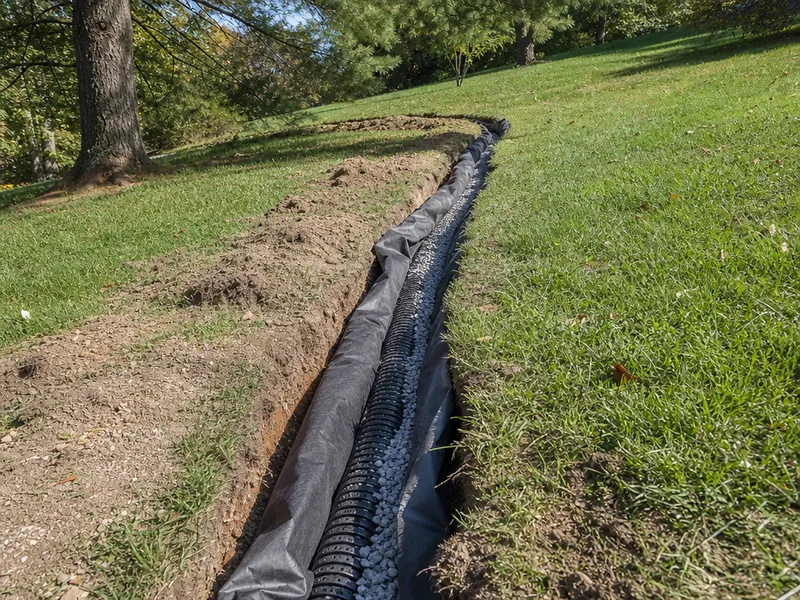

Yes — we install French drains around existing foundations in NYC homes every week, using hand digging within 3 feet of the wall to avoid damaging the foundation. The trench runs 12–18 inches wide and 24–36 inches deep, with the bottom pitched at ¼ inch per foot toward the discharge point. We lay 4-inch perforated PVC with holes at 4 and 8 o’clock on a bed of ¾-inch washed angular stone, then wrap the whole assembly in non-woven geotextile fabric. On the bench, you’ll find that skipping the geotextile fabric wrap against the foundation wall is the #1 cause of system failure within 5 years — soil washes into the gravel and clogs the pipe.

Foundation waterproofing before backfill

• Waterproofing membrane: Before backfilling around an existing foundation, we apply waterproofing membrane to the exposed foundation wall and extend geotextile fabric 6–12 inches up the wall to prevent soil from seeping into the gravel bed.
• Corner connections: Mitered cuts or prefabricated 90° fittings handle the turns around the foundation, maintaining consistent slope through every corner.

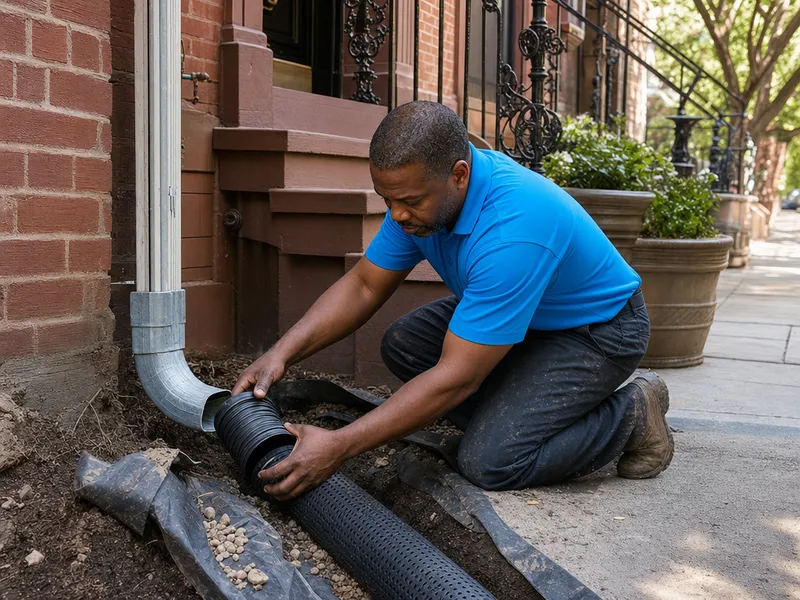

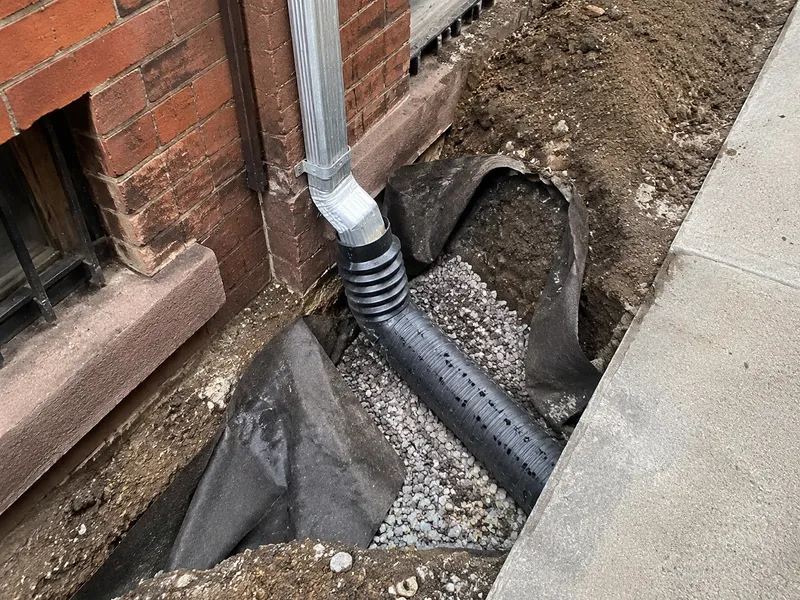

• Downspout tie-in: Downspouts enter the French drain at a 45° angle — a 90° entry creates turbulence that drops sediment right at the joint.

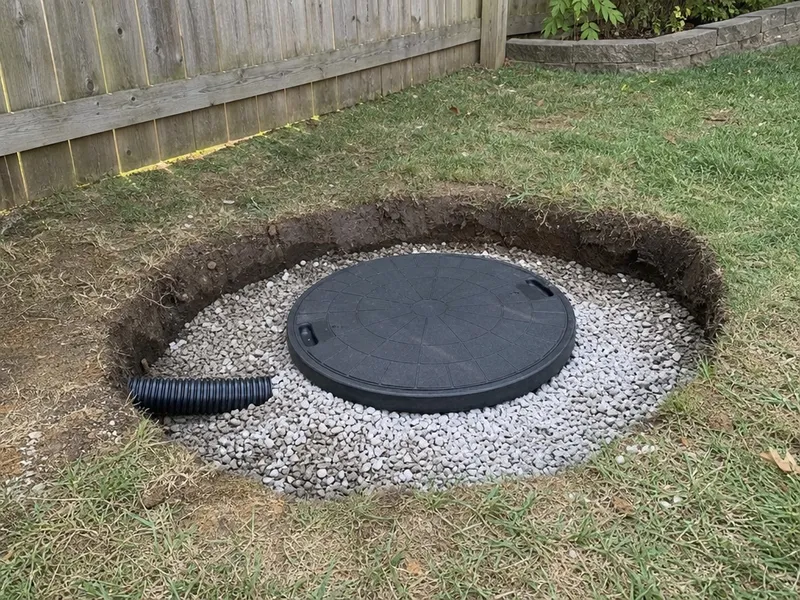

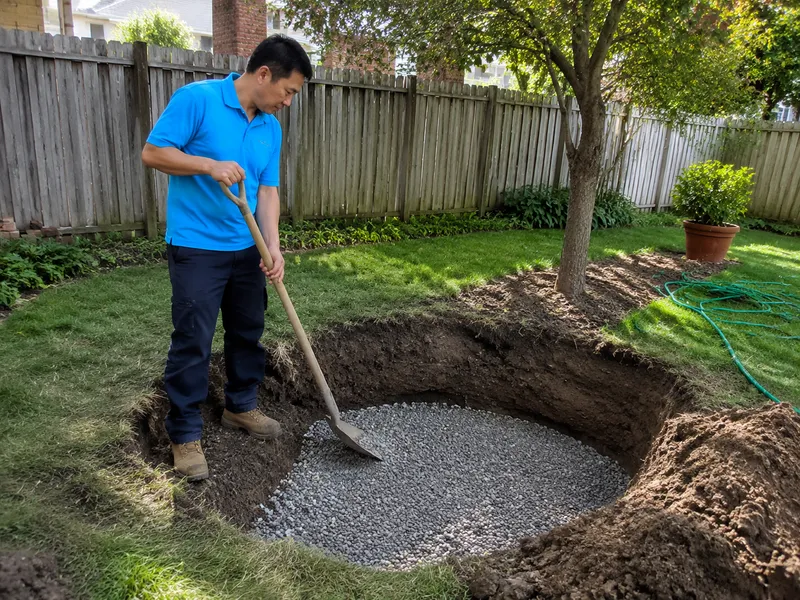

• Discharge planning: The drain must daylight at least 10 feet from the foundation or empty into a 3×3×3-foot dry well; in NYC basements a sump pump handles the lift when the outlet sits above the drain invert.

How Deep Should a French Drain Be in NYC?

French drain depth depends on whether it’s interior or exterior, soil type, and NYC’s frost line — getting it wrong means frozen pipes or missed groundwater.

How deep should a French drain be?

Depth and soil type considerations

Clay soil, common in Queens and Staten Island, requires deeper trenches — 24–36 inches — and a steeper pipe slope of 1/4 inch per foot because water doesn’t percolate naturally. Sandy soil in parts of Manhattan and the Bronx drains faster, so a 1/8-inch-per-foot slope and shallower trench at 18–24 inches may suffice. The water table matters too: the trench bottom must sit below the water table to actually intercept groundwater. In the field, I see homeowners in clay-soil neighborhoods install shallow drains at 18 inches and wonder why they still have wet basements — the pipe sits above the water table, so the drain never intercepts the flow.

Best French Drain System for a Brooklyn Brownstone

Brooklyn brownstones have unique constraints — shared walls, narrow lots, and high water tables — that make interior perimeter drains the standard solution.

What is the best French drain system for a Brooklyn brownstone?

• Basement Systems WaterGuard: For Brooklyn brownstones, we recommend an interior perimeter drain like this one — it installs along the interior foundation wall without crossing shared property lines.

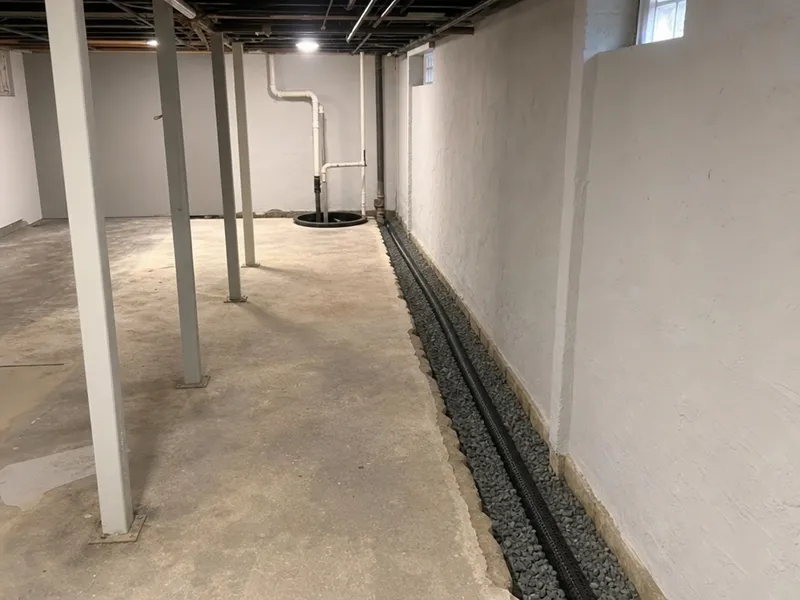

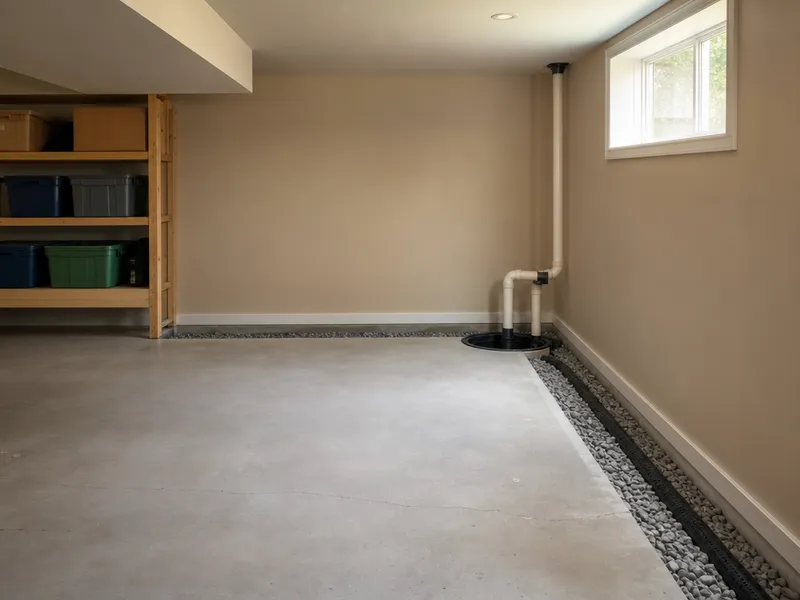

• Interior perimeter drain: The system uses a pre-formed PVC channel with a snap-on cover, collecting groundwater that seeps through the party-wall footing and directing it to a dedicated sump pit.
• Brownstone-specific fit: Brownstone basements typically have 6–8 foot ceilings — enough headroom for the crew to jackhammer the perimeter slab and install the channel without structural interference.
• Exterior drain limitation: In the field, I see brownstone owners try exterior drains on 20-foot-wide lots and hit the neighbor’s foundation within 3 feet — interior drains avoid that boundary issue entirely.

Sump pump requirements for brownstones

Brooklyn brownstones require a separate sump pump system per unit — shared sump pits are not allowed across property lines — and a 1/2 HP pump is recommended for the high water table common in Park Slope and Cobble Hill. The pump sits in an 18–24 inch diameter basin set into the lowest corner of the basement, with the discharge line running to a dry well or daylight at the property line. A check valve on the 1.5-inch PVC discharge pipe prevents backflow when the pump cycles off. On the bench, you’ll find that Zoeller’s cast iron pumps outlast thermoplastic by 3:1 in brownstone basements where the pump cycles frequently during summer storms.

French Drain vs Sump Pump: What’s the Difference?

French drains and sump pumps serve different roles — one passively collects groundwater, the other actively pumps it out — and most NYC basements need both for full protection.

What is the difference between a French drain and a sump pump?

When you need both systems

A French drain alone can’t solve basement flooding if the discharge point sits above the drain level — you need a sump pump to lift the water out, and the combined system is the standard approach for NYC basements with water issues. The French drain collects groundwater through its perforated pipe and gravity-feeds it to a sump pit; the pump then discharges it through 1.5-inch PVC to daylight at the curb or into a dry well. In the field, I see homeowners install only a French drain and still get water because their basement is below grade — without a sump pump, gravity can’t push water uphill to the street.

How a French Drain Works With a Sump Pump

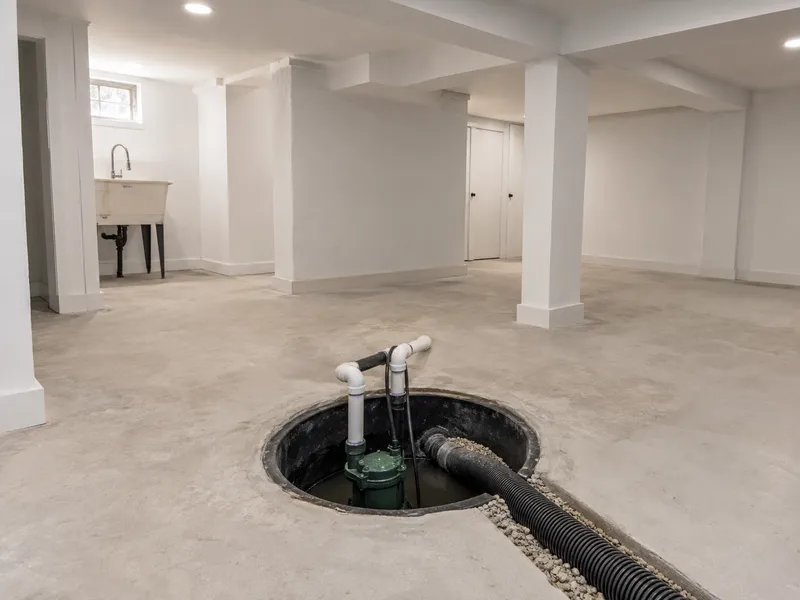

A French drain and sump pump work as a team — the drain collects groundwater and feeds it to the sump pit, where the pump discharges it away from the foundation.

How does a French drain work with a sump pump?

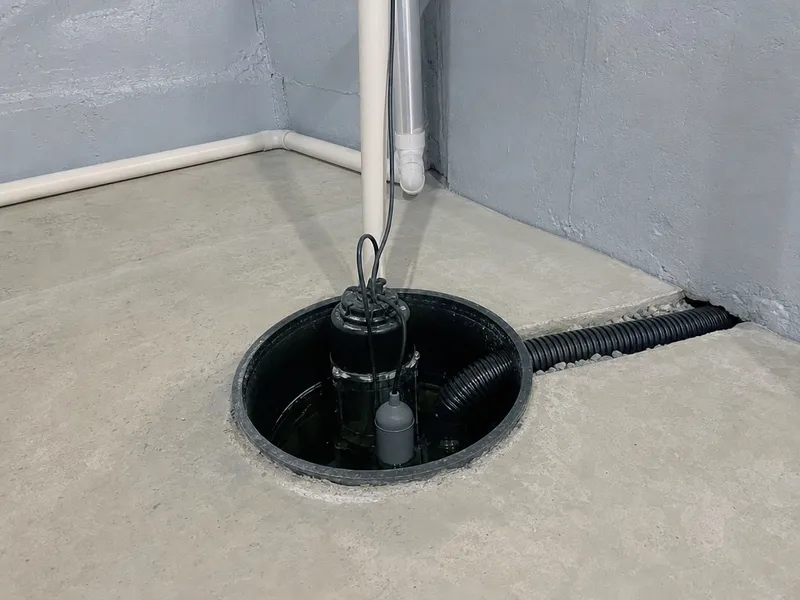

• Gravity-fed collection: We design French drains to slope toward the sump pit at 1/8 to 1/4 inch per foot — the drain collects groundwater continuously through perforated pipe, and the sump pump discharges it intermittently when the float switch activates.
• Sump pit as transfer point: The pit (18–24 inches diameter, 24–36 inches deep) sits at the lowest point of the drain loop and receives water from the perforated pipe before the pump engages.
• Float switch triggers discharge: A Zoeller M53 pump in the pit activates when water reaches 6–8 inches, pushing it through 1.5-inch PVC to the exterior.
• Check valve prevents backflow: Installed on the discharge line, it stops water from slamming back into the pit between pump cycles — without it, 3–5 gallons returns each time.
• Battery backup for heavy rain: In the field, I see systems fail when the French drain feeds water faster than the pump can discharge — a battery backup pump is essential for NYC’s summer downpours.

Sump pump discharge requirements

The discharge pipe (1.5-inch PVC) must exit the foundation at least 6 inches above grade with a check valve to prevent backflow, and discharge at least 10 feet from the foundation into a dry well or daylight. The pump line connects to a 3-foot by 3-foot dry well or runs to the property line for street discharge per NYC DEP rules. On the bench, you’ll find that a missing check valve lets 3–5 gallons of water slam back into the pit every cycle, wearing out the pump motor 2× faster.

Do I Need a Permit for French Drain Installation in NYC?

NYC DOB permit requirements for French drains depend on depth and proximity to the foundation — skipping the permit risks fines and insurance denial.

Do I need a permit for French drain installation in NYC?

• Depth trigger: Yes — we pull NYC DOB permits for any French drain excavation deeper than 4 feet or within 10 feet of a building foundation, which covers nearly all exterior installations in NYC.
• Interior work: Cutting a basement concrete slab and connecting to plumbing also requires a permit — a Licensed Master Plumber must file it.
• Utility mark-out: NYC 811 call is required 2–3 business days before any digging; it’s free and marks gas, electric, and water lines.
• Cost of compliance: DOB filing fees run $200–$500 depending on scope; the permit inspection at rough-in stage (before backfill) verifies pipe slope and gravel spec.
• Cost of skipping: In the field, I see homeowners skip the permit to save $200–$500 and later get hit with $500–$2,000 in DOB fines — plus their insurance denies the water damage claim.

Permit timeline and who pulls it

NYC DOB permit approval takes 2–6 weeks, and a Licensed Master Plumber must pull the permit — homeowners cannot pull plumbing permits in NYC. The filing includes a site plan showing the drain path, depth, and discharge location; the DOB reviews it for compliance with Building Code Chapter 33. Once approved, the permit card must be posted on-site before excavation begins. On the bench, you’ll find that the permit inspection at rough-in stage (before backfill) is the one that catches most violations — if the pipe slope or gravel spec is wrong, you’re digging it up again.

Conclusion

Here is what the research and field experience reveal about French drain installation across the five boroughs.

Main takeaways

French drain installation in NYC requires careful planning around permit requirements, frost line depth, and soil conditions. Interior perimeter drains work best for brownstones, while exterior systems need 24–36 inch depth and proper slope. Clay soil in Queens and Staten Island demands a steeper pipe slope of ¼ inch per foot. The system lifespan with proper maintenance is 20–40 years. The most common failure across NYC installations is missing geotextile fabric — without it, soil infiltrates the gravel within 2–5 years and the system stops working entirely.
