What size HVAC system do I need for my NYC apartment?
Proper sizing starts with a Manual J load calculation, not square footage alone — we provide this free during every in-home consultation across all five boroughs.
Manual J load calculation: the only accurate way to size your system
We perform a Manual J load calculation during every free in-home consultation — measuring your apartment’s square footage, ceiling height, insulation R-value, window count and orientation, occupancy, and appliance heat load to determine the exact BTU capacity needed. The calculation accounts for NYC’s wildly varied building stock: a 500-square-foot pre-war unit with single-pane windows and exposed brick walls needs roughly 25-30 BTU per square foot, while a modern glass tower with high-performance glazing can get by on 20 BTU per square foot. We enter each room’s data into HVAC-Calc software and get a room-by-room load that tells us exactly which evaporator and condenser combination fits. Skipping the Manual J and using a rule-of-thumb estimate is the most common cause of short cycling in oversized systems and continuous operation in undersized ones — both of which shorten compressor life and raise energy bills.
BTU sizing guide by NYC apartment type
| Apartment type | Square footage | BTU range | Typical configuration |
|---|---|---|---|
| Studio | 400–600 | 8,000–12,000 | Single-zone mini-split or window unit |
| 1-bedroom | 600–900 | 12,000–18,000 | Single-zone or 2-zone mini-split |
| 2-bedroom | 900–1,200 | 18,000–24,000 | 2-zone or 3-zone mini-split |
| 3-bedroom | 1,200–1,800 | 24,000–36,000 | 3-zone or 4-zone mini-split or central system |
What happens when your system is the wrong size
- Undersized system: Runs constantly without reaching your set temperature, which forces the compressor to operate beyond its duty cycle and drives up monthly bills — a 500-BTU deficit in a 1-bedroom can add $40–$60 to a summer electric bill.
- Oversized system: Short-cycles — turning on and off every few minutes — which fails to remove humidity during NYC’s humid summers and leaves the apartment feeling clammy at 72°F.
- Compressor wear: Short cycling from oversizing wears out the compressor 3–5 times faster than normal cycling, and the poor humidity removal can lead to mold growth in pre-war apartments with limited ventilation.
- Uneven temperatures: An oversized system cools the room too fast, shutting off before the far side of the apartment reaches the thermostat — common in long Brooklyn railroad apartments and loft spaces.
- Higher upfront cost: Oversizing means buying a more expensive outdoor unit and possibly upgrading electrical service for capacity you’ll never use efficiently.
Do you handle DOB permits for HVAC installation in NYC?
NYC requires DOB permits for any new HVAC installation or system replacement. We manage the entire process so you never interact with the city.
When do you need a DOB permit for HVAC work?
- New installation or system replacement: Any new HVAC equipment — central AC, ductless mini-split, heat pump, or PTAC — requires a DOB permit before work begins. The same applies if you swap an existing unit for a different model or capacity.
- Ductwork or refrigerant-line modifications: Changing the layout of ductwork, extending refrigerant lines to a new location, or adding a zone to an existing system triggers permit requirements — even if the equipment stays the same.
- Equipment relocation: Moving the outdoor condenser from a balcony to the rooftop, or shifting an indoor air handler to a different closet, counts as a modification that needs a permit.
- Exempt minor repairs: Replacing a capacitor, swapping a contactor, or fixing a refrigerant leak on the same equipment at the same capacity — these don't require a DOB permit. But the line between repair and modification is thin; we assess each case.
- No-permit work carries real risk: Installing without a required permit risks fines up to $25,000 and can void your insurance coverage if the unpermitted work causes damage or injury — that's a worst-case scenario we've seen play out.
How we handle the permit process from start to finish
We handle the full DOB permit process — filing the PW1 alteration application and TR1 technical report with equipment specs and load calculations, coordinating with a NYC-licensed Professional Engineer or Registered Architect for plan sign-off, scheduling the final DOB inspection, and securing the sign-off — so you never need to interact with the city. The filing fee typically runs $200–$500 for residential HVAC in NYC, and we include that in your installation quote upfront. Standard permit approval takes 2–6 weeks in NYC, but we can expedite the process for an additional fee — and installation cannot legally begin until the permit is approved, so we plan the timeline accordingly. On a recent Brooklyn brownstone job, the DOB approved the TR1 in three weeks, and we had the final inspection signed off two days after the equipment was in place.
Permit costs and timeline for residential HVAC
| Permit element | Typical cost | Timeline |
|---|---|---|
| PW1 filing fee | $200–$500 | 1–3 days processing |
| TR1 technical report (RDP sign-off) | $500–$1,500 | 1–2 weeks |
| Plan review by DOB | Included in filing fee | 2–4 weeks |
| Final DOB inspection | Included in filing fee | 2–4 weeks scheduling |
| Expedited processing | Additional $300–$800 | 1–2 weeks total |

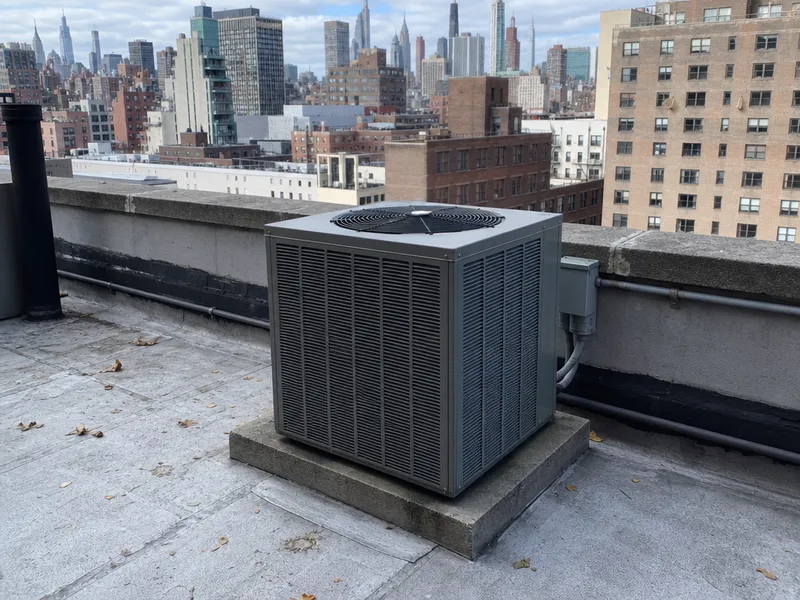

Can you install a heat pump in a Manhattan co-op?
Installing a heat pump in a Manhattan co-op requires board approval, noise compliance, and careful planning. We’ve done dozens of these installations and know exactly what’s needed.
Co-op board approval: what you need to submit
- Equipment specs sheet: Noise rating (dBA at full load), BTU capacity, and unit dimensions — boards compare these against co-op noise and space rules.
- Installation plan: Shows outdoor unit location, refrigerant line routing path, and condensate drain connection point — boards want to see zero facade alteration beyond the 3-inch wall penetration.
- Contractor credentials: NY DOS Home Improvement license, EPA-608 certifications, and liability insurance certificate — boards verify these before putting the application to a vote.
- Sound mitigation proposal: We specify sound blankets or unit relocation away from property lines before the board even reviews the package — many Manhattan co-ops reject heat pump applications because of outdoor unit noise concerns, and addressing this upfront clears the biggest hurdle.
Noise, electrical, and outdoor unit placement requirements
NYC Noise Code limits outdoor unit sound to 45 dBA at the property line during nighttime hours — Mitsubishi and Daikin outdoor units typically run 48–52 dBA, so we often install sound blankets ($100–$300) or relocate the unit away from the property line to comply. For electrical, most Manhattan co-ops have 100A or 200A service, and adding a heat pump may require a panel upgrade to 200A ($4,500–$6,500) — we check this during the free consultation so there are no surprises on installation day. Rooftop placement requires a DOB permit plus a structural review; balcony placement may violate co-op proprietary-ledge rules; courtyard placement risks noise complaints from neighbors above. Most Manhattan co-ops restrict outdoor units to the rooftop only, which means we coordinate with the building’s super for roof access and elevator reservations for equipment transport.

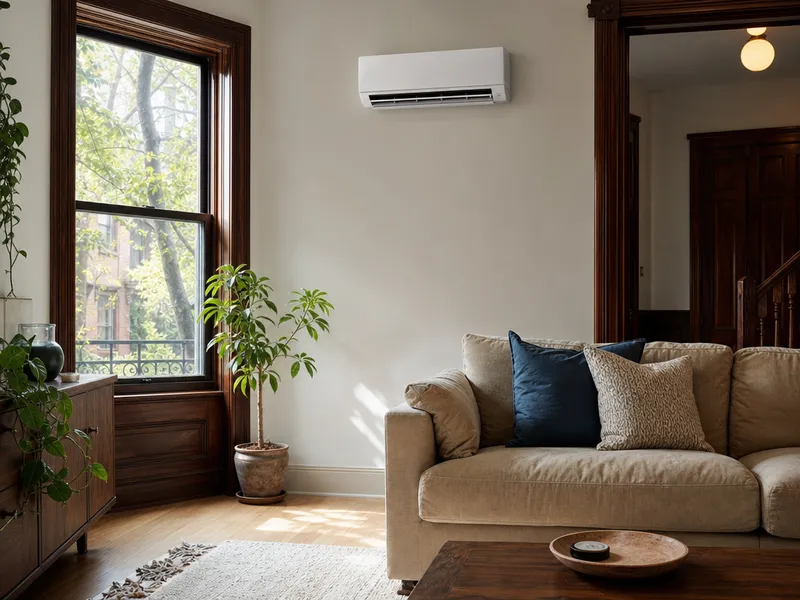

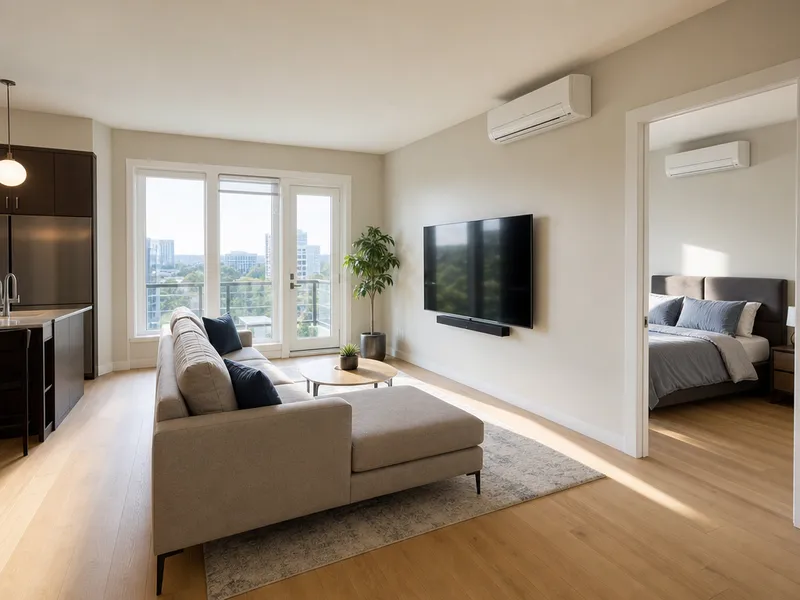

Why ductless mini-splits are often the easiest co-op solution
Ductless mini-splits require only a 3-inch wall penetration for refrigerant lines — far less invasive than ductwork — and the indoor unit mounts on the wall rather than in a window, making them the easiest heat pump solution for co-op board approval in Manhattan. We hard-pipe the condensate line to existing plumbing rather than using a gravity drain, which satisfies most co-op building requirements and prevents water damage claims — condensate management is a common co-op sticking point that derails approval if not addressed in the submission package.
Installing AC in a historic NYC building
Over 37,000 buildings in NYC are landmarked. Installing AC in a historic building requires LPC awareness and smart alternatives to window units.

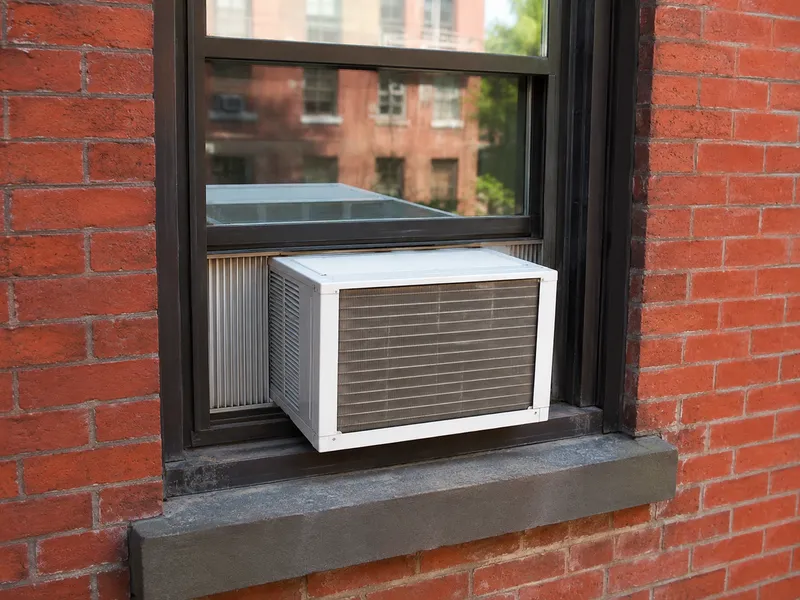

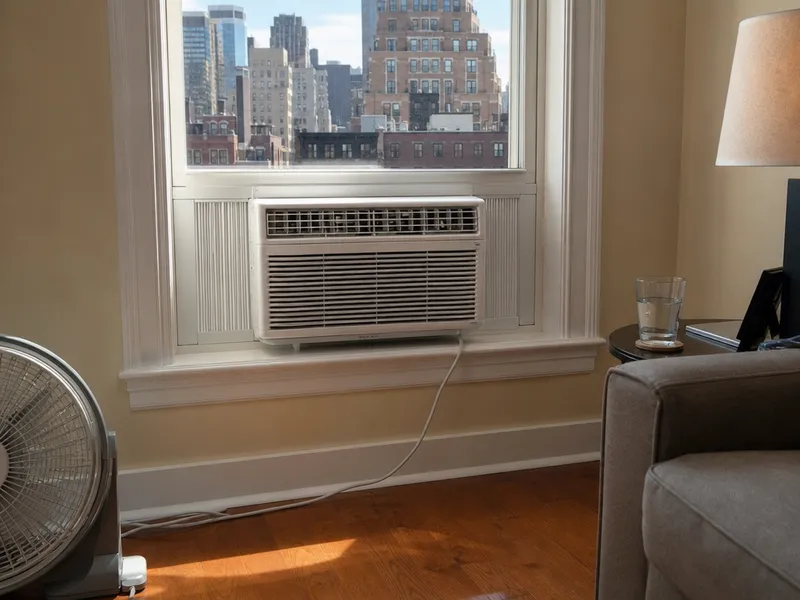

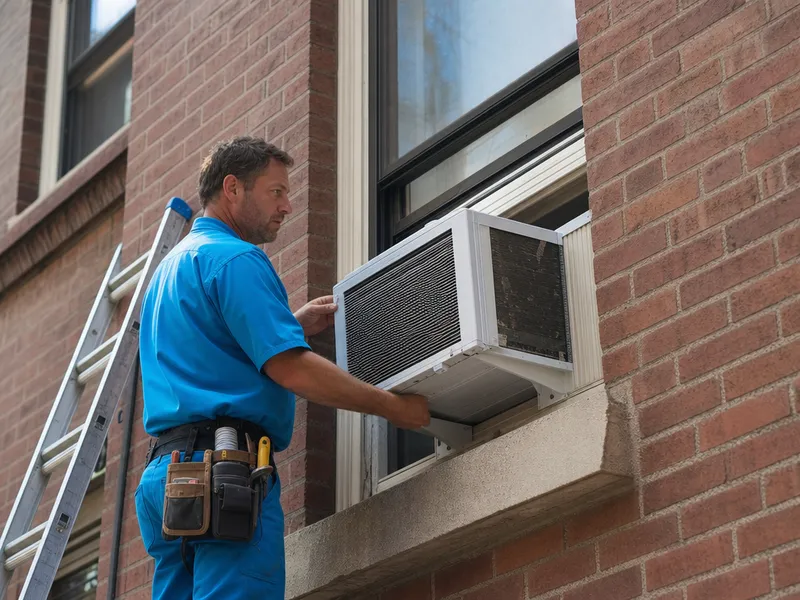

Landmarks Preservation Commission rules for window AC units
- Facade restrictions: The NYC Landmarks Preservation Commission typically prohibits window AC units visible from the street on landmarked buildings — rear or courtyard-facing windows are usually allowed, but front facade installations require LPC approval.
- Window sash damage: Installing a window AC without proper support brackets can crack historic window sashes; repair costs for a single historic sash can exceed $2,000, and the LPC may require restoration to original condition at your expense.
- Co-op rules in historic districts: Many Upper West Side brownstones and Greenwich Village co-ops layer their own window AC rules on top of LPC requirements — some ban window units entirely, even on rear facades.
- Professional installation requirement: Most historic co-ops require licensed, insured contractors for any window AC installation, and some demand proof of LPC compliance before approving the work.

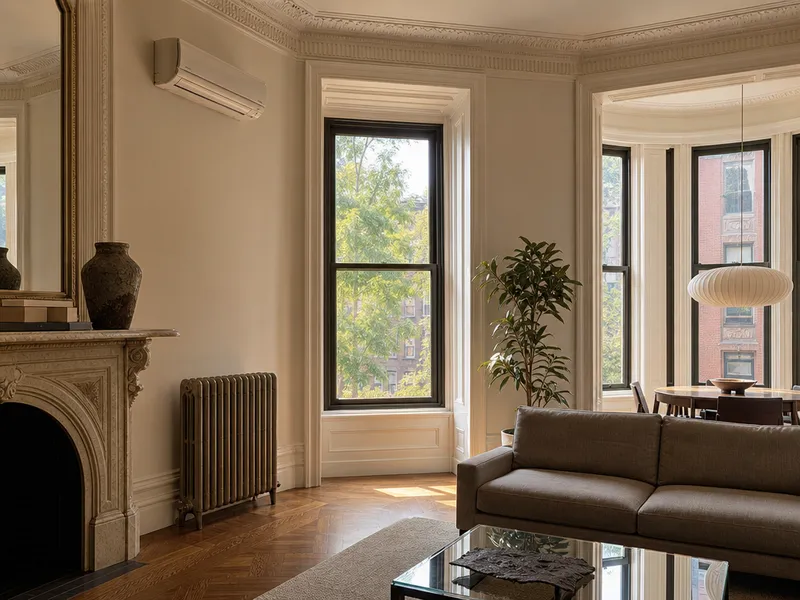

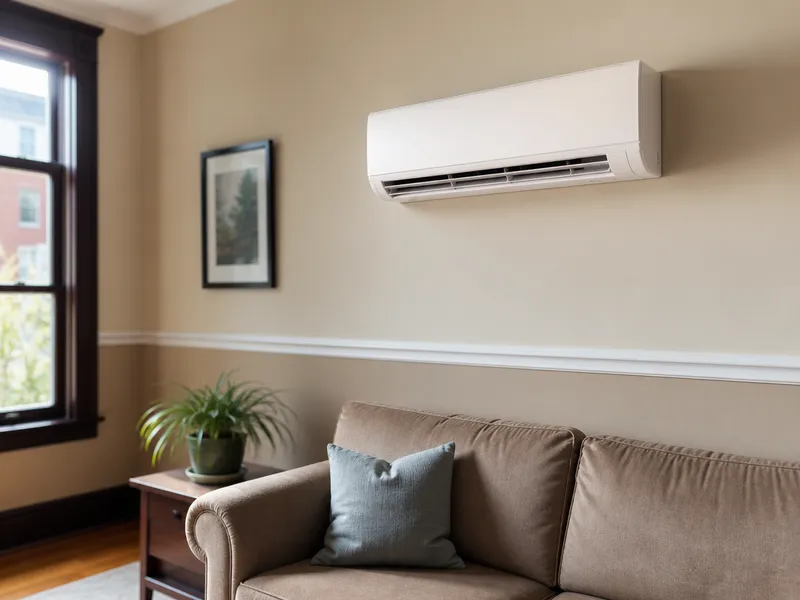

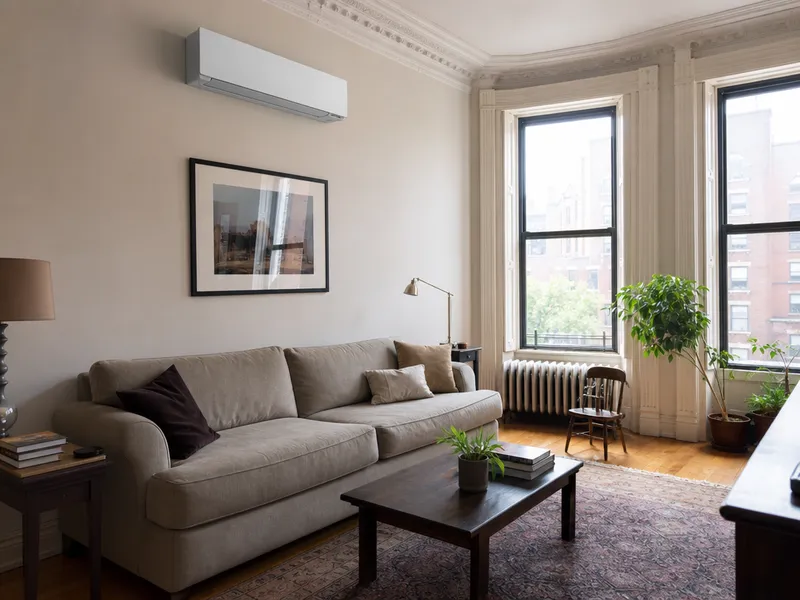

Ductless mini-splits: the historic building workaround
We recommend ductless mini-splits for historic buildings because the 3-inch wall penetration for refrigerant lines is far less visible than a window unit — and the indoor unit mounts on an interior wall, completely avoiding LPC restrictions on facade alterations. The outdoor compressor can go on the roof (with a DOB permit) or in a rear courtyard, out of street view entirely. For Upper West Side brownstones and other historic co-ops, ductless mini-splits bypass both LPC restrictions and co-op window AC rules, making them the single most approved solution we install in landmarked buildings. On a recent job in a landmarked Brooklyn Heights townhouse, the LPC approved the mini-split install in under two weeks — versus a window unit application that would have required a full public hearing.

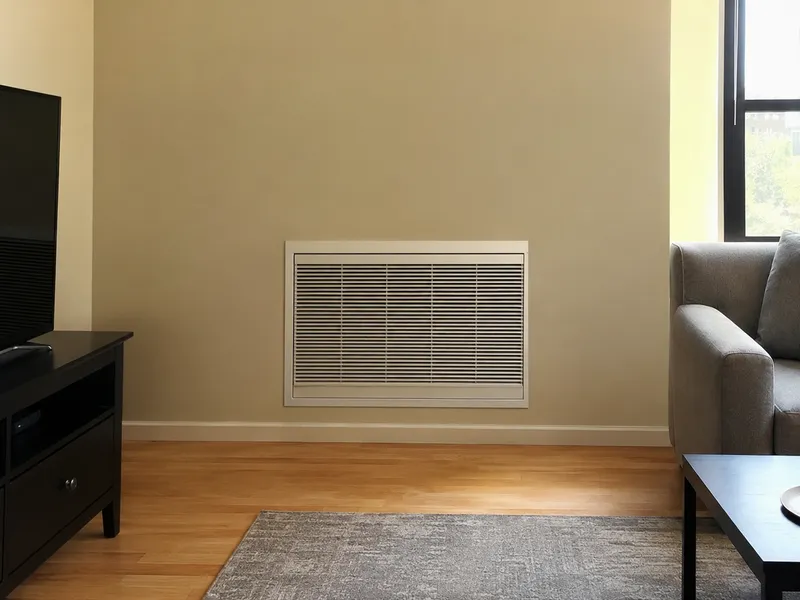

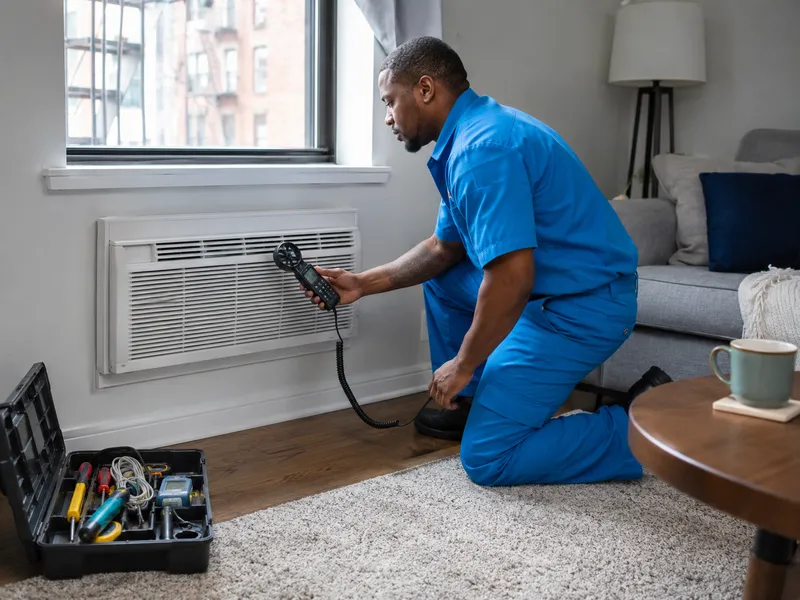

Through-the-wall and PTAC alternatives for historic buildings
- Existing sleeve reuse: Some historic buildings already have through-the-wall sleeves from previous installations — reusing an existing sleeve avoids LPC review entirely and cuts installation time to 2-3 hours.
- New sleeve installation: Through-the-wall AC units installed in new wall sleeves require both a DOB permit and LPC review for facade penetration, which can add 4-6 weeks to the timeline.

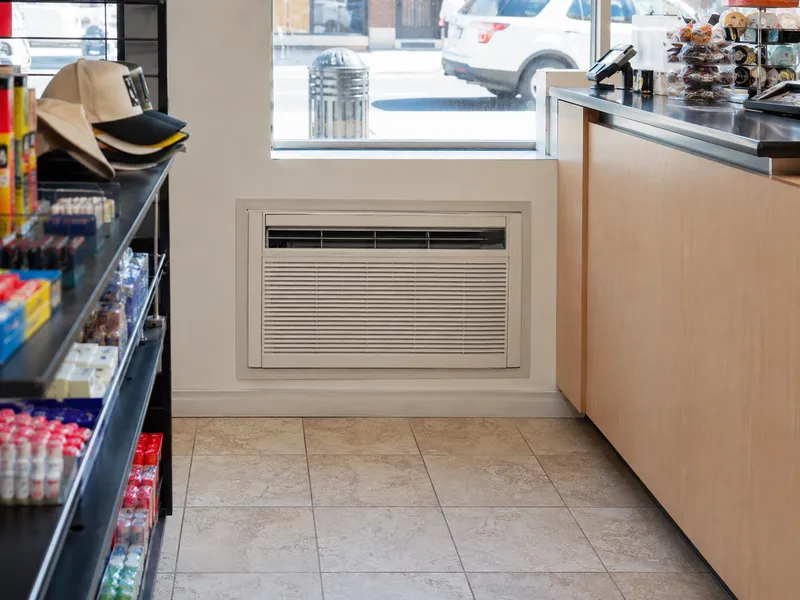

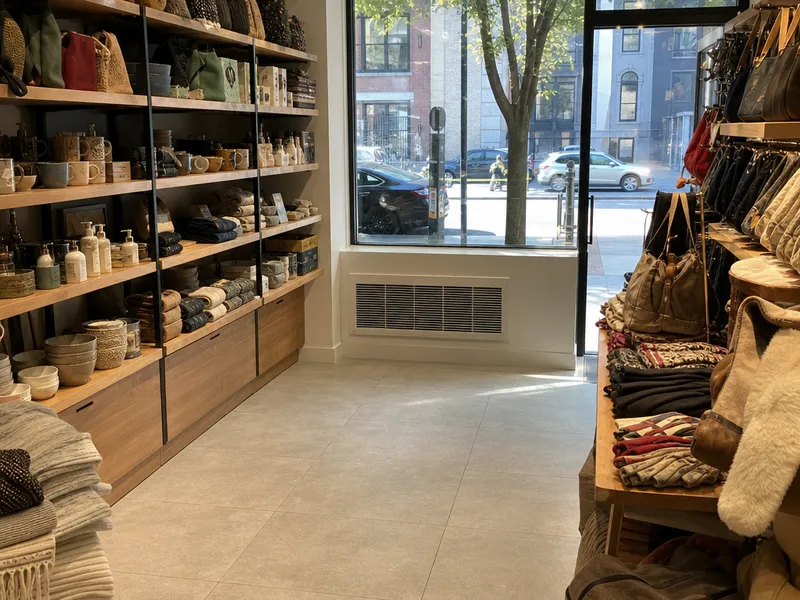

- PTAC units: Packaged Terminal Air Conditioners — common in historic hotels like the Chelsea or The Plaza — can work in landmarked buildings if installed in existing PTAC sleeves; new sleeve installations trigger the same LPC review as through-the-wall units.
How to prepare your home for HVAC installation day
A little preparation goes a long way on installation day. Here’s what to do before our team arrives.
Clearing the workspace and access pathways
- Move furniture and valuables: Clear everything at least 6 feet from the installation zone — indoor unit boxes measure 36″x12″x12″ and outdoor unit boxes are 36″x36″x36″, so doorways and hallways need to be open for equipment transport.
- Cover what stays: We bring drop cloths for remaining furniture and flooring, but moving fragile items like vases, electronics, and artwork out of the work area beforehand saves time.
- Measure your doorways: If the outdoor unit box won’t fit through your front door or hallway, we can uncrate it outside and carry the unit separately — but that adds 30–60 minutes to the job.
- Remove window screens and storm windows: For through-the-wall or window unit installations, the sash must open fully and be in good condition; screens and storm windows come off first.
Electrical, parking, and building notifications
- Confirm dedicated circuit availability: Your new system needs its own circuit — if a new one is required, our electrician may run conduit through walls, which means wall patching afterward.
- Notify building management 48 hours in advance: Co-ops and condos often require elevator reservations for equipment transport, and some buildings have specific service hours for contractors.
- Secure parking or loading dock access: NYC street parking can delay our arrival by 30–60 minutes — if you can reserve a spot or provide building loading dock access, let us know in advance and we’ll schedule accordingly.
- Secure pets and children: We use loud tools and open refrigerant lines during installation, so keep pets in a separate room and children out of the work zone entirely.
Typical installation times by system type
| System type | Installation time | Notes |
|---|---|---|
| Ductless mini-split (single zone) | 4–6 hours | Requires 3-inch wall penetration for refrigerant lines |

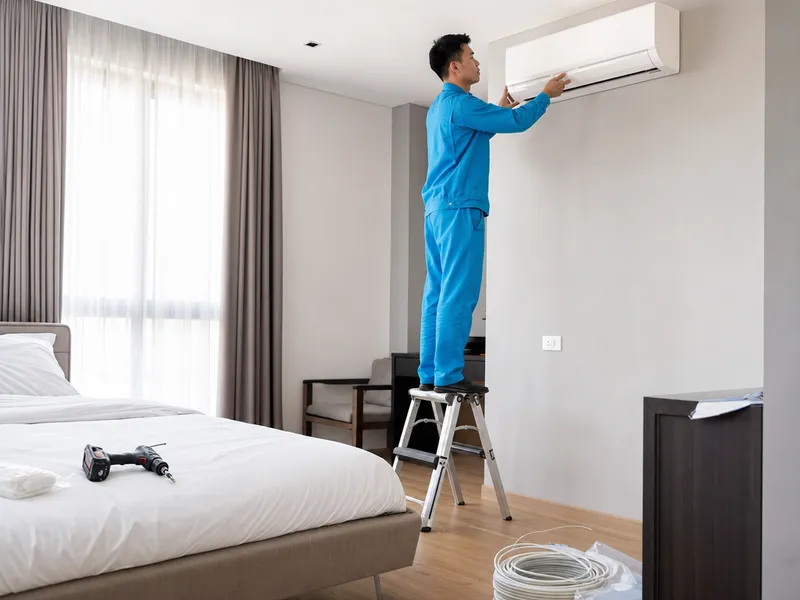

| Multi-zone mini-split (3 zones) | 8–12 hours | Each indoor unit adds roughly 1.5 hours of work |

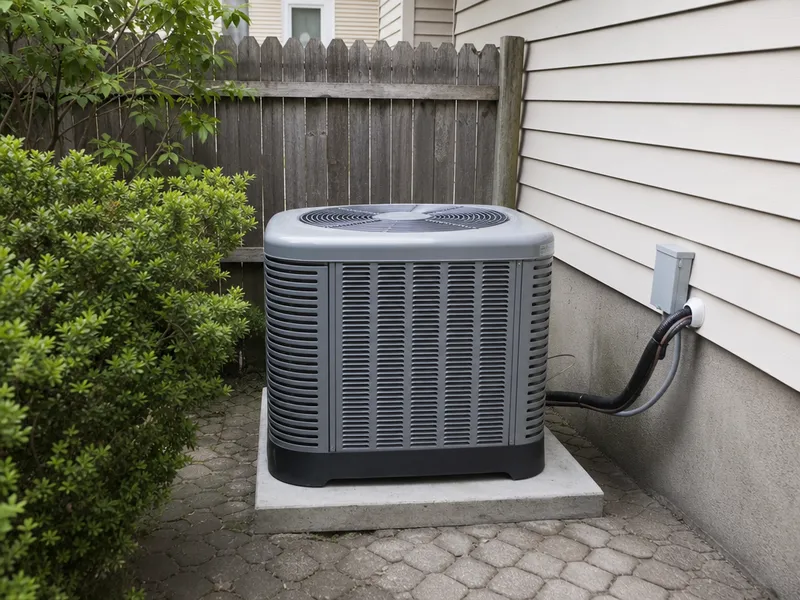

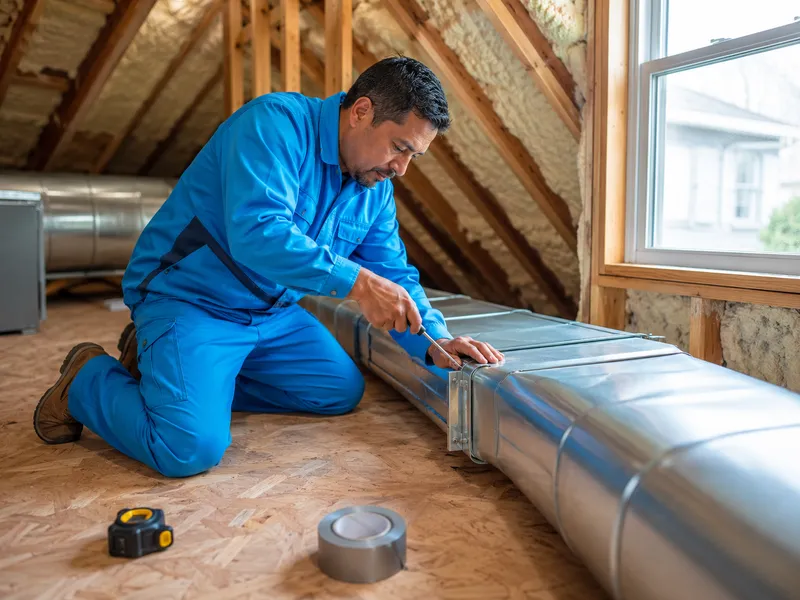

| Central AC with new ductwork | 2–3 days | Ductwork fabrication and installation is the bulk of the job |
| Through-the-wall AC (existing sleeve) | 2–3 hours | Faster if the sleeve is already in place and sized correctly |
| Window unit | 1–2 hours | Quickest install — no wall penetration or refrigerant lines |
SEER ratings of the systems we install
SEER ratings tell you how efficient your system will be. We install systems ranging from 16 to 33 SEER depending on your needs and building constraints.
What SEER rating do we install and why it matters
We install central AC systems ranging from 16 to 22 SEER and ductless mini-splits from 18 to 33 SEER — the federal minimum for NYC is 15 SEER2 (roughly 14.3 SEER) as of 2025, so every system we install exceeds the legal baseline. A Mitsubishi Electric ductless unit at 28 SEER uses an inverter compressor that modulates capacity rather than cycling on and off, which cuts energy waste at partial loads — something a single-speed 14 SEER unit can’t do. In our practice, a 1,000 sq ft apartment in a pre-war Brooklyn brownstone running a 20 SEER system at $0.24/kWh for 8 hours a day over four months saves roughly $200-$350 per year versus a 14 SEER baseline. Upgrading from 14 SEER to 20 SEER saves 30-40% on cooling costs — though older buildings with single-pane windows benefit less from ultra-high SEER because the building envelope is the bottleneck.
SEER vs SEER2: what’s the difference?
SEER2 is the updated federal testing standard introduced in 2023 that measures efficiency under real-world operating conditions with higher static pressure — SEER2 values are typically 1-2 points lower than the old SEER rating for the same unit. The 2023 DOE rule replaced the SEER test method with SEER2 because the original test didn’t account for the actual airflow resistance in installed ductwork and indoor coils, which drops measured efficiency. When comparing systems, always look at the SEER2 number — a unit advertised as “16 SEER” may only achieve 14.5 SEER2, which changes the energy savings calculation and may not meet the 15 SEER2 minimum for NYC.
Heat pump efficiency: SEER and HSPF explained
- SEER (cooling): Measures cooling output per watt-hour — federal minimum for NYC is 15 SEER2, with high-efficiency ductless models reaching 28-33 SEER2.
- HSPF (heating): Measures heating output per watt-hour — minimum for NYC is 8.8 HSPF2, and premium units from Daikin and Mitsubishi achieve 10-13 HSPF2.
- Why HSPF matters more in NYC: Heating season runs 5-6 months versus 3-4 months for cooling — a unit with 10 HSPF2 vs 8.8 HSPF2 saves roughly $150-$250 per winter on heating costs.
- Dual-rating trap: A heat pump can have excellent SEER but middling HSPF — always check both numbers, especially for co-op installations where the unit runs year-round.
Main takeaways for your HVAC installation
Main takeaways for your HVAC installation
Proper HVAC installation in NYC starts with an accurate Manual J load calculation — not square footage rules of thumb — and requires DOB permits for any new system or replacement. The calculation accounts for ceiling height, window U-value, insulation R-value, occupancy, and appliance heat load to determine the exact BTU capacity needed for your specific apartment. In a Brooklyn brownstone with single-pane windows, that same 600-square-foot studio that a rule-of-thumb says needs 12,000 BTU might actually require 15,000 BTU because of heat loss through the glass. The most common installation mistakes we see across NYC — wrong system size, skipped permits, and improper refrigerant line installation — are all avoidable with professional assessment and proper planning before installation day.
