What size ceiling fan do I need for my room?
We help NYC homeowners choose the right ceiling fan size based on room dimensions, ceiling height, and airflow needs — no guesswork.
Room size to fan diameter guide
| Room size (sq ft) | Fan diameter | Typical NYC room | CFM range |
|---|---|---|---|
| Up to 75 | 29–36″ | Small bedroom, office | 2,000–3,000 |
| 75–144 | 36–44″ | Standard bedroom (10×12) | 3,000–4,500 |
| 144–225 | 44–50″ | Living room (12×15) | 4,000–5,000 |
| 225–400 | 50–54″ | Large living room, studio | 4,500–5,500 |
| 400+ | 56–72″ or two fans | Open-plan loft | 5,000+ per fan |
Low ceiling solutions in NYC apartments

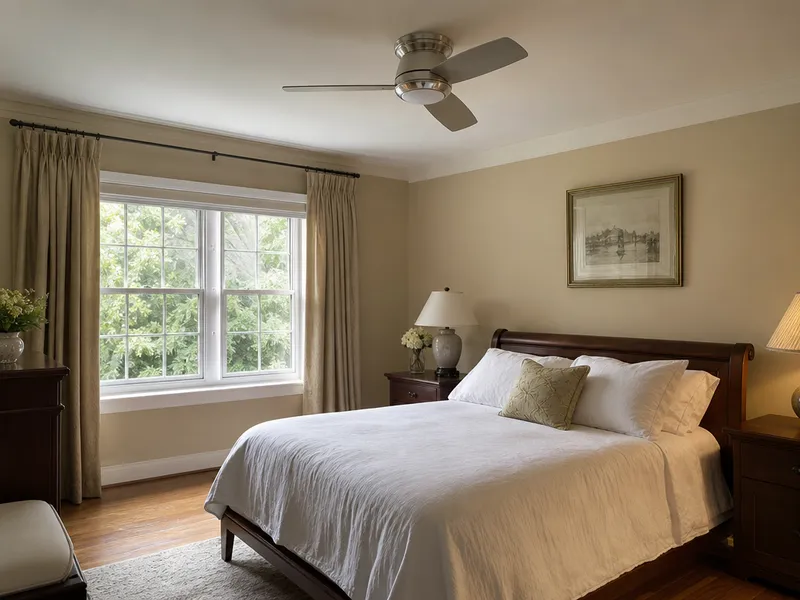

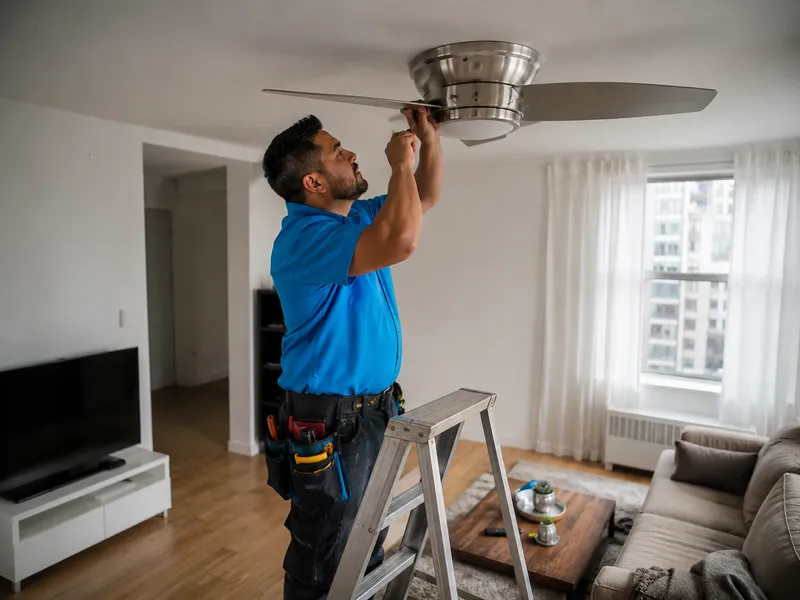

- Hugger fan: Sits flush against the ceiling with no downrod — total height is 6–8 inches, ideal for 7.5–8 ft ceilings common in pre-war Brooklyn and Manhattan apartments.
- Flush-mount fan: Uses a short mounting plate (1–2 inches) instead of a downrod, keeping blades at least 7 ft from the floor per NEC requirements.
- Blade pitch tradeoff: Hugger fans typically have 10–12 degree pitch (vs the optimal 12–15 degrees) because tighter blade angles would bring blades too close to the ceiling — airflow drops 15–20% compared to a standard downrod fan at the same speed.
- Room size limit: Most hugger fans max out at 44–48″ blade span, making them unsuitable for rooms over 200 sq ft. For a 250 sq ft studio with 8 ft ceilings, we install a 44″ flush-mount with a high-CFM motor to compensate for the shorter blades.
- Ceiling box check: On low ceilings, the fan-rated box must be recessed into the ceiling (not surface-mounted) so the hugger plate sits flat. In concrete-slab apartments, that means a shallow concrete ceiling box — we carry Raco 230 boxes for exactly this.
- What happens with a standard fan on an 8 ft ceiling: A 4-inch downrod plus 8-inch fan body leaves 7 ft 8 inches of clearance — anyone over 5 ft 10 inches can walk under it, but the blades are uncomfortably close to head height. Not ideal for tall households.

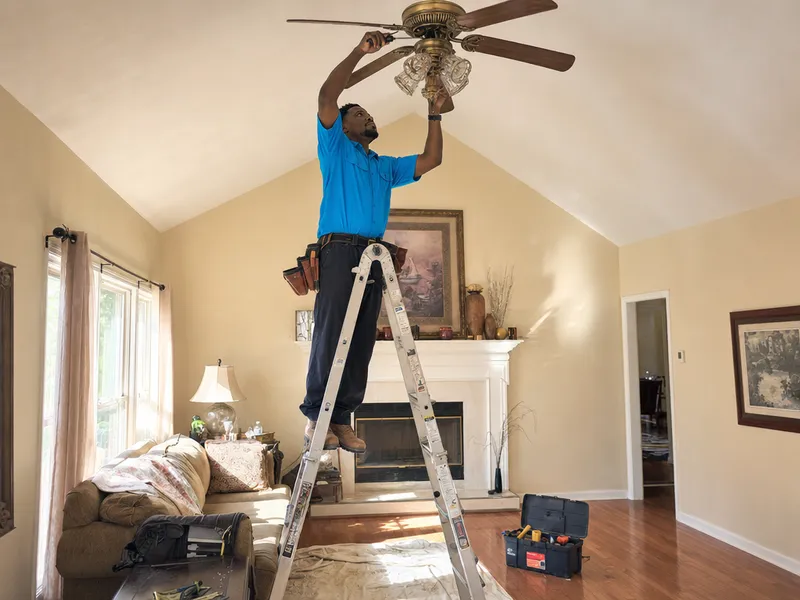

Can you install a ceiling fan on a vaulted ceiling?
Vaulted ceilings require special hardware and technique — we handle the full installation with sloped-ceiling adapters and proper downrod sizing.
How we install on vaulted ceilings
- Measure the slope: We use a digital level to find the roof angle — typically 30–60 degrees on NYC vaulted ceilings.
- Select the adapter: A sloped-ceiling adapter kit ($15–$40, like the Hunter 99402) lets the fan hang plumb regardless of the roof pitch.
- Calculate downrod length: For a 12-foot vaulted ceiling, we subtract 7 feet for blade clearance and the fan height (8–12 inches) — that usually lands at a 3–4 foot downrod.
- Mount and wire: We bolt the adapter to the fan-rated box on the slope, run wires through the longer downrod before hanging the fan, and lock the swivel at the right angle.
- Test for wobble: A vaulted fan that isn’t plumb will wear its bearings prematurely — we verify level at the motor housing, not the ceiling line.
Wiring and safety for sloped installations
We run wires through the longer downrod and adapter before mounting the fan, using wire pulling lubricant for tight spaces in vaulted ceiling installations. The wire path through a 3–4 foot downrod is more friction than a standard 6-inch drop — pulling lubricant prevents nicking the insulation on sharp edges inside the adapter. Vaulted installations often require ladder setup on stairs or scaffolding, adding 30–60 minutes of setup time — NYC co-ops may also require an insurance certificate for ladder work. On a Brooklyn brownstone with a 45-degree vault, I’ve had to rig scaffolding on the stair landing just to reach the peak safely; it’s not a job for a single A-frame ladder.

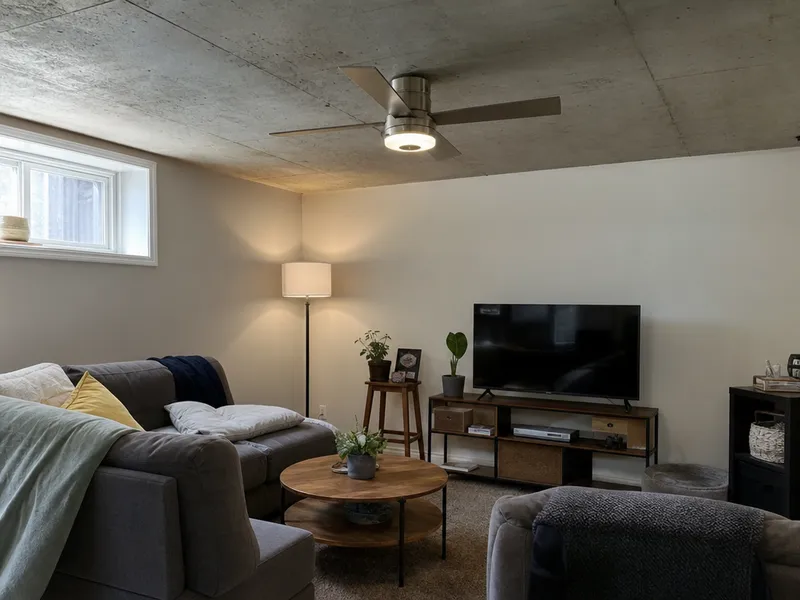

How do you mount a ceiling fan to a concrete ceiling?
Concrete ceilings are common in NYC high-rises and pre-war buildings — we use specialized tools and anchors to ensure a secure, code-compliant mount.
Tools and anchors for concrete ceilings
- Hammer drill with masonry bit: We use a rotary hammer with a carbide-tipped 1/4″ bit for Tapcon anchors or 3/8″ for wedge anchors — the hammer action pulverizes concrete rather than chipping it.
- Concrete ceiling box: A UL-listed metal box like the Raco 230 with a 4-screw mounting pattern; standard plastic fan boxes won’t anchor to concrete and can pull loose under fan vibration.
- Tapcon screws: For lighter fans under 50 lbs, we drive 3/16″ diameter screws (1-3/4″ minimum embedment) into pre-drilled holes — torque to 35–40 in-lbs with a screw gun.
- Wedge anchors: For heavier fans over 50 lbs, we use 1/4″ wedge anchors tightened to 30–40 ft-lbs — these expand against the concrete walls for a mechanical grip that supports 100+ lbs.
Installation time and cost for concrete ceilings
Concrete ceiling fan installation takes 1.5–2.5 hours compared to 45 minutes for wood joist installations, with additional labor costs of $50–$100 for specialized tools and anchors. The extra time comes from drilling pilot holes through rebar-checked concrete, blowing out silica dust with a HEPA vac, and mounting the metal box with expansion anchors rather than wood screws. We always verify the ceiling material first — in NYC pre-war buildings, terracotta or cinder plank ceilings are often mistaken for concrete, and those require toggle bolts through the plank rather than masonry anchors.
Can you install a ceiling fan in a bathroom or outdoor area?
Bathroom and outdoor ceiling fan installations have specific UL ratings and code requirements — we ensure every fan is rated for its environment and properly protected.
Bathroom ceiling fan requirements
- UL rating: We install only UL-listed damp-rated ceiling fans in bathrooms, positioned at least 3 feet from shower or tub edges, with GFCI protection if within 6 feet of any water source per NEC 210.8(A).
- Circuit requirement: Bathroom receptacle circuits must be 20A per NEC 210.11(C)(3) — the ceiling fan can share the bathroom lighting circuit if total load stays under the breaker rating.
- Location restriction: The fan must not sit directly above a shower or tub unless it carries a wet-rated UL listing, which is rare for residential ceiling fans.
- Ventilation note: A ceiling fan does not replace a bathroom exhaust fan — you still need separate ventilation for moisture removal, as the ceiling fan is for comfort airflow only.

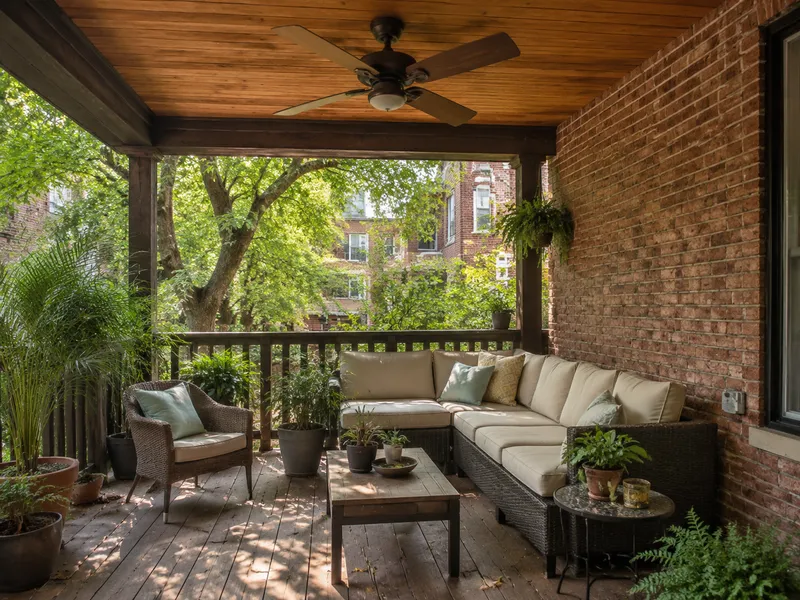

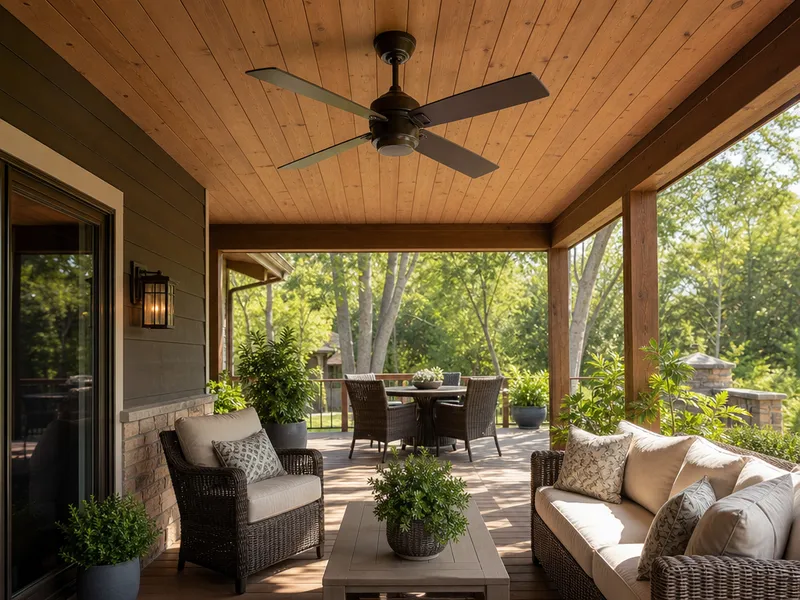

Outdoor ceiling fan requirements
| Location type | Required UL rating | Hardware needs | Box requirement |
|---|---|---|---|
| Covered porch or patio (no direct rain) | Damp-rated | Stainless steel screws, silicone-filled wire nuts | Weatherproof fan-rated box with gasket |
| Exposed balcony or terrace (direct rain) | Wet-rated | Solid stainless steel downrod, outdoor-rated light kit | Weatherproof fan-rated box with gasket |
| Pergola with partial coverage | Damp-rated minimum; wet-rated recommended | Stainless steel hardware throughout | Weatherproof fan-rated box with gasket |
How do you ensure the fan is balanced and quiet?
A wobbly or noisy ceiling fan is usually fixable in minutes — we follow a systematic check to ensure smooth, quiet operation on every installation.
Common causes of ceiling fan wobble
- Loose blade screws: We resolve 80% of ceiling fan wobble issues by tightening all blade-to-iron and iron-to-motor screws to 15–20 in-lbs using a manual screwdriver — a drill strips the heads.
- Blade pitch mismatch: We measure pitch at three points per blade with a protractor; variance over 1 degree between blades causes wobble, and gentle bending can match them on some fan models.
- Bent downrod: A downrod with more than 1/8 inch deviation causes wobble at all speeds and must be replaced rather than straightened — we always inspect the downrod before balancing.
- Loose mounting box: Any movement at the fan-rated box transmits through the downrod; we torque the box screws to 40–50 in-lbs and check for plaster-lath separation common in pre-war NYC buildings.
- Balancing kit procedure: We attach the balancing clip to a blade, run the fan on high, move the clip until wobble stops, then apply the adhesive weight — a 5–10 minute fix that prevents callbacks.
Motor noise diagnosis and repair
We diagnose ceiling fan motor noise by sound type — humming at low speed indicates a capacitor issue ($5–$15 part), clicking means loose wire nuts or blade brackets, and grinding signals bearing failure requiring motor replacement. A capacitor swap takes about 15 minutes with the fan disassembled, and we carry universal 1.5–5 µF capacitors for most brands. Light kit rattle is often fixed by checking glass shade tightness and adding felt pads between glass and frame — a 2-minute fix that prevents callbacks. In our experience, the noise that owners describe as “a scraping sound” is almost always a wire nut vibrating against the canopy, not a motor defect — we tape the wire bundle to silence it.
Conclusion
Getting the ceiling fan right means sizing it to the room, choosing the right hardware, and matching the UL rating to the location. Here are the key decisions.
Main takeaways
Choosing the right ceiling fan size, mounting hardware, and location rating ensures safe, quiet, and efficient operation in any NYC home. Match the fan diameter to your room’s square footage — a 44-inch fan works for a standard 12×12 bedroom, while a 54-inch fan suits a 300-square-foot living room. For low ceilings under 8 feet, a hugger fan that sits flush against the ceiling avoids head-clearance issues. Sloped or vaulted ceilings require a sloped-ceiling adapter to keep the fan hanging plumb — without it, the wobble wears out bearings fast. Concrete ceilings need a hammer drill, masonry anchors, and a UL-listed concrete ceiling box rated for 35–50 pounds minimum. Bathroom and outdoor fans must carry a damp or wet UL rating; standard fans corrode within months near moisture. Whether you’re installing on a vaulted ceiling, concrete slab, or in a bathroom, proper preparation — from sloped-ceiling adapters to damp-rated UL listings — prevents costly callbacks and extends fan life.
