Can you install a gas line for new construction or renovation in NYC?
Yes — a licensed master plumber handles DOB permits, Con Edison coordination, and final inspection for both new construction and renovation gas lines across all five boroughs.

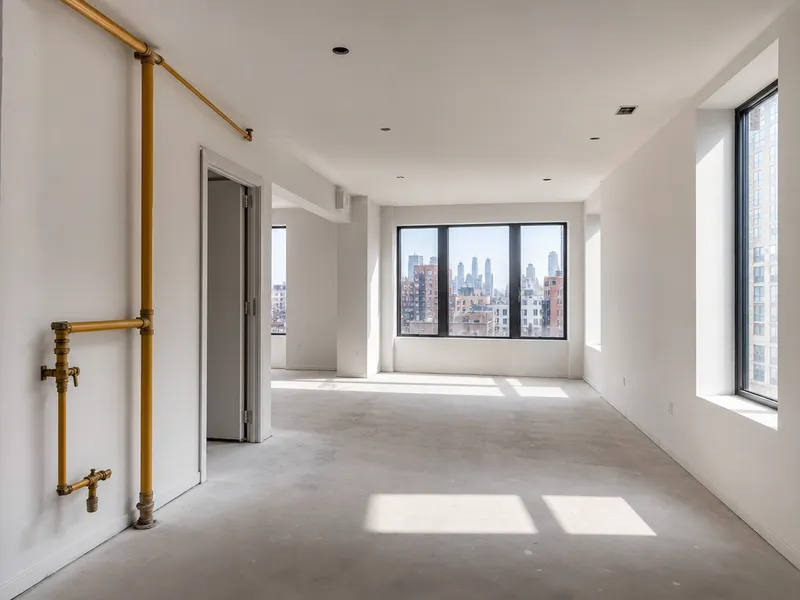

New construction gas line installation process
- DOB-approved plans: We start with mechanical drawings showing pipe routes, sizing calculations per NFPA 54, and appliance locations — filed with NYC DOB before any work begins.
- Con Edison coordination: Meter upgrades or relocations require utility involvement; that typically adds 2–4 weeks to the timeline for new buildings.
- Pipe installation: Black iron (schedule 40) or CSST is run from the meter location to each appliance, supported every 6–8 feet with pipe hangers per NYC building code Chapter 4.
- Pressure test and inspection: The finished system is pressurized to 15 psi for 30 minutes with no drop, then inspected by a DOB inspector before gas service is turned on.
- Exact key to insert: Gas Lines installation for new construction follows the same permit-and-test sequence as any other gas work in NYC — the difference is the scale and the upfront planning required.

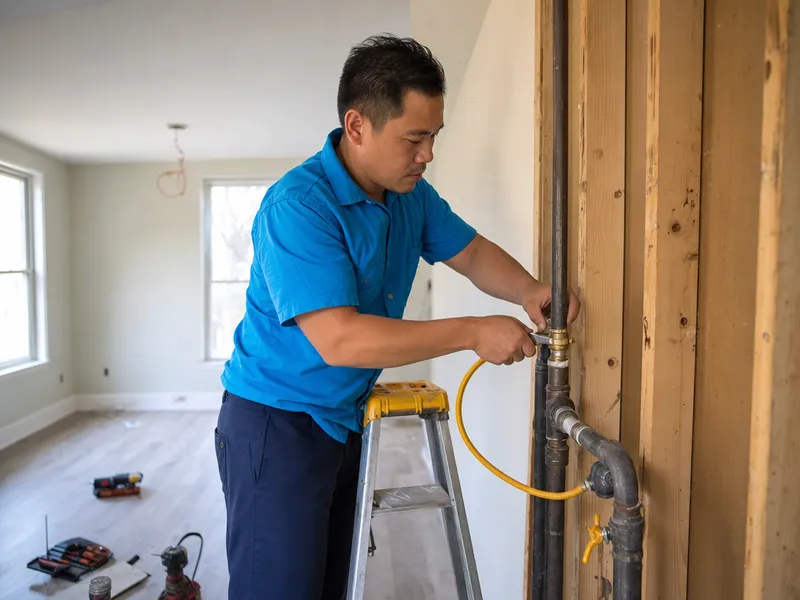

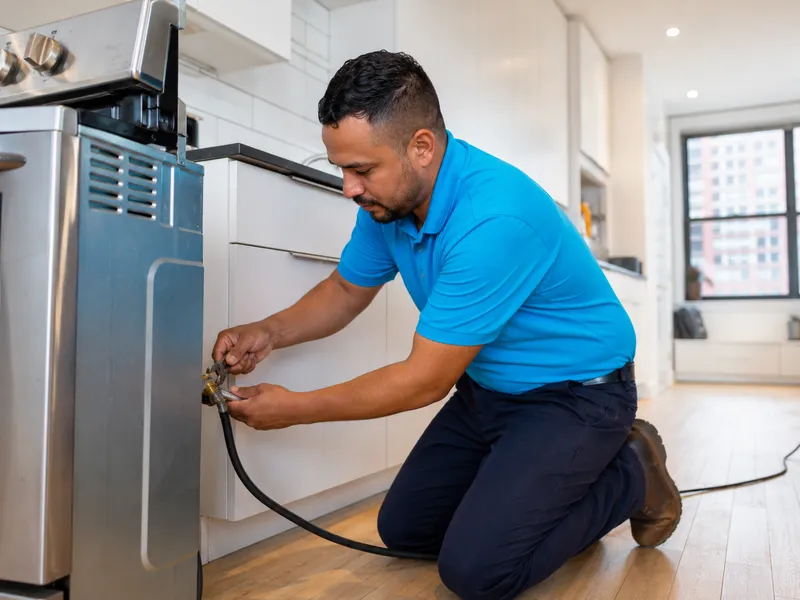

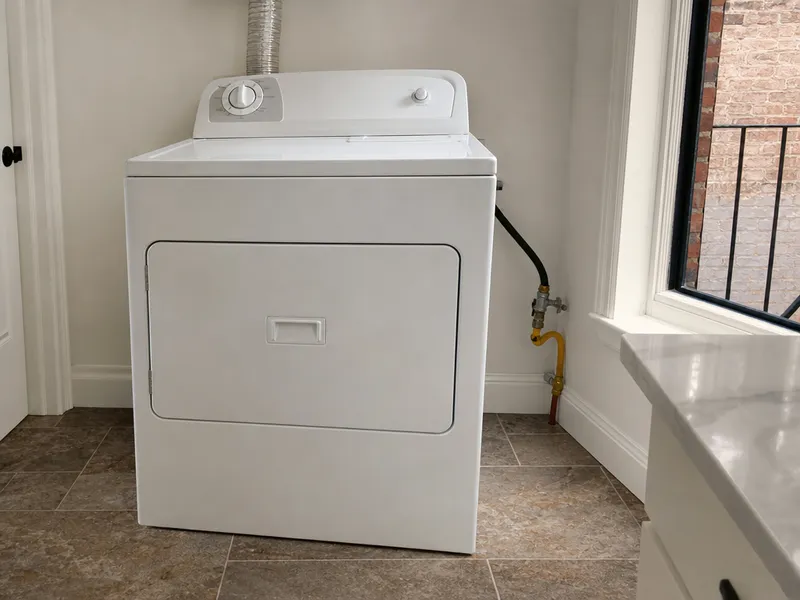

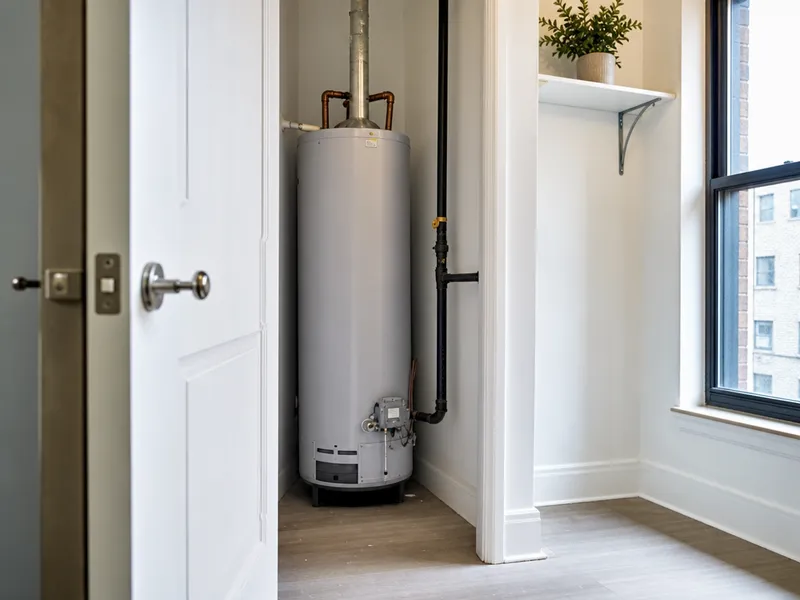

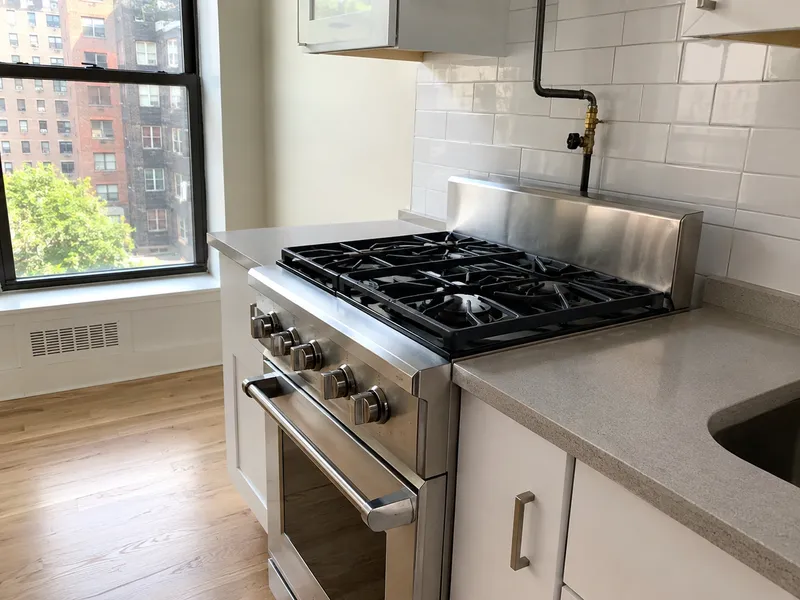

Renovation gas line installation for new appliances
We install gas lines for renovation projects — adding a gas stove, dryer, or water heater — and handle the DOB permit, pressure test, and appliance connection in 2–5 days for most single-appliance additions. The process is faster than new construction because the existing meter and main line are already sized for the building’s load. Running gas pipe through fire-rated walls or floors requires firestop sealant per NYC building code, which is why opening walls during renovation is the ideal time to add gas lines. On pre-war buildings I’ve worked, the existing black iron riser often has spare capacity for one more appliance — but the branch line from the riser to the new stove or dryer still needs proper sizing and a dedicated shut-off valve within 6 feet of the appliance.
How do you choose the right gas line size for my appliance?
Gas line sizing depends on the total BTU load of all connected appliances plus the pipe length, and a licensed master plumber performs the calculation per NFPA 54 to ensure safe operation.
BTU load calculation for gas line sizing
| Appliance | BTU range | Minimum pipe diameter (50-ft run) | Typical NYC setup |
|---|---|---|---|
| Gas stove/range | 40,000–65,000 | 1/2″ | 1/2″ branch from main line |

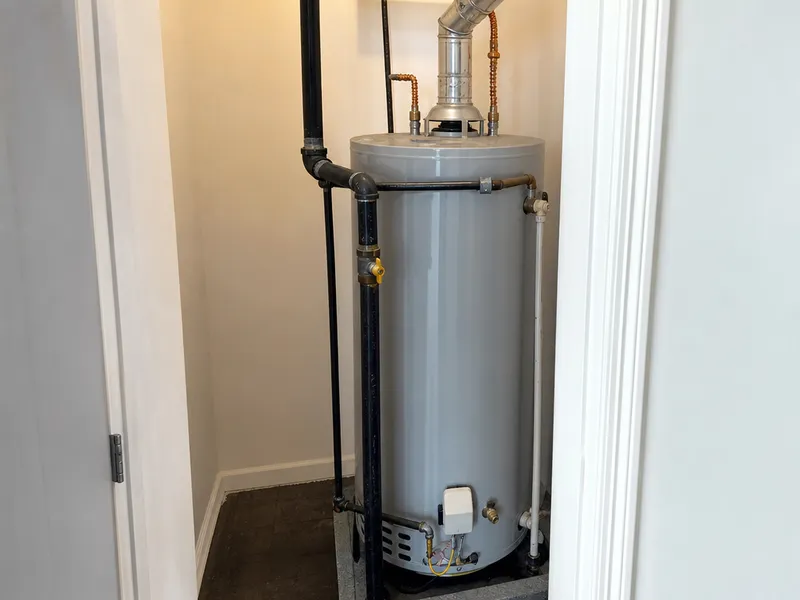

| Gas water heater | 40,000–75,000 | 1/2″ | 1/2″ branch from main line |

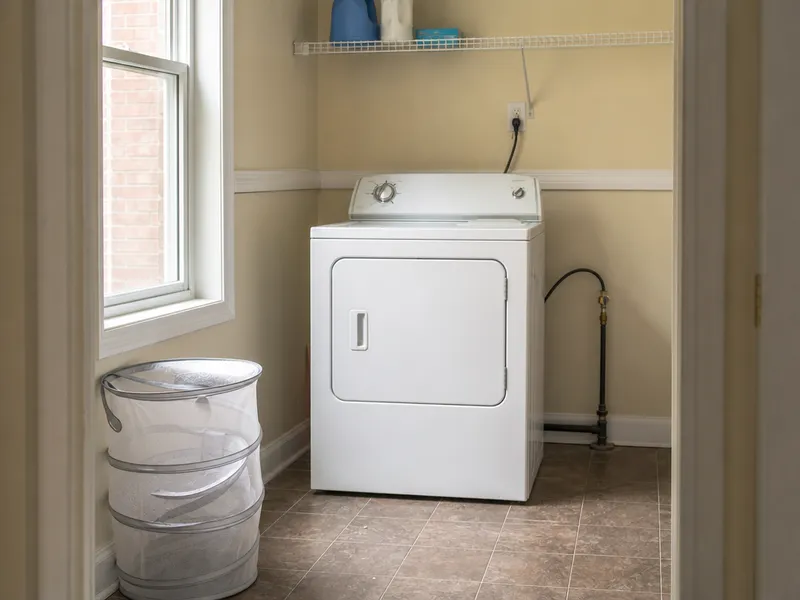

| Gas dryer | 22,000–25,000 | 1/2″ | 1/2″ branch from main line |
| Stove + dryer + water heater | 102,000–165,000 total | 3/4″ main line | 3/4″ main with 1/2″ branches |
| Maximum for 1/2″ at 50 feet | 150,000 | 1/2″ | Single appliance only |
| Maximum for 3/4″ at 50 feet | 350,000 | 3/4″ | Multiple appliances |
Future-proofing your gas line size

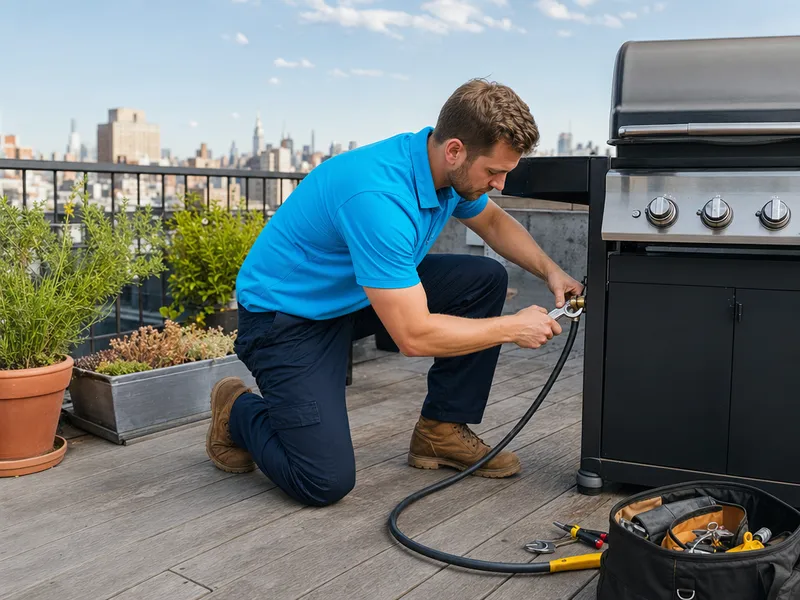

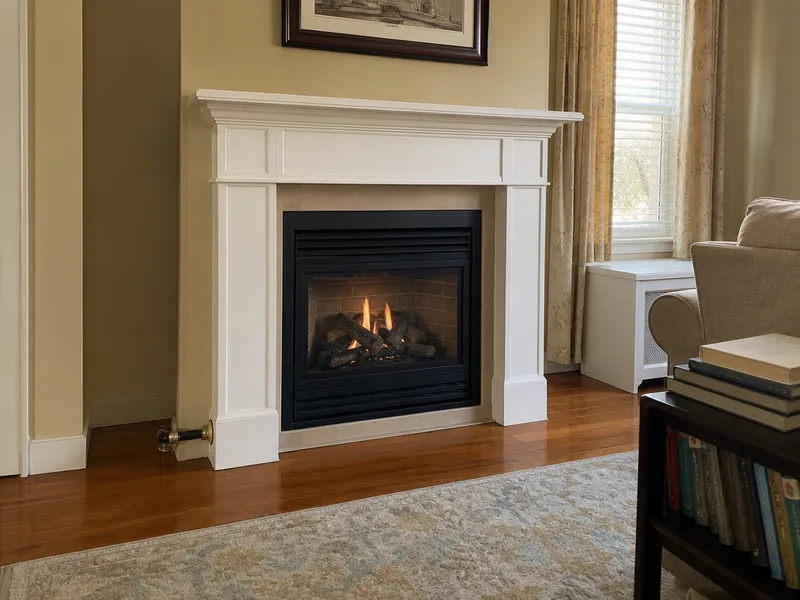

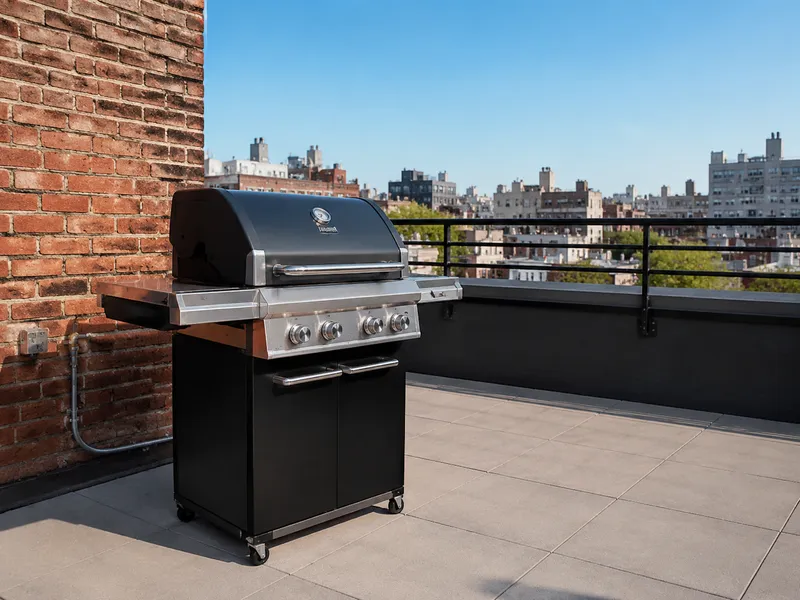

We recommend installing a 3/4″ gas line even if your current appliances only need 1/2″ — this allows for future additions like a gas fireplace, grill, or tankless water heater without repiping. Tankless water heaters from Rinnai and Navien require a minimum 3/4″ gas line; a 1/2″ line will trigger error codes and poor burner performance, forcing a costly repipe later. On the job, I see homeowners who assume any pipe will work for gas — then wonder why their new tankless throws error code 11. The sizing math is straightforward: total BTU load plus run length equals pipe diameter. I’ve pulled out enough undersized 1/2″ lines to know that 3/4″ is the safe bet for most NYC apartments.
Black iron pipe vs CSST: which is better for your NYC gas line?
Both black iron pipe and CSST are approved under NYC building code, but each material serves different installation scenarios. Here is how they compare for your gas line project.

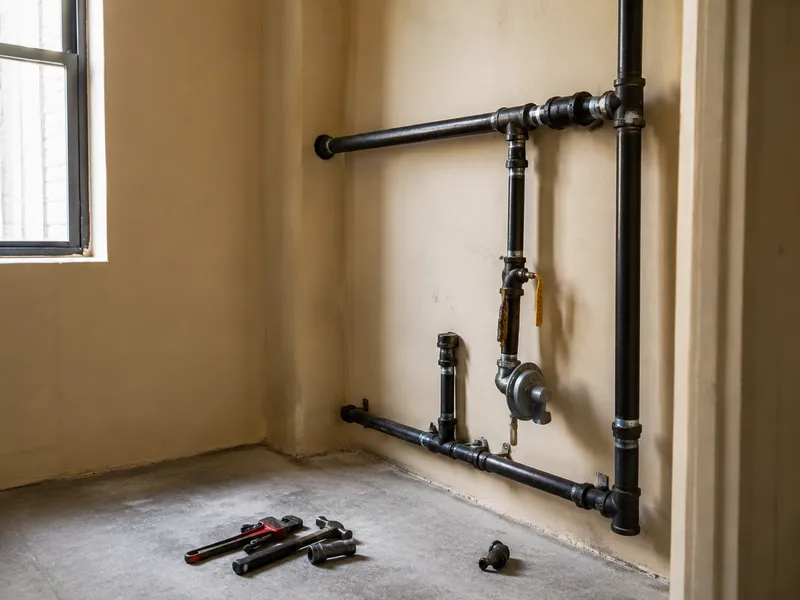

Black iron pipe: durability and longevity
We use schedule 40 black iron pipe for exposed runs in basements and mechanical rooms — it resists physical damage and lasts 50–80 years with proper installation, making it the standard for NYC gas piping. The threaded joints require a pipe threading machine on-site and precise measurement; each section is cut, threaded with a die head, and assembled with yellow gas-rated pipe dope or Teflon tape. On pre-war Brooklyn brownstones and Bronx co-op basements, black iron is the go-to because it won’t puncture if a box gets dropped on it or a contractor leans a ladder against it. Black iron pipe must be supported every 6–8 feet with pipe hangers; unsupported pipe can sag and stress threaded joints, creating leak points over time.
CSST: flexibility and installation speed
We install CSST (corrugated stainless steel tubing) for concealed runs inside walls and through joists — it bends by hand, requires fewer joints, and installs in 2–4 hours versus 4–8 hours for black iron.
- Fewer leak points: A single continuous CSST run from the meter to the appliance eliminates the threaded joints that are the most common leak source on black iron pipe.
- Concealed routing: CSST snakes through stud bays and joist cavities without the need for couplings at every turn — ideal for Manhattan apartment renovations where walls are already closed.
- Protective grommets required: Every penetration through a stud or joist must have a plastic or rubber grommet; CSST can be punctured by drywall screws or nail guns if left unprotected.
- Bonding is non-negotiable: CSST must be bonded to the electrical grounding system with #6 AWG copper wire to prevent arcing during lightning strikes — missing this bond creates an explosion hazard.
How do I know if my gas line needs replacement?
Knowing when to replace a gas line comes down to a few clear indicators — pipe age, visible corrosion, gas leaks, appliance upgrades, and Local Law 152 inspection failures. Here is what to look for.
Age and corrosion triggers for gas line replacement
- 50-year age trigger: We recommend replacing black iron pipe over 50 years old, especially if rust, flaking, or pitting is visible at threaded joints — these are the most common failure points in aging NYC gas lines.
- Galvanized pipe — immediate replacement: Galvanized pipe was used in some older NYC installations but is NOT approved for gas — if you have galvanized pipe, it must be replaced regardless of condition.
- Threaded joint corrosion: Corrosion concentrates at threaded connections where the pipe wall is thinnest; a pinhole leak at a joint means the entire pipe section needs replacement, not just a patch.
- Water damage accelerates decay: Pipe exposed to chronic moisture from a leaking sink or basement flooding corrodes from the outside in — that rust scale flakes off and reduces wall thickness faster than atmospheric corrosion.
- CSST without bonding: If existing CSST was installed without a bonding clamp and #6 AWG ground wire, it presents a lightning-arcing hazard and must be retrofitted with bonding or replaced entirely.
Appliance upgrades and Local Law 152 failures
Eco-service.com replaces undersized gas lines when you upgrade to a high-BTU appliance like a tankless water heater or commercial range — the existing 1/2″ line often can’t handle the load and must be upgraded to 3/4″. A Rinnai or Navien tankless unit pulling 199,000 BTU will throw error codes on a 1/2″ line longer than 25 feet; the math is straightforward: total BTU load plus run length equals required diameter. And if your building’s Local Law 152 inspection reveals defects like improper supports or missing CSST bonding, the DOB may require replacement before gas service can continue — you have 120 days to complete repairs, but that window shrinks fast if the inspector flags an immediate hazard like an active leak at a threaded joint.
What safety precautions are taken during gas line installation?
Gas line installation involves multiple safety layers — gas shut-off, ventilation, pressure testing, bonding verification, and final appliance checks — all performed by licensed master plumbers.
Pressure testing and leak detection during installation
We pressure-test every new gas line to 15 psi with compressed air for 30 minutes — any pressure drop means a leak must be found and fixed before the system goes into service. A manometer gives the precise reading; we don’t rely on the compressor gauge alone. Every threaded joint and fitting is also tested with bubble solution immediately after assembly, catching micro-leaks that a pressure test alone might miss at low pressure. On a recent Brooklyn brownstone job, a 0.5 psi drop over 30 minutes traced back to a cross-threaded elbow at the meter — the bubble test found it before the system was activated. Every threaded joint and fitting is also tested with bubble solution immediately after assembly, catching micro-leaks that a pressure test alone might miss at low pressure.
CSST bonding and carbon monoxide monitoring
We verify CSST bonding with a multimeter (less than 25 ohms to ground) and monitor carbon monoxide levels during appliance startup — CO should read 0 ppm at steady state for complete combustion.
- Bonding clamp: Installed on the CSST fitting at the gas meter, connected with #6 AWG copper wire to the building’s electrical ground rod or panel.
- CO detector: Placed at the appliance flue during the first full burn cycle; any reading above 0 ppm triggers an immediate burner adjustment and flue inspection.
- Lockout/tagout: The gas valve is locked with a padlock and tag to prevent accidental reopening while work is in progress — no exceptions.
- Fire extinguisher: A Class B extinguisher is kept within reach during the entire installation, positioned at the work zone entrance.
- Final customer briefing: We walk through the gas shut-off valve location, the mercaptan smell drill, and our 24/7 emergency number before leaving the site.
What is Local Law 152 and how does it affect gas lines?
Local Law 152 of 2016 mandates periodic gas piping inspections for all NYC buildings, performed by a Qualified Gas Operator (QGO), with fines and DOB violations for non-compliance.
Local Law 152 inspection requirements and frequency
| Inspection parameter | Low-pressure systems | High-pressure systems (over 0.5 psi) |
|---|---|---|
| Inspection frequency | Every 4 years | Every 2 years |
| What is inspected | All exposed gas piping from meter to appliance connections | Same — plus pressure-reducing stations |
| Who performs it | Qualified Gas Operator (QGO) — licensed master plumber | Same |
| Common defects found | Corroded pipe at threaded joints, missing pipe supports, inaccessible shut-off valves | Improper CSST bonding, leaking regulator vents |
How Local Law 152 affects new gas line installations
If your building has an overdue Local Law 152 inspection, the NYC DOB may require it to be completed before approving a new gas line permit — we can perform the inspection and file the report as part of your installation project. The QGO inspects every exposed section of pipe from the meter to the last appliance connection, checking for corrosion, leak-prone joints, and proper supports. On older Brooklyn buildings, we frequently find galvanized pipe that was never approved for gas use — it must be replaced before any new permit is issued. Fines for missing the inspection deadline start at $500 and increase to $1,000+ for continued non-compliance, and DOB violations can affect property sale or refinance. So before you order that new gas stove or tankless heater, check whether your building’s Local Law 152 is current — it’s a prerequisite we verify on every permit application.
How do I prepare my home for gas line installation?
Proper home preparation — clearing access, securing pets, and notifying building management — helps the gas line installation go smoothly and safely for both you and our technician.
Access and safety preparation for gas line installation
- Clear a work path: Remove furniture and obstacles from the gas meter to the appliance location — we need a 4-foot-wide path for tools and pipe sections.
- Secure pets and children: Gas line installation uses loud tools like threading machines and hammer drills — keep animals and kids in a separate room during the work window.
- Gas meter access: Ensure the meter is reachable; if it’s in a locked closet or basement, leave the key where we can find it on arrival.
- Plan for no gas service: Gas line installation for a single appliance runs 4–8 hours, and your gas will be shut off the entire time — no cooking, hot water, or heating during that window.
- Provide parking instructions: Our van carries pipe stock, a threading machine, fittings, and a full tool set — if street parking is tight, let us know where to stage the vehicle.
Building management and permit coordination
For condo and co-op installations, we notify building management in advance and post the DOB permit at the job site — some buildings require elevator reservations for tool transport, which we coordinate with your management office. In our practice, the most common hiccup is a building that hasn’t scheduled the elevator for pipe delivery; a quick call to the super the day before solves it. After installation, do not use gas appliances until we complete the final check and safety briefing — we’ll show you the gas shut-off valve location and explain emergency procedures before we leave.
Conclusion
Here’s what matters most when planning gas line work in the five boroughs — from permits to pipe sizing to the one move that saves you from repiping later.
Main takeaways for gas line installation in NYC
Gas line installation in NYC requires a licensed master plumber, DOB permits, pressure testing, and final inspection — whether you’re building new, renovating, or replacing old piping. The permit process typically takes 1–3 business days for filing, and the pressure test holds the system at 15 psi for 30 minutes with no drop allowed. On the job, I see homeowners who assume any pipe will work for gas, then wonder why their new tankless water heater throws error codes. The sizing math is straightforward: total BTU load plus run length equals pipe diameter. The most common mistake is undersizing the gas line for future appliances — installing 3/4″ pipe now saves the cost and disruption of repiping later when you add a gas fireplace or tankless water heater.
