What Electrical Work Is Involved in EV Charger Installation?
EV charger installation involves several distinct electrical steps, from load calculation to final inspection, and we handle every stage for you.
Load Calculation and Panel Assessment

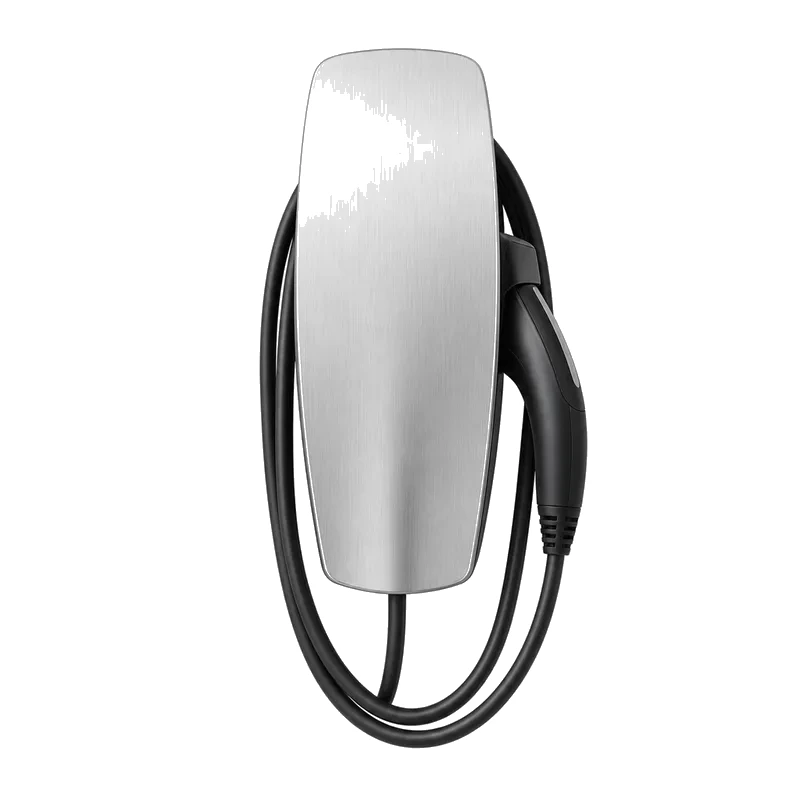

We start every EV charger installation with a load calculation that measures your home’s existing electrical draw against the new 40A–60A continuous load — this determines whether your panel can handle the charger without an upgrade. The calculation accounts for your lighting, appliances, HVAC, and any other fixed loads, then adds the charger’s draw at 125% per NEC Article 625. On a typical 100A panel in a Brooklyn brownstone, the existing load often leaves only 10A–20A of headroom — nowhere near enough for a 48A Tesla Wall Connector. That gap means a panel upgrade from 100A to 200A, which we price at $4,500–$6,500 including the new panel, meter socket, grounding, and permits. Skipping the load calculation is the most common DIY mistake; an overloaded panel trips breakers and can fail NYC DOB inspection, costing more in rework than the calculation itself.
Conduit, Wiring, and Hardwired Connection
- 6 AWG THHN copper wire: We pull three conductors plus a ground through ¾-inch EMT conduit from your panel to the charger location — this gauge handles up to 65A at 75°C termination temperature, enough for a 48A continuous charger.

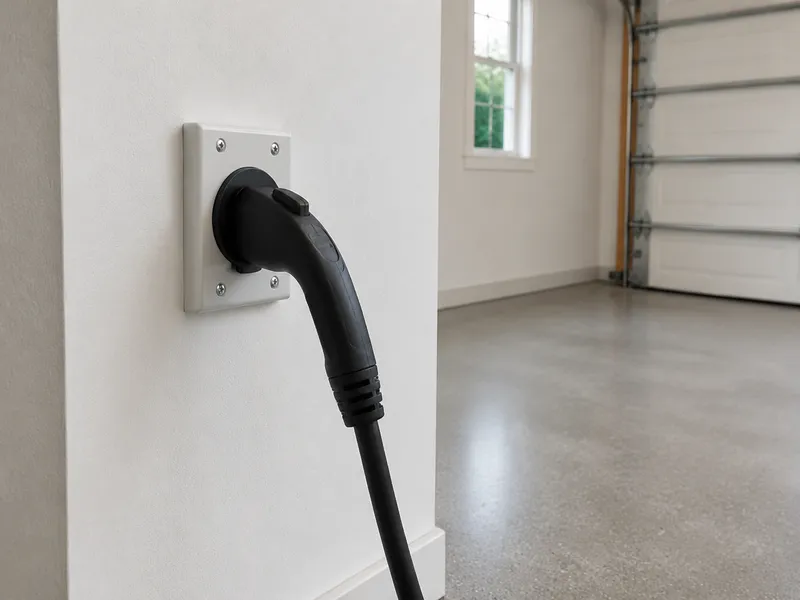

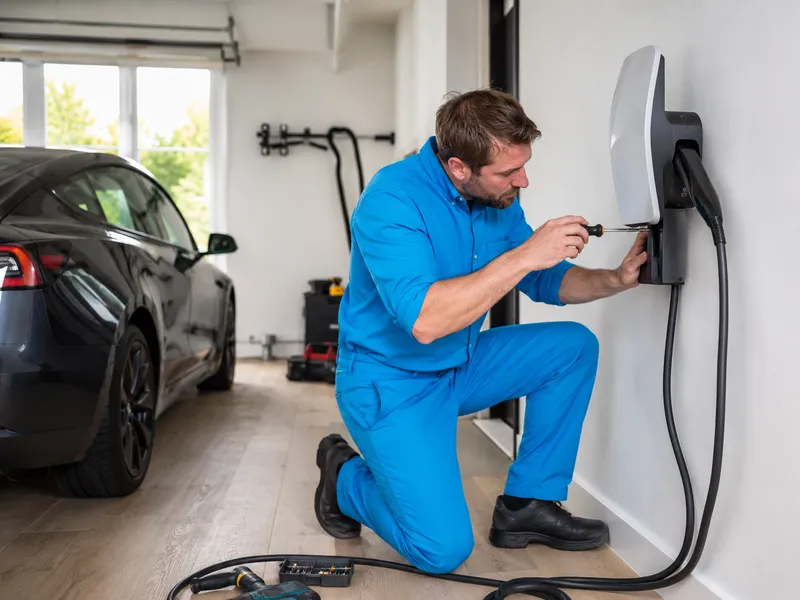

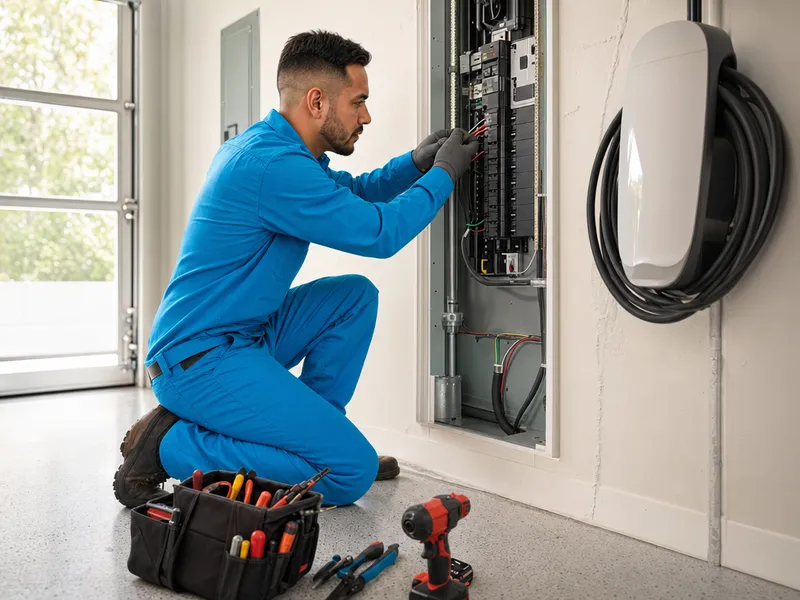

- Hardwired connection: We terminate the wire directly into the charger’s line terminals and torque them to the manufacturer’s spec (typically 20–40 in-lbs), eliminating the NEMA 14-50 outlet and its GFCI breaker requirement per 2023 NEC Section 625.54.
- GFCI breaker exception: Hardwired connections don’t need GFCI protection because the charger’s internal ground-fault monitoring meets code — this avoids the nuisance tripping that Tesla and other high-draw chargers often cause on GFCI-protected NEMA 14-50 outlets when leakage current accumulates.
- Conduit routing: For exposed runs through garages, basements, and outdoor areas, EMT conduit protects the wiring from physical damage and is required by NYC code — we use 1-inch conduit if we’re pulling multiple circuits for future expansion.
Permitting and Final Inspection
We submit the NYC DOB permit application with a wiring diagram and load calculation — the permit fee runs $100–$200, and we schedule the final inspection after installation. The inspector verifies the conduit is properly supported every 10 feet, the breaker is correctly sized for the charger’s nameplate rating, and the grounding electrode system meets 2025 NYC Electrical Code requirements. For a hardwired installation, they’ll also confirm no GFCI breaker was installed where it’s not needed. The 2025 NYC Electrical Code requires a permit for any new EV charger installation; unpermitted work can trigger a stop-work order and fines when the building sells, which is why we handle the entire DOB process from application to sign-off.
Can You Install an EV Charger in a Brooklyn Brownstone?
Brooklyn brownstones present unique challenges — older panels, brick walls, and long conduit runs — but we have experience navigating them.
Panel Capacity and Upgrade Needs in Brownstones
Most Brooklyn brownstones have 100A service panels, and our load calculation typically shows that a 40A–60A EV charger requires upgrading to 200A service — a $4,500–$6,500 investment. The existing panel in a prewar brownstone is usually a pushmatic or fuse-type unit that can’t accept a double-pole breaker for a Level 2 charger. We’ve done load calculations on brownstones in Park Slope, Fort Greene, and Cobble Hill where the existing load from gas lighting transformers, boiler circulators, and window AC units already sits at 60A–70A. Adding a 48A continuous charger without an upgrade would trip the main breaker under simultaneous load. If your brownstone still has active knob-and-tube wiring, that must be replaced before any EV charger installation, adding $1,000–$3,000 to the project.
Conduit Routing Through Brick Walls and Basements
- Core drilling: We core-drill through brick walls for conduit runs — typical holes are 2–3 inches in diameter, patched with hydraulic cement afterward.
- Exposed ceiling runs: We route EMT conduit along exposed basement ceiling joists, using conduit straps every 4–6 feet per NYC code.
- Run distances: From a basement meter to a rear garage or yard in a brownstone, conduit runs are typically 40–80 feet — longer runs increase material cost but not timeline.
- Cost impact: Core drilling adds $200–$500 to the installation, but it’s the only code-compliant way to get conduit through a brownstone’s load-bearing brick exterior.
Typical Brownstone Installation Cost and Timeline
| Component | Cost Range | Timeline |
|---|---|---|
| Standard Level 2 installation (no panel upgrade) | $1,800–$3,500 | 1 day |
| Panel upgrade 100A → 200A (if needed) | $4,500–$6,500 | 1–2 additional days |
| Core drilling through brick wall | $200–$500 | Included in install day |
| NYC DOB permit fee | $100–$200 | 1–2 days processing |
| Total typical brownstone installation | $1,800–$3,500 | 1–3 days |
Can You Install an EV Charger in a Condo or Co-op Parking Garage?
Condo and co-op installations require board approval and often involve shared electrical risers, but NYC’s right-to-charge law protects owners who follow the process.
Board Approval Process and Timeline
- Documentation packet: eco-service.com provides your co-op or condo board with a certificate of insurance, our NYC DOB master electrician license, and a detailed wiring diagram — the approval process takes 2–8 weeks.
- What boards look for: Boards typically require $1 million in liability insurance, a licensed master electrician performing the work, and a post-installation inspection report.
- Right-to-charge protection: NYC Local Law 129 of 2021 gives you the right to install an EV charger, but boards can still require reasonable conditions like licensed installers and liability insurance.
- Expediting the timeline: Having your installer submit a complete packet upfront — insurance cert, license copy, wiring diagram — cuts the back-and-forth with the managing agent by two to three weeks.
Shared Electrical Risers and Load Study
In condo and co-op buildings with shared electrical risers, eco-service.com coordinates a building-wide load study ($500–$2,000) to verify that the riser has capacity for your 40A–60A charger circuit. The load study measures the combined draw from all apartments on that riser — if existing demand already reaches 80% of the riser’s rated capacity, there’s no headroom for an EV charger without upgrades. We submit the study results directly to the board and the managing agent as part of the approval packet. If the riser lacks capacity, the building may need a transformer upgrade from Con Edison — a $2,000–$5,000 project with a 4–8 week timeline that the board typically manages.

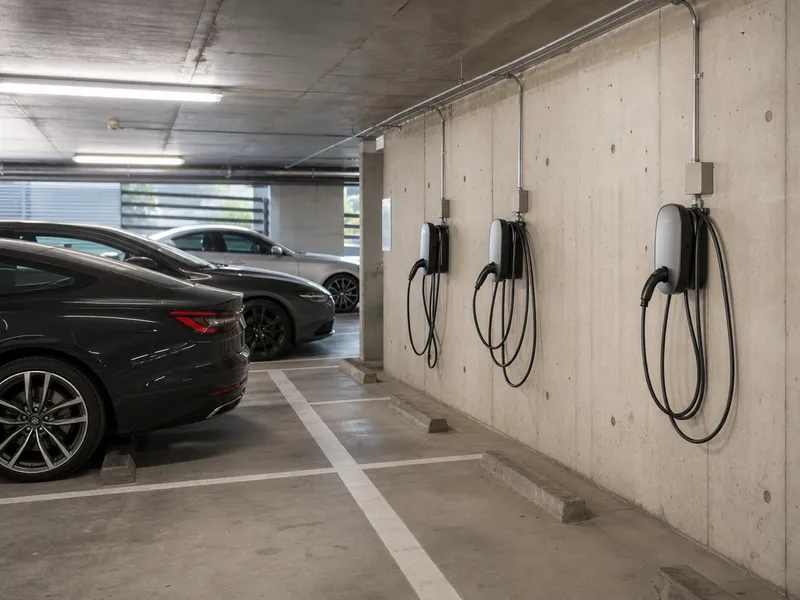

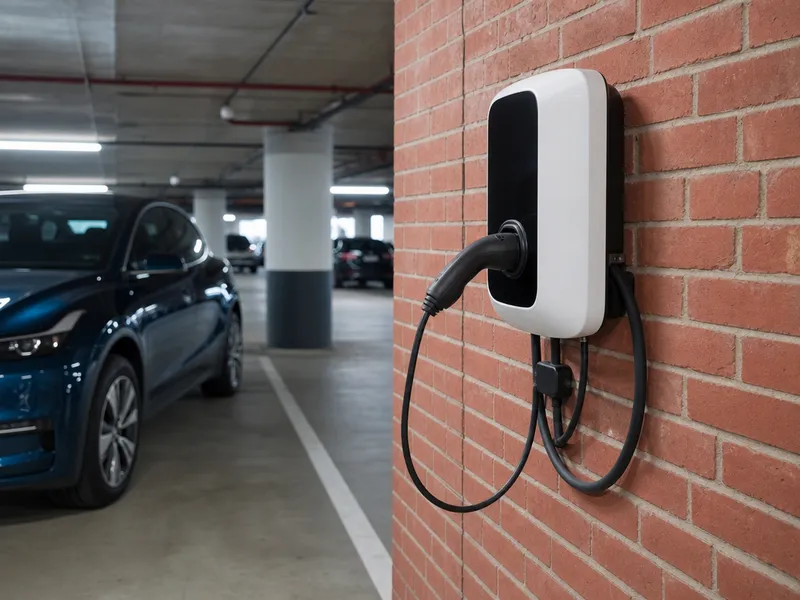

Parking Space Location and Conduit Routing
eco-service.com surface-mounts conduit along concrete garage ceilings with beam clamps — end parking spaces near columns are easiest, while center spaces require overhead drops that add $300–$800 to the run. We use ¾-inch EMT conduit with 6 AWG THHN copper wire, securing it every four feet with beam clamps rated for overhead mounting in parking structures. The conduit path matters for the board approval too — a clean route along existing ceiling beams looks professional in the submitted wiring diagram, while a meandering drop across the garage raises aesthetic objections. If your parking space is more than 15 feet from a wall or column, you’ll need a pedestal-mounted charger or a ceiling drop — extension cords are never code-compliant for EV charging.
Installing Multiple Chargers or Outdoor Units in NYC
We handle both multi-charger homes and outdoor installations across the five boroughs, using load management and weatherproof equipment to meet NYC code.

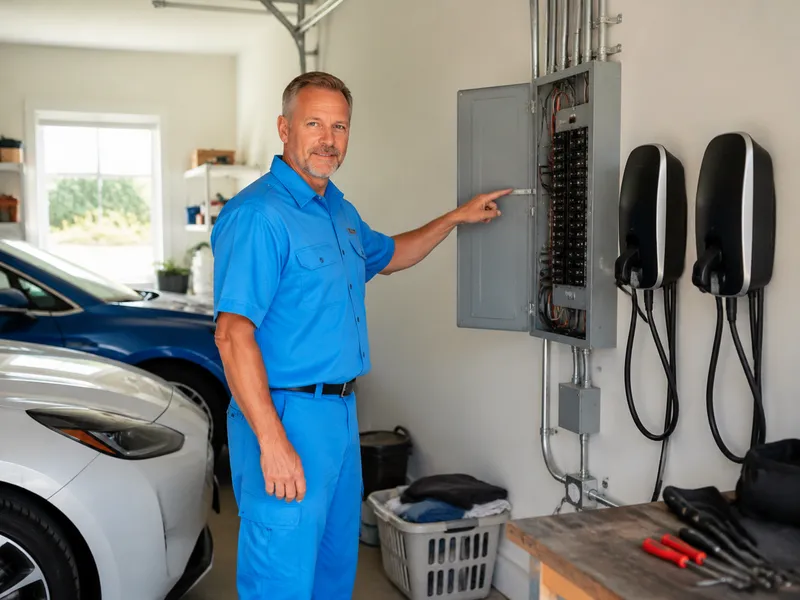

Multiple Chargers: Power Sharing and Load Management
| Solution | How It Works | Max Chargers | Cost Range |
|---|---|---|---|
| Power sharing (Tesla Wall Connector) | Up to 6 units share one 60A circuit; output divided among active chargers | 6 | $3,000–$8,000 |
| Load management (Emporia Vue, Sense) | CT sensors monitor total home load; charger output adjusts dynamically | 2–4 | $3,500–$9,000 |
| Dedicated subpanel | 100A subpanel near parking area; each charger gets its own circuit | 3+ | $5,000–$12,000 |

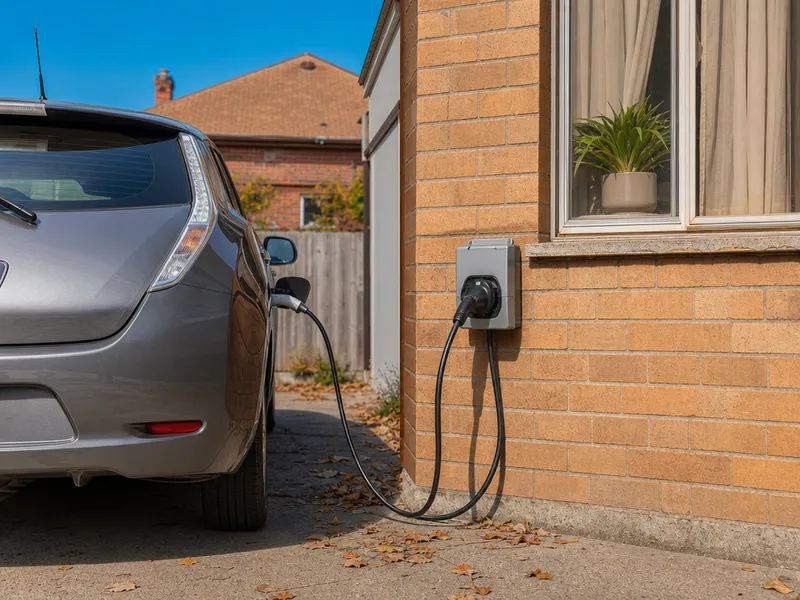

Outdoor Installation Requirements in NYC
- Weatherproof enclosure: We install outdoor EV chargers using NEMA 3R or 4 rated equipment with liquid-tight flexible metal conduit — hardwired connections avoid the GFCI nuisance tripping that plagues outdoor NEMA 14-50 outlets.
- Salt-air corrosion protection: NYC’s coastal salt air and freeze-thaw cycles corrode standard EMT conduit within two to three years; we use rigid galvanized steel or LFMC for all outdoor runs.
- GFCI and hardwired rules: Outdoor NEMA 14-50 outlets require a GFCI breaker per code; hardwired connections do not, per the 2023 NEC — which is why we recommend hardwiring for any charger exposed to rain or snow.
- Pedestal and bollard mounting: For driveway or parking-lot installations, the charger mounts on a pedestal with a protective bollard; conduit is buried or surface-mounted with beam clamps on concrete ceilings.
Curb-Cut and Driveway Charger Installations
For driveway or curb-cut parking, we mount the charger on a pedestal with a protective bollard and bury conduit from the house — curb-cut installations require NYC DOT approval and cost $2,000–$5,000 extra. Curb-cut chargers are rare in brownstone neighborhoods because most on-street parking doesn’t have a dedicated curb cut; rear-yard garages are the more practical option for most Brooklyn homeowners. We’ve done these in Queens and Staten Island where private driveways are more common — the conduit run from the panel can stretch 80 feet or more, which adds material but keeps the charger out of the weather.
Final Takeaways on EV Charger Installation in NYC
Every EV charger installation in NYC comes down to load calculations, conduit routing, panel assessments, and DOB permits — whether you’re in a Brooklyn brownstone or a co-op garage.
Main Takeaways
Brownstones typically need 200A panel upgrades and core drilling through brick walls. Condo and co-op owners face board approval that takes 2–8 weeks, though NYC’s right-to-charge law protects their request. Multiple chargers can share one circuit with power sharing technology. Outdoor installations require weatherproof equipment rated NEMA 3R or 4. Every project starts with a load calculation that determines whether your existing panel can handle the new 40A–60A continuous load — the single most important step in any EV charger installation.
