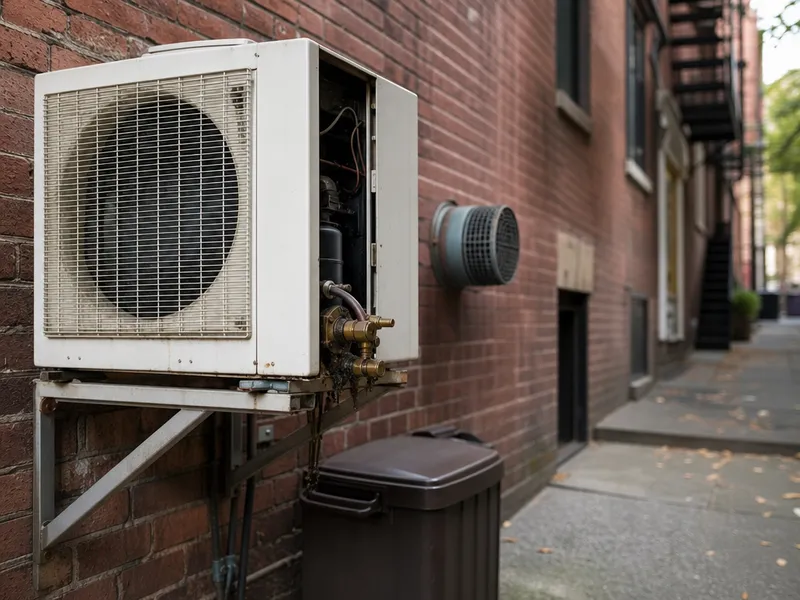

Packaged unit vs split system: what’s the difference for NYC commercial buildings?

Packaged units and split systems are the two main configurations for commercial HVAC. They differ in how they arrange the compressor, condenser, and evaporator — and that layout drives everything from repair access to component lifespan.

How packaged units and split systems differ

Which system is better for your NYC building?

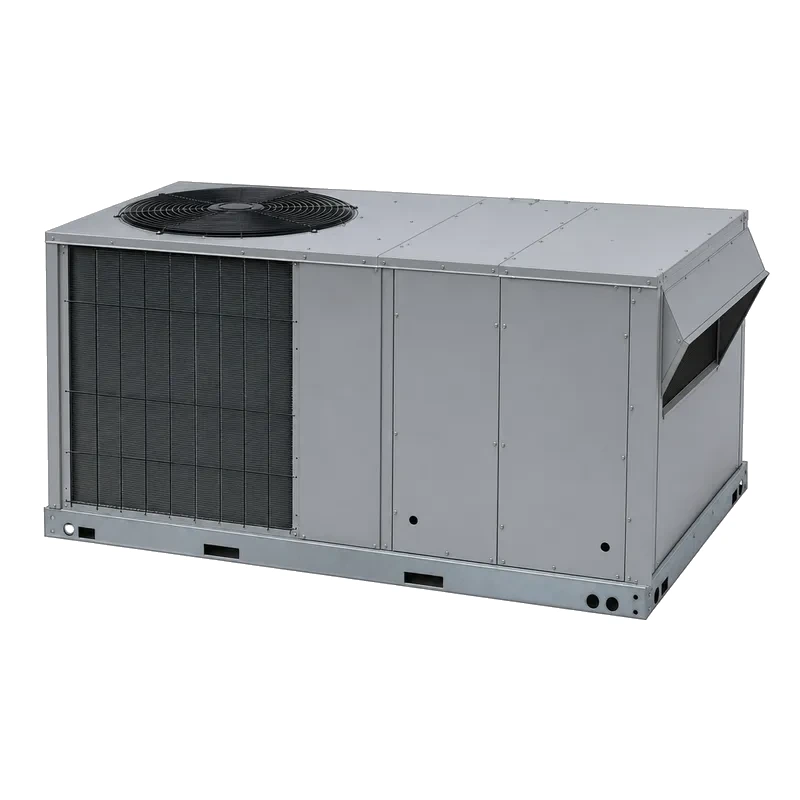

Packaged units dominate flat-roof commercial buildings across NYC — think retail strips in Queens, warehouse spaces in the Bronx, and standalone offices on Staten Island. Split systems, especially VRF, are the go-to in newer construction and mixed-use buildings where rooftop space is tight, like many Brooklyn brownstone conversions and Manhattan high-rises with mechanical rooms on every tenth floor. The practical difference shows up at repair time: a packaged unit with a failed compressor needs a crane lift off the roof running $2,000–4,000, while a split system’s outdoor condenser can often be swapped at ground level without heavy equipment. For a building owner, that crane cost alone can tip the repair-versus-replace math on a packaged unit — on a split system, the same compressor failure is a straightforward ground-level job.

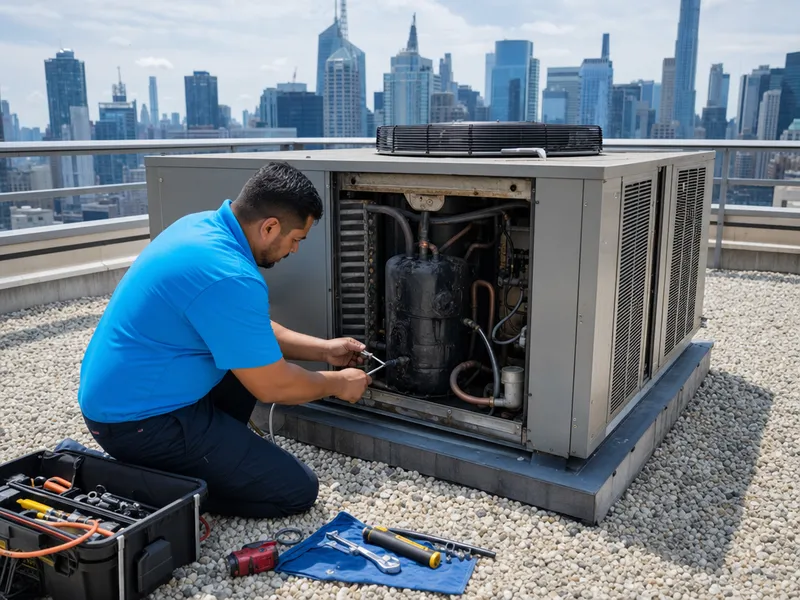

Do you service rooftop units (RTUs)?

Yes—we service all makes of rooftop units across the five boroughs, from Carrier 48/50 series on Queens warehouses to Trane Voyager units on Manhattan high-rises. Our diagnostic process pinpoints the issue fast.

RTU brands we repair across NYC

• Carrier: The most common RTU brand on NYC rooftops—the 48/50 series is everywhere, and we know its failure patterns cold.
• Trane: Voyager models are the second most frequent; we handle condenser coil corrosion from salt air and control board failures routinely.
• Lennox, Rheem, York, Goodman, Daikin: All five supported across Manhattan, Brooklyn, Queens, the Bronx, and Staten Island—no brand turned away.
• Bottom line: Carrier and Trane dominate the NYC commercial HVAC repair landscape, so our techs carry the parts that fail most on those two lines.

Common RTU failures and how we fix them

• Condenser coil fouling: Rooftop units collect soot, bird droppings, and leaves. Cleaning restores 20–40% of lost capacity—many competitors skip this and push a replacement instead.
• Economizer actuator gear strip: A stuck-open economizer in summer wastes 30% of cooling energy without triggering any error codes. The fix is a $150–300 actuator swap, about 30 minutes on the roof.

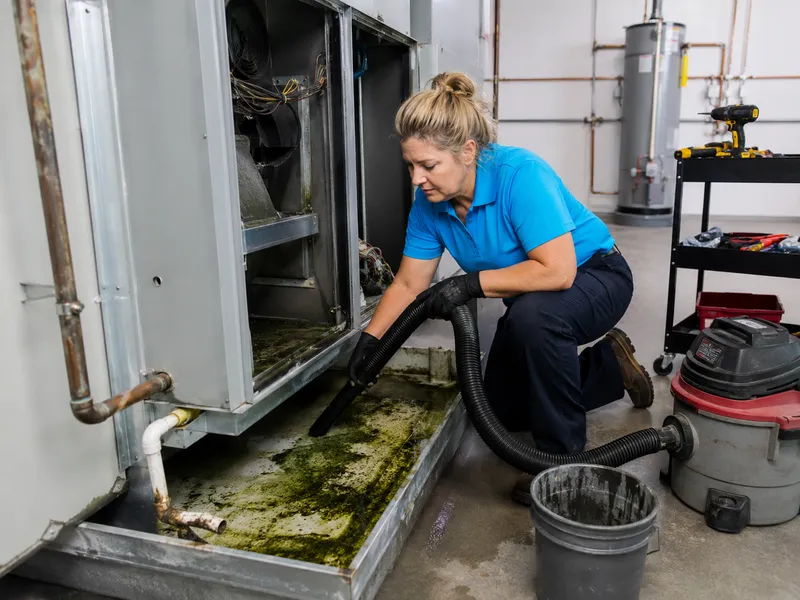

• Drain pan overflow: Algae blocks the condensate line, water backs up, and the ceiling below takes damage. We clear it with compressed air or a wet/dry vac.

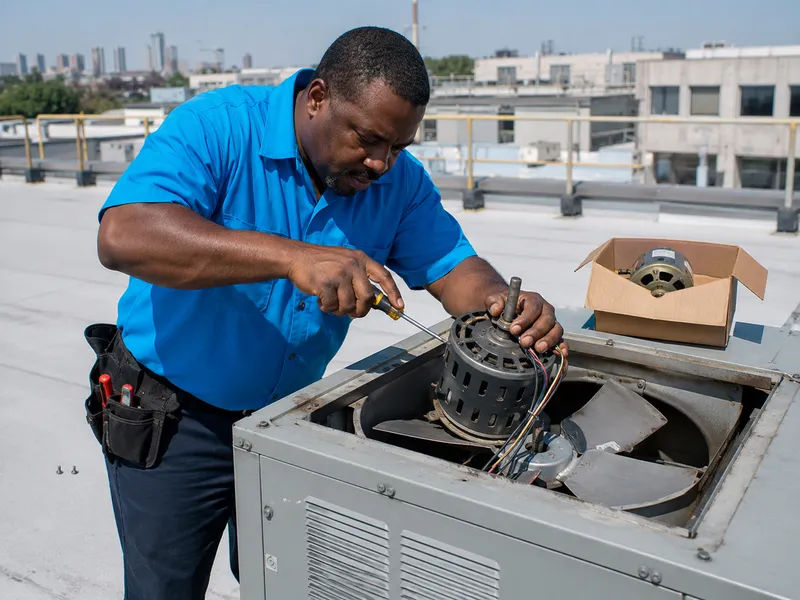

• Capacitor failure: The most common electrical failure in NYC summer heat. Fan won’t start, compressor runs but no airflow—a $15–40 part, ten minutes to replace.

Our RTU diagnostic process

• Visual inspection (5 min): Physical damage, debris on the condenser coil, drain pan condition, belt condition—what you see tells you where to look next.
• Electrical check (10 min): Voltage at the disconnect, contactor operation, capacitor microfarad reading with a multimeter, pressure switch continuity.
• Refrigerant analysis (10 min): Manifold gauges on the service ports, suction and liquid pressures, superheat and subcooling calculations, temperature split across the evaporator.
• Mechanical check (10 min): Compressor amp draw against the nameplate RLA, fan motor operation, belt tension and wear, economizer linkage movement.

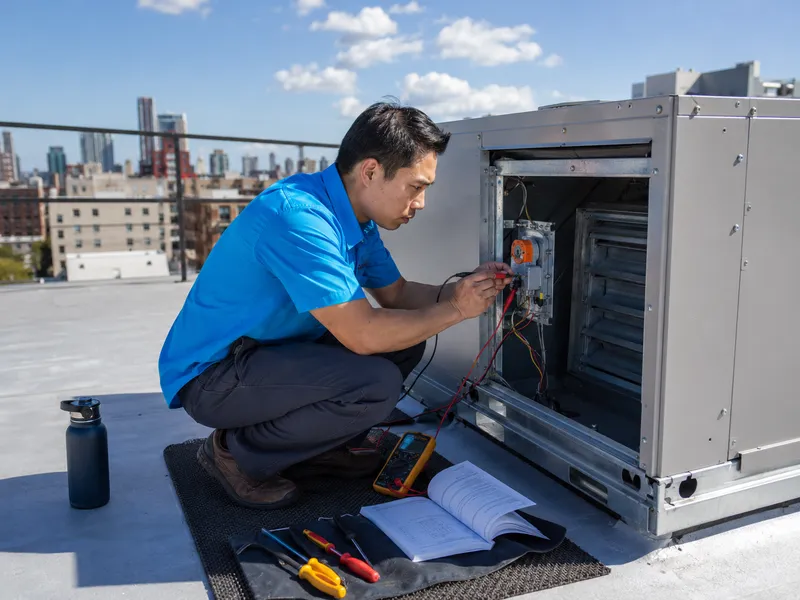

• Controls verification (10 min): Thermostat communication, control board LED flash codes, safety circuit testing—high-pressure switch, low-pressure switch, freeze stat.
• Key insight: We always check the economizer operation during the controls phase; a stuck-open economizer in summer can waste 30% of cooling energy without triggering any error codes, and most techs miss it.

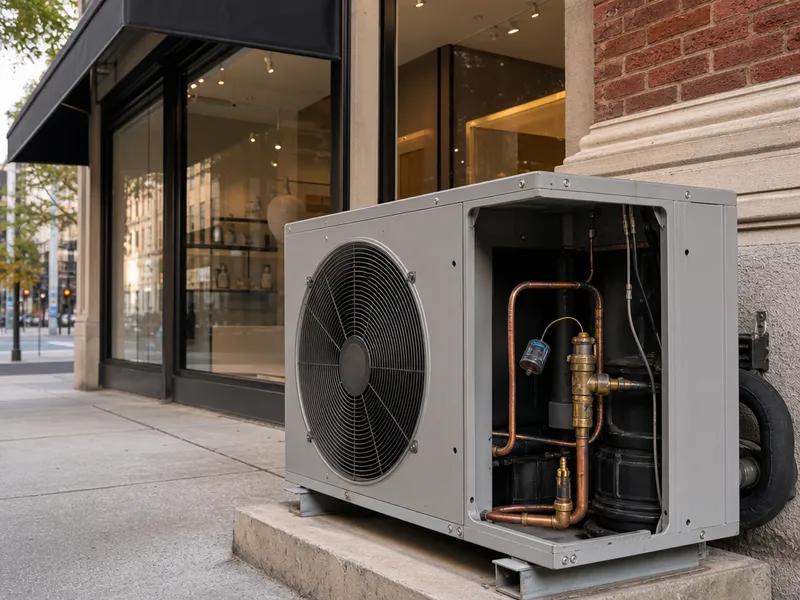

Can you repair commercial heat pumps?

We repair all commercial heat pump brands across NYC, from VRF systems to packaged heat pumps, using specialized diagnostic tools for each manufacturer.

Heat pump brands and systems we service

• VRF/VRV systems: Mitsubishi Electric City Multi, Daikin VRV, and LG Multi V — these require proprietary service checkers that our techs carry for both brands.

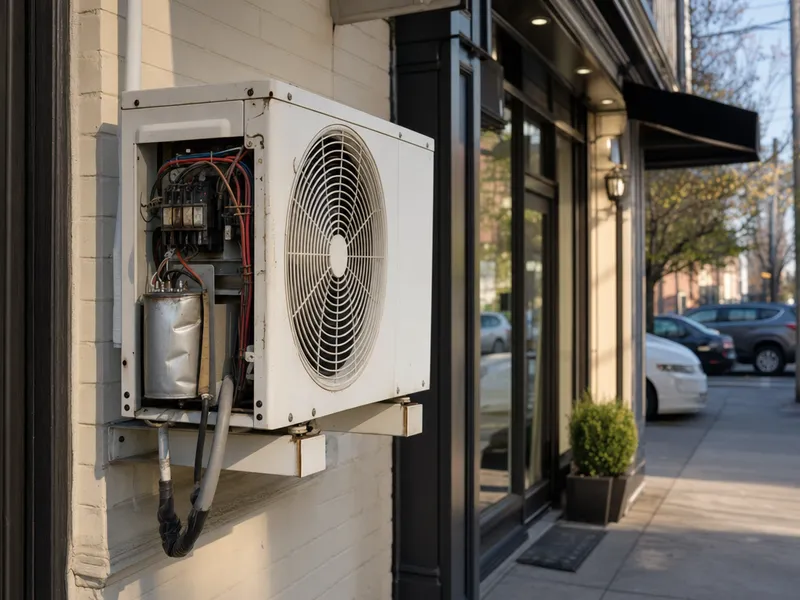

• Split-system heat pumps: Carrier, Trane, and Fujitsu split-system units, common in NYC mixed-use buildings and light commercial spaces.
• Packaged heat pumps: Lennox, York, and Rheem rooftop heat pumps found on retail strips and warehouse roofs across all five boroughs.
• What makes heat pump commercial heat pump repair different: The reversing valve, defrost control board, and auxiliary heat sequencer are unique components you won’t find on straight-cool RTUs.
• Our approach: We test every system in both heating and cooling modes before signing off — a step many techs skip, which leads to callback failures when the season flips.

Common heat pump failures in NYC

Heat pump diagnostic process

• Reversing valve check (10 min): We listen for the solenoid click when the system cycles between heating and cooling — no click means the coil or the valve spool is stuck.
• Refrigerant pressure test (10 min): Manifold gauges go on in both modes; pressure readings that don’t shift between heating and cooling tell us the reversing valve isn’t actually reversing flow.
• Defrost cycle verification (10 min): We force the defrost cycle on the control board and watch the outdoor coil temperature — if the defrost relay doesn’t engage, the coil ices over within two cycles.
• Outdoor coil inspection (5 min): Frost buildup in heating mode or debris blocking airflow in cooling mode — both kill efficiency fast on NYC rooftops.
• Report and recommendation (5 min): A stuck reversing valve can often be freed by tapping the valve body with a wrench while cycling the system — saving a $400–800 replacement if caught early.

Do you repair chillers?

We repair air-cooled and water-cooled chillers across all five NYC boroughs — these are complex, high-value machines that require a methodical diagnostic process and deep familiarity with multiple brands.

Chiller brands and types we repair

• Air-cooled chillers: Carrier, Trane, York, and Daikin — common on NYC rooftops and ground-level pads, where condenser coil fouling from soot and salt air is the primary efficiency killer.
• Water-cooled chillers: Carrier, Trane, York, Daikin, and McQuay — found in large Manhattan commercial buildings with cooling towers; the hard NYC cooling tower water causes scale buildup that reduces efficiency by 15–25% annually.
• Scroll and screw compressors: Both configurations are in our wheelhouse — scroll on smaller chillers (50–150 tons), screw on larger units (150–500+ tons), each with distinct failure patterns we diagnose routinely.
• Low-pressure chillers (centrifugal): These use a purge unit to remove non-condensables — a malfunctioning purge is often missed by less experienced techs and leads to high discharge pressures and capacity loss.
• Chiller repair across NYC: We handle chiller repair NYC in all five boroughs — from a 100-ton Carrier water-cooled unit in a Midtown office tower to a 40-ton Trane air-cooled chiller serving a Queens warehouse.

Common chiller failures and diagnostic process

• Refrigerant pressures and temperatures: We check suction and discharge pressures against the chiller’s design approach temperatures — a widening approach on the condenser barrel signals tube fouling.
• Water flow verification: Low flow through the evaporator or condenser causes refrigerant migration and freeze-ups; we measure delta-T across both barrels and verify pump operation.
• Oil condition and level: We pull an oil sample — dark, acidic oil indicates compressor wear or a previous burnout; low oil level starves the compressor bearings and leads to catastrophic failure.
• Condenser tube inspection: On water-cooled chillers, we inspect tubes for scale, debris, and biological growth; a bundle with 20% blockage loses 15–25% of heat transfer capacity.
• Purge unit operation: On low-pressure chillers, a malfunctioning purge lets non-condensables into the system — reducing capacity and causing high discharge pressures that strain the compressor.

Chiller repair vs replacement considerations

Chiller repair is almost always preferred since these are $50,000–200,000+ capital assets — even a compressor replacement on a 15-year-old chiller ($8,000–15,000) is often worth it versus $80,000+ for a new unit. On a Carrier 30XA screw chiller, for example, replacing the compressor costs about 10% of a new chiller; the same math holds for Trane CGAM scroll compressors. The exception is R-22 chillers over 20 years old — with R-22 at $100–200/lb and rising, a refrigerant leak can make replacement more economical than repeated recharges. In our practice, we’ve seen a 25-year-old York water-cooled chiller with a leaking evaporator barrel cost the building $12,000 in R-22 over two years before the owner finally swapped it for a new R-410A unit. On any chiller under 18 years old, repair beats replacement nine times out of ten.

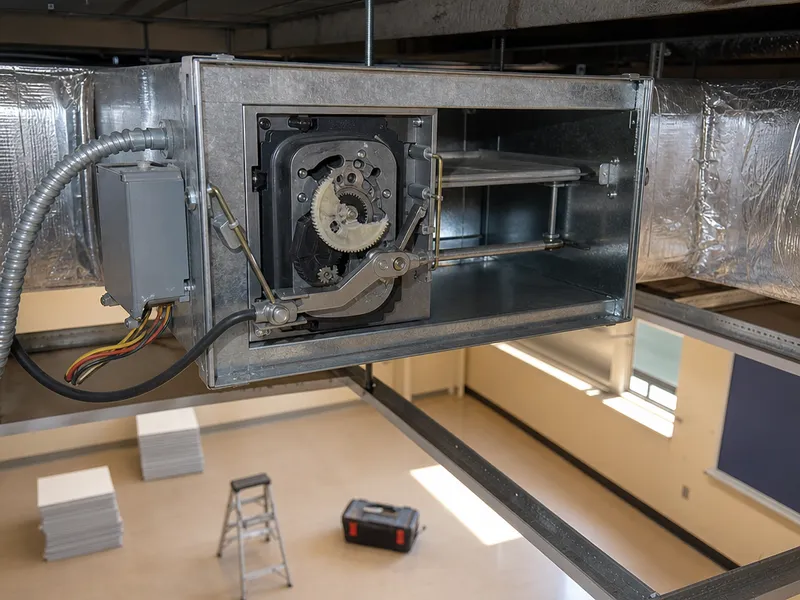

Can you repair VAV boxes?

Yes, we repair VAV boxes — the terminal units that regulate airflow to individual zones in commercial HVAC systems. We service all common configurations from Carrier, Trane, Johnson Controls, and other leading brands.

VAV box brands and configurations we service

• Single-duct VAV: The most common configuration in NYC commercial buildings — a single inlet with a damper that modulates airflow based on zone temperature demand. We service Carrier, Trane, and Titus units daily.
• Dual-duct VAV: Two inlets (one for cold air, one for warm air) that mix to maintain setpoint without reheat. Common in older Manhattan office towers, often paired with Honeywell or Siemens controls.
• Fan-powered VAV (series and parallel): A small internal fan boosts airflow from the ceiling plenum. Johnson Controls and Nailor models dominate this category — the fan motor and belt are separate failure points from the damper.
• BMS-integrated VAV: VAV boxes in Manhattan high-rises are typically tied to a central building management system. We diagnose BACnet or LonWorks communication issues between the VAV controller and the head-end, not just mechanical faults.
• VAV box configurations across NYC: Single-duct boxes are standard in Queens and Staten Island strip malls, while fan-powered units are common in Brooklyn mixed-use buildings where ceiling plenum pressure is low.

Common VAV box failures and repairs

VAV box diagnostic process

• Damper actuator test (10 min): We apply a 24VAC signal to the actuator and watch the shaft rotate. If the shaft turns but the damper doesn’t move, the plastic gear is stripped — a $100–250 actuator swap, not a $1,500 box replacement.
• Airflow sensor check (5 min): We measure the velocity pressure at the sensor tips with a manometer and compare it to the box’s design CFM. A calibration drift of 20%+ causes zone temperature complaints that look like a larger system problem.
• Reheat coil inspection (10 min): For hot water reheat, we check the valve actuator for 0–10VDC or 4–20mA control signal. For electric reheat, we check contactor coil voltage and element resistance — an open element reads infinite ohms.
• BMS communication test (10 min): We connect to the VAV controller via BACnet or LonWorks and verify the setpoint, airflow command, and damper position feedback match the physical state. A disconnected communication wire is a 5-minute fix that’s often misdiagnosed as a board failure.
• Mechanical linkage check (5 min): We manually cycle the damper through its full range of motion. Binding from corrosion or debris is common on VAV boxes in older Bronx and Brooklyn buildings — a $150 cleaning job that prevents a callback.

How do I know if my commercial AC needs repair or replacement?

Two simple rules help building owners decide: the Rule of 5000 and the 50% rule. Both compare repair cost against unit age or replacement cost — and both point the same direction when the numbers add up.

The Rule of 5000 and the 50% rule

The Rule of 5000 multiplies the unit’s age in years by the repair cost — if the result exceeds $5,000, replacement is usually the better call. The 50% rule says replace when the repair quote exceeds half the cost of a new unit. A 10-year-old RTU with a $600 compressor repair comes to $6,000 on the Rule of 5000 — replacement wins. But the same $600 repair on a 5-year-old unit gives $3,000, making repair the smarter move. I’ve used this on dozens of calls across Brooklyn and Queens — it cuts through the guesswork fast. For a full breakdown of what a commercial HVAC repair actually costs, check the pricing section below. The key takeaway: run both rules before you decide — if they agree, you have your answer.

Age, refrigerant, and energy efficiency factors

• Under 10 years: Almost always worth repairing — the unit has plenty of life left, and a single component failure doesn’t justify replacement.
• 10 to 15 years: Evaluate case by case — one major repair is fine, but a second failure within a year tips the scale toward replacement.
• Over 15 years with R-22 refrigerant: Replace. R-22 now runs $100–200 per pound, and a refrigerant leak alone can cost more than the repair is worth.
• Energy efficiency gap: Older units — especially R-22 models with SEER under 10 — cost 30–50% more to run than modern R-410A or R-32 systems. The savings on electricity alone can pay back a new unit in 2–4 years.
• Multiple failures in 2 years: If you’ve had three or more major repairs in a two-year window — compressor, condenser coil, control board — replacement is almost always cheaper than chasing the next failure.

Free diagnostic with repair — no obligation

We provide a free diagnostic when you book the repair — our technician inspects your system and gives you a repair vs replace recommendation with a full cost breakdown, no obligation. If you’re unsure whether to repair or replace, the diagnostic itself answers the question — we’ve seen many building owners delay the decision and end up paying 3x in emergency overtime when the unit fails mid-summer. That’s a scenario we help you avoid: one honest assessment now beats a panic call in July heat. And if we do the repair, everything we touch carries our 1-year warranty on parts and labor — so you’re covered either way.

Final takeaways for commercial HVAC in NYC

Main takeaways for NYC commercial HVAC repairs

Commercial HVAC systems in NYC — RTUs, chillers, heat pumps, and VAV boxes — each have distinct failure patterns that require specialized diagnostic approaches. A stuck economizer on a Carrier 48/50 series RTU is a 30-minute actuator swap, while a seized reversing valve on a Mitsubishi City Multi heat pump needs a solenoid check and possibly a valve replacement at $400–800. Chillers, the $50,000–200,000+ capital assets, almost always justify repair over replacement even at 15 years — a compressor swap runs $8,000–15,000 versus $80,000+ for a new unit. VAV boxes fail most often at the damper actuator’s plastic gear, a $100–250 fix in under an hour. The repair-versus-replace decision comes down to age, repair cost, refrigerant type, and energy efficiency — with the Rule of 5000 and 50% rule providing clear guidance for most situations.
