What is a drain tile system and how does it work?
A drain tile is a subsurface drainage system that protects foundations from groundwater. NYC homes typically use interior perimeter systems cut into the basement slab.
How a drain tile system collects and redirects groundwater

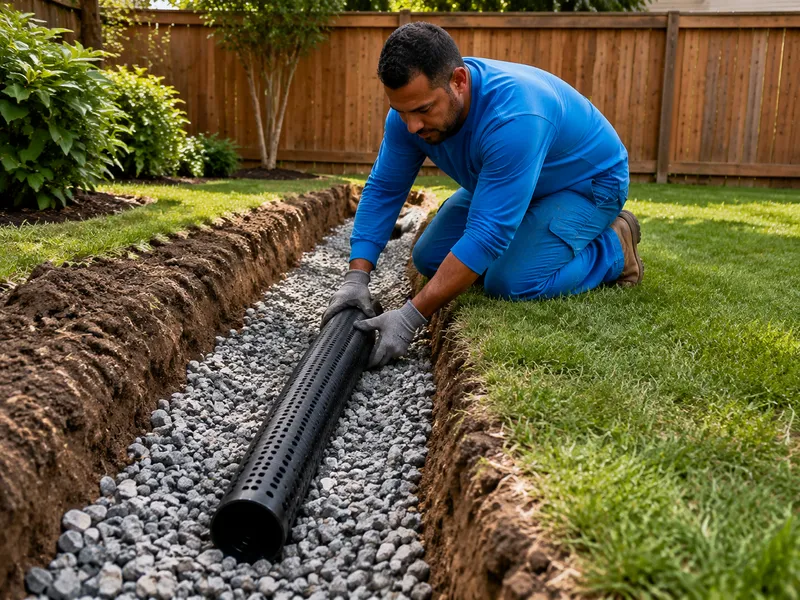

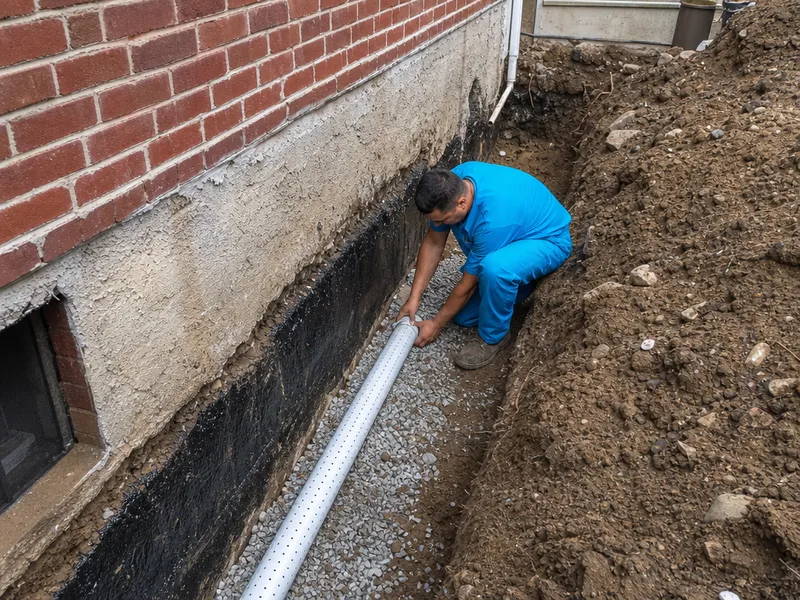

We install drain tile as a perimeter of 4-inch perforated PVC pipe buried in a gravel trench around your foundation — water enters through the pipe’s holes, flows by gravity to a sump pit, and a sump pump lifts it to the exterior. The pipe sits on a bed of ¾-inch washed stone at least six inches below and above it, all wrapped in filter fabric that lets water through but keeps silt out. Gravity does the work: the trench slopes a minimum of ⅛ inch per foot toward the sump pit, which sits 12–18 inches below the basement slab. That’s where the sump pump takes over, pushing water up through a discharge line to the yard or storm drain. In NYC brownstones with shared walls, interior drain tile cut into the basement slab is often the only viable option because exterior excavation requires 3–4 feet of clearance from the foundation to the property line.
The role of hydrostatic pressure in drain tile function
Hydrostatic pressure — the force of groundwater pushing against your foundation walls and slab — is what makes drain tile work: water seeks the path of least resistance into the perforated pipe rather than through cracks in your basement floor. The system doesn’t suck water in; it creates a low-pressure zone in the gravel bed that groundwater naturally migrates toward. Without that pressure differential, the pipe would just sit there dry. In neighborhoods with high water tables like lower Manhattan and parts of Brooklyn near the Gowanus Canal, hydrostatic pressure can push water through a floor-wall joint even if there’s no visible crack — drain tile relieves that pressure before damage occurs.
Signs your drain tile system is failing
Catching drain tile failure early saves you from a flooded basement. Here are the most common visible and audible signs that your perimeter drainage system isn’t doing its job anymore.
Visible signs of drain tile failure

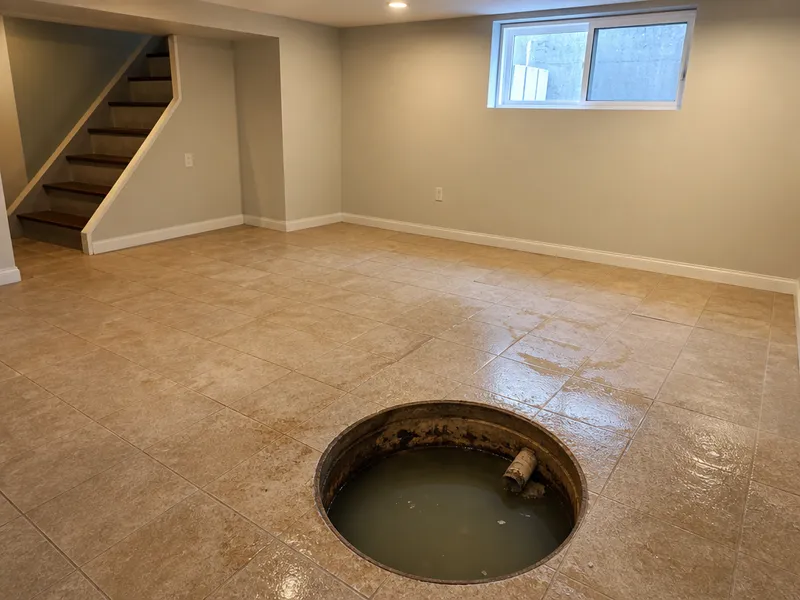

- Standing water in the sump pit during dry weather: The most obvious sign we see on jobs across NYC — it means the pipe is blocked and water can’t flow to the discharge point. Sediment has settled in a low spot.
- Efflorescence on basement walls near the floor-wall joint: That white, chalky mineral deposit appears during rain because water is backing up through the joint. The drain tile isn’t capturing groundwater the way it should.
- Wet spots on the basement floor that never dry: A damp patch near the wall, especially after a storm, means the perforated pipe has lost its connection to the gravel bed or the gravel is silted solid.
- Cracks in the basement slab along the perimeter: Hydrostatic pressure builds when the drain tile is blocked — the trapped water pushes up against the concrete and eventually heaves it, creating hairline fractures that widen over time.
- Silt and sediment visible in the sump pit: When you see sand or fine soil in the pit itself, the filter fabric has failed. Soil is migrating through the gravel and into the pipe, which will eventually clog the perforations entirely.
Auditory and performance signs
- Gurgling sounds from the floor drain or sump pit: When we arrive at a Brooklyn row house with a failing system, the homeowner often reports that gurgle — it’s air trapped in a clogged pipe, bubbling up through standing water. That sound means the pipe is partially blocked.
- Sump pump running constantly but not keeping up: A pump that cycles every few minutes during a storm but the water level never drops means the drain tile is partially blocked or overwhelmed. The pump is fighting a losing battle against backed-up water.
- Musty smell that gets worse after rain: Standing water in the gravel bed or pipe creates a damp, moldy odor. If your basement smells musty specifically after a storm, the system isn’t draining — water is sitting where it should be moving.

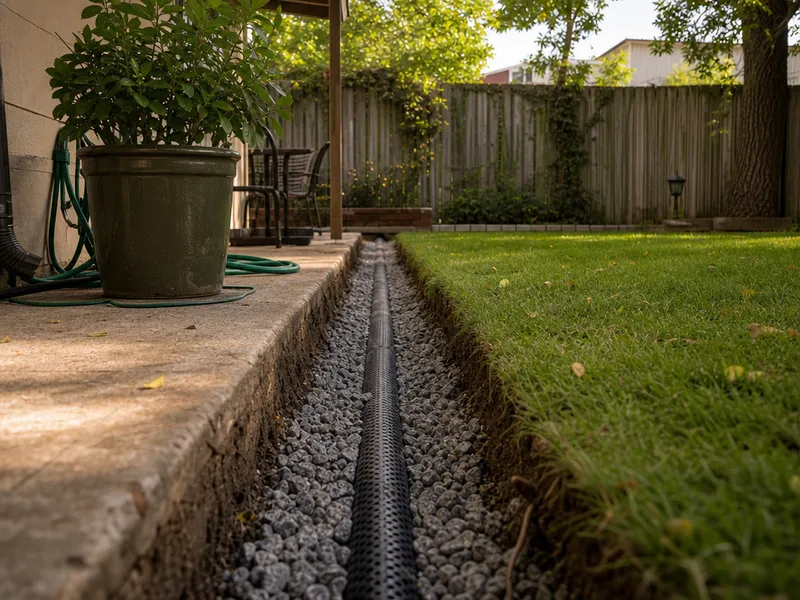

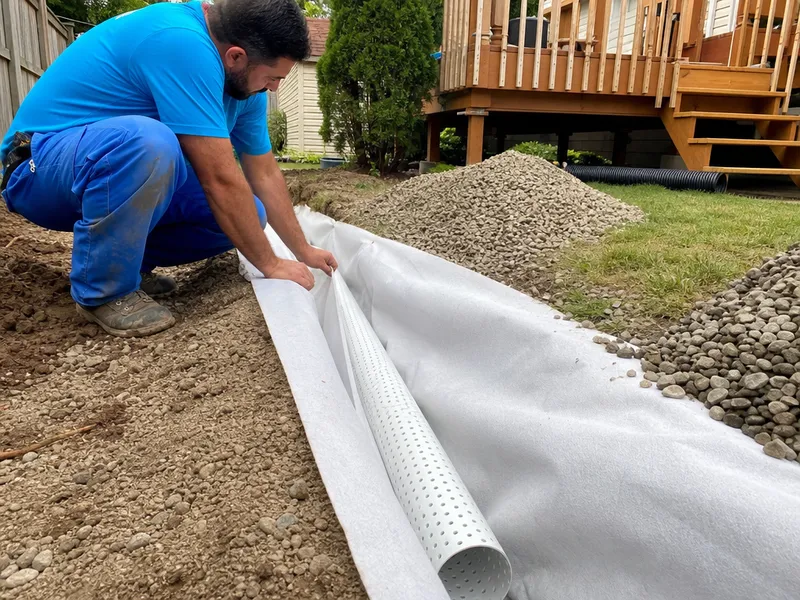

Drain tile vs French drain: what’s the difference?
Both systems use perforated pipe and gravel, but drain tile protects foundations from groundwater while French drains manage surface water — and NYC homeowners often use the terms interchangeably.
Key differences in depth, purpose, and installation
| Parameter | Drain tile | French drain |
|---|---|---|
| Installation depth | 4–6 feet (at footing level) | 12–24 inches (shallow trench) |
| Water source | Groundwater (hydrostatic pressure) | Surface water (rain, runoff) |
| Primary purpose | Protects foundation from below | Manages yard pooling and wet spots |
| Discharge method | Sump pump or gravity to daylight | Gravity to daylight, dry well, or catch basin |
| Typical cost in NYC | $4,000–$15,000 | $1,000–$4,000 |
| Pipe perforation orientation | Holes face downward | Holes face upward or on sides |
Many NYC homeowners call any buried perforated pipe a “French drain,” but if you’re trying to stop basement flooding, you need a drain tile system at footing depth — a French drain won’t help.
Can drain tile and French drain work together?

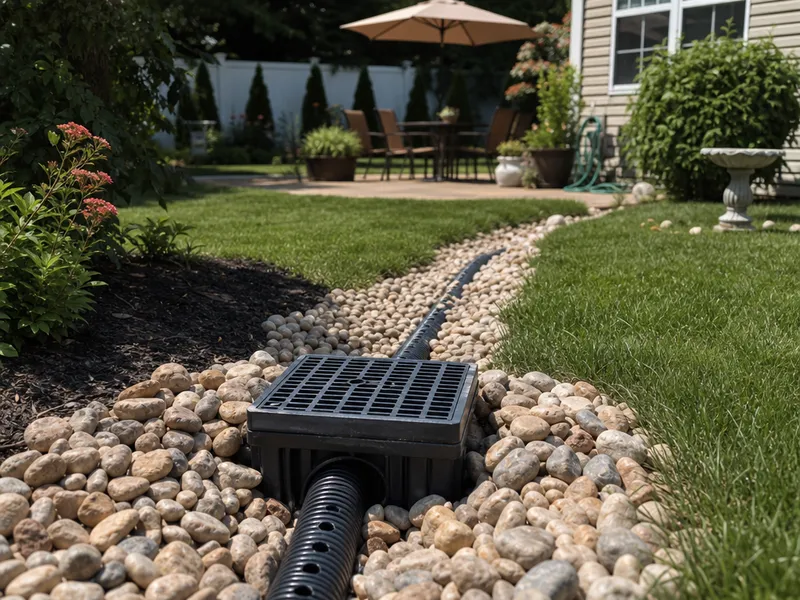

Yes — we often connect a French drain in the yard to the drain tile system through a catch basin, so surface water from the yard flows into the same sump pump that handles groundwater. The French drain collects runoff from a sloped yard or driveway, channels it into a buried catch basin, and that basin ties into the perimeter drain tile via a solid PVC pipe. That way one sump pump handles both the groundwater at the foundation and the rainwater from the yard. But if your yard slopes toward the house, a French drain alone won’t fix the problem — you need regrading to slope soil away from the foundation at least 6 inches over 10 feet.
Installing drain tile in an existing NYC home
Yes — interior installation is the standard method for existing homes across NYC. We saw-cut a trench in your basement slab, excavate below it, install the perforated pipe and gravel bed, then patch the concrete. No exterior digging required.

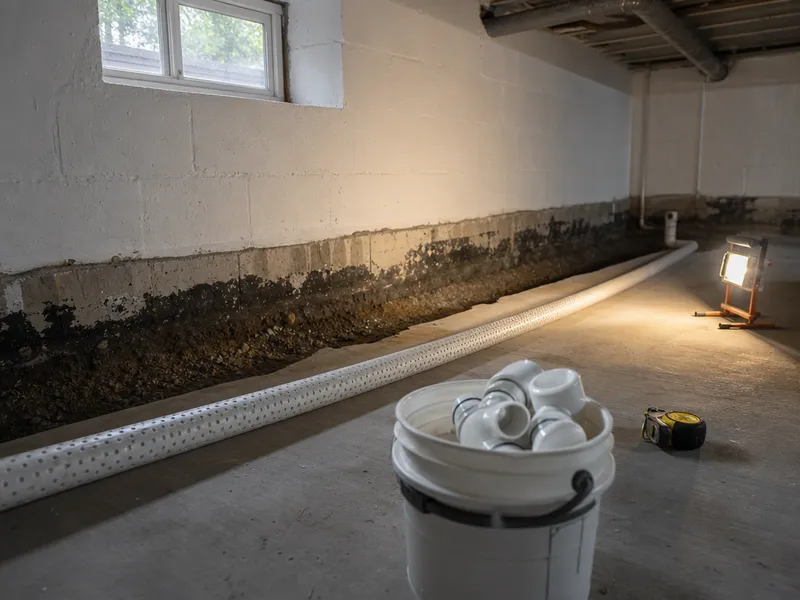

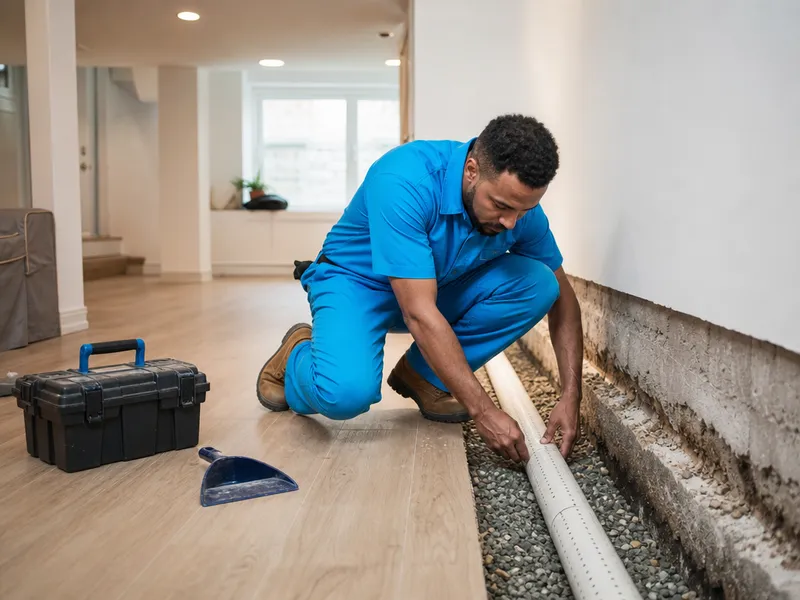

Interior installation process for existing homes
- Concrete cutting: We saw-cut a 6–8 inch wide trench along the basement perimeter using a diamond-blade saw with dust containment — this takes 2–4 hours for a typical 1,000–1,500 square foot brownstone floor plan.
- Excavation: Hand-dig 12–18 inches below the slab to reach footing level; in Brooklyn row houses we often hit clay soil that requires shoring if unstable, but the depth stays consistent.
- Pipe and gravel: Lay 4-inch perforated PVC with holes facing down on a 6-inch bed of 3/4-inch washed stone, slope it 1/8 inch per foot toward the sump pit, then backfill with another 6 inches of gravel wrapped in filter fabric.
- Concrete patch: After backfill, we pour a 2–3 inch concrete patch over the trench — the whole interior job runs 2–4 days, and we work in sections if you have finished walls or built-in cabinets we need to navigate around.
Constraints and cost premium for existing homes
Installing drain tile in an existing home costs 20–40% more than new construction because we have to cut concrete, remove debris through occupied living spaces, and work around obstructions like mechanical rooms and finished walls. In a typical Queens detached house, the added labor for debris hauling through finished areas alone adds $500–$800 to the job. For NYC row houses with shared walls, interior drain tile can’t extend into the neighbor’s property — it must terminate at the property line, which we verify during the initial assessment. That boundary constraint means the sump pit goes at the lowest point within your unit, not necessarily the geometric center of the basement.
What causes drain tile to clog?
Most drain tile clogs in NYC develop gradually over years and are preventable with maintenance. Here are the common failure modes we see on the job.
Silt intrusion and filter fabric failure
The most common cause of drain tile failure we see in NYC homes over 20 years old is silt intrusion — fine soil particles pass through degraded filter fabric and settle in the pipe, slowly reducing its effective diameter until water can’t flow. The filter fabric wrapping the gravel bed is supposed to block soil while letting water through; UV exposure, acidic soil conditions, and installation tears cause it to break down. Once fabric fails, silt fills the gravel bed’s pore space, and the pipe perforations clog from the outside in. The system then stops collecting groundwater even though the pipe itself isn’t blocked. If you notice sediment or silt in your sump pit, the filter fabric has failed and soil is entering the gravel bed — this requires excavation to fix, not just cleaning.
Tree root intrusion and mineral buildup

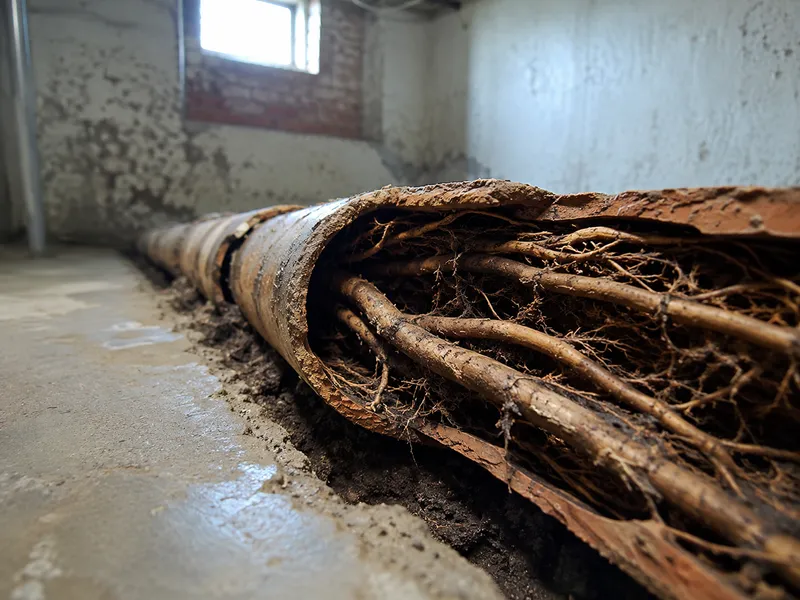

- Tree root intrusion: In Brooklyn and Queens neighborhoods with mature street trees, we regularly find roots from London planes and Norway maples penetrating pipe joints — they seek water and grow until the pipe is completely blocked.
- Mineral scaling: NYC’s hard water (7–8 grains per gallon) leaves calcium deposits inside drain tile over 10–15 years, narrowing the pipe diameter and reducing flow capacity.

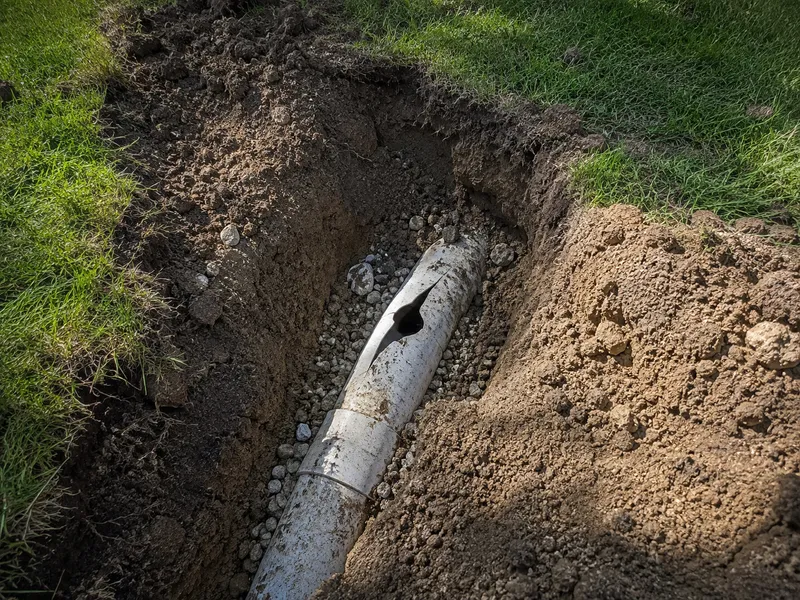

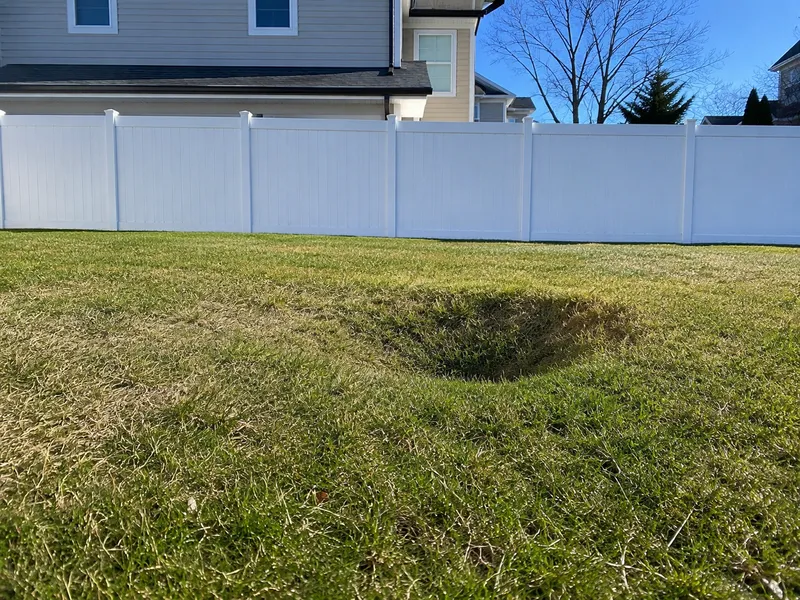

- Collapsed pipe: Pre-1950s clay tile cracks under ground movement; corrugated HDPE crushes under driveway loads; PVC is the most durable option.

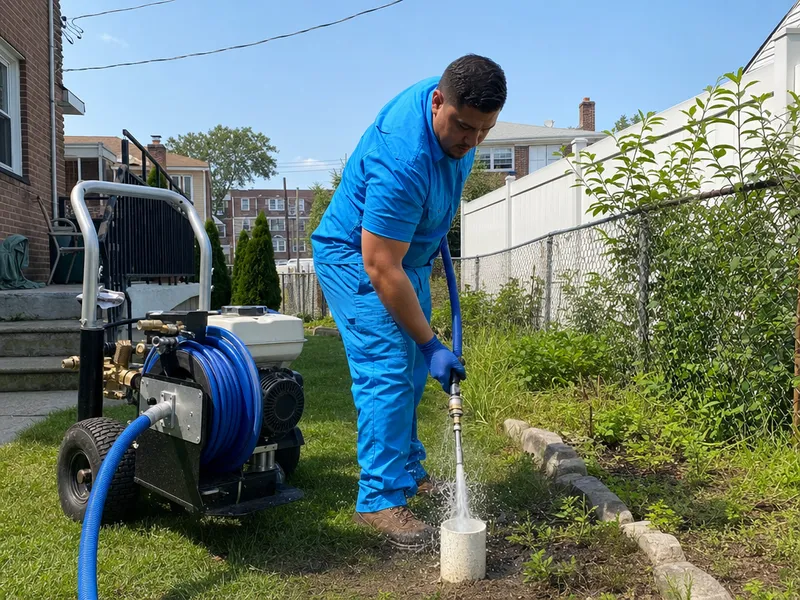

- Hydro-jetting solution: A 4,000–5,000 PSI water jet clears both root intrusion and mineral buildup — we always run a camera before and after to confirm the blockage is gone.
How to maintain your drain tile system
Drain tile systems need regular upkeep to prevent failure, and most homeowners can handle basic annual tasks while professional cleaning is needed every 5–10 years.
Annual homeowner maintenance tasks
- Test the sump pump: Every year, we recommend pouring 5 gallons of water into the sump pit — the pump should cycle on and discharge the water within seconds, confirming the check valve and discharge line work.
- Clean the pump intake screen: Sediment and small debris collect on the screen over time; pull the pump, rinse the screen with a garden hose, and remove any grit from the pit bottom before reinstalling.
- Inspect the sump pit: Shine a flashlight into the pit — look for roots poking through weep holes, standing water that doesn’t drain (sign of a partial clog), or silt buildup that indicates filter fabric failure above.
- Check downspout connections: If your downspouts feed into the drain tile system, debris from clogged gutters enters the pipe directly — clear gutters annually and verify the downspout-to-cleanout connection is sealed.

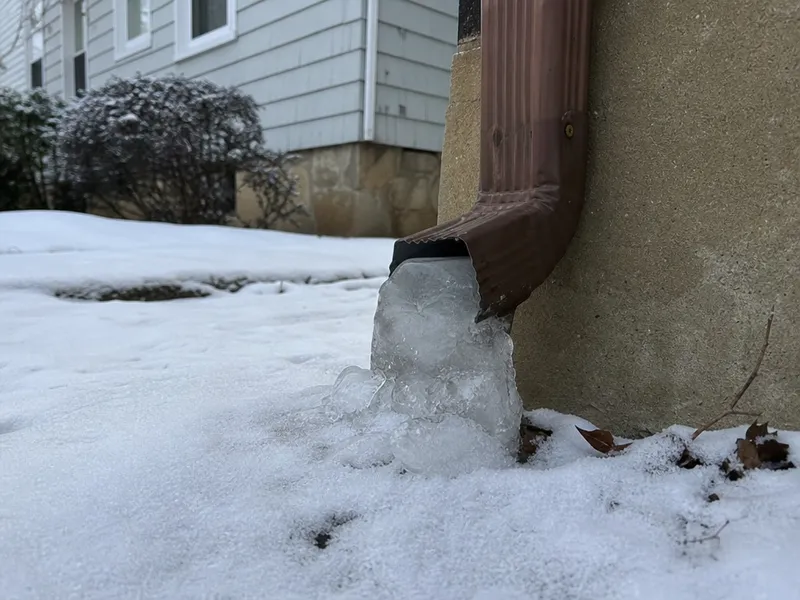

- Verify the discharge line: Walk the exterior discharge pipe — confirm it’s not blocked by leaves, ice, or vegetation, and that the outlet is at least 10 feet from the foundation to prevent water from cycling back.
Professional maintenance schedule
- Camera inspection every 3–5 years: We run a scope through the cleanout to check for root intrusion, mineral buildup, or pipe collapse — this costs $200–$400 and catches problems before they cause basement flooding.
- Hydro-jetting every 5–10 years: A 4,000–5,000 PSI water jet clears silt, calcium deposits, and small roots from the pipe walls; typical cost runs $300–$800 depending on linear footage and access points.
- Sump pump replacement every 5–7 years: Even if the pump still runs, internal wear on the impeller and seal reduces capacity — proactive replacement during a dry month prevents failure during a heavy storm.
Is drain tile necessary for a basement in NYC?
Any finished basement below grade in NYC needs drain tile — hydrostatic pressure is present in most neighborhoods, and installation costs far less than flood damage.
NYC water table and basement flood risk by neighborhood
In our experience working across all five boroughs, any finished basement below grade in NYC needs drain tile — hydrostatic pressure is present in most neighborhoods, and without a drainage system, water will find its way through the floor-wall joint or foundation cracks. The water table varies dramatically across NYC: it’s high in lower Manhattan below Canal Street, Brooklyn near the Gowanus Canal, and Queens near Jamaica Bay, but lower in the Bronx and Staten Island hills. A brownstone on a high-water-table block faces far greater risk than a row house on a Bronx ridge. We recommend checking USGS groundwater maps for your specific block before finishing any below-grade space — the $4,000–$12,000 drain tile install beats the $10,000–$50,000 flood repair bill every time.
Cost-benefit analysis: drain tile vs flood damage
Installing drain tile costs $4,000–$12,000 for a typical NYC basement, while repairing flood damage to a finished basement can easily run $10,000–$50,000 — and most NYC homeowners insurance policies exclude groundwater damage. Pre-war brownstones built before 1900 typically have no drainage system at all; the original builders relied on mortar coating called parging that fails after 50–100 years, so these homes are at the highest risk. On a recent Brooklyn job we saw a finished parlor-floor basement with $40,000 in flood damage — the owner had skipped the drain tile to save $8,000. That’s the math that matters.
Can you combine drain tile with a sump pump?
A sump pump is the standard companion to drain tile in NYC basements — the tile collects water by gravity, and the pump lifts it to the exterior.

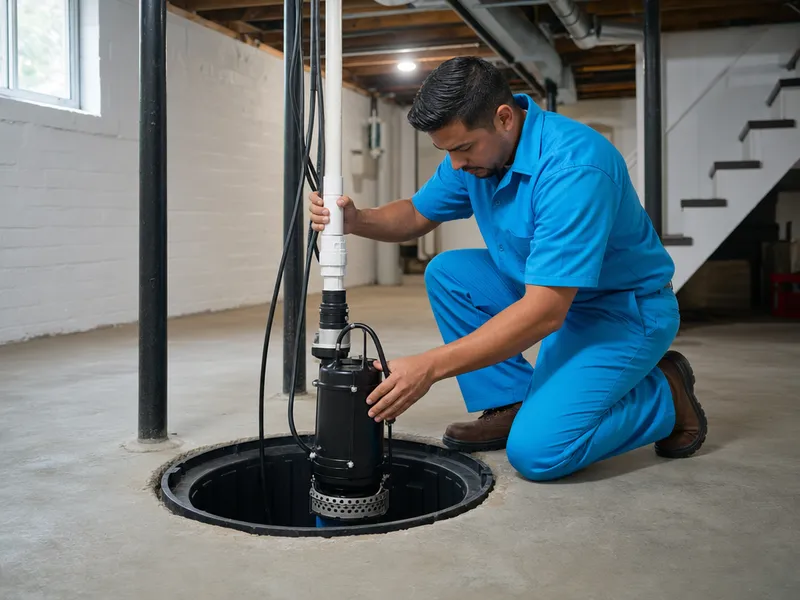

How drain tile and sump pump work together

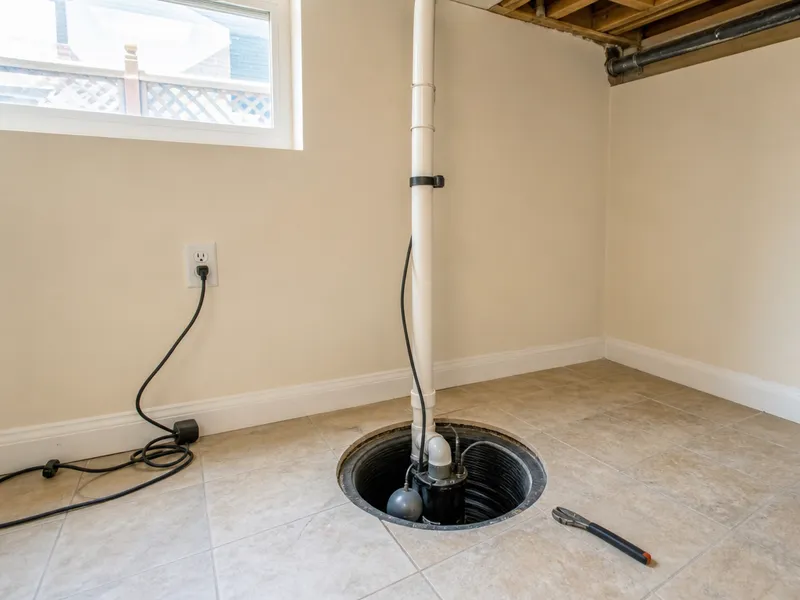

Yes — every drain tile system we install in NYC includes a sump pump: the drain tile collects groundwater by gravity and channels it to a sump pit, where the pump lifts it through a discharge pipe to the exterior or storm drain. The sump pit must sit at the lowest point of the drain tile loop — we install an 18–24 inch diameter pit with weep holes and a gravel base to keep sediment out of the pump intake. A 1/3 HP submersible pump handles most residential loads, though we spec a 1/2 HP for high water table areas. The discharge pipe exits through a wall or runs up to the ceiling and out, with a check valve to prevent backflow. The sump pit must stay at the lowest elevation of the system — if the pit sits higher than the pipe, water pools in the trench and never reaches the pump.
Sump pump types and backup options
| Pump type | Horsepower | Best for | Backup option |
|---|---|---|---|
| Submersible | 1/3 HP | Standard basements under 2,000 sq ft | Battery backup (12V DC) |
| Submersible | 1/2 HP | High water table, large basements | Battery backup or water-powered |
| Pedestal | 1/3 HP | Shallow sump pits, crawl spaces | Battery backup |
How deep should drain tile be buried?
Depth depends on whether the system is interior or exterior. The key requirement is being below the foundation footing and frost line.
Interior vs exterior drain tile depth requirements
- Interior drain tile (12–18 inches): For NYC basements, we dig 12–18 inches below the basement slab — this puts the pipe at or below the footing level where groundwater collects before reaching the foundation wall.
- Exterior drain tile (4–6 feet): Must be buried 4–6 feet deep to sit below NYC’s frost line of 3–4 feet — if the pipe sits above the frost line, water inside can freeze in winter and block the entire system.
- Why depth matters: The pipe must intercept groundwater before it reaches the foundation. Too shallow and water flows under the pipe. Too deep and you’re paying for unnecessary excavation.
- Bedrock constraint: In the Bronx and upper Manhattan where bedrock is close to the surface, we sometimes can’t reach 4 feet — in those cases we install an interior system with a drainage mat above the rock.
- Permit trigger: Any excavation deeper than 4 feet requires a NYC DOB permit, so exterior systems almost always need one.

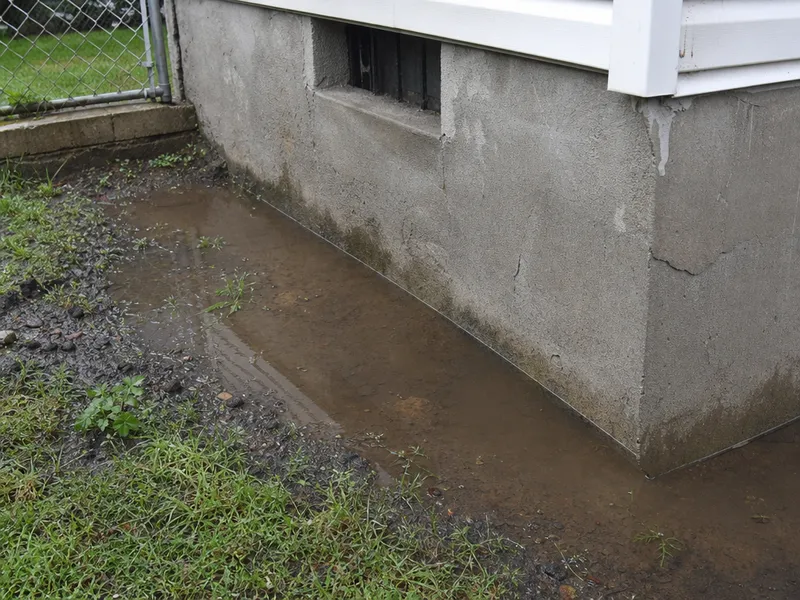

Slope requirements and soil considerations
Interior drain tile needs a minimum slope of 1/8 inch per foot toward the sump pit, and exterior systems need 1/4 inch per foot — if the slope is flat or negative, water sits in the pipe and sediment settles out. We check slope with a laser level during installation because a slight miscalculation at the start compounds over a 50-foot run. In parts of the Bronx and upper Manhattan where bedrock is close to the surface, we sometimes can’t dig deep enough for exterior drain tile — in those cases, we install an interior system with a special drainage mat above bedrock.
What permits are needed for drain tile installation in NYC?
Drain tile installation in NYC requires multiple permits and licensed professionals — skipping them can result in fines, stop-work orders, and legal liability for water damage.
Required permits and licenses for drain tile work
- NYC DOB permit: Required for any excavation deeper than 4 feet or work affecting the building foundation — we handle the permit application as part of our service.
- NYC DEP permit: Needed if the system connects to the municipal storm drain; illegal sewer connections carry fines up to $10,000.
- Licensed Master Plumber: A Licensed Master Plumber must perform or supervise all drainage work in NYC per Administrative Code §28-401 — we carry that license.
- NY DOS Home Improvement license: The contractor needs this under NY General Business Law Article 23-A for any residential work over $500.
- 811 call-before-you-dig: Required by NY State law before any excavation — buried gas, electric, and telecom lines run through most NYC neighborhoods.
Permit process and inspection requirements
We submit plans to NYC DOB including a site plan, cross-section of the drain tile, sump pump specifications, and discharge location — a DOB inspector visits during installation to verify depth, slope, pipe type, and filter fabric. On a recent Brooklyn brownstone job, the inspector flagged the gravel bed depth at 5 inches instead of the required 6, and we added stone before backfill passed. If your building is a co-op or condo, you’ll also need board approval for any work affecting common elements or shared walls, and we coordinate with the building management to get that sign-off before we break concrete.

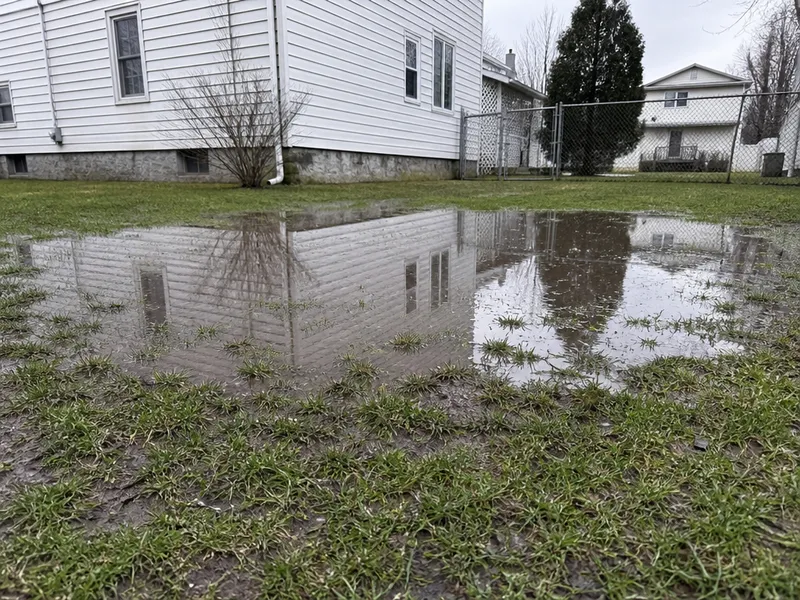

How does drain tile help with yard flooding?
Drain tile handles groundwater, not surface water. For yard flooding from rain, a French drain is usually the right fix — but drain tile can help in specific situations.
When drain tile helps with yard flooding
Drain tile can help with yard flooding if the flooding is caused by a high water table — groundwater rising to the surface. If water is pooling from rain, a French drain or catch basin system is the right solution. In low-lying NYC neighborhoods like College Point (Queens), Howard Beach, and Canarsie (Brooklyn), the water table is so high that groundwater can push up through the yard. Drain tile relieves that pressure by intercepting the water before it surfaces. A French drain in the yard can feed into a catch basin tied directly to the drain tile system, creating a combined solution for both surface and subsurface water.

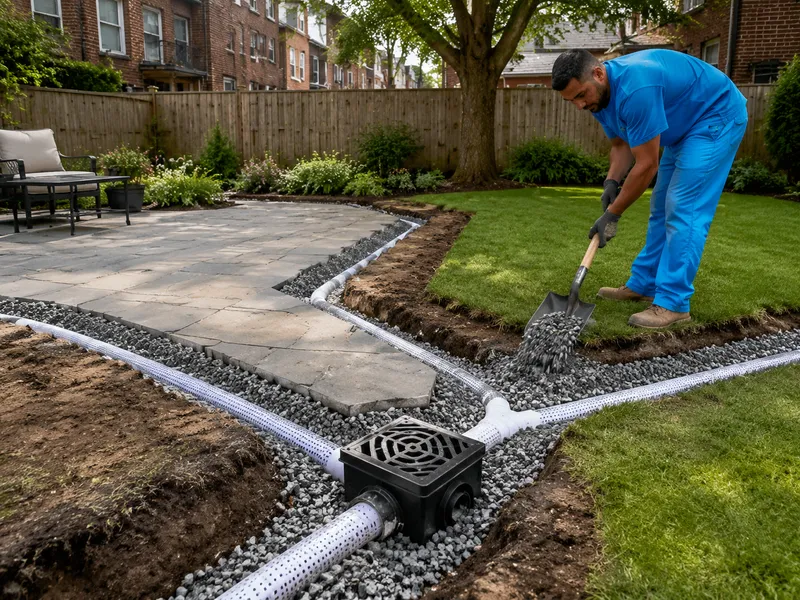

Combined yard drainage solutions

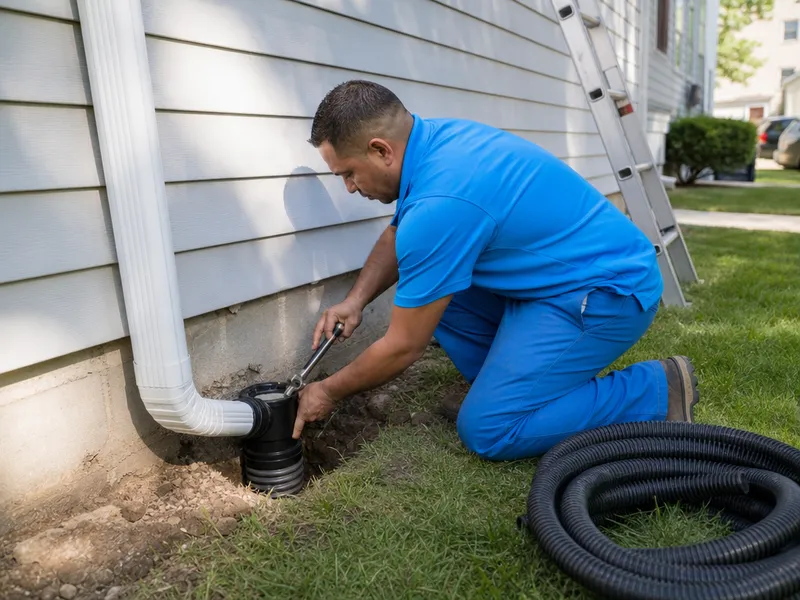

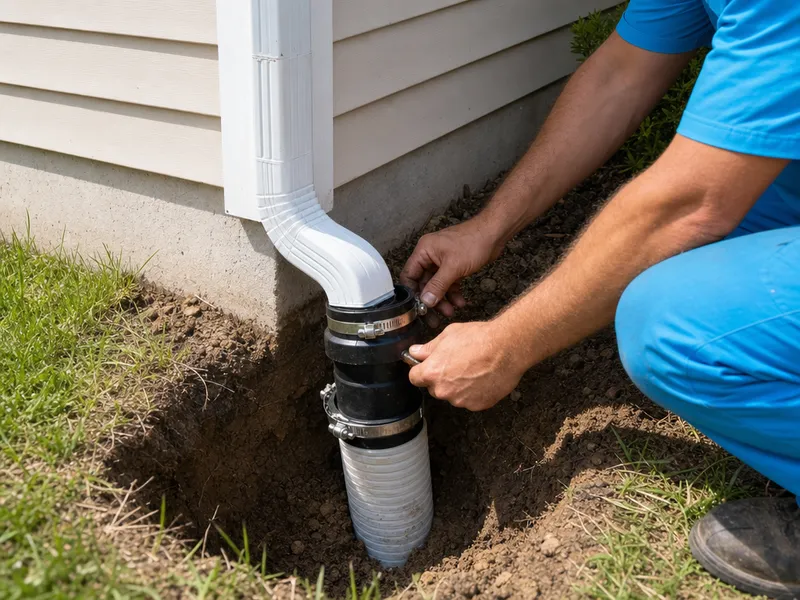

- Downspout tie-in: We often connect downspouts and catch basins in the yard to the drain tile system — this moves surface water away from the foundation and into the same sump pump that handles groundwater.
- Grading requirement: If your yard slopes toward the house, drain tile alone won’t fix the problem — you need to regrade the soil to slope away from the foundation at least 6 inches over 10 feet.
- Dry well option: Drain tile can discharge to a dry well buried in the yard for gradual percolation, but this requires a soil percolation test first.
What is the best type of pipe for drain tile?
Choosing between perforated PVC and corrugated HDPE for your drain tile system matters — the wrong pipe can fail within years, while the right one lasts decades. We break down each option for NYC conditions.

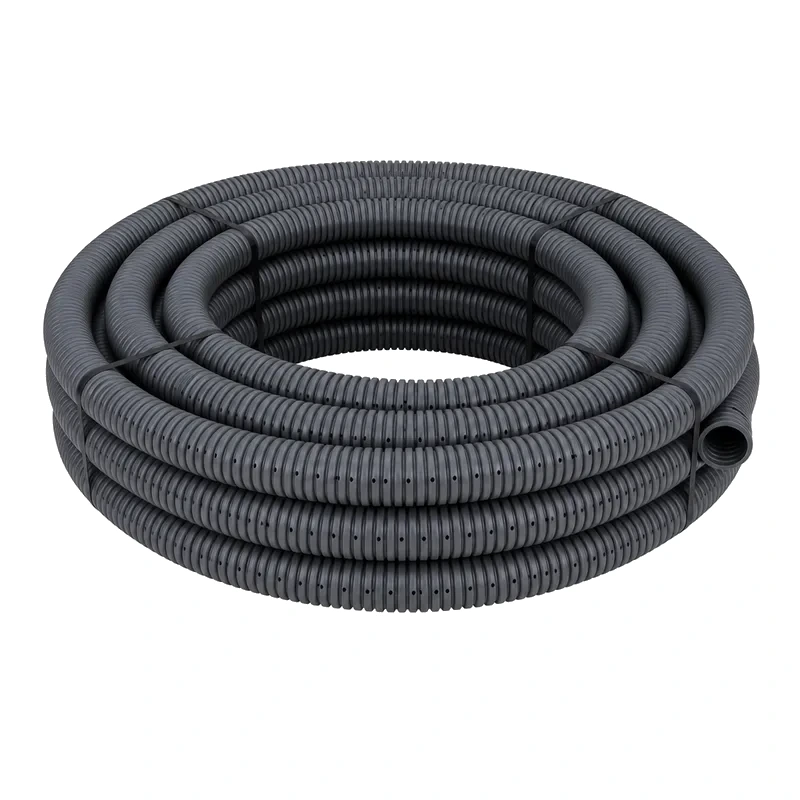

Perforated PVC vs corrugated HDPE for drain tile
| Property | Perforated PVC (schedule 40) | Corrugated HDPE (ADS N-12) |
|---|---|---|
| Crush resistance | Excellent — survives under driveways and parking areas | Moderate — can collapse under vehicle weight |
| Interior surface | Smooth — resists silt buildup and root adhesion | Ribbed — sediment catches in corrugations over time |
| Slope precision | Rigid — holds ⅛″ per foot slope reliably | Flexible — can sag if bedding is uneven |
| Best application | Interior under-slab (brownstone basements, row houses) | Exterior yard runs and curved trenches |
| Standard diameter | 4″ for most homes; 6″ for large basements (2,000+ sq ft) | 4″ or 6″ — 4″ is standard for residential exterior |
At Eco Service NY, we use 4-inch schedule 40 perforated PVC for interior drain tile under basement slabs — it’s rigid, resists crushing, and its smooth interior resists clogging — while corrugated HDPE works well for exterior runs where flexibility helps. Never use corrugated HDPE under a driveway or parking area — it can crush under vehicle weight — and always wrap either pipe type in filter fabric to prevent silt intrusion.

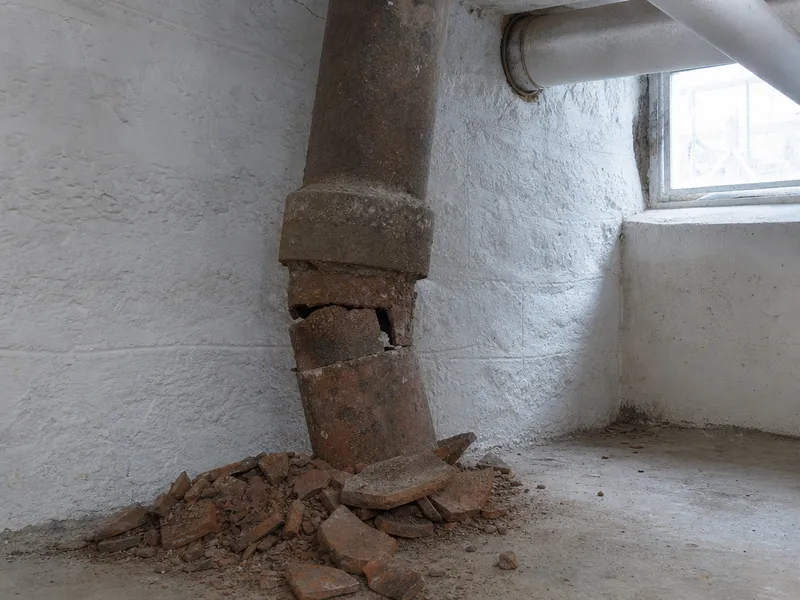

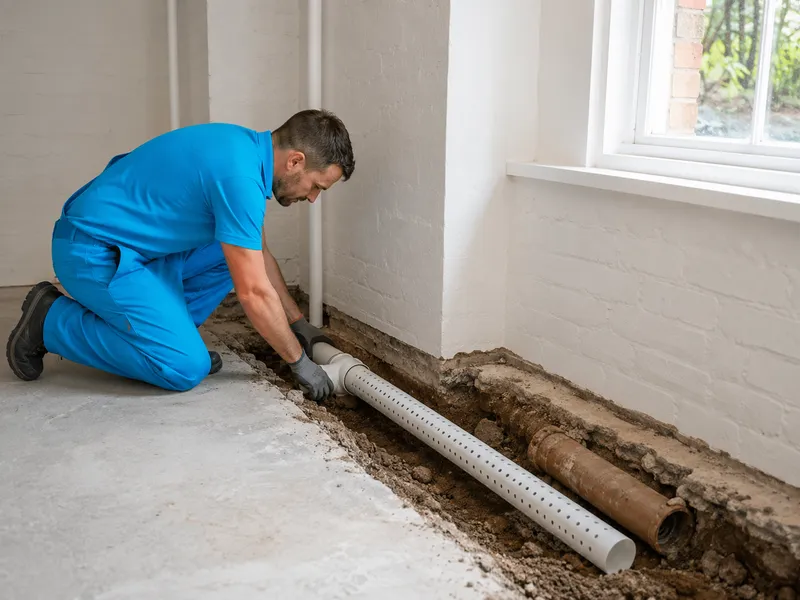

Historic clay tile and when to replace it
Pre-1950s NYC homes often have original clay tile drain tile — it’s brittle, cracks over time, and the joints separate as the ground settles — when we find it, we recommend full replacement with PVC rather than repair. In Brooklyn brownstones and older Queens colonials, we see clay tile that has been carrying water for 70-plus years; the pipe sections shift at the bell-and-spigot joints, letting soil wash into the gravel bed. Once the filter fabric is compromised by silt, the whole system clogs from the bottom up. Clay tile is fragile enough that hydro-jetting can actually damage it further — if you have a clay tile system, skip the cleaning and budget for replacement instead.
Can drain tile be repaired without excavation?
Some drain tile problems can be fixed without digging, but trenchless methods have clear limits — collapsed pipe and failed filter fabric still demand excavation.
Trenchless repair methods: pipe relining and hydro-jetting
- Pipe relining (CIPP): We insert an epoxy-saturated liner through the cleanout, inflate it, and cure it with hot water — this creates a seamless new pipe inside the old one without any digging; costs $80–$150 per linear foot and takes 4–6 hours for a 50–100 foot run.

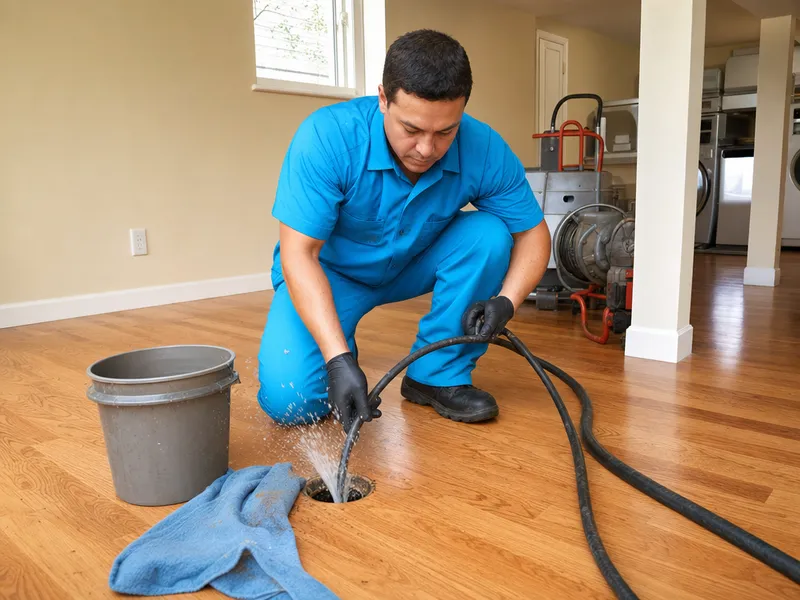

- Hydro-jetting: A 4,000–5,000 PSI water jet blasts through silt, root masses, and mineral scale inside the pipe; we run a camera inspection first to locate the blockage and another after to confirm the line is clear — typical cost is $300–$800.
- Camera inspection first: Before we decide on any trenchless method, we scope the pipe — the camera tells us whether the pipe is intact enough to accept a liner or just needs cleaning, saving you from paying for a procedure that won’t work.
- Critical limitation: Pipe relining requires the existing pipe to hold its shape — a collapsed section, crushed corrugated HDPE under a driveway, or a separated clay-tile joint cannot be relined and must be excavated.

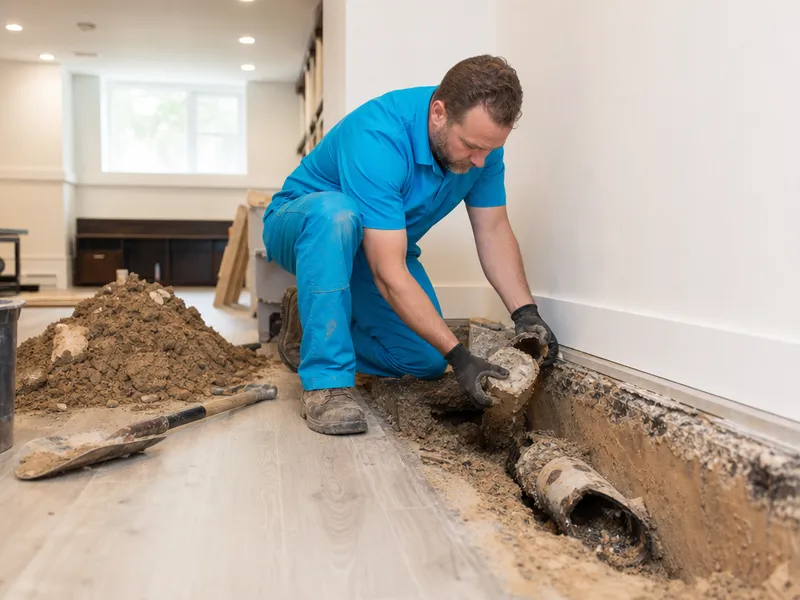

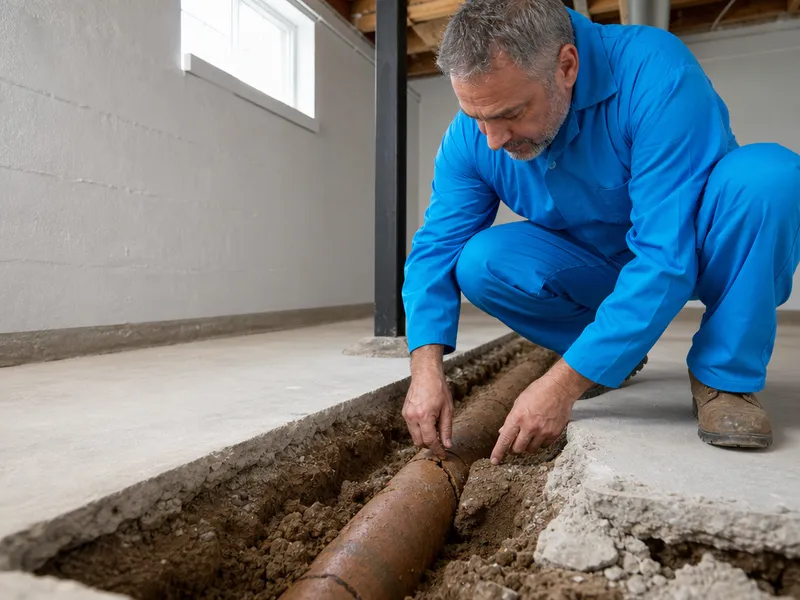

When excavation is unavoidable
- Collapsed or crushed pipe: If the pipe has caved in from ground settling, root pressure, or heavy loads above, there’s nothing to line — we have to dig down, remove the damaged section, and replace it with new PVC; excavation repair runs $2,000–$8,000 depending on depth and access.
- Failed filter fabric and silt contamination: When the fabric wrap degrades, soil fills the gravel bed and clogs the pipe perforations — trenchless cleaning won’t fix the source, and the only solution is to excavate, replace the fabric, and install fresh washed stone.
- Camera inspection is the decider: For $200–$400, we scope the entire run and see exactly what we’re dealing with — intact pipe with a root clog gets hydro-jetted; collapsed pipe gets an excavation plan, and you don’t pay for a method that can’t solve the problem.
Conclusion
A properly installed drain tile system is the most effective way to protect a NYC basement from groundwater intrusion, whether you’re dealing with a brownstone in Brooklyn or a row house in Queens.
Main takeaways
A properly installed drain tile system is the most effective way to protect a NYC basement from groundwater intrusion, whether you’re dealing with a brownstone in Brooklyn or a row house in Queens. The system works by intercepting hydrostatic pressure before it pushes water through the floor-wall joint — a 4-inch perforated PVC pipe in a gravel trench, wrapped in filter fabric, channels everything to a sump pit where a pump lifts it to the exterior. In our experience across all five boroughs, the most common failures trace back to filter fabric degradation, tree root intrusion from London planes in Brooklyn, or improper slope that lets sediment settle. The key to a long-lasting system is getting the basics right — proper depth below the frost line, correct slope toward the sump pit, quality filter fabric around the gravel bed, and regular maintenance including annual pump testing and professional cleaning every 5–10 years.
