What is trenchless sewer repair and how does it work?
Trenchless sewer repair methods fix or replace damaged sewer lines without digging a trench along the pipe path — preserving your yard, driveway, and foundation. The two primary methods are CIPP pipe lining and pipe bursting.

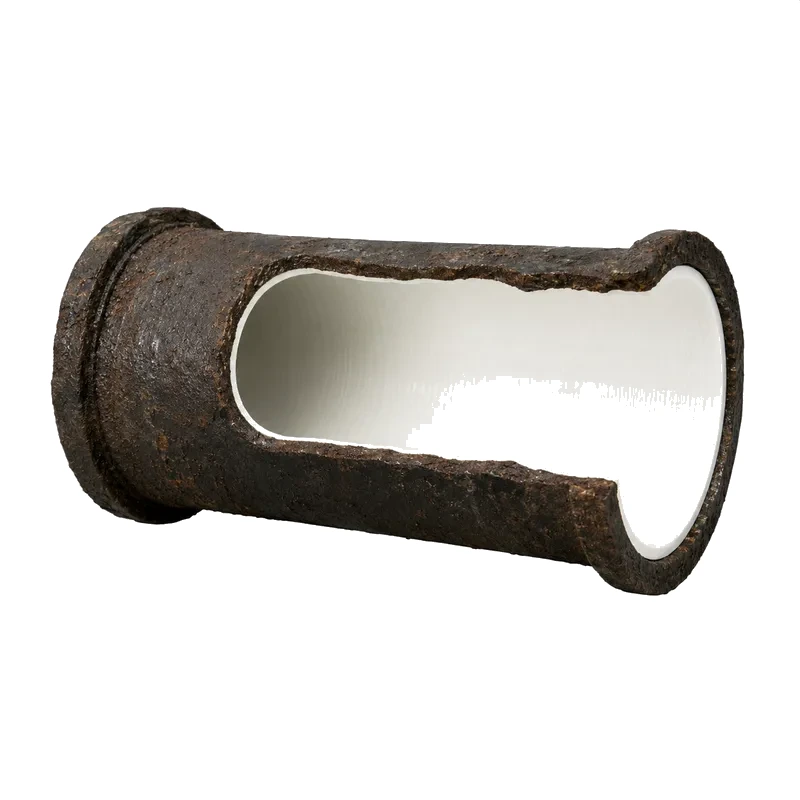

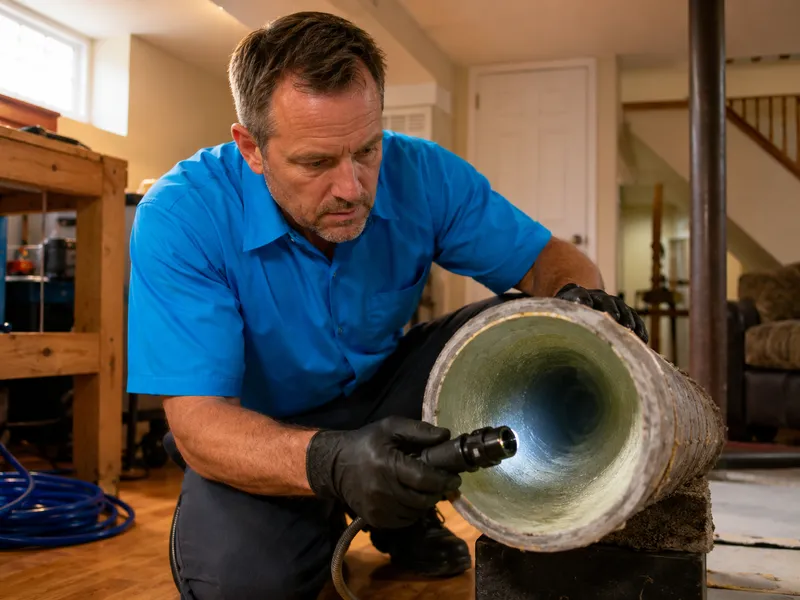

How CIPP pipe lining creates a new pipe inside your old one
We insert an epoxy-saturated felt liner into your damaged pipe, inflate it against the pipe walls, and cure it with hot water — creating a seamless pipe-within-a-pipe in 4–8 hours. The process starts with a sewer camera inspection to map damage and measure diameter, followed by hydro-jetting at 3,000–4,000 PSI to clear roots and debris. The liner, cut to exact length and impregnated with thermosetting epoxy resin, is inverted or pulled into place using air pressure or a winch. Hot water or steam then circulates through the liner at 160–180°F for 2–4 hours, curing the resin into a hard, jointless surface that bonds to the host pipe. The liner’s epoxy seals pinhole leaks and root intrusion points that a traditional patch couldn’t reach, but only if the pipe hasn’t collapsed.

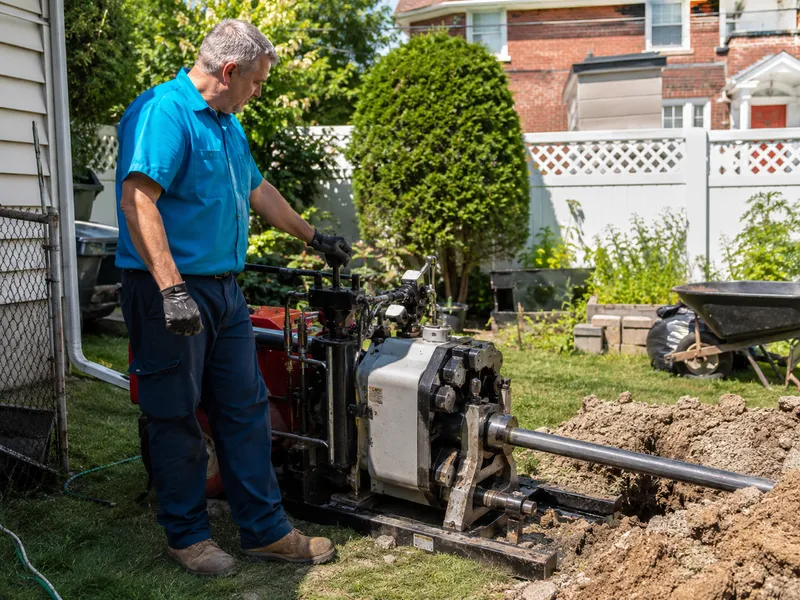

How pipe bursting replaces your old pipe with new HDPE
We pull a hydraulic bursting head through your old pipe, fracturing it outward while simultaneously pulling a new HDPE pipe into place — a full replacement that takes 1–2 days. Two small access pits, typically 4×4 feet and 4–6 feet deep, are excavated at the entry and exit points; no trench runs along the pipe’s length. The bursting head, powered by 10–20 tons of hydraulic pulling force, shatters cast iron, clay, or Orangeburg pipe into fragments that settle into the surrounding soil. Behind the head, a continuous HDPE pipe — fusion-welded for leak-proof joints — is drawn through the cavity, expanding the bore by one to two pipe sizes. Pipe bursting can upsize your pipe diameter by one to two sizes, which is critical when old cast iron or clay lines are undersized for modern household flow.
Is trenchless sewer repair legal in NYC?
Trenchless sewer repair is legal in NYC with the correct permits. NYC DEP regulates work within 10 feet of the city sewer main, while NYC DOB permits cover the private side from your building to the curb.
NYC DEP and DOB permit requirements for trenchless work
| Agency | Jurisdiction | When required |
|---|---|---|
| NYC DEP | Public side — within 10 ft of city sewer main | Work on lateral near street; sidewalk excavations |
| NYC DOB | Private side — building wall to property line | CIPP lining or pipe bursting on the building’s lateral |
| NYC 811 | Utility mark-out | Before any excavation, even small access pits |
Why shared laterals in brownstones add complexity
Many Brooklyn and Manhattan brownstones share one sewer lateral between multiple units — we coordinate access with co-op boards and notify affected neighbors before starting trenchless work. A shared lateral means your neighbor’s tree roots could be causing your backup, and a camera inspection must trace the full line to determine whose section is failing. In our practice, we’ve seen cases where one unit’s backup traced back to a root mass at the neighbor’s property line. The camera doesn’t lie, and it saves everyone a misdiagnosis.
Pipe lining vs pipe bursting: which is better for your NYC sewer line?
Both methods are trenchless but serve different pipe conditions. The choice depends on pipe material, damage type, and whether you need a full replacement or a structural repair.
CIPP pipe lining: best for structurally sound pipes with cracks or root intrusion
- When it works: We recommend CIPP pipe lining when your pipe has structural integrity — minor cracks, root intrusion, or corrosion — and you want a same-day repair with no excavation.
- Diameter change: CIPP reduces pipe diameter by only 1/8 to 1/4 inch, which is negligible for residential flow but matters in older 3-inch laterals that are already undersized.
- Lifespan: A properly installed epoxy liner lasts 30–50 years and resists root intrusion because the cured-in-place pipe has no joints for roots to enter.
- Prerequisite: Hydro-jetting must precede CIPP liner installation — debris, rust scale, and roots must be removed completely or the liner won’t bond to the pipe wall.
- NYC context: Cast iron pipes in Brooklyn brownstones are excellent candidates if the camera inspection confirms no collapse and the pipe is still round.
Pipe bursting: best for collapsed pipes, Orangeburg, or upsizing diameter
- When it works: We use pipe bursting when the pipe has collapsed, is made of Orangeburg, or needs a larger diameter — the new HDPE pipe lasts 50–100 years and resists root intrusion.
- Access requirements: Pipe bursting requires two small access pits (4×4 feet each), which means minor landscape disruption but avoids the full-trench destruction of traditional excavation.
- Orangeburg limitation: Orangeburg pipe is not suitable for CIPP pipe lining — it’s too fragile and collapses under the liner inflation pressure, so pipe bursting is the only trenchless option.
- Upsizing advantage: The bursting head can pull in HDPE pipe one to two sizes larger than the original, solving chronic slow-drain issues from undersized 3-inch laterals common in pre-war buildings.
- Timeline: The full replacement takes 1–2 days, versus 4–8 hours for CIPP, because the access pits must be excavated, backfilled, and restored after the burst.
Does trenchless sewer repair work on old cast iron pipes?
Cast iron pipes in pre-1960s NYC buildings are common candidates for trenchless repair — but only if the pipe hasn’t collapsed. Internal rust scale must be removed first.
CIPP lining on cast iron: what works and what doesn’t
We successfully line cast iron pipes with CIPP when the pipe still has structural integrity — the rough interior surface actually helps the epoxy liner bond better than smooth PVC. Cast iron’s internal rust scale can reduce pipe diameter by 30–50% over decades, so aggressive hydro-jetting at 3,000–4,000 PSI is critical before the liner goes in. The scale acts like a sandblasted surface for the epoxy; once it’s clean, the liner adheres tenaciously. In a Brooklyn brownstone we lined last fall, the original 4-inch cast iron had narrowed to barely 2.5 inches of clear bore — after jetting and lining, the homeowner got a full 4-inch equivalent flow again. Before committing to CIPP on cast iron, we always run a camera inspection to confirm the pipe hasn’t bellied or developed standing water, which would prevent proper liner adhesion.
When cast iron needs pipe bursting instead of lining
If your cast iron pipe has collapsed, has large missing sections, or has bellied sections with standing water, we switch to pipe bursting — the hydraulic head fractures the brittle cast iron cleanly. Cast iron is thick-walled but brittle, so we use hydraulic bursting (not pneumatic) to avoid shock waves that could damage nearby gas or water lines in tight NYC brownstone basements. The hydraulic bursting head applies steady, controlled force — around 15–20 tons of pull — that shatters the old iron into fragments while pulling the new HDPE pipe behind it. On a Bronx pre-war co-op job last year, the original 4-inch cast iron had a 3-foot section that had completely collapsed under a driveway; we burst the whole 60-foot run in about two hours and upsized to a 5-inch HDPE main. Standing water in a bellied cast iron section is a dead giveaway that lining won’t work — the epoxy can’t cure properly against a wet surface.
What is the success rate of trenchless sewer repair?
Trenchless methods achieve high success rates when installed correctly on suitable pipes, but long-term performance depends on proper cleaning, curing, and pre-installation pipe condition assessment.
CIPP success rate and common failure modes
- Success rate: CIPP pipe lining has a 95%+ success rate when installed on suitable pipes by experienced crews — we back every lining job with a 1-year warranty on parts and labor.
- Root intrusion failure: The most common CIPP failure — roots growing through the liner years later — happens when hydro-jetting didn’t fully remove the root mass before installation, which is why we always do a post-cleaning camera inspection.
- Improper curing: Cold-weather jobs in NYC (November through March) can slow epoxy cure time — we extend the hot-water circulation cycle by 30–45 minutes when ambient temps drop below 50°F.
- Liner wrinkling: If the felt liner is undersized for the pipe diameter, it can wrinkle during inflation, creating low spots where debris collects — we measure pipe ID at three points along the run before ordering the liner.
- End seal failure: The liner ends at the building cleanout and property-line connection must be sealed with a robotic cutter and gasket — skipped step leads to groundwater infiltration behind the liner.
Pipe bursting success rate and lifespan
Pipe bursting achieves a 98%+ success rate on straight runs with no major obstructions, and the new HDPE pipe carries a 50–100 year lifespan with no joints for roots to penetrate. The biggest risk with pipe bursting in NYC is veering off course at severe offset joints — a pre-burst camera inspection with locator transmitter maps every joint and bend before we commit to the method. On older clay lines in Brooklyn and Queens, offset joints from decades of soil settlement can catch the bursting head; we run a mandrel through first to verify the head can pass. Pipe bursting also lets us upsize the diameter — a 4-inch clay lateral becomes a 5-inch HDPE main, which improves flow capacity by roughly 56% and reduces future clog risk.
How does trenchless repair compare to traditional excavation?
Traditional excavation digs a trench along the entire pipe run — destructive, expensive, and time-consuming. Trenchless methods eliminate 90–95% of that disruption.
Cost, time, and disruption: trenchless vs excavation
| Factor | CIPP pipe lining | Pipe bursting | Traditional excavation |
|---|---|---|---|
| Cost per linear foot | $80–$200 | $100–$250 | $50–$200 + restoration |
| Restoration cost | $0 | $500–$1,500 (two small pits) | $2,000–$10,000+ (driveway, sidewalk, landscaping) |
| Time to complete | 4–8 hours | 1–2 days | 3–7 days |
| Excavation required | None (access through cleanout) | Two 4×4 ft access pits | Full trench, 50+ ft long, 4–6 ft deep |
| Disruption level | Minimal — no landscape damage | Minor — two small pits restored same week | Major — driveway/sidewalk torn up, noise, dust |
| Permit complexity | DOB permit for private side | DOB permit + possible DEP restriction | DOB permit + sidewalk/street closure permits + DOT |
When excavation is unavoidable in NYC
We still excavate when the pipe has collapsed with large gaps, when Orangeburg pipe needs replacement (not lining), or when the pipe runs under a building foundation where neither method can reach. On my read, the most common scenario forcing excavation in Manhattan brownstones is a complete collapse with pipe fragments displaced more than 6 inches — the camera can’t even pass through, so there’s no way to insert a liner. Excavation in NYC requires sidewalk permits, street closure permits, and noise-restricted hours (8 AM–6 PM weekdays only) — which is why we always exhaust trenchless options first. In our practice, we excavate roughly 1 in 10 sewer jobs; the other 9 go trenchless.
How do I know if my sewer line is a good candidate for trenchless?
Not every sewer line qualifies for trenchless repair. A camera inspection reveals pipe condition, material, and access — the three factors that determine candidacy.
The camera inspection: what we look for
- Pipe collapse: If the pipe has fully collapsed, CIPP lining won’t work — the liner has no intact walls to press against. Pipe bursting or excavation becomes the only option.
- Offset joints and bellied sections: Misaligned joints catch the liner during insertion, and standing water in a bellied section prevents the epoxy from bonding to the pipe wall.
- Root mass and debris: We check whether hydro-jetting at 3,000–4,000 PSI can clear the blockage entirely. If mechanical cutting can’t reach the root mass, the pipe may not be clean enough for lining.
- Pipe material identification: Cast iron and clay are generally good candidates. Orangeburg pipe — the bituminized fiber pipe used from the 1940s through the 1970s — is too fragile for CIPP and requires pipe bursting or excavation.
- Access point assessment: We need entry at the building cleanout and exit at the property line or curb. If no cleanout exists, we install one — that adds time and cost but doesn’t disqualify the job.
Good candidates vs poor candidates
| Criterion | Good candidate | Poor candidate |
|---|---|---|
| Pipe shape | Round, not ovaled more than 5% | Ovaled, crushed, or collapsed |
| Pipe material | Cast iron, clay, PVC | Orangeburg (for lining); severely corroded cast iron |
| Joint condition | Minor offset (< ¼ inch) | Severe offset (> ½ inch) or gap |
| Root intrusion | Removable with hydro-jetting | Massive root ball requiring excavation |
| Bellied section | None or shallow (< 2 inches of standing water) | Deep belly with standing water that won’t drain |
| Access | Cleanout at building + curb access | No cleanout and pipe runs under foundation |
What is the environmental impact of trenchless sewer repair?
Trenchless repair is significantly more environmentally friendly than traditional excavation — less waste, fewer truck trips, and no landscape destruction.
How trenchless reduces excavation waste and carbon footprint
Trenchless methods eliminate 90–95% of excavation compared to traditional trenching — fewer truck trips, no hauling of 5–10 tons of excavated material per 100 feet, and no concrete or asphalt waste. CIPP pipe lining requires no access pits at all if a cleanout exists; pipe bursting needs only two small 4×4-foot pits versus a 50-foot-long trench. That means 10–15 fewer truck loads per job, no diesel-burning excavators running for days, and zero landfill-bound rubble from broken sidewalk slabs or asphalt. In NYC neighborhoods like Park Slope or Cobble Hill, preserving mature street trees is a major environmental win — trenchless avoids cutting roots that traditional excavation would sever.
Material considerations: epoxy resin and HDPE pipe
The epoxy resin in CIPP liners is a thermosetting plastic that stays contained within the pipe — it doesn’t contact soil or groundwater when properly installed — and HDPE pipe from pipe bursting is recyclable at end of life. Traditional excavation’s environmental cost includes not just the removed pipe going to landfill, but the carbon footprint of new concrete, asphalt, and trucking — trenchless avoids all three.
Conclusion: Making the right call for your NYC sewer line
Main takeaways
Trenchless sewer repair offers NYC homeowners a way to fix damaged sewer lines without the destruction, cost, and disruption of traditional excavation. But here’s the thing — not every pipe is a candidate, and not every contractor runs a proper diagnostic before recommending a method. In the field, I’ve seen too many homeowners get sold on pipe lining when the pipe has already collapsed — a camera inspection would have caught it. On the bench, you learn that cast iron from the 1920s can look solid on the outside but be paper-thin inside from years of rust scale. The right call is always: camera first, method second. The key to a successful trenchless repair is an honest camera inspection — it reveals whether your pipe is a good candidate, which method fits, and whether trenchless is even the right approach at all.
