What tools do we use for window AC diagnostics?
Every accurate diagnosis starts with the right toolkit. Our technicians carry a full diagnostic kit on every window AC service call across NYC’s five boroughs.
Electrical testing tools for window AC diagnostics

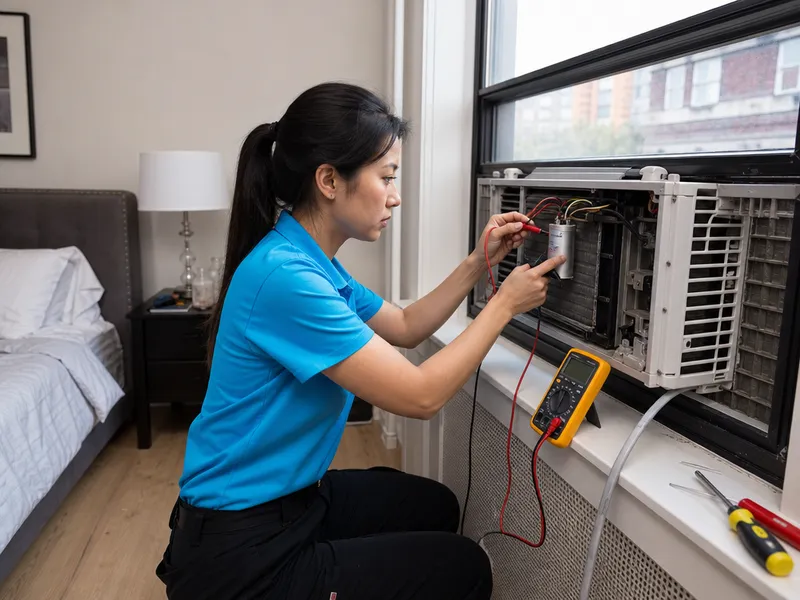

- Multimeter: We test capacitors for microfarad readings, start relays for continuity, and control boards for voltage output on every window AC repair call in NYC.
- Clamp meter: Measures compressor amperage draw during startup — a high draw indicates mechanical binding or seized bearings.
- Capacitor discharge tool: A resistor with insulated leads that safely drains stored charge before we handle the component — critical for safety.
- Digital thermometer: Checks the supply-to-return air differential, which should land at 15–20°F on a properly running unit.
- Screwdriver and nut driver sets: Phillips and flathead for cabinet disassembly; ¼-inch, 5/16-inch, and ⅜-inch drivers for compressor and motor mounting bolts.
Refrigerant and airflow diagnostic tools

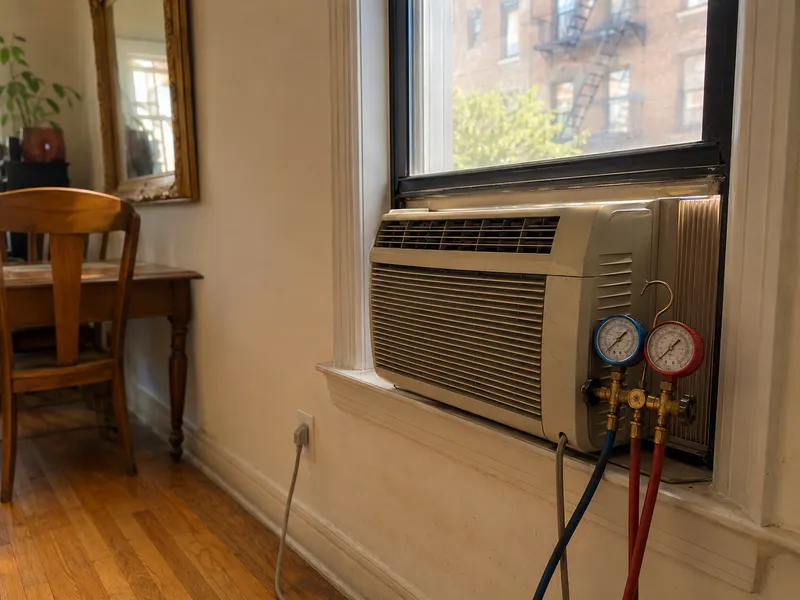

- Manifold gauge set: Connects to Schrader valves on the sealed system to measure low-side and high-side refrigerant pressures — only our EPA-608 certified techs handle this step.
- Electronic leak detector: Sniffs for refrigerant escaping at joints, Schrader cores, and brazed connections — more sensitive than soap-bubble testing.
- Vacuum pump and digital scale: Used together for sealed-system work — the pump pulls moisture and air out, the scale measures exact refrigerant charge by weight.
- Coil cleaning brush and fin comb: Straighten bent aluminum fins on the condenser and evaporator coils to restore proper airflow after we diagnose a frozen coil or overheating compressor.
- Temperature probe: Measures coil surface temperature to confirm the 15–20°F split — anything narrower points to a dirty filter or low charge, not a failed part.
Common window AC failure modes by brand
| Brand | Most Common Failure | Typical Fix | Repair Cost Range |
|---|---|---|---|
| Frigidaire | Capacitor failure | Capacitor replacement | $80–$150 |
| LG | Compressor failure (sealed system) | Compressor replacement | $400–$800 |
| GE | Start relay failure | Relay replacement | $80–$150 |
| Carrier | Refrigerant leaks at Schrader valves | Leak repair + recharge | $200–$400 |
| Samsung | Control board failure (inverter models) | Board replacement | $200–$400 |
| Friedrich | Fan motor bearing wear | Fan motor replacement | $150–$300 |
Is window AC repair cheaper than replacement in NYC?
When your window AC breaks, the first question is whether to fix it or buy new. Here’s how we help NYC homeowners decide based on repair type, unit age, and total cost.
When repair makes more sense than replacement

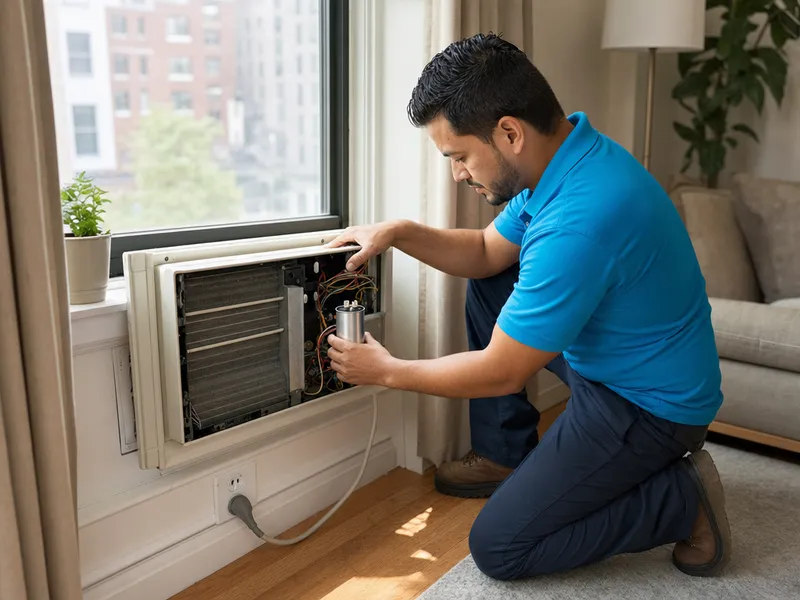

- Capacitor failure ($80–$150): A bad capacitor is the single most common window AC problem we see in NYC — a $120 fix on a Frigidaire or GE unit almost always beats the $400–$800 cost of a new unit plus installation.

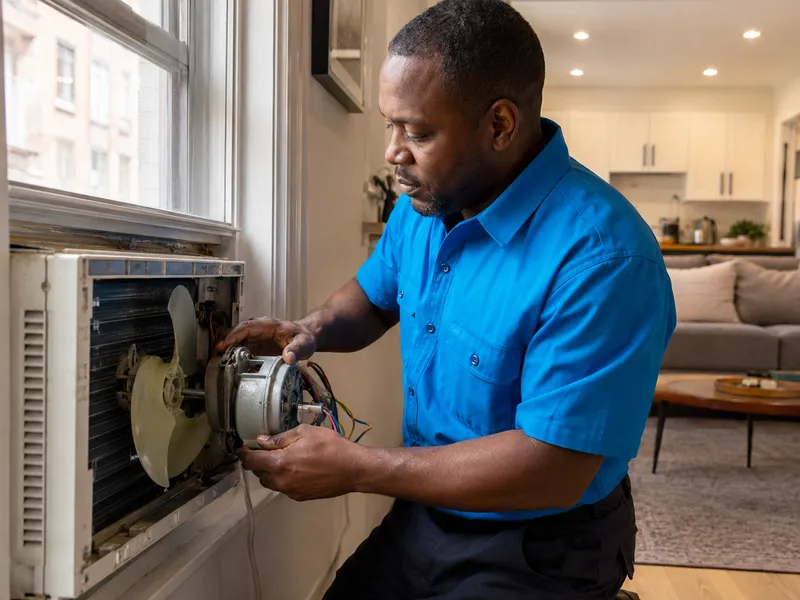

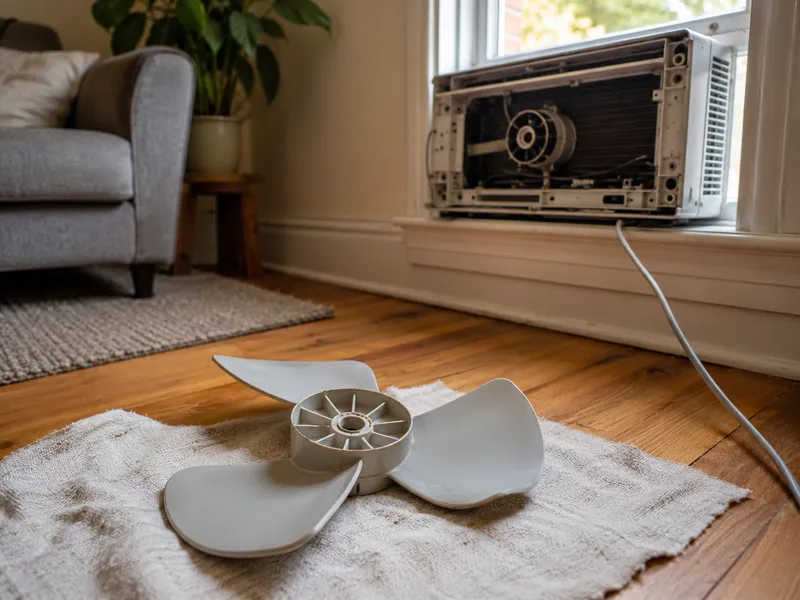

- Fan motor repair ($150–$300): When the condenser fan seizes or the blade starts rattling, we replace the motor with an OEM-spec part — on a 7-year-old unit that repair typically buys 2–3 more summers of service.

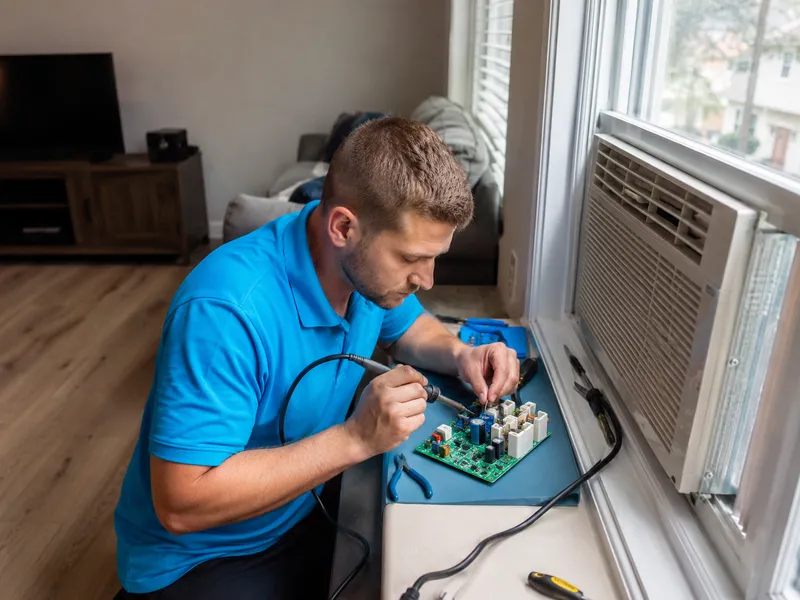

- Control board replacement ($200–$400): Digital units from LG and Samsung sometimes lose the main board to a power surge — at $250 it’s borderline, but still cheaper than a new $500 unit when the rest of the AC is sound.
- Simple refrigerant recharge with leak repair ($250–$400): A slow Schrader valve leak on a Friedrich or Carrier unit can be fixed and recharged for under $350 — worth it on premium models under 5 years old.
- The 50% rule: In our practice, if the repair quote comes in under half the cost of a new unit plus $100–$200 installation, we recommend fixing it — nine times out of ten that’s the better call.
When replacement is the smarter move
We recommend replacement when the repair exceeds 50% of a new unit’s cost — compressor replacements at $400–$800 often cost more than a new $300–$600 window AC, especially on units over 8 years old. A compressor swap on a Frigidaire or GE that’s been running since 2015 rarely makes financial sense; the new R-32 or R-410A unit will cool better and use less electricity. On top of that, units built before 2015 burn 20–30% more power than current Energy Star models — so replacing an older AC saves $30–$60 per summer in NYC, enough to offset the purchase price within 5–7 years. For a Brooklyn brownstone with a 15-amp circuit, a modern inverter unit also draws less startup current, which means fewer nuisance breaker trips on hot afternoons.
How do I prepare my window AC for repair?
A little preparation before our technician arrives speeds up the repair and helps us diagnose the issue faster. Here’s what we recommend every NYC homeowner do before a window AC service call.
Steps to take before the technician arrives
- Unplug the unit and clear a 3-foot radius: Disconnect the power cord from the wall outlet, then move furniture, curtains, and any clutter away from the window — our tech needs room to work and may need to lift the unit out of the sash.
- Locate the model and serial number: Find the sticker on the side panel or back of the unit and have those numbers ready — it cuts the time we spend identifying the right OEM-spec replacement parts for your Frigidaire, LG, or GE model.
- Remove the air filter and clean the immediate area: Pull out the washable foam filter and rinse it if it’s dirty, then clear the windowsill of plants, decor, or anything that blocks the accordion panels from sliding open.
- Check the circuit breaker first: Many NYC apartments, especially in pre-war buildings with 15A circuits, trip breakers from other appliances on the same line, not an AC problem — verifying this can save you a service call entirely.
What information to have ready
- Model number and symptoms: Tell us the model number, whether it’s not cooling, making noise, or leaking water, and when the problem started — this helps us bring the right parts on the first visit.
- Installation context: Mention if the unit is in a Brooklyn brownstone or a Manhattan high-rise — brownstone units face more dust and pollen, while high-rise units deal with voltage fluctuations from shared building wiring, and those patterns guide our diagnostic path.
How often should I clean my window AC in NYC?
Regular cleaning keeps your window AC running efficiently and prevents many common breakdowns. NYC’s humidity and dust mean more frequent cleaning than the national average.
Recommended cleaning schedule for NYC window ACs
| Component | Frequency | DIY or Pro? | NYC-Specific Note |
|---|---|---|---|
| Air filter | Every 30 days (peak season) | DIY — washable or replaceable | Units near construction need every 2–3 weeks |
| Condenser coil (outside) | Every 2–3 months | Pro recommended | Dusty streets and pollen in Queens/Brooklyn |
| Drain pan | Every 30 days (check for algae) | DIY — flush with vinegar | NYC humidity causes rapid algae growth |
| Full cleaning (coils, fan, drain) | Once per year (May/June) | Pro recommended | Best done at season start before peak heat |
Signs your window AC needs cleaning
- Reduced airflow: The unit runs but barely pushes air — a dirty air filter or clogged evaporator coil is the usual culprit, not a motor failure.

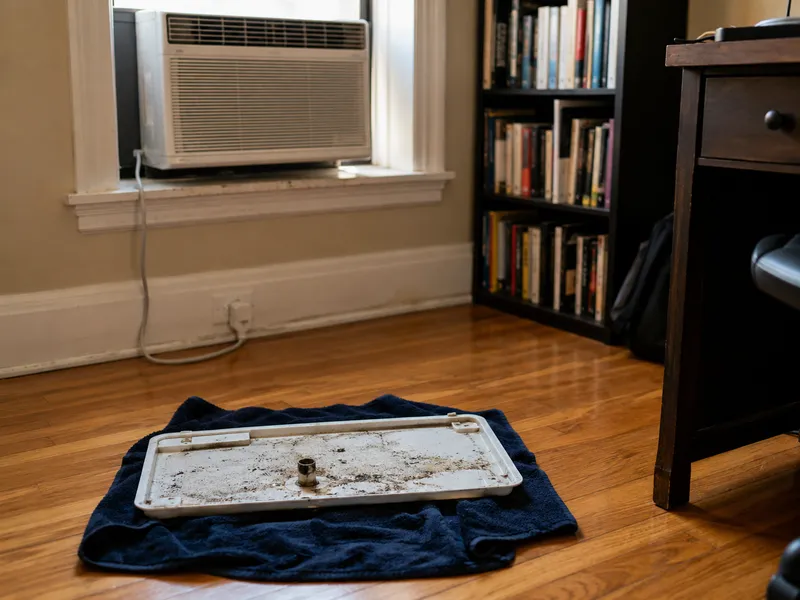

- Water leaking indoors: A blocked drain pan from algae or debris forces condensation to pool and overflow, especially common in humid Brooklyn summers.
- Musty smell on startup: Mold and mildew in the drain pan or on the evaporator coil produce that sour odor — flushing with vinegar kills the growth.
- Runs 10–15 minutes then shuts off: A dirty condenser coil causes the compressor’s thermal overload to trip, mimicking a compressor failure when it’s just a cleaning issue.
Professional cleaning vs DIY: what’s worth it
We recommend DIY filter cleaning every 30 days and professional full cleaning once per year — our full cleaning service costs $80–$150 and includes coil cleaning, drain pan flush, and fan blade service that most NYC homeowners can’t do without removing the unit. In the field, I see units where the owner has changed the filter but never touched the condenser coil — the outdoor side accumulates street dust, pollen, and construction debris that a vacuum attachment alone can’t reach. The fan blade itself develops a grease-and-dirt film that unbalances the rotation over time, causing bearing wear that a DIYer misses. Units in Brooklyn brownstones and Manhattan pre-war buildings often need professional cleaning more than newer builds because the window sashes and accordion panels trap more debris, and removing a 60+ lb unit from a 3rd-floor window is a two-person job with safety risks.
Is it worth repairing an old window AC unit?
When your window AC is over 8 years old, the repair-vs-replace decision gets trickier. Here’s how we help NYC homeowners evaluate whether fixing an older unit makes financial sense.
Age thresholds for different repair types
We recommend repairing capacitors and fan motors on any window AC regardless of age — an $80–$150 fix extends life 2–3 years — but compressor replacements over $400 are only worth it on units under 5 years old or premium brands like Friedrich and Carrier. The compressor is the heart of the sealed system, and swapping one out on a mid-range Frigidaire or GE that’s already past its eighth summer means you’re sinking good money into a chassis that will likely need a fan motor or coil next season. Units built before 2010 use R-22 refrigerant, which is phased out and costs 3–4x more than R-410A or R-32 — a refrigerant leak repair on an R-22 unit over 10 years old almost never makes financial sense.
Premium brands worth repairing longer
- Friedrich and Carrier (12–15 years): We find these premium units worth repairing longer because of their commercial-grade compressors and steady parts availability — a $300 fan motor repair on a 10-year-old Friedrich often beats a $600 replacement.
- Frigidaire and GE (under 8 years): Budget and mid-range units past the 8-year mark are usually better replaced — the $400–$800 compressor repair on a $350 unit that’s already lost 20% efficiency makes no economic sense.
- NYC context matters: Friedrich units are common in Manhattan hotels and high-end apartments because their build quality holds up through 15+ summers, while Frigidaire units in Brooklyn rentals hit their cost-effective repair ceiling sooner.
Our warranty and service guarantee for window AC repair
When you hire us for window AC repair in NYC, you’re protected by a 1-year warranty on parts and labor, same-day service, and EPA-608 certified technicians. Here’s what that means for your repair.
What’s covered under our 1-year warranty
- Parts and labor: Every window AC repair we complete carries a 1-year warranty on both replacement parts and the labor to install them — if the same issue returns within 365 days, we fix it at no charge.
- OEM-spec components: Our warranty covers manufacturer-spec replacement parts including capacitors, fan motors, compressors, and control boards — the four most common window AC failures we see across all five boroughs.
- Covered labor: The warranty includes the technician’s time to diagnose, disassemble, install the part, and test the unit — not just the part itself, which is where some NYC shops cut corners.
- Exclusions: Damage from power surges, physical abuse, improper installation, or units that fell from windows isn’t covered — but those account for fewer than 1 in 20 of our service calls.
- Industry comparison: Our 365-day coverage beats the 90-day standard many NYC competitors offer, and it matches the premium tier you’d expect from Express Appliance Repair NY.
Same-day service and 60–90 minute response
We offer same-day window AC repair across all 5 NYC boroughs with a 60–90 minute response window for emergency calls — and our diagnostic is free when you book the repair. That means if your window unit stops cooling on a 95°F July afternoon in a Brooklyn brownstone, we can have a technician at your door before the apartment warms up past uncomfortable. Our fleet of fully stocked vans carries the most common parts for Frigidaire, LG, GE, and Carrier units, so the first visit is usually the only visit. While Express Appliance Repair also offers same-day service, we cover the Bronx and Staten Island too — two boroughs where many competitors don’t send technicians, meaning faster service for those homeowners. For non-emergency repairs, we’ll schedule a same-day appointment within your preferred window, and our dispatcher will confirm the tech’s ETA by text so you’re not waiting around.
Main takeaways for window AC repair in NYC
Main takeaways for window AC repair in NYC
Window AC repair in NYC typically costs $100–$400, with capacitor and fan motor fixes being the most common and most cost-effective repairs. A capacitor swap runs $80–$150 and takes under 30 minutes, while a fan motor replacement lands at $150–$300 and extends the unit’s life another 2–3 years. Compressor work is a different story — at $400–$800, it often exceeds the $300–$600 price of a new unit, especially for a machine that’s already running R-22 refrigerant (phased out, expensive to source). The 50% rule — if the repair costs more than half the price of a new unit plus installation, replacement is usually the smarter long-term choice, especially for units over 8 years old.
