Sewer Line Installation in NYC

How Do I Know If My Sewer Line Needs Replacement?

Slow drains throughout the house, sewage backups, gurgling sounds, foul odors, and unusually lush yard patches signal a failing sewer line — a camera inspection confirms the diagnosis.

What are the warning signs of a failing sewer line?

• Slow drains throughout the house: Multiple fixtures — sinks, toilets, tubs — draining sluggishly at the same time point to a main line blockage, not a single-fixture issue.
• Sewage backup in the basement or lowest tub: Water or sewage rising through the lowest drain means a complete downstream blockage — this is an emergency situation.
• Gurgling sounds from drains: Air forced through water in the traps during flushing or draining indicates a partial blockage that’s creating pressure changes in the pipe.
• Foul odors escaping from pipes: Persistent sewer gas smell that doesn’t resolve after refilling a dry trap suggests a crack in the pipe itself — common with aging cast iron.
• Unusually lush or sinking patches in the yard: Greener grass along the sewer line path means leaking sewage is fertilizing the soil; depressions or sinkholes mean soil is washing away through a cracked pipe.

If you’re calling for hydro-jetting or snaking more than twice a year, the pipe itself is likely deteriorating — temporary fixes won’t solve the underlying failure, and a camera inspection is the next step.

What does a camera inspection reveal?

We insert a push-rod camera through the sewer cleanout to record the pipe’s interior — the footage shows cracks, offset joints, root intrusion, bellies (sags where water pools), and corrosion scale that blocks flow. The camera head carries a locator transmitter; a surface-level receiver pinpoints the exact depth and position of each defect so we mark the spot for excavation or trenchless access. A full inspection of a typical residential lateral (50–100 feet) takes 20–45 minutes, and the video file becomes the diagnostic record. A camera inspection is the only way to know whether trenchless methods like pipe bursting or CIPP lining are possible — collapsed pipe and severe offset joints rule out trenchless and require full excavation.

What Is Trenchless Sewer Line Installation?

Trenchless installation replaces or repairs your sewer pipe without digging a full trench — only two small access pits are needed at the building wall and property line.

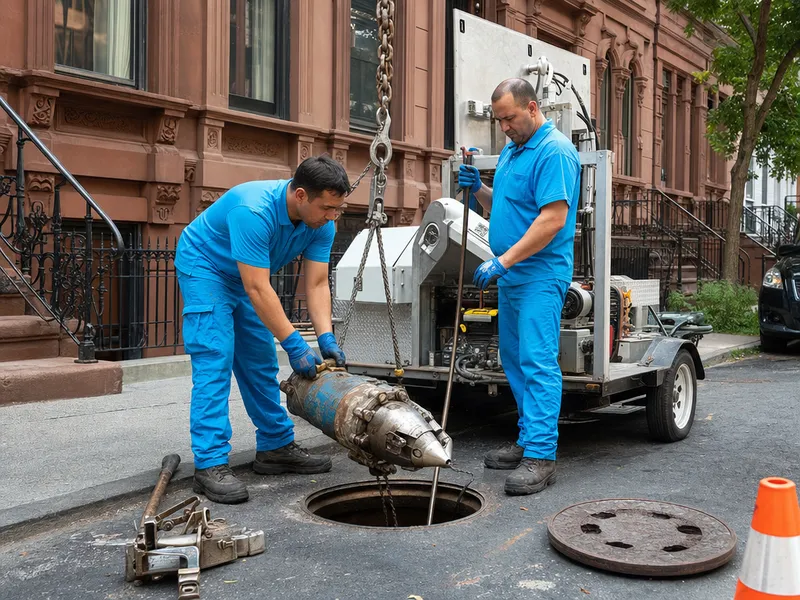

How does pipe bursting work?

• Access pits: We excavate two 4′ x 4′ pits — one at the building wall and one at the property line — to reach the old pipe from both ends.
• Bursting head: A steel bursting head is pulled through the old pipe by a hydraulic winch; the head fractures the existing clay or cast iron outward.
• New HDPE pipe: A continuous length of HDPE pipe is drawn in behind the bursting head, using fused joints that create a monolithic, leak-free line.
• Diameter upsizing: Pipe bursting can increase your pipe diameter by one size — from 4 inches to 5 or 6 inches — which improves flow capacity in a way traditional excavation cannot match without digging the full trench.

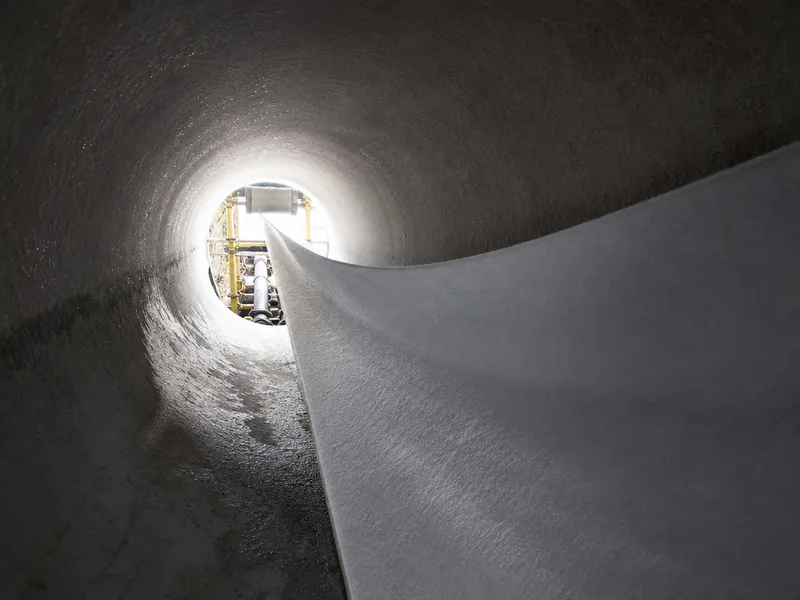

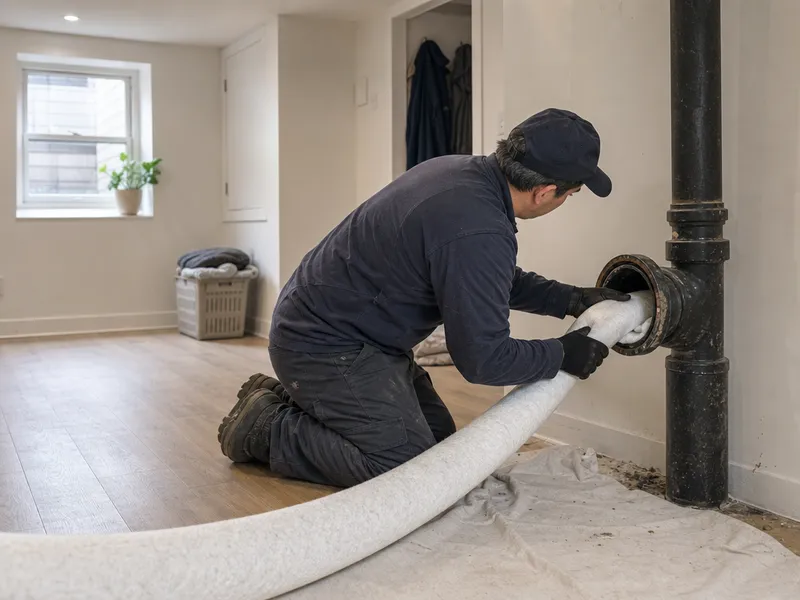

How does CIPP lining work?

We clean the pipe with hydro-jetting at 3,000–4,000 PSI, then insert a resin-saturated felt liner that we inflate and cure with hot water or UV light — creating a seamless new pipe inside the old one. The liner conforms to the existing pipe’s shape, bridging cracks and sealing root entry points. Because the cured-in-place pipe (CIPP) is structural, it restores full load-bearing capacity to the damaged section. But CIPP lining cannot fix a fully collapsed pipe or one with offset joints larger than 1/4 inch — if your camera inspection shows those conditions, pipe bursting or traditional excavation are the only options.

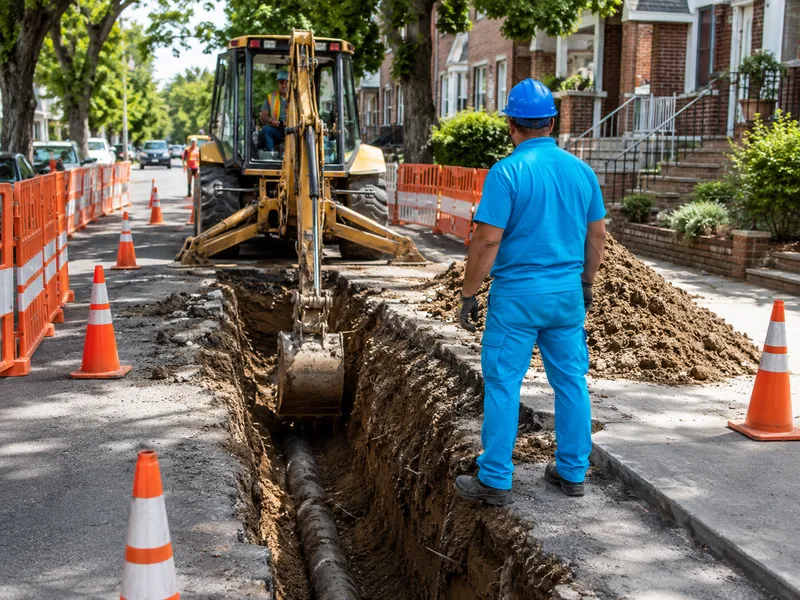

Trenchless vs Traditional Excavation: Which Is Better for Your NYC Home?

Both methods work in NYC, but the right choice depends on pipe condition, property layout, budget, and timeline. Here is how they compare.

Trenchless vs traditional: key differences

How do I choose the right method?

We recommend trenchless when the pipe is cracked but not collapsed, your property has limited yard access, or you want to preserve landscaping — traditional excavation is better when the pipe is fully collapsed, has severe offset joints, or has a belly where water pools. In NYC, trenchless is preferred for Brooklyn brownstones and Manhattan buildings where sidewalk and curb access is tight, while traditional excavation is common in Staten Island and Queens where homeowners have yard space and driveways to restore. On a recent brownstone job in Park Slope, the shared lateral with the neighbor meant trenchless was the only practical option — we couldn’t dig a full trench through two rear yards without disrupting both properties for a week.

What Pipe Materials Are Used for Sewer Lines in NYC?

The pipe material in your sewer line directly determines its lifespan, failure modes, and what replacement method makes sense — modern NYC installations use PVC as the standard replacement material.

Common sewer pipe materials and their lifespans

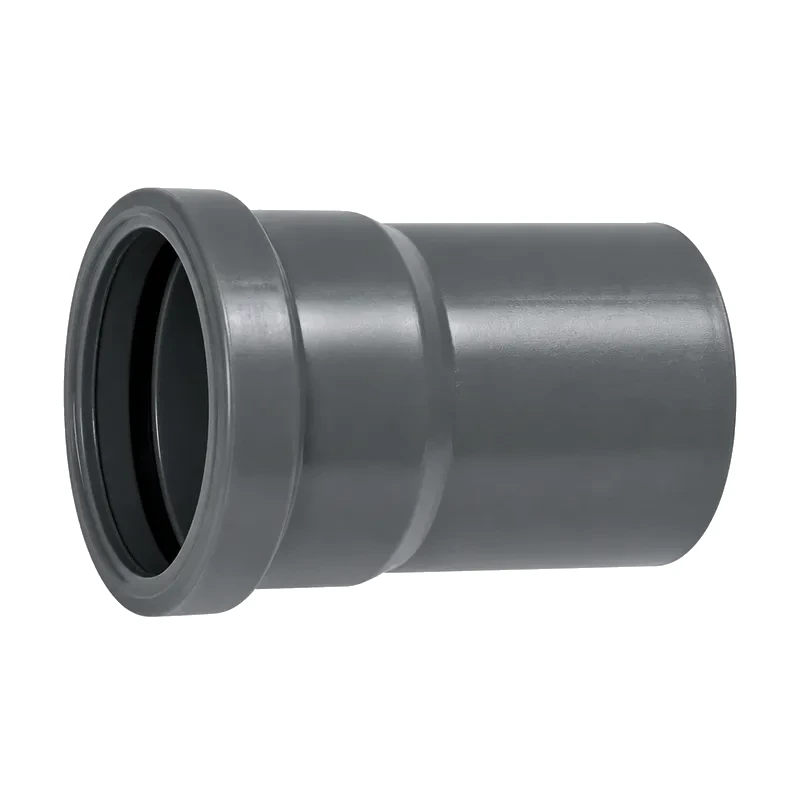

Why is PVC the standard for replacement?

PVC is the standard replacement material because it’s lightweight, corrosion-proof, root-resistant, and has a smooth interior that resists buildup — NYC code requires a minimum 4-inch diameter for building sewer lines. The smooth bore keeps waste moving at the required 1/4-inch-per-foot slope, and PVC won’t develop the rust tubercles that shrink cast iron’s inner diameter over 50–70 years. Clay pipe, by contrast, develops hairline cracks from tree roots and ground settlement within 30–50 years — PVC joints, when properly solvent-welded, create a monolithic seal that roots can’t penetrate. Unlike cast iron, which rusts from the inside out over 50–70 years, PVC doesn’t corrode — and unlike clay, it won’t crack from tree root pressure or ground settlement, making it the best long-term investment for NYC homeowners.

Sewer Cleanout, Burial Depth, and the 135 Rule in NYC

NYC code sets specific requirements for sewer cleanout location, burial depth, and pipe slope — here’s what they are and why they matter for your installation.

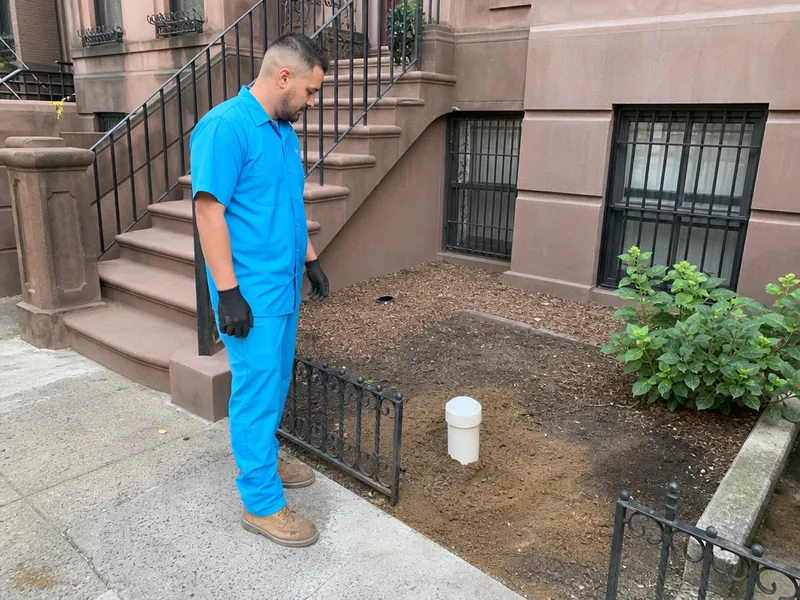

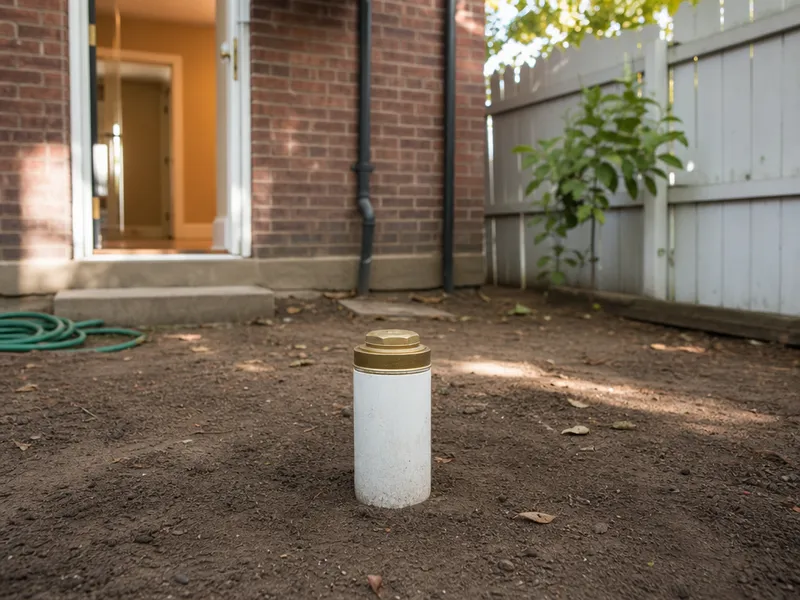

What is a sewer cleanout and do I need one?

• Definition: A vertical pipe with a threaded cap that provides access for camera inspection and cleaning — NYC Plumbing Code Section 708 requires every building to have one within 5 feet of the building exterior.
• Location: At or near the building wall, 6–12 inches above grade — typically 4-inch white PVC (modern) or cast iron with a brass cap (older buildings).
• Missing cleanout: Common in pre-1960s NYC buildings — we install one during sewer line replacement because without it, there’s no way to insert a camera or snake for future maintenance.
• Multiple cleanouts: Required every 100 feet for laterals longer than that — larger buildings or long runs need intermediate access points per code.
• If your older NYC building doesn’t have a cleanout, we install one during the sewer line replacement — it’s the only way to access the line for future maintenance and emergency snaking.

How deep is a sewer line buried in NYC?

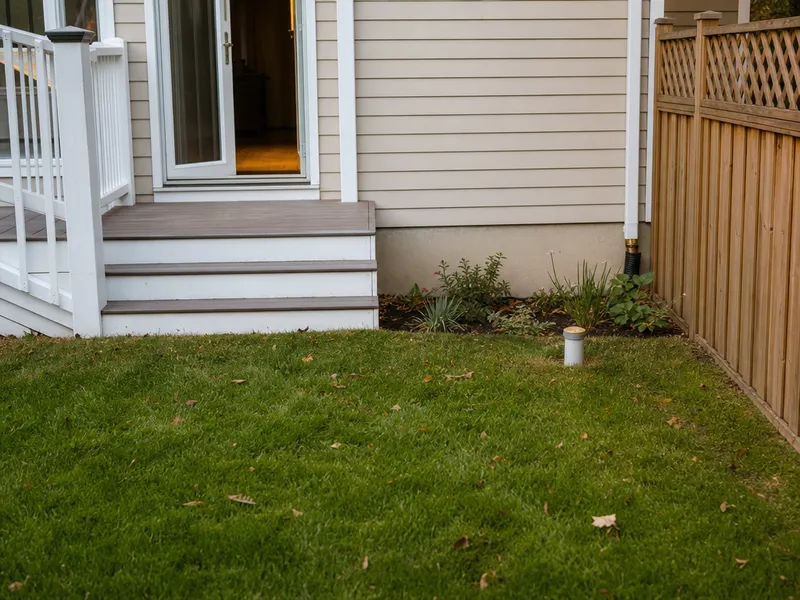

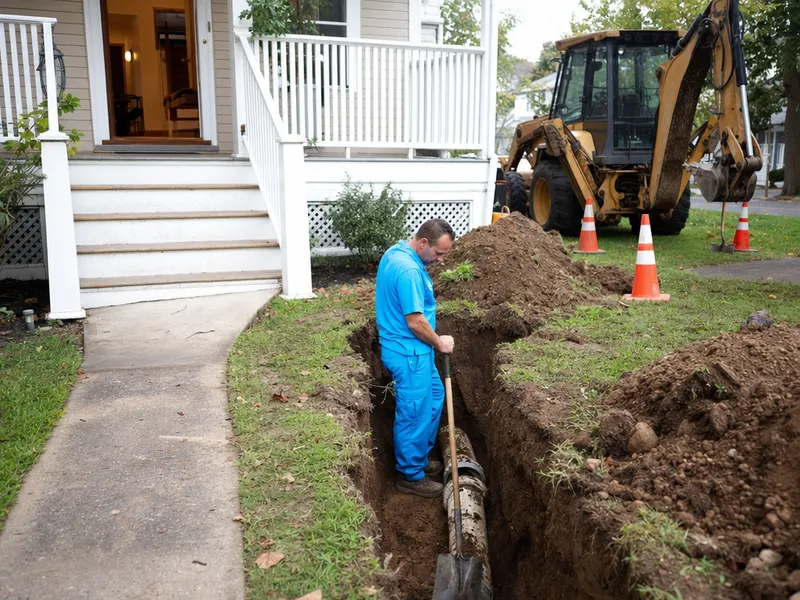

Sewer lines in NYC are typically buried 4–8 feet below grade, with depth varying by borough — Brooklyn brownstones often have pipes 6–8 feet deep, while Staten Island single-family homes are shallower at 4–5 feet due to the coastal frost line. The frost line across the five boroughs sits at roughly 3–4 feet, so the pipe invert must be below that to prevent freezing — Manhattan high-rises, with sub-cellars and transit tunnels, can push depths to 10–15 feet. In the field, I see the biggest depth surprises on older brownstone jobs where the original cast iron runs below the basement slab rather than alongside it. Deeper pipes cost more to excavate — each additional foot of depth adds 20–50% to excavation cost because of shoring and safety requirements — so knowing your pipe depth upfront helps budget accurately.

What is the 135 rule in plumbing?

The 135 rule refers to the standard sewer pipe slope of 1/4 inch drop per foot of horizontal run — named for the 135-degree angle at the fitting — and NYC Plumbing Code Section 704.1 requires this minimum slope for 4-inch pipes. For pipes 6 inches and larger, the code allows 1/8 inch per foot, but residential laterals are almost always 4-inch, so the 1/4-inch-per-foot rule is what applies to most NYC homes. We check slope with a laser level at multiple points during installation — a single sag or belly in the trench can throw the grade off and cause a DOB inspection failure. If the slope is too steep (more than 1/4 inch per foot), liquids outrun solids and solids settle in the pipe — we check slope with a laser level at multiple points during installation because a DOB inspector will verify it before approving backfill.

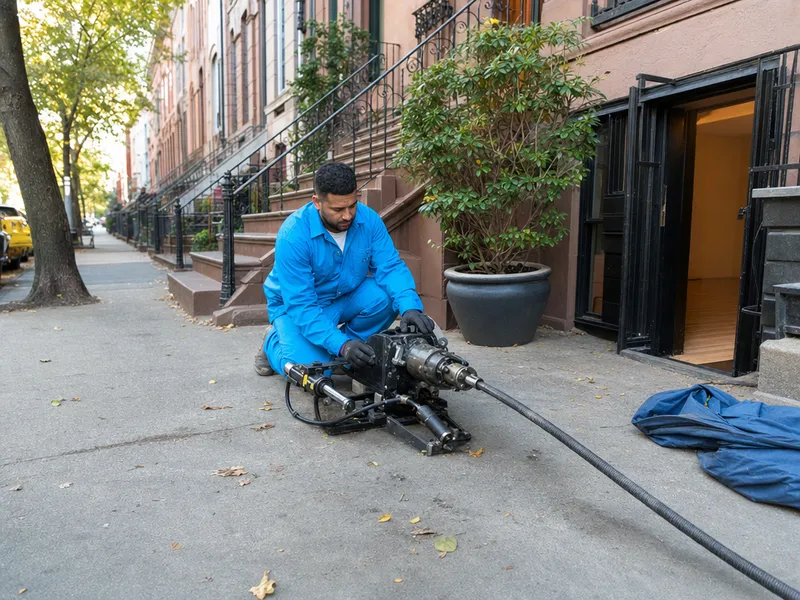

Can You Install a Sewer Line in a Brooklyn Brownstone?

Yes, we install sewer lines in Brooklyn brownstones — but these projects come with unique challenges that require specialized planning and coordination with historic-district regulations.

What makes brownstone sewer work different?

• Shared lateral lines: Many Brooklyn brownstones share a single lateral connection to the city main with neighboring units — replacing one section requires coordination with adjacent property owners and verification of lateral ownership.
• Limited rear-yard access: Brownstones typically have small rear yards (15–20 feet deep) with stoops and sidewalks at the front — trenchless methods like pipe bursting avoid full excavation through these constrained spaces.
• Historic district restrictions: Brownstones in Park Slope, Brooklyn Heights, Cobble Hill, Fort Greene, and Clinton Hill fall under NYC Landmarks Preservation Commission (LPC) jurisdiction — sidewalk excavation requires LPC approval that adds 2–4 weeks to the permit timeline.
• Original cast iron pipes: Most brownstones built between 1880 and 1930 still have their original cast iron sewer lines — at 100+ years old, these pipes are well past their 50–70 year lifespan and often have internal corrosion that reduces flow by 40–60%.

If your brownstone is in an LPC district, we factor the 2–4 week LPC review into the project schedule from day one so the sewer line installation Brooklyn timeline stays predictable.

What permits are needed for a brownstone sewer line?

Brownstone sewer line installation requires a NYC DEP permit for the sewer connection (2–4 week lead time), a DOB permit for excavation and structural work (1–2 weeks), and if the property is in a historic district, LPC review for sidewalk excavation (2–4 weeks). The DEP permit covers the tap into the city main — a separate application from the DOB’s excavation permit, which requires a Licensed Master Plumber’s stamp on the plans. In LPC districts like Park Slope’s historic core, the Landmarks Preservation Commission reviews any sidewalk disturbance, including trenchless access pits, and typically takes the full 4 weeks for approval. The total permit timeline for a brownstone can stretch to 3–8 weeks — we recommend starting the permit process before scheduling the installation so the project moves without delays once approvals clear.

How Do You Handle Tree Root Intrusion During Installation?

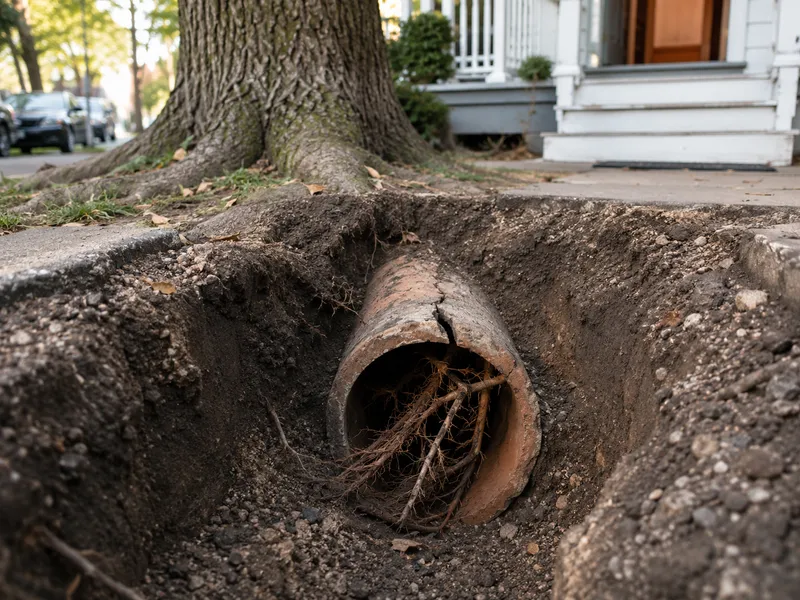

Tree roots are the primary cause of sewer line failure in NYC, but the fix depends entirely on whether the pipe is structurally damaged or simply blocked by root mass.

How do you clear roots from a sewer line?

• Camera inspection first: We locate every root intrusion point using a push-rod camera with a locator transmitter — this marks the exact surface position so we know whether we’re dealing with a single root cluster or a full-length invasion.
• Hydro-jetting with root-cutting nozzle: We clear blockages using 3,000–4,000 PSI water that cuts through roots and flushes debris — but this is a temporary fix; roots regrow in 6–12 months because the pipe is still cracked.
• Chemical root treatment: Copper sulfate or foaming root killer applied after cleaning kills roots inside the pipe without harming the tree above ground — this extends the interval between cleanings to 12–18 months but still doesn’t fix the underlying crack.
• Pipe bursting for damaged pipes: When roots have cracked or displaced the pipe, we replace it with HDPE using trenchless pipe bursting — the new pipe has fused joints that roots cannot penetrate, solving the problem permanently.
• CIPP lining for sealing: If the pipe is cracked but not collapsed, CIPP lining creates a seamless inner pipe that seals out roots entirely — roots outside the pipe die off from lack of moisture within weeks of the cure.

How do you prevent roots from coming back?

The permanent solution is replacing the damaged pipe with PVC or HDPE — both are root-resistant because smooth interiors and fused joints leave no entry point for roots — and we install a physical root barrier made of 40 mil HDPE sheet between the new pipe and nearby trees during backfill. When the tree is a NYC street tree located between sidewalk and curb, root pruning requires NYC Parks Department supervision; unauthorized damage to street trees carries fines up to $15,000, so we always coordinate with Parks before any excavation near street trees. The barrier extends 2–3 feet below grade and flares outward at the top to redirect roots away from the pipe — a detail that prevents regrowth for the pipe’s full lifespan.

Conclusion

From the initial camera inspection through the final sidewalk restoration, sewer line work in NYC demands precision at every turn. Here are the key takeaways that matter most when planning your project.

Main takeaways

Sewer line installation in NYC requires careful planning — from choosing between trenchless and traditional methods to navigating DEP, DOB, and sometimes LPC permits. Trenchless techniques like pipe bursting and CIPP lining preserve landscaping and cut disruption to 1–2 days, but they can’t fix a fully collapsed pipe — only excavation can handle that. Traditional excavation takes 2–4 days and requires concrete or asphalt restoration afterward, but it gives full access to the pipe and surrounding soil. In our practice, the single most important step is a camera inspection — it reveals pipe material, depth, slope, and root intrusion, which determines whether trenchless methods are possible or if full excavation is needed.
