Pipe Insulation in NYC

What is pipe insulation and how does it work?

Pipe insulation, often called pipe lagging in the trade, is the complete system of insulation material plus protective cladding applied to pipes to control heat loss, prevent condensation, and protect against freezing in NYC buildings.

What is pipe lagging?

Pipe lagging is the finished assembly of insulation material and an outer protective covering — canvas wrap, PVC jacket, or aluminum cladding — applied to pipes for thermal control, condensation prevention, and fire protection. The insulation layer itself (fiberglass, elastomeric foam, or mineral wool) does the thermal work, while the cladding protects the insulation from physical damage, moisture ingress, and UV exposure. In NYC trade usage, “lagging” specifically refers to the complete system with cladding — so when a building spec calls for “steam pipe lagging,” it means both the insulation and the jacket, not just the foam or fiberglass alone. This distinction matters because the cladding is what makes the installation code-compliant and durable in a mechanical room.

What does pipe insulation do?

• Thermal insulation: Reduces heat loss from hot water and steam pipes by 80–90%, cutting energy costs — insulating 10 feet of uninsulated 3/4″ copper hot water pipe saves roughly $10–20 per year in NYC.
• Condensation control: Prevents moisture drips from cold water pipes by keeping warm, humid basement air off the cold pipe surface — the most overlooked function in NYC basements, where 60–70% summer humidity causes ceiling stains and mold within hours if the vapor barrier is missing.
• Freeze protection: Delays ice formation in unheated spaces — 1″ of closed-cell foam on a 3/4″ copper pipe provides about 4–6 hours of protection at 20°F ambient, buying time until the building heat kicks on.

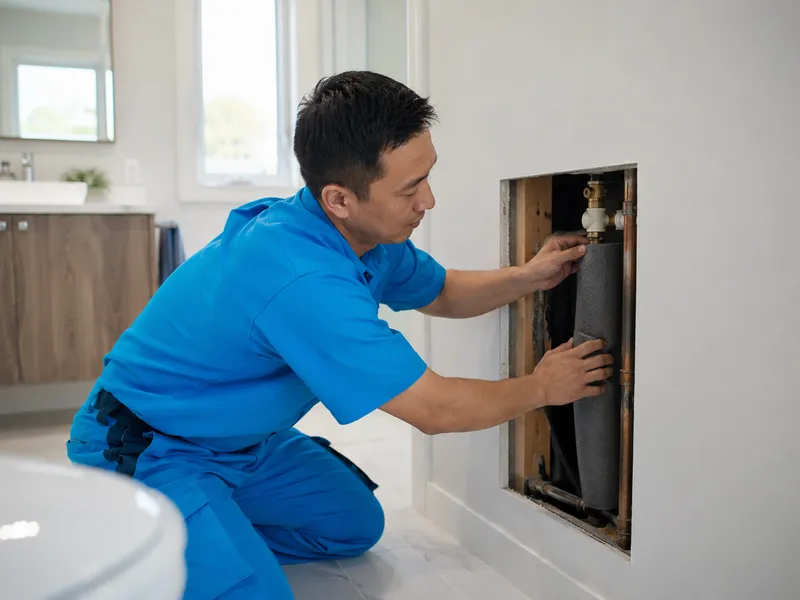

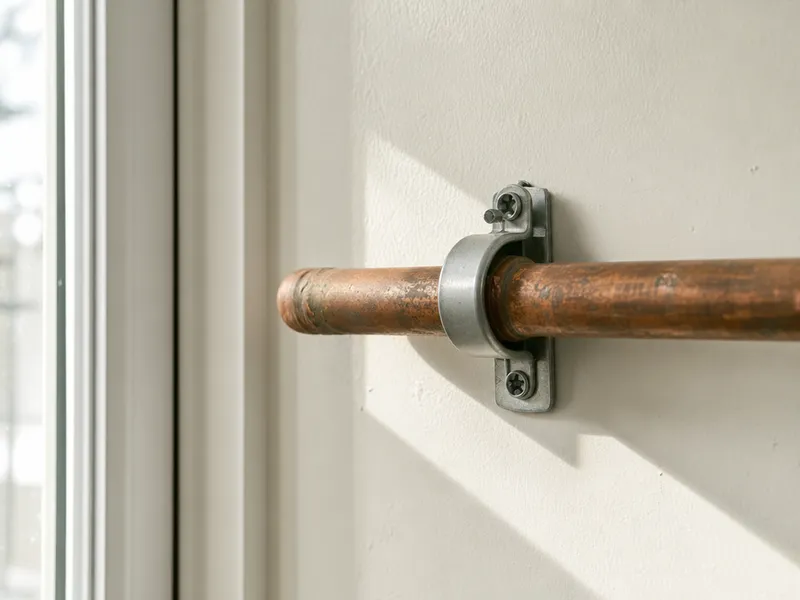

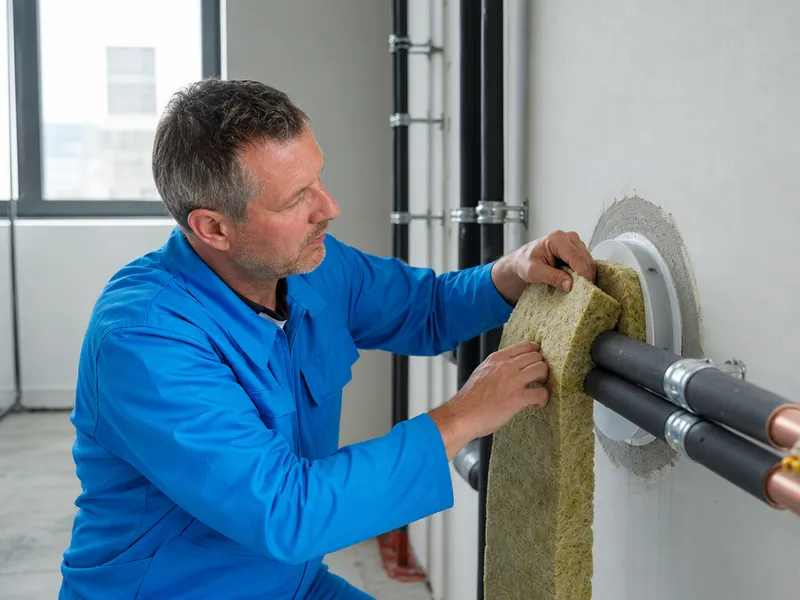

• Noise reduction: Dampens pipe sounds — water hammer, expansion creaks, and flow noise drop noticeably in insulated risers, which matters in multi-story co-ops and condos where pipe noise travels through walls.

Common pipe insulation materials used in NYC

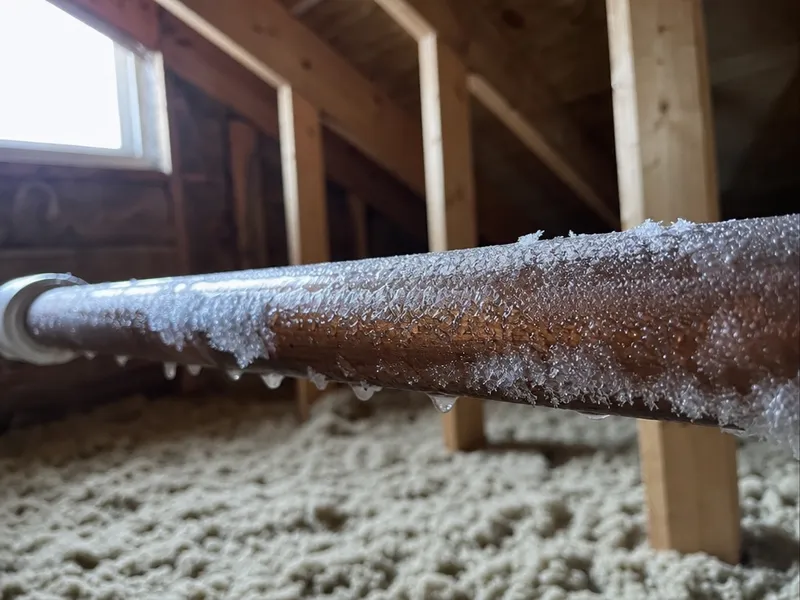

What is the best pipe insulation for freezing pipes?

The right freeze-protection insulation depends on pipe location, ambient temperature, and exposure time — closed-cell foam outperforms fiberglass when moisture is present, especially in NYC basements.

Best material for freeze protection

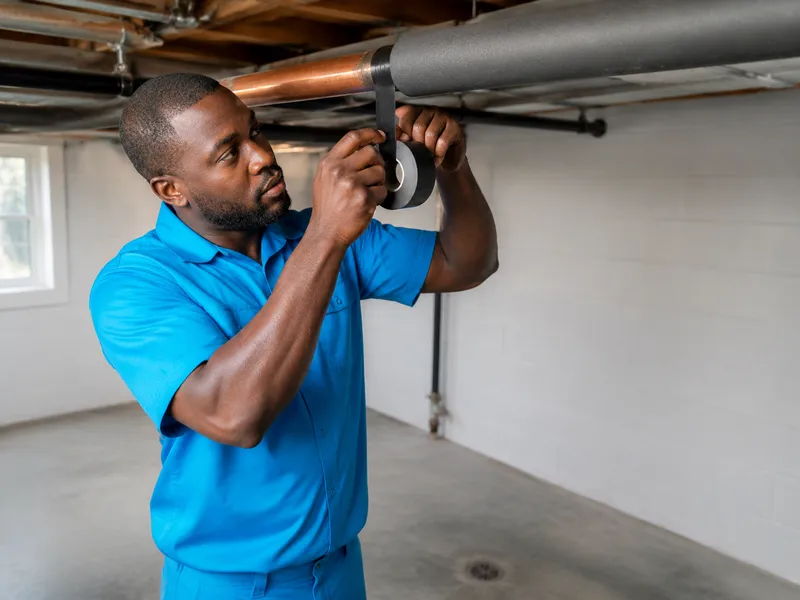

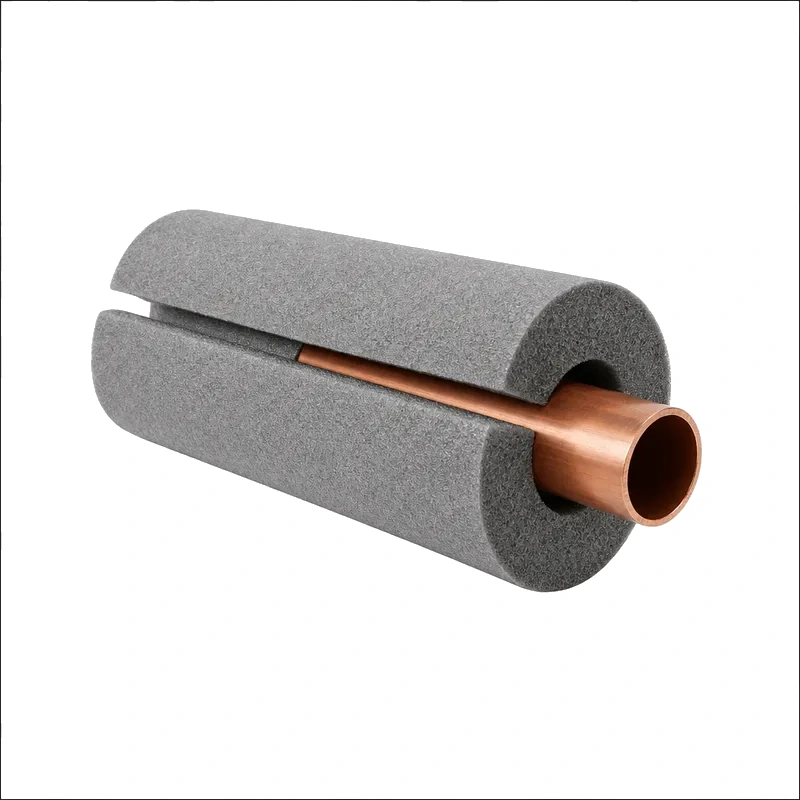

For freeze protection in NYC winters, we recommend closed-cell elastomeric foam (ArmaFlex or K-Flex) — its moisture resistance preserves R-value even in damp basement conditions, unlike fiberglass which loses 50–90% of insulating ability when wet. Polyethylene foam sits at R-3.5 per inch and ArmaFlex at R-4 per inch, while fiberglass hits R-4.2 per inch when bone-dry; the problem is that fiberglass wicks moisture from humid air, and that R-value collapses fast. In unheated NYC basements where winter humidity can reach 40–50%, fiberglass insulation on cold pipes absorbs moisture from the air and becomes nearly useless for freeze protection within one season.

Minimum thickness for NYC winters

• 1 inch on 3/4-inch copper pipe: Provides roughly 4–6 hours of freeze protection at 20°F ambient — adequate for pipes inside conditioned basements but marginal for unheated spaces.

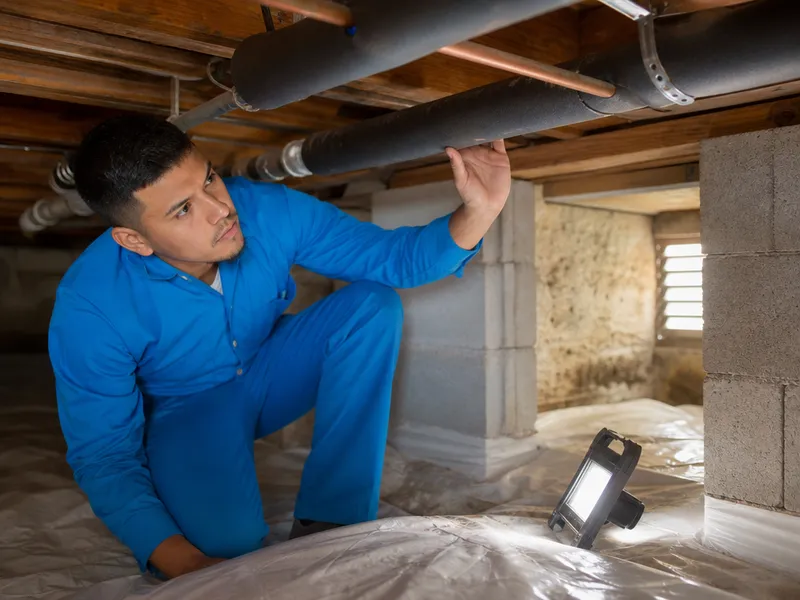

• 1.5–2 inches on 3/4-inch copper pipe: Extends freeze protection to 8–12 hours at the same 20°F ambient; this is the minimum we recommend for unheated crawl spaces and exterior walls.

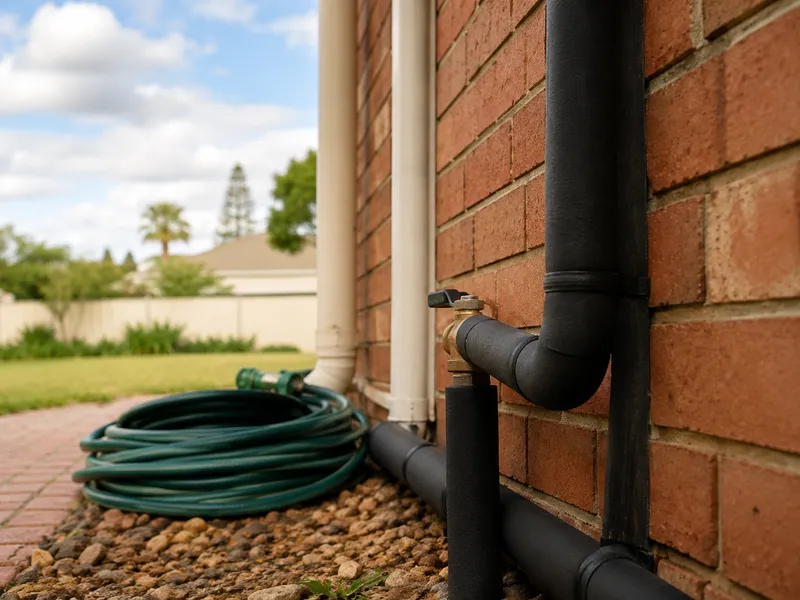

• 2-inch minimum for high-risk locations: Pipes in exterior walls or unheated basement ceilings need this thickness — many NYC pre-war buildings have pipes in uninsulated basement ceilings that freeze at 20°F within 2 hours with only 1/2-inch foam.

Critical installation details for freeze protection

• Seal every seam and joint: We use vapor barrier tape on every butt joint and longitudinal seam — even a 1/8-inch gap creates a cold spot where freezing starts, and unsealed joints are the most common DIY failure we see in NYC basements.
• Use pre-insulated pipe hangers: Standard metal hangers crush the insulation and create a thermal bridge; pre-insulated hangers or saddle supports maintain full R-value at every suspension point.

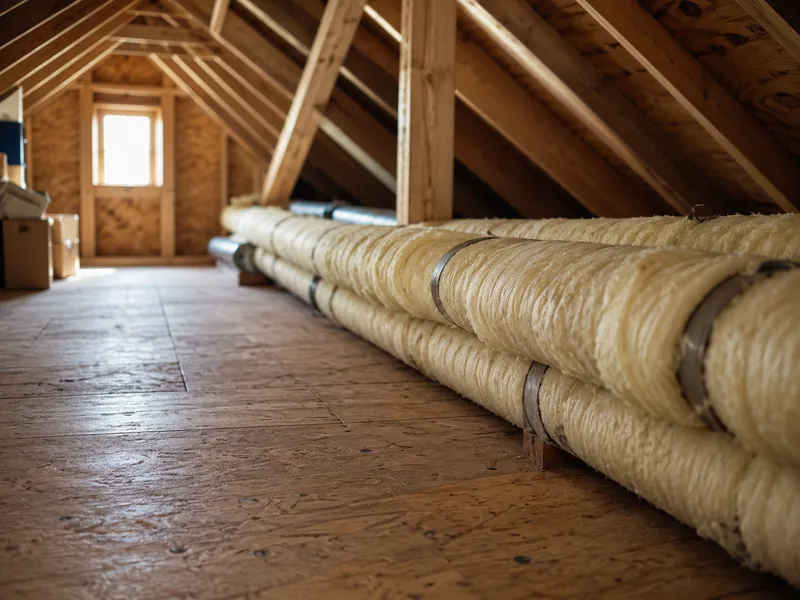

• Combine with heat tape for extreme risk: For unheated attics or exterior walls, insulation alone only delays freezing — we recommend self-regulating heat tape at 5W/ft for active freeze protection when ambient temps drop below 20°F.

What thickness of pipe insulation do I need?

The thickness you need depends on pipe diameter, operating temperature, location, and NYC code — with different minimums for condensation control, freeze protection, and energy code compliance.

NYC Energy Conservation Code minimum thickness

Thickness for condensation control and freeze protection

• Condensation control (cold water pipes in NYC basements): We install minimum 1″ of ArmaFlex on ¾–1″ copper, and 1.5″ on 2″+ pipes — thicker than code minimum because NYC basement humidity (60–70% in summer) is higher than the standard design condition.
• Freeze protection (unheated spaces): We recommend 1.5–2″ minimum — the 1″ code minimum is designed for energy savings, not freeze prevention, and won’t protect pipes in a 20°F crawl space.

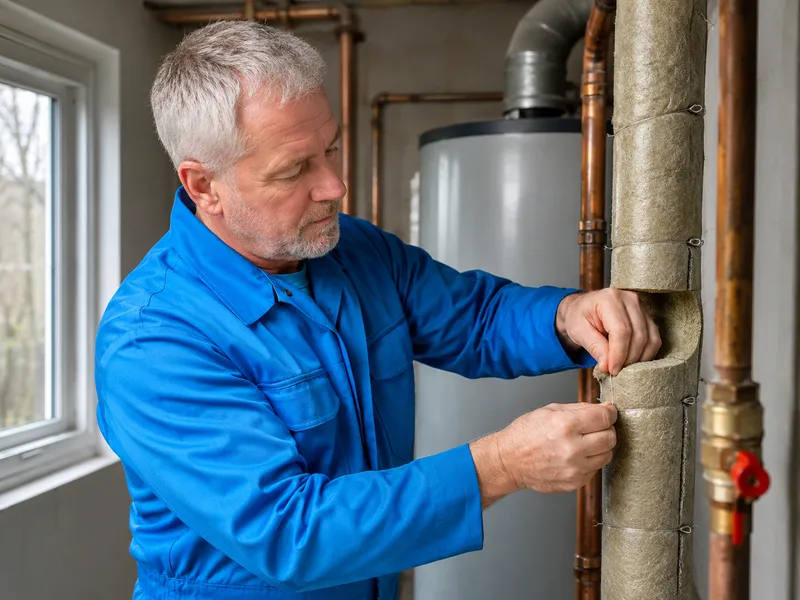

• Steam and hot water pipes: 1.5–2″ fiberglass or mineral wool; code minimum is 1.5″ for pipes under 2″ diameter and 2″ for 2–4″ pipes, but go thicker for real energy savings.
• Refrigerant lines: ⅜–½″ ArmaFlex for standard suction lines; bump to 1″ for runs over 50 feet or outdoor exposed sections.
• General rule for NYC residential: 1″ is the floor for most applications; 1.5–2″ delivers better energy savings and real freeze protection.

What is the R-value of pipe insulation?

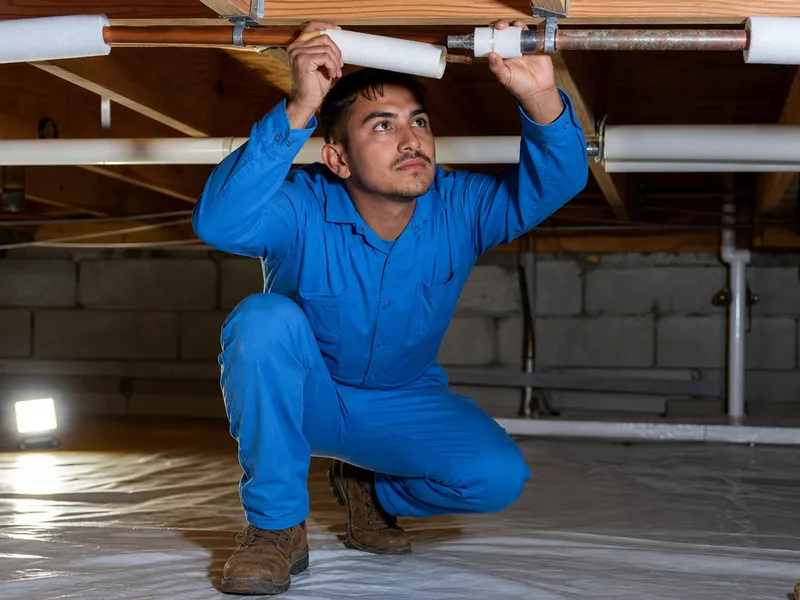

Pipe insulation R-value is measured per inch of thickness — fiberglass delivers R-3.0–4.3 per inch, ArmaFlex R-3.5–4.5, polyethylene foam R-3.5–4.0, and mineral wool R-4.0–4.5. A 1″ fiberglass wrap on ¾″ copper pipe gives roughly R-3.5 total; 2″ gives R-7.0. But here’s the catch most DIY guides don’t mention: R-value drops at higher operating temperatures. Fiberglass rated R-3.5 at 75°F falls to approximately R-3.0 at 200°F, so a steam pipe needs thicker material than the nominal R-value suggests — and that’s before accounting for the 215–250°F surface temperature of low-pressure steam in a pre-war Brooklyn building.

What is the difference between fiberglass and rubber pipe insulation?

The choice between fiberglass and rubber/elastomeric insulation depends on pipe temperature, moisture exposure, and whether a separate vapor barrier is practical for your application.

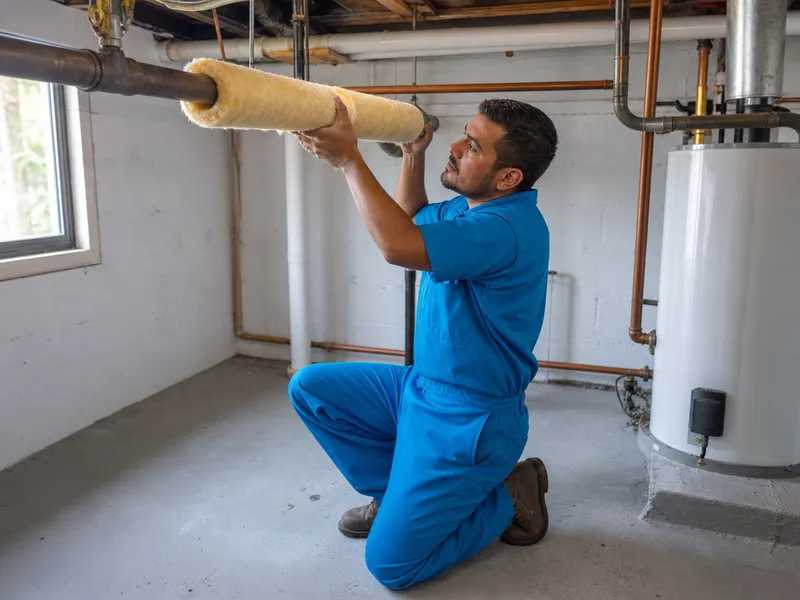

When to choose fiberglass

• High-temperature systems: We use fiberglass pipe insulation on steam risers (215°F+), boiler connections, and process lines — it handles up to 850°F with a hi-temp jacket where rubber fails above 220°F.
• Budget-conscious jobs: Fiberglass runs $2–5 per linear foot installed, roughly 30–40% less than rubber; on a 200-foot steam-pipe job in a Bronx boiler room, that difference adds up to $600–800.
• Fire-rated applications: Fiberglass is non-combustible and meets 25/50 flame spread per ASTM E84 without additives — critical for commercial mechanical rooms and through-penetration firestop assemblies.

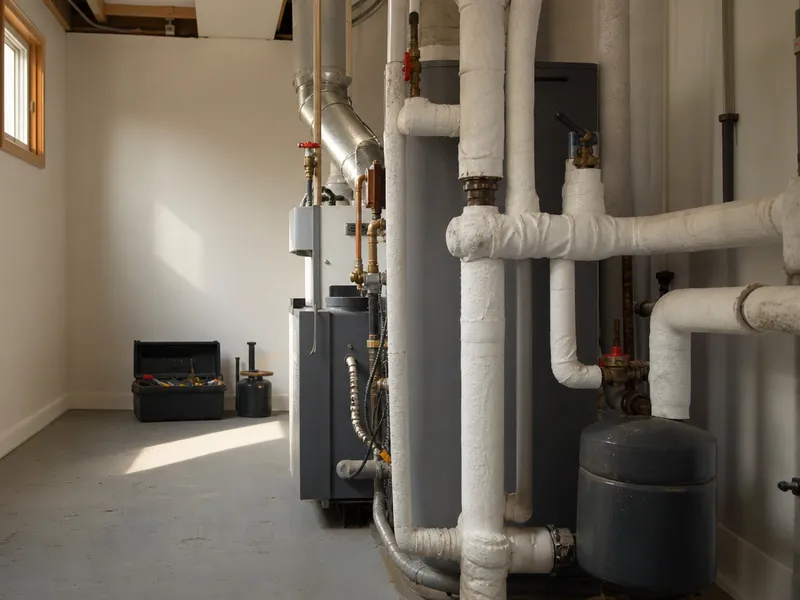

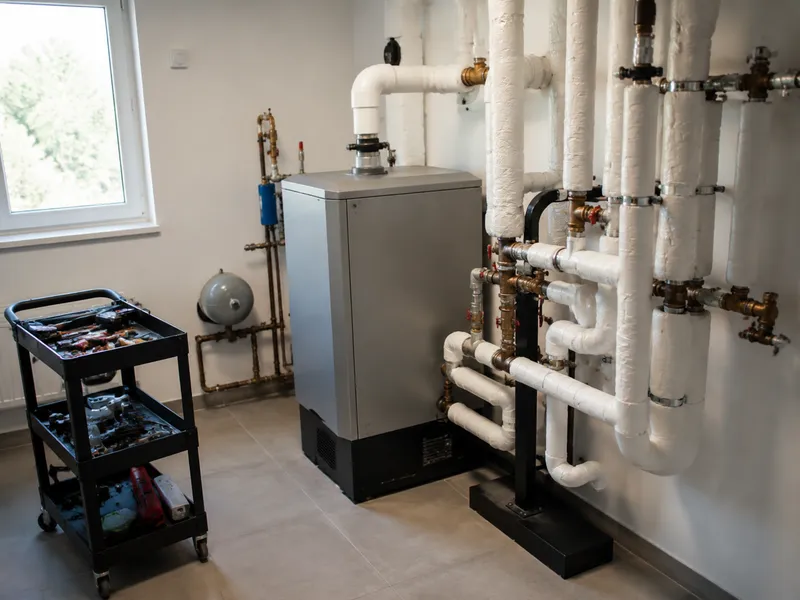

• Steam cycling in pre-war buildings: On steam risers in older NYC buildings, we always use fiberglass with an FSK jacket — the vapor barrier is critical because steam pipes cycle between hot and cold, creating condensation during off cycles that would soak unprotected fiberglass.

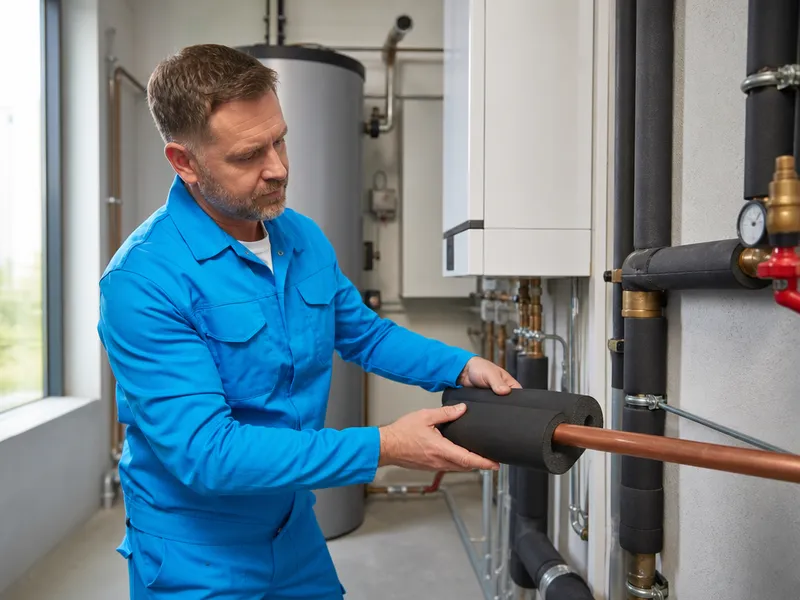

When to choose rubber/elastomeric

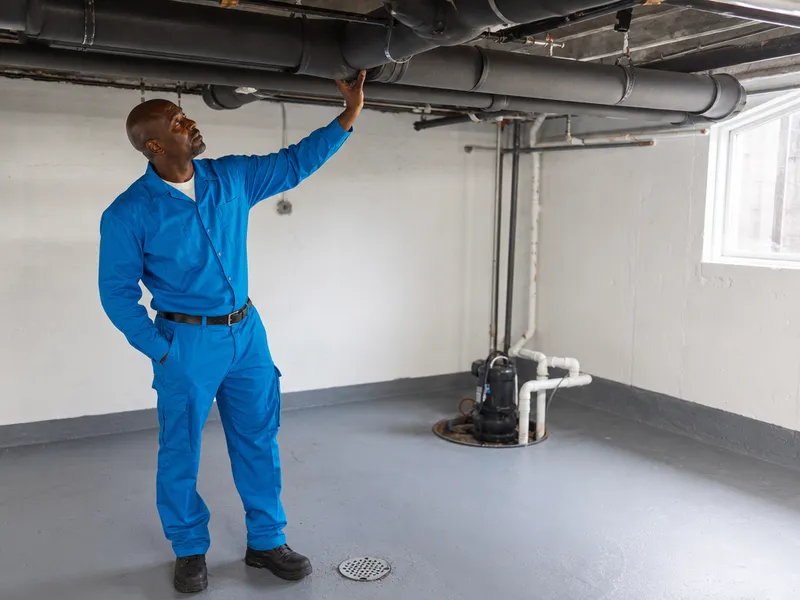

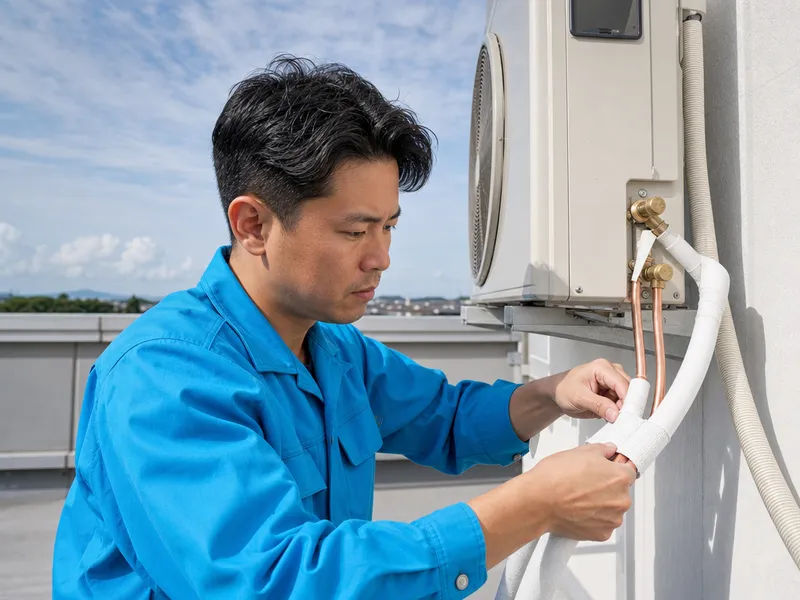

• Cold pipes with condensation risk: We install ArmaFlex rubber insulation on cold water and chilled water lines — its closed-cell structure eliminates the need for a separate vapor barrier, which is the most common failure point on cold pipe insulation.
• Tight mechanical rooms: In cramped NYC boiler rooms where fiberglass would be difficult to tape and seal properly, ArmaFlex’s glued seam system provides a more reliable vapor seal — we see fewer callbacks on rubber insulation for cold applications.

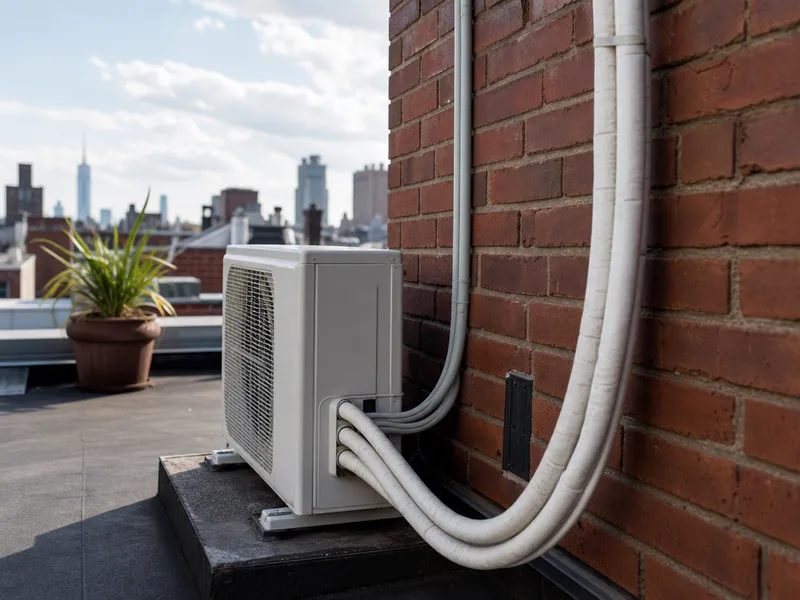

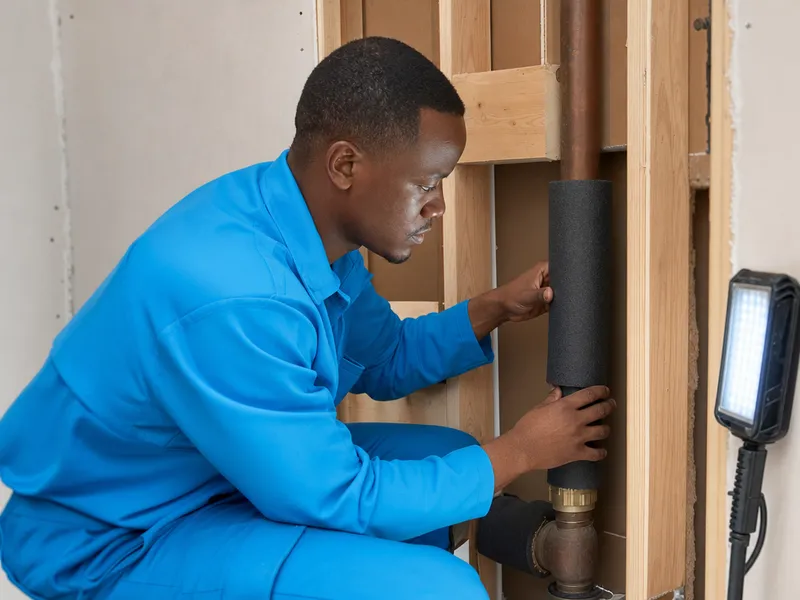

• Refrigerant suction lines: Rubber conforms to tight bends on line sets without the kinking that plagues rigid fiberglass tubes; a 3/8–1/2″ wall on a 15-foot run takes 20 minutes to install versus 40 for fiberglass with mitered elbow cuts.
• Dual-temperature piping: For pipes that carry both hot and cold water seasonally (common in NYC recirculating domestic hot water systems), rubber handles both without material degradation, while fiberglass would need a vapor barrier that complicates the hot-season performance.

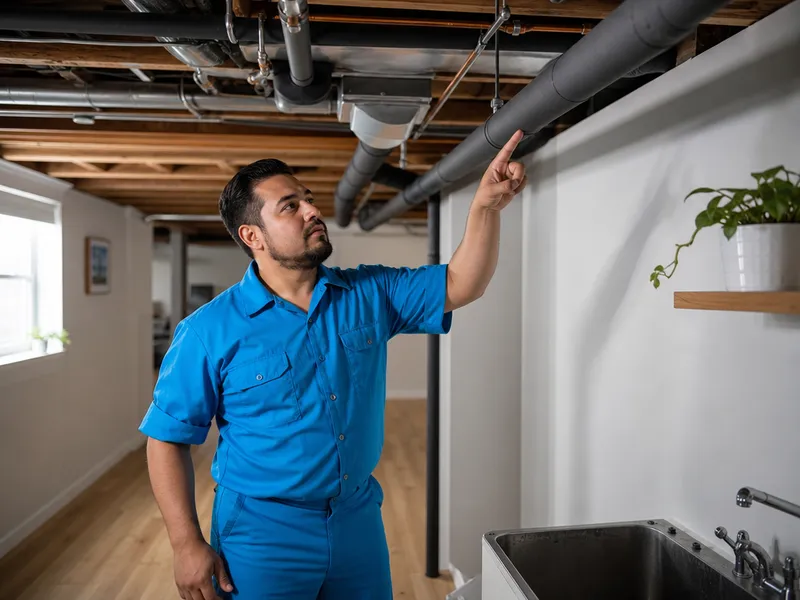

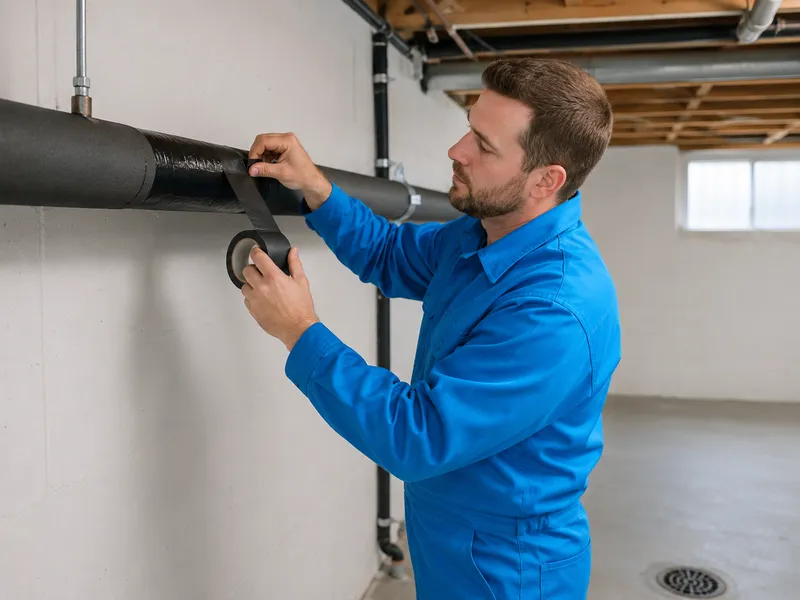

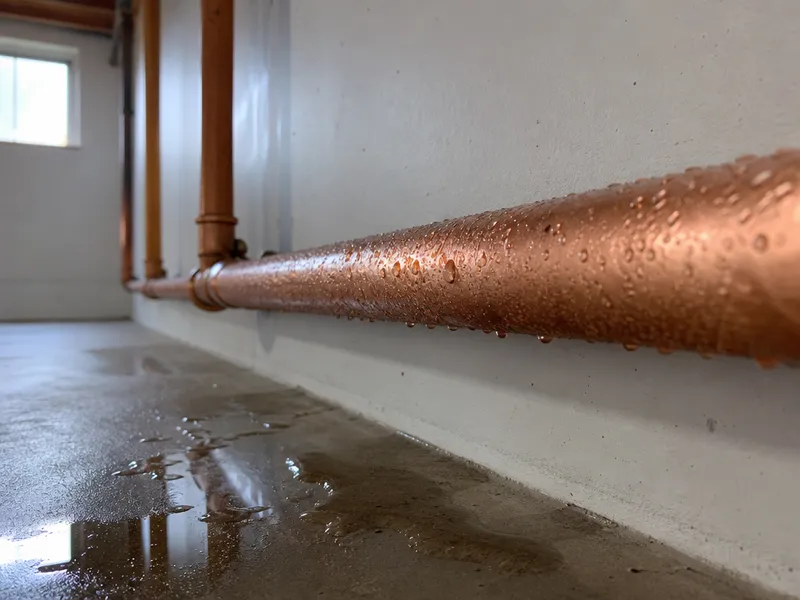

How do I prevent condensation on cold water pipes?

Condensation on cold water pipes happens when warm, humid air meets a pipe surface below the dew point. The fix is closed-cell insulation with a perfect vapor barrier.

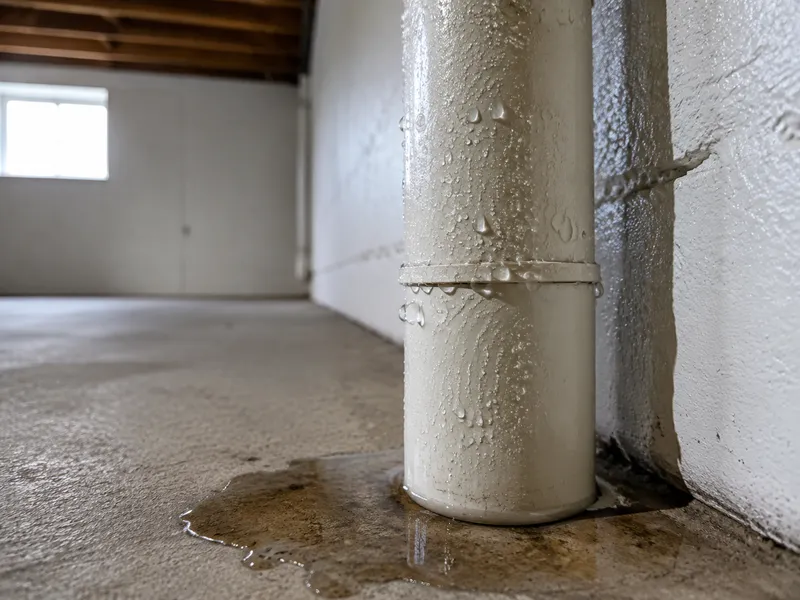

Why condensation forms on cold water pipes

Condensation forms when the cold pipe surface, 50–55°F from the water supply, drops below the dew point of surrounding air. In NYC basements with 60–70% summer humidity, the dew point sits at 55–60°F, so bare pipes sweat constantly. The worst months are July through September, when basement humidity peaks and the temperature differential between pipe and air is largest. A 3/4-inch cold water pipe in a 70°F, 65% RH basement can produce over a gallon of condensation per day per 100 feet of pipe. That moisture feeds mold growth on joists and drywall, and it accelerates corrosion on iron fittings.

Best insulation for condensation control

• ArmaFlex closed-cell foam, 1-inch minimum: On 3/4–1 inch cold water pipes in NYC basements, we recommend ArmaFlex at 1 inch thickness — its built-in vapor barrier eliminates the separate jacket that fiberglass requires for condensation control.
• 1.5 inches for high-humidity basements: When basement humidity exceeds 60% RH, we increase thickness to 1.5 inches. The extra insulation raises the outer surface temperature above the dew point, cutting the temperature gradient that drives condensation.
• Fiberglass only with a vapor barrier jacket: If fiberglass is used, it must have a factory-applied FSK (foil-scrim-kraft) or ASJ (all-service jacket) vapor retarder, and every seam must be sealed with vapor barrier tape — a step DIYers frequently skip.

Critical installation details for condensation prevention

• Seal every seam with vapor barrier tape: We tape every butt joint, longitudinal seam, and pipe penetration. Even a 1/8-inch gap on a cold pipe in a humid basement produces a visible condensation streak within hours, leading to wet insulation and mold growth behind the jacket.
• Insulate every valve and fitting separately: Valves and fittings are the most commonly missed spots. We use pre-formed ArmaFlex fitting covers or field-fabricate insulation for each valve — an uninsulated valve body acts as a condensation source that drips onto the floor below.
• Check for existing moisture before insulating: If old insulation is already wet, it must be removed and the pipe dried before new insulation goes on. Sealing a wet pipe under a vapor barrier traps moisture against the metal, accelerating corrosion at the contact points.

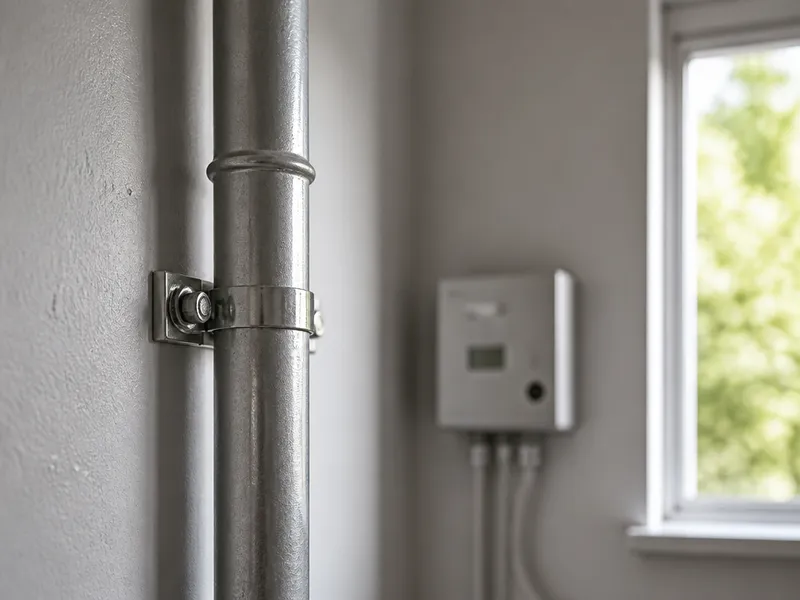

How much energy can pipe insulation save?

Pipe insulation pays for itself through reduced heating costs, with payback periods ranging from 6 months to 2 years depending on pipe type and operating temperature.

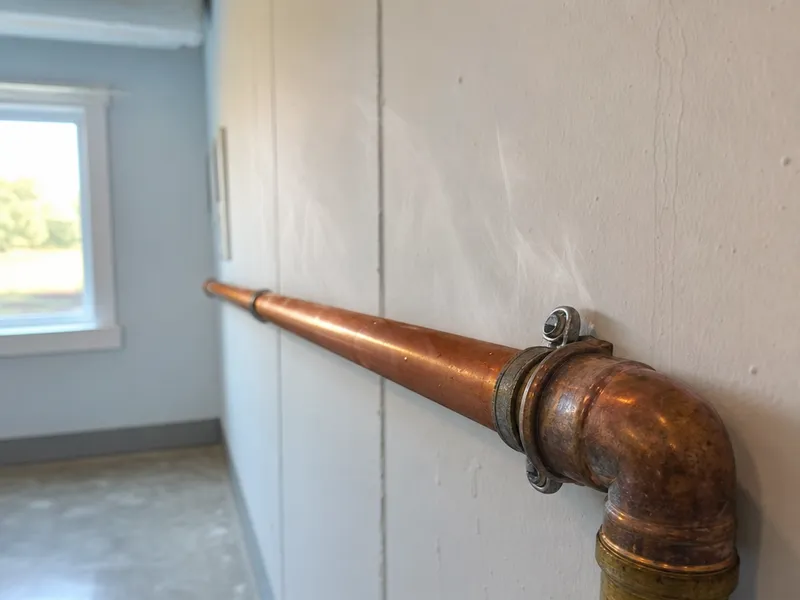

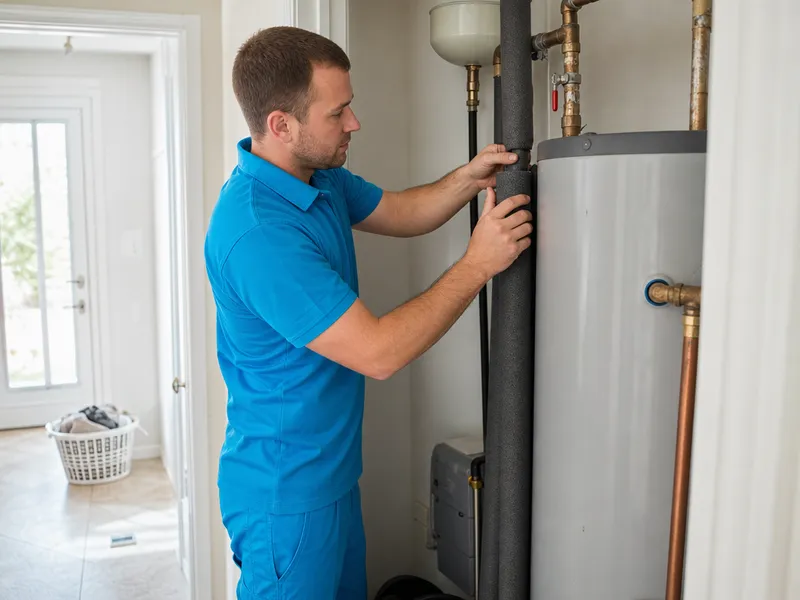

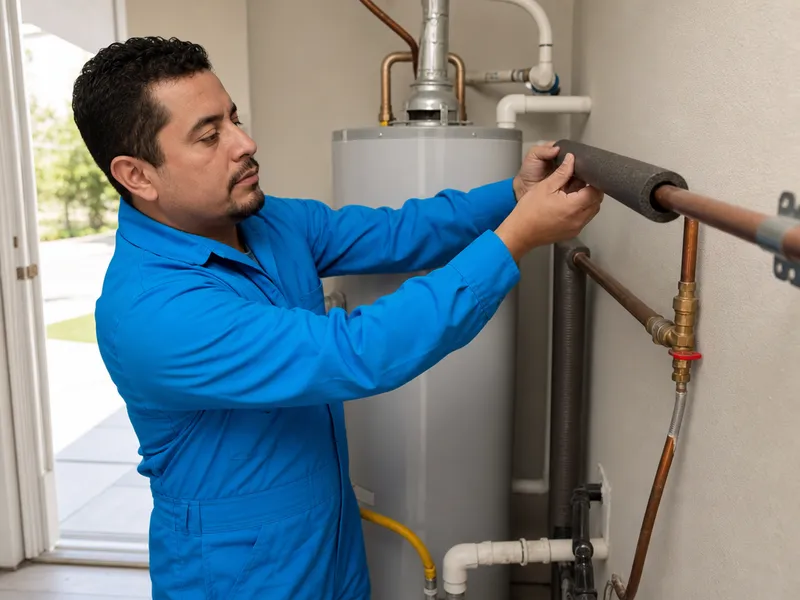

Energy savings on hot water pipes

Insulating 10 feet of uninsulated 3/4-inch copper hot water pipe saves approximately $10–20 per year in NYC with gas heat at $1.50/therm — the insulation drops heat loss from 30–50 BTU/hr per foot down to 5–10 BTU/hr, an 80–90% reduction. At that rate, a single 10-foot section pays back its material cost in 1–2 years. But the numbers compound fast in multifamily buildings: a 100-unit building with 500 feet of uninsulated hot water pipes burns through $500–1,000 every year in wasted heat alone. That’s before factoring in the added load on the boiler, which shortens its service life and increases maintenance calls. The pipe insulation energy savings on domestic hot water lines are modest per foot but meaningful at building scale — and they start the moment the insulation goes on.

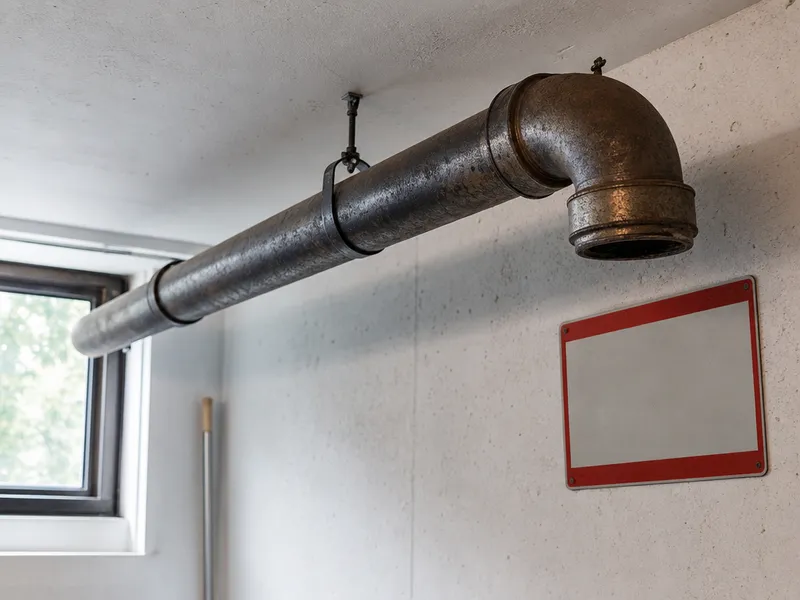

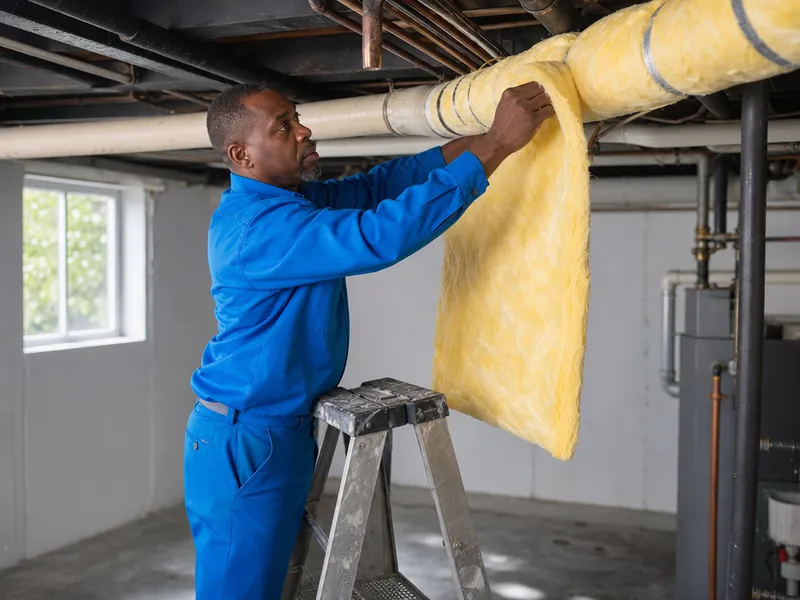

Energy savings on steam pipes

• Savings per foot: Insulating 10 feet of uninsulated 2-inch steam pipe saves roughly $30–50 per year in NYC — almost triple the savings of hot water pipes because steam runs at 215–250°F, creating a much larger temperature differential with the surrounding air.
• Payback period: At 6–12 months, steam pipe insulation is the most cost-effective energy upgrade in pre-war buildings. The materials (fiberglass or mineral wool rated to 450°F+) cost about the same as hot-water insulation, but the heat loss they stop is 3–5 times greater.
• Building-scale impact: We see many NYC co-ops and condos with uninsulated steam risers in basements losing 10–20% of their heating budget — insulating those risers alone can save $5,000–20,000 per year in a typical 100+ unit building, and the work pays for itself within one heating season.

Non-energy savings: condensation and freeze prevention

• Mold remediation cost: Condensation from uninsulated cold pipes drips onto stored items or finished ceilings — mold remediation runs $500–5,000 per incident, and in NYC basements where humidity hits 60–70% in summer, one season of condensation can cause damage costing 5–10 times the insulation installation price.
• Burst pipe repair cost: A frozen pipe that bursts costs $500–5,000 to repair including drywall, flooring, and water damage restoration — and that’s for a single incident. Insulation that prevents freezing pays for itself the first time winter temperatures dip below 20°F.
• Total avoided costs: These non-energy savings often exceed the energy savings by a wide margin — in a basement with both cold and hot pipes, the insulation investment is justified by either the energy savings or the damage prevention alone, and together they make the ROI unambiguous.

Is pipe insulation required by NYC code?

The NYC Energy Conservation Code (NYCECC) requires insulation on all piping in mechanical spaces serving heating, cooling, and domestic hot water — with specific R-values and fire ratings that vary by pipe diameter and building type.

NYC Energy Conservation Code requirements

• NYCECC §C402.4.3: This section mandates insulation on all piping serving HVAC and service water heating systems, with minimum R-values from ASHRAE 90.1 Table 6.8.1-13 based on pipe diameter — R-3 for pipes under 1.5 inches, R-4 for 1.5–4 inches, R-5 for 4–8 inches, and R-6 for pipes above 8 inches.
• DOB inspection enforcement: Inspectors check pipe insulation during rough-in and final inspections for new construction and major alterations — missing or improper insulation is a violation that can delay certificate of occupancy.
• Material compliance: The insulation must be installed with the correct vapor barrier for the application — fiberglass requires an ASJ or FSK jacket on cold pipes, while closed-cell elastomeric foam like ArmaFlex can serve as its own vapor retarder.
• Scope of work trigger: Existing uninsulated pipes in older buildings are not required to be retrofitted unless they fall within the scope of a permitted alteration — once a wall is opened for renovation, all exposed piping must meet current code.

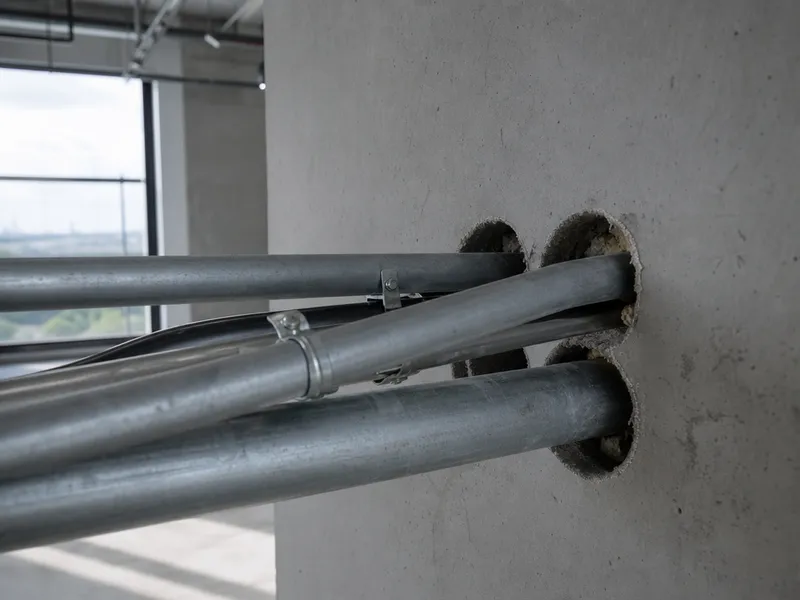

Fire code requirements for pipe insulation

Pipe insulation in commercial and multi-family NYC buildings must meet a 25/50 flame spread and smoke developed index per ASTM E84 — mineral wool and fiberglass with FSK jacket comply, while standard polyethylene foam does not. The 25 flame spread rating means the material resists surface flame propagation, and the 50 smoke developed limit ensures the insulation won’t produce obscuring smoke during a fire. This requirement applies in mechanical rooms, through fire-rated walls, and in any common area of a multi-family building. We use mineral wool or fiberglass with FSK jacket for all pipe insulation in mechanical rooms and through fire-rated walls — using non-compliant foam in a commercial building can result in DOB stop-work orders and costly remediation.

Exemptions and existing buildings

• Three-foot exemption: Pipes less than 3 feet in length are exempt from insulation requirements, which often applies to short branch runs to individual fixtures or equipment connections.
• Conditioned space exemption: Pipes located entirely within conditioned spaces where insulation would not provide energy savings — such as pipes running inside a heated apartment wall — are not required to be insulated under the energy code.
• Permit trigger rule: Many NYC homeowners assume pre-existing uninsulated pipes are grandfathered — they are, until you open a wall for renovation. Once a permit is pulled, all exposed piping in the scope of work must be brought to current code.

Pipe insulation: main takeaways for NYC property owners

Main takeaways

Pipe insulation in NYC serves three critical functions: preventing frozen pipes in winter, stopping condensation drips in humid basements, and reducing energy costs on hot water and steam lines. The right material depends on pipe temperature — fiberglass or mineral wool for steam risers (215°F+), closed-cell elastomeric foam like ArmaFlex for cold water and refrigerant lines. Thickness follows NYC Energy Conservation Code minimums: R-3 for pipes under 1.5 inches, R-4 for 1.5–4 inches, though freeze protection in unheated basements often needs 1.5–2 inches regardless of code. The most common mistake is using the wrong material for the pipe temperature — polyethylene foam on steam pipes melts, while fiberglass on cold pipes without vapor barrier causes condensation damage that costs more to repair than the insulation saved.
