What size fan does my NYC home need?
Fan sizing depends on your living space square footage or attic volume, and in NYC, high ceilings make volume-based calculation essential for proper performance.
Whole house fan sizing: CFM per square foot
| Model | CFM rating | Recommended home size |
|---|---|---|
| ES-2500 | 2,500 CFM | Up to 1,500 sq ft |
| ES-3000 | 3,000 CFM | 1,500–2,000 sq ft |
| ES-4000 | 4,000 CFM | 2,000–2,800 sq ft |
Attic fan sizing: air changes per hour
Attic fans are sized at 10–12 air changes per hour of attic volume, calculated as (attic length × width × height) / 60 minutes × desired ACH. For a standard 20 ft × 30 ft attic with 8 ft ceilings, that’s 4,800 cubic feet divided by 60, times 10 ACH — a fan rated at roughly 800 CFM. But NYC pre-war homes with 10–12 ft ceilings need volume-based calculation; square footage alone will undersize the fan by 30–50%. On my reads, I’ve seen brownstone owners order a 1,200 CFM gable fan based on floor area, only to find it moves barely any air because the attic volume is double what they assumed. That’s why an attic fan installation in an older building starts with a tape measure, not a rule of thumb.
Why venting capacity matters
We always check your attic’s net free vent area before quoting — fan CFM must not exceed 1 sq ft of vent area per 750 CFM. A QuietCool ES-3000 pushing 3,000 CFM needs at least 4 sq ft of net free vent area, which is roughly the equivalent of two standard 14″ × 14″ gable vents. Most NYC attics built in the 1950s have a single 12″ × 12″ gable vent — about 1 sq ft of net free area — so that fan would be starved from the start. Inadequate exhaust venting starves the fan, causing motor overheating and dramatically reduced airflow, a common issue in NYC attics with original 1950s gable vents.
Do I need a permit for attic fan installation in NYC?
NYC DOB permits are required for new circuits and structural modifications but not for simple fan replacements on existing wiring — here is where the line falls.
When a DOB permit is required
- New dedicated circuit: Running new wiring from your panel to the attic for a fan that wasn’t there before triggers a DOB electrical permit — no exceptions.
- Panel modification: Adding a new breaker or upgrading an existing one to handle the fan’s load requires a permit and must be done by a NY Master Electrician.

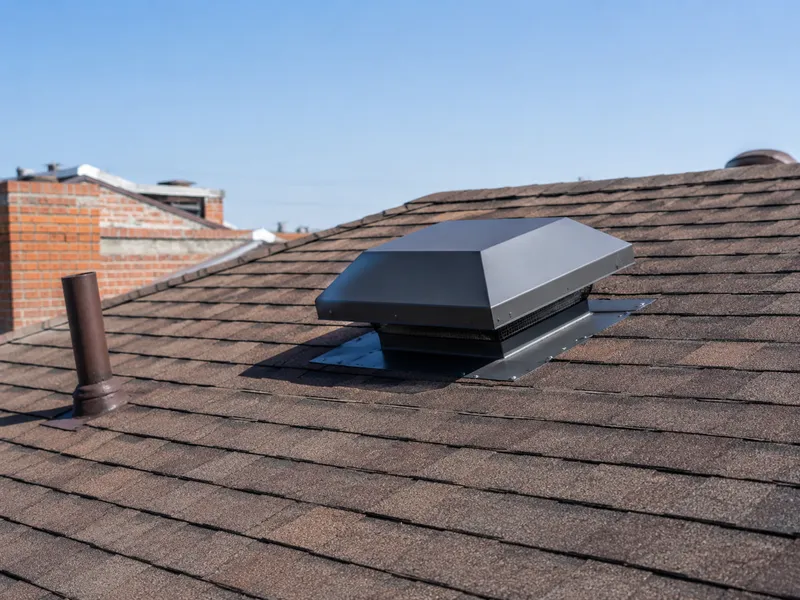

- Structural change: Cutting a new roof or wall opening for a gable or roof fan, or enlarging an existing vent beyond its original frame, needs a DOB permit for the structural alteration.
- Consequence of skipping: Unpermitted electrical work in NYC carries $1,000–$5,000 fines, stop-work orders, and can complicate your home sale — title searches flag unpermitted modifications.
- Processing time: A standard DOB electrical permit takes 5–10 business days to process, so factor that into your project timeline.
When you can skip the permit
You can skip the DOB permit only when replacing an existing fan on the same circuit with no new wiring, no panel modifications, and no structural changes. In practice, though, most NYC attics lack existing fan wiring — the previous owner likely never installed one — so the “no permit” scenario is rare. And even if the wiring is there, attempting the swap without a licensed electrician is illegal in NYC; the 2025 NYC Electrical Code requires any electrical work to be performed by a NY Master Electrician or registered journeyman under one. So while the permit itself may not be needed, a licensed hand is still mandatory.
How we handle permits for you
We handle all NYC DOB permit applications as part of our installation service — our licensed electricians pull the permit, and permit fees are included in your quoted price. Permit processing takes 5–10 business days, so we schedule the install around approval — no last-minute surprises or city violations on your record. On the job, I’ve seen too many homeowners try the “I’ll just swap it out myself” route only to face a $2,500 fine when the next buyer’s attorney runs a DOB search. Our approach keeps it clean.

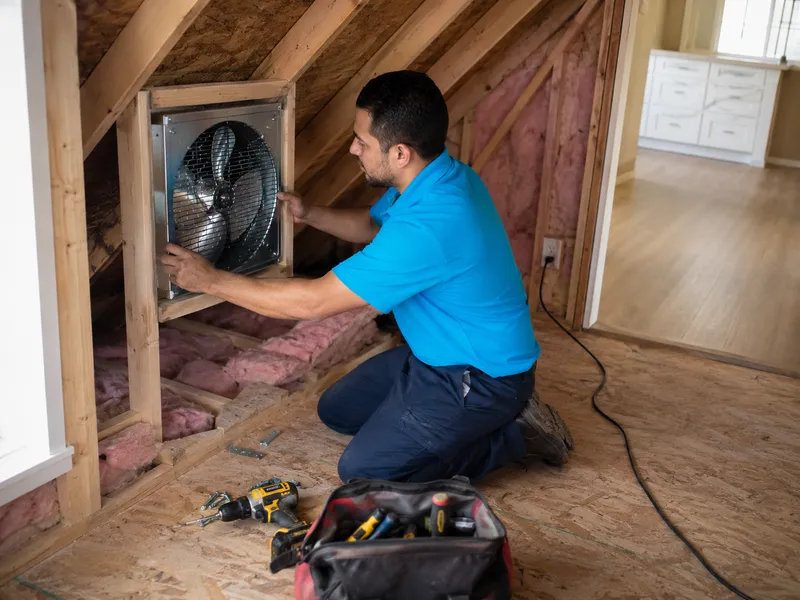

Can you install a fan in a Brooklyn brownstone attic?
Brooklyn brownstones come with plaster-and-lath ceilings, shared walls, and often 100A panels — conditions that rule out standard fan installations and make gable-mount fans the smartest choice.

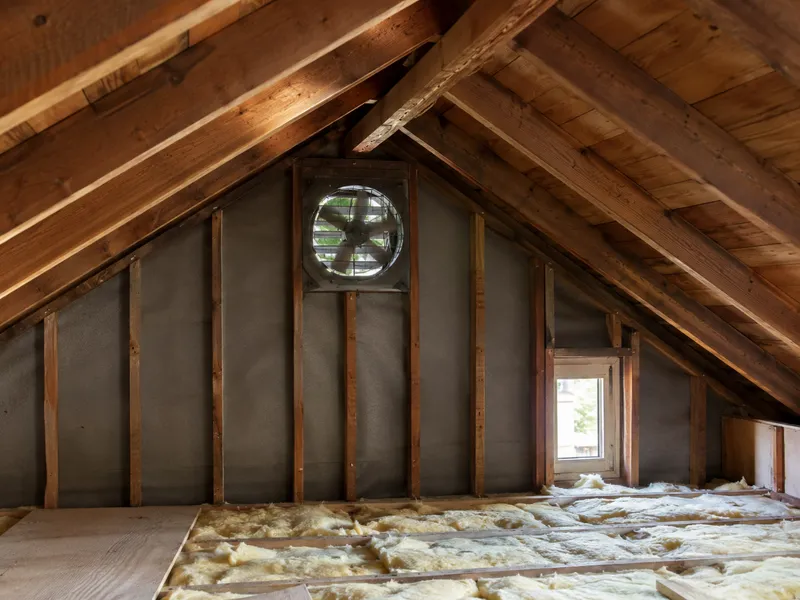

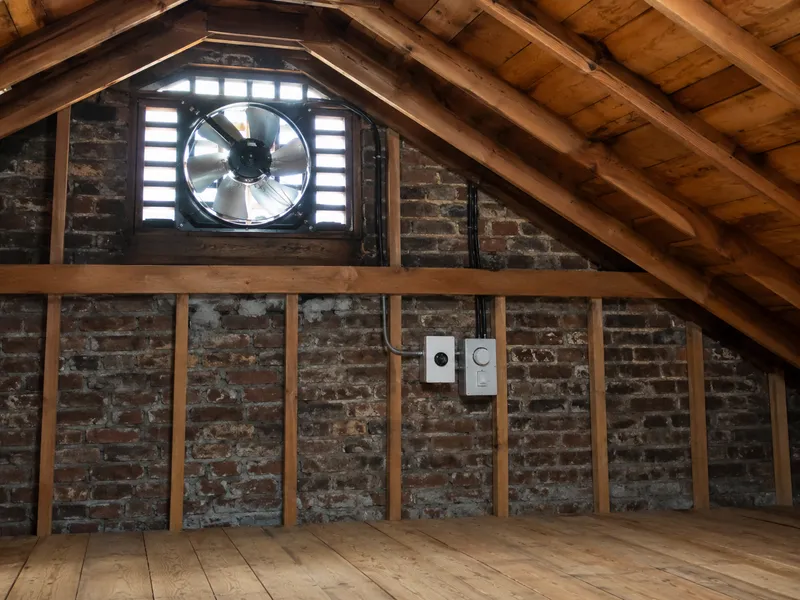

Gable fans: the brownstone-friendly option
For Brooklyn brownstones, we most often recommend gable-mount fans — they install into existing gable vents, avoiding roof penetration and ceiling cutting through fragile plaster-and-lath. The rear wall of a classic brownstone typically has a louvered gable vent measuring 12 by 18 or 14 by 22 inches, which accepts a QuietCool ES gable fan without structural modification. Because the fan housing sits in the gable opening rather than against a ceiling joist, vibration stays isolated from the plaster above — a critical difference in pre-war homes where even moderate resonance can spider-crack a 1910 ceiling in weeks. Gable fans also eliminate neighbor noise complaints in attached brownstones, since vibration doesn’t transmit through shared walls the way a ceiling-mounted whole house fan can.
Whole house fans in brownstones: what to watch for
- Vibration isolation mounts: A whole house fan mounted directly above bedrooms can crack 100-year-old plaster ceilings — isolation mounts (included with QuietCool ES series) are non-negotiable.
- Plaster-and-lath cutting: Cutting a 22-by-22-inch opening through lath and plaster creates fine dust that escapes into living spaces; professional containment with plastic sheeting and negative air is essential.
- Panel upgrade risk: Many brownstones still run on 100A service, and adding a whole house fan often triggers a load calculation that requires a 100A-to-200A panel upgrade ($4,500–$6,500).
- Open-stairwell limitation: A single top-floor fan cools the top two floors effectively but does almost nothing for a garden or parlor level — zoning with supplemental fans is usually needed.
Co-op and condo board restrictions

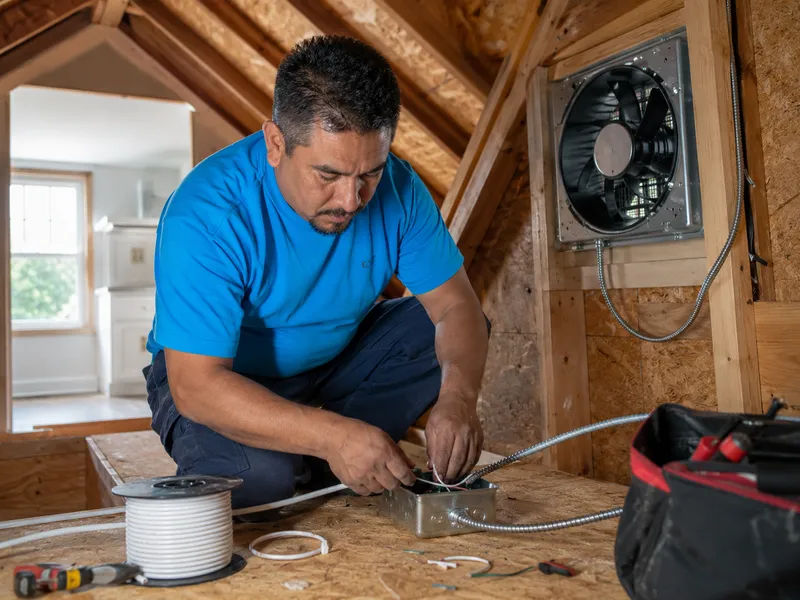

Many NYC co-ops and condos prohibit roof penetrations and exterior modifications — we work with your board to recommend gable-mount or window-mount options that meet their rules. A typical Bronx co-op, for example, will allow a gable fan because it doesn’t alter the building envelope, while a Manhattan condo board may require a licensed electrician’s stamped drawing and a certificate of insurance before approving any ceiling cut. We’ve navigated board approvals across all 5 boroughs, and can provide the documentation (licensed electrician credentials, insurance certificates, permit applications) that boards require.
Will a whole house fan work in a multi-story NYC home?
A single whole house fan mounted on the top floor primarily cools that floor and the one directly below it — lower levels see minimal direct benefit from a single unit alone.
How far does the cooling reach?
A whole house fan on the top floor effectively cools that floor and the one directly below it — lower floors like the parlor, garden, or basement get minimal direct benefit. The physics is straightforward: hot air rises, and a fan exhausting from the attic pulls air upward through the top of the house. In a Brooklyn brownstone with an open stairwell, you get reasonable airflow to the second floor, but effectiveness drops sharply below that because the fan can’t push air downward against the natural stack effect. For a 3-story home, that means the top two floors get measurable cooling while the ground floor stays warm. This isn’t a system limitation — it’s just gravity working against you, and no fan model changes that.
Zoning and ducted solutions
| Approach | How it works | Best for |
|---|---|---|
| Single whole house fan (top floor only) | Exhausts from attic; cools top 1–2 floors | 2-story homes or top floor of a 3-story |
| Gable fan (top floor) + window fans (lower floors) | Gable fan pulls air through top floor; window fans push cooler air into lower levels | 3-story brownstones with separate floor control |
| Zoned system with multiple fans | Dedicated fan per floor or ducted distribution from a single unit | 4-story townhouses where each floor needs independent cooling |
| Ducted distribution from one whole house fan | Ductwork runs from the attic fan to lower-floor registers | Homes where a single fan must serve all floors (complex install) |
Our recommendation for 3+ story homes
For 3+ story NYC homes, we typically recommend a gable attic fan for the top floor plus portable or window fans for the middle and lower floors — or a zoned system with multiple fans if you want consistent cooling across all levels. Ducted distribution from a single whole house fan to lower floors is technically possible, but it’s complex and expensive: you’re running insulated ductwork through finished ceilings, adding dampers for zone control, and losing efficiency with every bend. In our experience, most homeowners get better value from the simpler zoned approach — a gable fan on the top floor runs $700–$1,200 installed, while a ducted whole house system for all floors can push $2,500–$4,000 with the same 1-year warranty on parts and labor.
Can I install a fan myself vs hiring a pro?
DIY runs $200–$1,000 for the fan and tools; professional installation costs $400–$1,200+ and includes labor, wiring, permits, and warranty coverage. The real decider in NYC isn’t cost — it’s the legal requirement for licensed electrical work.
Cost comparison: DIY vs professional installation
| Cost factor | DIY | Professional installation |
|---|---|---|
| Fan unit (QuietCool ES-3000) | $400–$800 | $400–$800 (same unit) |
| Tools and materials | $50–$200 | $0 (included) |
| Electrical wiring and permits | $0 (unpermitted) or $150–$300 permit fee | $200–$400 (permit + materials) |
| Labor | $0 (your time) | $250–$600 |
| Total estimate | $200–$1,000 | $400–$1,200+ |
| Warranty coverage | Void (manufacturer warranty requires pro install) | 1-year on parts and labor |
| NYC code compliance | Rarely compliant | Guaranteed with licensed electrician |
The NYC legal barrier: licensed electrician requirement
In NYC, any electrical work — including fan installation — must be performed by a NYC DOB Licensed Master Electrician; unlicensed electrical work is illegal and carries significant penalties. The 2025 NYC Electrical Code governs all wiring, from the panel connection to the junction box and switch. Even if you’re the homeowner, you can only pull an owner-builder permit for work on an existing circuit — new wiring for a fan requires a licensed electrician’s permit. Unpermitted electrical work can result in $1,000–$5,000 fines, a stop-work order from the DOB, and headaches when you sell the home (title searches flag unpermitted modifications). On the job, I’ve seen brownstone owners hit with $3,000 fines for installing a whole house fan without a permit — the city takes attic electrical work seriously.
What you get with professional installation
- Code-compliant wiring: A licensed electrician runs the dedicated circuit (15A or 20A depending on the fan model), installs a proper junction box, and grounds everything per the 2025 NYC Electrical Code — no fire hazards from undersized wire or loose connections.
- Permit handling: We pull the NYC DOB electrical permit as part of the job, so you don’t deal with the 5–10 business day application process or risk fines from unpermitted work.
- Vibration isolation: We install isolation mounts (standard on QuietCool ES series) between the fan housing and ceiling joists — this prevents the fan from cracking plaster-and-lath ceilings in pre-war brownstones.
- 1-year warranty: Professional installation includes a 1-year warranty on parts and labor. Most fan manufacturers require professional installation for the product warranty to apply — a DIY install voids that coverage entirely.
Conclusion
Here is what to remember when deciding on attic fan installation for your NYC home — the key factors that separate a successful project from a costly mistake.
Main takeaways
Attic and whole house fans can reduce AC usage by 30–50% in suitable climates, but proper sizing, code-compliant wiring, and adequate attic venting are essential for safe operation. Sizing a whole house fan means matching CFM to your home’s square footage — a 1,500 sq ft home needs 1,500–2,250 CFM — while attic fans are calculated at 10–12 air changes per hour of attic volume. In NYC, a DOB permit is required whenever you run a new dedicated circuit; our licensed electricians handle that paperwork as part of the installation. For Brooklyn brownstones, we recommend gable-mount fans that avoid roof penetration and the vibration risks that can crack 100-year-old plaster-and-lath ceilings. The combination of permit requirements, licensed electrician mandates, and building-specific challenges makes professional installation the practical choice for most NYC homeowners — even if the DIY cost looks lower on paper.
