Signs of Faulty Wiring in Your NYC Home
Faulty wiring in NYC homes is a serious concern — pre-war buildings, rodent damage, and aging electrical systems make symptoms easy to miss until a problem escalates.

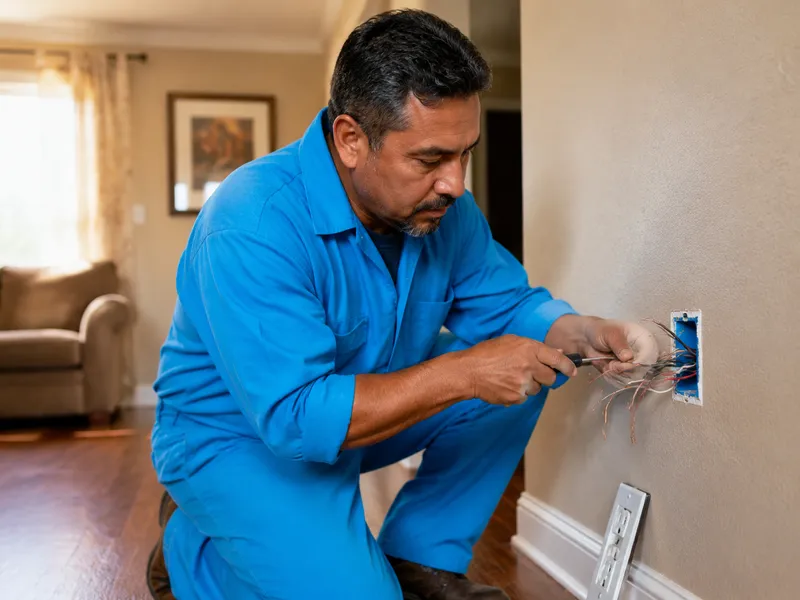

What are the most common signs of faulty wiring in a home?
- Flickering lights under load: When the AC, microwave, or dryer kicks on, lights dim noticeably — that points to undersized circuits or loose connections, not a bulb issue.

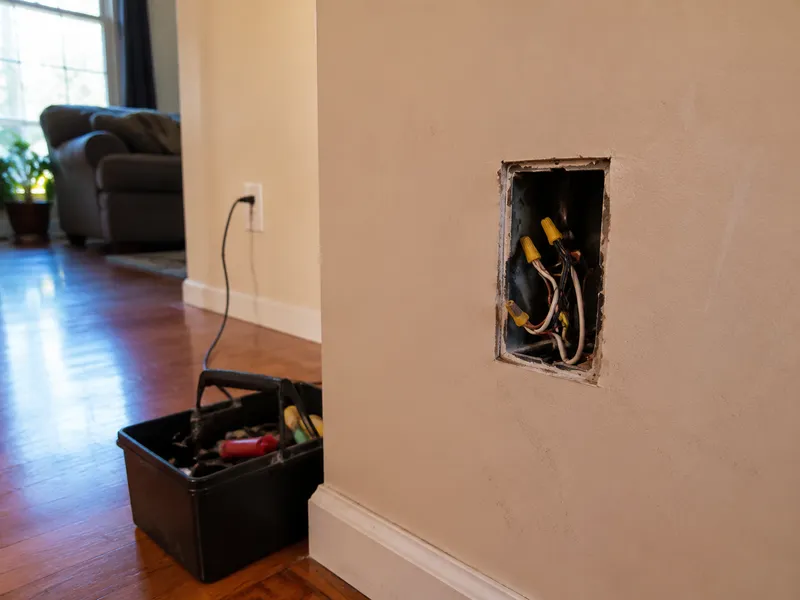

- Frequent breaker trips with normal loads: A 15A or 20A breaker tripping when you run a vacuum and a lamp suggests a short, ground fault, or failing breaker — not an overload.

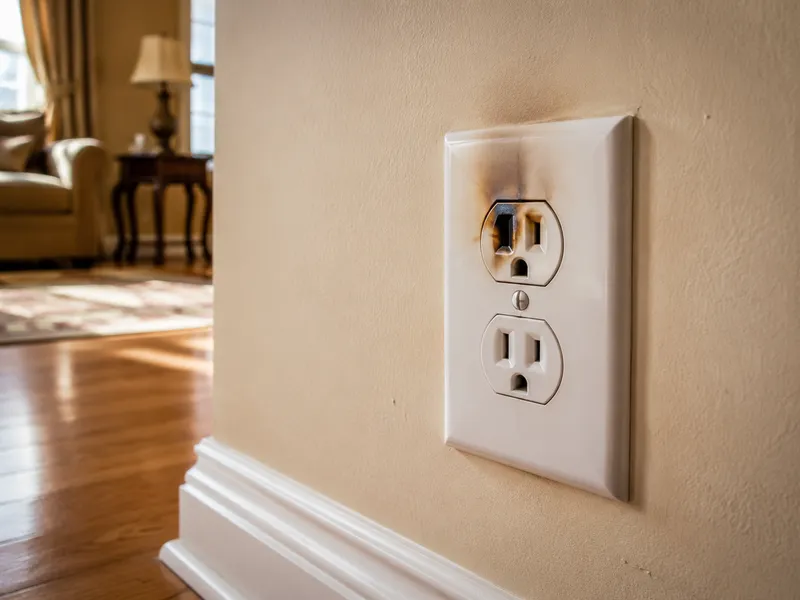

- Fishy or plastic burning smell from outlets: That odor is melting wire insulation or a failing outlet — call an emergency line immediately, don’t wait.
- Warm or discolored outlet faceplates: Brown or yellow discoloration around an outlet means heat damage from arcing at loose connections — call an electrician before the wiring fails completely.
- Buzzing or sizzling sounds from switches: Audible arcing inside a switch box indicates a loose terminal or failing switch mechanism — AFCI breakers should catch this, but older panels may not have them.
- Rodent-damaged wiring visible in basements: Mice and rats chew through NM-B cable sheathing in NYC basements and crawl spaces, exposing bare conductors — that creates short circuits and a fire risk.
What wiring issues are unique to older NYC buildings?

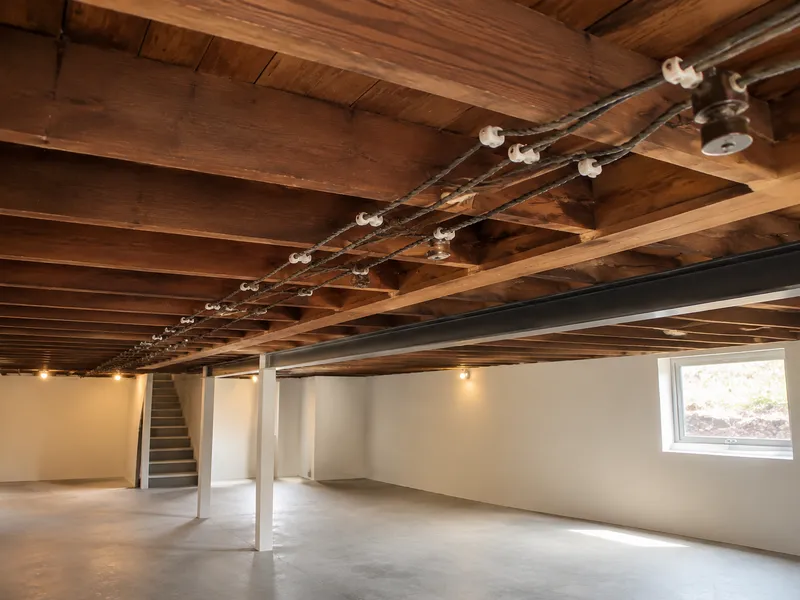

Pre-1940s NYC buildings often have knob-and-tube wiring with deteriorating cloth insulation and no ground wire — we replace it entirely because insurance companies may deny coverage if it’s still active. In Brooklyn brownstones and Queens pre-war homes, the splices are often taped rather than enclosed in junction boxes, which violates modern code. Aluminum wiring from 1965–1973 requires CO/ALR rated devices and anti-oxidant compound at every connection — standard outlets will overheat and create a fire risk. On the job in NYC, I see homeowners with aluminum wiring who’ve swapped outlets themselves using standard devices, and the screw terminals have already started loosening from thermal expansion cycling. If you have knob-and-tube or aluminum wiring, our Residential Electrical Services include a full inspection to identify every splice that needs remediation before it becomes a hazard.
GFCI vs AFCI Breakers: What’s the Difference?
GFCI and AFCI breakers serve different safety purposes — one protects people from electrocution, the other protects homes from electrical fires — and both are required by NYC code in specific locations.
What does a GFCI breaker protect against?

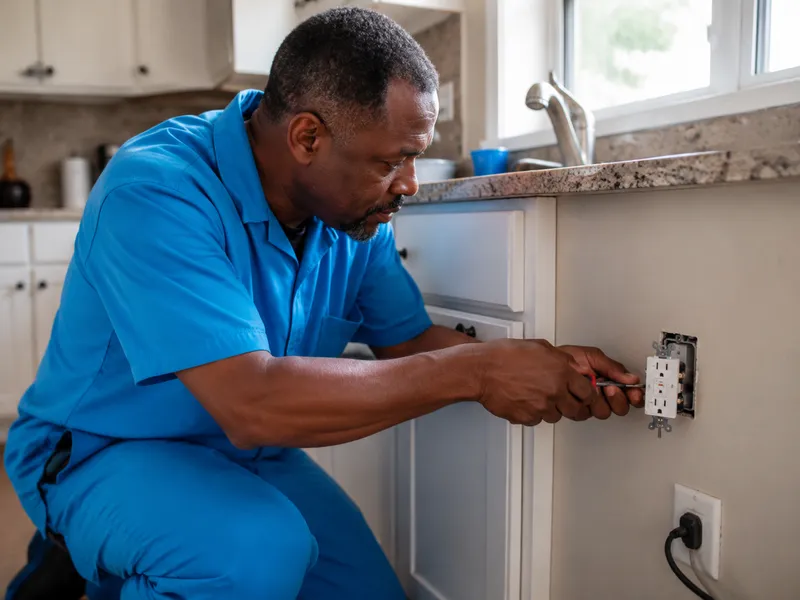

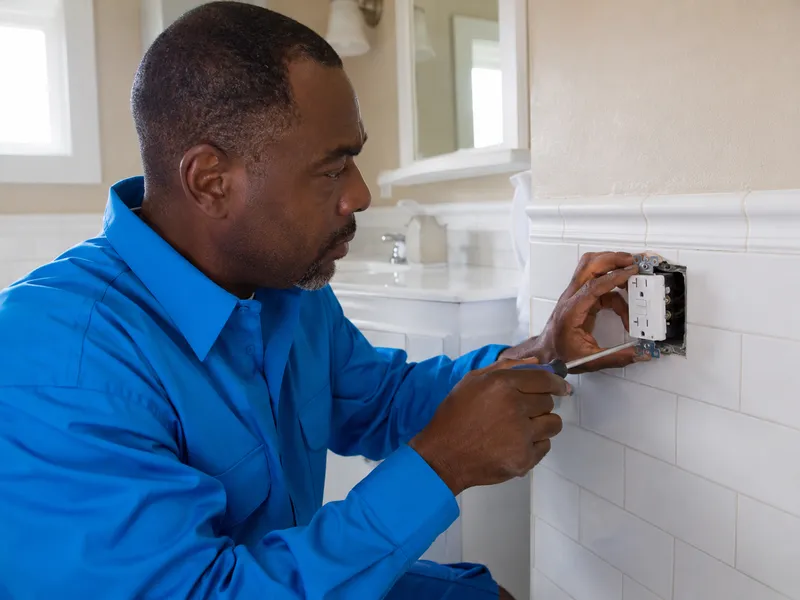

A GFCI breaker detects current leakage to ground as low as 4–6 mA and trips in 1/40th of a second — we install them in bathrooms, kitchens within 6 feet of sinks, basements, and outdoor locations to prevent electrocution. The device compares current on the hot and neutral legs; any imbalance above the threshold signals a ground fault and triggers an instant disconnect. NYC code requires GFCI protection in all wet and damp locations per NEC 210.8. Many homeowners think GFCI outlets in bathrooms are sufficient, but if that circuit feeds other rooms, the 2025 NYC Electrical Code may require AFCI protection at the breaker too.
What does an AFCI breaker protect against?
An AFCI breaker detects dangerous arc faults from damaged or frayed wires using high-frequency signature analysis — we install them in bedrooms, living rooms, dining rooms, and hallways per the 2025 NYC Electrical Code. The breaker monitors the waveform for the distinct electrical noise of arcing, which differs from normal switching transients. AFCI breakers are more prone to nuisance tripping from vacuum cleaners and motor-driven appliances, especially in older NYC homes with shared neutrals — we can diagnose whether the trip is a real fault or a false alarm. This distinction between GFCI vs AFCI tripping causes confusion for many homeowners.
GFCI vs AFCI: Key differences at a glance
| Feature | GFCI | AFCI | Dual-Function |
|---|---|---|---|
| What it detects | Ground faults (current leakage) | Arc faults (sparking from damaged wires) | Both ground + arc faults |
| Primary protection | Electrocution | Electrical fires | Electrocution + fires |
| Required locations (NYC) | Bathrooms, kitchens, basements, outdoors, garages | Bedrooms, living rooms, dining rooms, hallways | Where both protections apply (e.g., finished basement) |
| Can be outlet-level? | Yes | No — breaker only | No — breaker only |
| Typical cost (breaker) | $15–$25 | $30–$50 | $40–$60 |
| Nuisance tripping causes | Moisture, worn insulation, faulty appliances | Vacuum cleaners, motors, shared neutrals | Both |

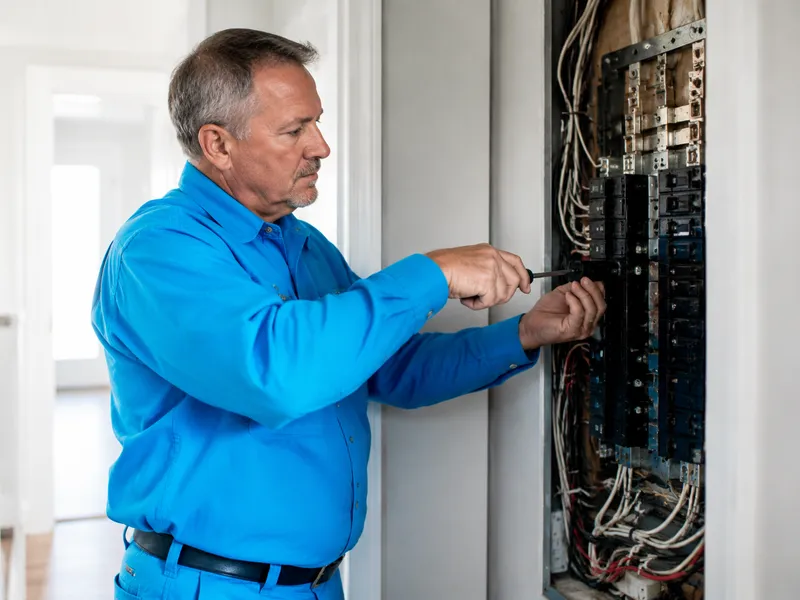

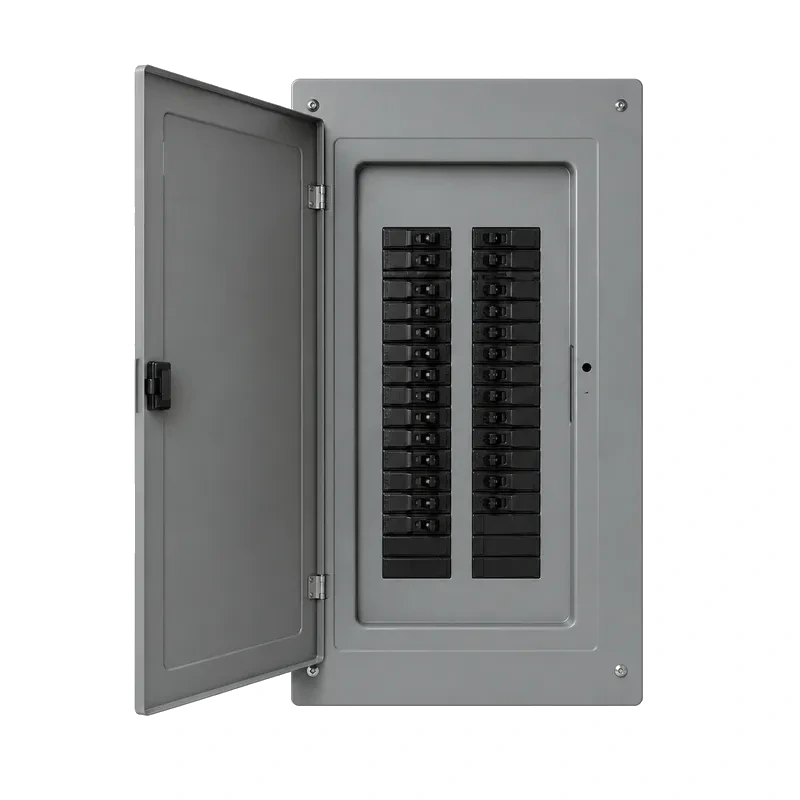

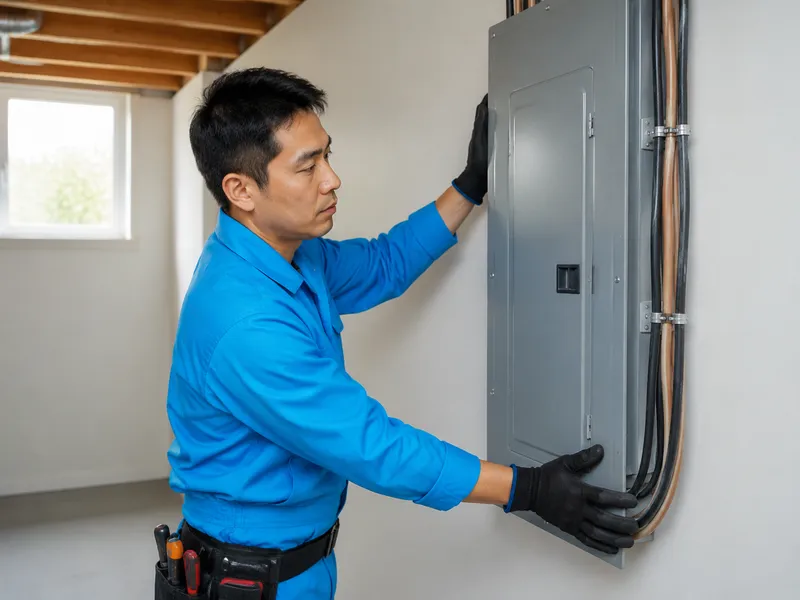

Do I Need a Panel Upgrade?
Modern loads—EV chargers, central AC, induction cooktops—often exceed what a 100A panel can handle. Here are the signs that tell you your panel is undersized.
How do I know if my electrical panel is undersized?

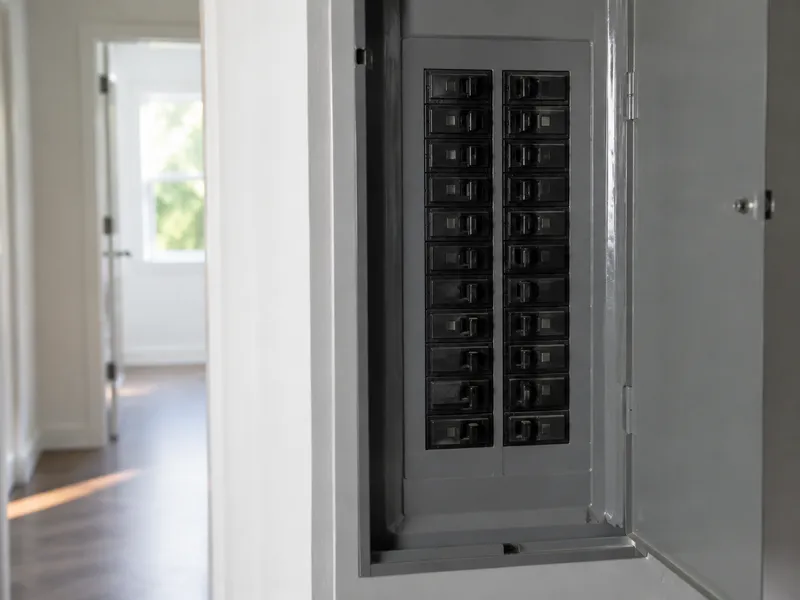

- Frequent breaker trips: If breakers trip regularly during normal appliance use, the panel likely can’t handle modern loads.
- Flickering lights: When the AC, microwave, or dryer kicks on, lights dim noticeably—that points to insufficient capacity, not a bulb issue.
- Full panel, no empty slots: A panel packed with no room for new circuits means an upgrade is needed before adding an EV charger or heat pump.
- Planning major appliances: A 100A panel with existing loads (AC, dryer, oven) typically can’t support a Level 2 EV charger or central AC—upgrading to 200A is the standard solution.
- Free assessment: We offer a $0 diagnostic when you book the repair—our technician checks the panel capacity and recommends the right upgrade.
What panel brands are fire hazards and need immediate replacement?
Federal Pacific and Zinsco panels are known fire hazards—we recommend immediate replacement because insurance companies in NYC often require it, and modern breakers don’t fit these obsolete designs. The Stab-Lok breakers in Federal Pacific panels are unreliable and have been linked to electrical fires. Zinsco panels use a unique bus design that can arc internally without tripping the breaker. GE panels from the 1980s and older Siemens panels with aluminum bus issues can also be problematic—we assess the specific brand and model during a free diagnostic when you book the repair. If you have one of these panels, replacement isn’t optional; it’s a safety and insurance compliance issue.
What does a 100A to 200A panel upgrade cost in NYC?
A 100A to 200A panel upgrade in NYC runs $4,500–$6,500 and includes the new 200A panel, meter socket, grounding rods, permits, and DOB inspection—ConEd coordination adds 1–2 weeks lead time for the service disconnect. The 2025 NYC Electrical Code requires two ground rods for new panels and AFCI breakers on all living area circuits. We include these upgrades in the price so you’re fully code-compliant after the swap. The permit covers the electrical work order, and our licensed master electrician handles the DOB inspection sign-off—you don’t deal with the city.

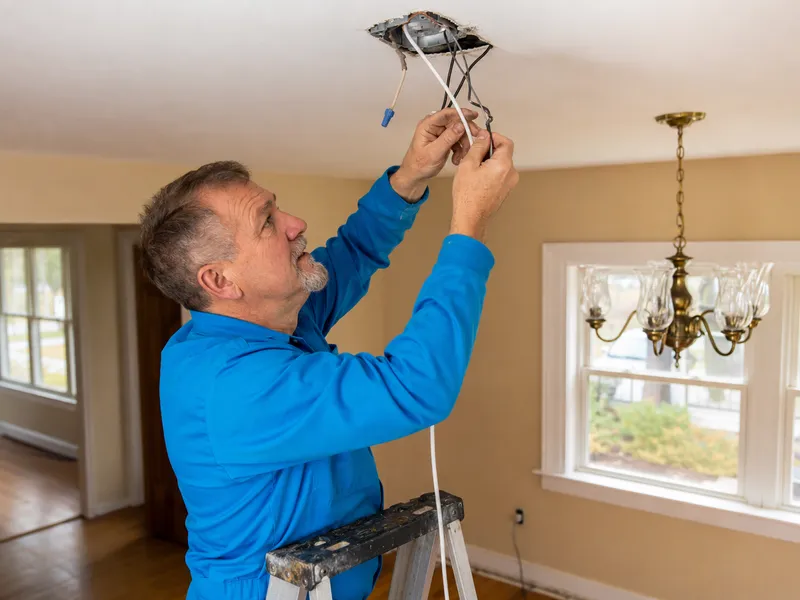

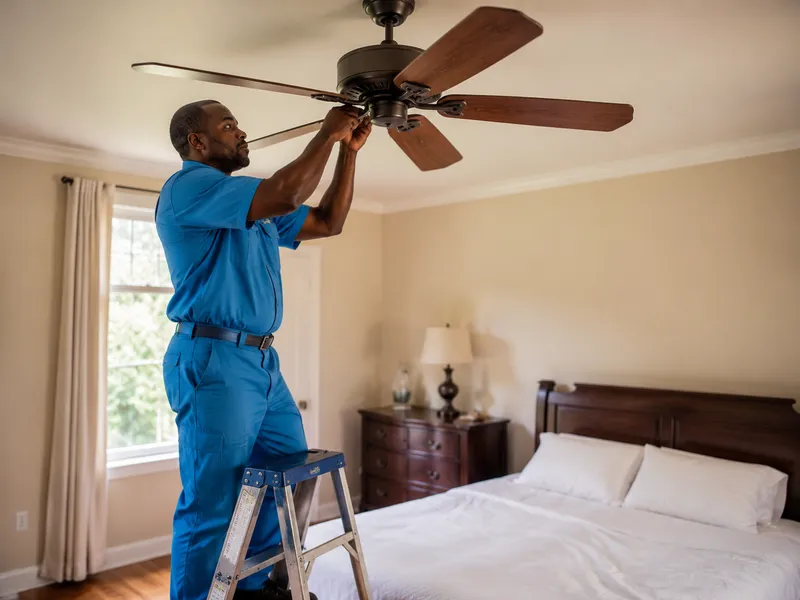

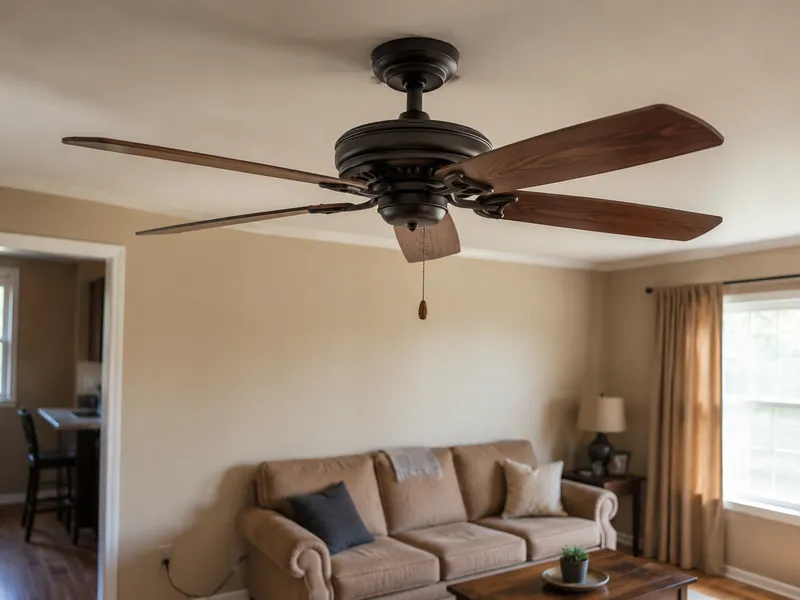

Can You Install a Ceiling Fan Where No Light Fixture Exists?
Yes — a ceiling fan can go in any room, even without an existing overhead light. The job means fishing new wire from a nearby power source and installing a fan-rated brace between the joists.
How do you run power to a ceiling fan where no fixture exists?
- Locate the nearest source: We tap an outlet, switch, or junction box — then fish 14/2 or 12/2 NM-B cable through the wall and ceiling with glow rods or fish tape, a process that takes 15–30 minutes depending on attic access versus a finished ceiling.
- Switch-loop complication: If the nearest wall switch is a switch loop with no neutral wire, we pull 14/3 cable (black/red/white) to bring neutral to the switch box, or we install a remote-controlled fan that doesn’t need a wall switch at all.
- Smart-switch gotcha: Smart switches and dimmers require a neutral wire — a switch loop without neutral means those won’t work, so a remote or pull-chain fan becomes the practical choice.
- Our approach to the ceiling fan installation: We always verify the wiring configuration before cutting any drywall — that way we bring the right cable gauge and the right fan type on the first trip.
Why does a ceiling fan need a fan-rated box?
A standard ceiling box, especially in pre-war NYC buildings, can’t support a fan’s weight and movement — we install a fan-rated saddle brace between joists with a box rated for 35–50 pounds minimum to prevent pull-out and injury. The brace spans the joist bay and clamps in place without needing attic access, which matters in Brooklyn brownstones where the ceiling is plaster over lath and the joist spacing is irregular. NYC DOB requires a fan-rated box for any ceiling fan installation — installing a fan on an unbraced box is a code violation and a safety hazard that we see all the time in older Brooklyn rowhouses.
What’s the total time and cost for a new ceiling fan install?
A new ceiling fan installation where no fixture exists takes 1.5–3 hours and costs $150–$400 for the install plus $100–$200 for wire fishing — the fan itself is separate and purchased by the homeowner. The price jumps if the ceiling is plaster (harder to fish through) or if the joists run the wrong direction for the brace kit. Check with your co-op or condo board before scheduling — some NYC buildings prohibit ceiling fans in bedrooms due to noise and vibration concerns, and we can’t install if building management says no.
What Permits Are Required for Electrical Work in NYC?
NYC has strict permit requirements for electrical work, and only a Licensed Master Electrician can file them — we handle all DOB paperwork so homeowners don’t have to navigate the bureaucracy.
When do you need a DOB permit for electrical work in NYC?
- Panel upgrades and new circuits: Any work that adds new wiring — EV charger installs, new room additions, knob-and-tube replacement — requires a NYC DOB Electrical Work Order (EWO) filed by a Licensed Master Electrician, and electrical permits NYC rules apply to all of these.
- Minor like-for-like replacements: Swapping an outlet or switch one-for-one with the same type doesn’t need a permit, nor does replacing a working light fixture with a new one on the same circuit.
- Ceiling fan installations: If we fish new wire from an existing junction box without adding a new circuit, no EWO is needed — but if we run a new line from the panel, a permit is mandatory.
- Knob-and-tube rewires: Replacing active knob-and-tube wiring in a pre-war building always requires an EWO plus a final DOB inspection, and insurance companies often demand proof of this before renewing coverage.

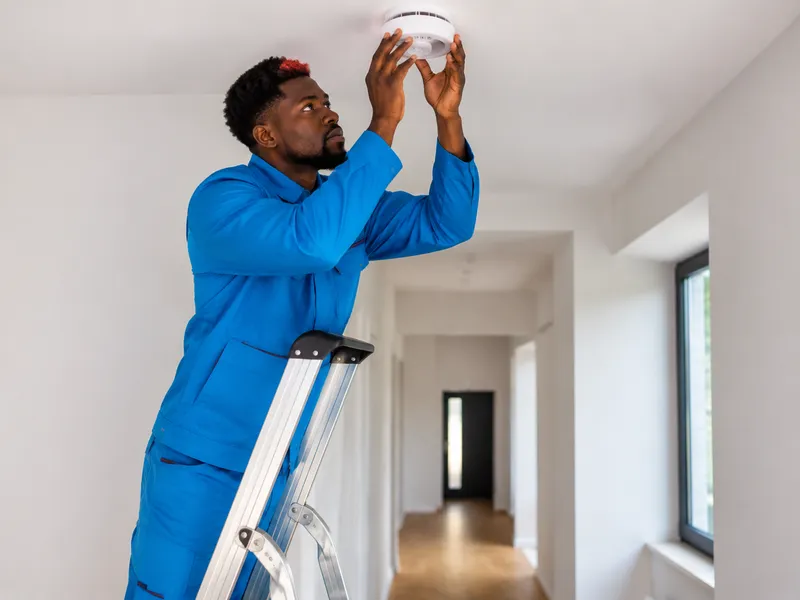

- Smoke detector hardwiring: Running new wire for interconnected hardwired detectors requires a permit; swapping battery units for battery units does not.
Who can file electrical permits in NYC?
Only a NYC DOB Licensed Master Electrician or Special Electrician can file Electrical Work Orders — homeowners cannot self-permit electrical work in NYC, which is why we handle all filings as part of the service. The process involves submitting the EWO online through DOB NOW, paying the filing fee (included in our quoted price), and scheduling the inspection once work is complete. After the work passes, a DOB inspector visits the site to verify code compliance — common failures we see on other jobs include missing GFCI in required locations, improper grounding at the panel bond, and unlabeled circuits in the panel directory, all of which we check before calling for inspection.
How does the 2025 NYC Electrical Code affect permit requirements?
The 2025 NYC Electrical Code, effective December 21, 2025, expands AFCI requirements to all living areas and updates GFCI locations — any permit filed after this date must comply, and we ensure all work meets the latest code. That means bedrooms, living rooms, hallways, and closets now need AFCI protection at the breaker, not just the older requirement for bedrooms alone. This code change catches most homeowners off guard — if you’re planning a renovation that involves electrical work, filing the permit before or after the effective date determines which code version applies, and we advise on the best timing for your project.
Conclusion
Knowing the signs of faulty wiring and understanding code requirements helps NYC homeowners make informed decisions about electrical upgrades.
Main takeaways for NYC homeowners
Faulty wiring, undersized panels, and outdated breaker technology are common issues in NYC homes. A 100A panel that trips when the AC and microwave run simultaneously likely can’t handle modern loads. Knob-and-tube wiring in pre-1940s buildings lacks a ground wire and often has deteriorated cloth insulation—insurance companies may deny coverage if it’s still active. Federal Pacific and Zinsco panels are known fire hazards and require immediate replacement. The 2025 NYC Electrical Code expands AFCI requirements to all living areas and updates GFCI locations. Whether you’re dealing with flickering lights, planning a ceiling fan installation, or considering a panel upgrade, the key is working with a Licensed Master Electrician who understands NYC’s unique building stock and current code requirements.
