Is your Lennox AC humming but not starting? Check the capacitor
When a Lennox AC hums but won’t start, the capacitor is the first component to check — it’s the most common failure point across all series.
What are the symptoms of a bad Lennox AC capacitor?
- Humming without starting: The unit emits a low hum but the fan and compressor don’t engage — the run capacitor has likely failed open.
- Slow fan or struggling compressor: A weak capacitor reading 10–20% below its rated microfarads can still spin the fan slowly but won’t deliver enough torque for a clean start.
- Visual signs of failure: A bulging top, oily residue around the terminals, or a burnt smell all point to internal electrolyte breakdown.
- Intermittent operation: The AC starts sometimes but not others — capacitors can fail under load even when static readings look acceptable.
- Lennox dual-run capacitor specifics: Typical ratings are 35+5 µF, 40+5 µF, or 45+5 µF; if the fan section (5 µF) fails but the compressor section tests fine, the fan won’t run and the system trips on high pressure.
- Actionable insight: A capacitor that tests within 10–20% of its rated µF can still fail under load, which is why we always load-test capacitors during diagnosis rather than relying on static readings alone.

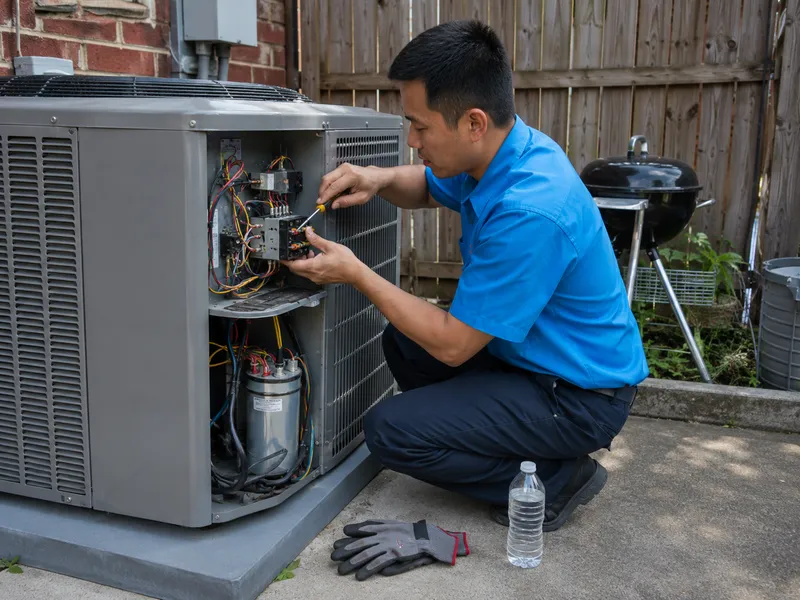

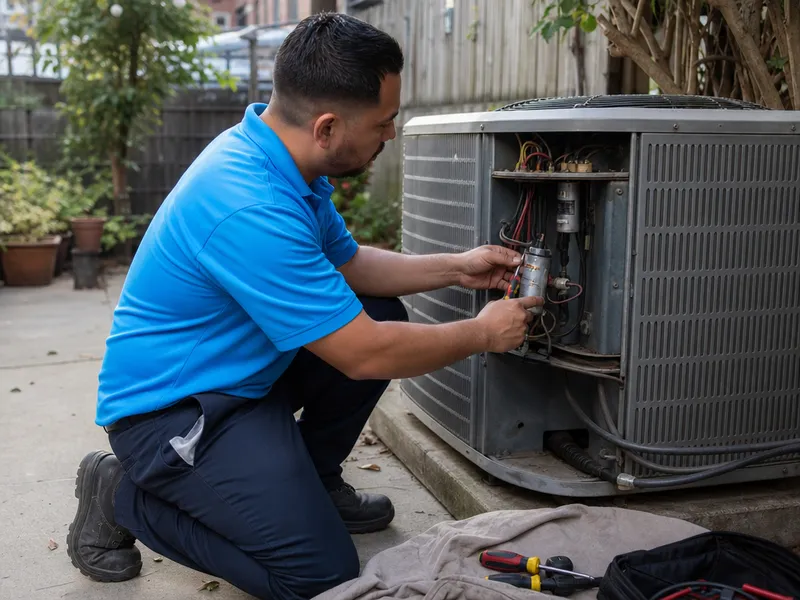

How do we diagnose and replace a Lennox AC capacitor?
We start by visually inspecting the capacitor for bulging or leaking, then use a multimeter with capacitance setting to measure the actual microfarads — if it’s more than 6% below the rated value, we recommend replacement. The process takes 15–20 minutes on-site and costs $150–$250 in NYC. Lennox dual-run capacitors combine the compressor and fan motor circuits in one unit, so if the fan section fails but the compressor section works, the condenser fan won’t run and the system will trip on high pressure. Before installing the new capacitor, we always discharge the old one with a resistor — skipping this step can damage the multimeter or cause injury. For a lennox ac capacitor near me, we carry common ratings (35+5, 40+5, 45+5 µF) in our vans for same-day replacement across all five boroughs. Our 1-year warranty on parts and labor covers the replacement, and the diagnostic is free when the repair proceeds.

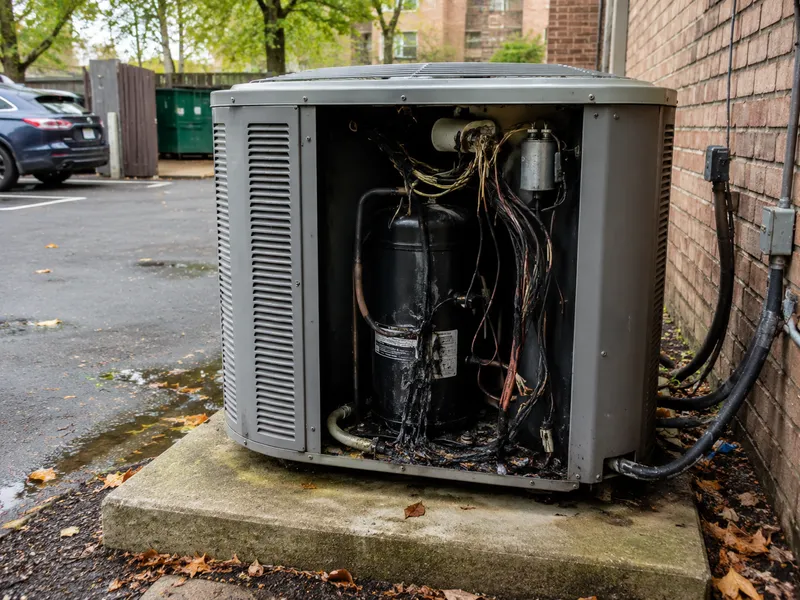

How do you know if your Lennox AC compressor is bad?
Compressor failure is serious, but it’s often misdiagnosed. Capacitor and contactor issues mimic compressor symptoms, so proper testing is essential before deciding on repair or replacement.
Compressor failure symptoms vs capacitor confusion
| Symptom | Likely cause | Diagnostic check | Repair cost range |
|---|---|---|---|
| Humming, no start | Bad run capacitor | Capacitance test (multimeter) | $150–$250 |
| Humming, no start, capacitor tests good | Compressor winding short to ground | Megohmmeter test (< 1 megohm) | $800–$1,500+ |
| Intermittent no-start | Pitted contactor | Voltage drop under load (clamp meter) | $150–$300 |
| Runs but no cooling | Internal valve failure | Pressure readings (suction high, discharge low) | $800–$1,500+ |
| Trips breaker immediately | Compressor shorted to ground | Megohmmeter (< 1 megohm to ground) | $800–$1,500+ |
| Loud rattling or metallic noise | Internal mechanical failure | Amperage draw vs RLA on nameplate | $800–$1,500+ |
How do we test a Lennox compressor?
- Multimeter winding test: Measure resistance across C–S, C–R, and S–R terminals — each should read 1–3 ohms and be within 10% of each other. Unbalanced readings point to internal winding damage.
- Megohmmeter insulation test: Apply 500V between each winding terminal and ground. Anything below 1 megohm means the compressor is shorted to ground and must be replaced. This is the definitive test.
- Amperage draw check: Clamp the run wire and compare running amps to the RLA (Rated Load Amps) on the nameplate. Draw above RLA indicates mechanical binding or failing bearings.
- Contactor and capacitor rule-out: Before condemning the compressor, verify the contactor delivers full voltage under load and the run capacitor is within 6% of its rated microfarads. We always rule these out first — a $200 capacitor replacement beats a $1,500 compressor swap.
- Lennox Signature Series caution: On variable-capacity models with inverter modules, the module fails more often than the compressor itself. We test the module output first before condemning the compressor — saves you the cost of an unnecessary lennox heat pump repair.
What does a Lennox AC refrigerant leak look like?
You’ll spot a refrigerant leak on a Lennox AC by oily residue at copper joints, ice forming on the evaporator coil, and warm air from the vents — NYC’s air quality accelerates the coil corrosion that causes these leaks.
Visual signs of a refrigerant leak on Lennox AC units
- Oily residue at joints: Dark, greasy film on copper tube connections, service valve stems, or Schrader valve cores — refrigerant carries oil, so where oil escapes, refrigerant does too.
- Ice on the evaporator coil and suction line: Low refrigerant charge drops suction pressure below freezing, turning the coil into an ice block while the condenser fan still runs.
- Formic acid corrosion on coil U-bends: NYC air pollution eats pinholes in evaporator coil hairpin turns — this is the most common leak location on Lennox units over 8 years old.
- Warm air from supply vents: The system runs continuously without reaching the thermostat setpoint because the evaporator can’t absorb enough heat with a partial refrigerant charge.
- Hissing sound from the outdoor unit: Audible refrigerant escaping from a pinhole or cracked service valve, especially noticeable on quiet evenings in Brooklyn backyards.
If you see ice on a Lennox evaporator coil, turn the system off and call for a lennox air conditioner repair — running it with a frozen coil can slug liquid refrigerant back to the compressor, causing valve damage that turns a $300 leak fix into a $1,500 compressor replacement.
How do we find and fix Lennox refrigerant leaks?
We scan every joint, coil surface, and service valve with an Inficon D-Tek electronic leak detector, then confirm with bubble solution on the suspect spot — once located, we braze the leak under a nitrogen purge, replace the filter drier, pull the system down to 500 microns, and recharge to the nameplate charge with R-410A or R-22 as marked. The hardest leaks hide inside the evaporator coil cabinet, where formic acid corrosion creates pinholes too small for the electronic detector to catch at first pass — that’s when we isolate the coil and pressure-test with nitrogen at 150 PSI. On a Lennox unit over 10 years old with a leaking evaporator coil, the coil replacement itself runs $600–$1,200, and the Rule of 5000 often points toward a full system swap instead of repeated patch repairs.
How to reset your Lennox AC after a power outage
NYC power outages and brownouts can trip breakers and confuse your AC’s control board. A simple reset sequence often restores operation — and when it doesn’t, a specific component has likely failed.
Step-by-step Lennox AC reset procedure
- Kill power at the disconnect: Locate the gray box near the condenser, flip the handle to OFF, and wait a full 5 minutes — this lets compressor pressures equalize so the unit doesn’t short-cycle on restart.
- Reset the thermostat: Turn the thermostat to OFF, wait 30 seconds, then set it to COOL at 5°F below the current room temperature — that ensures the cooling demand signal is clean.
- Check the breaker: At your main panel, find the AC breaker (a 30–60A double-pole) and cycle it fully OFF then back ON — a surge can trip it without any visible sign.
- Restore power and listen: Flip the disconnect back to ON and stand near the condenser — you should hear a contactor click within 30–60 seconds, then the compressor starts after the built-in anti-short-cycle timer releases (up to 5 minutes).
- If the unit still doesn’t start after the reset sequence, a power surge likely blew the capacitor or damaged the control board — both common after NYC brownouts.
What to do if the reset doesn’t work

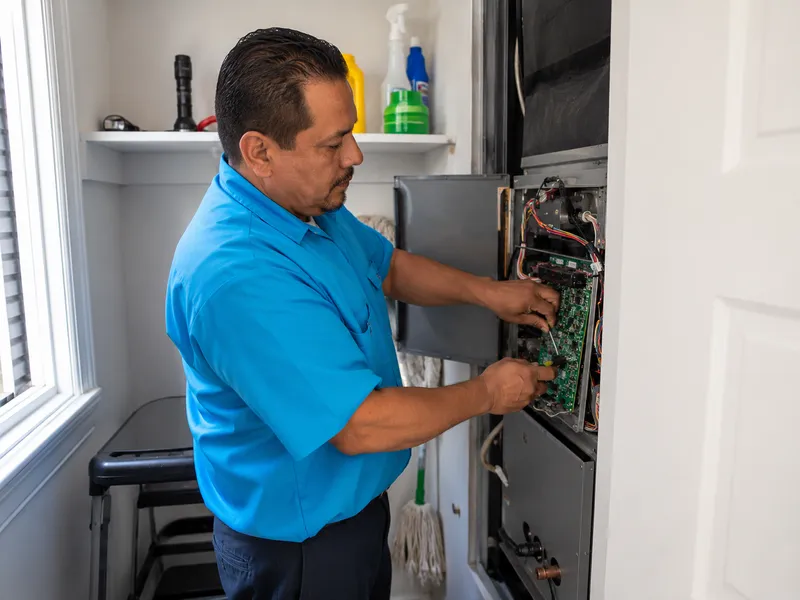

If your Lennox AC doesn’t restart after the reset procedure, the most likely causes are a blown capacitor from the power surge, a welded contactor, or a damaged control board — all of which require professional diagnosis. A capacitor that was marginal before the outage often fails open when the grid flickers; we test it with a multimeter on the capacitance setting and replace it if it’s more than 6% below the rated microfarads. A welded contactor, on the other hand, may still click but won’t deliver full voltage under load — you need a clamp meter to catch that. Never keep resetting a breaker that trips immediately — this indicates a short to ground in the compressor or fan motor, and repeated resetting can cause electrical fire or further damage.
Signs of a failing Lennox AC condenser fan motor

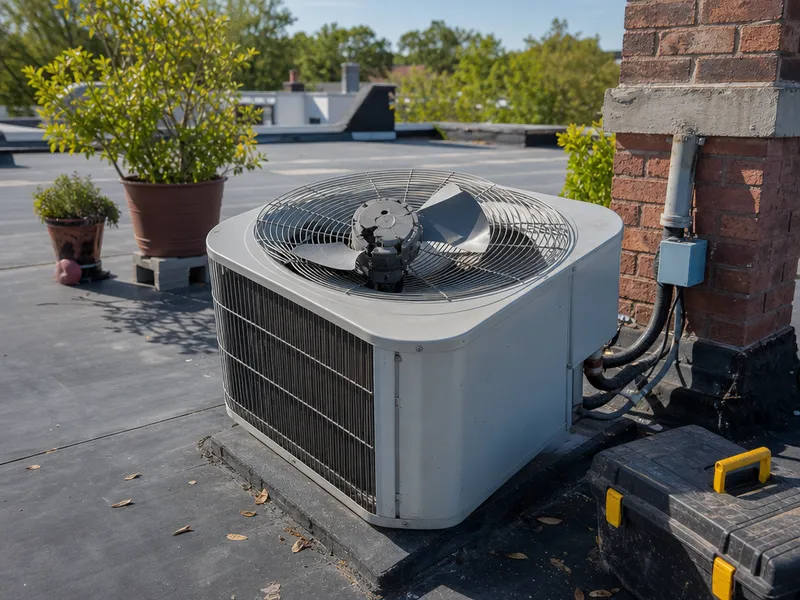

The condenser fan motor is critical for heat rejection — when it fails, the system overheats and trips on high pressure. NYC rooftop units are especially prone to bearing failure from weather exposure.
What are the symptoms of a bad Lennox condenser fan motor?
- Fan doesn’t spin while compressor runs: Motor seized from bearing failure, or the fan section of the dual-run capacitor (5–7.5 µF) has failed open.
- Slow or intermittent fan rotation: Weak capacitor reading below spec, or motor windings developing shorted turns — the fan struggles to maintain RPM under load.
- Grinding or squealing noise: Dry bearings or worn races produce a metal-on-metal sound; bearing failure from water ingress is the #1 cause on NYC rooftop units.
- Unit cycles on high-pressure switch: Without enough airflow across the condenser coil, head pressure spikes and the safety trips — the fan may spin but too slowly to reject heat.
- Fan blade wobbles or hits the shroud: A bent blade from debris impact or a loose set screw on the motor shaft creates a scraping sound that mimics a seized bearing.
- Replacement cost range: $250–$450 in NYC depending on motor size — common Lennox part numbers are 10W17 (1/3 HP), 10W18 (1/2 HP), and 10W19 (3/4 HP).
How do we diagnose and replace a Lennox fan motor?
We start with a manual spin test — power off, turn the fan blade by hand to feel for bearing roughness. Then we test the fan section of the dual-run capacitor with a multimeter; if the capacitor is good but the motor is seized, we replace it with a Lennox-spec part (10W17, 10W18, or 10W19 depending on the model). The swap takes 30–45 minutes: remove the fan blade, unbolt the motor, install the new one, and reattach the blade. Before buttoning up, always check the fan blade for damage — a bent blade from debris impact can wobble and hit the shroud, making a seized motor sound worse than it is.
Should you repair or replace your Lennox AC?
Two industry heuristics — the Rule of 5000 and the 50% rule — help homeowners decide whether to repair an aging Lennox AC or invest in a replacement. Here is how to run the numbers.
The Rule of 5000: when to replace your Lennox AC
| Repair scenario | Repair cost | Unit age (years) | Product (cost × age) | Recommendation |
|---|---|---|---|---|
| Capacitor replacement, Merit Series | $200 | 5 | 1,000 | Repair |
| Fan motor replacement, Elite Series | $350 | 8 | 2,800 | Repair |
| Compressor replacement, Signature Series | $1,200 | 10 | 12,000 | Replace |
| Evaporator coil leak repair, any series | $800 | 12 | 9,600 | Replace |
| R-22 system major repair (any component) | $900 | 14 | 12,600 | Replace |
Main takeaways for Lennox AC owners
Main takeaways for Lennox AC owners
Lennox AC problems fall into a handful of common categories — capacitor failure, compressor issues, refrigerant leaks, fan motor wear, and power-outage glitches. Most symptoms overlap, which is why proper diagnosis matters more than guessing at the cheapest part. Capacitor failure is the most frequent culprit and the easiest to fix, while compressor failure often signals the end of the unit’s service life. The Rule of 5000 provides a clear financial framework for the repair-or-replace decision: multiply the repair cost by the unit’s age, and if the result exceeds 5000, replacement is the smarter investment. Regular maintenance — annual coil cleaning, filter changes, and capacitor checks — can extend a Lennox AC’s lifespan to 15-20 years, though NYC’s rooftop conditions and air quality may reduce that to 12-15 years.
