Can you repair solar water heaters in Brooklyn brownstones?
We repair solar water heaters in Brooklyn brownstones — our technicians handle the pipe runs from flat roofs to basement mechanical rooms in these pre-1940 buildings.
How we repair solar water heaters in Brooklyn brownstones
We repair solar water heaters in Brooklyn brownstones — our technicians handle the 3–5 story pipe runs from flat roofs to basement mechanical rooms, using dielectric unions at cast-iron connections in pre-1940 buildings. A brownstone’s flat roof is typically tar-and-gravel, which demands proper flashing at every penetration point; we inspect and reseal those during roof-level work. The solar loop itself runs through shared walls in attached row houses, so we coordinate noise restrictions under NYC’s 10 PM–7 AM quiet hours code. On my read, the most common issue in these buildings is a pump that’s lost prime after a power outage — the controller shows “running” but there’s no flow, and the homeowner doesn’t realize it until the hot water runs cold. We inspect and reseal roof penetrations during every roof-level repair to prevent leaks that would otherwise damage the brownstone’s interior.
Which Brooklyn neighborhoods do you cover?
- Park Slope: Brownstone rows with flat roofs and basement mechanical rooms — we handle the 3-story pipe runs and shared-wall access.
- Williamsburg: Mix of older brownstones and newer construction with solar-ready flat roofs.
- Cobble Hill: Pre-1940 buildings with cast-iron stacks requiring dielectric unions at every connection.
- Fort Greene: Attached row houses where roof access requires coordination with neighbors during repairs.
- Bed-Stuy: Large brownstones with 80–120 gallon storage tanks and 2–4 collector panels on the roof.
Do you replace solar collector panels?
We replace both flat plate and evacuated tube solar collector panels — and the process takes about three hours from start to finish.

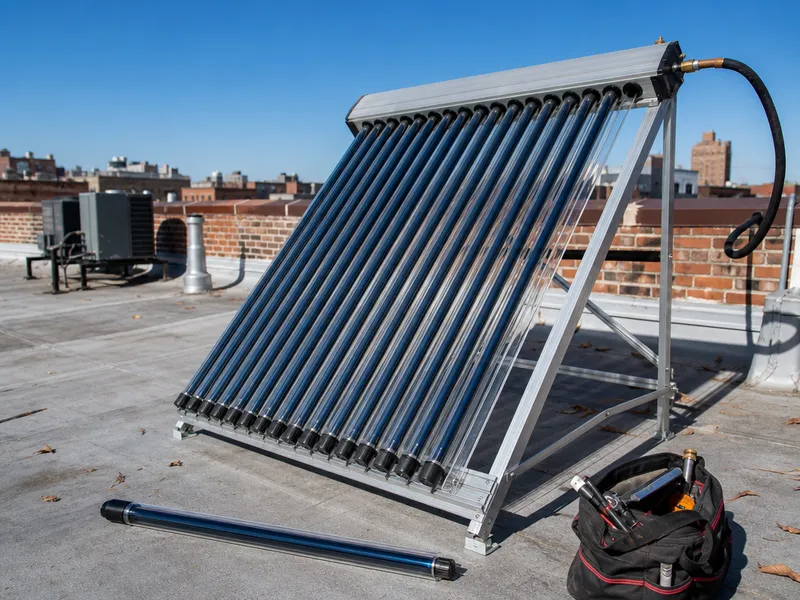

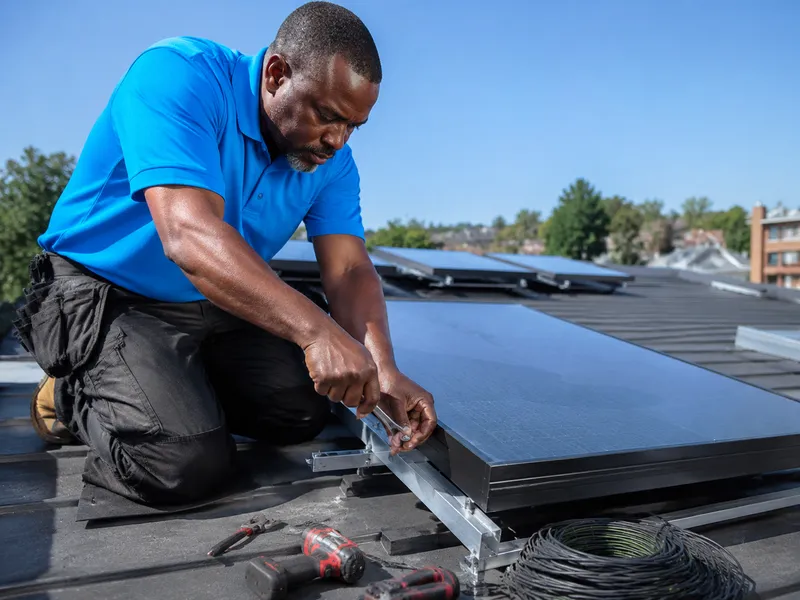

Flat plate and evacuated tube panel replacement
We replace both flat plate and evacuated tube solar collector panels — flat plate panels run $800–$1,500 installed, while evacuated tube collectors run $1,200–$2,000 installed, using OEM-spec replacement parts. Flat plate panels use a copper absorber plate in an insulated aluminum frame with tempered glass; evacuated tube collectors use glass tubes with selective coating and vacuum insulation. For Manhattan co-ops and Brooklyn brownstones with flat roofs, the panel weight matters: flat plates run about 100 pounds, evacuated tubes about 80. The matching process involves verifying the existing brand and mounting bracket spacing — Solahart systems from the 2000s sometimes need adapter fittings. Individual vacuum tube replacement costs $50–$100 per tube plus labor, which is often more cost-effective than replacing the entire collector when only one or two tubes fail.
The panel replacement process
- Drain the glycol loop: We isolate the solar loop at the storage tank and drain the glycol into a recovery drum — takes about 30 minutes for a standard 2–4 panel system.
- Disconnect and remove: Piping unions are disconnected at the collector, mounting brackets unbolted, and the old panel lifted off the roof rack — about 20 minutes per panel.
- Inspect the roof mounting: We check for corroded brackets, degraded sealant around roof penetrations, and structural integrity of the flat roof rack — 15 minutes that can save you from a repeat call.
- Install the new panel: Align mounting brackets, connect piping with dielectric unions to prevent galvanic corrosion between copper and steel, and torque all bolts — roughly 45 minutes.
- Pressure test and refill: The solar loop is pressurized to 50–80 psi for 15 minutes, then we refill with fresh propylene glycol at 30–50% concentration and purge air from the high-point vents.
- System restart: We verify controller readings, check flow with an ultrasonic flow meter (target 1–3 GPM), and confirm no leaks — total time around 3 hours for a single panel replacement.

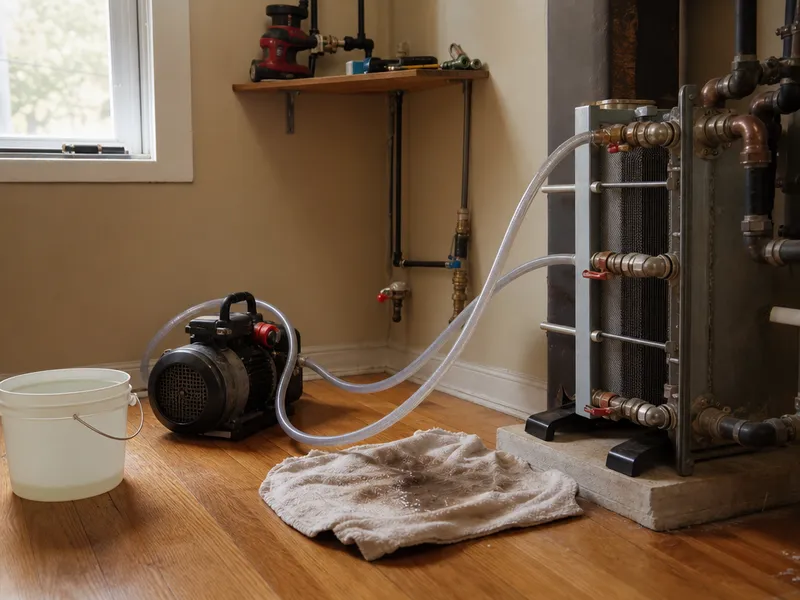

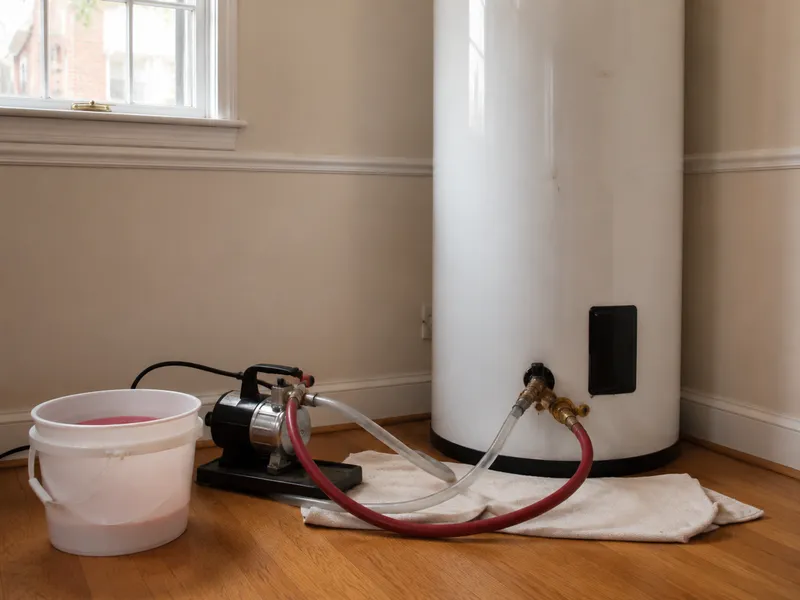

How do you flush the solar loop?
A solar loop flush removes degraded glycol and sludge that reduce system efficiency. We perform this maintenance procedure professionally in all five NYC boroughs.
When and why to flush the solar loop
We flush the solar loop every 3–5 years or sooner if glycol turns dark and pH drops below 7.0. Degraded glycol causes pump cavitation and impeller damage that many homeowners mistake for pump failure. A glycol refractometer measures freeze protection — we target -20°F to -40°F — while pH test strips check acidity. NYC hard water accelerates scaling in the heat exchanger, which can drop efficiency 30–50% over five years. Dark, acidic glycol below pH 7.0 is the #1 cause of circulation pump failure in NYC solar systems — flushing the loop first can save you $300–$600 on an unnecessary pump replacement.
The flush process and cost
- Cost and time: Our solar loop flush runs $200–$400 and takes about 2 hours — we drain old glycol into a recovery container, circulate a citric acid flush solution, refill with fresh 30–50% propylene glycol, and pressure test at 50–80 psi.
- Air purging: After refilling we bleed high-point vents to prevent pump cavitation — an airlocked pump shows no flow even when the controller says it’s running.
- Pressure check: We hold the loop at 50–80 psi for 15 minutes to verify no leaks at the collector connections or tank unions.
- Disposal: Glycol is hazardous waste and cannot go down the drain — we handle proper disposal as part of every flush service.

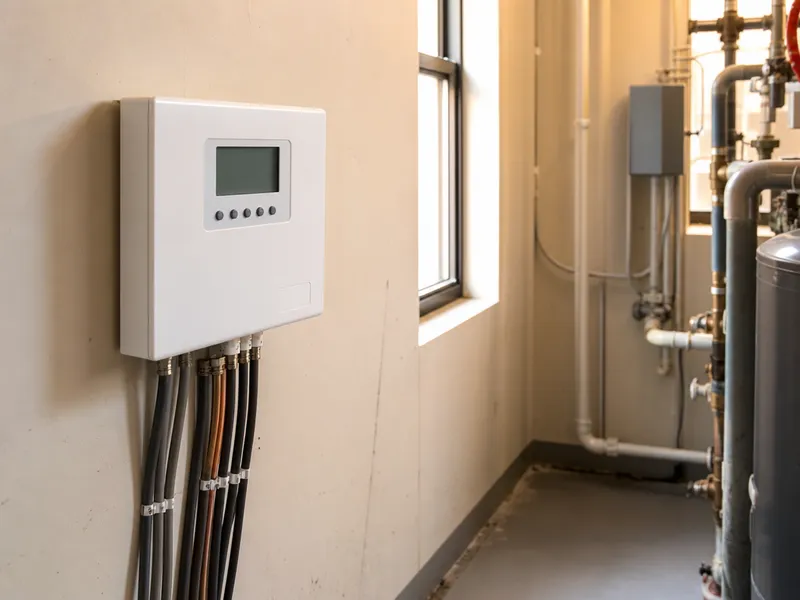

How do you reset a solar water heater controller?
Controller error codes don’t always mean hardware failure — sometimes a reset clears the issue, but when it doesn’t, we diagnose the root cause in the sensor or pump circuit.
Common controller error codes and what they mean
| Error Code | Meaning | Likely Cause | Our Fix |
|---|---|---|---|
| E1 | Collector sensor fault | Sensor wiring damage or sensor failure | Check continuity with multimeter; replace sensor ($30–$80 part + $100–$150 labor) |
| E2 | Pump fault | Pump seized, airlock, or relay failure | Verify pump voltage, check for airlock, replace pump if seized |
| E3 | Overheat | Stagnation in summer, no load | Check glycol condition, verify pump operation, add heat dump |
| E4 | Tank sensor fault | Sensor drift or wiring issue | Test sensor resistance, replace if reading 10–20°F off |
When a power cycle isn’t enough
If power cycling the controller doesn’t clear the error, we check sensor continuity with a multimeter and verify pump relay function — sensor drift of 10–20°F is a common intermittent problem that doesn’t show up on a simple reset. At Eco Service NY, we carry a Fluke 117 multimeter and a heat gun to test the differential thermostat directly: we heat the collector sensor and watch for the pump relay to click on. A controller that shows the wrong temperature but runs the pump anyway wastes energy and can overheat the system — we’ve seen this cause glycol degradation in as little as one summer season.
Flat plate vs evacuated tube collectors: which is better for NYC?
Choosing between flat plate and evacuated tube solar collectors comes down to how the system will sit on a NYC roof and what weather conditions it faces most of the year.
| Feature | Flat Plate Collector | Evacuated Tube Collector |
|---|---|---|
| Efficiency | 60–75% | 70–85% in cold conditions |
| Best for | NYC climate — handles snow load, wind, hail | Overcast days, diffuse light, winter performance |
| Lifespan | 20–30 years | 15–25 years (tubes 10–15 years) |
| Weight | ~100 lbs per panel | ~80 lbs per collector |
| Installed cost | $800–$1,500 per panel | $1,200–$2,000 per collector |
| Repair | Glass replacement $200–$400; absorber recoating | Individual tube replacement $50–$100 per tube |
| NYC consideration | Better for exposed flat roofs with wind load | More fragile but snow slides off tubes |
Which collector type do we recommend for NYC brownstones?
For most NYC brownstones with exposed flat roofs, we recommend flat plate collectors — they handle wind loads better and the tempered glass resists hail damage common in spring storms. A flat plate panel weighs about 100 pounds and sits low on roof racks, which means less leverage on the mounting brackets during a gust off the East River. The absorber plate is copper in an insulated aluminum frame, so a single panel lasts 20–30 years with only occasional glass replacement ($200–$400) if a branch or debris hits it. If your brownstone is in a sheltered location or you prioritize winter performance, evacuated tubes perform better on overcast days — but the individual tubes are more fragile and may need replacement at 10–15 years.
What tools do you use for solar diagnostics?
Our diagnostic approach combines standard electrical testing with solar-specific tools to pinpoint problems in the glycol loop, collector array, and controller without guesswork.

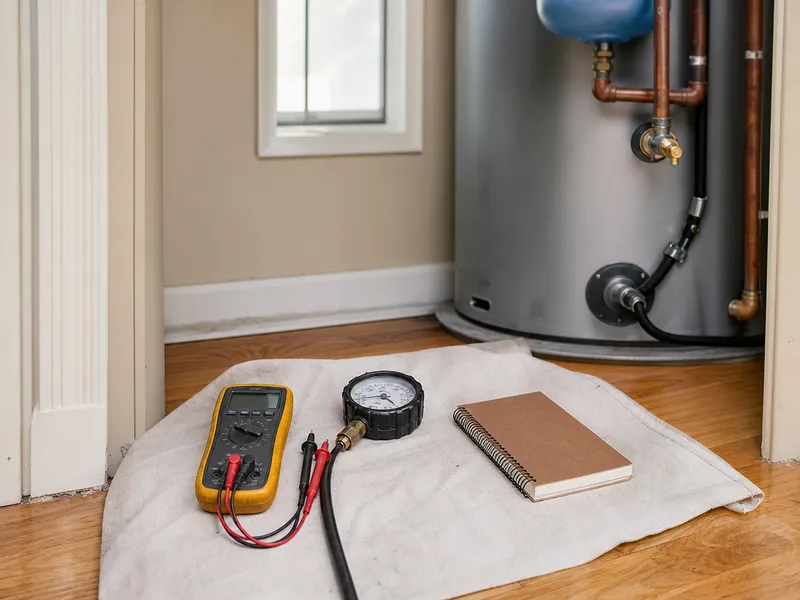

Our solar diagnostic tool kit
- Fluke 117 multimeter: Checks sensor continuity in the collector and tank probes — a 10–20°F drift between them is a common intermittent problem that a power cycle won’t fix.
- Glycol refractometer: Measures freeze protection in the loop; we target a −20°F to −40°F freeze point, and anything above −10°F means the glycol needs replacement.
- Ultrasonic flow meter: A clamp-on unit that reads flow rate through the solar loop without cutting pipes — we look for 1–3 GPM, and anything below 0.5 GPM usually means pump cavitation or an airlock.
- Thermal imaging camera: Lets us spot heat exchanger fouling and collector blockages without disassembling anything — we can diagnose a 30–50% efficiency loss from hard water scale in under 10 minutes.
How long does a full diagnostic take?
A comprehensive solar diagnostic takes 60–90 minutes — we start with visual inspection and error code reading, then check temperature differential, pressure, glycol condition, and flow rate. The glycol refractometer and pH strips alone tell us whether the loop fluid is acidic (pH below 7) and needs replacement before we move on to pump or sensor testing. In our practice, most of the time we can tell you what’s wrong within 15 minutes of walking in — the rest is confirming the diagnosis and checking for secondary issues like glycol degradation or sensor drift that would cause a repeat call if missed.
What maintenance does a solar hot water system need?
Annual maintenance keeps your solar water heater running efficiently and prevents costly component failures — we recommend scheduling a checkup every spring before the summer sun loads the system.
Annual solar water heater maintenance checklist
- Glycol freeze point and pH test: We use a refractometer to check freeze protection (target -20°F to -40°F) and pH strips — a pH below 7.0 means acidic degradation that will damage the pump and heat exchanger, catching this early saves $500–$1,000 in component replacements.
- Pressure check: The solar loop should hold 50–80 psi cold; we verify the expansion tank air charge matches system pressure and test the pressure relief valve annually.
- Pump flow verification: We use a clamp-on ultrasonic flow meter to confirm 1–3 GPM through the loop — low flow indicates pump cavitation, airlock, or a blocked heat exchanger.
- Collector and storage tank inspection: We check flat plate glass for cracks, mounting brackets for corrosion, and inspect the anode rod inside the storage tank — NYC’s hard water (7–10 grains hardness) accelerates rod depletion.
- Controller and sensor check: We read error codes from the differential thermostat, verify collector and tank sensor continuity with a multimeter, and check for the 10–20°F sensor drift that causes intermittent pump operation.
Glycol replacement and anode rod schedule
Glycol needs replacement every 3–5 years (sooner if pH drops below 7.0 or the fluid turns dark and sludgy), and the sacrificial anode rod should be replaced every 3–5 years to prevent storage tank corrosion. NYC’s hard water — 7–10 grains hardness — accelerates anode rod depletion; we’ve seen rods completely consumed in 3 years in Brooklyn brownstones with high water usage. The glycol degrades faster in systems that experience summer stagnation (no-load temperatures above 300°F), breaking down the propylene glycol into acidic compounds that attack the pump seals and heat exchanger. On my read, skipping this schedule is the single most common reason a 10-year-old solar system needs a full pump-and-heat-exchanger rebuild — a $1,500–$2,500 job that a $200 maintenance visit would have prevented.
Can you install a new solar water heater in NYC?
We install complete solar water heater systems across all five NYC boroughs and handle the NYC DOB permit process for every job.
Solar water heater installation options and costs
- New complete solar water heater system: $4,000–$8,000 — includes 2–4 collector panels, an 80–120 gallon dual-coil storage tank, solar loop piping, and all OEM-spec components.
- Solar retrofit to an existing water heater: $3,000–$5,000 — adds a solar collector panel and a heat exchanger to your current tank; works best with a pre-tapped tank that has an extra port.
- Replacement of an existing solar system: $3,500–$7,000 — removes old panels and tank, installs new equipment, and reuses existing roof mounts if they pass structural inspection.
- NYC DOB permit handling: We submit the permit application and schedule the required inspections — this adds 2–4 weeks to the timeline but ensures the installation meets NYC building code.
Typical NYC solar installation timeline
A complete solar water heater installation takes 2–3 days on site — we mount 2–4 collector panels on the roof, install an 80–120 gallon dual-coil storage tank, and connect the solar loop with OEM-spec components. For Manhattan co-op buildings, the timeline often stretches because the board requires a permit and insurance certificate before any roof work begins. Roof structural load assessment is critical for NYC brownstones — older buildings may need reinforcement before supporting the ~400 lbs of a 4-panel system plus storage tank.
Final thoughts on solar water heater repair in NYC
Main takeaways
Solar water heater repair in NYC requires specialized knowledge of both plumbing and solar thermal systems — from glycol loop maintenance to collector panel replacement and controller diagnostics. The flat roof installations common on Brooklyn brownstones and Manhattan co-ops present unique challenges: long pipe runs from roof to basement, shared-wall access restrictions, and exposure to wind loads that flat plate collectors handle better than evacuated tubes. And the most common issues we see in NYC solar systems — glycol degradation, pump failure, and controller sensor drift — are all preventable with annual maintenance that costs a fraction of emergency repairs.
