What’s the best glass thickness for your shower door?
Glass thickness for a shower door depends on the door style, its width, and whether the door is framed or frameless — and NYC code requires tempered safety glass at any thickness.
Glass thickness options for shower doors
| Thickness | Best for | Weight per sq ft | Max door width |
|---|---|---|---|

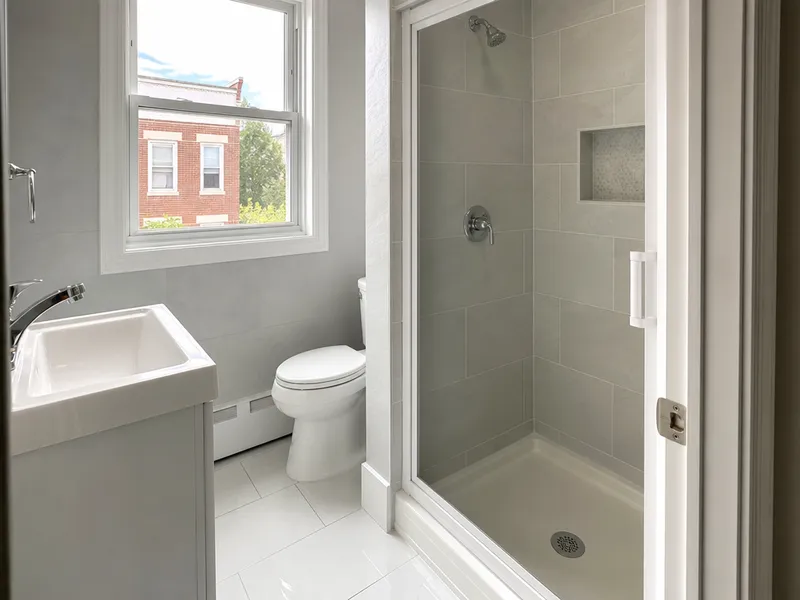

| 1/4″ (6mm) | Framed doors — the frame carries the structural load | ~3.5 lbs | Up to 30″ |
| 3/8″ (10mm) | Frameless doors — standard choice across NYC installations | ~5 lbs | Up to 36″ |
| 1/2″ (12mm) | Oversized panels, doors wider than 36″, commercial applications | ~7 lbs | Over 36″ |

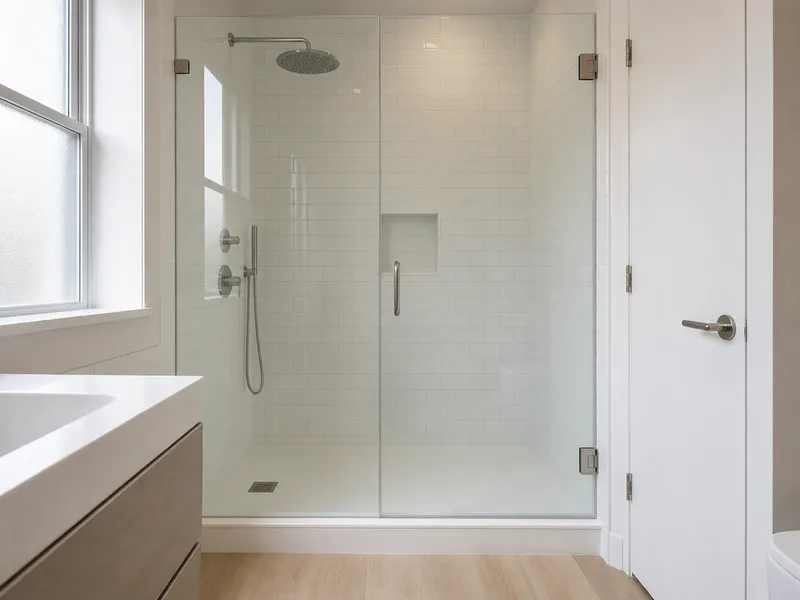

Why 3/8″ is the standard for frameless doors

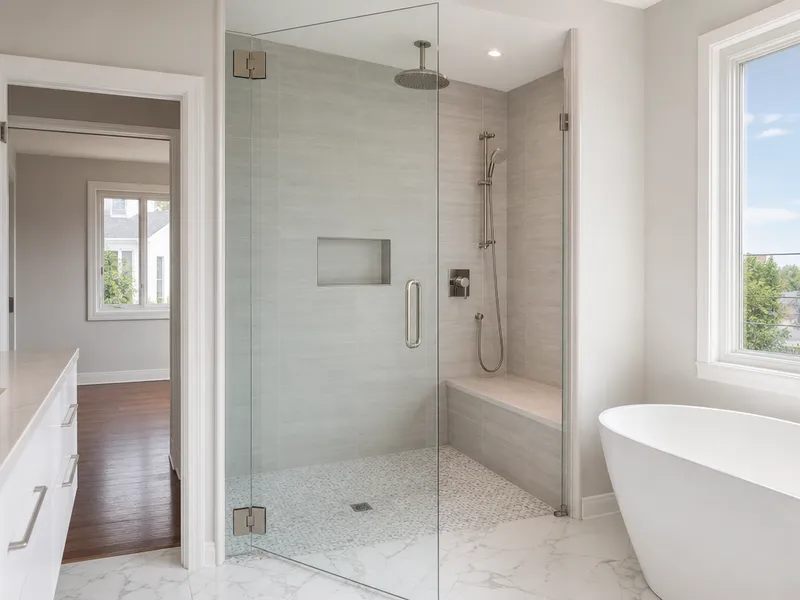

3/8″ tempered glass is the industry standard for frameless shower doors because it balances strength, weight, and cost — thick enough to resist flexing without requiring the heavy-duty hinges that 1/2″ glass demands. At roughly 5 lbs per square foot, a standard 30″ x 72″ frameless panel weighs about 75 lbs, which is within the rating range of most residential pivot and side-mount hinges from CRL and Hafele. The 3/8″ thickness also handles the non-square openings common in pre-war buildings and Brooklyn brownstones, where walls can be 1-2 inches out of plumb. In NYC, most frameless installations use 3/8″ because it gives enough rigidity to span slightly irregular openings without putting excessive hinge stress on the door.
Low-iron vs standard clear glass
Low-iron glass reduces the green tint in standard clear glass by about 70-80%, making it the preferred choice for frameless doors where the glass edge is visible and the panel is the main visual surface. Standard clear glass gets its green cast from iron oxide in the silica — visible most at the cut edge and in thicker panels like 3/8″. Low-iron glass costs 20-30% more than standard clear, but in a well-lit NYC bathroom with white tile or marble, the difference is dramatic: standard glass can make the whole room look slightly green, especially in the afternoon light that hits a south-facing Manhattan apartment. For what it’s worth, I see homeowners regret skipping the upgrade about nine times out of ten in bathrooms with light-colored finishes.
Can we install a shower door on your tiled shower?
Yes — tile is the most common surface we install shower doors on in NYC. The key is proper drilling technique and anchor selection for the tile type and backing material.

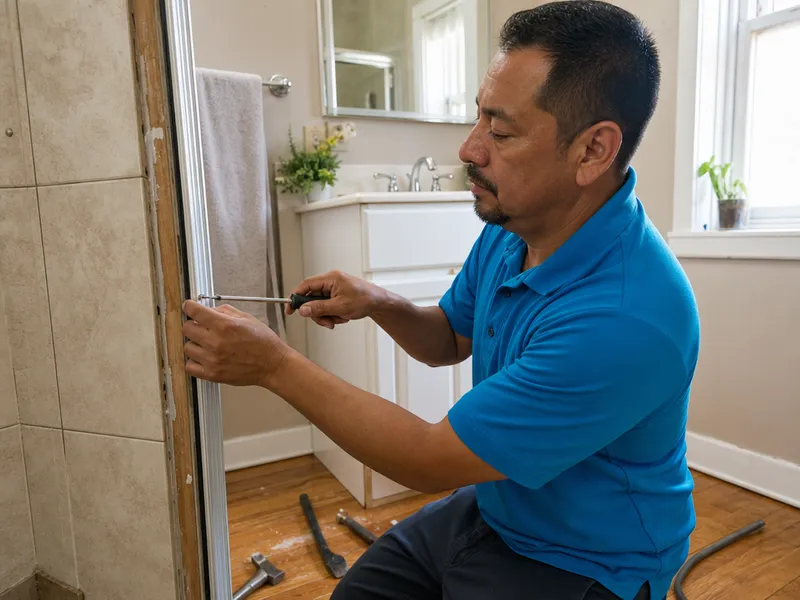

How we drill through tile without cracking it
- Drill through grout lines: Grout is softer and less likely to crack than tile body — we aim for grout lines whenever possible.
- Use carbide-tipped bits: Standard drill bits overheat and crack tile; carbide-tipped masonry bits cut cleanly at slow speed with a water drip to prevent heat fractures.
- Match anchors to backing: Plastic expansion anchors for tile over drywall; toggle bolts for tile over greenboard; drop-in anchors for tile over concrete or masonry.
- Check tile condition first: We tap each tile around the opening — a hollow sound means loose tile that needs repair before drilling.
What about greenboard behind the tile?
If your tile is over greenboard — common in 1990s NYC renovations — standard anchors won’t hold because greenboard disintegrates when wet, and we’ll need to repair the backing before installing the door. On a recent Brooklyn brownstone job, the test drill came up with wet, crumbly dust, which told us the greenboard was already compromised behind the tile. We check by test-drilling a small hole; if the backing crumbles, we install a ¾-inch plywood backing plate behind the tile before mounting the door hinges — this gives the toggle bolts something solid to bite into.
Silicone and curing time

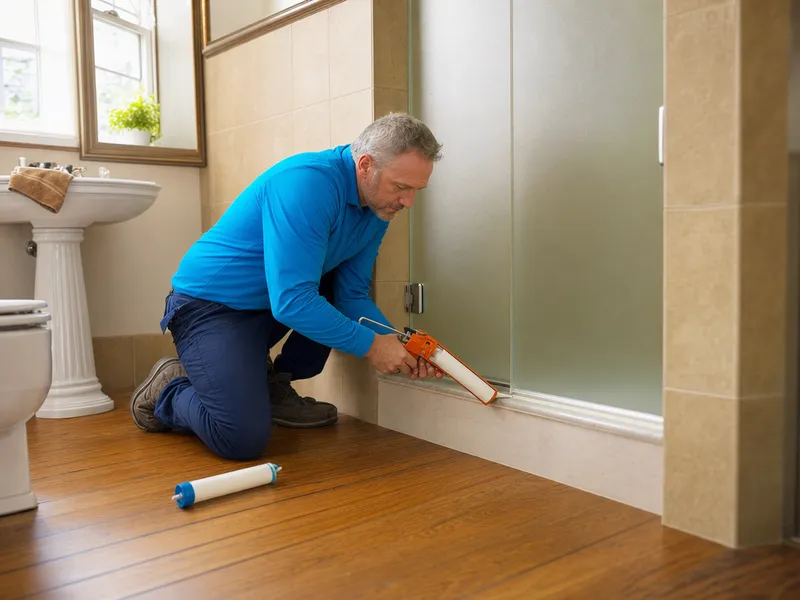

We apply 100% silicone (never bathroom caulk) to the threshold and wall jambs before setting the glass, and we require 24 hours of cure time before you use the shower. Bathroom caulk is acrylic-based and will fail within months — it’s not waterproof. The silicone bead gets tooled with a popsicle stick for a clean, uniform seal at the wall-to-threshold joint. In our practice, the most common callback we see on other contractors’ jobs is water damage from silicone that was disturbed before it fully cured.
How to measure for a shower door
Accurate measurement is the difference between a door that fits perfectly and one that leaks. Here’s how we measure for shower doors in NYC — and what to watch for in older buildings.
The three measurements you need
- Width: Measure at top, middle, and bottom of the opening — use the smallest number.
- Height: Measure left, center, and right — use the shortest measurement.

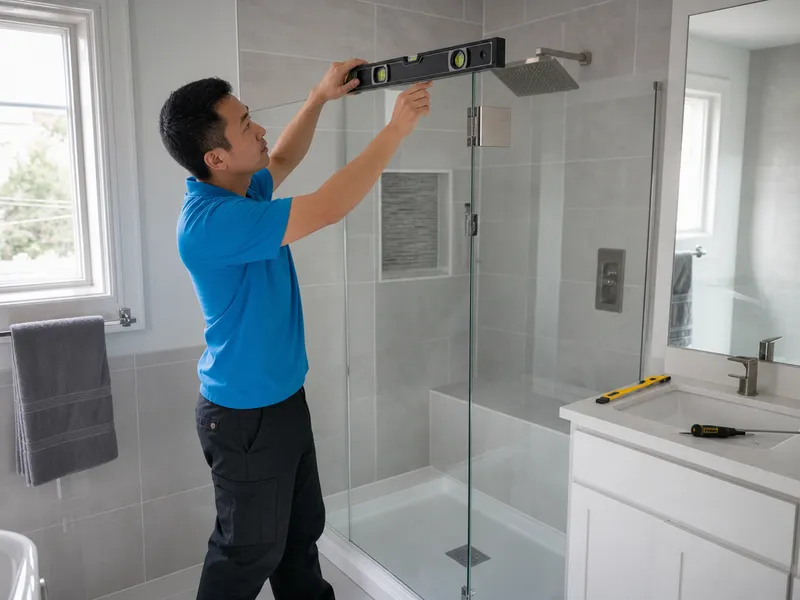

- Plumb check: Hold a 4-ft level vertically against both side walls — note any deviation.
- Reveal calculation: For framed doors, subtract ½″ from width; for frameless, allow ⅛″ gap on each side for silicone.
What to do when your opening isn’t square

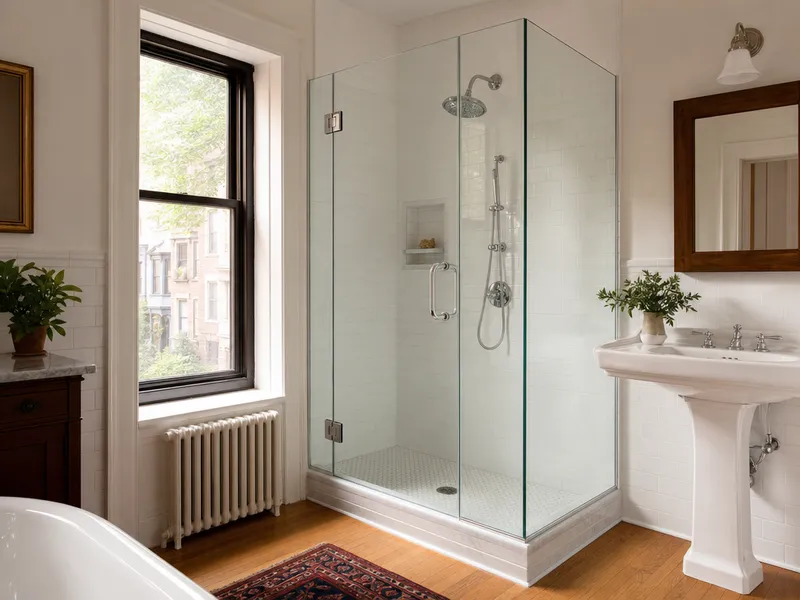

When we encounter non-square openings — common in pre-war Manhattan apartments and Brooklyn brownstones — we order custom-cut glass panels and use adjustable hinges to compensate for out-of-plumb walls. A 4-ft level on the side wall will show whether the opening is off by ¼″ or a full inch. In brownstones built before 1920, we regularly see walls 1–2 inches out of plumb, which means a standard 30-inch door from a big-box store simply won’t work — it’ll leave a wedge-shaped gap at the top or bottom. Standard off-the-shelf shower doors assume perfectly square openings, which almost never exist in NYC buildings built before 1950 — custom fabrication is the only reliable solution.
Tools we use for measuring
- Metal tape measure (25 ft): Fabric tapes stretch over time — metal stays accurate.
- 4-ft level: For checking plumb on both side walls and level on the threshold.
- Laser level: Essential for long spans and checking threshold slope.
- Stud finder: Locates backing behind tile to ensure anchors have something solid to grip.
How to prevent water leakage from your shower door
Water leakage is the most common complaint we hear about shower doors — and it’s almost always fixable with proper seals, alignment, and maintenance. Here’s what we do to keep water where it belongs.
Sweep seals and magnetic seals
| Seal type | Location | How it works | When to replace |
|---|---|---|---|
| Sweep seal (U-channel) | Bottom of door | Contacts threshold with 1/8″ minimum overlap | When gap exceeds 1/4″ or seal is cracked |
| Magnetic strip | Vertical door edge | Magnets seal against metal strike plate on jamb | When magnets weaken or strip peels |
| Fin-type seal | Bottom or side | Flexible fin presses against surface | Every 12–18 months with silicone maintenance |

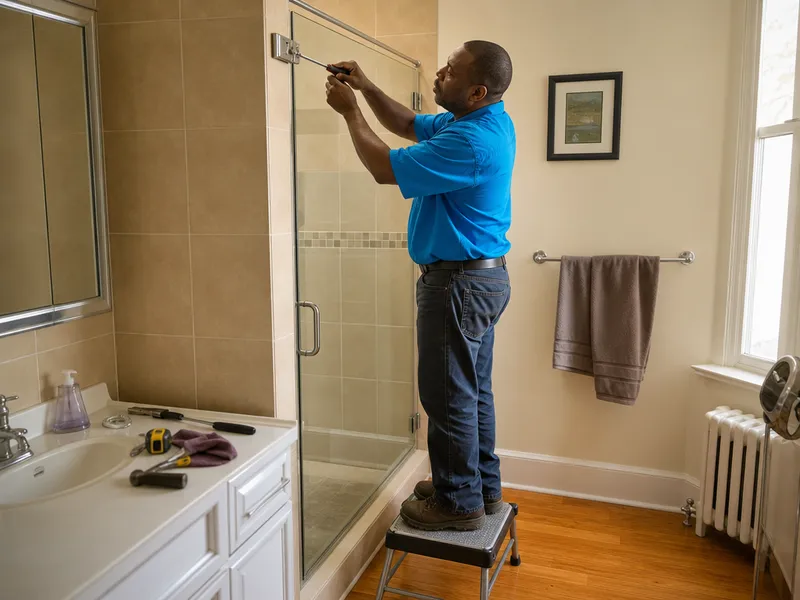

How we fix a leaking door

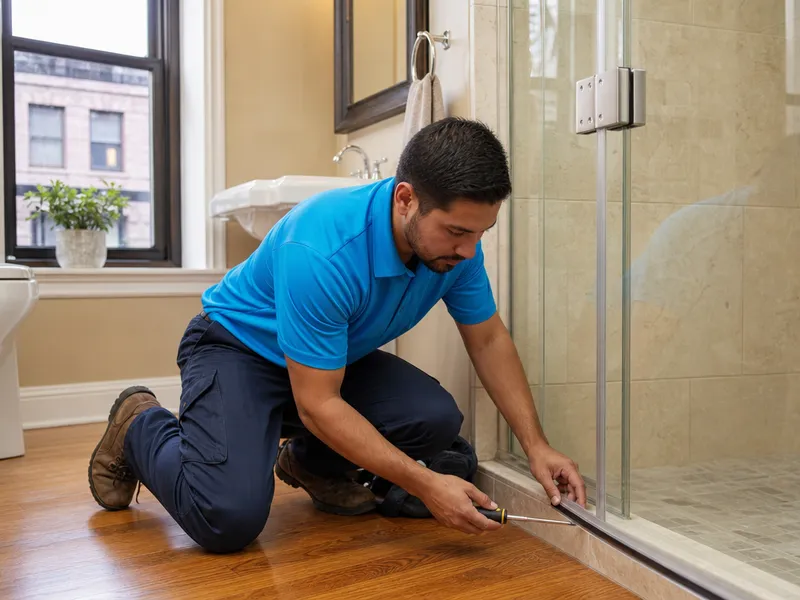

- Check hinge alignment: Tighten hinges with a 4mm or 5mm hex key — sagging hinges create gaps at the bottom corners where water escapes first.
- Adjust sweep seal: Ensure the sweep contacts the threshold by at least 1/8″ — replace the seal if the gap exceeds 1/4″ because even a small opening lets water run under.
- Re-apply silicone: Remove old silicone at wall-to-threshold joints and apply fresh 100% silicone every 12–18 months — don’t use bathroom caulk, it’s not waterproof.
- Perform a water test: After adjustments, pour water along the door edge with a cup and watch where it escapes — then target that exact spot with a seal adjustment or silicone touch-up.
Threshold slope and drainage
The threshold must slope toward the drain at 1/4 inch per foot — if it doesn’t, water pools at the door edge and escapes under the sweep seal. In many NYC apartments, the floor settled unevenly over decades, so the threshold is level or even slopes away from the drain. When we encounter that, we install a diverter bar along the threshold edge or drill weep holes through the curb to redirect standing water back toward the drain. On my read, this is the single most overlooked cause of persistent leakage — homeowners chase seals and hinges for months when the real fix is a 1° slope correction.
How to clean and maintain your shower glass door
A shower glass door that’s cleaned properly will stay clear and spot-free for years. Here’s the maintenance routine we recommend to our NYC customers — daily, weekly, and monthly.
Daily and weekly cleaning routine
- Daily: Squeegee the glass after every shower using a silicone-blade squeegee ($8-15 at any hardware store) — this alone prevents 90% of hard water buildup.
- Weekly: Spray with 1:1 white vinegar and water solution, let sit 2 minutes, wipe with microfiber cloth.
- Hardware: Wipe hinges and handles with a damp cloth — avoid abrasive cleaners on brushed nickel or matte black finishes.
Monthly deep cleaning and hard water removal

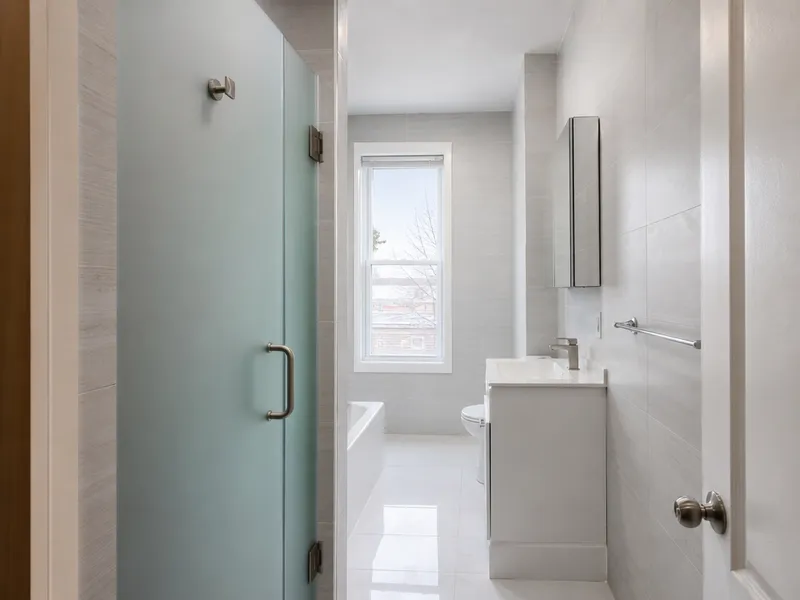

For stubborn hard water stains, apply CLR or undiluted white vinegar, let it sit for 15 minutes, then scrub with a non-scratch pad (blue Scotch-Brite pad) and rinse thoroughly. NYC water is moderately hard at 7-10 grains per gallon, which means mineral deposits accumulate faster here than in cities with softer supply — the vinegar soak dissolves calcium carbonate without etching the glass surface. Never use abrasive cleaners or razor blades on frosted or textured glass — they damage the etched surface permanently, and the only fix is replacing the glass panel.
Optional ceramic coating
We offer ceramic coating application (like Rain-X or Shower Guard) that reduces water spotting by about 60% and needs reapplication every 6-12 months. The coating works by filling microscopic pores in the glass so water beads up and runs off instead of drying into spot-causing droplets. Ceramic coating is especially worth it in NYC bathrooms with poor ventilation — the coating makes water bead up and run off, so even without a squeegee, the glass stays cleaner longer.
Final thoughts on choosing your shower glass door
Main takeaways
Choosing the right shower glass door for a NYC bathroom comes down to three things: glass thickness matched to the door type, proper measurement accounting for non-square openings in older buildings, and correct installation with 100% silicone and sweep seals. Frameless doors with 3/8″ tempered glass are the standard for good reason — they balance durability with clean aesthetics. Daily squeegeeing and weekly vinegar cleaning will keep the glass clear for years. The most common problems — water leakage, hard water stains, and hinge sag — are all preventable with the right materials and routine maintenance. Whether you’re renovating a Brooklyn brownstone or updating a Manhattan co-op, the same principles apply: measure carefully, use the right hardware, and never skip the silicone cure time.
