Washer Dryer Hookup Installation in NYC

What is a standpipe and why is it important?

A standpipe is the vertical drain pipe that connects your washing machine to the building’s plumbing system — and NYC code requires one for every new washer installation. Without it, your machine can’t drain properly.

What a standpipe does and why NYC code requires one

We install standpipes as the vertical drain pipe that connects your washing machine to the building’s drain system — per 2020 NYC Plumbing Code Section 802.4, it must be 18–30 inches above the trap weir and at least 2 inches in diameter. The standpipe creates an air gap between the drain hose and the wastewater, preventing siphonage that would pull contaminated water back into your machine during the fill cycle. A 2-inch P-trap below the standpipe maintains a minimum 6-inch water seal that blocks sewer gas from entering your living space. On my read of the code, the 18-inch minimum height is the single most violated rule in NYC laundry installations. Pre-war NYC buildings often have 12-inch standpipes that cause overflow with modern high-efficiency washers — extending them to the 18-inch minimum is one of the most common upgrades we do.

Standpipe height and diameter requirements

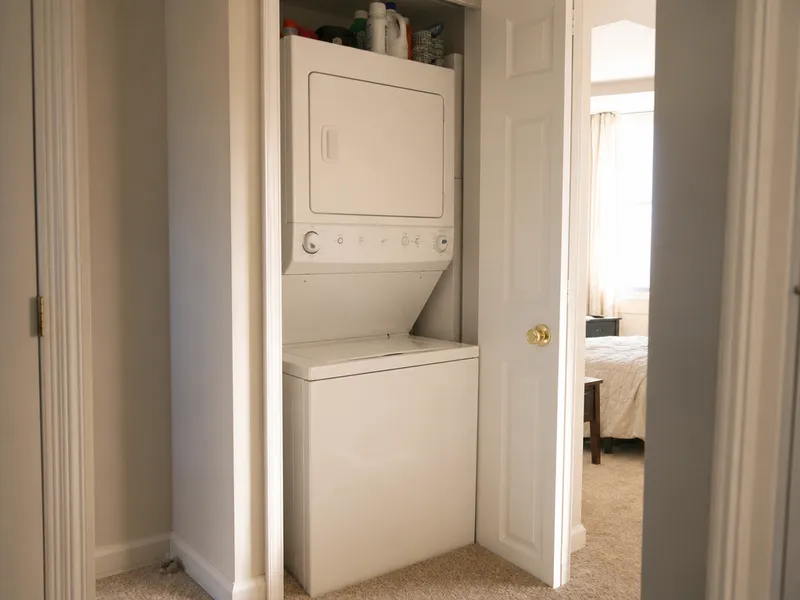

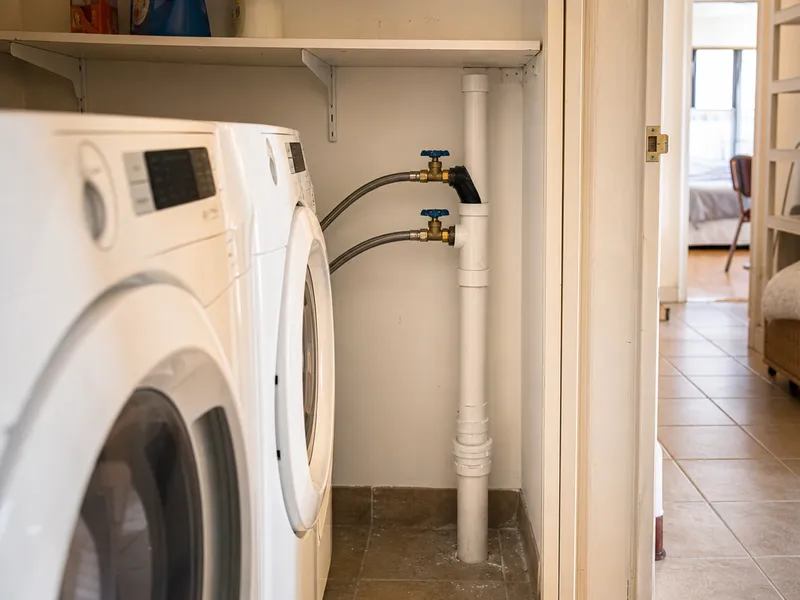

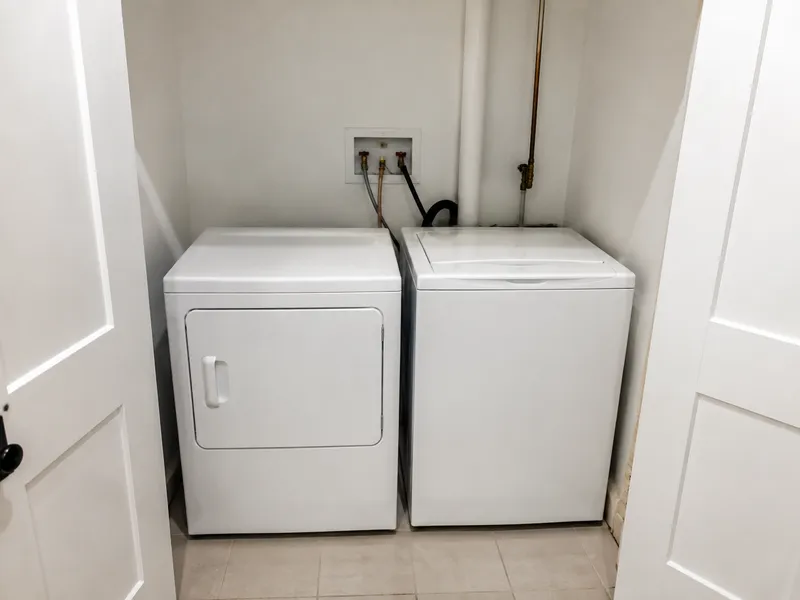

Can you install a washer dryer in a closet?

Closet installations are common across NYC apartments, but they require careful planning around dimensions, ventilation, and building rules to work reliably.

Minimum closet dimensions for washer dryer installation

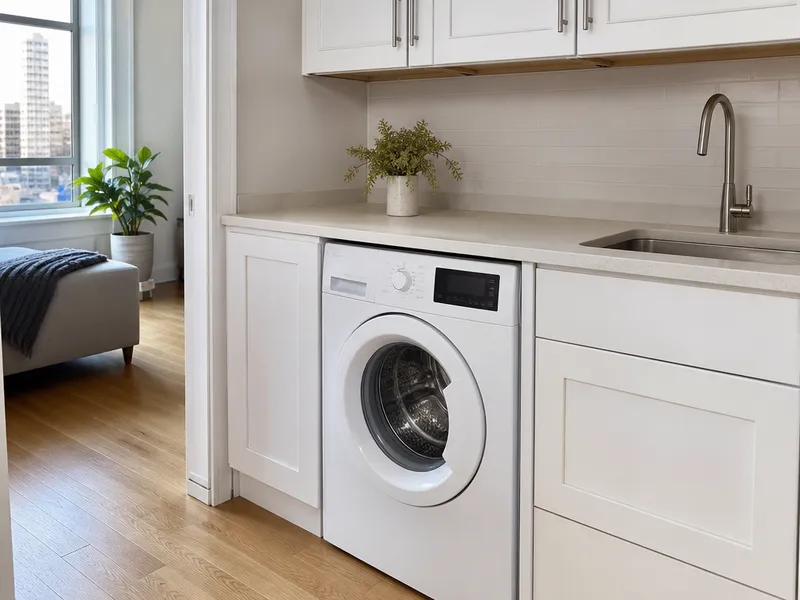

• Compact (24-inch) units: Fit in closets 28 inches wide × 30 inches deep — the LG WM3488HW and Bosch WAT28401UC are popular 24-inch models that work in tight Brooklyn pre-war closets.

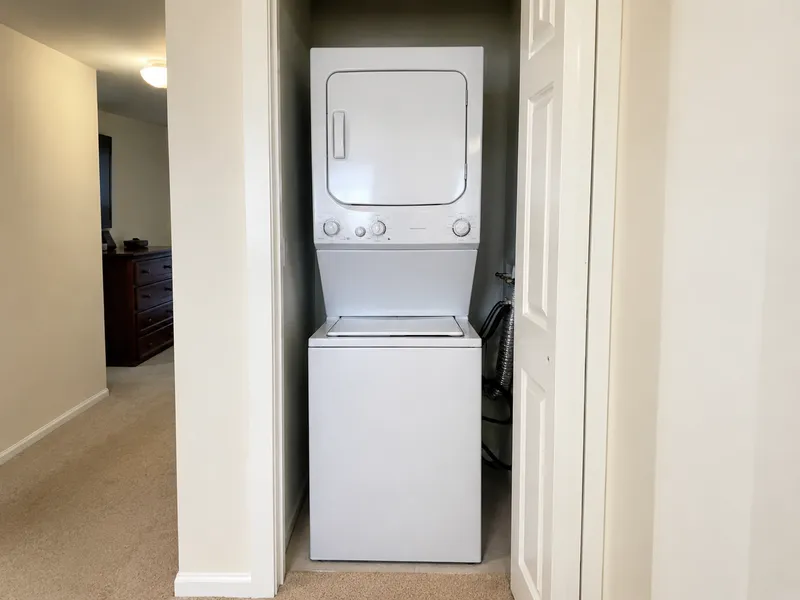

• Full-size stackable units: Need 30 inches wide × 36 inches deep × 84 inches tall — a standard setup for a Whirlpool or Samsung stack in a newer co-op.
• Door height trap: Many NYC closets have 78-inch doors, but stackable units need 75–80 inches of vertical clearance — measure door opening height before ordering, or choose a compact 24-inch unit that fits under standard 80-inch openings.
• Floor leveling: Closet floors must be within ¼ inch over 3 feet — we shim units on the job when brownstone floors slope toward the drain.
• Access clearance: The closet door must open outward or be a bifold/pocket door — standard inward-swing doors block the unit and violate manufacturer installation specs.

Ventilation requirements for closet installations

Gas dryers in closets require 60 square inches of louvered vent area (typically split between top and bottom of the door), while electric dryers need 40 square inches per 2020 NYC Mechanical Code Section 504. In practice, that means a closet door with two 5×6-inch grilles for a gas setup or two 4×5-inch grilles for electric. The lower vent draws combustion air in, the upper vent exhausts heat and moisture. Ventless condenser or heat pump dryers eliminate the vent requirement entirely — they’re the best option for closets without exterior wall access, which is common in NYC high-rise co-ops where drilling through a shared corridor wall isn’t allowed.

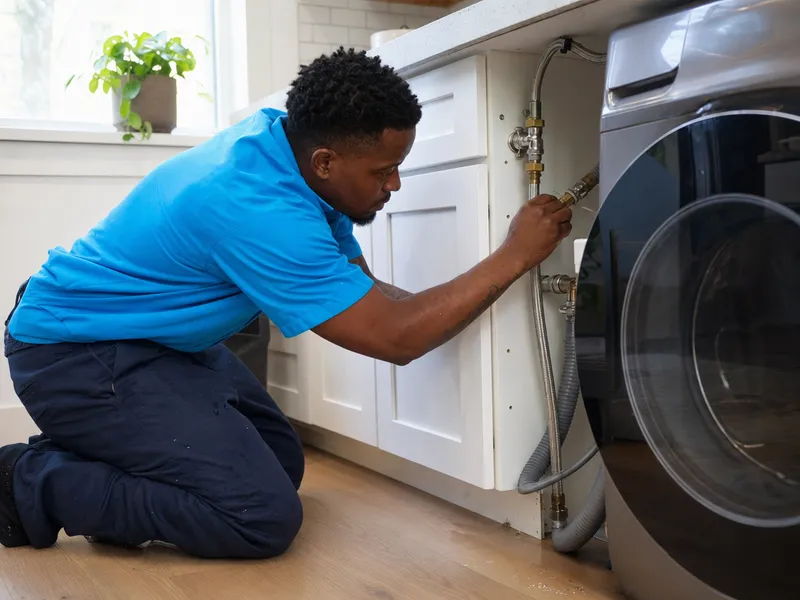

What size water supply lines do you need?

NYC code requires standard 3/4-inch hot and cold supply lines terminating in 1/2-inch connections with 3/4-inch hose thread at the washing machine outlet box — here is what to check before installation.

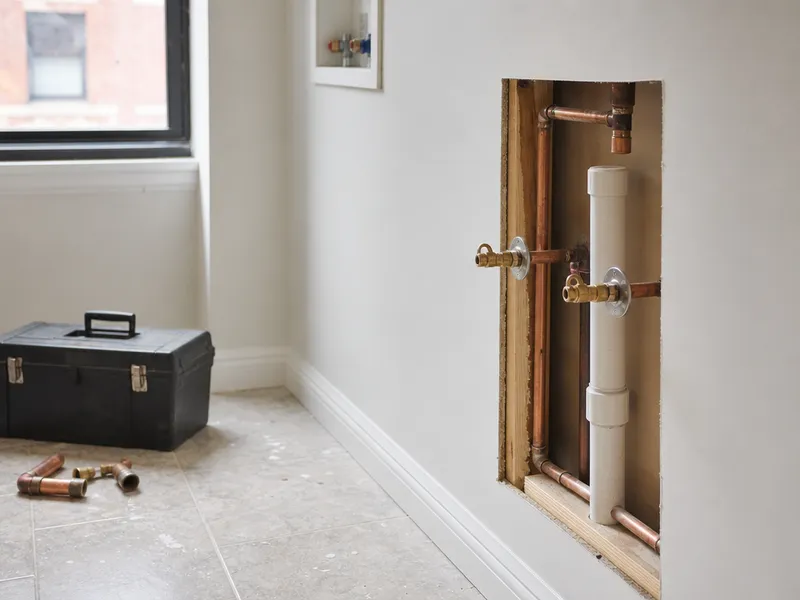

Standard water supply line sizes and connections

• Supply line size: We run 3/4-inch copper or PEX hot and cold lines from the nearest source to a recessed outlet box — this diameter supports the 3–5 GPM flow modern washers need.
• Outlet box connections: The box terminates in 1/2-inch connections with standard 3/4-inch hose thread, which matches every washing machine supply hose on the market.
• Hose material: Braided stainless steel supply hoses — 4-foot standard length, 5-foot or 6-foot for longer runs — resist bursting better than rubber hoses.
• NYC water pressure: Most buildings run 40–80 PSI; if pressure exceeds 80 PSI, a pressure regulator is needed to protect the washer’s internal valves.
• Pre-war buildings: Corroded galvanized steel supply lines drop flow below the 3 GPM minimum that high-efficiency washers need to fill properly — full replacement with copper or PEX is the fix.

Shut-off valves and outlet box requirements

We install quarter-turn ball valves in a recessed outlet box — NYC code requires an accessible shut-off valve within 6 feet of the washing machine, and quarter-turn valves are far more reliable than multi-turn gate valves that seize up over time. The recessed outlet box itself provides a clean connection point with built-in leak protection and keeps the valves accessible behind the machine. In high-rise buildings with pressure-reducing valves, we’ve measured flow dropping below 3 GPM on the hot side alone — a booster pump solves that, but it’s something we check before connecting the supply hoses. If your existing shut-off valve is behind the washer where you can’t reach it, we relocate it to an accessible spot — this is a common issue in older NYC apartments where the valve was installed without considering future maintenance access.

Electrical requirements for your dryer

Here is what the 2025 NYC Electrical Code demands for both electric and gas dryers — the circuit, outlet, and wiring specs we follow on every installation.

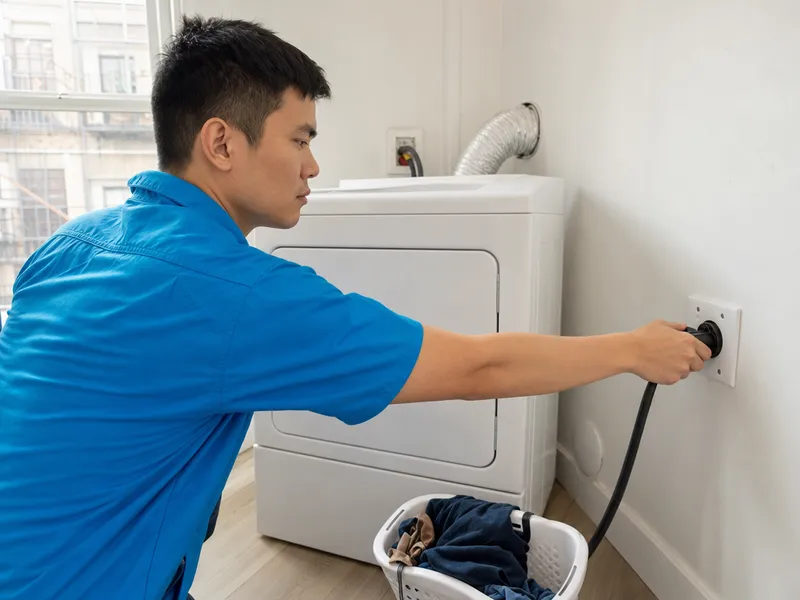

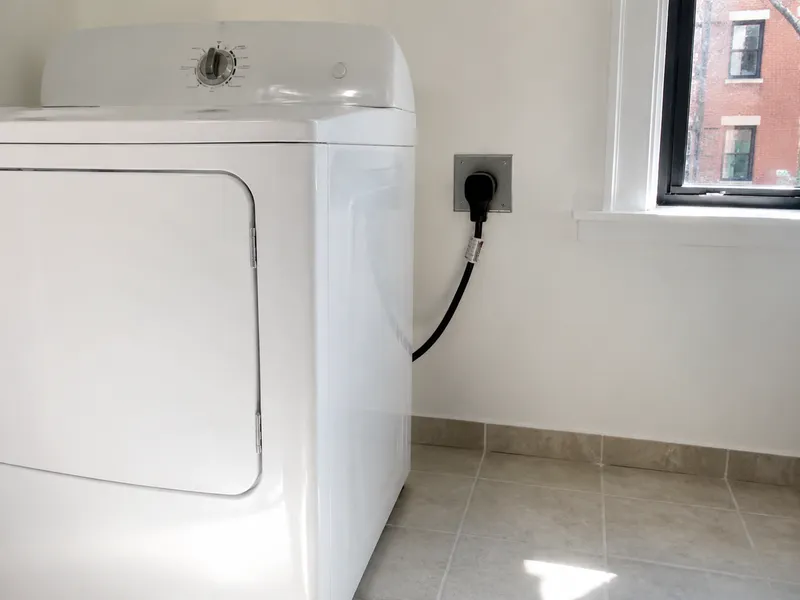

Electric dryer electrical requirements

Gas dryer electrical requirements

Gas dryers need a 120V, 15-amp dedicated circuit with a standard 5-15R outlet on a 15-amp breaker — we run 14/2 NM-B copper cable from the panel. The draw is minimal because the drum motor and igniter are the only loads; the heating comes from the gas burner. We install a single-pole breaker and terminate the cable in a standard duplex outlet within six feet of the dryer location. But if you’re switching from electric to gas, the old 240V outlet stays but we recommend capping it at the panel — leaving a live 240V outlet in a laundry closet is a safety hazard even if nothing’s plugged in.

When you need a licensed electrician for dryer hookup

• New 240V circuit: We coordinate with licensed Master Electricians for any new 30-amp circuit installation — NYC DOB requires an electrical permit and licensed electrician for new circuits.
• Breaker panel work: Adding a double-pole breaker or upgrading the panel from 100-amp to 200-amp requires a Master Electrician; this is not a DIY task in any NYC building.
• Outlet relocation: Moving a NEMA 14-30R more than a few feet means extending or rerunning 10/3 NM-B cable, which needs a permit and a licensed electrician.
• Pre-war panel capacity: Older 100-amp panels in pre-war buildings often lack capacity for a new 30-amp dryer breaker — a panel upgrade to 200-amp may be needed, and that requires building approval in co-ops and condos.

How to prevent drain hose overflow

Drain hose overflow usually comes down to standpipe height, insertion depth, or a simple clog. Here are the common causes and the fixes we use on the job.

Common causes of drain hose overflow

• Standpipe under 18 inches: The most common cause we see in NYC — modern high-efficiency washers discharge 17–20 gallons per cycle, and a short standpipe can’t handle that volume without backing up.
• Standpipe over 30 inches: A standpipe that’s too tall makes the pump work harder and leads to premature pump failure, which costs $220–$450 to replace.
• Clogged standpipe or P-trap: Lint, soap scum, and debris buildup reduces the 2-inch pipe’s flow capacity by up to 50% over a year — we snake the standpipe and check the P-trap cleanout.
• Drain hose pushed too deep: Insertion past 4–6 inches creates a siphon effect that pulls water back out of the washer during the fill cycle — we secure the hose at the correct depth with a zip tie.
• Clogged drain pump filter: A blocked filter reduces pump output, causing slow drain that backs up — we clean the filter behind the front access panel on every service call.

Proper drain hose installation to prevent overflow

• Insertion depth: We insert the drain hose no more than 4–6 inches into the standpipe and secure it with a zip tie or hose clamp — deeper insertion creates a siphon that pulls water back out of the washer during the fill cycle.
• Standpipe height check: We measure from the trap weir to the top of the standpipe — NYC code requires 18–30 inches, and we extend any standpipe under 18 inches with a PVC coupling and pipe section.
• Annual standpipe cleaning: We recommend cleaning the standpipe annually with hot water and white vinegar — lint and soap scum buildup reduces flow capacity by up to 50% over a year, even with a correctly sized 2-inch pipe.
• Drain pump filter maintenance: We check the washer’s drain pump filter (behind the front access panel) on every visit — coins, buttons, and lint here cause 80% of slow-drain issues.
• Mesh lint trap: We install a mesh lint trap on the drain hose ($10–$15 at any NYC hardware store) — it catches what the washer’s internal filter misses and extends the interval between standpipe cleanings.

How to fix a clogged washer drain hose

Walk through the diagnostic and repair steps for a clogged washer drain hose — from simple hose flushing to standpipe snaking when lint buildup blocks the flow.

Step-by-step drain hose clog repair

• Diagnose the problem: Water backs up during the drain cycle and the washer shows an error code — LG displays OE, Samsung shows 5E, Whirlpool gives F70.
• Disconnect and flush the hose: Unplug the washer, shut off the water supply, pull the drain hose from the standpipe, and run a garden hose through it from both directions to dislodge debris.
• Clear the standpipe: Pour a gallon of hot water down the standpipe — if it backs up, use a 1/4-inch × 25-foot drain snake to clear the P-trap and vertical pipe.
• Check the drain pump filter: Remove the front access panel and clean the filter — coins, lint, and small clothing items accumulate here and reduce pump output by 40–60%.
• Install a preventive mesh filter: Attach a $10–$15 mesh lint trap to the drain hose where it enters the standpipe — 80% of recurring clogs are lint buildup, and this catches it before it reaches the P-trap.

When to call a plumber for drain hose issues

If the standpipe clog sits deeper than 3 feet or the P-trap needs removal, call a licensed plumber — we clear standpipe clogs for $150–$300 and replace broken drain pump impellers for $220–$450. A broken pump impeller is often misdiagnosed as a simple clog: if the drain pump filter is clean but water won’t drain, the impeller blades are likely snapped, and only pump replacement will fix it. In our practice, we see this misdiagnosis in about 3 out of 10 calls — checking the impeller before snaking saves an unnecessary service visit.

What’s included in our installation service

Our washer dryer hookup installation covers everything from permits to final connection — we bring licensed trades and a 1-year warranty to every job across all five NYC boroughs.

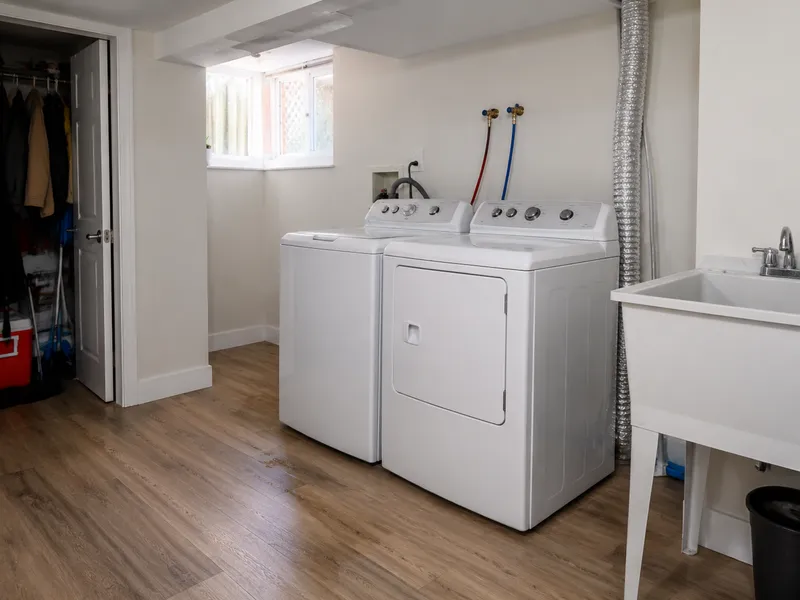

What our installation covers

• Standpipe and drain: We install a 2-inch PVC standpipe at 18–30 inches above the trap weir with a P-trap — meeting 2020 NYC Plumbing Code Section 802.4 for every new rough-in.
• Water supply lines: 3/4-inch copper or PEX hot and cold lines run to a recessed outlet box with quarter-turn ball valves and 3/4-inch hose thread connections — supports the 3–5 GPM flow modern washers need.
• Electrical connection: For electric dryers we install a 240V 30-amp dedicated circuit with a NEMA 14-30R 4-prong outlet using 10/3 NM-B cable; for gas dryers a 120V 15-amp circuit with a standard 5-15R outlet.

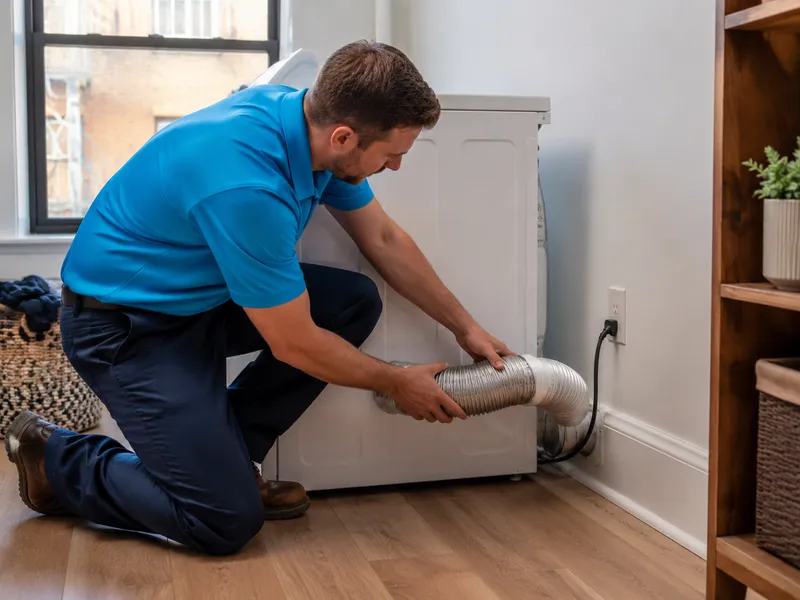

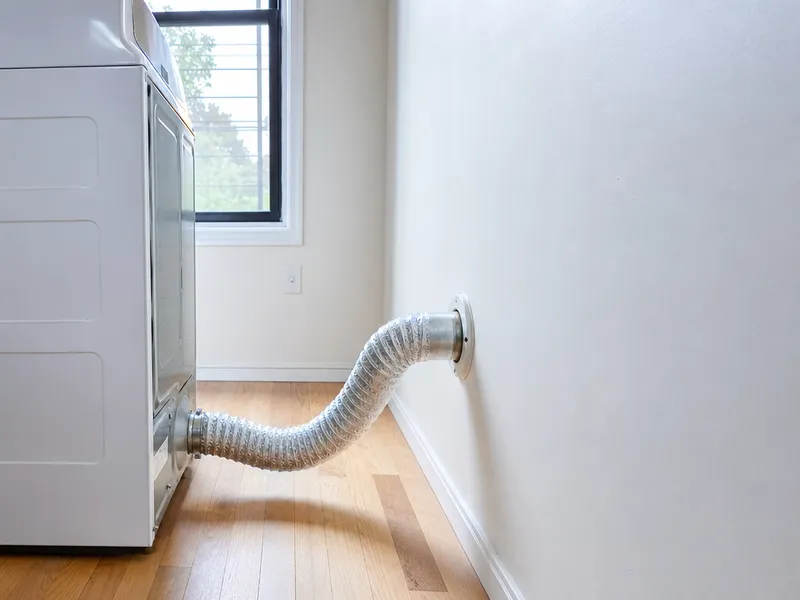

• Dryer venting: Rigid metal duct (aluminum or galvanized steel) run to an exterior vent — no foil or plastic ducts per NYC building code, with maximum 25-foot straight run (subtract 5 feet per 90-degree bend).

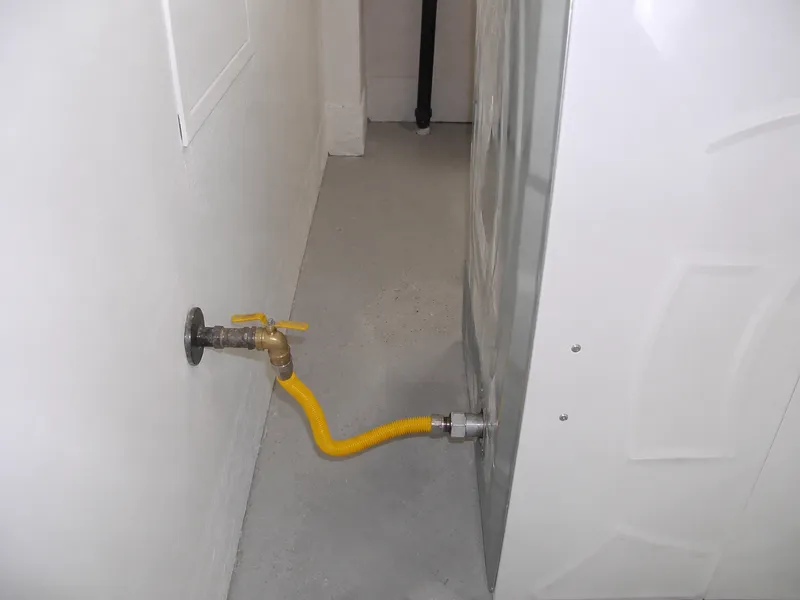

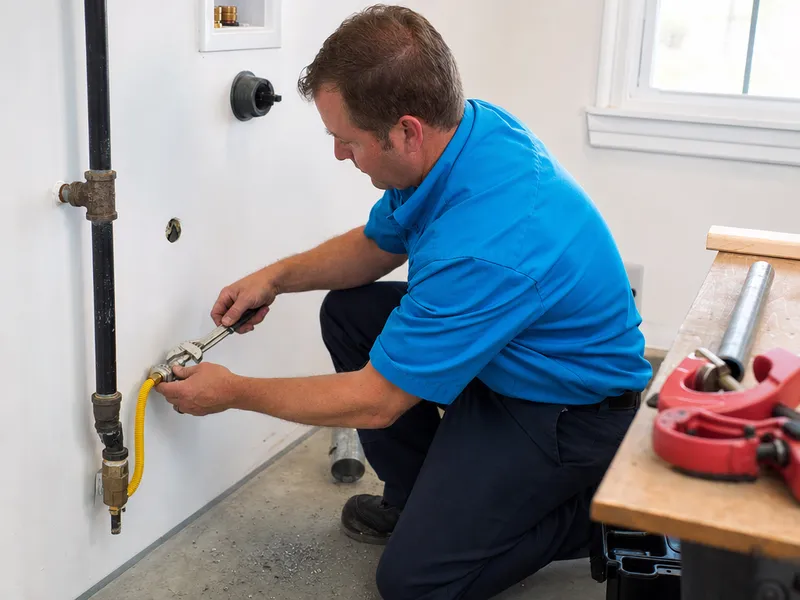

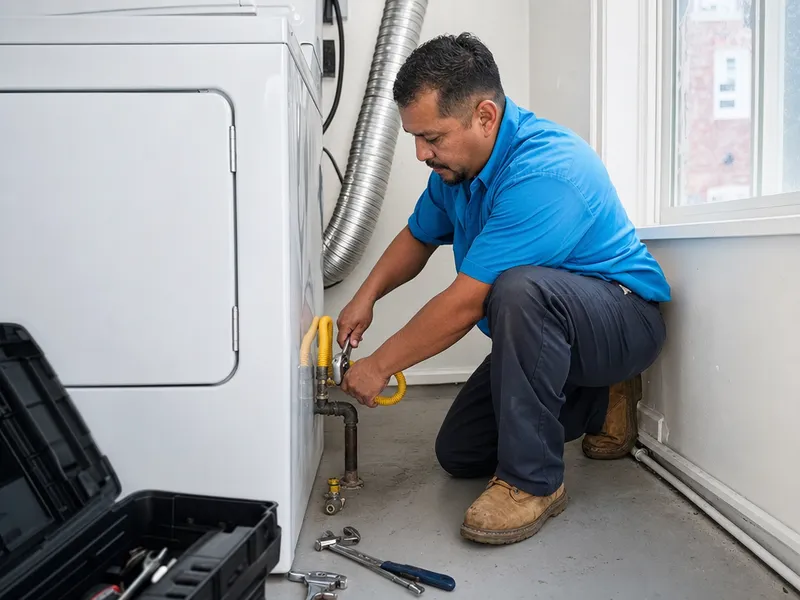

• Gas line: 1/2-inch black iron pipe or 3/8-inch CSST flexible gas connector with a drip leg and accessible shut-off valve within 6 feet of the dryer — meets NYC Fuel Gas Code requirements.
• Permits and coordination: We handle NYC DOB permits for new plumbing rough-in or drain relocation and coordinate with licensed Master Plumbers and Master Electricians — so you don’t have to navigate building department requirements yourself.

Warranty and service guarantee

We back every washer dryer hookup installation with a 1-year warranty on parts and labor — covering everything from standpipe connections to electrical outlets and gas line fittings. The 1-year coverage applies to workmanship defects like loose connections or improper venting. But it does not cover damage from pre-existing issues we flag during the initial assessment, such as corroded drain stacks or undersized electrical panels — and we document those in writing before we start so there are no surprises down the line. In our practice, a thorough pre-inspection catches about 3 out of 10 jobs where the building’s existing infrastructure needs work before we can install safely.

Washer Dryer Hookup Installation: What Matters Most

A successful washer dryer hookup in NYC comes down to three code requirements and the building-specific constraints that complicate them. Here is the summary of what determines whether your installation goes smoothly or turns into a multi-trade project.

Main takeaways

A successful washer dryer hookup in NYC comes down to three code requirements: a 2-inch standpipe at 18–30 inches, 3/4-inch water supply lines with accessible shut-off valves, and a 240V 30-amp dedicated circuit with a 4-prong NEMA 14-30R outlet for electric dryers. Those three elements — drain, water, power — form the legal and functional baseline for any new installation. Pre-war buildings add complexity with undersized standpipes, corroded supply lines, and 100-amp panels — these constraints don’t make installation impossible, but they do require a licensed plumber and electrician who know NYC building codes inside out.
