How do I know if my well pump needs replacement?
Recognizing the early warning signs of pump failure can prevent a total breakdown — and the emergency service call that comes with it. Here’s what to watch for before you’re left without water.
What are the warning signs of a failing well pump?
- No water from taps: Pump runs but nothing comes out — likely a burned-out motor, failed check valve, or the well has run dry. The pump may still hum, but it’s not moving water.
- Low water pressure: Faucets trickle instead of flowing. Could be a failing pump, a waterlogged pressure tank, or the well yield has dropped. A pressure tank that lost its air charge mimics this exactly.
- Short cycling: Pump turns on and off every 10–30 seconds — the pressure tank bladder has failed or the check valve leaks. This kills a pump motor fast, often within months.
- Pump runs constantly: Never shuts off. A leak in the system, a failed pressure switch, or the pump simply can’t build pressure. Either way, the motor overheats and wears out.
- Loud or unusual noises: Roaring, grinding, or screeching from the well head or pressure tank area. Bearings fail, impellers get damaged, and the motor runs hot. On a submersible, you’ll hear it through the drop pipe.
Catching these signs early — before the pump fails completely — saves you the cost of an emergency service call and potential damage to your pressure tank and piping. And if you’re already seeing symptoms, our free diagnostic when you book the repair will pinpoint the cause before we quote a well pump installation or replacement.
What does a free diagnostic include?
When you book the repair with Eco Service NY, we perform a free diagnostic that tests pump amperage, pressure tank air charge, check valve function, and well yield. We pull the pump amperage reading with a clamp meter — a 1 HP submersible should draw 8–10 amps under load; anything higher signals a mechanical bind or a failing motor. The pressure tank gets a Schrader valve check: it should read 2 PSI below the cut-in setting (38 PSI for a 40/60 switch). If it reads zero, the bladder is ruptured. On the check valve, we listen for a telltale “thunk” when the pump stops — if you hear water sloshing back down the drop pipe, the valve isn’t holding. And for well yield, we time the recovery after a drawdown — if it takes longer than 15 minutes to refill 10 feet of casing, the well can’t keep up with the pump. A pressure tank that has lost its air charge mimics a failing pump — replacing the tank instead of the pump saves $600–$1,200.

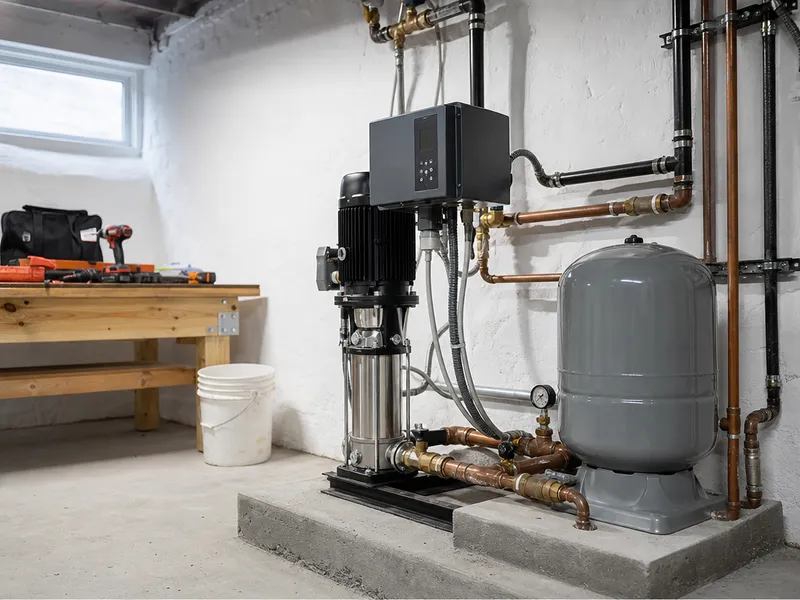

Can you install a well pump in a Brooklyn brownstone?
Brooklyn brownstones come with narrow basement access, shared party walls, and well depths that sit in a specific range — all of which change how a pump installation is planned and executed.
What makes Brooklyn brownstone well pump installations different?
- Well depth range: Brooklyn brownstones typically have wells drilled to 40–80 feet, which calls for a 1 HP submersible pump rather than a jet pump — jet pumps can’t lift water past 25 feet.
- Access constraints: Pre-war brownstones often have basement stairs too narrow to carry a pump and pressure tank through. We use a hoist or crane through a floor hatch when that’s the case — it adds $200–$500 to labor but prevents damage to both the pump and your staircase.
- Frost-line requirement: NYC code mandates the pitless adapter sits at 4 feet below grade. In a brownstone with a shallow basement, that can mean running the discharge pipe horizontally before it exits the foundation wall.
- Shared-wall considerations: Attached brownstones sometimes share a single well across two units. Those setups need flow control valves at each unit and a larger pressure tank — typically 40 gallons instead of the standard 20.

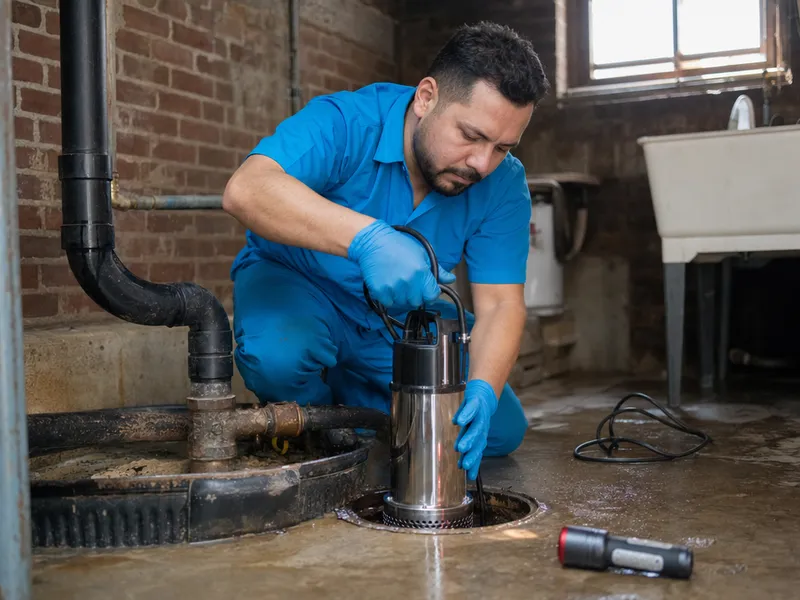

Do you handle shared well systems in attached brownstones?
Eco Service NY installs and services shared well systems in attached Brooklyn brownstones and Bronx co-ops, using higher-HP pumps, larger pressure tanks, and flow control valves for each unit. A shared system drawing from one well to supply two or three households needs a pump rated for the combined demand — we typically spec a 1.5 HP submersible with an 80-gallon pressure tank so the pump doesn’t short-cycle when one unit draws water while the other is idle. Flow control valves at each branch prevent pressure drops and water-hammer damage when a faucet opens in one unit. Shared well systems require a separate NYC DOB permit and co-op board approval — we handle both as part of the installation process, and our master plumber coordinates with the building’s management to schedule the inspection.
What size well pump do I need for my home?
Pump sizing depends on well depth, household size, and well yield — not just one factor. Depth tells you pump type; yield tells you flow rate; household size tells you pressure tank.
Well pump sizing guide by depth and household size
| Well depth (ft) | Pump HP | Household size | Flow rate (GPM) | Pressure tank (gal) |
|---|---|---|---|---|
| 25–50 | ½ HP | 1–2 bedroom | 5–8 | 20 |
| 50–100 | 1 HP | 3–4 bedroom | 10–15 | 40 |
| 100–150 | 1.5 HP | 4–5 bedroom | 15–20 | 80 |
| 150–200+ | 2 HP | 5+ bedroom + irrigation | 15–20 | 80 |
Why does well yield matter more than depth?
Well yield determines whether your pump runs dry and burns out. Installing a 10 GPM pump in a well that produces only 5 GPM means the pump draws down the water column faster than the aquifer can recharge — the motor runs dry within weeks. A 1 HP pump pulling from a Brooklyn brownstone well at 60 ft works fine if the yield is 8 GPM, but the same pump fails fast on a 4 GPM well. That’s why we always measure static water level and flow rate before recommending equipment. A free on-site assessment from our team measures yield, depth, and pressure — so the pump matches your well’s actual capacity, not just its depth.
How deep can a submersible pump be installed?
Submersible pump depth limits depend on horsepower, pipe material, and electrical considerations — not just the pump itself. Here is what the specs look like for NYC-area wells.
Submersible pump depth limits by horsepower
| Pump HP | Max depth (ft) | Drop pipe type | Torque arrestor requirement |
|---|---|---|---|
| ½ HP | 50 | Schedule 40 PVC | Not required |
| 1 HP | 100 | Schedule 40 PVC | Required at 50 ft |
| 1.5 HP | 150 | Schedule 80 PVC or galvanized steel | Required every 50 ft |
| 2 HP | 200+ | Schedule 80 PVC or galvanized steel | Required every 50 ft |
What equipment is needed for deep well installations?
- Drop pipe: Schedule 80 PVC or galvanized steel for depths over 150 ft — schedule 40 PVC can collapse under the weight of the water column at that depth.
- Torque arrestors: We install one every 50 ft on any submersible pump set below 50 ft. Without them the drop pipe whips during startup, rubs against the casing, and can wear through in under a year.
- Thicker-gauge wiring: Voltage drop over 200 ft of undersized wire causes the motor to run hot and fail prematurely — we calculate the exact wire gauge needed for your well depth before lowering anything.
Can you replace an old well pump with a new one?
Replacing an old well pump is the most common well job we do across NYC — and whether components get reused or swapped makes the difference between a fix that lasts and one that fails fast.
What does the well pump replacement process look like?

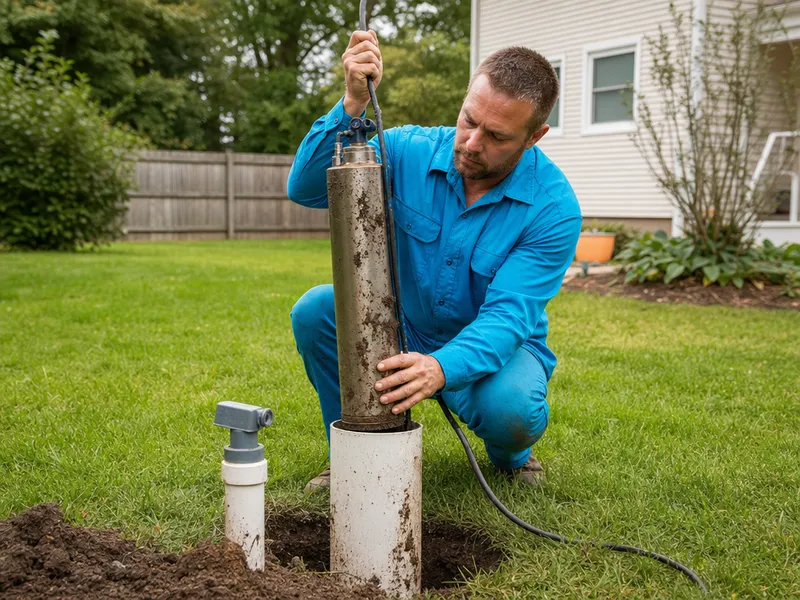

- Pull and inspect: We extract the old pump and check the well casing for cracks, the drop pipe for corrosion, and the submersible wiring for nicks or brittle insulation — a 1–2 hour job for an 80-foot well.
- Install new pump assembly: A new submersible pump gets a new check valve threaded onto its discharge, a torque arrestor clamped above it, and the drop pipe reconnected with waterproof heat-shrink splices on every wire.
- Test the system: We cycle the pump through a full pressure range (40–60 PSI), verify the check valve holds the water column, and measure flow rate — the whole replacement runs 4–6 hours.
- Fact layer: We always replace the check valve, torque arrestor, and wiring splices during a pump swap — reusing old components cuts pump life by 50% and risks a repeat failure within months.
What parts should be replaced along with the pump?
- Check valve and torque arrestor: The check valve prevents water hammer and short cycling; the torque arrestor stops the drop pipe from whipping against the casing. Both cost under $50 each and are non-negotiable on a replacement.
- Wiring splices and pitless adapter gaskets: Old splices corrode, causing voltage drop that overheats the motor. The pitless adapter seal at the frost line (4 ft in NYC) dries out — we replace the gaskets to prevent a winter freeze burst.
- Drop pipe inspection: Galvanized drop pipe over 10 years old often has internal scale buildup that restricts flow — replacing it with PVC during the pump swap adds $200–$400 but prevents a second service call.
What permits are needed for well pump installation in NYC?
NYC DOB permits are mandatory for all well pump work in the five boroughs, and we handle the entire application and inspection process as part of every installation.
What NYC DOB permits are required for well pump installation?
- NYC DOB plumbing permit: Eco Service NY pulls this for every well pump installation — the application includes a site plan, pump specs, well location, and electrical diagram, with a fee of $100–$300 that we include in the quote.
- Who can pull it: Only a NYC DOB Licensed Master Plumber can file a well pump permit — that’s why we assign a licensed master plumber to every job.
- Electrical permit (if needed): When the installation requires a new circuit from the panel, our licensed master electrician pulls a separate electrical permit — same coordinated process.
- What happens without a permit: Installing a well pump without a permit risks a $500–$2,000 fine and a stop-work order from NYC DOB — plus the cost of removing unpermitted work and starting over.
What does the NYC DOB inspection check?
- Pitless adapter depth: The inspector verifies the pitless adapter sits below the 4-foot frost line — if it’s higher, the drop pipe freezes and bursts in winter.
- Backflow preventer and well seal: The backflow preventer must be installed on the discharge line, and the well seal must be intact to prevent surface contamination from entering the well casing.
- Electrical grounding: The inspector checks that the submersible pump wiring is properly grounded and the control box connections meet NYC Electrical Code — faulty grounding is a common red flag.
- Timing: The inspection is typically scheduled within 5–10 business days — we coordinate with the inspector so you don’t need to be home.
What is the typical lifespan of a well pump?
Well pump lifespan depends on pump type, water quality, and maintenance habits — here is what NYC homeowners can realistically expect from each configuration.
How long do submersible and jet pumps last?
| Component | Typical lifespan | With iron bacteria or hard water | With proper maintenance |
|---|---|---|---|
| Submersible pump (premium — Grundfos, Franklin) | 8–15 years | 5–8 years | 12–15 years |
| Submersible pump (budget model) | 5–8 years | 3–5 years | 6–8 years |
| Jet pump (cast iron body) | 5–10 years | 3–7 years | 8–10 years |
| Jet pump (plastic body) | 3–5 years | 2–4 years | 4–5 years |
| Pressure tank (bladder type) | 5–10 years | 3–7 years | 10–15 years |
| Check valve (brass) | 3–7 years | 2–5 years | 5–7 years |
| Drop pipe (PVC) | 15–25 years | 10–20 years | 20–25 years |
| Drop pipe (galvanized steel) | 10–20 years | 8–15 years | 15–20 years |
What factors reduce well pump lifespan in NYC?
- Iron bacteria and sediment: Well pump lifespan is reduced by iron bacteria and sediment buildup that clog the well screen, forcing the pump to work harder — we see lifespan cut by 30–50% in wells with untreated iron bacteria.
- Short cycling from a bad pressure tank: A waterlogged bladder tank causes the pump to cycle every 20–30 seconds instead of every 2–3 minutes — this kills a submersible motor in 2–3 years rather than 10+.
- Voltage drop from undersized wiring: Thin gauge wire or corroded splices drop voltage below the motor’s rated spec; the pump runs hot, the insulation degrades, and the winding fails early.
- Dry running: Even 30 seconds of operation without water damages the impeller and motor bearings — often caused by a drop in well yield that the homeowner didn’t notice until the pump cut out.
Replacing the pressure tank at the 5-year mark prevents short cycling that would otherwise kill a pump in 2–3 years instead of 10+.
Conclusion
These seven questions cover the full scope of a well pump installation—from sizing and depth to permits, replacement, and lifespan. Here are the key takeaways.
Main takeaways

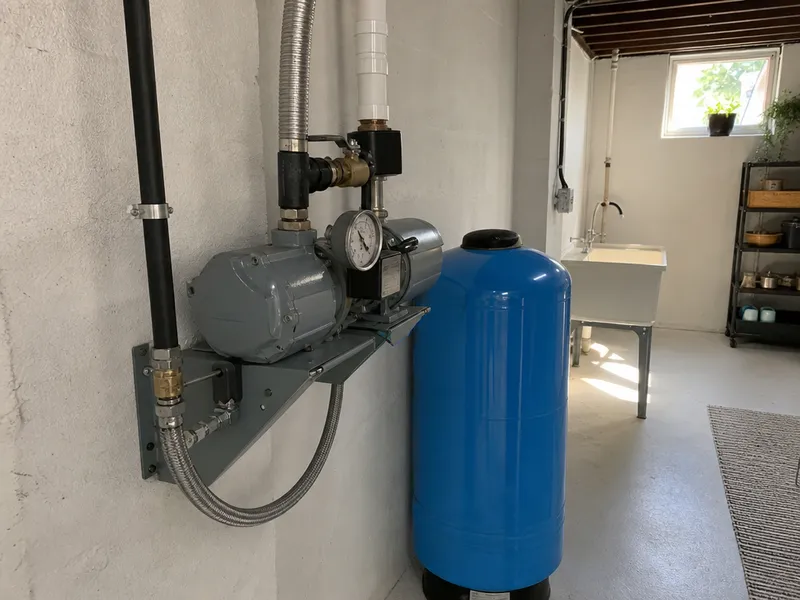

Well pump selection starts with depth: under 25 feet calls for a jet pump; anything deeper needs a submersible. Match pump horsepower to depth—1 HP for 50–100 feet, 1.5 HP for 100–150 feet—and never exceed the well’s yield. A pump rated for 10 GPM on a well producing 5 GPM runs dry and burns out in weeks. NYC requires a DOB plumbing permit for every installation, pulled by a licensed master plumber, with an inspection that checks pitless adapter depth at the 4-foot frost line and proper electrical grounding. Submersible pumps last 8–15 years on average; jet pumps 5–10. Replace proactively at the 10-year mark rather than waiting for a dead pump and an emergency call. Signs of failure—short cycling, low pressure, air in the water, a pump that runs constantly—warrant a diagnostic before the motor seizes. In a Brooklyn brownstone with a 40–80 foot well, plan for a 1 HP submersible, a 40-gallon pressure tank, and a pitless adapter set below the frost line. On Staten Island, where wells run 80–150 feet, bump to 1.5 HP and schedule 80 drop pipe. A check valve and torque arrestor should always accompany a new pump; reuse of old parts cuts lifespan by half. The 1-year warranty covers parts and labor, and the diagnostic is free when you book the repair.
