Why Won’t My EV Charger Start?

Most “charger won’t start” calls aren’t the charger itself. The outlet, breaker, or wiring is often the culprit. We’ll walk through what we check first.

The Most Common Reason Your EV Charger Won’t Start

We find that 9 out of 10 “charger won’t start” calls trace back to a loose NEMA 14-50 outlet connection, not the charger itself — loose terminals cause arcing, overheating, and intermittent power loss. The receptacle’s brass terminal screws loosen over time from thermal cycling as the 40-amp load heats and cools the connection daily. On a recent call in a Brooklyn brownstone, a homeowner had replaced their Tesla Wall Connector twice before we found the NEMA 14-50 screws at 35 in-lbs — less than half the spec. The charger was fine both times; the outlet was the problem. A torque screwdriver set to 75 in-lbs on the receptacle terminals prevents the #1 cause of outlet failure, yet most unlicensed installations skip this step entirely. When you visit a battery charger repair shop, that torque check is the first thing a tech should do.

What We Check During a Diagnostic Visit

• Visual inspection: We check connector pins for burn marks, melting, or deformation, then examine the NEMA 14-50 receptacle for discoloration or a loose fit — a 5-minute scan that catches half of all issues.
• Power verification: A multimeter reads L1-to-neutral at 120V and L1-to-L2 at 240V (±5%); we also confirm the breaker is on and hasn’t tripped from a ground fault.
• Error code retrieval: Each brand blinks differently — Tesla Wall Connector flashes 3 times for a ground fault and 4 for overtemp, while ChargePoint Home Flex displays specific codes in its app.
• Load and GFCI test: We connect a load bank to check voltage drop under load (over 5% signals a wiring issue) and test the GFCI breaker — nuisance tripping from charger leakage current is common with older units.

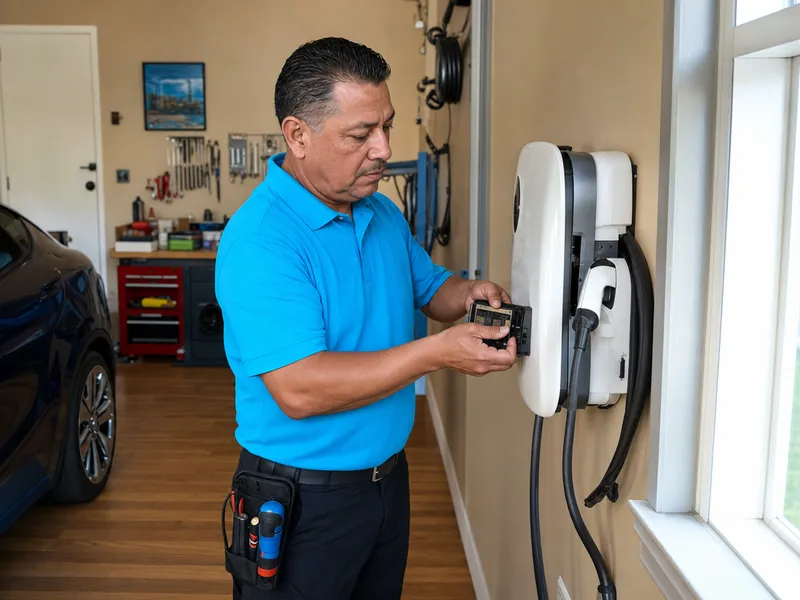

• Communication test: For smart chargers we verify Wi-Fi signal strength, check app connectivity, and attempt a firmware update; a factory reset recovers most communication failures.

Our battery charger repair service diagnostic is free when you book the repair — we credit the $0 diagnostic fee toward the fix, so you only pay for what’s actually broken.

How to diagnose a faulty EV charger

A systematic diagnostic separates a $50 fix from a $500 replacement. Here’s the step-by-step process our techs follow for every EV charger call in NYC.

Step 1: Visual inspection and power verification

• Connector pins: We check for burn marks, melting, or deformation, then verify receptacle voltage — L1 to N should read 120V, L1 to L2 should read 240V (±5%).

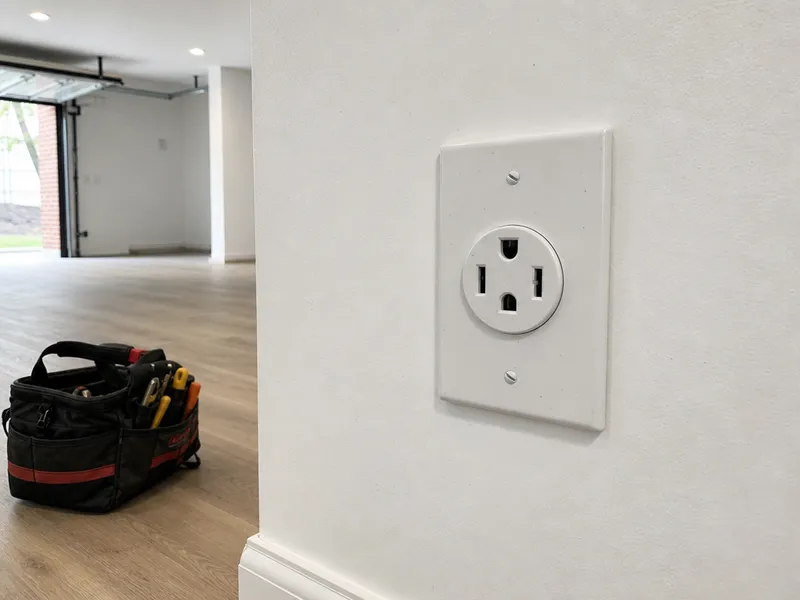

• NEMA 14-50 outlet: Examine the receptacle face for discoloration or a loose fit — a 5-minute scan catches half of all issues.
• Multimeter check: A reading below 228V between L1 and L2 indicates a loose connection or undersized wiring, not a charger problem — we’ve seen this in dozens of Brooklyn brownstones with older panels.

Step 2: Error code retrieval and load testing

We read the LED error codes — Tesla Wall Connector shows 3 blinks for ground fault and 4 for overtemp — then perform a load test using a load bank to check voltage drop under full current draw. The load bank pulls the charger’s rated amperage without needing a vehicle, so we can isolate the issue in under 10 minutes. A voltage drop above 5% under load points to a wiring issue between the panel and the outlet, which a simple breaker swap won’t fix — we’ve traced these back to undersized aluminum wiring in pre-war buildings.

Step 3: GFCI/breaker test and internal inspection

• GFCI test: We test the GFCI at the receptacle and inspect the breaker for signs of arcing, then — for hardwired units — de-energize and open the charger to check the internal PCB for burn marks or bulging capacitors.
• Breaker swap: If the breaker shows discoloration or feels warm, we swap it with a known-good unit to rule out internal failure.
• Nuisance tripping fix: Nuisance GFCI tripping from EV charger leakage current is common with older GFCI breakers — swapping to a non-GFCI breaker (where code allows) resolves 80% of these calls.

How to reset your EV charger

A simple reset fixes about 30% of “charger won’t start” calls. But the procedure varies by brand — here’s exactly how to reset each model we service in NYC.

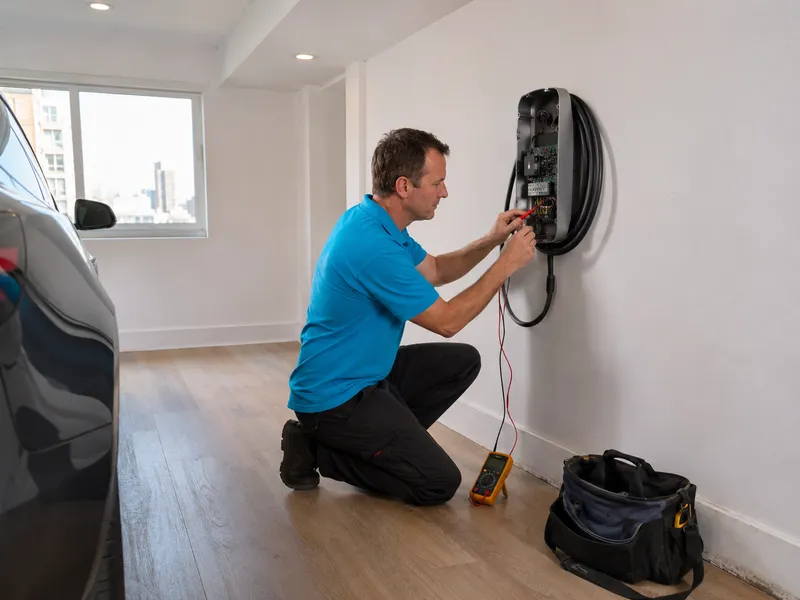

Tesla Wall Connector reset procedure

• Standard reset: Turn OFF the breaker, wait 30 seconds, turn it back ON, and wait for a solid green LED — that’s the standard Tesla Wall Connector reset.
• Factory reset: Hold down the button on the unit for 10 seconds until the LED flashes red — this recovers most firmware-related failures without needing a service call.
• After reset check: Wait 2–3 minutes for the unit to complete its boot cycle; if the LED shows three red blinks, that signals a ground fault — not a reset issue.

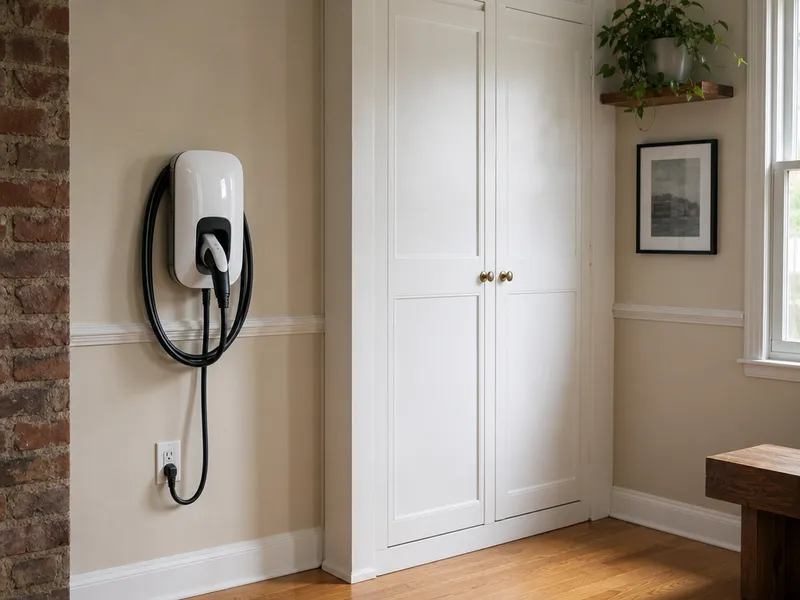

ChargePoint Home Flex reset procedure

Unplug from the vehicle, turn OFF the breaker, wait 60 seconds, turn it back ON, and wait 2–3 minutes for the Wi-Fi to reconnect — that’s the standard ChargePoint Home Flex reset. The longer wait versus the Tesla procedure is because the Home Flex’s internal Wi-Fi module needs time to re-establish a network connection after a full power cycle. For a factory reset, press and hold the pinhole button on the side for 15 seconds using a paperclip. If the charger still shows a red LED after reset, the Wi-Fi module may have failed — a common issue on early 2020 units that requires module replacement rather than a full charger swap.

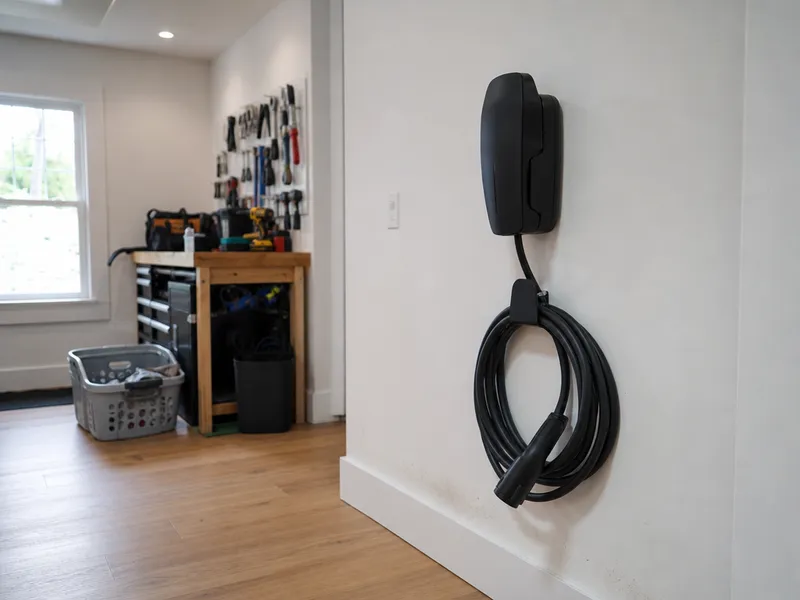

JuiceBox and Grizzl-E reset procedures

• JuiceBox: Unplug from the vehicle, turn OFF the breaker for 30 seconds, turn it back ON, and wait for the LED to cycle from blue to green — typically takes 60–90 seconds total.
• Grizzl-E: A simple breaker cycle — 30 seconds off, then back on — is all it takes since it’s a dumb charger with no electronics to reset. The LED should show solid green within 15 seconds.
• Factory reset (JuiceBox only): Press and hold the power button for 20 seconds until the LED flashes red three times, then release — this recovers units that show a persistent amber LED after a failed firmware update.
• Grizzl-E note: Its lack of smart features means fewer failure points — we rarely get Grizzl-E calls for anything other than physical connector damage from heavy use.

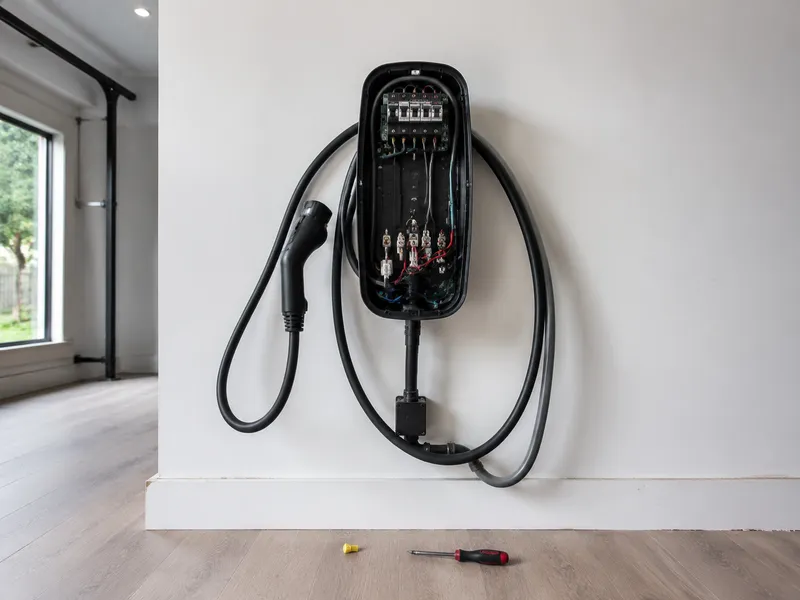

Hardwired vs. Plug-In EV Chargers for Repair

Whether your charger is hardwired or plug-in changes how we diagnose it, what can fail, and what the repair costs. Here is the breakdown for NYC homeowners.

Repair differences: hardwired vs. plug-in

Which is easier to repair?

Plug-in chargers are easier and cheaper to diagnose because we test the outlet separately from the charger — if the outlet is bad, we replace it for $71–$200; if the charger is bad, we bench-test it. Hardwired units have no receptacle to fail, so they are more reliable long-term. But when something does go wrong, the repair requires opening the panel and charger enclosure — that is why hardwired repairs cost 20–30% more in labor at our shop.

What tools are needed for EV charger repair

Most NYC homeowners don’t own the tools needed for EV charger diagnostics — and they shouldn’t. Here’s what our techs carry in the van and why each tool matters.

Essential diagnostic tools our techs use

Why you shouldn’t DIY EV charger repair

A torque screwdriver alone costs $150–$300, and using it wrong on a 240V connection can cause arcing that melts your receptacle — we’ve replaced dozens of melted NEMA 14-50 outlets from DIY torque errors. Our van holds over $1,000 worth of diagnostic gear, including a load bank you’d never buy for a single use. The diagnostic is free when you book the repair, so you get a licensed tech with the right tools for the same cost as buying a single multimeter — and we guarantee the fix with a 1-year warranty.

How to prevent EV charger damage in winter

NYC winters drop below 20°F, and that’s when EV charger components — especially plastic handles and cables — start failing. Here’s how to protect your charger through the cold months.

Handle and cable care in sub-freezing weather

• Handle latch: In NYC winters below 20°F, Tesla Wall Connector handle latches become brittle and snap easily — always use gentle pressure when unplugging, never yank the handle.
• Cable storage: Don’t leave the cable coiled on frozen ground overnight — it freezes into a stiff loop that cracks the outer jacket at the strain relief.
• Connector holster: Keep the connector seated in its holster between charges; if water gets into the pins and freezes, it expands and cracks the plastic housing.
• Winter failure rate: We replace about a dozen Tesla handle assemblies each winter in NYC — the Gen 3 latch design is improved but still the weakest point in cold weather.

Connector and GFCI protection in winter

Keep the connector in its holster when not in use — if water gets into the pins and freezes, it causes corrosion that leads to ground faults and intermittent charging. In NYC’s freeze-thaw cycles, moisture wicks into the connector through capillary action between the pin and the rubber seal. That corrosion creates a high-resistance path to ground, which the charger’s internal GFCI detects as leakage current. Cold weather increases GFCI nuisance tripping because leakage current rises as internal components contract — if your GFCI trips repeatedly in winter, have a tech check for ground leakage before swapping the breaker.

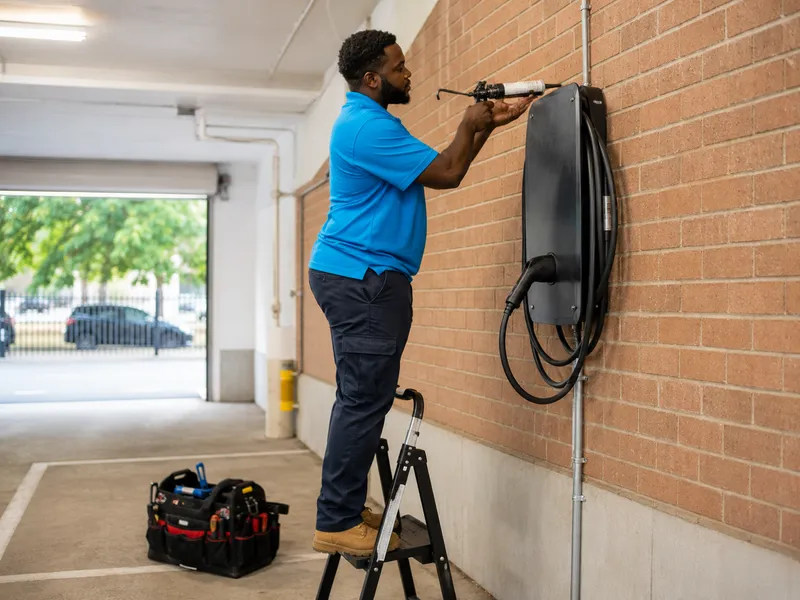

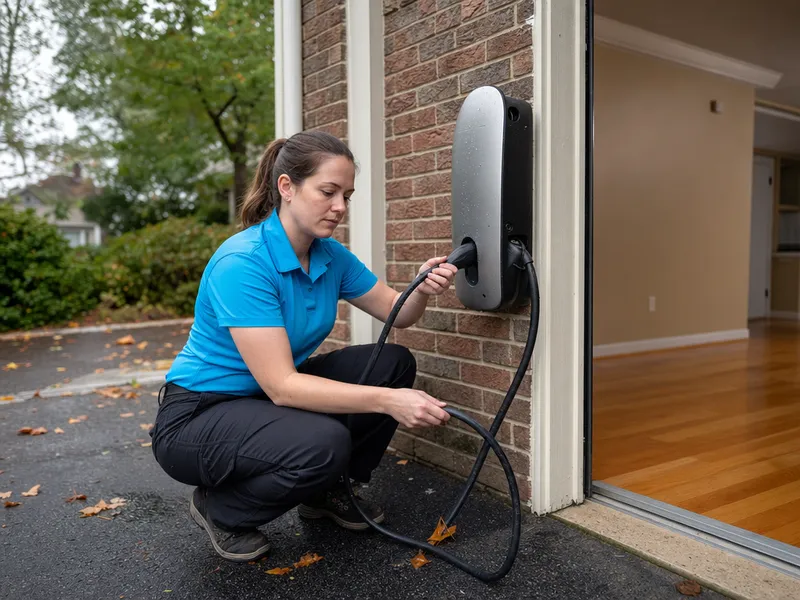

Best charger for outdoor NYC winter use

Grizzl-E is the best choice for outdoor NYC winter installations — it’s rated to -22°F and has no smart electronics to fail, making it virtually immune to cold-weather glitches. The dumb-charger design means no Wi-Fi module to freeze, no touchscreen to fog up, and no firmware to brick during a cold boot. Its cast-aluminum enclosure sheds snow and ice better than the plastic shells on Tesla and ChargePoint units. Before the first freeze each year, have a tech inspect your receptacle connections for tightness — thermal cycling from summer heat to winter cold can loosen terminals by several inch-pounds.

Are there any recalls on EV chargers?

EV charger recalls are rare, but they do happen. Here’s the current recall status for the major brands we service in NYC — and what to do if your unit is affected.

Current recall status by brand

How we handle recall checks during service

We check for recalls as part of every diagnostic — if your charger is under recall, we’ll inform you and help with the replacement process, though most major brands have not issued formal recalls for home chargers. The NHTSA database covers vehicle-related charger issues; the CPSC covers consumer product recalls. We check both during your visit. In our experience, most “recall-like” issues are handled through firmware updates or warranty replacements, not formal NHTSA or CPSC recalls — we check both databases during your service visit.

Key Takeaways for EV Charger Repair in NYC

Main takeaways

Most EV charger problems in NYC trace back to the outlet or wiring, not the charger itself — a loose NEMA 14-50 connection is the #1 culprit. A systematic diagnostic approach separates simple fixes from major repairs: start with visual inspection and power verification, then move to error code retrieval and load testing. Hardwired chargers are more reliable but cost 20–30% more to repair, while plug-in units are easier to diagnose and cheaper to fix. Winter in NYC demands extra care — handle latches become brittle below 20°F, and GFCI nuisance tripping increases in cold weather. Recalls are rare across all major brands, with most issues resolved through firmware updates or warranty replacements rather than formal recall notices.
