How Do I Know If My Fuse Box Needs to Be Replaced?
Fuse boxes are pre-1960s technology, and most NYC homes still using them are overdue for an upgrade. Here are the most urgent warning signs that signal replacement is necessary.
Warning signs your fuse box is unsafe
- Frequent blown fuses: We see fuse boxes across NYC that blow fuses weekly — the system is overloaded, and unlike breakers, fuses don’t reset; they need replacement each time.
- Burning smell or discoloration: Brown or black marks around fuse holders indicate arcing or overheating from corroded contacts, which creates resistance and fire risk.
- Overfusing with pennies or wrong ratings: If you spot a penny behind a fuse or a fuse rated 30A on 14 AWG wire, that’s an immediate fire hazard requiring urgent service.
- No grounding and two-prong outlets: Fuse boxes lack a ground bus, meaning no surge protection and no GFCI functionality — every outlet in the home is ungrounded.
- Visible rust or corrosion: Fuse boxes in basements often have rusted interiors and loose connections — all fire risks that demand replacement.
Insurance and code reasons to upgrade
We replace fuse boxes because many NYC insurers now require breaker panels for homeowners coverage, and the 2025 NYC Electrical Code mandates AFCI/GFCI protection that fuse boxes cannot provide. A fuse box with only 2–6 circuits can’t support modern loads — you’re relying on extension cords and power strips, which are themselves a fire risk. On Brooklyn brownstone jobs, I often find the original 60A service with knob-and-tube wiring still feeding the second floor — that’s a full rewiring situation, not just a panel swap. If your insurer sends a notice about the fuse box, don’t ignore it; we handle the permit filing and Con Edison coordination so you’re covered.
What Safety Features Should a Modern Panel Have?
Modern breaker panels include critical safety features that old fuse boxes lack. Here’s what we install to meet current NYC code and protect your home.

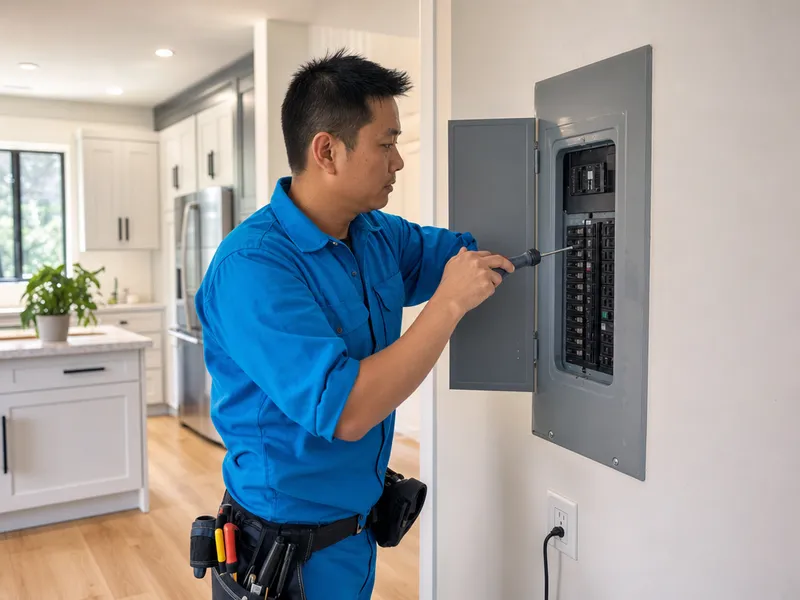

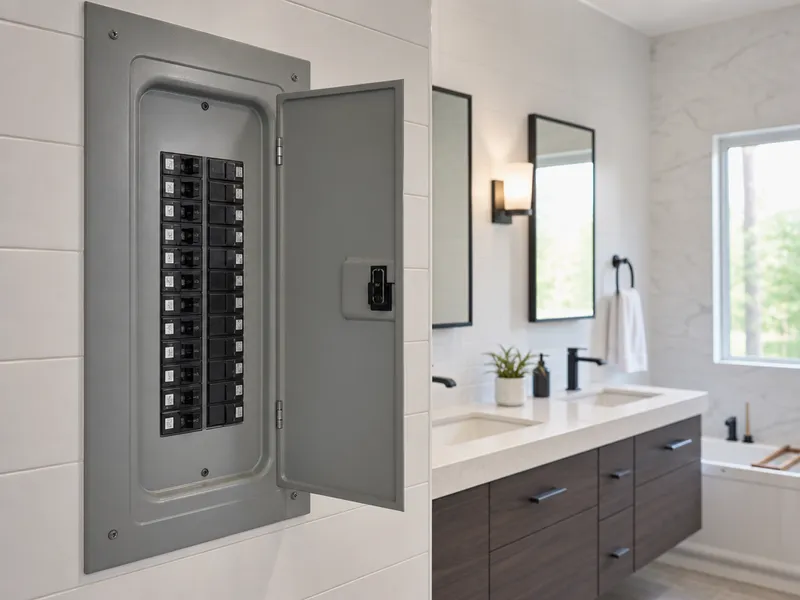

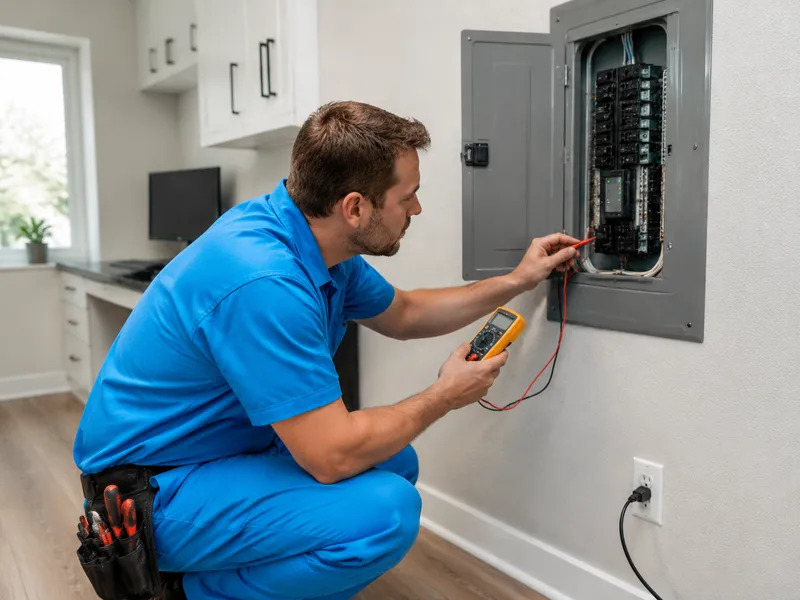

AFCI, GFCI, and surge protection requirements
| Device | Where required (2025 NYC Electrical Code) | What it protects against |
|---|---|---|

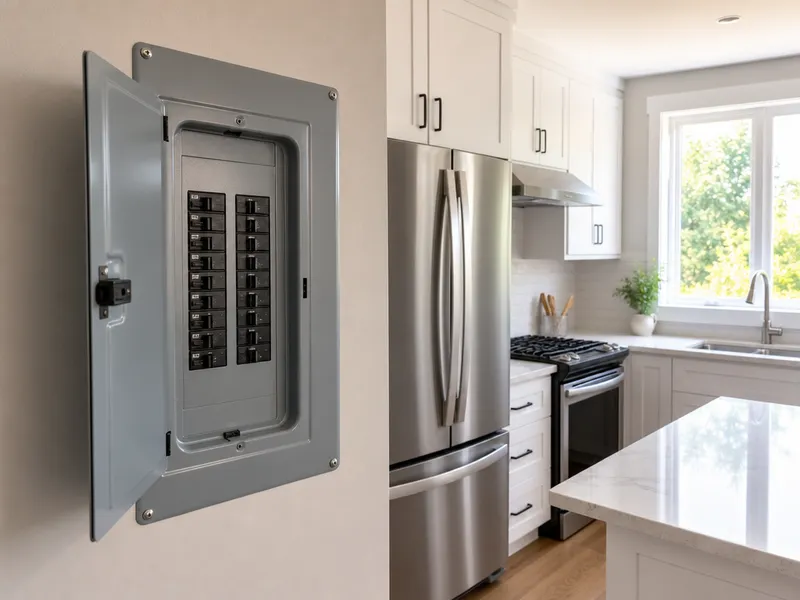

| AFCI breaker | Bedrooms, living rooms, dens, hallways, and similar 120V 15A/20A branch circuits | Arc faults from loose connections, damaged wires, or worn insulation |
| GFCI breaker | Bathrooms, kitchens, laundry rooms, outdoors, garages, basements, crawl spaces | Ground faults — shock hazard from current leaking to ground |

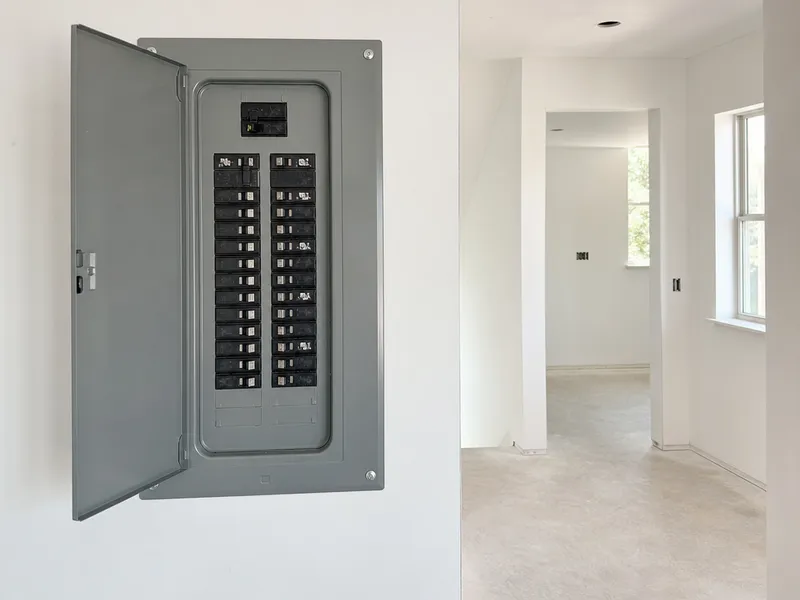

| Combination AFCI/GFCI breaker | Kitchens, laundry rooms, basements where both protections are mandated | Both arc faults and ground faults in a single device |

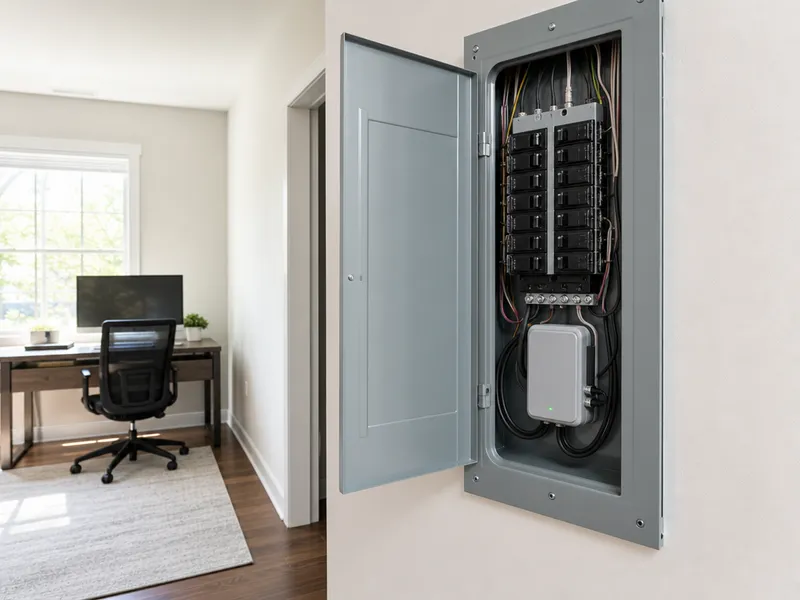

| Type 2 surge protector (SPD) | At the main panel — increasingly required for new installations | Voltage spikes from lightning strikes or utility grid surges |
Proper bonding, grounding, and working clearance
- Neutral-to-ground bond: Bonded only at the main panel — never in a subpanel. A bonded neutral in a subpanel creates a parallel neutral path, a code violation that introduces shock risk.
- Ground rod: An 8 ft copper-clad rod driven full depth into the earth, with resistance below 25 ohms. Older NYC homes often have 4–6 ft rods or rely solely on a water-pipe ground — both fail current code.
- Working clearance: The DOB inspector measures 30″ width × 36″ depth × 78″ height of clear space in front of the panel. A closet narrower than 30″ will fail inspection and force a panel relocation — we check this during the site assessment.

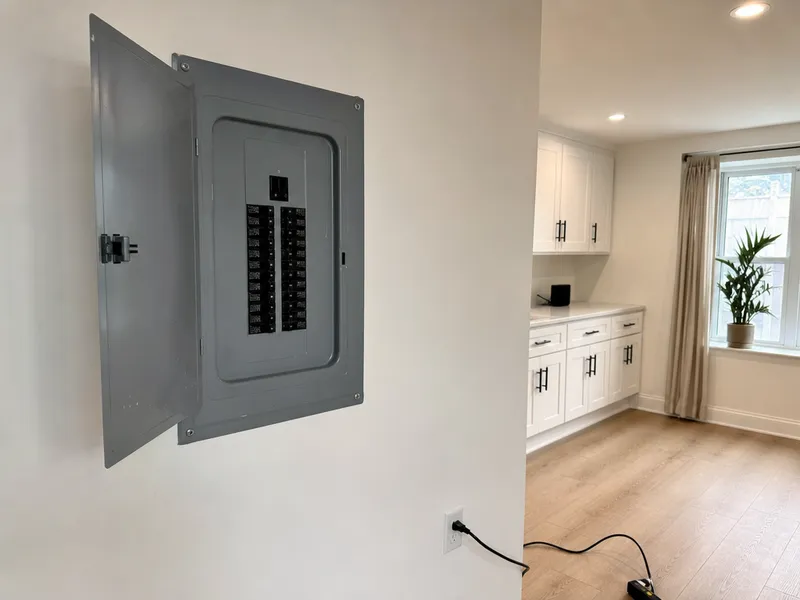

Can You Install a Subpanel for a Home Addition?
Subpanels are standard for home additions, finished basements, workshops, and home offices. Here’s how we size, install, and permit them.
Subpanel sizing and feeder requirements
| Subpanel size | Feeder cable | Typical application | Main lug or main breaker |
|---|---|---|---|

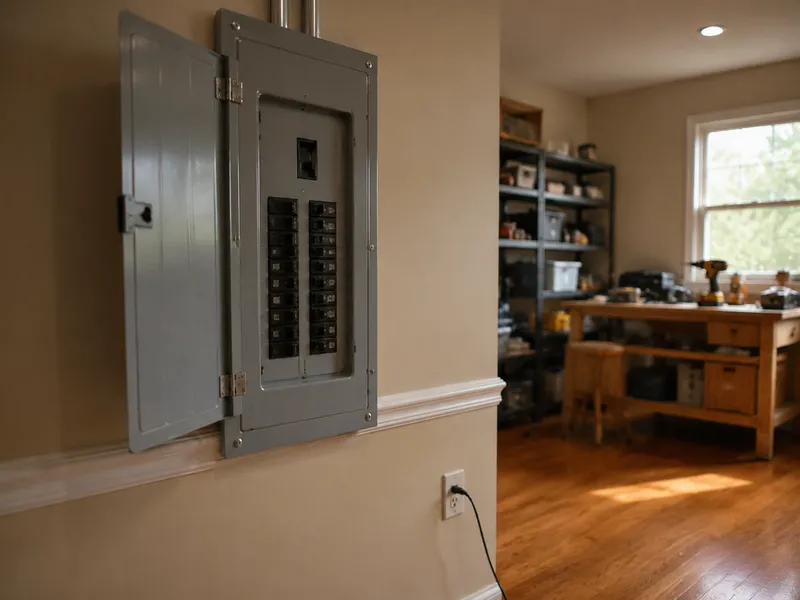

| 60A | 6/3 NM-B or 6/3 MC | Basement workshop, home office | Main lug |
| 100A | 4/3 NM-B or 2/0 aluminum | Home addition, finished basement | Main lug |
| 200A | 4/0 aluminum SEU or 2/0 copper SEU | Detached garage, large addition | Main breaker |
A subpanel must have an isolated neutral bus — bonding neutral to ground in a subpanel creates a parallel neutral path that violates code and creates a shock hazard.
Permit and inspection process for subpanels
We file NYC DOB electrical permits for every electrical panel installation and schedule the required inspection — the inspector verifies proper bonding, grounding, and working clearance. For a Brooklyn brownstone addition, we typically run the feeder from the basement main panel to a new subpanel on the upper floor, which requires drilling through floor joists and fishing wire through finished walls. The permit application includes a load calculation sheet that accounts for existing plus new circuits, and the inspection checks that the 4-wire feeder (two hots, neutral, ground) is correctly landed. In our practice, we’ve seen homeowners who skipped the permit end up with failed inspections and costly rework — pulling the permit upfront saves that headache.

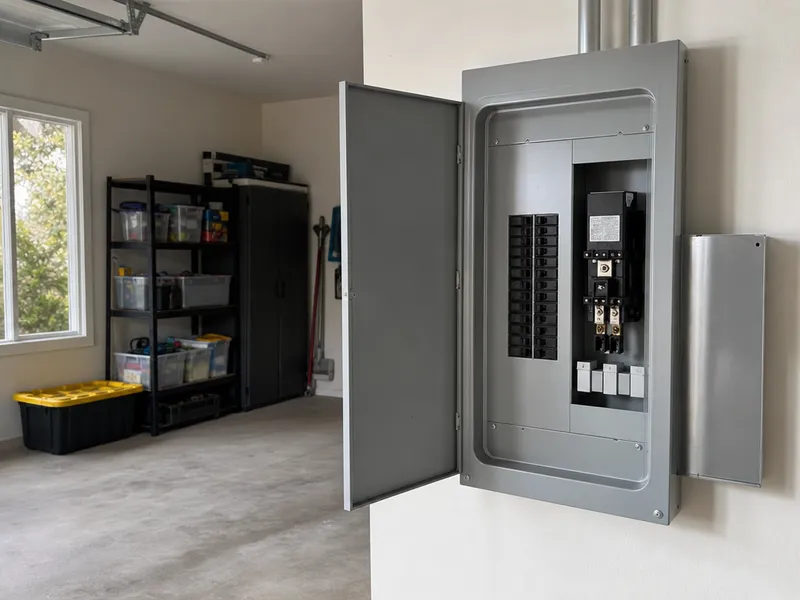

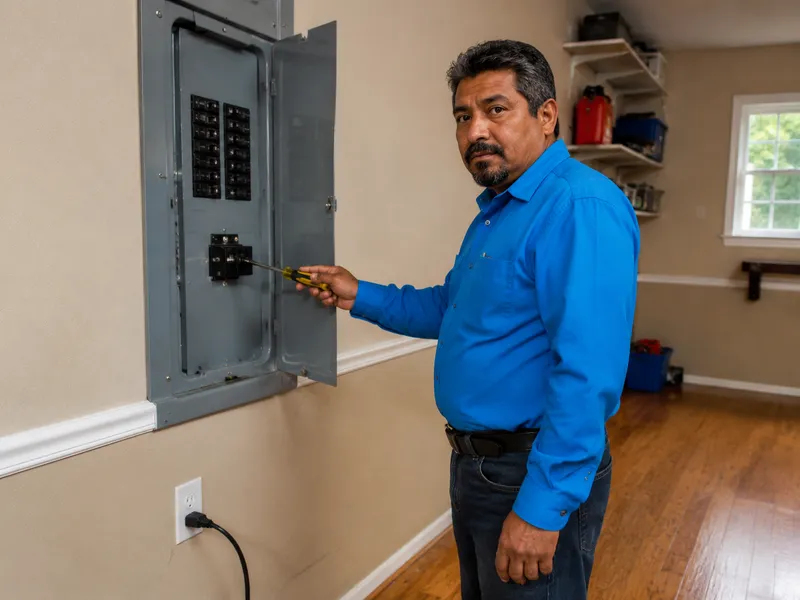

Do You Install Generator Transfer Switches?
We install both manual and automatic generator transfer switches for NYC homes. Here is what each option involves and what it costs.
Manual vs automatic transfer switch options
| Type | How it works | Installed cost | Best for |
|---|---|---|---|
| Manual with interlock kit | Interlock plate slides over main breaker; you flip generator breaker on, main off, then start generator and switch circuits manually | $300–$600 | Portable generators, budget-conscious homeowners, smaller loads (6–8 circuits) |
| Automatic transfer switch (ATS) | Monitors utility power; starts generator automatically on outage; transfers critical circuits within 10–30 seconds; switches back when utility returns | $1,500–$3,500 | Whole-house standby generators, medical equipment, sump pumps, unattended operation |
Never plug a generator into a wall outlet without a transfer switch — backfeeding kills utility linemen and can electrocute occupants in your own home.
Critical circuit selection and generator inlet installation
- Critical circuit selection: We identify 6–10 essential loads — fridge, furnace blower, sump pump, well pump, internet router, and a few LED light circuits — that stay within the generator’s capacity. For a 10 kW portable unit running on natural gas, that’s roughly 40–50 amps of 240V load.
- Inlet box placement: A weatherproof NEMA L14-30 (30-amp, 120/240V) or L14-50 (50-amp) inlet mounts on an exterior wall, wired through conduit to the transfer switch. We position it within 5 feet of the generator parking spot — typically near the back door or basement bulkhead in a Brooklyn brownstone.
- Interlock integration: The interlock kit physically blocks the main breaker from being on while the generator breaker is on, and vice versa. This mechanical interlock is UL-listed and satisfies NYC code without needing a separate ATS enclosure.
- Permit and inspection: Every transfer switch installation requires an NYC DOB electrical permit and a final inspection — the inspector verifies the interlock mechanism, inlet box grounding, and that no backfeed path exists.
- Generac compatibility: Generac transfer switches are the most common units we install across the five boroughs. Their automatic controllers integrate with Generac standby generators via a two-wire start signal, though we also wire ATS units from Eaton and Siemens on custom setups.

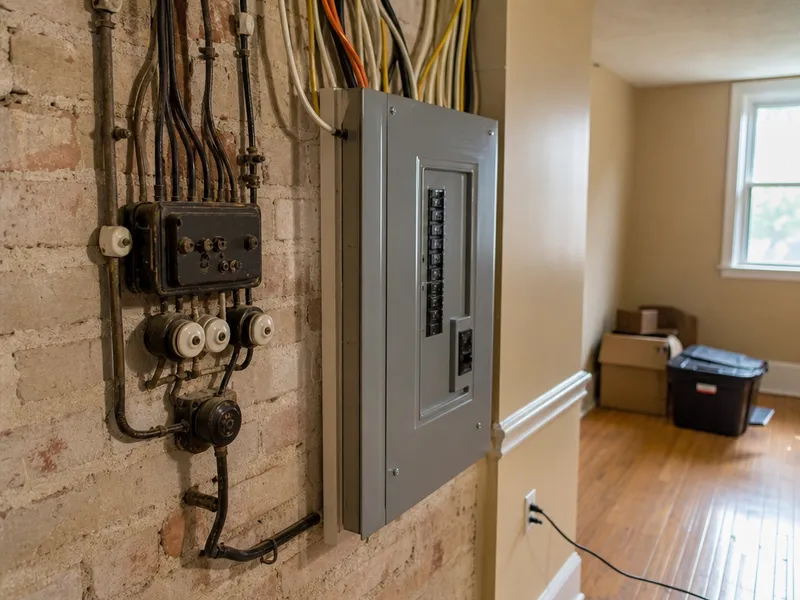

Do You Work with Knob and Tube Wiring Replacement?
Knob and tube wiring is common in pre-1940 NYC buildings and must be fully replaced — not spliced or extended. Here’s how we handle it.
How we identify and remove knob and tube wiring
- Visual identification: We look for ceramic knobs nailed to joists, porcelain tubes threaded through joists, and cloth-wrapped wire with no ground conductor — the insulation crumbles when touched.
- Splice and box condition: Old splices wrapped in friction tape and ungrounded porcelain boxes signal active knob and tube that needs full removal, not partial patching.
- Panel disconnect: We shut the main breaker, confirm each circuit is dead with a multimeter, then disconnect every knob and tube circuit at the panel and tag the wires for removal.
- Wire pulling: We pull accessible wire from joist runs and remove the knobs and tubes, then fish new 12/2 NM-B cable through the same pathways for 20A circuits.
- Code rule: Knob and tube cannot be spliced to new wire — that’s a code violation and fire hazard; we must run new NM-B cable to every outlet and switch.
Cost and scope of full rewiring in NYC
We charge $3,000–$8,000 per floor for knob and tube replacement and $8,000–$20,000+ for a full house rewiring — all new circuits include AFCI and GFCI protection per 2025 NYC code. The per-floor range depends on how many circuits are involved and whether walls are open or need cutting and patching. In occupied brownstones we often do room-by-room replacement, isolating each circuit’s knob and tube at the panel while keeping the rest of the home live. Many NYC insurers require knob and tube replacement for homeowners coverage, and if you’re doing a gut renovation, the rewiring is far cheaper when walls are open.

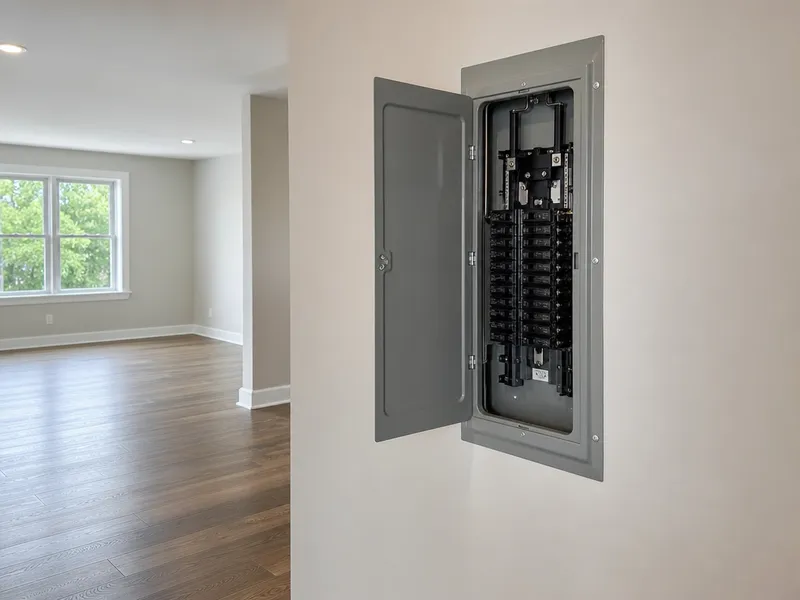

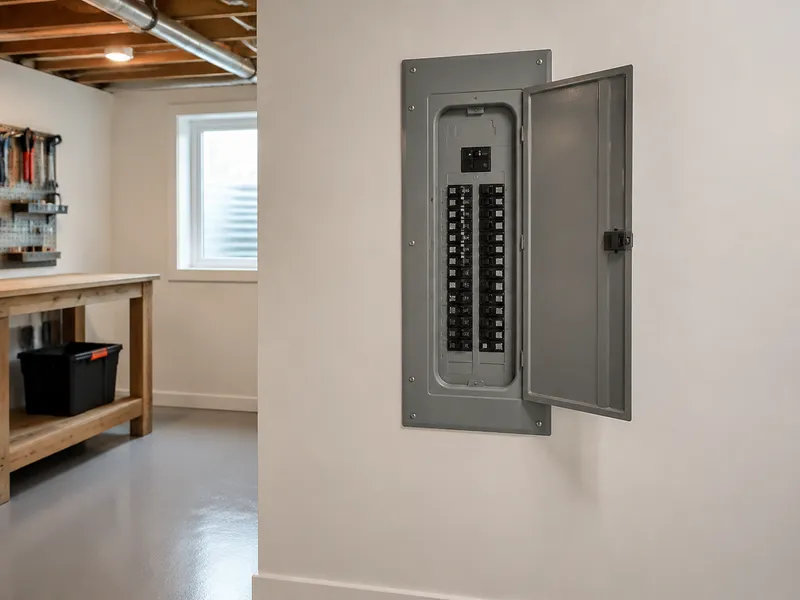

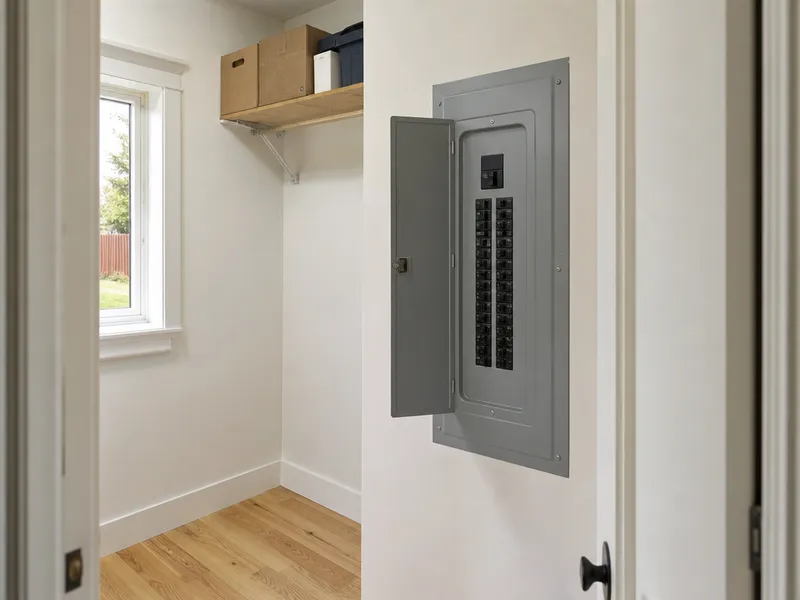

What Is the Difference Between a Main Breaker and a Main Lug Panel?
Understanding the difference between main breaker and main lug panels helps you choose the right setup for your NYC home. Here is what each does.
Main breaker vs main lug: function and code requirements
| Feature | Main breaker panel | Main lug panel |
|---|---|---|
| Main disconnect | Has a single large breaker (100A–200A) that disconnects all power at the panel | No main breaker — power feeds directly to bus bars |
| Code requirement | Serves as the required main disconnect at the service entrance per NYC Electrical Code | Used as a subpanel downstream of a main breaker panel |
| Overcurrent protection | Provided by the main breaker itself | Provided by the breaker feeding it from the main panel |
| Emergency shutoff | One switch kills all power — essential for safety in a brownstone basement | Requires upstream breaker or separate disconnect to kill power |
| Cost difference | $50–$150 more than an equivalent main lug panel due to the breaker | Lower upfront cost, but requires a feeder breaker in the main panel |
| Neutral-ground bond | Bonded at this panel (this is the only bond point) | Isolated neutral bus — never bonded to ground in a subpanel |
Common NYC applications for each panel type
Main breaker panels go at the service entrance — typically in a brownstone basement — while main lug subpanels feed upper floors, additions, or detached garages from the main panel’s breaker. The main breaker panel gives you that single shutoff switch required by code at the point where utility power enters the building. Downstream, each main lug subpanel must have an isolated neutral bus with no bond to ground — a four-wire feeder (two hots, neutral, ground) carries power from the main panel’s breaker to the subpanel’s lugs. In NYC brownstones, we often install a main breaker panel in the basement with main lug subpanels on upper floors for lighting circuits — this keeps the main disconnect accessible while distributing power efficiently.

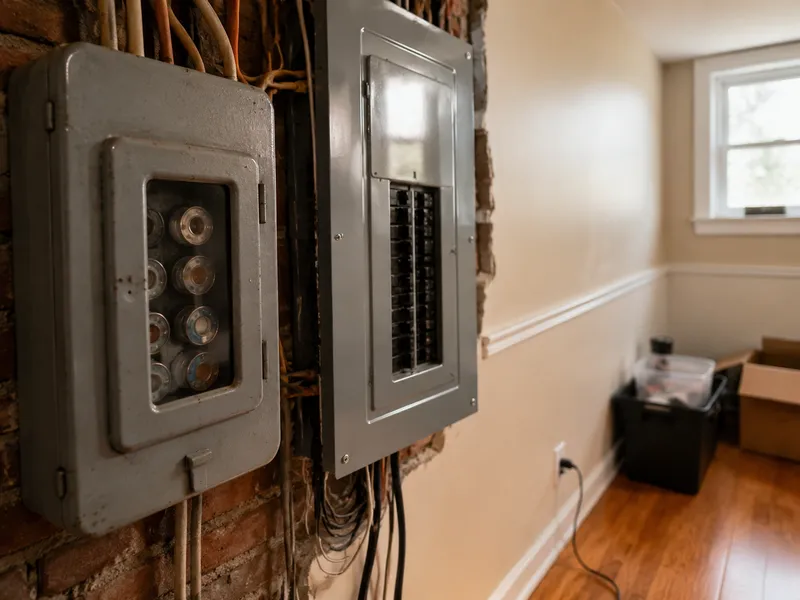

Can You Install a Panel in a Brooklyn Brownstone?
Brooklyn brownstones present unique challenges for panel installation — from knob and tube wiring to Con Edison coordination. Here’s what we typically encounter.
Typical brownstone electrical setup and upgrade path

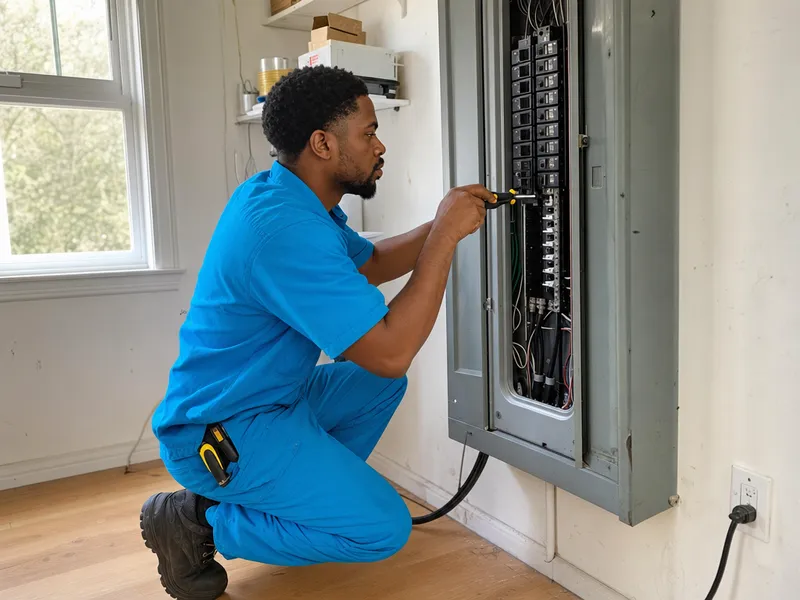

- Existing service: We see 60A or 100A fuse boxes with knob and tube wiring in most Brooklyn brownstones — the standard upgrade is 100A to 200A service at $4,500–$6,500, which includes the new panel, meter socket, grounding, and permits.
- Full rewiring required: Old brownstones often have 60A service with no grounding — a full gut renovation is usually required for a modern panel, not just a panel swap, because the knob and tube must be completely disconnected at the panel.
- Working space constraints: Brownstone basements have tight corners and low ceilings — we measure the 30″×36″×78″ working clearance per code before mounting the new load center, sometimes relocating it to a rear hallway.
- Shared service lines: Attached brownstones often share a service entrance with the neighboring unit — we coordinate with Con Edison to verify the meter socket and service cable can handle the upgrade without affecting the adjacent building.
- Landmarked district restrictions: Brownstones in Brooklyn Heights, Park Slope, and Fort Greene historic districts may have additional rules on exterior conduit runs and meter relocation — we check with the NYC Landmarks Preservation Commission before scheduling the work.
Con Edison coordination and timeline
We coordinate with Con Edison for service upgrades — they pull the meter and disconnect service, which takes 2–4 weeks to schedule, and we handle the rest including the NYC DOB permit and inspection. The utility requires a new meter socket rated for 200A, and we replace the old 100A socket with a 320A-rated meter can that accommodates future expansion. On a typical brownstone job, we budget a full day for the panel swap itself — the Con Edison coordination takes longer than the wiring. Some contractors do panel work without Con Edison coordination — that’s illegal, and the DOB inspection will fail if the service entrance isn’t properly upgraded.
What Are the Signs of an Overloaded Electrical Panel?
An overloaded electrical panel is a fire risk. Here are the warning signs we see in NYC homes and what they mean.
Physical warning signs: heat, noise, and smell
- Warm panel enclosure: If the panel cover feels warm to the touch, circuits are running at capacity or connections are loose — use the back of your hand to check, as a severe short could cause muscle contraction and prevent you from pulling away.
- Buzzing or humming sounds: A buzzing panel indicates arcing at the bus bar or loose breaker connections — we find this most often in older load centers where the main lugs have loosened over decades of thermal cycling.
- Burning smell near the panel: An acrid odor means insulation is melting or wires are arcing — this is an immediate fire risk requiring a same-day service call from a licensed electrician.
- Visible rust or corrosion: Rust on the panel interior, bus bars, or breaker contacts creates resistance that generates heat — common in NYC basements with moisture intrusion from old plumbing leaks.
Behavioral signs: tripping, dimming, and extension cords
Frequent breaker tripping (more than once a month), lights dimming when appliances turn on, and reliance on extension cords all point to an undersized panel — we see this daily in NYC apartments with original 60A service. In a Brooklyn brownstone with a 100A panel, a microwave and toaster oven on the same kitchen circuit will drop the lights by 10% or more, and that dimming is the circuit telling you it’s near its 15A or 20A limit. If a breaker trips and won’t reset, don’t force it — the circuit has a fault or the breaker has failed, and forcing it can cause arcing and fire. On a recent call in a Queens co-op, a tenant had been resetting a tripped 20A breaker for two weeks; by the time we arrived, the bus bar behind the breaker was pitted from sustained arcing and the entire load center needed replacement.
Conclusion
Replacing an old fuse box with a modern breaker panel is one of the most impactful electrical upgrades a NYC homeowner can make — it improves safety, meets current code, and supports modern loads.
Main takeaways
Replacing an old fuse box with a modern breaker panel is one of the most important electrical upgrades a NYC homeowner can make — it improves safety, meets current code, and supports modern electrical loads. A fuse box simply cannot accommodate the AFCI and GFCI protection the 2025 NYC Electrical Code now requires on most residential circuits. In brownstones, the upgrade often runs $4,500–$6,500 for a 100A-to-200A service swap and includes a new meter socket, grounding, and permits. The 2025 code mandates AFCI protection in bedrooms and living areas and GFCI protection in wet zones — only a modern breaker panel can provide these. Before committing to a panel swap, verify the service entrance cable is rated for the new amperage; old #2 aluminum SEU cannot handle 200A.
