How Do I Know If My HVAC System Is Compatible With Nest?
Most NYC homes can use Nest, but some systems won’t work at all. Here’s how we check compatibility before we arrive — and what to look for yourself.
Which HVAC systems work with Nest in NYC?
- Standard 24V systems: Eco-service.com technicians verify compatibility before every Nest Thermostat Installation in NYC. This covers forced-air furnaces, boilers, heat pumps, and radiant systems — as long as they use 24V control voltage.
- Multi-stage setups: Nest supports up to 3-stage heating and 2-stage cooling. We confirm the number of stages during the phone intake so the configuration is correct on arrival.

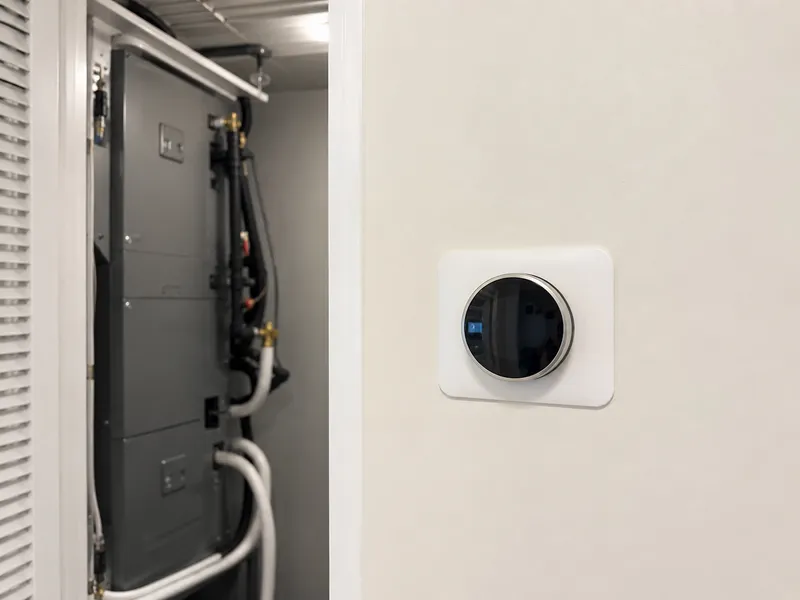

- Heat pumps with O/B reversing valves: Nest handles O/B valves, but the setting must match the manufacturer — O for cool (most Carrier, Trane) or B for heat (some Rheem, Ruud). We verify this during setup.
- Dual-fuel systems: Nest supports a heat pump paired with a gas furnace. We set the temperature crossover point — typically around 35°F — so the system switches to the furnace when the heat pump loses efficiency.
- C-wire or Power Connector: Nest needs continuous 24V power. If no C-wire exists, we install the Nest Power Connector at the furnace control board — adds about 20 minutes to the job.
- 2.4 GHz Wi-Fi: Nest only connects to 2.4 GHz networks. In a Manhattan apartment with thick concrete walls, a Wi-Fi extender may be needed if the router is far from the thermostat.
What systems are NOT compatible with Nest?
- Millivolt systems: We encounter these in older gas boilers and fireplaces across Brooklyn brownstones and Staten Island single-family homes. Millivolt systems generate their own power — about 750 mV — and Nest requires 24V. No adapter exists.
- Line-voltage (120V) systems: Common in electric baseboard heat and some older wall heaters. Nest is a low-voltage thermostat and cannot switch 120V loads directly.
- Proprietary communicating systems: Carrier Infinity, Bryant Evolution, Lennox iComfort, Trane ComfortLink — these use digital signals between thermostat and equipment, not standard 24V. Nest can’t speak their language.
- Incompatible zone control panels: Some older zone panels don’t pass the correct signals to smart thermostats. We test the panel during the visit — if it’s incompatible, we recommend alternatives like Ecobee or a panel upgrade.
Do I Need a C-Wire for My Nest Thermostat?
The C-wire question is the most common one we hear from NYC homeowners. Here’s exactly which Nest models need it and why.
Which Nest models require a C-wire?
| Nest Model | C-Wire Required? | Works Without C-Wire? | Best For |
|---|---|---|---|

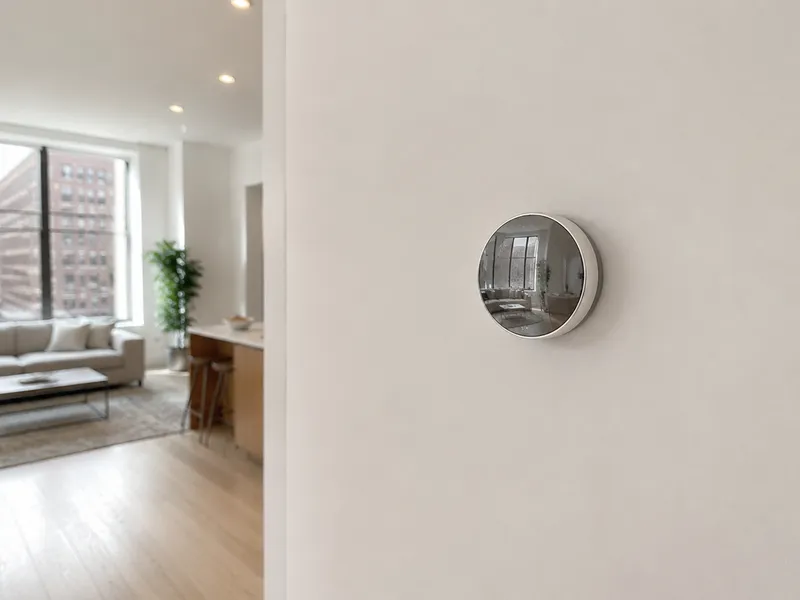

| Nest Learning Thermostat (3rd gen) | Yes | Not recommended — battery drain common | Homes with existing C-wire |
| Nest Thermostat E | No (but recommended) | Yes — larger battery, power-stealing | Mild climates, short heating seasons |

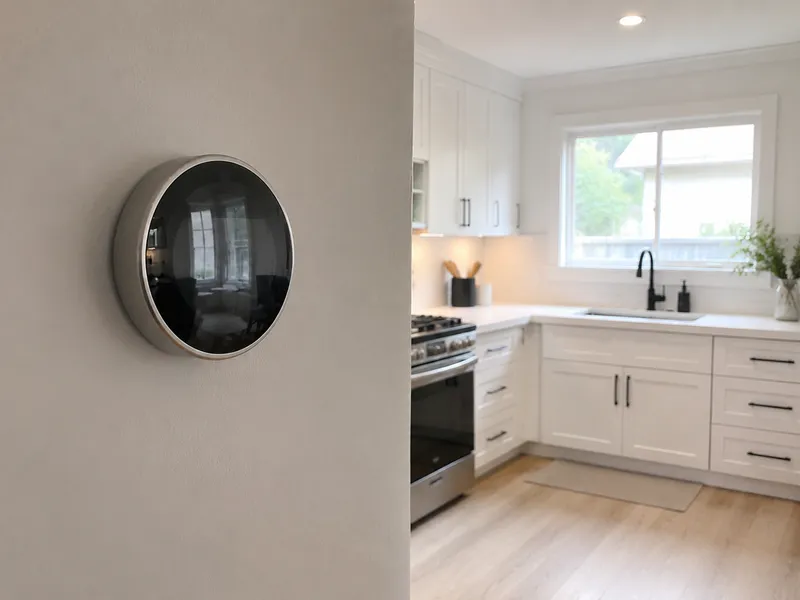

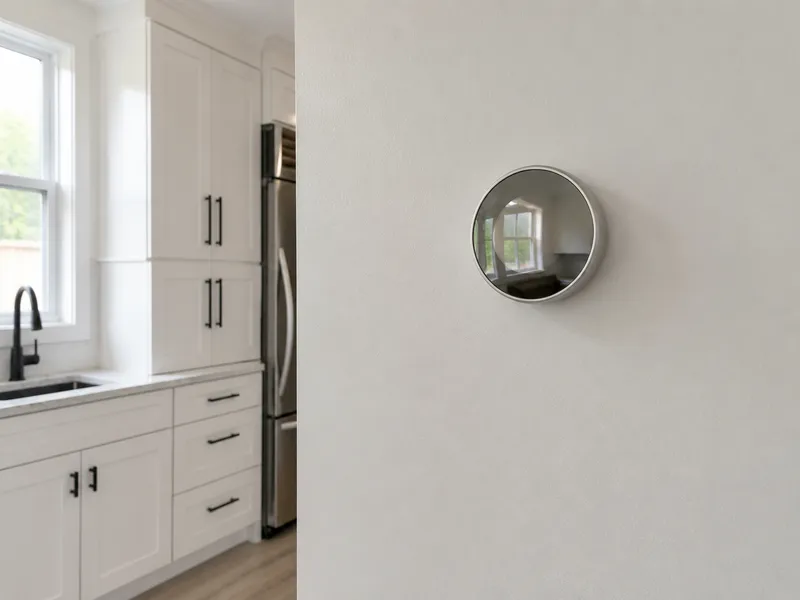

| Nest Thermostat (2020) | Yes | Not recommended — Wi-Fi drops reported | Modern systems with C-wire |
How do I check if I have a C-wire?
- Look at the terminal labels: Remove the existing thermostat faceplate and find a wire connected to the terminal labeled “C,” “B,” or “Common.” If you see one, you have a C-wire.
- Check behind the wall plate: In many NYC apartments, the C-wire exists but is tucked behind the wall plate — it was never connected because the old thermostat didn’t need it. Pull the wire bundle gently to see if an unused blue or black wire is coiled there.
- Count your wires at the furnace: If you have access to the HVAC control board, look for a terminal labeled “C” on the 24V side. A wire running from that terminal up to the thermostat location confirms you’re set.

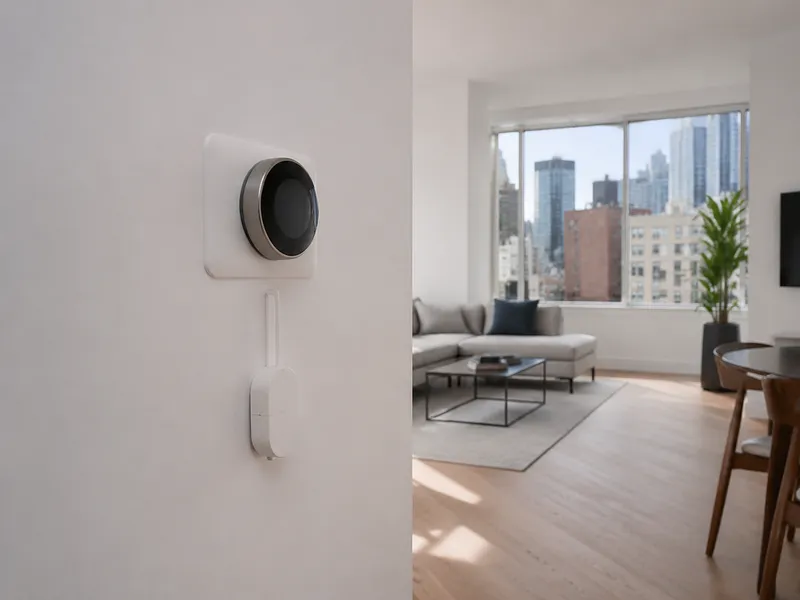

What If My Home Doesn’t Have a C-Wire?
Most older NYC homes don’t have a C-wire. We carry several solutions on the truck — and install whichever fits your system during the same visit.
What are the C-wire alternatives for Nest?
- Nest Power Connector: Google’s official C-wire alternative installs at the furnace control board in about 20 minutes and works with most 24V systems — our technician verifies compatibility before any Nest Thermostat Installation.
- 24V transformer: A dedicated transformer wired near the HVAC system with a new wire run to the thermostat; takes 30–45 minutes and works with any 24V system, including heat pumps with O/B valves where the Power Connector won’t.
- G-wire repurposed as C-wire: Moving the G wire to the C terminal at the furnace provides C-wire power but kills independent fan control — the fan runs only during heating or cooling calls, not for circulation.
- Nest Thermostat E (no C-wire mode): Uses aggressive power-stealing from R and W wires to charge its battery; works in mild climates but in NYC winters the battery drain can cause Wi-Fi drops within weeks.
- Add-a-wire adapter: Third-party devices like Venstar Add-A-Wire convert a 4-wire cable to 5-wire; less common since the Nest Power Connector covers most cases at lower cost.
Can I use the G-wire as a C-wire?
We can repurpose the G-wire as a C-wire at the furnace, but this means you lose independent fan control — the fan will only run when heating or cooling calls. The fan wire at the furnace control board moves from the G terminal to the C terminal, and at the thermostat the G terminal stays empty. The Nest then uses the C terminal for continuous 24V power, which solves the battery-drain problem that plagues C-wire-less setups in older Brooklyn brownstones and Bronx co-ops. But when the system isn’t actively heating or cooling, the fan won’t circulate air at all. This is a functional workaround, but we don’t recommend it for homes with whole-house humidifiers, air purifiers, or anyone who wants fan-only circulation on mild days — the Power Connector or a 24V transformer is a better fit for those setups.

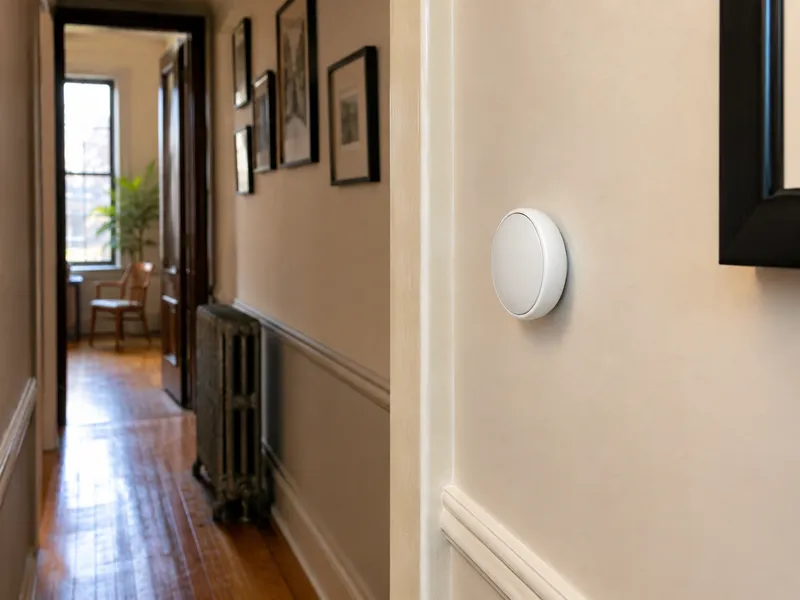

Can You Install a Nest in a Brooklyn Brownstone With an Old Boiler?
Brooklyn brownstones present unique challenges — old boilers, missing C-wires, and difficult wire runs. Here’s how we handle them.

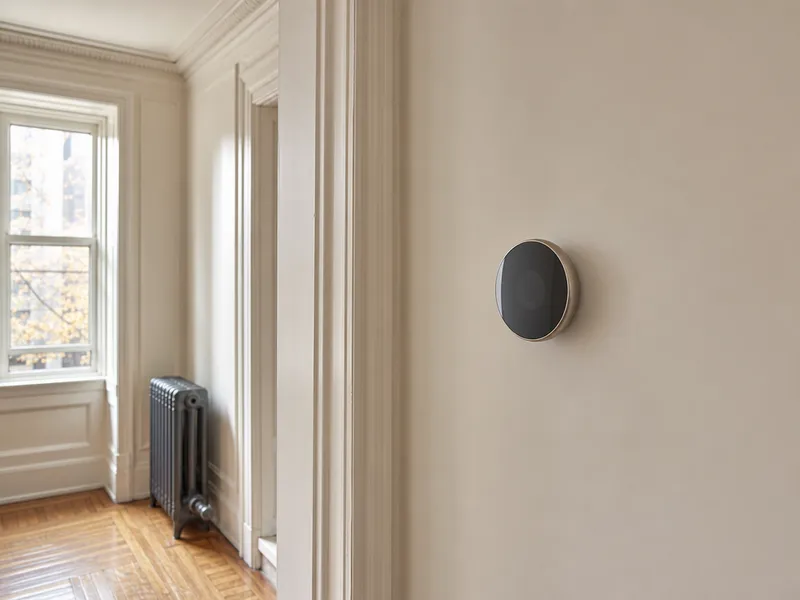

Will Nest work with an old boiler in a brownstone?
Yes — we install Nest Thermostats in Brooklyn brownstones with old boilers every week. Most gas-fired boilers use standard 24V controls that Nest works with perfectly. The real challenge isn’t the boiler itself — it’s that brownstones from the 1880s-1920s almost always have 2-wire thermostat cable (R and W only), which means no C-wire and no way to power the Nest without a Power Connector or 24V transformer. In our practice, we carry both solutions on the truck — the Power Connector installs at the boiler control board in about twenty minutes and solves the power issue without running new wire through plaster-and-lath walls.
What about millivolt boilers in older brownstones?
If your Brooklyn brownstone has a pre-1960s boiler with millivolt controls, Nest is not compatible — our technician will verify the system type before starting any work. Millivolt systems generate their own tiny electrical current from the heat of the pilot flame, and Nest requires a full 24V power source that these systems simply can’t provide. On a recent call in Carroll Gardens, we found a 1954 Weil-McLain boiler with a millivolt gas valve — the homeowner had bought a Nest at Best Buy and couldn’t figure out why it wouldn’t power up. We recommended a millivolt-compatible Honeywell instead and had it running within the hour.
Is a Permit Required for Nest Thermostat Installation in NYC?
NYC homeowners often worry about permits. Here’s what the NYC DOB actually requires for thermostat installation.
Do I need a NYC DOB permit for a Nest installation?
- Standard replacement — no permit needed. Swapping a thermostat at the same location with the same voltage is a minor repair under NYC Electrical Code Article 725 — no NYC DOB permit required, and we do this daily across all five boroughs.
- New wiring through walls — yes, a permit may be needed. If we have to run new thermostat wire inside finished walls or add a 24V transformer tied to the electrical panel, the work crosses into permitted territory — and we handle that process for you if it comes up.
- DOB vs. building rules — two separate things. Even when the city doesn’t require a permit, your co-op board or condo management might have their own approval process for visible thermostat changes. We coordinate with them before the appointment.
- No permit for the Nest Power Connector. Installing Google’s C-wire alternative at the furnace control board stays within the same-voltage, Class-2 circuit scope — no permit trigger, no extra paperwork.
What about co-op or condo building rules?
Building management rules are separate from DOB permits — some NYC co-ops and condos require board approval for visible thermostat changes or restrict access to HVAC equipment to building staff only. In our practice, we’ve walked into Bronx co-ops where the super must be present to unlock the furnace room, and Manhattan pre-war buildings where the management company requires a certificate of insurance before any contractor touches the riser. We coordinate with your building’s super or management before the appointment to ensure access to the furnace room or air handler — this is especially common in Bronx co-ops and Manhattan pre-war buildings where the HVAC equipment shares space with other units’ systems.
Can You Install a Nest Thermostat in an NYC Apartment?
NYC apartments vary wildly — from modern Manhattan high-rises to pre-war walk-ups. Here’s what to expect for your building type.
Can you install Nest in a Manhattan apartment?
Yes — we install Nest Thermostats in Manhattan apartments daily. Most post-war buildings have central HVAC with C-wire present, making for a straightforward 30–45 minute installation. In pre-war Manhattan apartments, the typical setup is a 2-wire system controlling steam heat only — Nest handles steam heat fine, but without a C-wire we install a Nest Power Connector at the boiler control board. The connector taps into R, W, Y, and G at the furnace and sends power back to the thermostat through the existing wire. That adds about 20 minutes to the job. The older the building, the more likely the thermostat cable is stapled inside the wall — running new wire isn’t practical, which is exactly why the Power Connector is the solution we carry on every truck for Manhattan apartment calls.
What about Queens row houses and Staten Island homes?

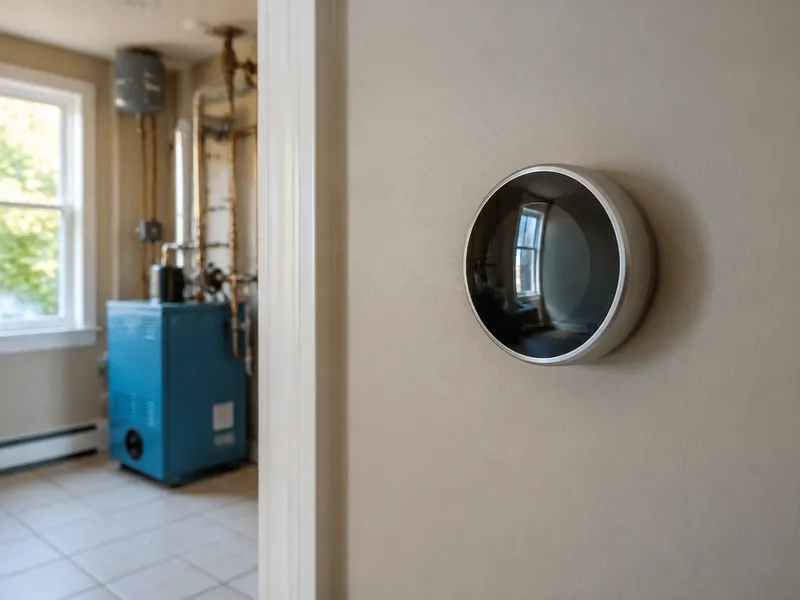

- Queens row houses (post-2000): Usually have forced-air systems with C-wire present — our technician can complete a standard Nest installation in under 45 minutes with no adapter needed.

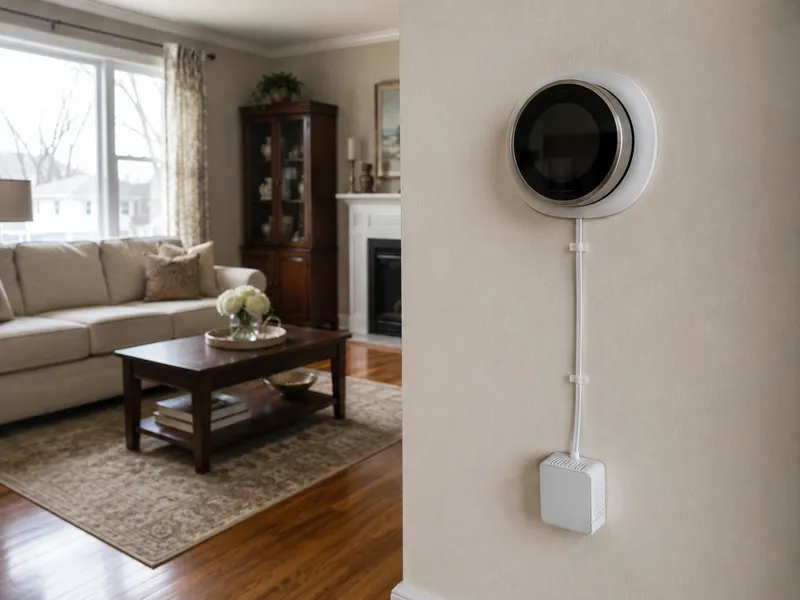

- Staten Island single-family homes: Most have standard 24V systems with C-wire already in place, making them the most straightforward installations across all five boroughs.
- Older Queens homes (pre-1980): Mix of boilers and forced air — we check for C-wire at the thermostat and often find 4-wire cable with the C-wire tucked behind the wall plate, unused.
- Staten Island millivolt systems: Older gas boilers sometimes use millivolt controls that Nest cannot operate — our technician always verifies the system type at the furnace before starting any work.
Main Takeaways
Nest Thermostat Installation in NYC — What Matters Most
Nest Thermostat installation in NYC is straightforward for most homes, but the key variable is the C-wire — without it, the thermostat will struggle to maintain power, especially in older buildings with frequent heating cycles. Brooklyn brownstones, pre-war Manhattan apartments, and any home with original 1950s-1980s wiring will almost certainly need a C-wire solution like the Nest Power Connector. Compatibility checks are essential: millivolt boilers and proprietary communicating systems (Carrier Infinity, Lennox iComfort) won’t work with Nest at all. NYC DOB permits are not required for a simple thermostat swap, but building management rules may still apply. Professional installation avoids the common DIY pitfalls — miswiring, Wi-Fi connectivity issues, and voided warranties from improper setup.
