Foundation Drainage Contractors in NYC

What is foundation drainage and why is it important?

Foundation drainage is a system that collects and redirects groundwater away from your foundation to prevent hydrostatic pressure and structural damage.

How foundation drainage protects your NYC home

Eco Service NY installs foundation drainage systems that collect groundwater at the footing level and redirect it away from your foundation, preventing the hydrostatic pressure that causes wall cracks, bowing, and basement flooding. The system uses perforated pipe laid in a gravel trench—either interior drain tile under the slab or an exterior French drain outside the wall—to intercept water before it builds up force. In NYC’s clay soil, which expands when wet and holds water like a sponge, a properly designed drainage system is the difference between a dry basement and thousands in structural repairs. We see this most often in Brooklyn brownstones and Queens row houses where the original clay tile from the 1920s has long since crushed. That old tile collapses, and water has nowhere to go but through the foundation. A new interior perimeter system solves it in two days. Look for Foundation Drainage Contractors who understand these local conditions.

Two main approaches: interior and exterior

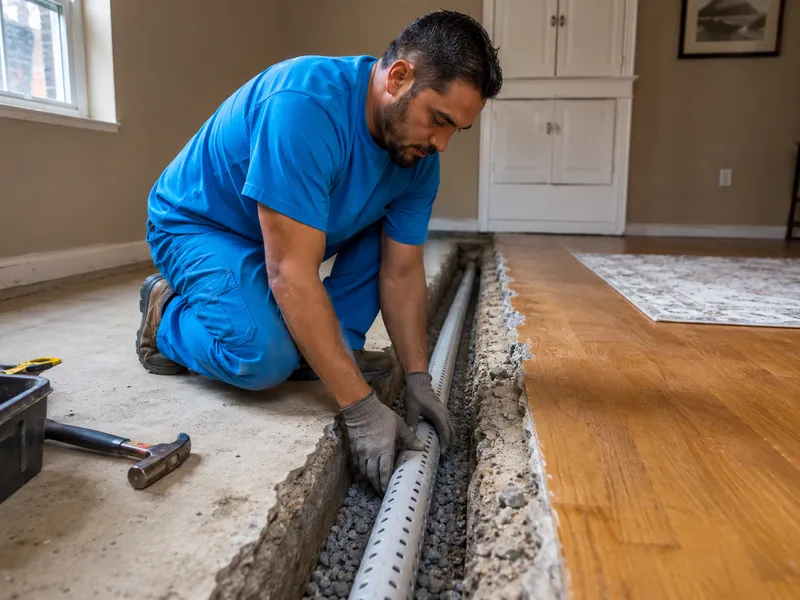

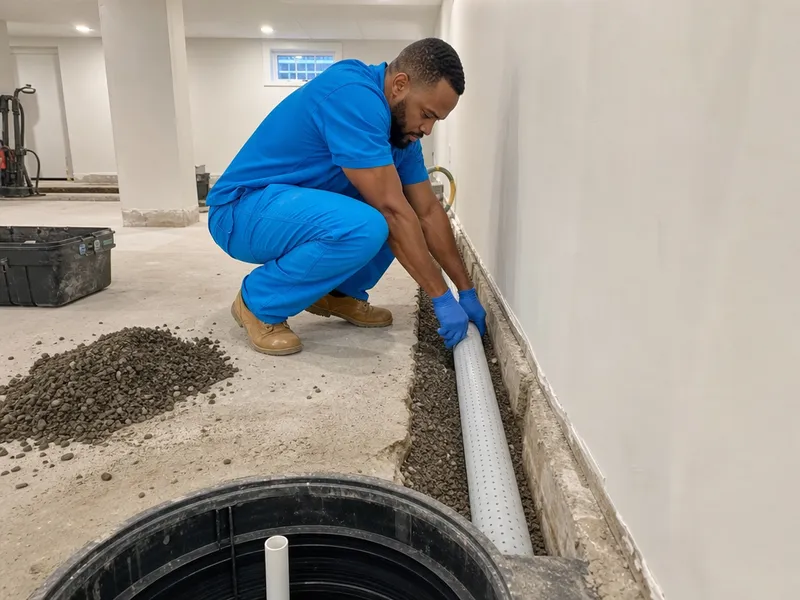

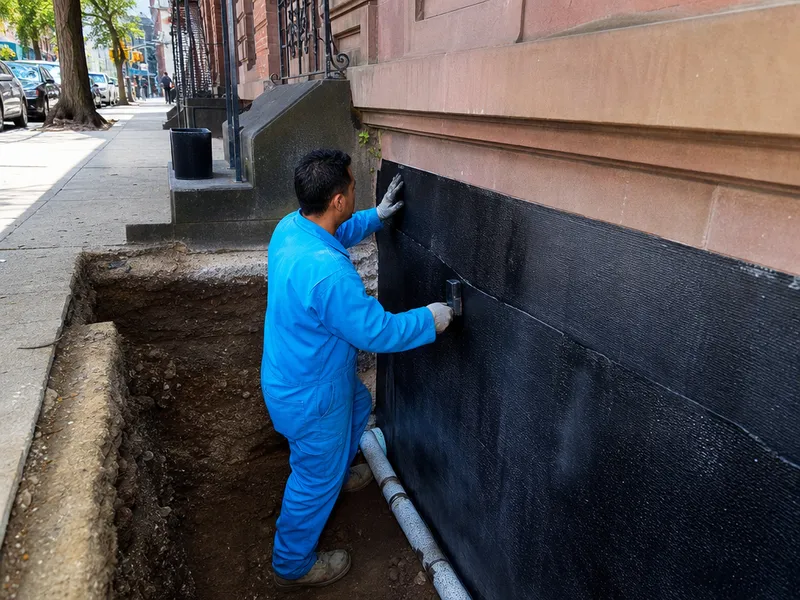

Foundation drainage systems fall into two categories—interior drain tile installed under the basement slab that routes water to a sump pump, and exterior French drains in trenches outside the foundation that intercept groundwater before it reaches the wall. Interior systems are common in brownstones where shared party walls prevent exterior excavation on one side. Exterior systems work well when you have yard access and the soil can be graded away from the house. The best protection often combines both approaches, since interior systems manage water that has already entered while exterior systems prevent it from reaching the foundation in the first place. That combination matters most on properties with clay soil and a high water table—lower Manhattan and waterfront areas, for instance.

Signs you need foundation drainage in NYC

Knowing the warning signs early can save your foundation from serious damage — here’s what to look for, from obvious water to subtle structural clues.

Visible water and moisture signs

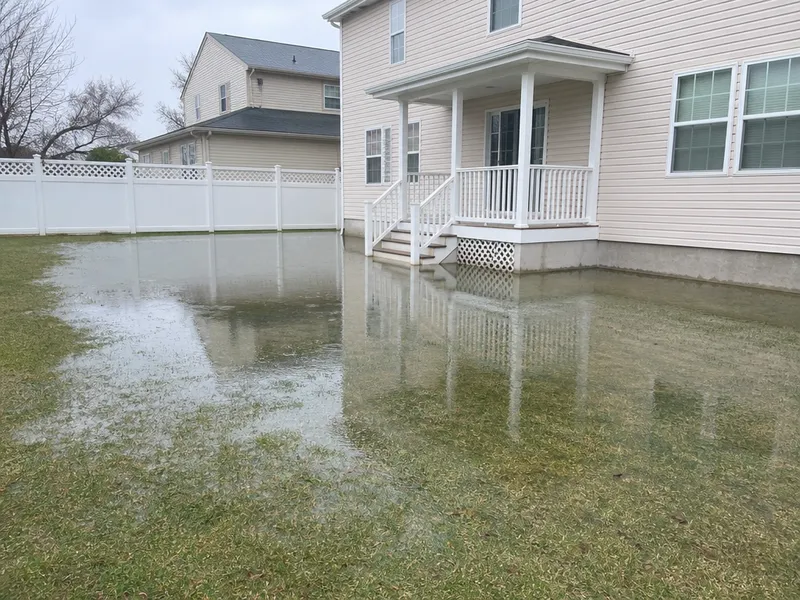

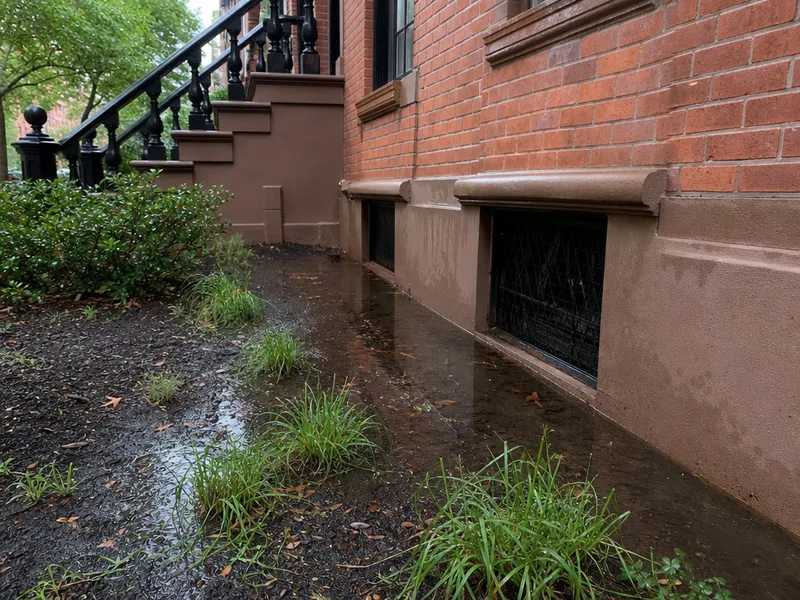

• Standing water on the floor: Puddles in your basement or crawl space after rain are the most direct sign. If water pools against walls or near the floor-wall joint, your drainage system isn’t moving water away.

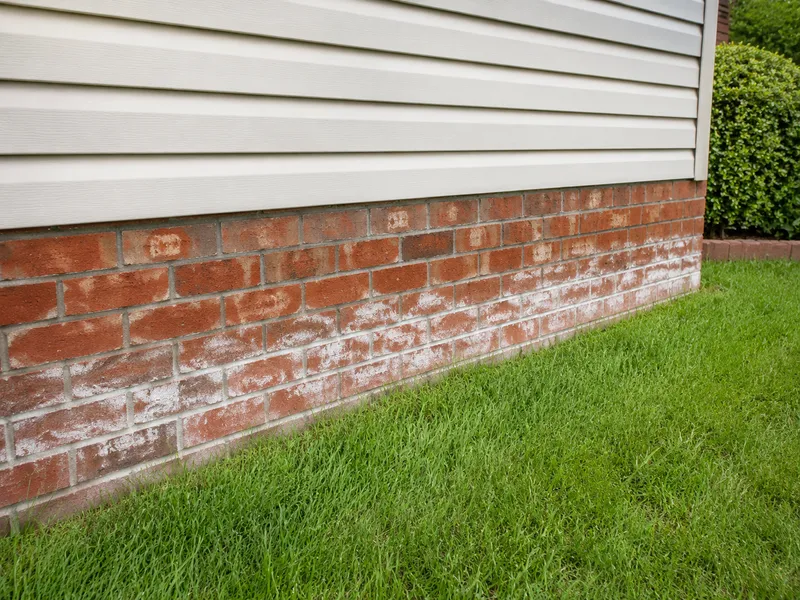

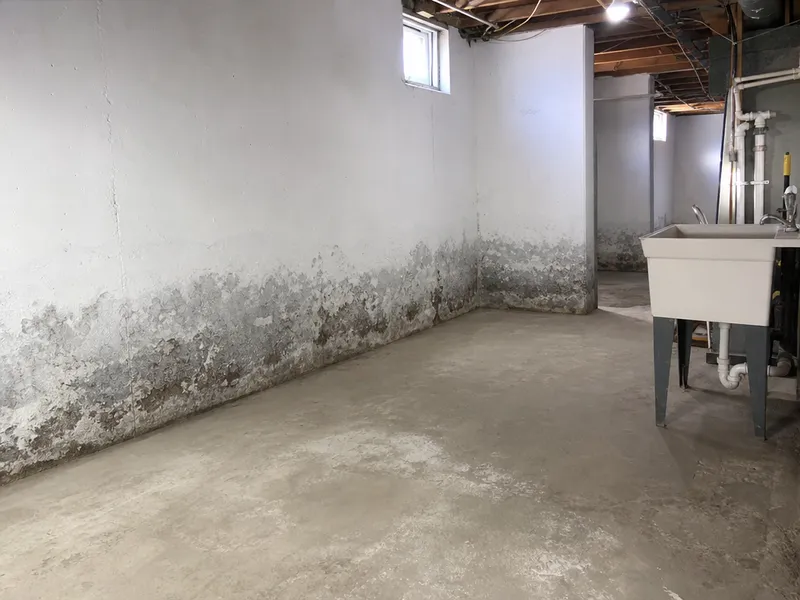

• Efflorescence on walls: White, chalky deposits on concrete or block walls mean moisture is migrating through the masonry. As water evaporates, it leaves behind mineral salts — this is a reliable early warning that hydrostatic pressure is building.

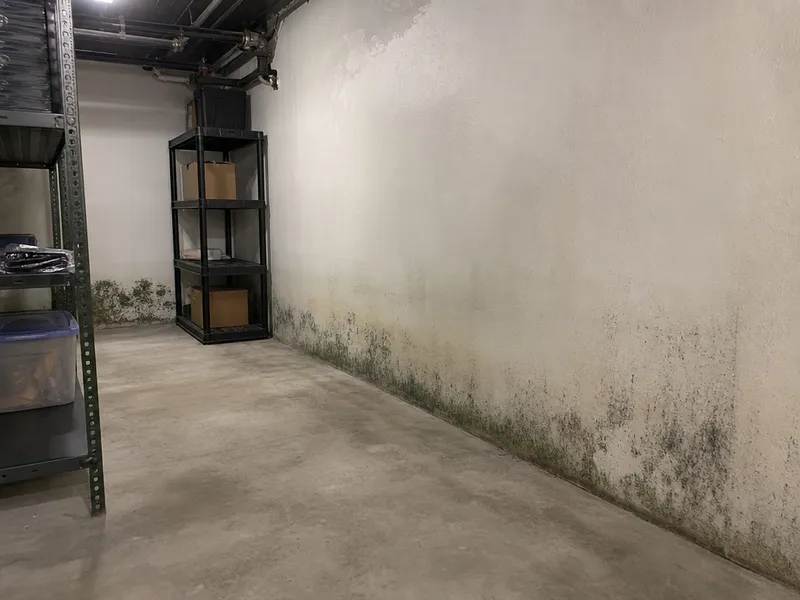

• Persistent musty odor: A damp smell that never fully dries out, even after running a dehumidifier, indicates chronic moisture trapped in the basement. That smell is microbial growth starting.

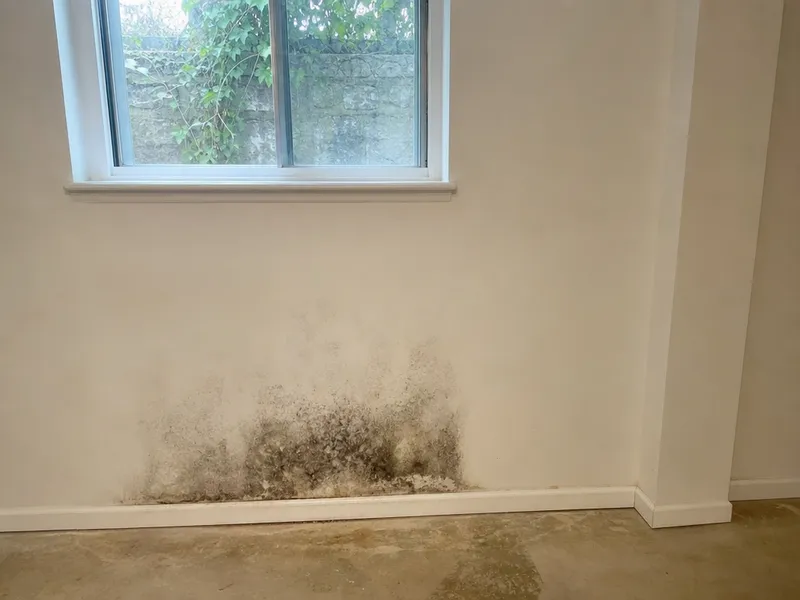

• Mold or mildew patches: Visible black, green, or white growth on walls, stored boxes, or wooden shelving. Mold needs sustained moisture to thrive — drainage failure provides exactly that environment.
• Water stains at the base of walls: Discoloration running along the floor-wall joint or creeping up from the slab. In brownstones, this often appears first near the party wall where exterior access is impossible.

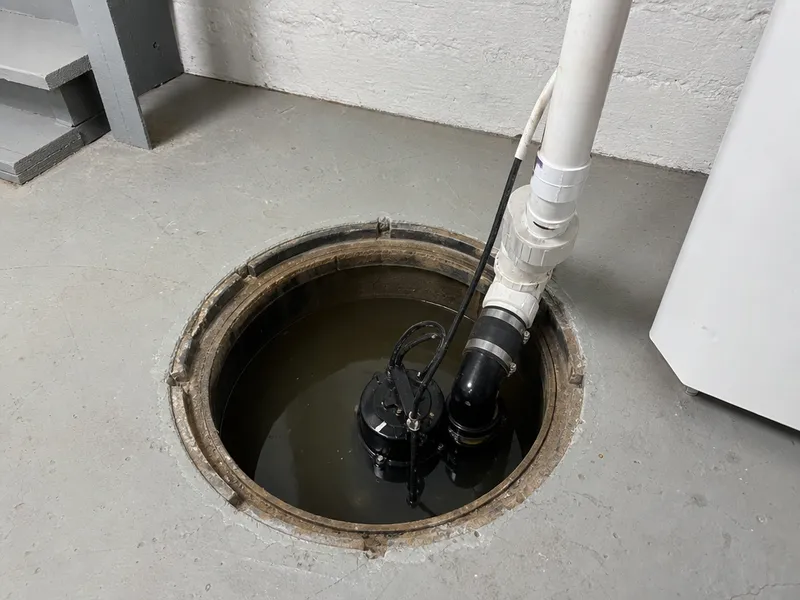

• Sump pump running every few minutes: If your pump cycles during dry weather, water is seeping in faster than the soil can absorb it — a clear sign the perimeter drainage is overwhelmed or clogged.

Structural warning signs

• Horizontal foundation cracks: Cracks running side to side across a wall, not stair-stepping. These are the most serious — they indicate hydrostatic pressure is actively pushing the wall inward. Without drainage, each heavy rain widens the gap.
• Bowing or bulging walls: A wall that curves inward, often with horizontal cracks at the midpoint. In Brooklyn row houses with fieldstone foundations, this can progress for years before becoming visible from the outside.
• Stair-step cracks in block walls: Cracks following the mortar joints in a zigzag pattern. These signal differential settlement — soil under part of the foundation has eroded or shifted due to water movement.

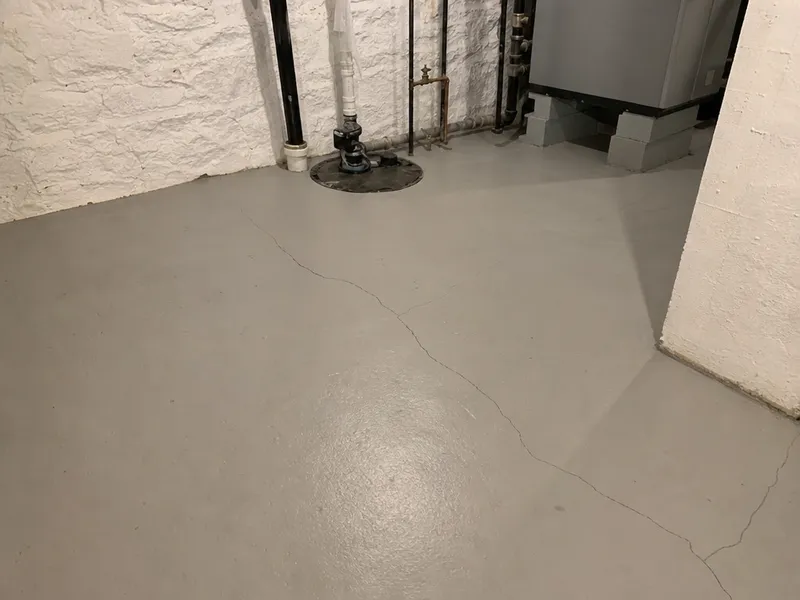

• Cracks in the basement floor slab: Heaving or settlement cracks that appear after periods of rain. Water saturating the soil below the slab causes expansion (heave) or washes out fines (settlement), both of which crack the concrete above.
• Doors and windows that stick: A subtle sign — if basement doors suddenly bind or windows won’t close properly, the foundation may be shifting from water-related soil movement.

What causes foundation drainage problems in NYC

Foundation drainage failures in NYC homes come from a distinct mix of soil conditions, aging infrastructure, and building practices unique to the five boroughs.

NYC’s clay soil and hydrostatic pressure

The dominant cause of foundation drainage problems in NYC is clay soil—particularly in Brooklyn, Queens, and Staten Island—which expands when wet and creates hydrostatic pressure against foundation walls that can exceed 2,000 pounds per square foot. Clay particles are microscopic and pack tightly, leaving almost no space for water to pass through; a cubic foot of saturated clay holds roughly 2–3 gallons of water that simply sits against the foundation. In contrast, sandy soil drains that same water in hours. The pressure builds incrementally: each rain event adds force against the wall until the concrete or block reaches its tensile limit and cracks. Unlike sandy soil that drains naturally, clay holds water against your foundation for days after rain, which is why a single storm can cause cracks that took years to develop.

Aging infrastructure and common NYC issues

• Original clay drain tile (1920s–1950s): Many NYC homes still have the original clay tile drainage systems—these are often crushed by decades of soil settlement, clogged with silt, or simply disconnected at the joints.

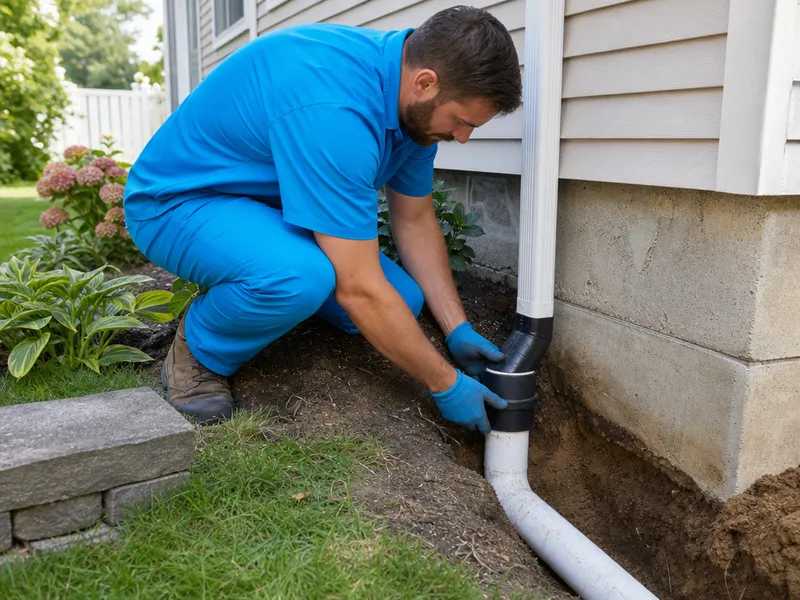

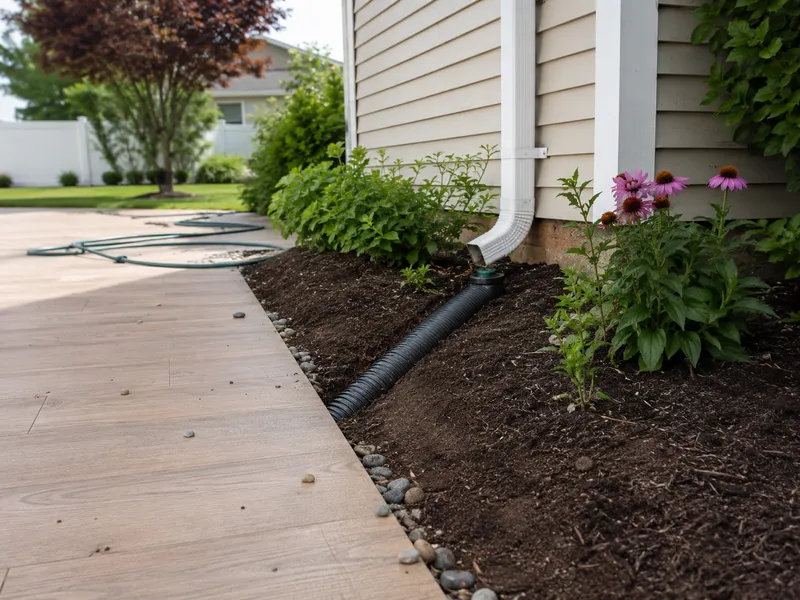

• Downspout discharge against the foundation: Row houses and brownstones frequently have gutter downspouts that empty directly against the foundation wall, dumping roof runoff into the soil next to the basement.

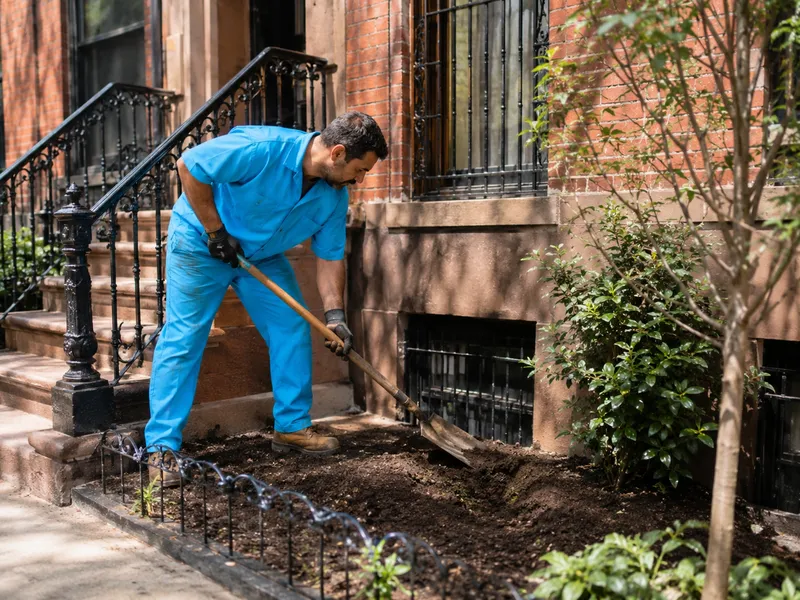

• Improper grading from renovations: Patio installations, sidewalk replacements, and landscaping work often leave the final grade sloping toward the house—water runs to the foundation instead of away from it.
• Tree root intrusion: Mature street trees send roots into drain tile joints and sump pits, physically blocking the pipe and creating entry points for soil migration.
• Shared party walls in brownstones: Water from a neighbor’s property can migrate through the shared foundation wall into your basement—your drainage system has to handle water coming from two sides.

Interior vs exterior foundation drainage: which is right for you?

Interior and exterior drainage systems take different approaches to the same problem. Here is how they compare for NYC homes and which one fits your situation.

Interior vs exterior drainage comparison

When to choose interior vs exterior

Interior drainage is the best choice for finished basements, brownstones with shared party walls where exterior excavation isn’t possible, and homes where the water table is below the basement slab. In the field, I see Brooklyn brownstones where the neighbor’s foundation sits directly against the party wall — there is simply no room for an exterior trench on that side, so an interior perimeter system is the only practical option. Exterior drainage is ideal when you have yard access and want to prevent water from ever reaching the foundation, but it requires NYC DOB permits for any excavation deeper than 4 feet and full landscaping restoration afterward. The grading work alone — sloping soil 1 inch per foot away from the foundation for the first 10 feet — often costs as much as the trench itself on Staten Island hillside properties.

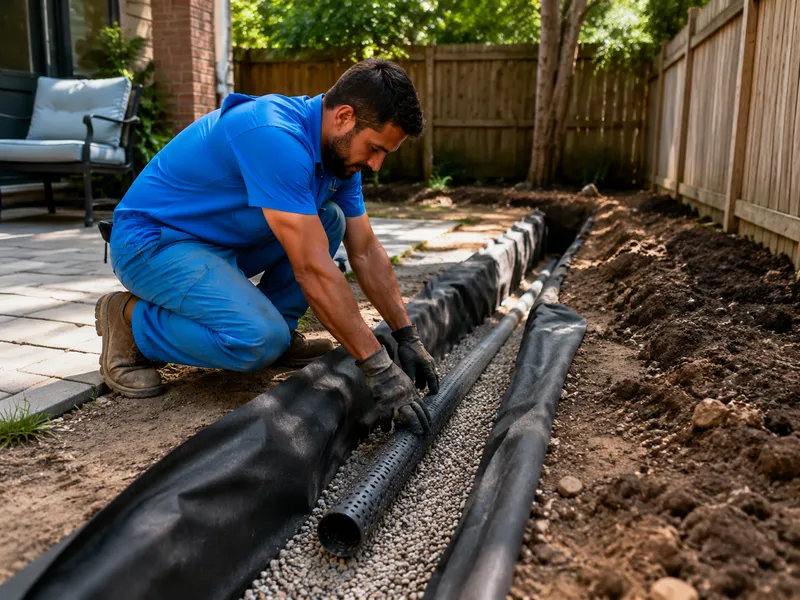

How does a French drain work?

A French drain uses gravity to move groundwater — water seeps through gravel into a perforated pipe laid on a slope and flows downhill to a discharge point like a dry well or daylight outlet.

The gravity-driven mechanism

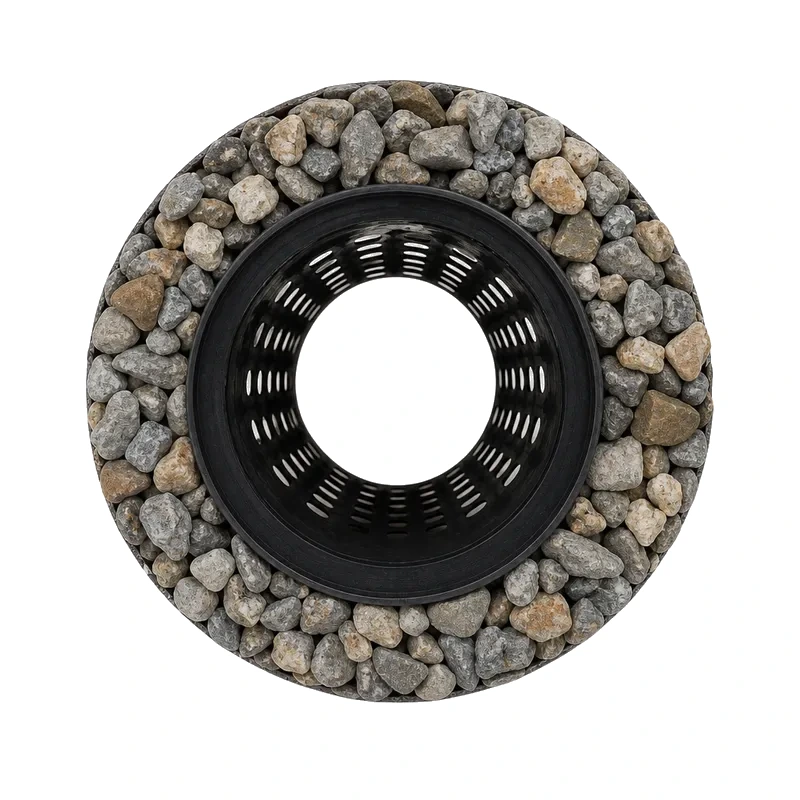

A French drain works by gravity — water seeps through gravel into a perforated 4-inch PVC pipe laid in a trench with a minimum slope of 1/4 inch per foot, which carries the water downhill to a discharge point like a dry well or daylight outlet. The pipe’s holes face downward, not upward, collecting water that rises from below rather than surface runoff. Filter fabric wraps the gravel to keep soil from migrating into the system. Interior French drains run along basement perimeter walls at footing level and route collected water to a sump pit. The pipe’s holes face downward, not upward — this collects water that rises from below the pipe rather than surface runoff, which is why proper depth at the footing level is critical.

Critical components for a long-lasting system

• Filter fabric: Wraps the gravel to prevent soil migration — without it, the pipe clogs within 1–2 years, requiring full re-excavation.
• Proper slope: Minimum 1/4 inch per foot on the pipe keeps water moving; less slope causes pooling and failure.
• Discharge point: Must be at least 10 feet from the foundation — water dumped closer re-enters the soil and re-pressurizes the wall.
• Gravel specification: 3/4-inch washed stone creates the voids water needs to reach the pipe — pea gravel compacts and blocks flow.

Sump pump vs French drain: what’s the difference?

Sump pump vs French drain comparison

Why they work best together

A French drain collects groundwater and routes it to a sump pit, while the sump pump removes that water from the basement — neither alone is as effective as both working together. The interior French drain (drain tile) runs along the footing perimeter and channels water into the pit through perforated pipe laid in gravel. The pump then discharges that collected water through a 1.5-inch PVC line to the exterior, at least 10 feet from the foundation. Without the French drain, a sump pump only removes water that happens to reach the pit by chance — which is why homeowners who install a pump alone often still have wet floors after heavy rain.

Best sump pump for NYC basements

For NYC basements with clay-heavy groundwater, cast iron pumps from Zoeller and Liberty Pumps outperform budget plastic models — here is how the top brands compare.

Top sump pump brands for NYC conditions

Why battery backup is essential for NYC

A battery backup sump pump like the Zoeller Aquanot is essential for NYC basements because power outages during heavy storms — when the pump is needed most — are common across all 5 boroughs. The Aquanot uses a deep-cycle marine battery that activates automatically when the main pump loses power, and it runs for 8–12 hours on a full charge depending on pumping frequency. The Basement Watchdog system from Glentronics is another solid option, though its battery tends to corrode faster in humid basements. Without backup, a basement floods within minutes of a power failure during a storm, and since NYC emergency response can take hours, the damage is often done before power returns.

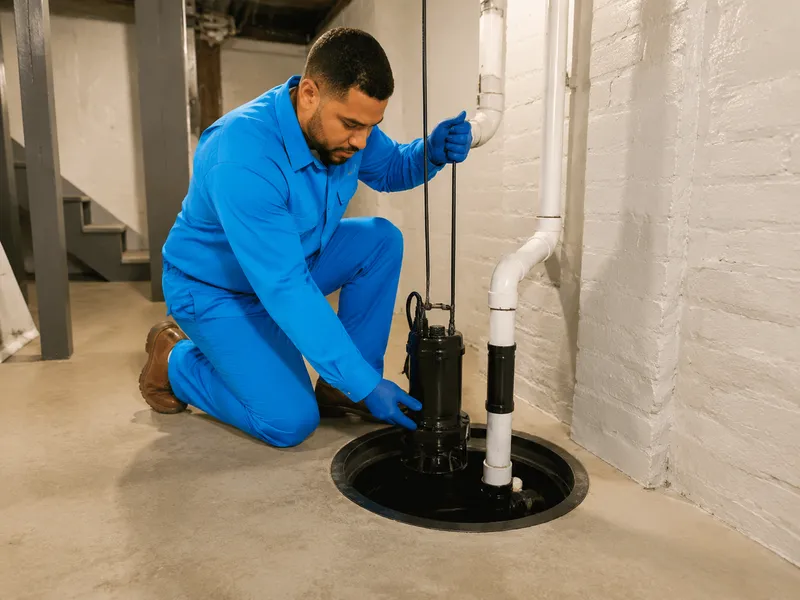

Key features for NYC basements

• Cast iron construction: Lasts 10–15 years versus 3–5 for plastic pumps — NYC’s damp basements corrode thermoplastic housings quickly.
• Vertical float switch: Won’t jam in narrow pits, unlike tethered floats that snag on pit walls or the pump body.
• 1/3 HP motor minimum: Sufficient for most residential basements; step up to 1/2 HP if the discharge pipe runs longer than 20 feet or the vertical lift exceeds 15 feet.
• Check valve on discharge pipe: Prevents water from draining back into the pit after the pump stops, which causes short cycling and motor burnout.
• Weep hole drilled above pump: A small hole in the discharge pipe prevents air lock — a common issue where the pump runs but moves no water because air is trapped in the pipe.

Best foundation drainage system for a Brooklyn brownstone

Brooklyn brownstones present unique drainage challenges because of shared party walls, fieldstone foundations, and aging clay tile systems. An interior perimeter drain tile system with a Zoeller M57 sump pump is the standard solution for these buildings.

The standard solution for brownstone basements

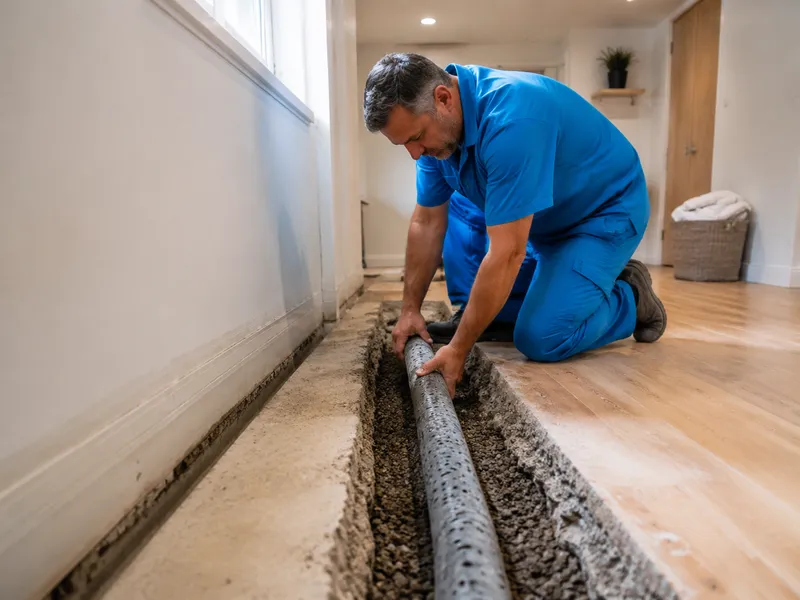

At Eco Service NY, we install interior perimeter drain tile with a Zoeller M57 sump pump as the standard solution for Brooklyn brownstones, since shared party walls prevent exterior excavation on the neighbor’s side. The system runs 4-inch perforated PVC pipe along all basement perimeter walls at footing depth, directing water to a sump pit fitted with the cast-iron Zoeller M57 — a pump we’ve seen run reliably for over a decade in NYC’s clay-heavy water. The drain tile is wrapped in filter fabric and bedded in ¾-inch washed gravel to prevent soil migration and clogging. Pre-1900 brownstones with fieldstone foundations are especially porous — water seeps through the stone walls themselves, making interior drainage at the footing level the only effective approach.

Special considerations for brownstone drainage

• Discharge routing: Must go to the street storm sewer or a dry well — discharging to the sanitary sewer is a NYC DEP violation with fines attached.
• Co-op board approval: Some brownstone co-ops have shared sump pump systems; installing an individual system without board approval creates liability and potential neighbor disputes.
• Original clay drain tile (1920s–1950s): Often crushed or clogged after decades underground — must be removed or abandoned, never tied into a new system.

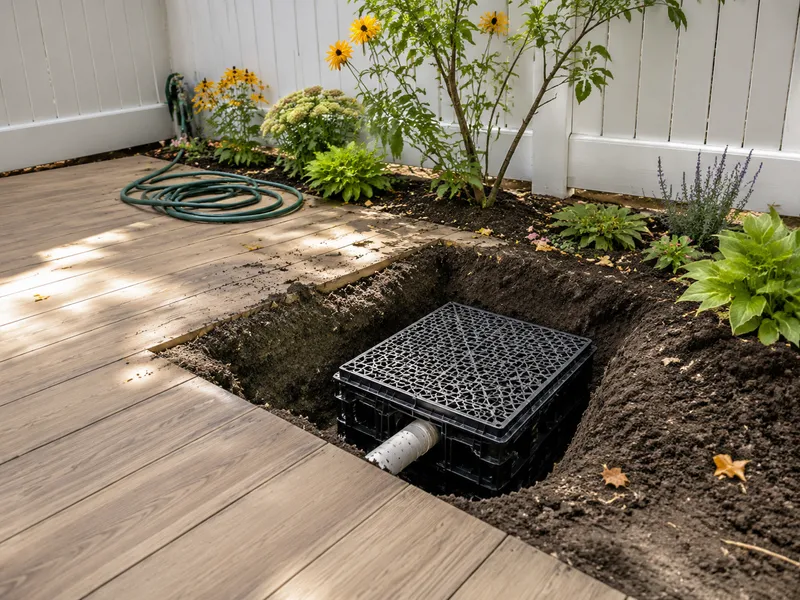

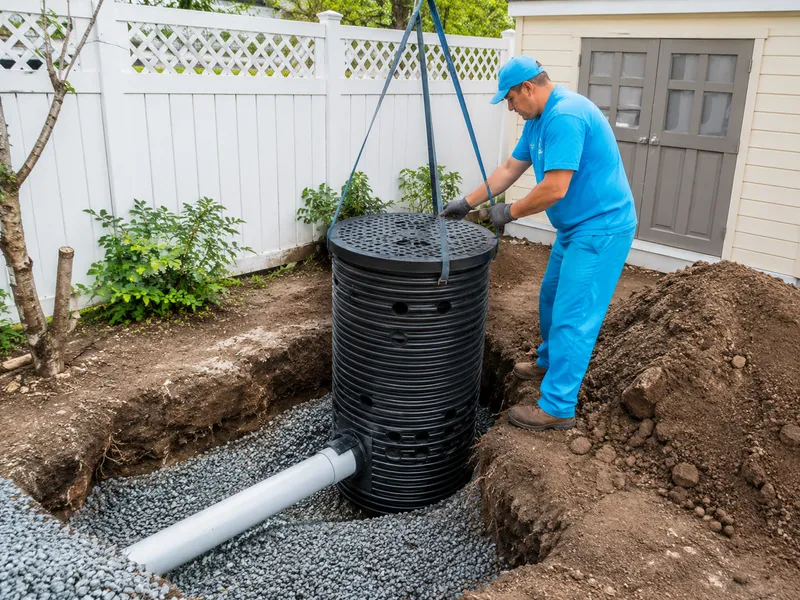

• Dry well option: Collects stormwater from the sump pump discharge and allows gradual percolation into the soil through a buried perforated tank, avoiding street sewer connection fees.
• Fieldstone and cobblestone foundations: Common in pre-1900 brownstones — these porous stone walls transmit water directly into the basement, making interior drainage at the footing level the only real solution.

How to choose a foundation drainage contractor in NYC

Vetting a foundation drainage contractor in NYC requires checking specific licenses, insurance, and contract terms that most general plumbers don’t carry.

Licenses, permits, and insurance to verify

• NY Master Plumber license: Required for any work connecting the sump pump discharge to the plumbing system or tying into the street storm sewer line.
• NY DOS Home Improvement license: Required for the excavation, grading, and French drain installation itself — this is the license most drainage contractors need but often don’t have.
• NYC DOB permit: Required for any excavation deeper than 4 feet. Unpermitted excavation creates liability when you sell your home — the buyer’s attorney will flag it during title search, and you may be forced to retroactively permit or restore the property.
• General liability and workers’ comp insurance: NYC DOB requires both for permit issuance. Ask for a certificate of insurance naming you as additional insured.

What to look for in a contract and warranty

• Written scope of work: Must specify excavation depth, pipe type (4-inch perforated PVC schedule 40), gravel specification, sump pump model (Zoeller or Liberty), and restoration details.
• Warranty terms: A 1-year warranty on parts and labor is standard. Anything less than 12 months is a red flag — the contractor doesn’t stand behind their work.
• Material specifications: The contract should name the filter fabric brand and pipe schedule. If they won’t put it in writing, they’re likely using the cheapest materials available.
• Permit responsibility: The contract should state who pulls the NYC DOB permit and who pays the fee. Get 3–5 quotes minimum — if one is significantly lower, they’re likely cutting corners on filter fabric, pipe quality, or pump brand, which fails within 2 years.

Foundation drainage: the bottom line for NYC homeowners

Main takeaways

Foundation drainage is the most effective solution for wet basements in NYC, addressing the root cause — hydrostatic pressure from clay soil — rather than just managing symptoms. An interior perimeter system with drain tile at the footing level collects groundwater before it reaches the slab, and a cast iron sump pump removes it to the street storm sewer or a dry well. The battery backup is what keeps the system running when a summer thunderstorm knocks out power — and that’s exactly when the pump is needed most. The key to a dry basement is a complete system: interior drain tile collects water at the footing level, a cast iron sump pump removes it, and battery backup ensures protection during power outages.
