Bathtubs in NYC

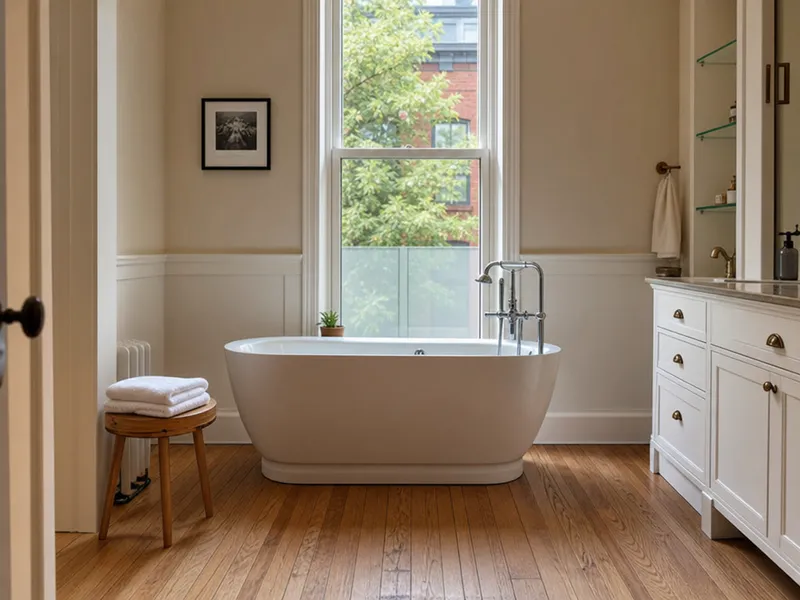

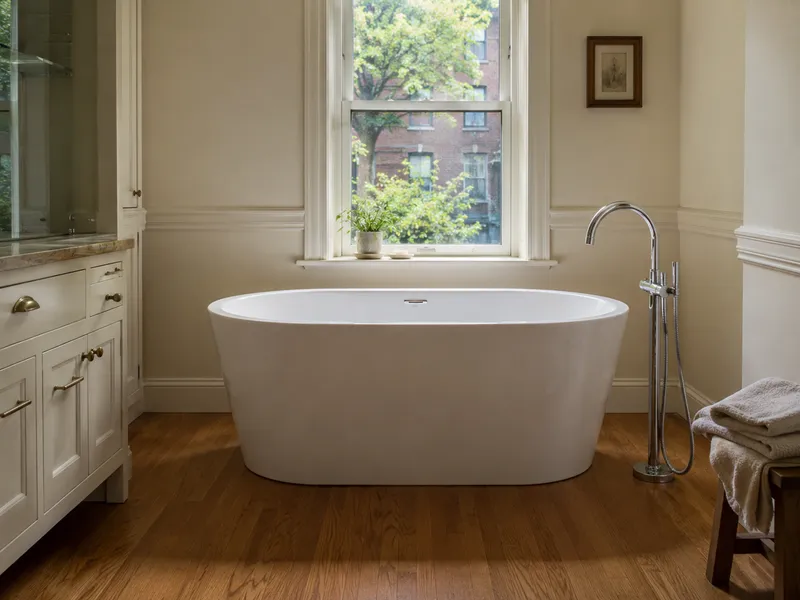

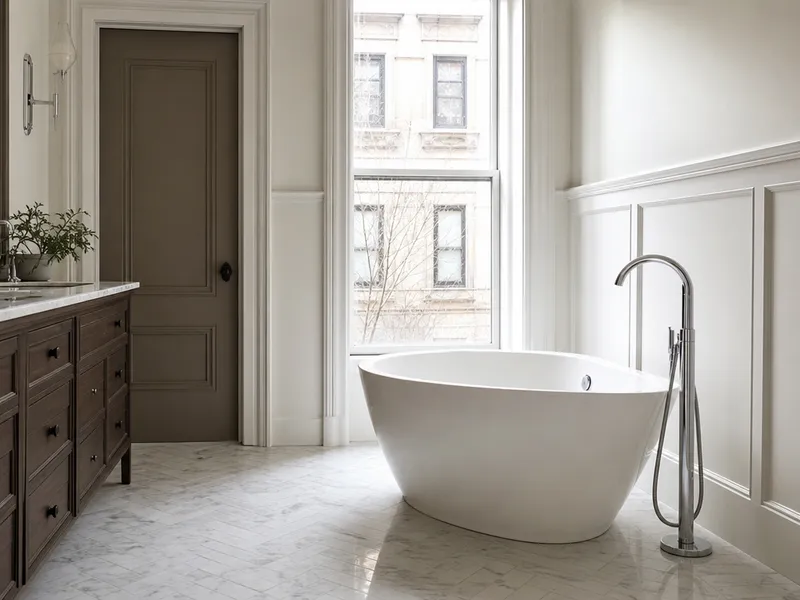

Can you install a freestanding tub in my Brooklyn brownstone?

Freestanding tubs are popular in Brooklyn brownstone renovations but come with unique challenges — narrow staircases, 1800s floor joists, and plumbing relocation. Here’s what we assess before quoting.

Access and floor reinforcement for brownstone freestanding tubs

We measure every access point before quoting — brownstone staircases are typically 30–32 inches wide, and most freestanding tubs are 60–72 inches long, so we often need to bring the tub in through a window or remove a door frame temporarily. A 350-lb cast iron freestanding tub on four feet creates roughly 88 lbs of point load per foot, and 1800s brownstone joists (often 2×8 on 16-inch centers) may need sistering or 3/4-inch plywood load distribution to prevent ceiling cracks below. In our practice, we’ve also found that the subfloor under old brownstone bathrooms is frequently rotted from decades of undetected water seepage around the old tub edge, so we plan for a subfloor replacement as part of the scope. The point load from those four feet concentrates weight in a way a standard alcove tub never does — that’s the structural surprise most homeowners don’t see coming.

Plumbing modifications for freestanding tubs in brownstones

• P-trap relocation: We cut and re-position the trap to match the new drain location — this usually means cutting into the floor below or the ceiling below in multi-story brownstones, adding 1–2 hours to the install.
• Supply line re-routing: Freestanding tubs require a floor-mounted faucet, so the existing wall-mounted supply lines get capped and new PEX runs go through the floor.
• Drain assembly repositioning: The new drain location is almost never where the old one was — we install a new waste-and-overflow assembly and test it before setting the tub.
• Vent check: If the new trap is more than 5 feet from the existing vent stack, we run a new vent — NYC code is strict on this, and skipping it causes slow drains and sewer gas issues.

Best bathtub type for a small NYC bathroom

Small NYC bathrooms — especially pre-war 5×7-foot layouts — need the right tub type to maximize space. Here’s our breakdown of what works and what doesn’t.

Tub types that fit small NYC bathrooms

Materials: why acrylic wins for small bathrooms

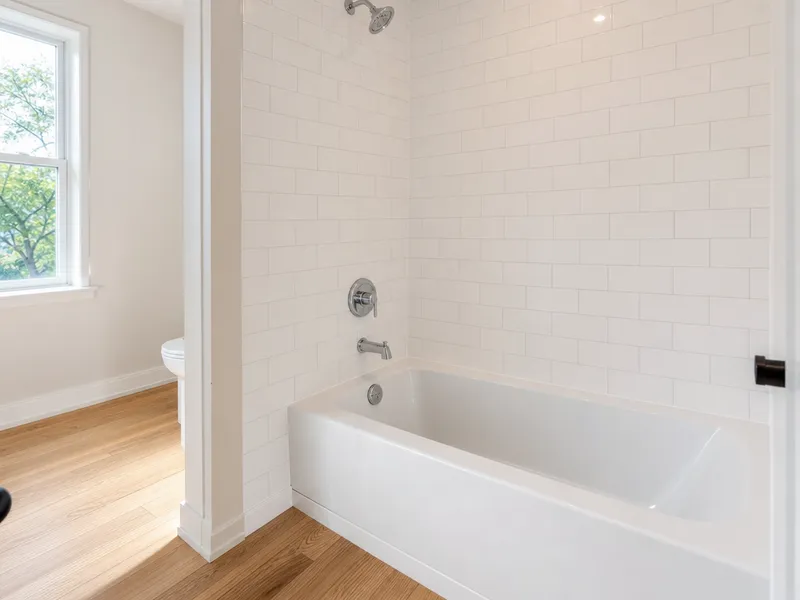

We recommend acrylic tubs for small NYC bathrooms — they weigh 60–100 lbs versus 300–500 lbs for cast iron, making them easier to install in tight spaces and on upper floors without floor reinforcement. An acrylic alcove tub can be carried up a 30-inch brownstone staircase by two people; a cast iron tub of the same size requires a four-person carry or a crane through a window. Acrylic also deadens sound better in multi-story buildings — no resonance through the floor joists when the water hits the tub floor. And here’s a practical point most homeowners miss: cast iron tubs in small pre-war bathrooms often require subfloor reinforcement that adds one to two days to the project, while acrylic installs are typically same-day and put less stress on aging joists.

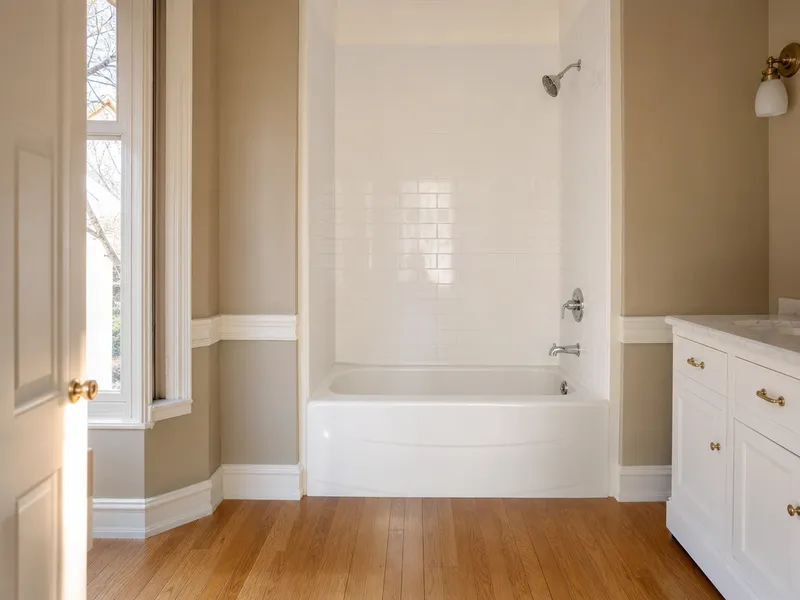

Replacing an old cast iron tub with a new acrylic tub

Replacing a 300–500 lb cast iron tub with a lightweight acrylic tub is one of our most common NYC jobs. Here’s how we handle removal, disposal, and the new install.

Removing the old cast iron tub

• Cut in place: We cut cast iron tubs in place using a reciprocating saw with carbide blades — they’re too large to carry out whole since they were installed before the walls were finished.
• Protect surfaces: We lay down 3/4-inch plywood and heavy drop cloths around the work area before cutting; cast iron fragments from the saw can chip porcelain tile and scratch cast-iron floor drains.
• Disposal: The cut sections are hauled away in pieces — cast iron is scrap metal, so we recycle it, but the labor is in the carry-out, not the dump fee.
• Blade count: Budget 2–3 carbide blades per removal — cast iron eats blades fast, and we always keep spares on the truck so we don’t lose time mid-cut.

Subfloor inspection and plumbing adjustment

We always inspect the subfloor after removing a cast iron tub — decades of water exposure without waterproofing means we expect 2–4 square feet of rot that we replace with treated 3/4-inch plywood. The old tub sat directly on the subfloor with no membrane underneath, so moisture wicked up from the floor and rotted the plywood from below. In brownstones, we’ve found rot extending past the tub footprint by 6–8 inches because the water traveled along the joist bays. The new acrylic tub’s drain and overflow are in different positions than the old cast iron, so we reposition the P-trap and extend supply lines — this adds 1–2 hours but ensures proper drainage.

Weight savings and noise benefits

Switching from cast iron to acrylic reduces floor load by 200–400 lbs and eliminates the need for structural reinforcement — plus acrylic is quieter because it doesn’t resonate like cast iron. A 350-lb cast iron tub on 4 feet concentrates nearly 90 lbs per contact point on the subfloor; an acrylic tub at 70 lbs total spreads that load across a flat base. In multi-story brownstones and co-ops, the noise reduction from acrylic is a practical benefit — tenants below won’t hear water rushing through a resonant cast iron shell.

What plumbing modifications are needed for a new tub?

Every new tub requires some plumbing adjustment — the drain, supply lines, and venting rarely align with the old setup. Here’s what we modify during a typical NYC tub installation.

P-trap relocation and drain adjustment

We cut and re-solder the copper P-trap (or re-glue PVC) to match the new tub’s drain location — this requires access from below, which in multi-story buildings means opening the ceiling below. We use a reciprocating saw with a metal blade for copper or a PVC cutter for plastic, and we always install a new trap primer if the existing one is corroded. The adjustment typically adds one to two hours to the install, depending on how far the drain moves from the original position. NYC code requires the trap to be within 5 feet of the vent, so if moving the drain more than 5 feet, we install a new vent line — this adds complexity in multi-story buildings where walls must be opened.

Supply lines, shut-off valves, and water hammer protection

• Supply line extension: We extend or replace supply lines (PEX or copper) to reach the new faucet location — PEX is our go-to for hidden runs, copper for exposed sections.
• Shut-off valve upgrade: Old corroded shut-off valves get replaced with quarter-turn ball valves, which is NYC code for new installations and prevents future leaks.
• Hammer arrestor installation: We install water hammer arrestors on both hot and cold lines preemptively — high-flow faucets on old galvanized pipes in pre-war buildings almost always cause pipe banging without them.
• Pressure regulator check: NYC water pressure can exceed 80 PSI, the code maximum — we test and install a pressure reducing valve if needed to protect the new faucet.

Drain pipe sizing and overflow height

New tubs often have 1-1/2-inch drains versus old 1-1/4-inch, so we upsize the drain line — and the overflow height may differ, which affects how deep the tub fills. We use a PVC coupling and a short section of pipe to transition sizes, and we always verify the overflow knockout height before finalizing the drain assembly. If the new overflow is lower than the old one, the tub won’t fill as deep — we always check this with the customer before installation so expectations match reality.

Do you handle plumbing and tiling for the new tub?

Customers often ask whether we handle both the plumbing and the tiling for a new tub. Here’s exactly what’s included in our service and what requires a separate contractor.

Plumbing scope included in every tub installation

• Rough-in by a Master Plumber: Every tub installation includes full plumbing rough-in by an NYC DOB Licensed Master Plumber—P-trap adjustment, drain/overflow assembly, and supply lines run in PEX or copper.
• Faucet and trim work: We install the tub spout, faucet handles, shower diverter, and all trim. That covers single-handle, widespread, and floor-mount faucet setups.

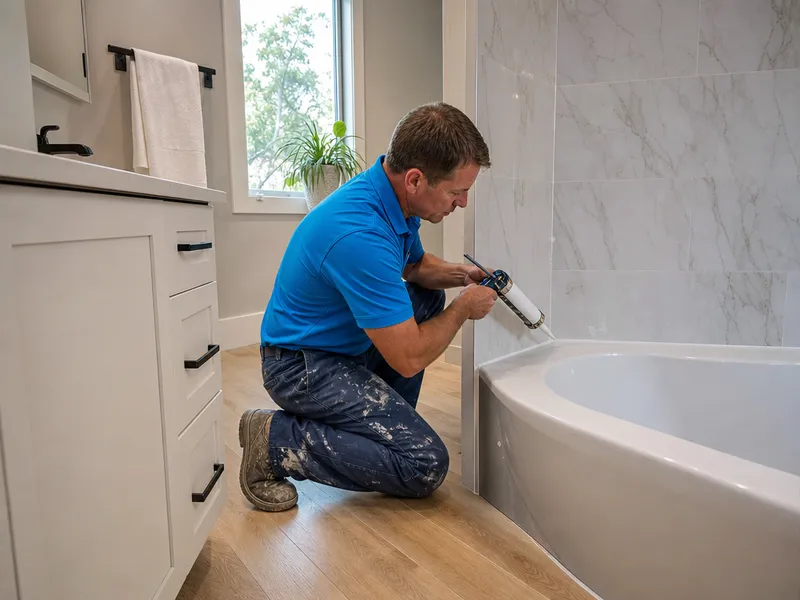

• Caulking and final seal: We caulk around the tub perimeter with 100% silicone and seal the drain connection. No gaps, no future water intrusion behind the tub apron.
• Permit handling included: We pull all required NYC DOB permits for the plumbing work—this is included in the service fee and ensures your building’s management has the documentation they need.

Tiling and surround options

We install cement board (Durock or HardieBacker) with waterproofing membrane (RedGard) and can coordinate with our licensed tile partners—or we install a fiberglass surround same-day if you prefer a faster option. The tile route means a 24–48 hour cure time before first use, while fiberglass is ready immediately. NYC renters often choose fiberglass for speed—you shower the same evening—but homeowners typically prefer tile for longevity. In our experience, a tile surround adds roughly 10–15 years of service life over a fiberglass unit in a high-use bathroom.

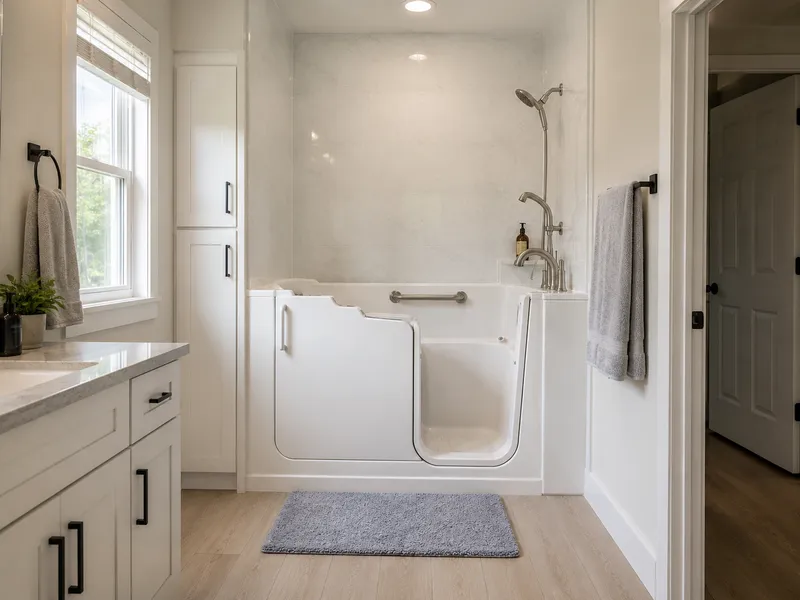

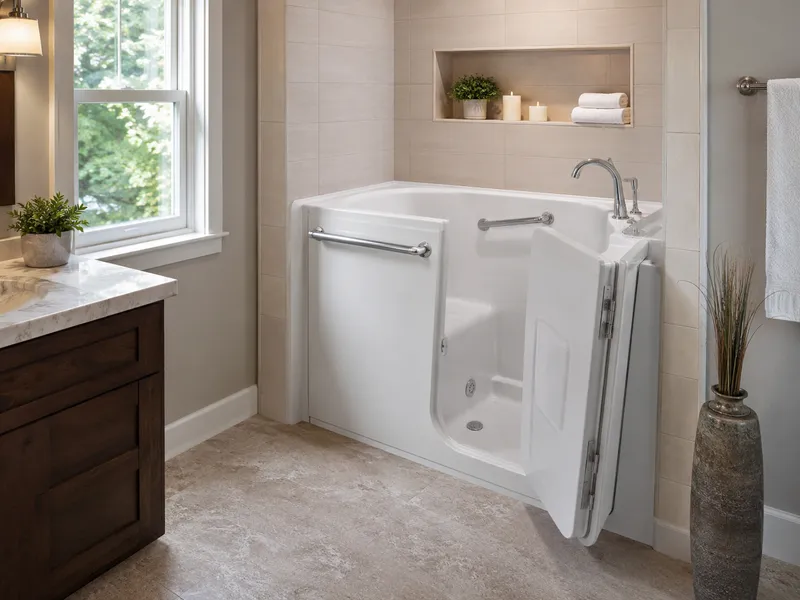

Can you install a walk-in tub for elderly accessibility?

Walk-in tubs improve safety and accessibility for elderly NYC residents. We install brands like Kohler and American Standard, handling the plumbing, electrical, and structural work.

Electrical and plumbing requirements for walk-in tubs

• Dedicated GFCI circuit: Walk-in tubs with jets or heaters require a GFCI-protected 15A or 20A dedicated circuit — we coordinate with our licensed electrician (NY Master Electrician) for this, and we ensure the drain is below the door threshold.
• Drain position and platform: If the existing drain sits too high for the tub’s low-threshold door, we build a 2–4-inch platform to raise the tub — this counts as a structural modification requiring an NYC DOB permit, which we handle.
• Supply line extension: The tub’s faucet and hand-shower supply lines often land in a different spot than the old tub — we run new PEX or copper lines from the nearest shut-off valves.
• Coordination with electrician: The GFCI circuit install is done by our licensed electrician, not the plumber — we schedule both trades to overlap so the tub is wired and plumbed in a single visit.
• Permit and inspection: The NYC DOB permit covers both the electrical rough-in and any platform framing — we pull it upfront and schedule the required inspection.

Door clearance and water heater capacity

Walk-in tubs need a minimum 36-inch door opening to get into the bathroom — many NYC bathrooms have 28–30-inch doors, so we may need to remove the door frame temporarily or choose a smaller model. On my read, the Kohler K-71150 series has a 52-by-28-inch footprint that fits through a 30-inch opening if the door is removed, but the American Standard walk-in models are wider and typically require the full 36 inches. Walk-in tubs hold 40–60 gallons versus 30–40 for standard tubs — if your water heater is 40 gallons, you may run out of hot water mid-fill, so we recommend upgrading to 50+ gallons or installing a mixing valve to extend the usable hot water.

Safety features and insurance documentation

We install grab bars anchored to studs or blocking, anti-scald valves (NYC code), slip-resistant flooring, and low-threshold doors (3–5 inches) — and we provide documentation for Medicaid or insurance reimbursement if your plan covers walk-in tubs. The grab bars must be secured to solid wood blocking between studs, not just drywall anchors, or they’ll pull out under load — we add blocking during the platform build if the existing walls lack it. Some NYC programs cover walk-in tubs for elderly or disabled residents — check with your provider, and we’ll supply the scope of work and permit documentation they need.

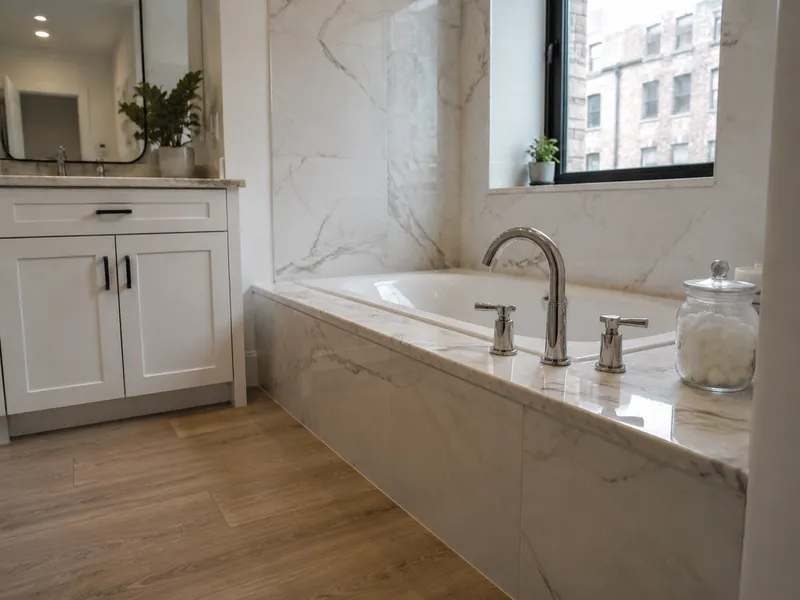

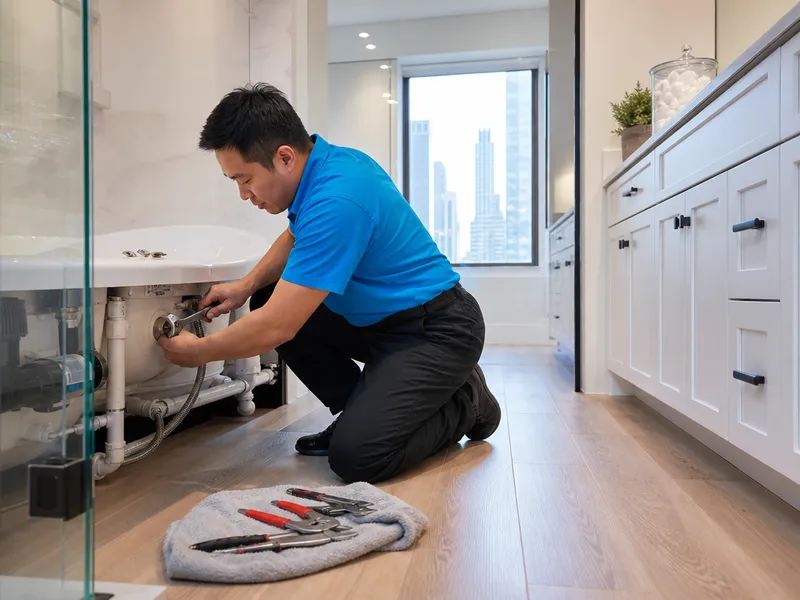

Can you install a tub in a Manhattan co-op or condo?

Installing a tub in a Manhattan co-op or condo involves more than plumbing — board approval, noise restrictions, and elevator access all factor in. Here’s how we navigate it.

Board approval and permit requirements

• Board approval process: Most Manhattan co-ops require board approval for any plumbing work — we provide a detailed scope of work, insurance certificates ($1M+ liability), and license documentation for your board package.
• NYC DOB permit: We pull all required NYC DOB permits for plumbing modifications and supply copies to building management — permit fees are included in our service quote.
• Insurance and license docs: Co-op boards typically request our $1M liability insurance certificate, workers’ comp proof, and NYC Master Plumber license — we have these ready before we quote the job.
• Timeline buffer: Add 1–2 weeks to your project timeline for the board approval process — the actual installation takes 1–3 days, but the paperwork and board review can’t be rushed.

Building restrictions and logistics

Many co-ops prohibit work after 5 PM or on weekends, restrict cast iron removal with sledgehammers (we use reciprocating saws instead), and require freight elevator booking for tub delivery — narrow elevators with 36-inch doors may not fit a 60-inch tub. We schedule the freight elevator window, coordinate with the super for the building-wide water shut-off (typically a 2–4 hour window), and never store materials in hallways overnight. Pre-war Manhattan buildings have cast iron stacks and galvanized supply lines that require different tools than post-war copper and drywall — we adjust our approach based on the building’s era.

Conclusion

A bathtub installation in NYC involves more than just swapping one tub for another — access, plumbing modifications, floor reinforcement, and building regulations all factor into the project timeline and cost.

Main takeaways

A bathtub installation in NYC involves more than just swapping one tub for another — access, plumbing modifications, floor reinforcement, and building regulations all factor into the project timeline and cost. The most common surprises are subfloor rot under old cast iron tubs, P-trap misalignment requiring ceiling access below, and co-op board approval delays. Planning for these upfront saves time and frustration.
