What types of pipe are allowed for water supply lines in NYC?
NYC Plumbing Code strictly limits water supply pipe materials to just two approved types. We explain which pipes are allowed, which are banned, and why the code draws that line.
Which pipe materials does NYC allow for water supply lines?
| Material | Allowed for water supply? | Notes |
|---|---|---|
| Copper (Type K, L, M) | Yes | Most common; Type K for underground, Type L for interior, Type M for residential |
| CPVC | Yes | Less common; ASTM D2846 compliant; not for hot water above 180°F |
| PEX | No — banned | Allowed only for hydronic heating; not for water supply per NYC code |
| PVC | No — banned | Allowed only for drainage, waste, and vent systems |
| Galvanized steel | No — not for new installs | Found in pre-1960s buildings; must be replaced |
| Lead | No — banned | NYC actively replacing lead service lines citywide |
Why does NYC ban PEX and PVC for water supply lines?
NYC Plumbing Code bans PEX for water supply lines due to concerns about chemical leaching and long-term durability in high-pressure municipal systems — the city’s code officials have consistently held that position. PVC is not rated for pressurized potable water under NYC code, though it’s perfectly fine for drainage, waste, and vent systems where it sees no continuous internal pressure. Copper costs 3–5x more per linear foot than PEX at material cost, but the code prioritizes proven longevity over upfront savings. We use only code-approved copper pipe for all water supply line installations, ensuring your system passes DOB inspection on the first try.
Copper vs PEX: what’s the difference for NYC homeowners?
Many homeowners ask about copper versus PEX. In NYC the choice is clear, but understanding the differences helps you make informed decisions about your plumbing.
How do copper and PEX compare for water supply?
| Feature | Copper | PEX |
|---|---|---|
| NYC code status | Approved for water supply | Banned for water supply |
| Lifespan | 50-70 years | 25-50 years (not accepted by NYC code) |
| Material cost per linear foot | $2-4 | $0.50-1.00 |
| Freeze resistance | Bursts if frozen | Expands slightly without bursting |
| Joining method | Soldering (torch + lead-free solder) | Crimp rings or expansion fittings |
| Installation skill required | Licensed Master Plumber | DIY-capable (but not for NYC water supply) |
What does copper pipe installation cost in NYC?
At Eco Service NY, a typical partial repipe in an NYC apartment using copper runs $400-1,500, with material alone costing $2-4 per linear foot. The labor adds up because every joint requires soldering with lead-free solder — a process that demands a Licensed Master Plumber per NYC code. In a Brooklyn brownstone we worked on last fall, replacing a rusted section of galvanized service line with Type L copper took about five hours and landed at $1,200, including the dielectric union at the transition point. While copper costs 3-5x more than PEX at material cost, its 50-70 year lifespan and NYC code compliance make it the only practical choice for permanent water supply.

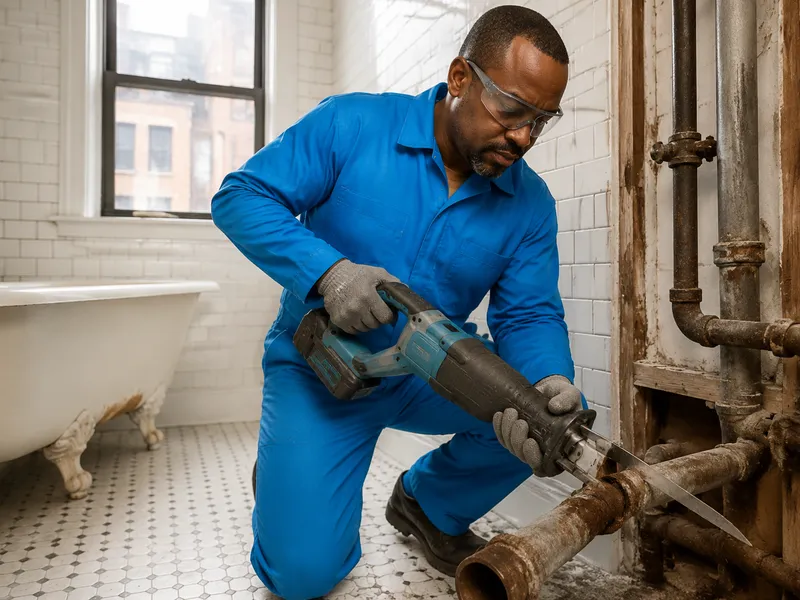

Can you replace old galvanized pipes with copper?
Old galvanized pipes rust from the inside, causing low water pressure and potentially containing lead. Replacing them with copper is the standard solution in NYC, and we handle the entire process from assessment to pressure testing.
How do you replace old galvanized pipes with copper?
- Assessment: We inspect the existing galvanized pipe condition, check for lead solder at joints, and test water pressure — takes about 15–20 minutes.
- Shut-off and drain: Close the main water shut-off valve and drain the system at the lowest point (roughly 5 minutes).
- Removal: Cut out galvanized sections with a reciprocating saw and remove threaded fittings with pipe wrenches (30–60 minutes per section).

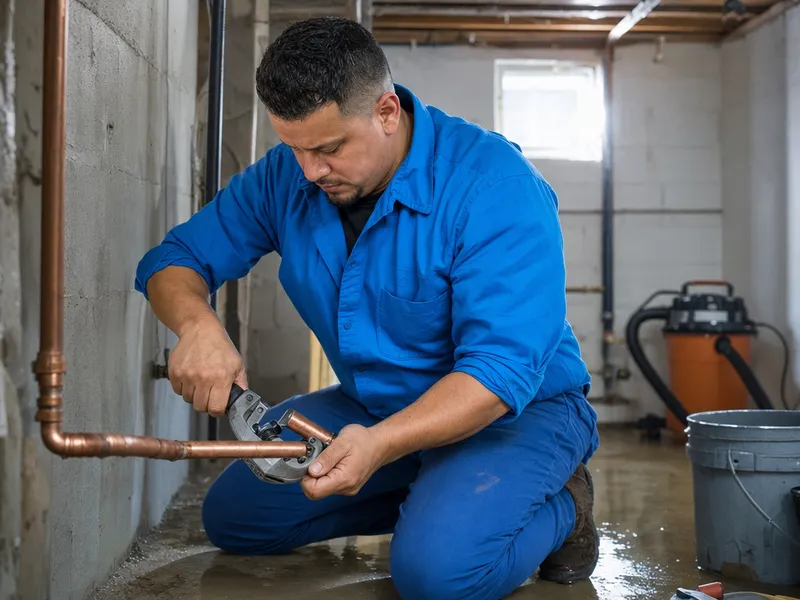

- Copper preparation: Cut copper to length with a tubing cutter, deburr inside and out, clean with emery cloth, and apply flux (15–30 minutes).

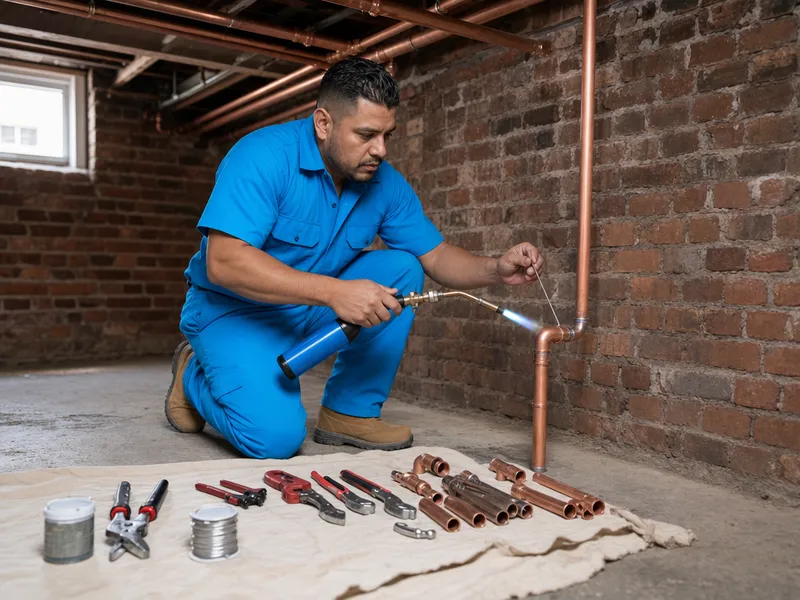

- Soldering: Heat the joint with a MAPP torch and apply lead-free solder (95/5 tin-antimony per NYC code), then allow to cool (20–40 minutes per joint).
- Dielectric connection: Install dielectric unions at every copper-to-galvanized transition to prevent galvanic corrosion (10–15 minutes per union).

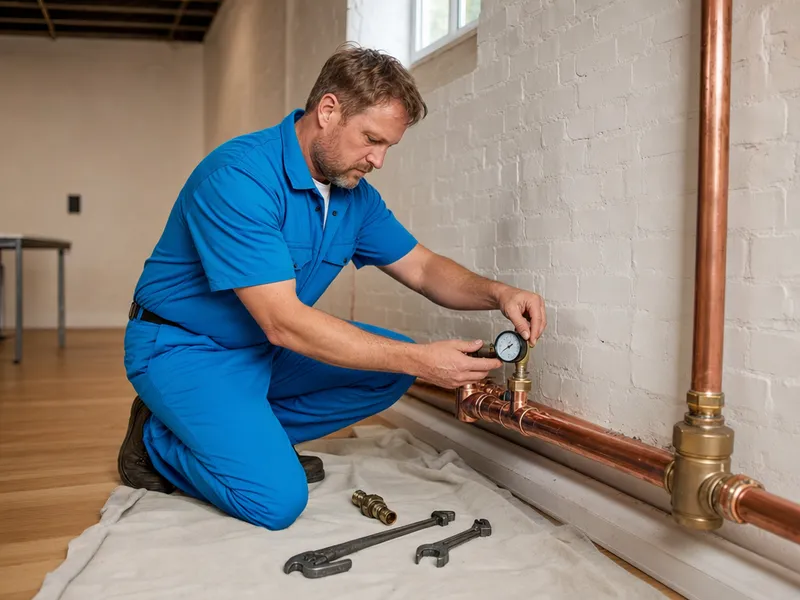

- Pressure test: Fill the system, pressurize to 80–100 psi, and check every joint for drips — we catch any leaks before we patch the walls (15–30 minutes).
Many homeowners don’t realize their low water pressure is from rust-clogged galvanized pipes, not the city supply — replacing with copper restores full pressure immediately.
What does galvanized pipe replacement cost in NYC?
Basic galvanized pipe replacement in an NYC apartment costs $400–$1,500 for a partial repipe, while a full building repipe runs $5,000–$20,000+ depending on size and accessibility. The partial job typically takes 4–6 hours for a standard one-bedroom apartment with accessible risers. That $400–$1,500 range covers removing the rusted sections, installing Type L copper, soldering all joints, and pressure-testing the system before we leave. Full building repipes — the kind you see in Brooklyn brownstones where every riser is galvanized — take 1–3 days and involve cutting into multiple floors. Partial repipes save money upfront but may leave hidden galvanized sections in walls that continue to corrode; we recommend a full repipe when the visible sections show extensive rust.
What types of pipe fittings do you use?
The right fittings make the difference between a leak-free system and future problems. We use code-compliant fittings for every connection type across all five NYC boroughs.
Which pipe fittings do we use for NYC installations?
- Solder-type copper fittings: The standard for permanent joints in water supply lines — 95/5 tin-antimony solder per NYC code, fire-watch required during installation.

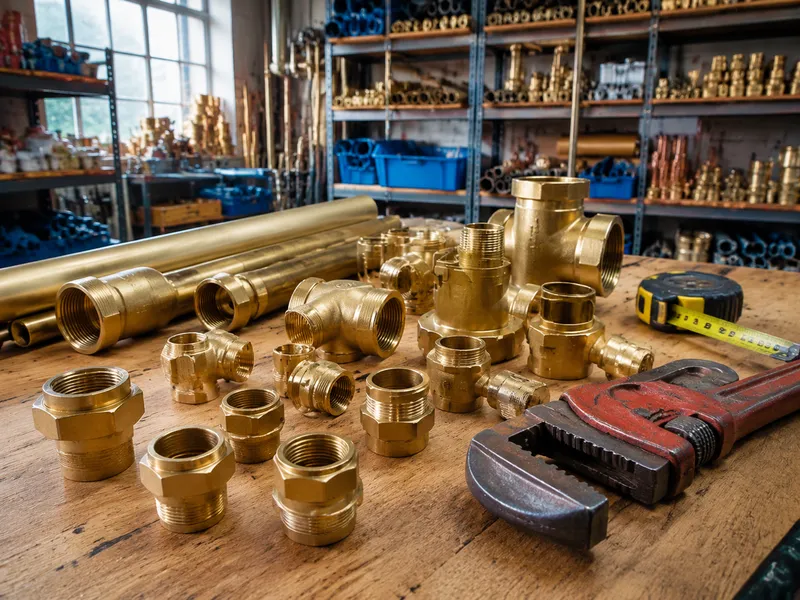

- Brass fittings: Used at transitions between pipe materials (copper to galvanized) and for all valve bodies — withstands NYC’s high water pressure better than plastic alternatives.
- Compression fittings: Common at shut-off valves under sinks and toilets — no soldering needed, which makes them serviceable without draining the whole riser in multi-unit buildings.
- Push-fit fittings (SharkBite-type): Useful for emergency repairs in tight spaces (behind walls in Brooklyn brownstones) but we limit them to accessible locations per code.
- Dielectric unions: The most commonly skipped fitting in partial repipes — a brass body with plastic insulator that prevents galvanic corrosion between copper and remaining galvanized steel. Skip it and you’ll see leaks within months.
- Ball valves (full-port): Our standard shut-off — full-port design means minimal pressure drop, critical in older Manhattan buildings where municipal pressure is already marginal at upper floors.

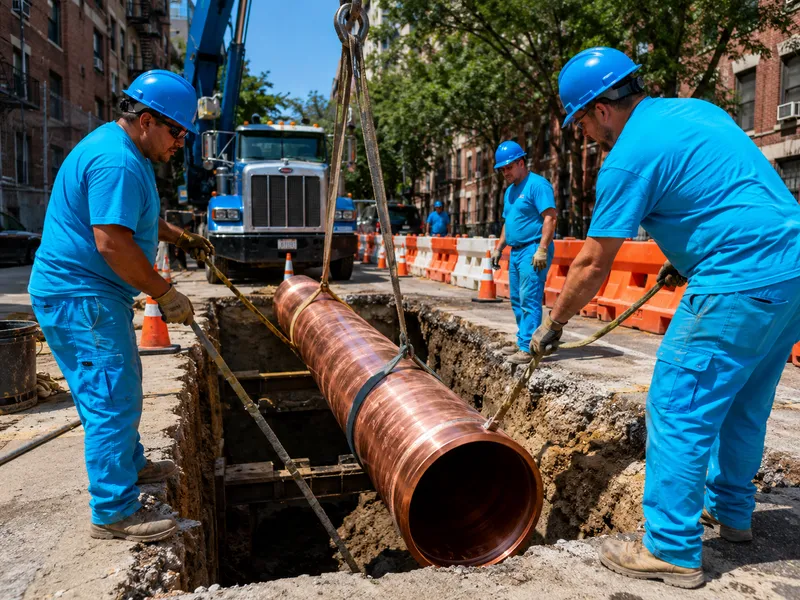

Water main vs service line: what’s the difference?
Many property owners confuse water main work with service line installation. The difference matters for permits, costs, and who is responsible.
How do water main and service line installation differ?
| Feature | Water Main | Service Line |
|---|---|---|
| Diameter | 6–12 inches | 3/4–2 inches |
| Location | Under street | Property line to building |
| Owner | NYC DEP | Property owner |
| Permit required | NYC DEP permit | DOB permit (filed by Licensed Master Plumber) |
| Cost responsibility | City for repairs; owner for new connections | Property owner entirely |
| Typical cost (NYC) | Varies by city contract | $2,000–10,000 |
| Burial depth | Minimum 4 feet | Minimum 4 feet |

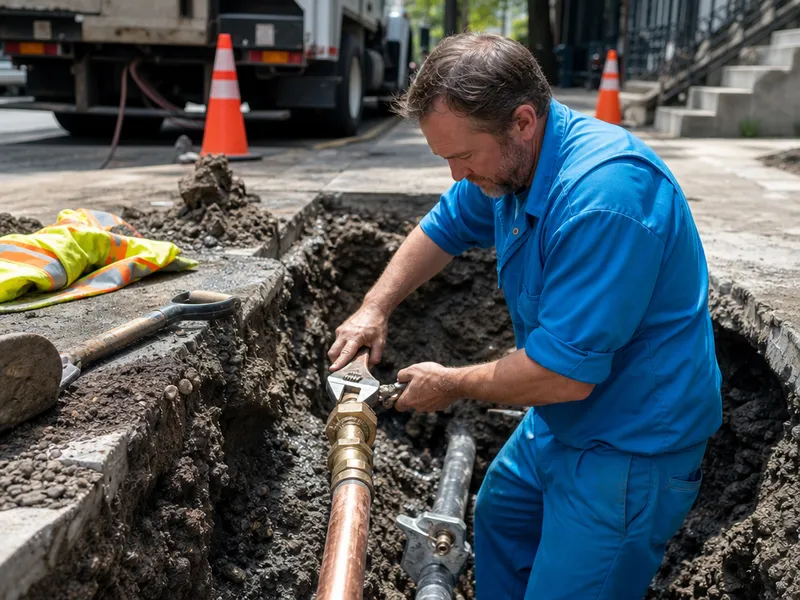

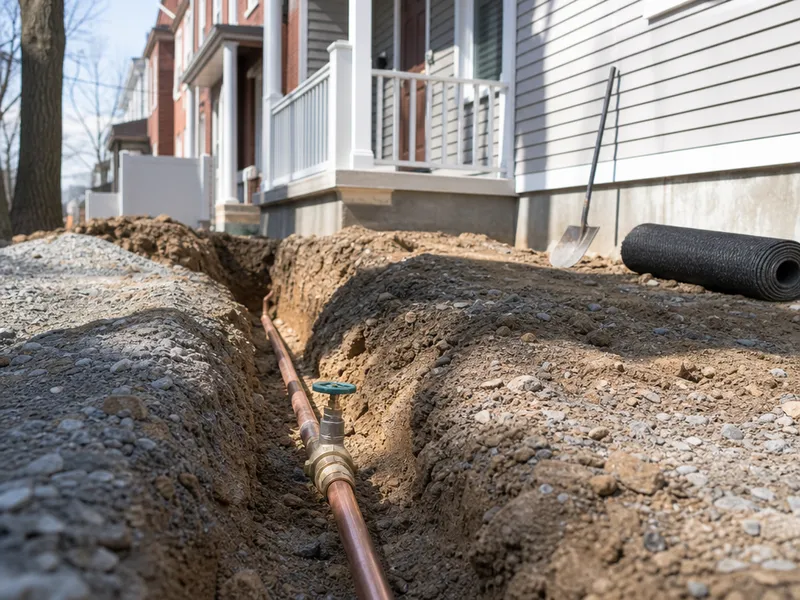

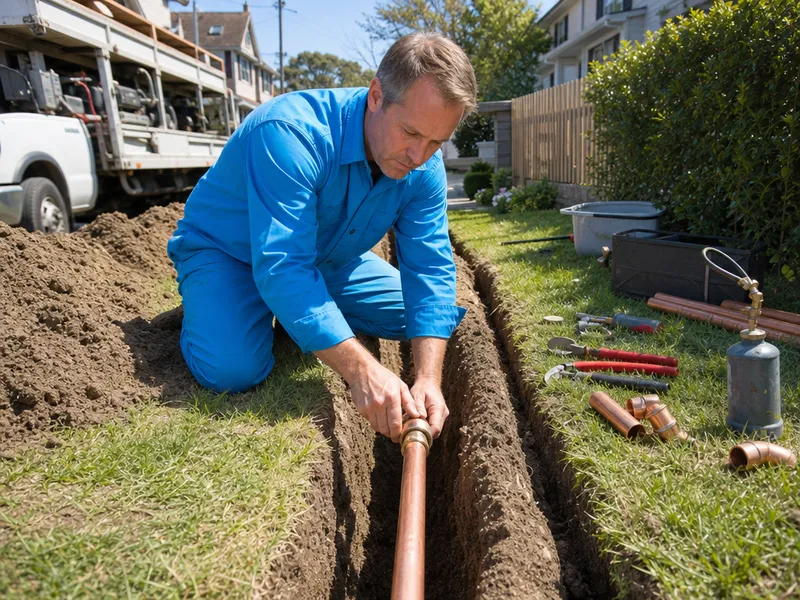

What’s included in your service line installation?
Our service line installation covers excavation from the property line to the building, installation of copper pipe with a backoff preventer and shut-off valve, pressure testing, and DOB permit filing. We coordinate with NYC DEP when the connection point is at the water main. The pipe must be buried a minimum of 4 feet deep per the NYC frost line requirement. Trenchless methods like pipe bursting can replace old service lines without digging up your entire yard — we assess suitability during the initial site visit.
How do you handle pipe installation in occupied buildings?
Pipe installation in occupied buildings demands careful scheduling and coordination to keep disruption minimal. We work directly with building management and residents to plan every step.
How do you minimize disruption during pipe installation?
- Water shut-off coordination: We notify building management 48+ hours ahead, schedule work during the 9 AM–3 PM low-usage window, and post written notice to all affected units.
- Dust and debris control: Seal the work area with plastic sheeting, run a HEPA vacuum for copper dust, and lay drop cloths on every floor surface.
- Noise management: Use manual tubing cutters instead of power tools wherever possible; limit hammering to 10 AM–4 PM per NYC noise code, and tell neighbors how long the noise will last.
- Temporary water access: Install temporary shut-off valves so unaffected areas keep water running; supply bottled water if a full shut-off stretches past 4 hours.
- Fire safety: Keep a fire extinguisher within 10 feet during soldering, place fire-resistant blankets near wood framing, and never solder near sprinkler heads.
- Restoration: Patch and paint the same day when possible, leave the area broom-clean, and provide a 24-hour contact number for any post-service issues that pop up.
What building-specific considerations apply in different boroughs?

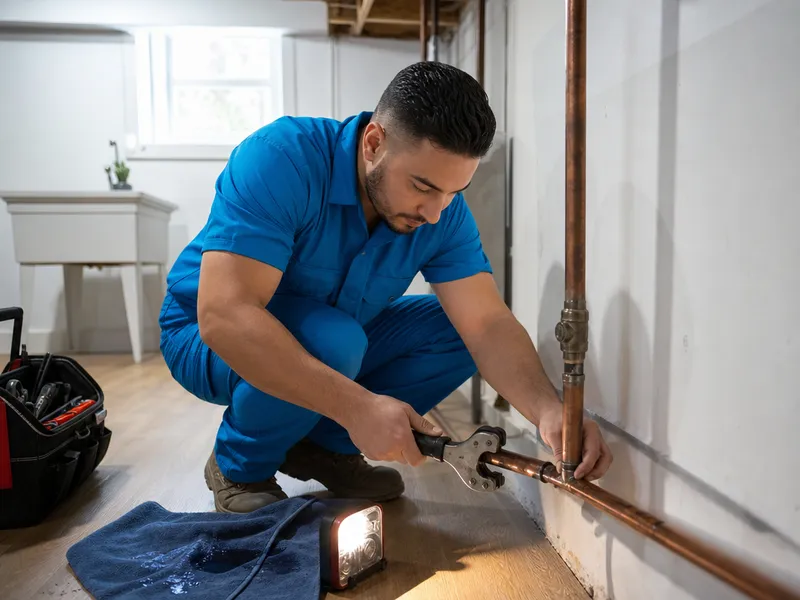

Manhattan high-rises require co-op board approval and restricted work hours (9 AM–5 PM), while Brooklyn brownstones often have shared risers that need access to adjacent units. Queens single-family homes are typically easier to access but may need excavation for underground work. In our experience, pre-war Brooklyn brownstones frequently have asbestos pipe insulation that requires licensed abatement before any pipe work — we flag this during the initial walkthrough and coordinate with certified abatement contractors so the timeline stays realistic.
Permits and code requirements for NYC pipe installation
NYC pipe installation requires permits filed by a Licensed Master Plumber. We handle all DOB paperwork and ensure every installation meets code.
What permits are required for pipe installation in NYC?
- DOB permit: Required for all pipe installation in NYC and must be filed by a Licensed Master Plumber — includes scheduling the required DOB inspection.
- NYC DEP permit: A separate permit required for any work at the water main connection point, filed in addition to the DOB permit.
- Backflow preventer: Required on all service lines per NYC Plumbing Code; commercial and multi-family buildings (5+ units) need an RPZ type with annual testing.
- Pressure regulator: Required when incoming water pressure exceeds 80 psi — extremely common in Manhattan high-rises where building pressure can hit 120+ psi.

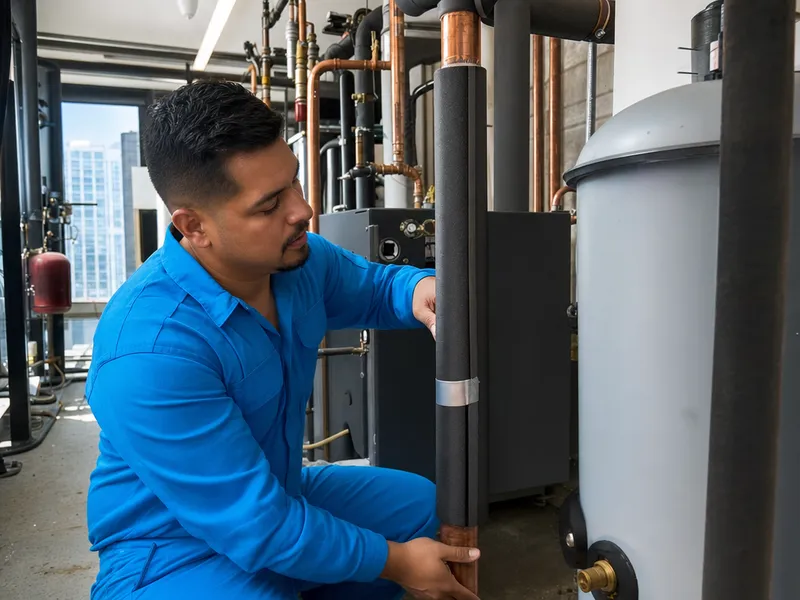

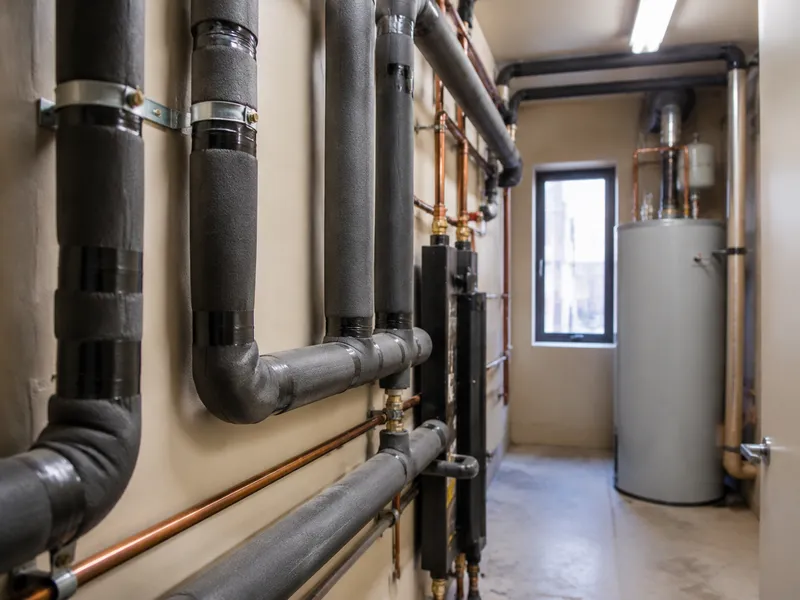

- Pipe insulation: Required in all unheated spaces per NYC Energy Code; uninsulated pipes in basements or crawl spaces freeze in winter.
- Excavation permit: Required for any digging below 4 feet; includes a mandatory call to 811 (NYC Dig Safely) for utility location before breaking ground.
How do we ensure code compliance?
Every installation follows NYC Plumbing Code, using approved materials (copper or CPVC), lead-free solder (95/5 tin-antimony), and proper fittings including dielectric unions at dissimilar metal transitions. We pressure-test every system to 80-100 psi before closing walls. NYC code requires shut-off valves at the water meter and at each fixture — we install ball valves with full-port design to minimize pressure drop, which is especially important in older buildings with already-low water pressure.
Main takeaways for NYC pipe installation
Main takeaways for NYC pipe installation
NYC pipe installation requires strict adherence to the Plumbing Code: only copper and CPVC are approved for water supply lines, while PEX, PVC, galvanized steel, and lead are banned for new installations. Replacing old galvanized pipes with copper restores water pressure and eliminates lead concerns, but requires dielectric unions at every transition point. Service line installation is the property owner’s responsibility and requires a DOB permit filed by a Licensed Master Plumber. In occupied buildings, coordination with management and residents is essential — expect 48-hour advance notice, restricted work hours, and temporary water arrangements. The investment in code-compliant copper pipe pays off with 50–70 years of reliable service.
