What causes a water heater element to burn out?
When hot water runs out mid-shower, the culprit is often a burned-out element — and sediment buildup is the most common reason, especially in NYC’s moderately hard water.
Sediment buildup: the #1 cause of element failure

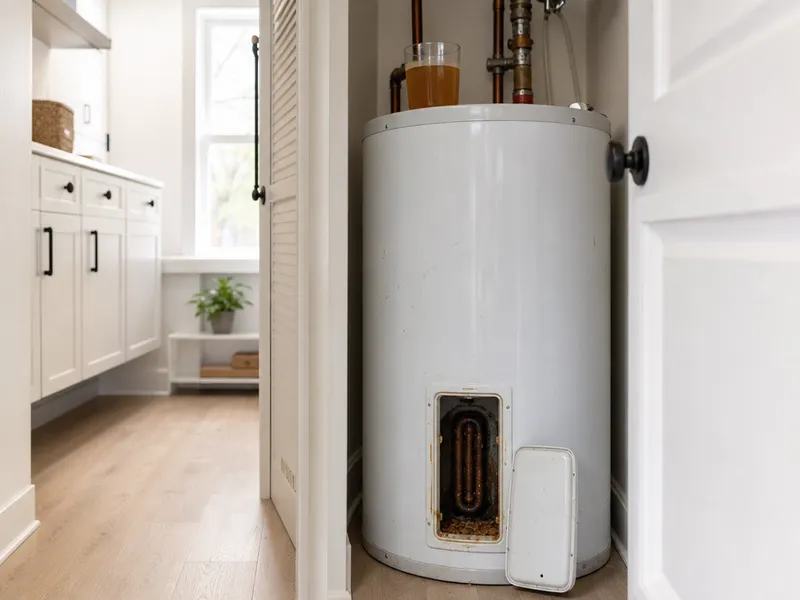

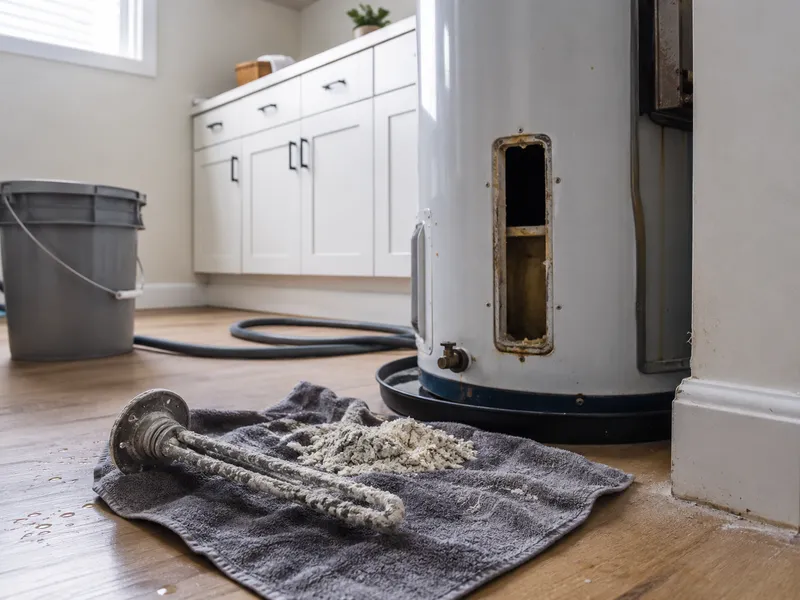

Sediment buildup is the primary cause of lower element failure — just 1/8 inch of calcium and mineral deposits on the element surface reduces heat transfer by roughly 30%, forcing the element to overheat and burn out. The sediment layer acts as an insulator: the element works harder to heat water through that crust, so its surface temperature climbs well past the 200°F safety margin. Over months, that thermal stress causes the metal sheath to bulge, crack, or short to ground. NYC water sits at 7–8 grains per gallon of hardness, and Brooklyn and Queens run harder than Manhattan — so sediment-related failures happen faster in those boroughs without annual tank flushing.
Other common failure causes: thermostat, power surges, and age
- Thermostat stuck closed: Keeps power to the element continuously, overheating it until the element burns open. This is the most common reason the upper element fails — the lower element almost always fails from sediment instead.
- Power surges: Lightning strikes or utility surges can instantly burn one or both elements. The surge hits the heating coil like a short-circuit spike, and the element opens mid-coil.
- Air exposure: Powering the tank on while it’s drained — even for a few seconds — burns the element dry. The heat has no water to transfer into, so the element reaches failure temperature in under a minute.
- Simple age: Average element lifespan in NYC is 5–7 years without maintenance. With annual flushing, that stretches to 8–10 years. After that window, the metal simply fatigues.
How we test your water heater element

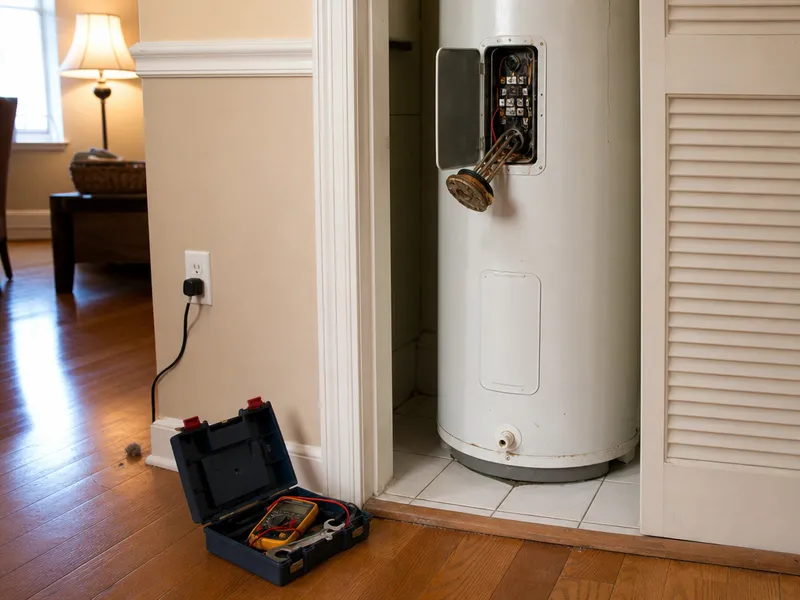

We test your water heater element in about 15 minutes using a digital multimeter — checking continuity, ground integrity, and thermostat function. The diagnostic is free when you book the repair.
The continuity test: what good and bad readings mean

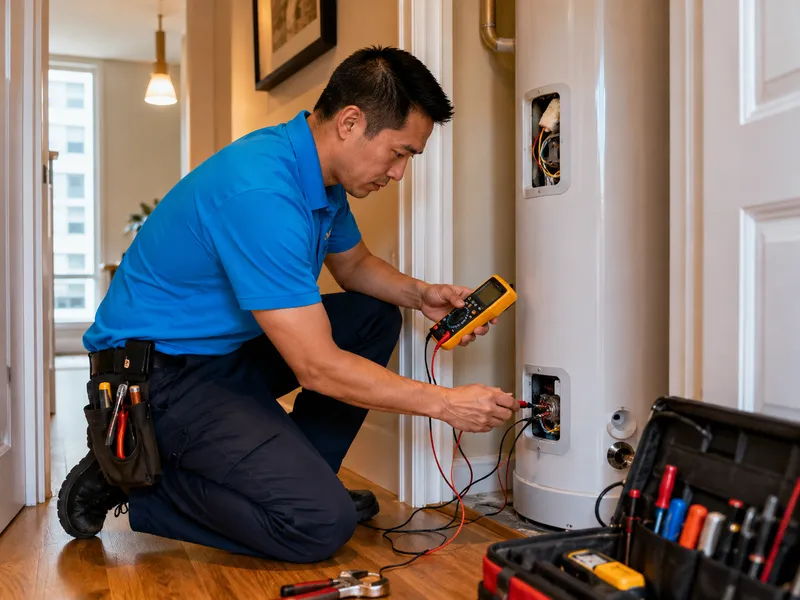

We test element continuity with a digital multimeter set to ohms — a good 3500W element reads roughly 16.5 ohms, a good 4500W element reads roughly 12.8 ohms, and an open reading (OL) means the element is burned out and needs replacement. The multimeter sends a small current through the element’s internal resistance wire; if the wire has broken from thermal stress or corrosion, the circuit opens and the meter shows infinite resistance. On a Rheem 40-gallon tank I tested last month in a Brooklyn brownstone, the lower element read OL while the upper element came back at 16.2 ohms — textbook sediment failure on the bottom. A near-zero reading (0–1 ohm) indicates a shorted element, which is less common but more dangerous — it can trip the breaker repeatedly or cause the tank to overheat rapidly.
Ground test and thermostat check
- Ground test procedure: Set the multimeter to ohms, touch one probe to an element terminal and the other to the metal tank body or ground screw — a good reading is infinite (OL); any reading below 10 megohms means the element has shorted to ground and must be replaced immediately.
- Thermostat continuity when cold: Across the thermostat terminals with the temperature dial set above room temperature, the meter should show continuity (near-zero ohms) — if it reads OL when cold, the thermostat is stuck open and won’t send power to the element.
- Thermostat open when hot: When the water temperature exceeds the setpoint, the thermostat should break continuity — if it stays closed, the element runs continuously and burns out from overheating within weeks.
- Why both tests matter together: In the field, I see homeowners replace an element without checking the thermostat first and end up calling us back two weeks later when the same symptom returns — always test both.
Upper vs lower element: what’s the difference?
The upper element heats the top half of the tank first, while the lower element handles the bottom half. They fail from different causes and show distinct symptoms — knowing which is bad cuts diagnostic time in half.
Upper element: function and common failure
The upper water heater element controls the top half of the tank and heats water first when the tank is full — it fails more often from thermostat issues (stuck closed or stuck open) than from sediment, because sediment settles at the bottom away from it. A stuck-closed thermostat keeps voltage on the element continuously, overheating the wire until it burns open. On a 40-gallon Rheem tank we see this roughly 3 times out of 10 upper-element failures. The symptom is specific: you get hot water for a few minutes, then it goes cold — the upper element heats the top, then the lower element can’t keep up.
Lower element: function and common failure
The lower water heater element heats the bottom half of the tank and fails 2–3 times more often than the upper element in NYC because sediment settles at the tank bottom, insulates the element, and causes it to overheat and burn out. Just 1/8 inch of calcium and mineral deposits on the element surface reduces heat transfer by roughly 30%, forcing the element to run hotter and fail sooner. Brooklyn and Queens have harder water (7–8 grains per gallon) than Manhattan, so lower-element failures there run closer to 4-to-1. A rumbling or popping sound from the tank when heating is a telltale sign of sediment boiling under the lower element — if you hear that, the element is already degrading and replacement is coming soon.
Should you replace both elements at the same time?
Deciding whether to swap one or both elements comes down to tank age, what caused the failure, and how much you want to spend now versus later. Here is the framework we use on every call.
When to replace both elements
- Tank over 5 years old: We recommend replacing both if the tank is past the five-year mark — both elements share the same water conditions and age, and if one failed from sediment, the other is likely near failure too.
- Sediment-related failure: When the lower element burned out from mineral buildup, the upper element has been exposed to the same hard water conditions — replacing both eliminates the second failure before it happens.
- Labor savings: Replacing both at once saves roughly $50–$80 in labor compared to a second service call later, and adds only about 15 minutes to the job since we drain the tank once.
- Same gasket and seal: Both elements use the same gasket type — we replace both gaskets simultaneously, preventing a future leak from the older gasket on the unswapped element.
When to replace only the failed element
- Specific-event failure: If the element burned out from a power surge, lightning strike, or a thermostat that stuck closed on just that one position, the other element likely has years of life left — replace only the failed one.
- Tank under 3 years old: A single element failure in a tank under three years is usually a manufacturing defect, not a systemic issue — replace just that one under warranty and monitor the other.
- Upper-element-only failure from thermostat: The upper element fails more often from a stuck thermostat than from sediment — if the lower element tests good and the tank is relatively new, swapping only the upper element makes sense.
Element replacement in Brooklyn brownstones and NYC buildings
We handle water heater element replacement across all five boroughs, with specific attention to the access challenges found in Brooklyn brownstones, pre-war co-ops, and Manhattan high-rises.
Brooklyn brownstone challenges
We replace elements in Brooklyn brownstones regularly — most have 40–50 gallon tanks in basements accessed via narrow stairwells or exterior bulkheads, and we’re equipped to handle tight spaces, corroded drain valves, and tanks without dedicated shutoff valves. The water in Brooklyn and Queens runs harder than Manhattan’s, so the sediment layer on the lower element is often thicker and more compacted. On a brownstone call last month, I had to drain a 50-gallon tank through a basement window because the drain valve was rusted shut — that’s the kind of NYC-specific issue we deal with daily. For water heater element replacement Brooklyn calls, our vans carry penetrating oil and backup drain valves precisely because these old basements throw curveballs.
Coverage across all 5 boroughs
- All five boroughs: We cover Manhattan, Brooklyn, Queens, Bronx, and Staten Island with same-day service and a 60–90 minute emergency response for no-hot-water calls — no extra charge for tight-access buildings.
- Manhattan pre-war co-ops: Tanks often sit in closets on upper floors rather than basements, which requires careful draining to avoid water damage to the floors below — we use a wet-dry vac and drop cloths as standard procedure here.
- Queens and Staten Island: Single-family homes with newer tanks and better access, but Staten Island has well-water areas with very hard water (10+ grains per gallon), which accelerates element failure.
- Bronx co-ops: Older buildings with cast-iron supply lines and shared electrical risers — we verify the breaker panel labeling before touching anything to avoid powering down the neighbor’s apartment.
What size water heater element does your water heater need?
Identifying the correct wattage, voltage, and physical size for a replacement element is straightforward — matching the original manufacturer specs is critical to avoid breaker tripping or slow recovery.

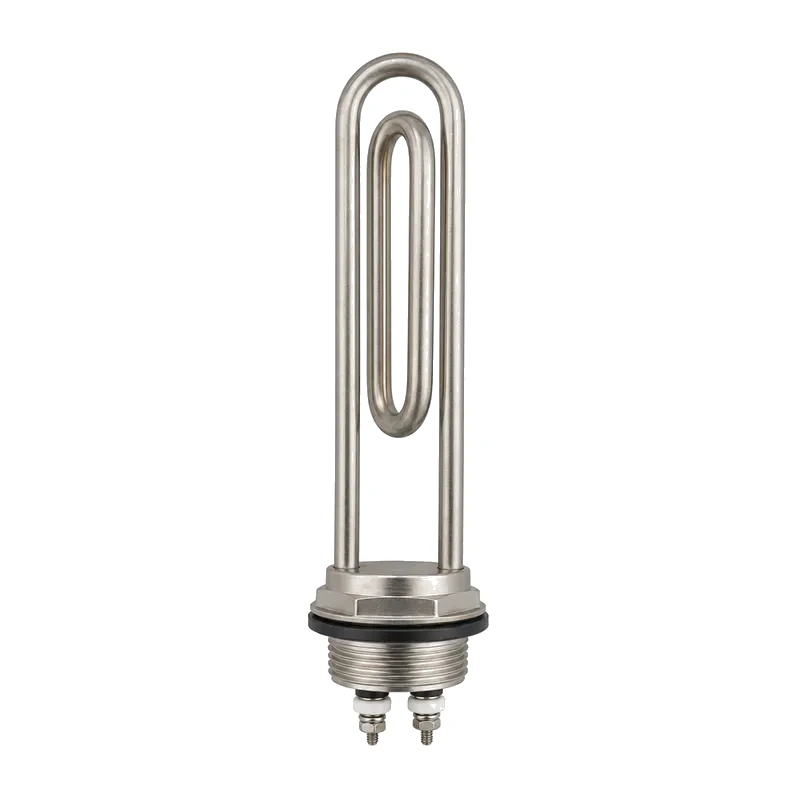

Wattage, voltage, and physical size
| Spec | 3500W (most common) | 4500W (common) | Notes |
|---|---|---|---|
| Voltage | 240V AC | 240V AC | Standard NYC residential |
| Resistance reading | ~16.5 ohms | ~12.8 ohms | Multimeter continuity test |
| Element length | 12–14 inches | 12–14 inches | Standard residential |
| Thread type | 1.5″ hex-head | 1.5″ hex-head | Rheem, Bradford White, A.O. Smith |
| Material | Incoloy (OEM-spec) | Incoloy (OEM-spec) | Corrosion-resistant |
| Brands using this | Rheem, Bradford White, A.O. Smith | Rheem, Bradford White, A.O. Smith | 85% of NYC market |
How to find your correct element

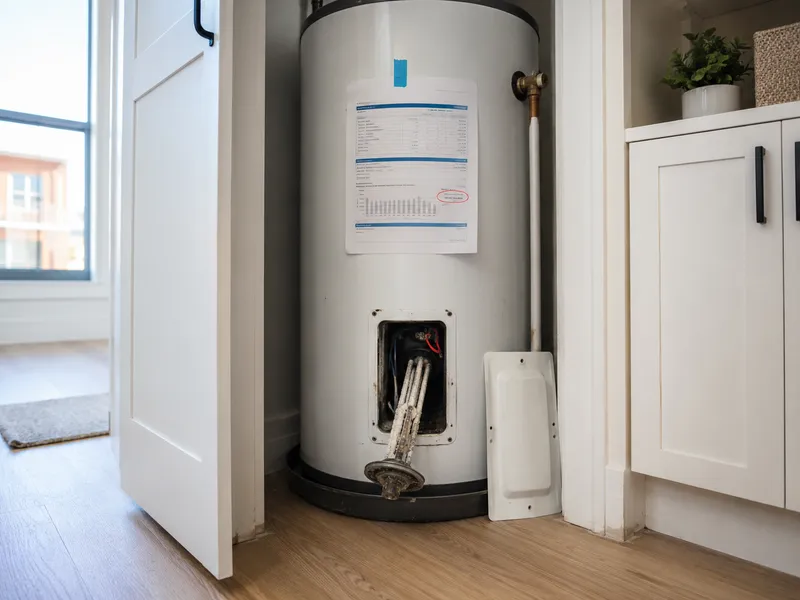

- Check the tank label: The model number is usually on the upper front panel — look for wattage stamped on the existing element face, or measure element length if the label is illegible. We stock OEM-spec elements for Rheem, Bradford White, and A.O. Smith.
- Match OEM wattage exactly: Installing a 5500W element in a tank rated for 3500W will trip the breaker repeatedly and can burn out the new element within weeks — always match OEM wattage exactly.
Tools and process for element replacement
Our technicians arrive with a fully stocked van carrying every tool needed for element replacement — we drain, remove, install, refill, and test on every call, typically in 30–45 minutes.
Tools we use for every element replacement
- Digital multimeter: We use it for continuity testing (expecting 10–20 ohms on a good element), ground testing, and voltage verification before touching any terminals.
- 1.5-inch hex socket with breaker bar: The element wrench is the most specialized tool — a breaker bar provides the leverage needed for corroded elements that have been in place for years.
- Teflon tape and penetrating oil: Three to four wraps of tape seal the threads clockwise; PB Blaster or WD-40 loosens elements seized by mineral scale.
- Bucket, garden hose, and drain valve adapter: We drain 3–5 gallons for an upper element or fully drain the tank for a lower element, then connect a hose to route water to a floor drain or outside.
- Voltage tester and screwdriver set: A non-contact voltage tester confirms the breaker is off before we open the access panel; Phillips and flathead drivers remove the cover and insulation retainers.
- Replacement gasket and wire brush: Most new elements include a gasket, but we carry spares — and we clean the tank threads with a wire brush before installing the new element to prevent leaks.
The replacement process in 8 steps

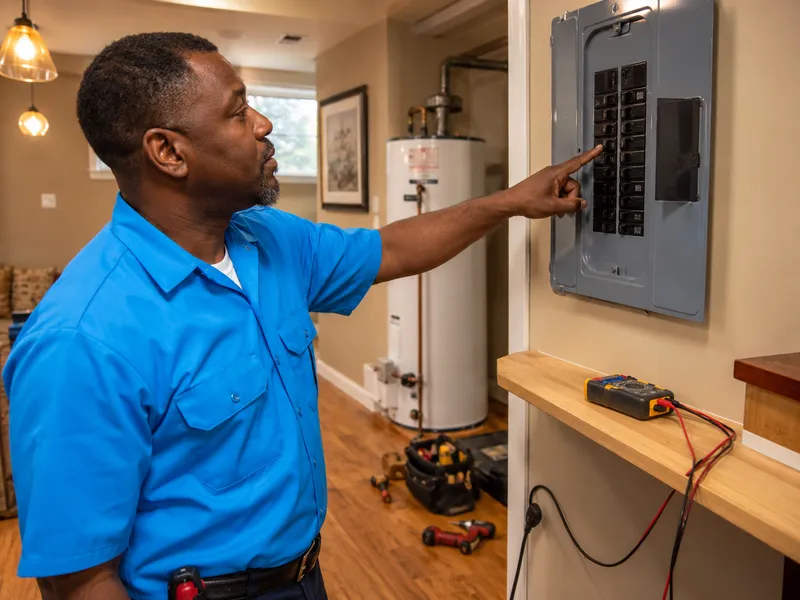

- Step 1 — Power isolation: We turn off the double-pole breaker at the panel and verify 0V at the element terminals with a voltage tester before touching anything.
- Step 2 — Drain the tank: Attach a hose to the drain valve, open it, and open a hot water faucet upstairs to vent the system — drain 3–5 gallons for an upper element or fully drain for a lower element.

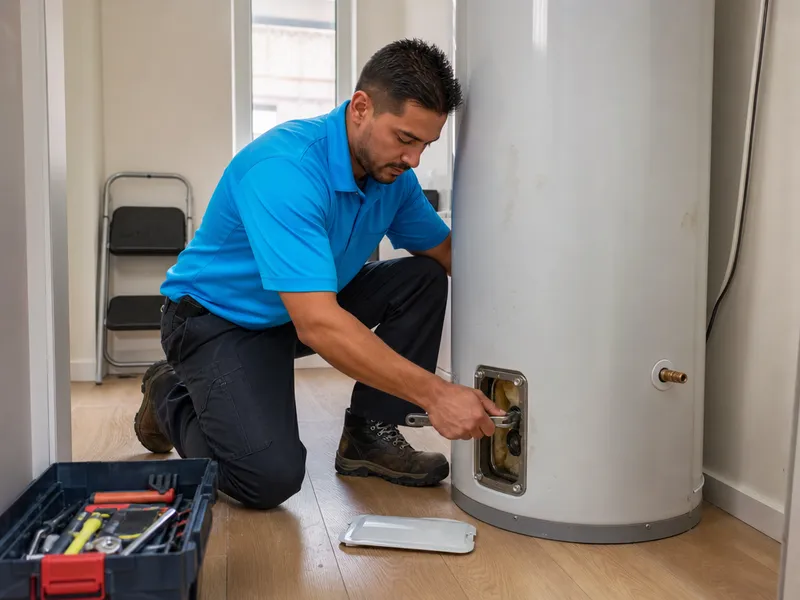

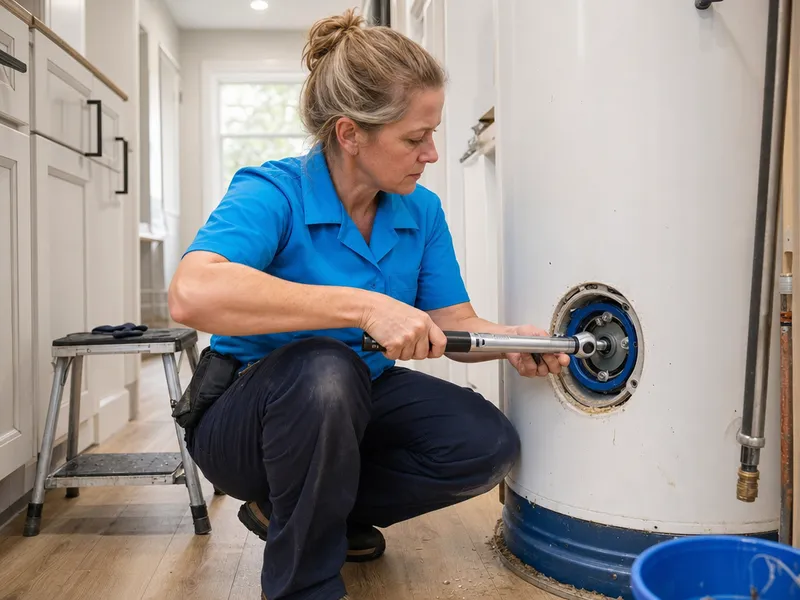

- Step 3 — Remove the old element: Use a 1.5-inch hex socket with a breaker bar, turning counter-clockwise — penetrating oil helps if the element is corroded, and we apply 50–100 ft-lbs of torque for stuck elements.
- Step 4 — Clean and prepare the threads: Run a wire brush over the tank threads to remove old Teflon tape, debris, and scale, then apply fresh Teflon tape clockwise (3–4 wraps) or pipe dope.

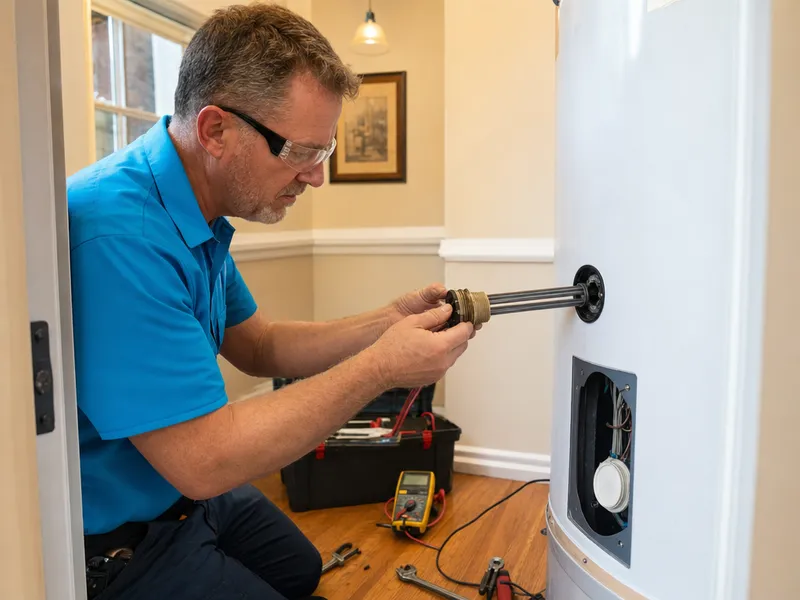

- Step 5 — Install the new element: Hand-tighten the element first to avoid cross-threading, then tighten with a wrench — no more than a quarter turn past hand-tight to avoid cracking the tank flange.
- Step 6 — Refill and vent: Close the drain valve, open the cold water supply, and run the hot water faucet until a steady stream flows with no sputtering — that clears air from the tank, usually 5 minutes for a 40-gallon unit.
- Step 7 — Power on and check for leaks: Turn the breaker back on, wait 15–20 minutes for the first element to heat, and inspect the element gasket for any drips or seepage.
- Step 8 — Verify temperature: Check water temperature at the faucet — it should reach 120°F within 30 minutes for a single element; the most common DIY mistake is failing to vent air before powering on, which burns out the element in minutes and isn’t covered under warranty.
Conclusion
Here are the key points from this guide on water heater element failure and replacement in NYC.
Main takeaways from this guide
A burned-out water heater element is the most common cause of no hot water in electric tanks, and sediment buildup from NYC’s moderately hard water is the primary culprit — especially for the lower element. The lower element fails 2–3 times more often than the upper one because sediment settles at the tank bottom and insulates it, causing overheating. The upper element, by contrast, fails more often from a stuck-closed thermostat. Testing both elements and the thermostat before replacing anything prevents misdiagnosis, and annual tank flushing can extend element lifespan from 5–7 years to 8–10 years by preventing the sediment buildup that causes most failures.
