What is structured cabling and why is it important for NYC buildings?

Structured cabling is a standardized infrastructure that replaces separate phone, data, video, and security cables with one unified system following TIA/EIA-568 standards — and it matters most in NYC buildings where decades of ad-hoc wiring have created a maintenance nightmare.

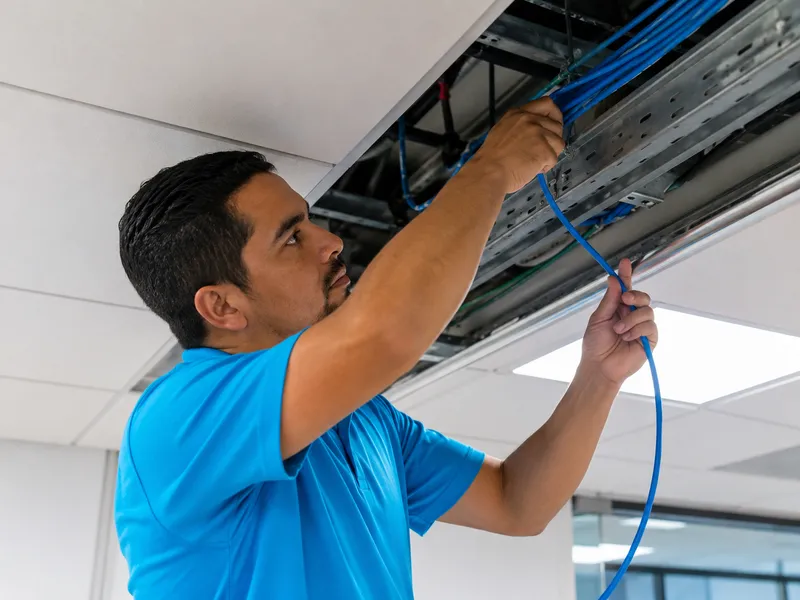

What is structured cabling?

Structured cabling is a standardized infrastructure of cables, patch panels, jacks, and racks that supports data, voice, video, and security systems over a single unified network following TIA/EIA-568 standards. Instead of running separate coax for cable TV, phone lines for telephones, and Ethernet for computers, structured cabling uses a star topology where horizontal runs from a telecommunications room connect to work area outlets throughout the floor. The system breaks into six subsystems: entrance facility (where the service provider meets the building), equipment room, telecommunications room, horizontal cabling, work area outlets, and backbone cabling that connects floors. In NYC pre-war buildings, structured cabling replaces the typical spaghetti of phone lines, coax, and old Ethernet with one clean CAT6 system that lasts 10-15 years.

Why do NYC buildings need structured cabling?

• Cabling clutter reduction: Single CAT6/CAT6a runs replace three or four separate cable types — phone, coax, Ethernet, security — cleaning up ceiling plenums and riser closets throughout Manhattan co-ops and Brooklyn brownstones.

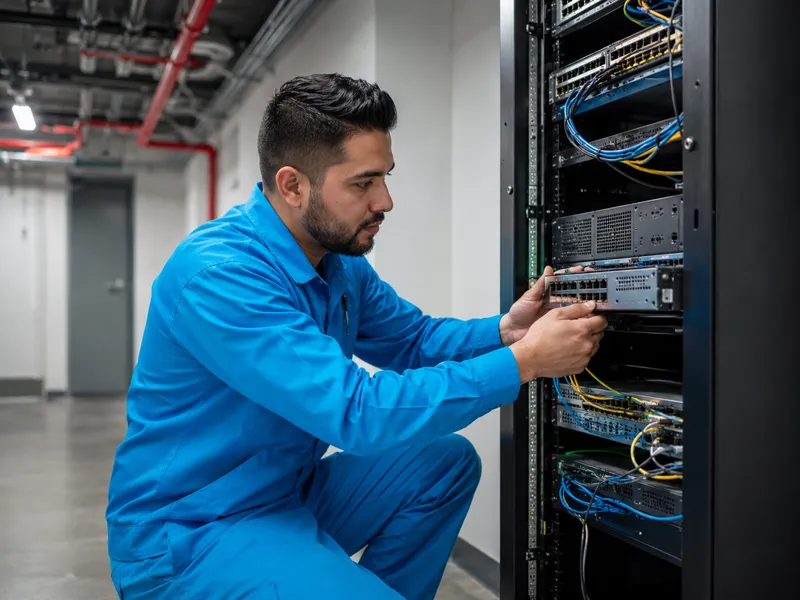

• Simplified moves and changes: When a tenant moves offices or adds a workstation, the patch panel in the telecom room gets re-patched instead of running new cable — a 5-minute job versus a 2-hour pull.

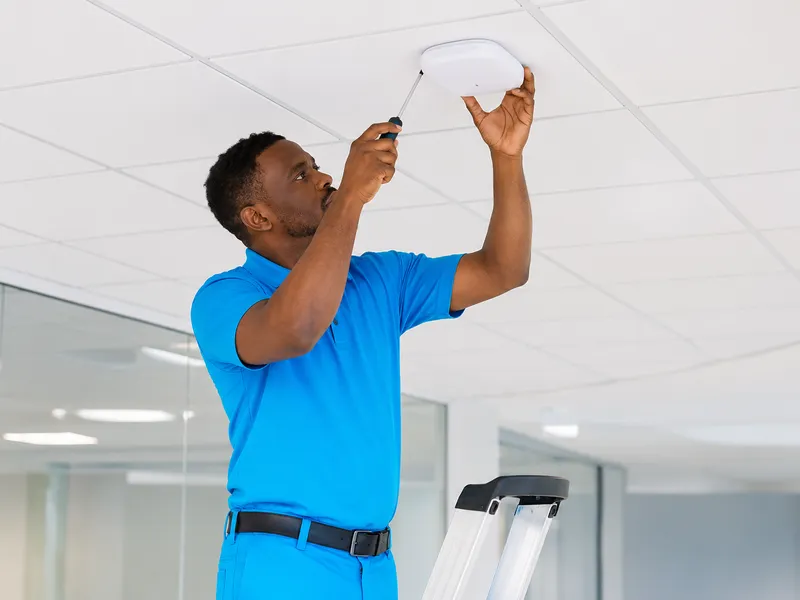

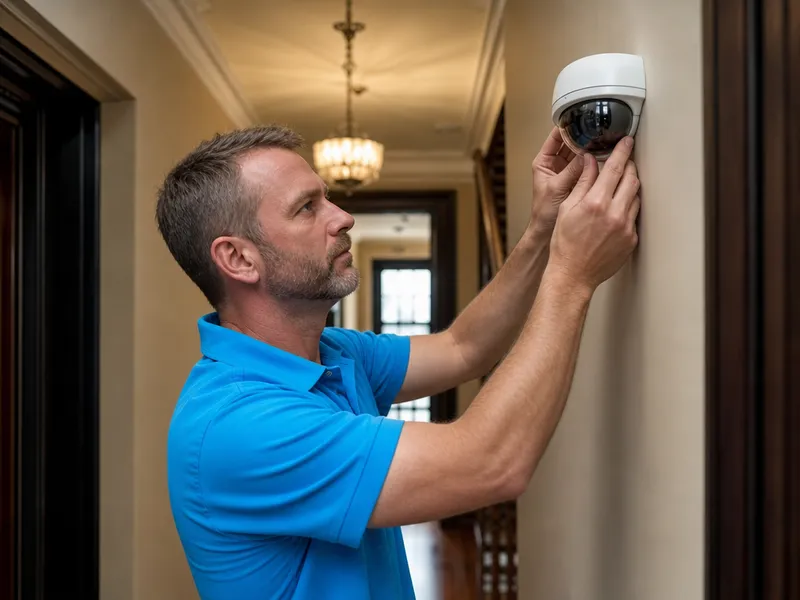

• Power over Ethernet support: Structured cabling carries both data and power to PoE devices like WiFi access points, security cameras, and IoT sensors, eliminating the need for separate electrical drops at each device location.
• 60-70% faster troubleshooting: When every drop is documented and certified, finding a failed connection takes minutes instead of hours — a real concern in buildings where multiple tenants share riser space and legacy wiring hides faults behind walls.

What components make up a structured cabling system?

CAT5e vs CAT6: What’s the Difference and Which Should You Choose?

CAT6 is the minimum standard for new installations, but CAT5e still has its place in budget-conscious retrofits — here’s how they compare and when to pick each.

What Are the Technical Differences Between CAT5e and CAT6?

When Should You Choose CAT5e vs CAT6 for Your NYC Project?

• Choose CAT6 for new construction: Any run over 55m or any installation that needs future-proofing for 10GbE — the 250 MHz bandwidth and physical spline reduce alien crosstalk significantly.
• Choose CAT5e for short, budget-constrained retrofits: If 1 Gbps is sufficient and runs stay under 55m, CAT5e saves 20–30% on cable cost without sacrificing real-world throughput for current internet speeds.
• NYC building note: Many older buildings have existing CAT5e — upgrading to CAT6 requires new cable pulls, not just re-termination, because the physical cable is different and stiffer.
• Factor the cost of labor, not just cable: The 20–30% material premium on CAT6 is small compared to the labor cost of pulling cable through a Manhattan co-op ceiling plenum — so paying for CAT6 material on a new pull is usually the smarter move.

Low voltage vs line voltage: what’s the difference and why does it matter?

The voltage threshold determines who does the work, what permits are needed, and how systems get installed. Line voltage is dangerous and regulated; low voltage is safer and more accessible.

What is the difference between low voltage and line voltage?

Can low voltage and line voltage share the same conduit?

No — low voltage and line voltage cannot share the same junction box or conduit, and must maintain 12 inches of separation per NEC 725.136 to prevent electromagnetic interference. That 12-inch rule applies to parallel runs inside walls and ceiling plenums, not just conduit. In NYC retrofit jobs, this is one of the most commonly violated code requirements — contractors who run CAT6 parallel to 120V lines without maintaining the gap will fail DOB inspection and have to re-pull every cable.

How do I choose a low voltage contractor in NYC?

Choosing a low voltage contractor requires verifying the right licensing, insurance, and NYC-specific building experience — here is what to look for before signing a contract.

What licenses and insurance should a low voltage contractor have in NYC?

• NY DOS Home Improvement license: Required for any low voltage work in NYC that doesn’t involve line-voltage tie-ins — this is the baseline credential for residential and commercial installations through all five boroughs.

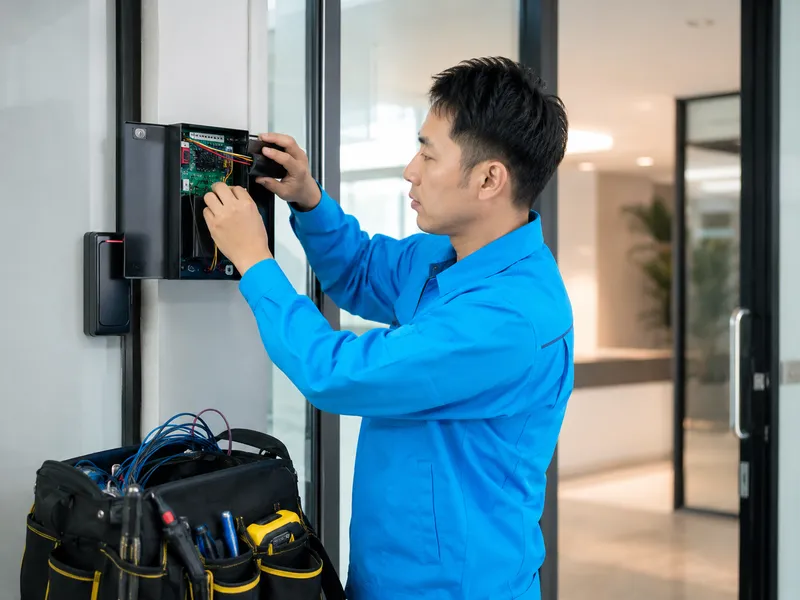

• NY Master Electrician license: Needed when the job ties low voltage systems into 120V or 277V circuits — think access control power supplies or PoE switch installations that tap building electrical.
• General liability insurance ($1M+ minimum): Covers damage to your property during installation — a contractor without it leaves you on the hook for any ceiling repair or firestop remediation after a bad cable pull.
• Workers’ compensation insurance: Required by NYC DOB for any permitted work — if a tech gets hurt in your building without it, you can be held liable for medical costs.
• NYC DOB permits: The contractor should handle permitting for new construction or alterations — unpermitted work can trigger stop-work orders and fines that run into the thousands.

Red flag: If a contractor can’t provide proof of insurance or a written contract, walk away — NYC DOB requires both for permitted work, and uninsured contractors leave you liable for accidents.

What certifications and testing should a low voltage contractor provide?

• Fluke DSX-8000 certification test results: Every drop should be certified to TIA-568-C.2 standards — a printed report for each run showing pass/fail status, length, and crosstalk margins is the industry benchmark for professional installations.
• 365-day warranty on parts and labor: We offer a full year of coverage on every structured cabling installation — that means if a terminated jack fails or a cable gets damaged during construction, we’re back at no charge.
• Documentation of termination standards: The contractor should specify whether they use T568A or T568B before starting — mixing standards on a single job creates crossover cables that won’t pass Fluke certification.
• Firestop compliance verification: Every penetration through a fire-rated wall must be sealed with UL-listed firestop — a reputable contractor provides photos or inspection reports of each sealed penetration.

Industry benchmark: The standard warranty in NYC is 90 days for entry-level operators — we match the premium tier with a full year of coverage on parts and labor.

What questions should I ask before hiring a low voltage contractor?

• Can you provide 3 recent NYC project references? Call them — ask about timeline adherence, cleanup after cable pulls, and whether the contractor handled NYC DOB permit inspections smoothly.
• What cable brand do you use? The answer should be CommScope, Belden, Panduit, or Leviton — generic unbranded cable often fails Fluke certification on near-end crosstalk.
• How do you maintain 12-inch separation from line voltage? NEC 725.136 requires this distance to prevent electromagnetic interference — the contractor should show you their pathway plan before pulling a single cable.
• Do you pull permits for this job? A direct yes means they’ll handle NYC DOB paperwork — a “we usually work without them” answer is a hard pass for any commercial or co-op installation.
• What’s your experience with pre-war buildings? Older Brooklyn brownstones and Manhattan pre-wars have plaster walls, no conduit, and knob-and-tube legacy wiring — a contractor who’s only worked in new construction will struggle with these conditions.

Scope trap: Get a written scope of work specifying cable types, quantities, termination standards (T568A or T568B), testing requirements, and labeling scheme — verbal agreements lead to disputes.

How do I prepare my building for low voltage wiring?

Proper preparation before the crew arrives saves time, prevents code violations, and avoids costly change orders — here are the key steps building owners should take.

What should I do before the low voltage contractor arrives?

• Clear pathways: Remove obstructions from ceiling plenums, wall cavities, and conduit paths — furniture, stored items, and debris slow the pull and risk cable damage.
• Identify fire-rated walls: Mark every wall assembly that requires firestop — NYC DOB requires UL-listed firestop sealant at every penetration through fire-rated assemblies, and skipping it fails inspection.
• Verify conduit availability: Check existing EMT or PVC conduit for blockages; older Brooklyn brownstones and pre-war co-ops often have no conduit at all, which changes the installation method and timeline.
• Notify building management: NYC co-ops and condos typically require board approval for low voltage work — get written permission before scheduling to avoid mid-project stops.
• Future-proofing rule: Install 2–3x more cable than currently needed — labor is the expensive part (cable is cheap), and pulling additional runs later costs 3–4x more.

How do I coordinate low voltage wiring with other construction work?

Schedule low voltage wiring after rough-in (electrical, plumbing, HVAC) but before drywall — and ask drywallers to leave access panels at junction points for future maintenance. In a typical Manhattan gut renovation, the rough trades run their lines first, then the low voltage crew pulls CAT6 to every room, then the insulation and drywall go up. The critical window is narrow: once drywall is hung and taped, every cable path becomes permanent. In NYC co-op renovations, the most common mistake is installing drywall before cabling is run — then the contractor has to cut access holes, patch them, and repaint, adding $500–1,000 to the project. A written schedule that locks the low voltage window between rough-in and drywall prevents that entirely.

What common preparation mistakes should I avoid?

• Parallel line voltage runs: Avoid running structured cabling NYC parallel to 120V+ lines without maintaining 12″ separation — NEC 725.136 requires this gap to prevent electromagnetic interference that degrades signal quality.
• Skipping firestop: Every penetration through a fire-rated wall must be sealed with UL-listed firestop sealant — cheap contractors skip this, and NYC DOB inspectors flag it immediately during final sign-off.
• Insufficient service loops: Failing to leave 10+ ft service loops at both ends of each cable run makes future moves (relocating a patch panel or moving a desk) impossible without re-pulling the entire run.
• Bend radius trap: CAT6 requires a 4x cable diameter bend radius — sharp 90-degree bends cause signal degradation and will fail Fluke certification testing, forcing a re-pull that costs more than the original run.

Key Takeaways for Your NYC Low Voltage Project

Main takeaways

Choosing the right low voltage contractor in NYC comes down to verifying licensing, checking certifications, and understanding the specific needs of your building — whether it’s a pre-war co-op or a new-construction condo. The five boroughs present distinct challenges: Manhattan high-rises require coordination with building management for riser access and firestop compliance, while Brooklyn brownstones often mean fishing cable through plaster-and-lath walls with no conduit. We’ve seen structured cabling systems specified with CAT6 and CMP plenum-rated cable pass NYC DOB inspection cleanly, only to fail three years later because the contractor skipped firestop at wall penetrations. The difference between a well-installed structured cabling system and a poorly done one isn’t just speed — it’s whether the system will still meet your needs in 10 years, or require a costly re-do.
