Commercial HVAC Systems We Install for NYC Office Buildings
We install split systems, rooftop units, VRF, and VAV systems for NYC office buildings, matching each system type to the building’s size, layout, and zoning requirements.

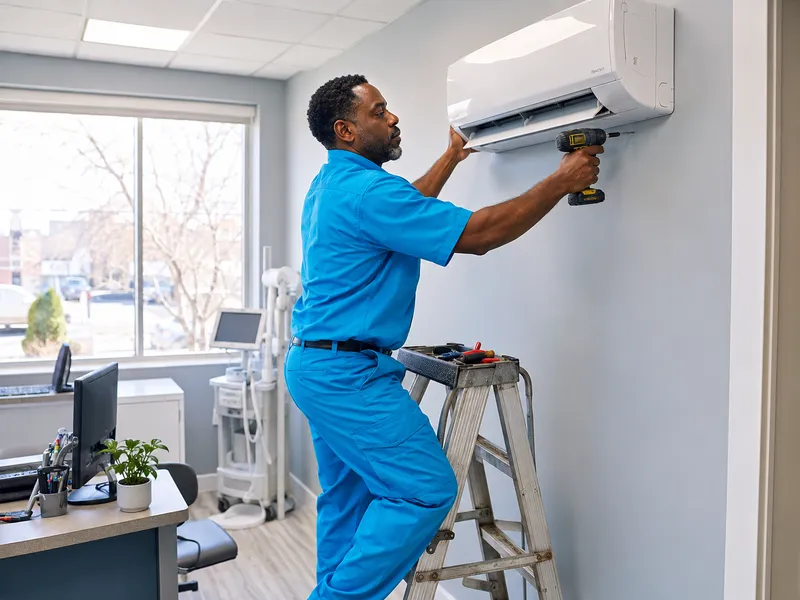

Split systems, RTUs and VRF for NYC offices

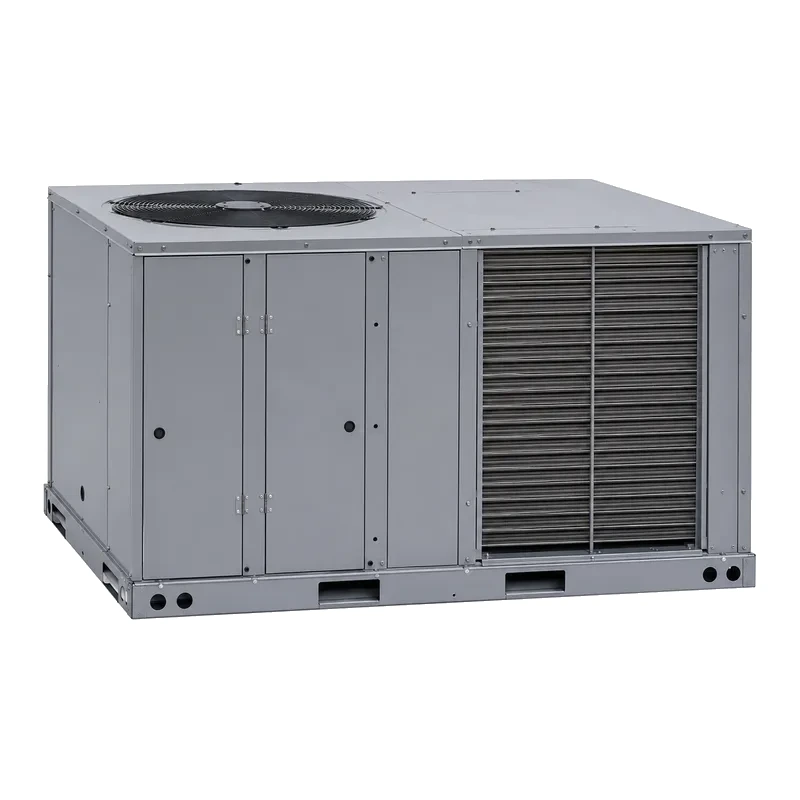

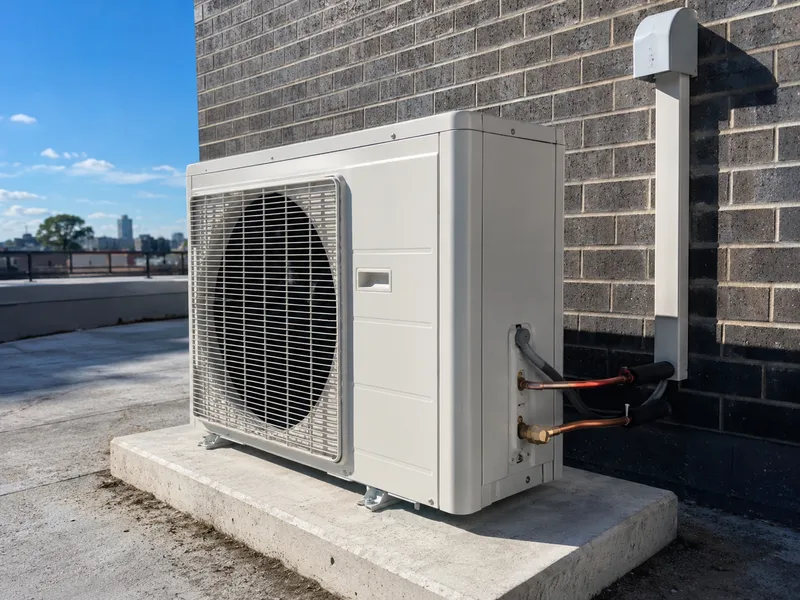

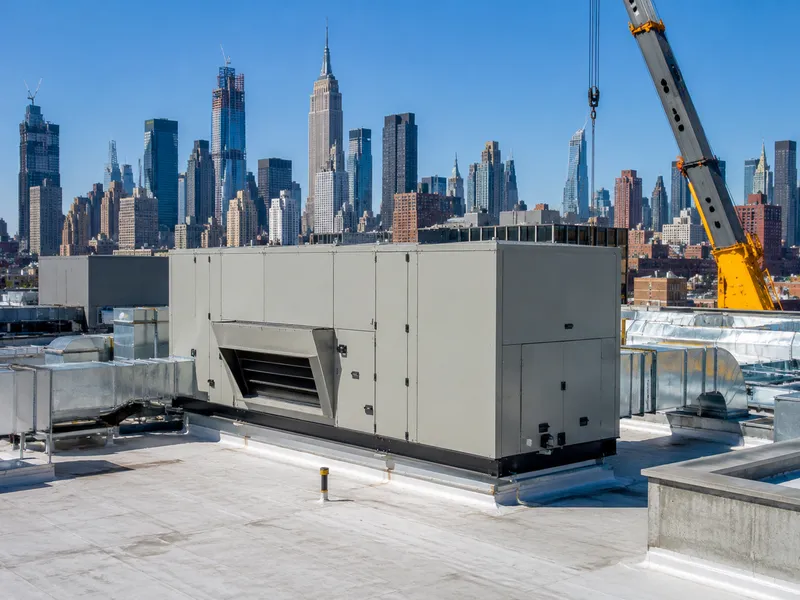

We install split systems for small offices up to 5 tons, rooftop units for flat-roof buildings, and VRF systems for multi-zone offices where each room needs independent temperature control. A split system pairs one outdoor condenser with one indoor air handler — straightforward for a single-zone space like a 1,000 sq ft law office in a Brooklyn brownstone. Rooftop units (RTUs) work on Manhattan high-rises with flat roofs, delivering conditioned air through ductwork to multiple zones. VRF systems, from Mitsubishi Electric or Daikin, use variable refrigerant flow with inverter compressors to serve up to 20 indoor units from one outdoor condenser — each zone sets its own temperature. A 2,000 sq ft office with 20 workstations typically needs 4–5 tons of cooling; we determine the exact size through a Manual J load calculation during the consultation.
Building management system integration for office HVAC
- Centralized scheduling: The building management system (BMS) programs HVAC operation by time of day and day of week — Monday through Friday 8 AM to 7 PM for core hours, weekend override for overtime work.
- Zone-level temperature monitoring: Each VAV box or VRF indoor unit reports its zone temperature back to the BMS dashboard; facility managers see hot and cold spots in real time across all floors.
- Energy optimization: The BMS adjusts supply-air temperature and fan speed (via variable frequency drives) based on aggregate zone demand — fan energy drops 30–50% compared to constant-volume systems.
- After-hours scheduling: Tenants working late request HVAC for their zone through a web portal or phone call; the BMS activates only that zone’s VAV box or VRF unit, leaving the rest of the floor unoccupied.
- Alarm and fault detection: The BMS logs equipment faults — failed economizer actuators, dirty filters, refrigerant pressure alerts — and sends notifications to our dispatch or the building engineer before tenants notice a temperature drift.
What Size Commercial HVAC System Does Your NYC Space Need?
We calculate the right tonnage for commercial spaces using a Manual J load calculation that accounts for square footage, occupancy, equipment heat gain, and NYC-specific factors like older building envelopes and high window-area-to-wall ratios.
Manual J load calculation for commercial HVAC sizing
- What Manual J measures: We run a full ACCA-approved load calculation that accounts for conditioned square footage, window area and orientation, wall and roof insulation R-values, occupancy count, equipment heat gain from computers and lighting, and air infiltration rate through the building envelope.
- Why it matters for tonnage: The calculation outputs a precise cooling load in BTUs — 12,000 BTUs equals 1 ton of cooling capacity — so we match the system to the actual demand rather than guessing based on square footage alone.
- The oversizing trap: A system oversized by even 1 ton short-cycles, meaning it runs for 5–8 minutes then shuts off before the compressor stabilizes; this drives up humidity levels inside the space and raises monthly energy bills by 15–25%.
- Ductwork verification: After the load calculation we measure existing duct capacity in CFM — if the current trunk line and branch runs can’t handle the required airflow for the selected tonnage, we modify the duct layout before equipment goes in.
- Fact layer: On a Midtown office retrofit where the existing ductwork was sized for a 4-ton constant-volume system, we had to replace three branch runs to support a new 5-ton VRF — skipping that step would have meant 30% less airflow to the south-facing zones.
Commercial HVAC sizing by space type
| Space Type | Square Footage | Typical Tonnage | Key Factors |
|---|---|---|---|
| Small office | 2,000 sq ft | 4–5 tons | 20 occupants, computers, minimal windows, standard insulation |
| Restaurant with kitchen | 1,500 sq ft | 5–7.5 tons | Cooking heat from range and ovens, high occupancy, grease exhaust makeup air |
| Retail store | 1,000 sq ft | 3–4 tons | Large glass storefronts, high foot traffic, display lighting heat gain |
| Data center | 500 sq ft | 5–10 tons | Server heat density of 5–15 kW per rack, precision cooling required, N+1 redundancy |
Do You Handle DOB Permits for Commercial HVAC Installation?
We handle the full NYC DOB permit process for commercial HVAC — from TR1 application through final inspection — and guide you on preparing your building for installation day.
The NYC DOB permit process for commercial HVAC
- Load calculation and system design: We run Manual J load calculations and design the system layout — duct routing, equipment selection, and electrical load — before submitting anything to DOB.
- Permit application package: We file the TR1 (Application for Permit), PW1 (Plumbing Work) for refrigerant lines or gas piping, and PW3 (Fire Suppression) where applicable, plus equipment submittals and cut sheets.

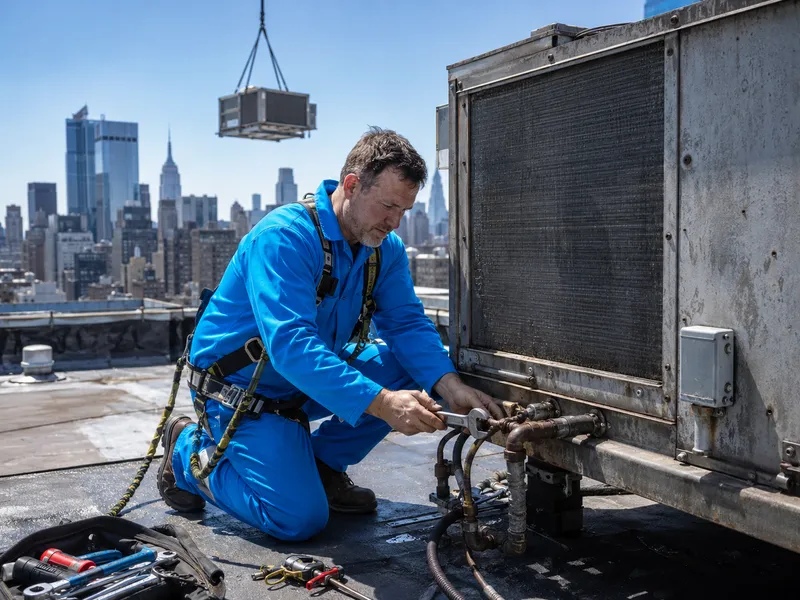

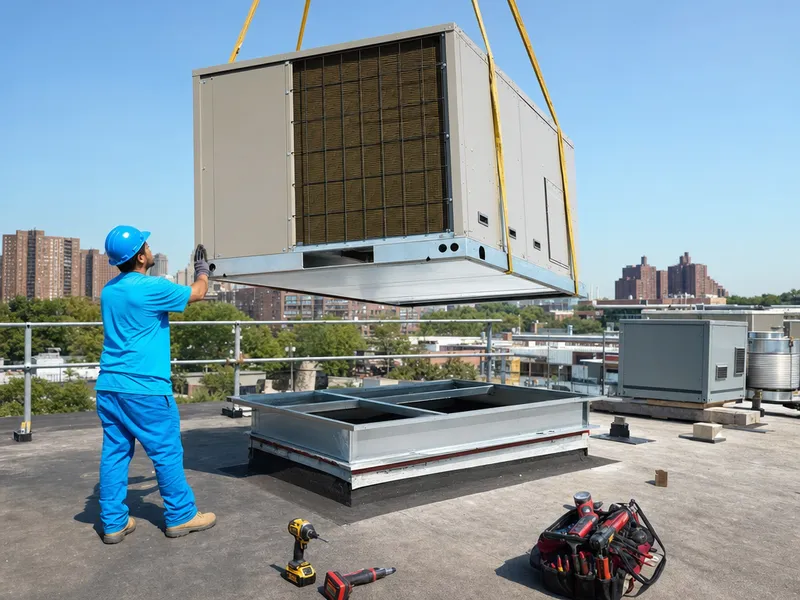

- Structural analysis for rooftop units: If the installation involves an RTU on a flat roof, we coordinate with a structural engineer to verify roof load capacity — older Manhattan and Brooklyn buildings often need reinforcement.
- DOB review and permit issuance: Review takes 2–6 weeks for commercial HVAC permits; fees range from $200 to $2,000+ depending on job scope. We start the application as soon as the system design is finalized to avoid delaying your installation.
- Inspections and Certificate of Occupancy: We schedule rough-in and final inspections (24–48 hour notice each) and handle any Certificate of Occupancy amendments if the system change affects building systems.
How to prepare your building for HVAC installation
- Clear the installation zone: Remove furniture, inventory, and equipment from the area where indoor units, ductwork, and refrigerant lines will go — technicians need unobstructed access.
- Coordinate rooftop and mechanical room access: Ensure the roof door is unlocked, the mechanical room is cleared, and building management or the co-op board has approved the work — especially in Manhattan high-rises and Brooklyn brownstones.
- Verify electrical panel capacity: Many NYC commercial buildings have 100A panels that need upgrading to 200A for new HVAC — we check this during the consultation so you can plan the $4,500–$6,500 upgrade.
- Plan for condensate drainage: Old buildings in Queens and the Bronx often lack floor drains or have undersized piping — we include a condensate drain survey in our pre-install walkthrough to avoid water backup issues.
Restaurant and Office HVAC Installation in NYC
We install HVAC for restaurants and offices across all 5 NYC boroughs — including grease-rated exhaust, makeup air systems, and multi-zone zoning for dining versus kitchen areas.
Restaurant HVAC installation: grease exhaust and makeup air
We install restaurant HVAC systems with grease-rated exhaust hoods, dedicated makeup air units, and separate zones for dining and kitchen areas — meeting NYC Health Code and DOB requirements. The kitchen exhaust hood pulls heat, smoke, and airborne grease through a duct system that terminates above the roofline, while the makeup air unit replaces the exhausted volume to keep the space from going negative pressure. A 1,500 sq ft restaurant with a full kitchen typically needs 5–7.5 tons of cooling — roughly 2–3x the heat load of an equivalent office space — because the cooking equipment, fryers, ovens, and steam tables dump concentrated heat into the back-of-house. We use VRF or multi-zone split systems here so the front-of-house stays comfortable at 72°F while the kitchen runs at 78°F without the dining room thermostat fighting the exhaust fan.
Office HVAC installation across all 5 boroughs
We install HVAC for office buildings across all 5 NYC boroughs — from Manhattan high-rises needing VAV or VRF systems to Brooklyn brownstone offices and Queens warehouse conversions. VAV systems with variable frequency drives modulate airflow per zone, which cuts fan energy by 30–50 percent compared to constant-volume setups, and they integrate with the building management system for centralized scheduling. NYC Local Law 97 affects office buildings over 25,000 sq ft — upgrading to high-efficiency HVAC helps avoid penalties that start at $268 per ton of CO₂ over the limit. In our practice, a midtown office swapping a 15-year-old constant-volume RTU for a VRF system typically sees the payback period land at 4–6 years when you factor in the Con Edison commercial rebate and the avoided Local Law 97 fines.
Data Center and Specialty Commercial HVAC Installation
How we install precision cooling systems for data centers — including CRAC/CRAH units, chilled water systems, and N+1 redundancy configurations.
Precision cooling for NYC data centers
- System types: We install CRAC/CRAH units, chilled water with in-row cooling, and direct expansion with economizers — maintaining ±1°F temperature and 40–60% relative humidity.
- Heat density: Data centers generate 5–15x more heat per square foot than offices, requiring 1 ton per 100–300 sq ft and N+1 redundancy so one unit can fail without downtime.
- Economizer integration: Air-side or water-side economizers pull in cool outdoor air during NYC winters, cutting compressor runtime by 30–50% and reducing annual energy costs significantly.
- Controls and monitoring: The building management system ties into variable frequency drives on fans and pumps, adjusting airflow and chilled water flow in real time as server loads shift.
- Redundancy configuration: N+1 means one extra unit per group — if a CRAC unit goes down, the remaining units ramp up to carry the load without any temperature spike in the server aisles.
NYC-specific data center installation challenges
NYC data centers in converted industrial buildings need structural analysis for equipment weight, DOB permits with fire suppression considerations, and temporary cooling during installation to protect servers. A 500 sq ft server room with 40 kW of IT load, for instance, requires roughly 12 tons of precision cooling — but the building’s original floor slab in a former garment-district loft may only support 80 lbs per sq foot, meaning the CRAC unit needs a load-spreading steel frame. And we run temporary portable cooling units during the swap so the server inlet temperature never drifts above ASHRAE’s 80.6°F maximum. Installation typically takes 2–4 weeks for a medium data center, including commissioning, load bank testing, and coordination with the building’s existing electrical service.

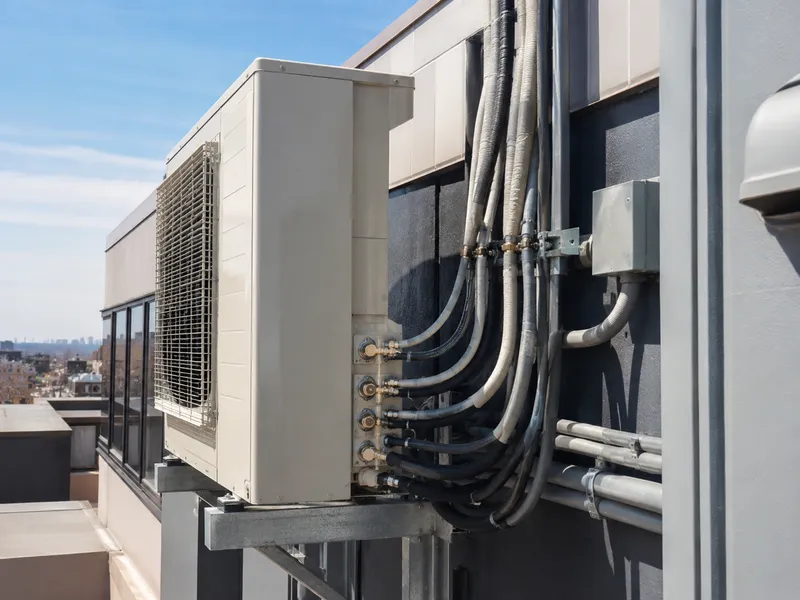

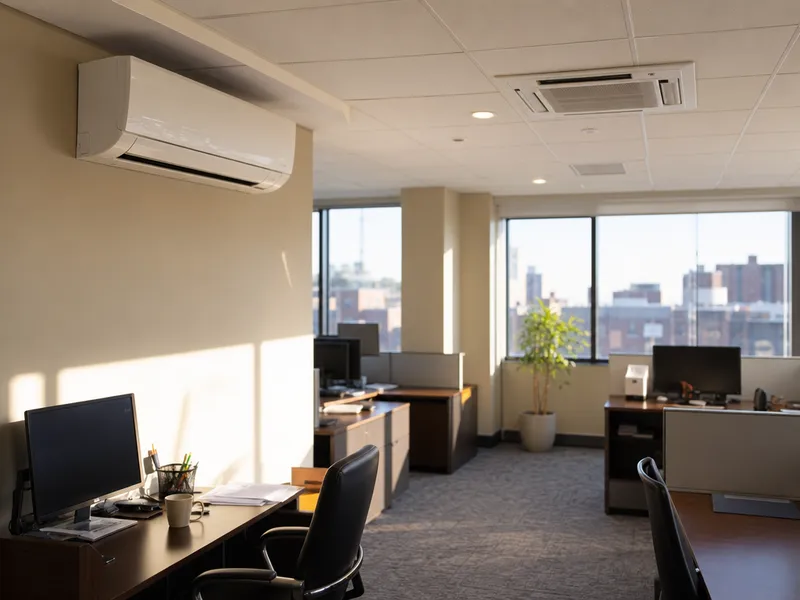

VRF vs Split System: Which Is Right for Your Commercial Space?
The key differences between VRF and split systems for commercial HVAC — refrigerant distribution, zone control, efficiency, and cost — and which works best for your NYC space.
VRF vs split system: key differences
| Feature | Split System | VRF System |
|---|---|---|
| Zones per outdoor unit | 1 zone | Up to 20+ zones |
| Efficiency (SEER) | 13–20 | 18–28 |
| Installed cost per zone | $3,000–$8,000 | $5,000–$15,000 |
| Best for | Small commercial (restaurants, retail, small offices) | Multi-zone offices, hotels, mixed-use buildings |
| Installation complexity | Lower — standard refrigerant piping | Higher — precise piping, longer line sets, controls wiring |
Which system works best for your NYC commercial space
We recommend split systems for small commercial spaces like restaurants and retail stores, and VRF systems for multi-zone offices, hotels, and mixed-use buildings where rooftop space is limited. A split system pairs one outdoor condenser with one indoor air handler — simple, cost-effective, and quick to install for a single zone. VRF uses variable refrigerant flow with inverter compressors, so one outdoor unit serves up to 20+ indoor units across multiple floors. In Manhattan high-rises, that matters: a single VRF condenser on the roof replaces what would be a dozen split-system condensers cluttering the mechanical room or facade. VRF systems are popular in NYC high-rises because one outdoor unit on the roof can serve 20+ indoor units across multiple floors — saving valuable rooftop space.

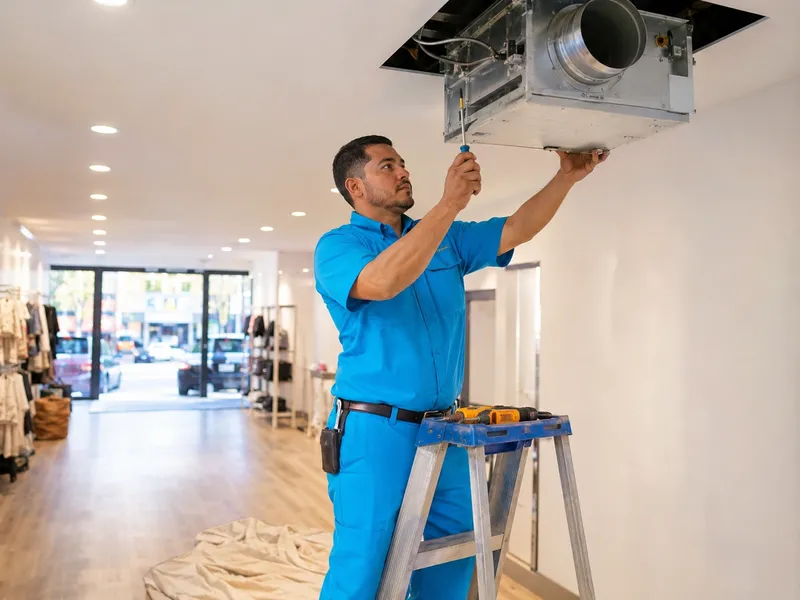

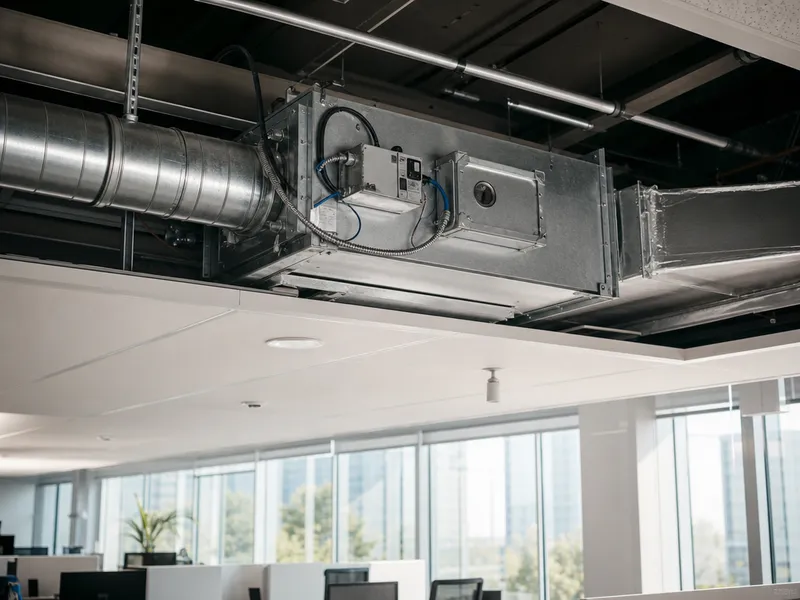

Benefits of VAV Systems for Multi-Zone Commercial Spaces
Variable air volume systems deliver zone-level temperature control, energy savings, and NYC Energy Code compliance for multi-zone commercial buildings across all five boroughs.
How VAV systems save energy and improve comfort
- Fan energy reduction: Variable frequency drives on VAV fans cut energy use 30–50% compared to constant volume systems — the fan runs at lower speed when zones need less airflow.
- Reheat elimination: In mild weather a VAV system reduces airflow to match the cooling load instead of reheating overcooled air, which saves 20–40% on utility bills versus constant volume designs.
- Zone-level independence: Each VAV box serves its own zone with a thermostat; one space can call for cooling while an adjacent zone maintains setpoint without conflict.
- Economizer integration: The building management system coordinates economizer dampers with VAV box positions — when outside air is cool enough, the economizer delivers free cooling and the VAV boxes throttle back.
- Humidity control: Matching airflow to the sensible load keeps the coil cold enough to condense moisture; constant volume systems often overcool and then reheat, creating a humidity swing.
VAV systems and NYC Energy Code compliance
VAV systems help NYC buildings over 25,000 square feet comply with Local Law 97 by reducing energy consumption and carbon emissions through zone-level optimization. The building management system tracks zone demand in real time — if a conference room is empty, the VAV box closes to minimum airflow and the fan slows, dropping the zone’s energy draw to near zero. That granular control directly lowers the building’s carbon intensity metric (kg CO₂ per square foot) that Local Law 97 penalizes above the annual limit. The upfront cost premium of $2–$4 per square foot for VAV over single-zone systems is typically recovered within 3–5 years through energy savings alone — and in a Manhattan office tower with 100+ zones, that payback often lands closer to three years because the reheat savings compound across every zone.

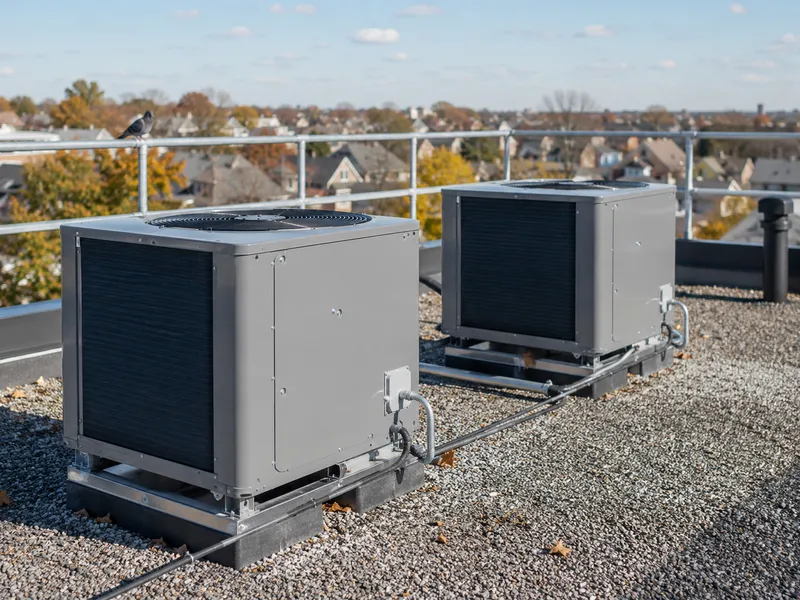

ROI of Upgrading to High-Efficiency Commercial HVAC
The financial case for upgrading to high-efficiency commercial HVAC — energy savings, rebates, tax incentives, and payback periods for NYC businesses.
Energy savings and payback period for high-efficiency upgrades
- Energy savings range: Moving from SEER 13 to SEER 20 cuts energy use 20–40% — a 2,000 sq ft office saves roughly $1,200 per year with a payback period of 6–10 years on an $8,000–$12,000 installation.
- Restaurant payback is faster: A 5,000 sq ft restaurant swapping SEER 13 for SEER 22 saves about $3,000 per year, with a 5–8 year payback — kitchen exhaust and longer run hours drive the quicker return.
- Variable frequency drives add savings: Pairing the upgrade with VFDs on fan motors cuts another 30–50% from fan energy, and economizers bring in free cooling when outdoor air is below 55°F.
- AFUE matters for gas heat: Upgrading from 80% to 95% AFUE on a gas-fired rooftop unit saves roughly 15% of annual heating costs — in a 5,000 sq ft space with gas heat, that’s $400–$700 per year.
Rebates, tax incentives and Local Law 97 savings
- Con Edison rebates: The Commercial & Industrial Energy Efficiency Program offers up to $0.12 per kWh saved or $200–$500 per ton for qualifying high-efficiency equipment — a 10-ton upgrade could net $2,000–$5,000 back.
- Federal Section 179D deduction: Commercial buildings that cut energy use by 50% qualify for up to $1.80 per sq ft in tax deductions — for a 10,000 sq ft office, that’s $18,000 off taxable income.
- Local Law 97 penalty avoidance: Buildings over 25,000 sq ft face penalties starting at $268 per ton of CO₂ over the 2024 limit — upgrading to SEER 20+ equipment can eliminate those penalties entirely for many NYC commercial properties.
- Stacked incentives shorten payback: Combining Con Edison rebates with the 179D deduction can cut the net cost of a $12,000 installation by $3,000–$6,000, bringing payback from 10 years down to 5–7 years for a typical office.
Main Takeaways for Commercial HVAC Installation in NYC
A proper commercial HVAC installation balances load calculations, DOB permits, and system selection matched to your space type — whether office, restaurant, or data center.
Main Takeaways for Commercial HVAC Installation in NYC
Commercial HVAC installation in NYC requires proper load calculation, DOB permits, and system selection matched to your space type — whether office, restaurant, or data center. Load calculations follow Manual J standards, accounting for square footage, occupancy, and equipment heat gain. Permits through the NYC Department of Buildings take 2–6 weeks for review, with TR1 applications and structural analysis for rooftop units. System choice depends on zoning needs: VRF for multi-zone offices, split systems for small retail, VAV for large commercial spaces. The right system — split, VRF, or VAV — combined with high-efficiency equipment and available rebates can reduce operating costs by 20–40% while ensuring NYC code compliance.
