What size tankless water heater do I need for my home?
Sizing a tankless unit depends on your home’s simultaneous fixture demand and the temperature rise required, which we calculate during the site assessment.
How we calculate the right flow rate for your NYC home
We size your tankless by counting all fixtures that may run simultaneously—each shower uses 1.5–2.0 GPM, a kitchen faucet 1.0 GPM, and a dishwasher 1.5 GPM—then calculating the BTU needed using BTU = GPM × temperature rise × 500. In NYC winter, incoming water is 50°F, so a 120°F shower needs a 70°F temperature rise. That means a 4 GPM demand requires at least 140,000 BTU, which most 1-bedroom apartments can meet with a 150K BTU unit. For a 3-bedroom brownstone running 6 GPM simultaneously, you’re looking at 210,000 BTU—that’s why we often install dual units or a single 199K BTU condensing model. The tankless water heater installation begins with this calculation, not with picking a unit off the shelf.
Common sizing mistakes in NYC apartments and brownstones
- Single-unit undersizing: Installing a 6.5 GPM unit for a 3-bathroom house—when a shower, dishwasher, and washing machine run simultaneously, demand exceeds capacity.
- Ignoring winter temperature rise: Summer sizing works fine at 55°F rise but fails at 70°F rise in January—the unit can’t keep up.
- Forgetting gas line limits: A 199K BTU unit needs a 3/4″ or 1″ gas line; most pre-war brownstones have 1/2″. The upgrade cost is $500–$1,500.
- Overlooking recirculation demand: Adding a recirculation pump increases effective GPM by 0.5–1.0 because water moves through the loop faster.
- Skipping the fixture count: A 6.5 GPM unit covers one shower and one faucet but not a shower + dishwasher + washing machine together.

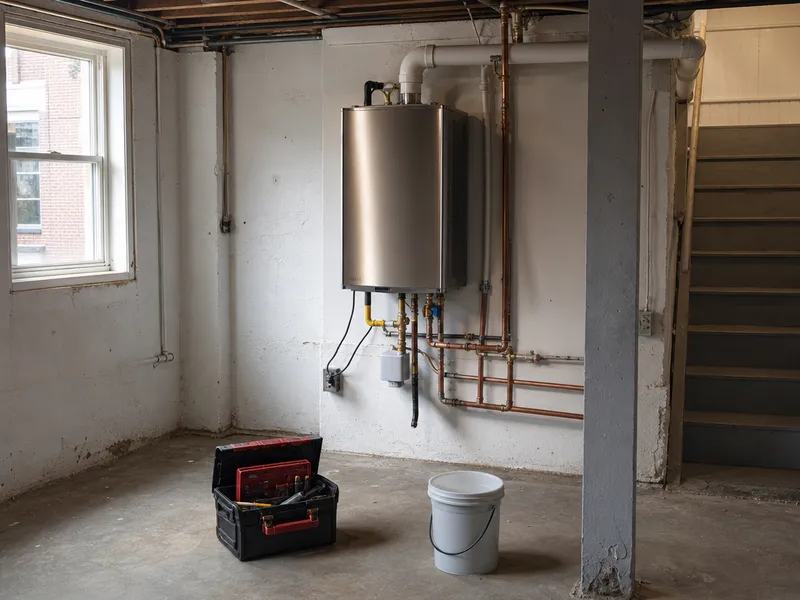

Tankless vs tank water heater: which is right for you?
The choice between a tankless and a tank water heater comes down to a trade-off between upfront cost and long-term savings, and in NYC the math shifts further because of tight floor plans and hard water.
Energy savings and space benefits of going tankless
We install condensing tankless units that achieve a 0.95+ energy factor compared with a storage tank’s 0.60–0.70, which cuts water heating costs by 20–30% — roughly $100–$200 per year for an average NYC household — while freeing 4–6 sq ft of floor space. The wall-mounted unit measures about 28″×18″×10″ and goes on an exterior wall or in a utility closet, so you reclaim the footprint a 60″-tall tank would occupy. In a Manhattan apartment where floor space runs $1,000+/sq ft, the square footage you get back alone can justify the higher upfront cost of a tankless installation.
Upfront costs and long-term value comparison
| Feature | Tankless Water Heater | Tank Water Heater |
|---|---|---|
| Upfront cost (installed, NYC) | $2,400 – $3,500 | $1,200 – $2,000 |
| Energy factor | 0.95+ (condensing) | 0.60 – 0.70 |
| Lifespan | 20+ years | 10 – 15 years |
| Space required | Wall-mounted, 28″×18″×10″ | Floor-standing, 60″×24″ |
| Hot water availability | Endless | 40–50 gallons, 30–60 min recovery |
| Annual maintenance | Descaling required in NYC | Minimal |
| Gas line upgrade needed | Often ($500–$1,500) | Rarely |
Installing a tankless water heater in a Brooklyn brownstone
Brooklyn brownstones and Manhattan apartments present different challenges — gas line capacity, venting options, and building restrictions vary significantly between the two settings.

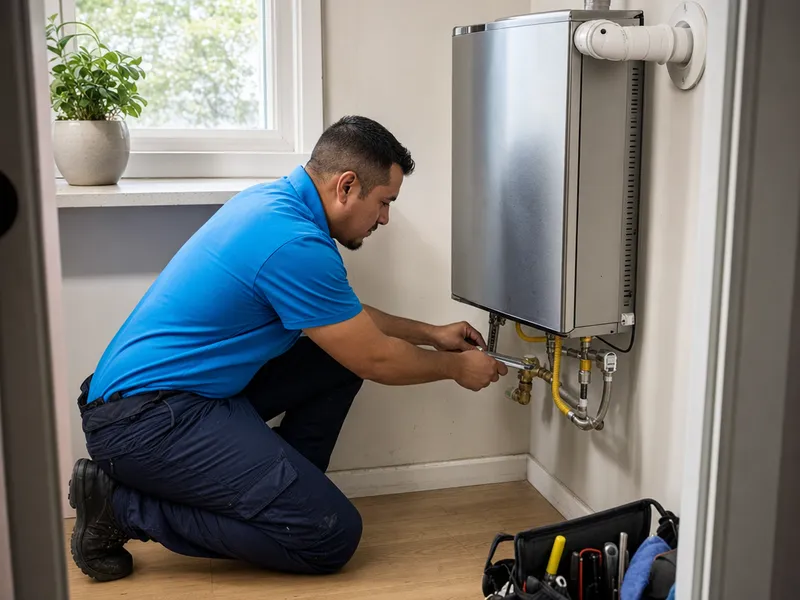

Brooklyn brownstone: gas line upgrades and outdoor mounting
- Gas line upgrade: Most Brooklyn brownstones run on 1/2″ black iron pipe — insufficient for a 199K BTU tankless unit. We upgrade to 3/4″ or 1″ pipe, which runs $500–$1,500 depending on distance from the meter.
- Outdoor mounting: We mount the unit on the rear facade or basement wall. Outdoor installation eliminates venting requirements entirely and keeps the brownstone’s interior footprint intact.
- Landmark restrictions: In Park Slope or Brooklyn Heights, the Landmarks Preservation Commission may restrict exterior equipment. We check with LPC before scheduling any facade-mounted install.
- Condensate handling: For basement installations with a condensing unit, the acidic condensate (1–2 gallons per hour at full fire) must drain to a floor drain or sump pit with a neutralizer kit.
Manhattan apartment: space savings and co-op restrictions

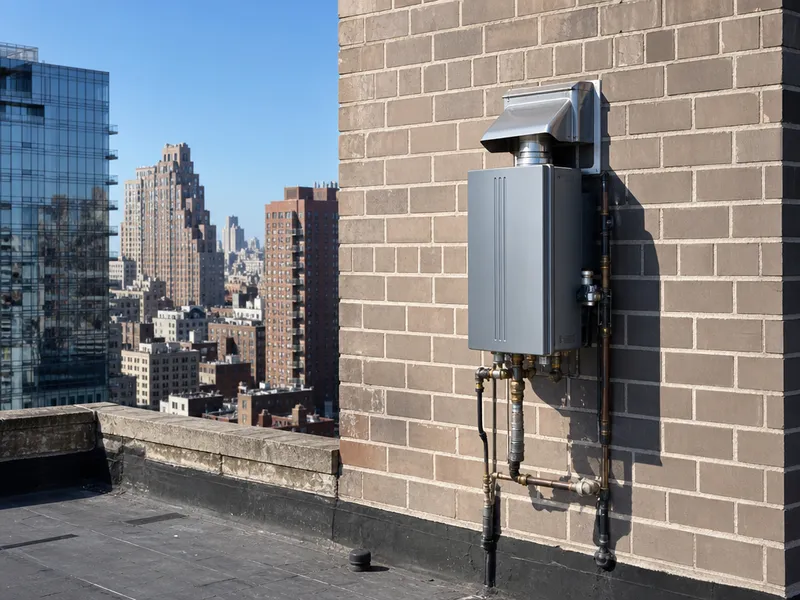

We install tankless units in Manhattan apartments by mounting them on exterior walls — rear facade, balcony, or rooftop — which eliminates venting and condensate issues while freeing 4–6 sq ft of valuable floor space. The total installed cost for a Manhattan apartment runs $4,500–$6,500, which includes the gas line extension from the riser and any required electrical work for the 120V dedicated circuit. Many co-ops and condos require board approval for exterior equipment, and some ban outdoor units on front facades, so we coordinate with building management before scheduling. For pre-war buildings with 100A service, electric tankless units are rarely feasible — the panel upgrade alone runs $4,500–$6,500 and often exceeds the building’s riser capacity.
Recirculation pumps for long pipe runs in NYC buildings
We recommend adding a recirculation pump ($200–$500) for Manhattan apartments and brownstones with long pipe runs from basement to upper floors — it delivers instant hot water at every faucet without waiting. The Navien NPE-A2 series includes a built-in recirculation pump, which simplifies installation and reduces equipment cost. Without a thermal expansion tank ($50–$100), recirculation pumps can short-cycle and wear out prematurely, so we always install one as part of the setup. For brownstones with cast-iron supply lines, the expansion tank also protects against water hammer when the pump kicks on.
Gas line upgrades and venting for tankless installation
Proper gas line sizing and correct venting are the two most critical technical requirements for a tankless water heater installation — and we handle both as part of our standard service, start to finish.
How we handle gas line upgrades for 199K BTU units
- Gas line sizing: We replace undersized 1/2″ lines with 3/4″ or 1″ black iron pipe from the meter to the unit — a 199K BTU tankless needs roughly 200,000 BTU/hr of gas flow, and a 1/2″ line starves the burner.
- Pressure testing: Every new line is tested at 10 PSI for 15 minutes per NYC code — if it drops even 0.5 PSI, we find and fix the leak before the unit fires up.
- Permit and plumber: The work is performed by our NYC DOB Licensed Master Plumber, and we file the required DOB permit — no shortcuts, no unpermitted gas work.
- Sediment trap: We install a 6″ drip leg at the unit connection per code — it catches debris that would clog the gas valve or burner orifice.
- Meter capacity check: Some NYC buildings have undersized gas meters that need a Con Edison upgrade ($500–$2,000, 2–4 weeks), which we identify during the initial site assessment — better to know before we start than to discover it mid-install.
Venting options: PVC for condensing, stainless steel for non-condensing
| Feature | Condensing Tankless | Non-Condensing Tankless |
|---|---|---|
| Vent material | Schedule 40 PVC (2″ or 3″) | Category III stainless steel |
| Max equivalent vent length | 50–70 ft | 35–50 ft |
| Exhaust temperature | ~120°F (cool) | 300–400°F (hot) |
| Horizontal run allowed | Yes | No — must slope upward |
| Shared vent with other appliances | No | No |
| Condensate produced | 1–2 gal/hour | None |
NYC code requirements for vent termination
- Code distances: We terminate all vents per the NYC Mechanical Code — minimum 12″ above grade, 12″ from windows and doors, and 36″ from gas meters — and use concentric venting on Rinnai models to reduce wall penetration size.

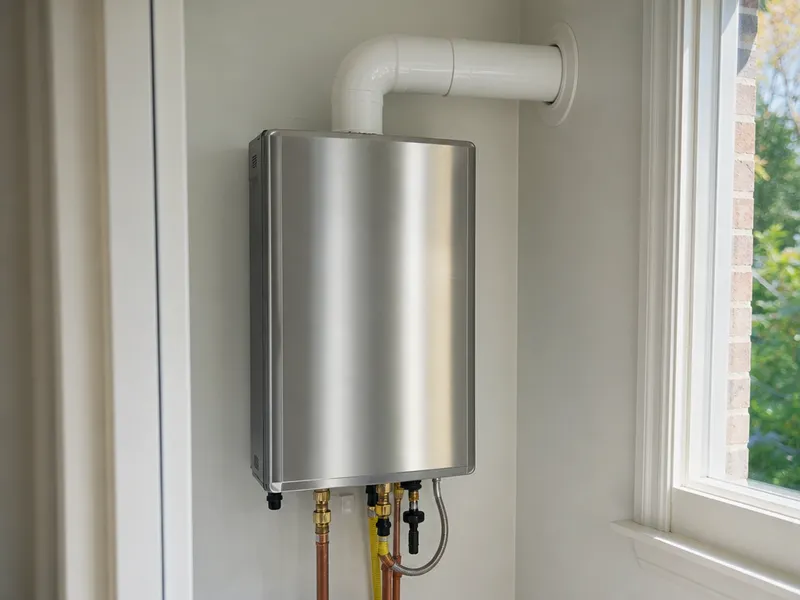

- Condensing PVC: Schedule 40 PVC can run horizontally through a foundation wall, making it ideal for basement installations in Queens houses and Bronx walk-ups — each 90° elbow adds 5 ft of equivalent length, so we plan the route carefully.

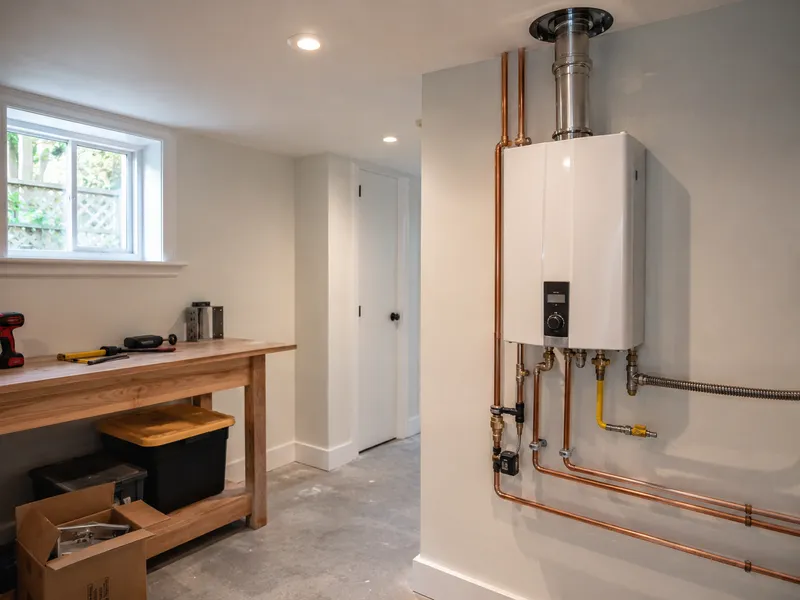

- Non-condensing stainless steel: Category III stainless must slope upward 1/4″ per foot and cannot share a vent with a boiler or furnace — a common code violation we see in older Brooklyn buildings with shared flues.
- Safety note: Non-condensing vents must be at least 12″ from any building opening because exhaust temperatures reach 300–400°F, which can melt vinyl siding or damage window frames — we always verify clearance before cutting.
Condensing vs non-condensing tankless: what’s the difference?
The choice between condensing and non-condensing tankless water heaters depends on where you mount the unit, your budget, and your efficiency goals — we install and service both types across NYC.

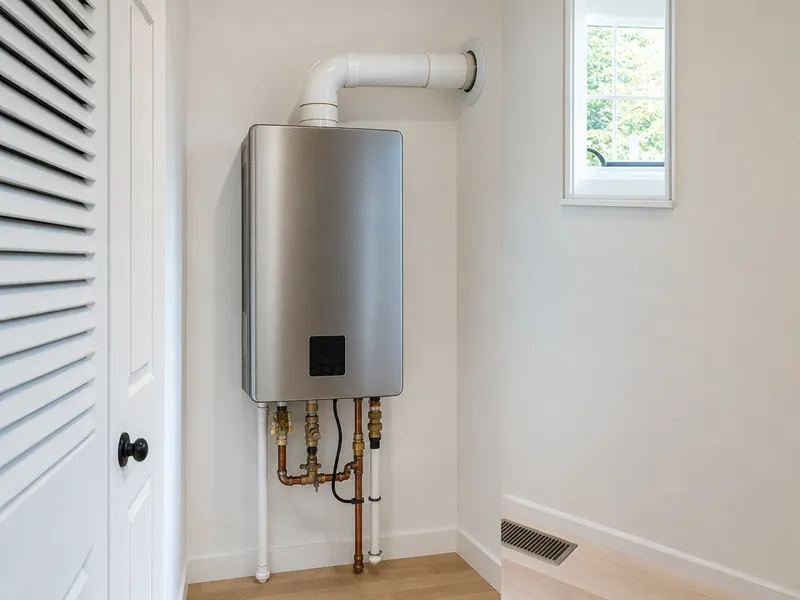

How condensing units capture more heat (and why it matters in NYC)
We install condensing tankless units that capture exhaust heat through a secondary stainless steel heat exchanger, achieving a 0.95+ energy factor — compared with non-condensing units at 0.82–0.85 — saving $50–$100 per year in gas costs with a 3–5 year payback on the higher unit price. The secondary exchanger drops exhaust temperatures from 300–400°F down to about 100°F, which is why condensing units can vent through inexpensive Schedule 40 PVC pipe instead of costly Category III stainless steel. That matters in NYC basements and utility closets, where routing rigid stainless venting through existing walls is often impossible. For indoor installations in NYC basements, we prefer condensing units because PVC venting can run horizontally through the foundation wall, while non-condensing requires vertical stainless steel venting that’s harder to route.

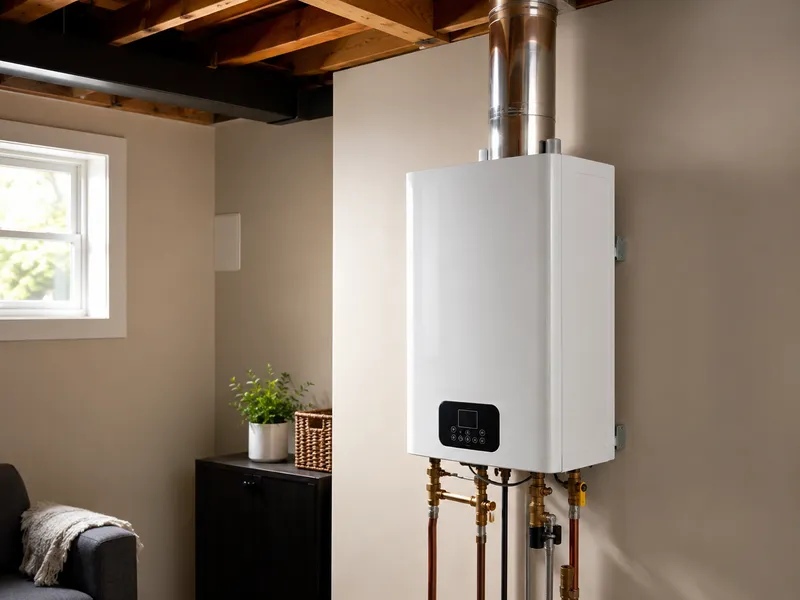

When non-condensing makes sense for outdoor installations
Non-condensing tankless units cost less upfront ($800–$1,500 vs $1,200–$2,000 for condensing) and require less maintenance — no condensate drain or neutralizer — making them a practical choice for outdoor installations where venting isn’t needed. On an outdoor wall mount, you skip the Category III stainless steel vent altogether, which removes the single biggest installation headache for non-condensing units. The trade-off in efficiency is smaller than the spec sheets suggest. For outdoor wall mounts on Brooklyn brownstones, the efficiency difference between condensing and non-condensing is negligible because standby heat loss to the outdoors offsets the higher EF.

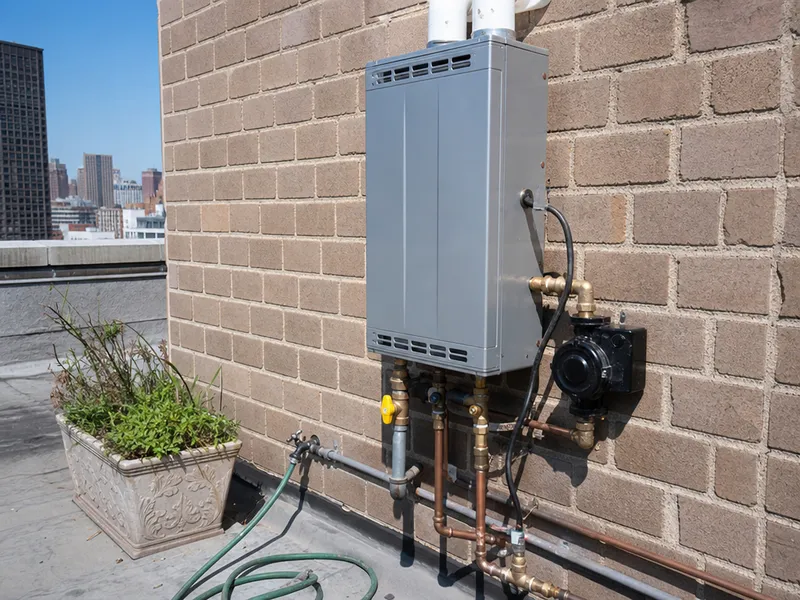

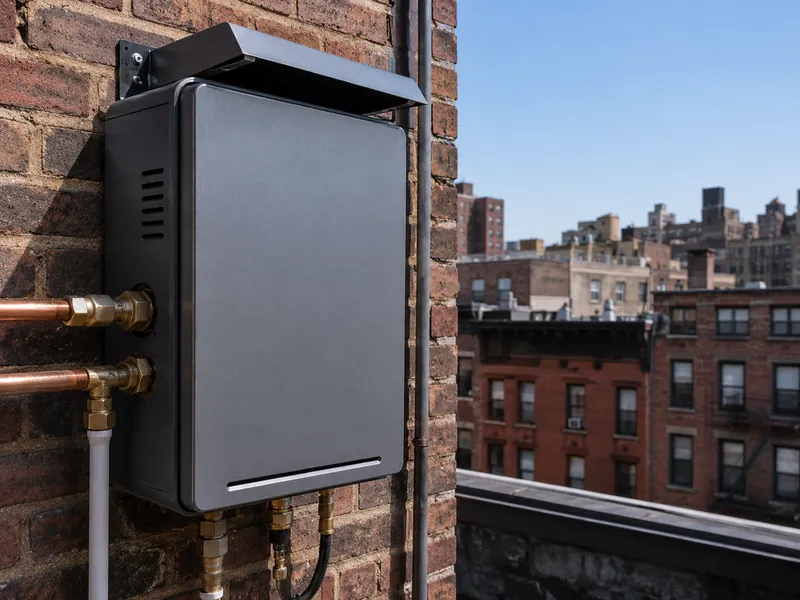

Outdoor tankless installation in NYC: what you need to know
Outdoor installation is often the best option for NYC homes — no venting, no condensate drain, and no indoor space used — but requires freeze protection and proper clearances to pass inspection.
Freeze protection and mounting requirements for NYC winters
- Outdoor-rated units: We install models built for exterior use — Rinnai RUC98i, Navien NPE-A2 outdoor variants — with built-in electric heater pads drawing 100–200W to prevent internal freeze damage when temps hit 0°F.
- Insulated water lines: Exposed supply and hot-water pipes get heat tape wrapped in closed-cell foam insulation rated for NYC winters; uninsulated copper freezes in under 30 minutes at 15°F with wind chill.
- Mounting clearances: Units sit 12″ above grade on stainless steel brackets (no rust from road salt), with 12″ from windows and 36″ from gas meters — the bare minimum per NYC Mechanical Code for safe service access.
- Corrosion protection: The bracket itself is 304 stainless, not painted steel; in coastal Staten Island and near the East River, salt air eats galvanized mounts in under two years.
- Condensate line freeze: On condensing outdoor units, we insulate the drain line and install a 1/4″ per foot slope — a frozen condensate line backs up into the secondary heat exchanger and cracks it.
Permits and building restrictions for exterior equipment
We file NYC DOB permits for all gas line extensions to exterior units — a 2–4 week process handled by our Master Plumber — and coordinate with building management for co-op/condo board approval when needed. In landmarked Brooklyn districts like Park Slope and Brooklyn Heights, the Landmarks Preservation Commission may require screening or prohibit front-facade mounting entirely. Rooftop installations in Manhattan require a structural assessment to verify the building can support the unit’s weight, and balcony installations in newer buildings often have HOA restrictions on equipment visibility. Before we order the unit, we confirm the building’s gas meter capacity — some pre-war co-ops have a 175 CFH meter that can’t feed a 199K BTU heater without a Con Edison upgrade.
Maintaining your tankless water heater after installation
Annual maintenance keeps your tankless unit running efficiently in NYC’s moderately hard water and helps keep the manufacturer warranty valid — we offer professional service to handle the heavy lifting.
Annual descaling: why it’s critical in NYC’s hard water

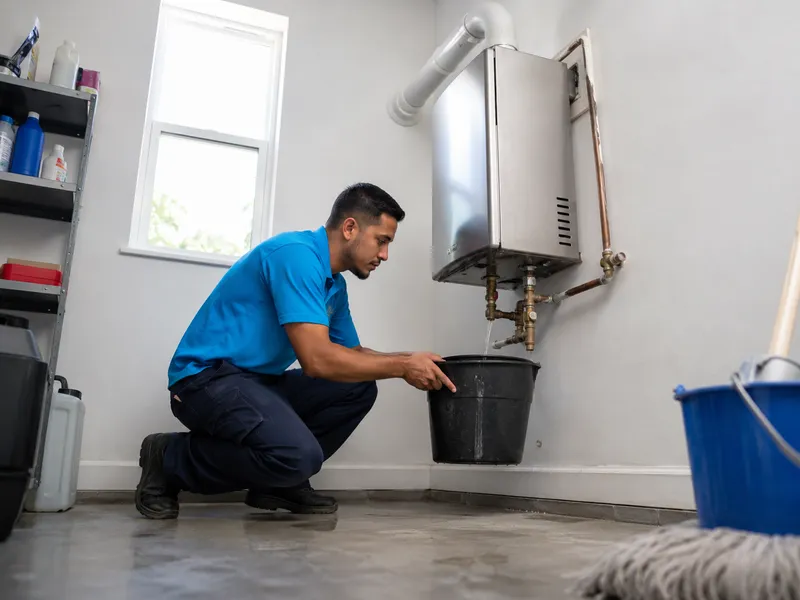

- Why descale: We recommend annual descaling for all tankless units in NYC — white vinegar or a Rinnai descaling kit (~$50) pumped through the unit for 45–60 minutes prevents heat exchanger scaling that can cause failure in 3–5 years without treatment.
- How hard water works: NYC water hardness sits at 7–10 grains, which builds scale on the stainless steel heat exchanger at about 1/16″ per year — at 1/8″ thickness, efficiency drops 20% and the unit may throw overheat error codes like 14.
- What to use: A descaling pump kit costs $80–$120 and connects to the service ports; you circulate the solution, then flush with clean water until the discharge runs clear.
- Signs you skipped it: If you notice fluctuating water temperature at the tap or the burner cycles on and off rapidly, scale has likely built up on the heat exchanger surfaces.
DIY maintenance vs professional service: what you can do yourself
- Owner tasks: You can descale the unit and clean the inlet water filter (strainer) every 3–6 months yourself — just unscrew the filter cap, rinse the mesh screen, and reinstall.
- Pro-only work: Burner cleaning and combustion analysis require a licensed technician — we offer professional service every 2 years for $150–$300, which includes gas pressure checks and CO/O2 measurements.
- Warranty catch: Annual maintenance is required to keep the manufacturer’s 5–15 year heat exchanger warranty valid — skipping it voids coverage on the most expensive component, which costs $800–$1,200 to replace.
- What we check: During a pro visit, we also inspect the vent termination for blockages, test the condensate drain flow, and verify the temperature setpoint stays at 120°F.
Common error codes and what they mean
| Error Code | Meaning | Common Cause | What to Do |
|---|---|---|---|
| 11 | Ignition failure | Gas supply issue, blocked burner | Check gas valve is open; call technician |
| 12 | Flame loss | Flame sensor dirty, gas pressure low | Clean flame rod; check gas pressure |
| 14 | Overheat | Scale buildup, low flow rate | Descale unit; check inlet filter |
| 16 | Flow sensor failure | Clogged flow sensor, hard water scale | Clean or replace flow sensor |
Conclusion
Tankless water heaters offer clear advantages for NYC homes, but a successful installation depends on sizing, gas line capacity, and maintenance. Here’s what matters most.
Main takeaways for NYC homeowners
Tankless water heaters deliver endless hot water and a 20+ year lifespan, saving floor space in apartments where square footage costs a premium. The critical factors are proper sizing based on simultaneous fixture demand, a gas line that handles the BTU load, and correct venting for the unit type. In NYC’s hard water, annual descaling prevents heat exchanger failure and keeps the manufacturer warranty valid. Outdoor installation eliminates venting and condensate issues but requires freeze protection for winter months. Whether you choose condensing or non-condensing depends on your installation location and budget — both deliver reliable performance when installed correctly.
