Can plastic pipe be used for underground water lines in NYC?
NYC code bans plastic pipe for underground water lines — copper Type K is the standard. Here is what plastic pipe is used for and the critical restrictions you need to know.
Why CPVC and PEX are not approved for underground water lines in NYC

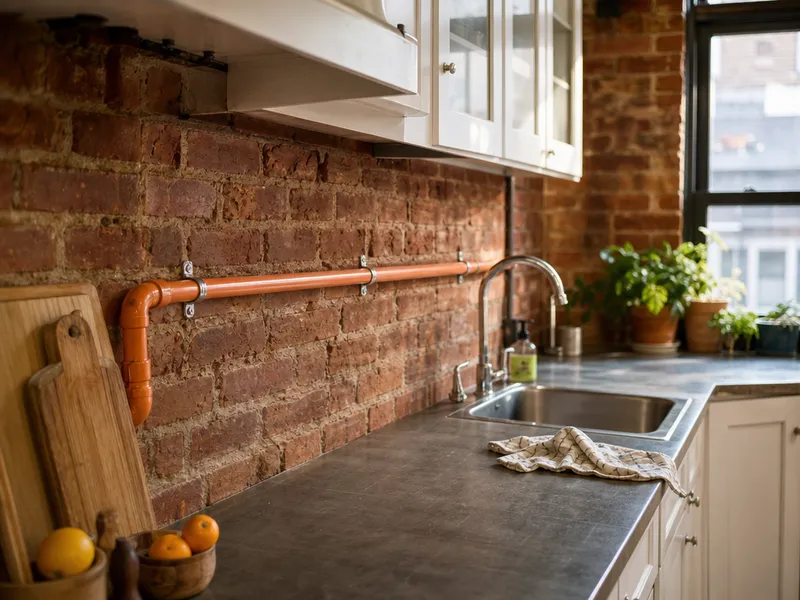

We do not install CPVC or PEX for underground water service lines in NYC because the NYC Plumbing Code (Section 605.3) only permits copper Type K for that application — CPVC becomes brittle underground within 5-10 years from soil chemicals and groundwater exposure. On a typical Brooklyn brownstone repipe, I run copper Type K from the street main to the basement manifold. The code doesn’t leave a loophole: CPVC is listed for above-ground use only, and PEX is not listed for water supply at all. If your home has existing underground plastic pipe from previous unpermitted work, schedule a replacement with copper Type K before a leak causes foundation or slab damage that costs thousands to repair.
Where plastic pipe IS allowed: CPVC for supply, PVC/ABS for DWV

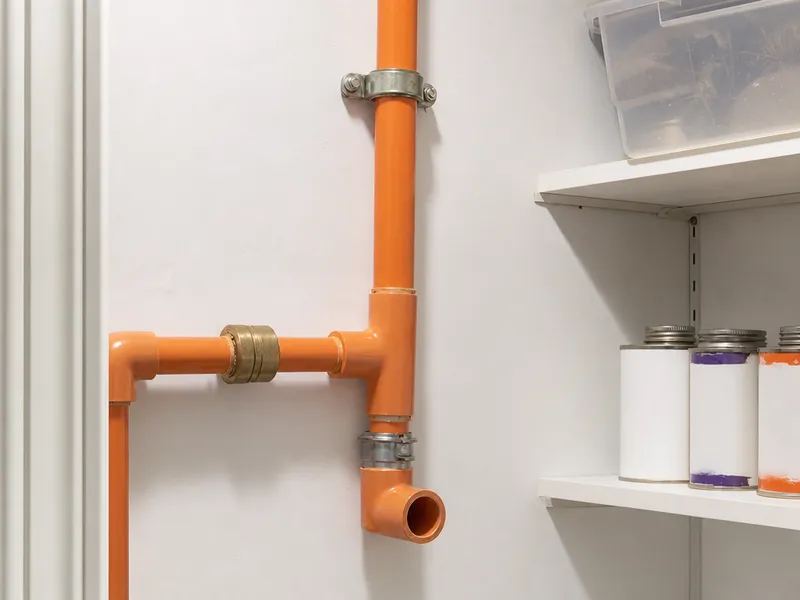

- CPVC (water supply): We use CPVC for all above-ground water supply lines in NYC — it’s the only plastic approved for that purpose, handling up to 200°F.

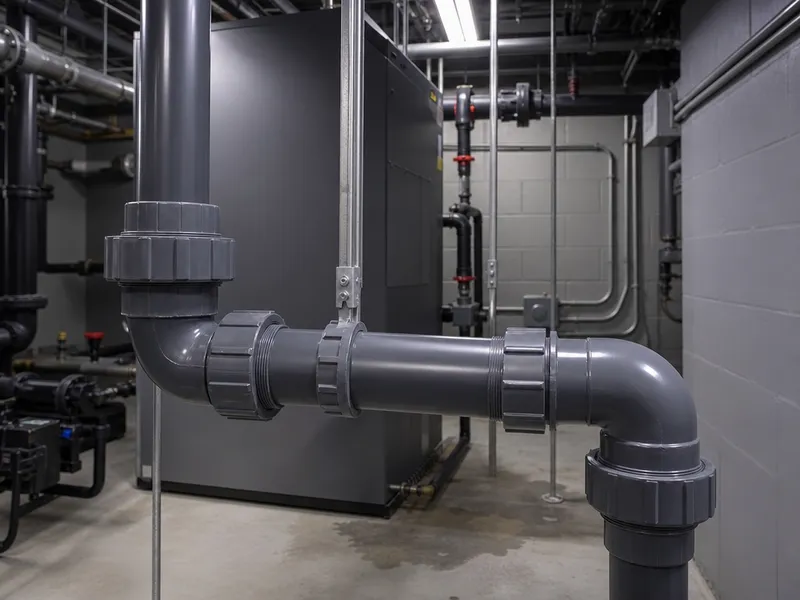

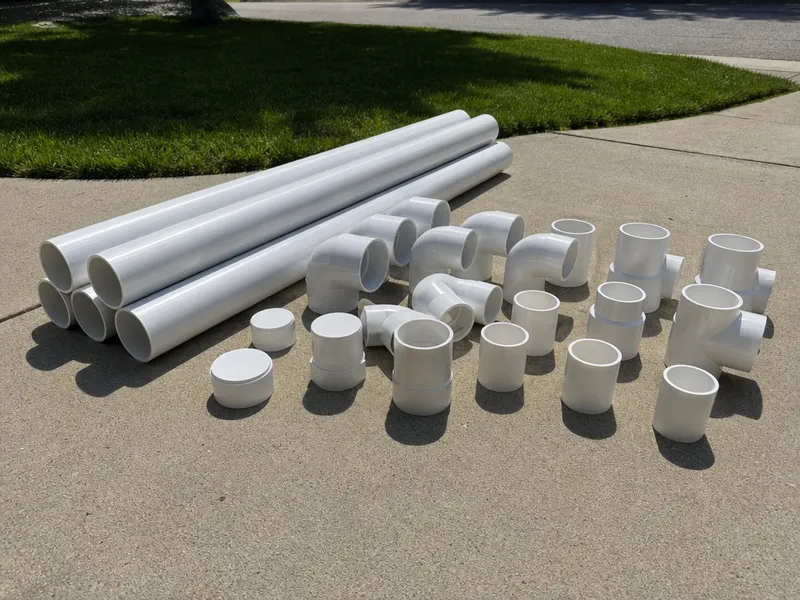

- PVC (DWV): PVC is banned for water supply but permitted for drain-waste-vent systems. It’s rated to 140°F max, so keep it away from water heaters.

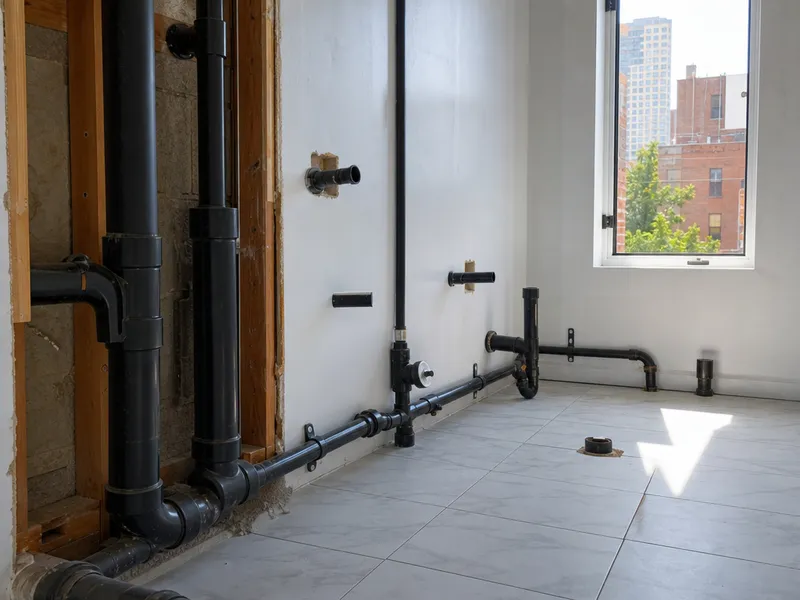

- ABS (DWV): Common in older NYC buildings for drain lines. Rated to 180°F, making it suitable for hot DWV near fixtures.
- PEX (limited): Not approved for water supply or underground use in NYC. Used in hydronic heating and some DWV applications.
- Why the distinction matters: Using PVC for hot water supply near a water heater will cause joint failure within months — CPVC handles up to 200°F safely, while PVC maxes out at 140°F.
How we install CPVC water supply lines
The 7-step process for solvent-welding PVC joints
- Cut square: Use a ratcheting PVC cutter (Ridgid 35 or Milwaukee M12 shear) — a cut that’s even 1/16" off-square reduces joint integrity immediately. Time per cut: about 30 seconds.
- Deburr inside and out: Run a reamer or utility knife around both the inner wall and outer edge of the cut pipe. Skipping this step drops joint strength by roughly 40% — the burr prevents the pipe from seating fully into the socket.
- Dry-fit and mark depth: Push the pipe into the fitting dry, then mark the insertion depth with a pencil. On schedule-40 PVC fittings the pipe should enter 1/2 to 3/4 of the socket depth.

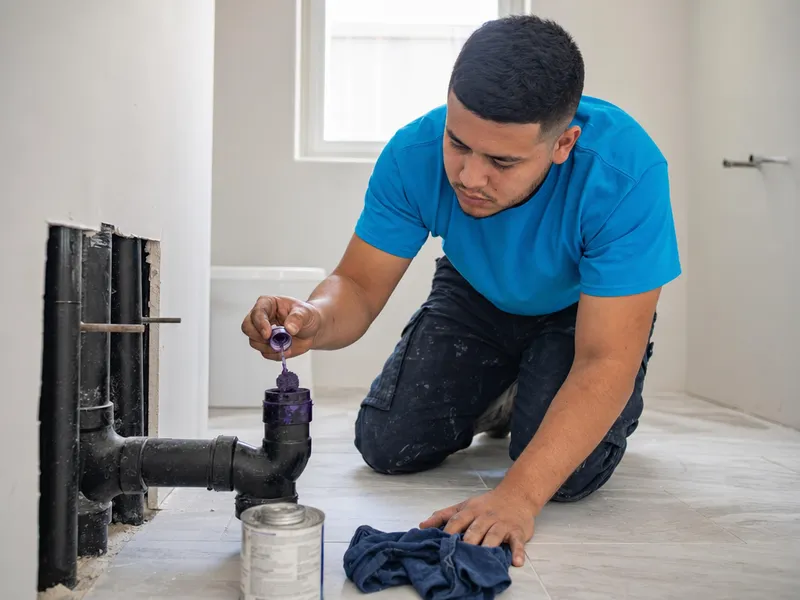

- Apply purple primer to both surfaces: NYC Plumbing Code requires purple primer on every solvent-welded joint — brush it onto the pipe end and the inside of the fitting socket until the surface looks wet. The purple stain is what inspectors check for.
- Apply PVC cement: Use clear Oatey 30827 or heavy-duty gray cement — brush a full coat onto the pipe end and a light coat inside the fitting. Never substitute CPVC cement (yellow) for PVC work.
- Insert with a 1/4-turn twist: Push the pipe into the fitting and rotate it a quarter turn as you seat it. Hold firmly for 30 seconds so the joint doesn’t push back out from the cement’s initial set.
- Let it cure: 15 minutes before handling, 1 hour before a pressure test, and 24 hours before full system pressure. Below 60°F, double every cure interval.
PVC vs CPVC cement: why you must never mix them
CPVC cement is yellow (Oatey 32227) and formulated for higher temperature tolerance — CPVC pipe handles up to 200°F in a water supply line. PVC cement is clear or gray and rated for PVC’s 140°F max. Using the wrong cement on a joint creates chemical incompatibility: the solvents don’t fuse the pipe material correctly, and the joint fails under pressure within weeks, often inside a finished wall. We always check the label before opening because the cans look similar on the truck, and a single misapplied joint in a wall can mean cutting out and replacing an entire run.
What tools are needed for plastic pipe installation?
Here are the essential tools we carry on every plastic pipe job — from cutting and joining to testing — and why each matters for code-compliant work across NYC.
Cutting and preparation tools for clean joints
- Ratcheting pipe cutter: We use a Ridgid 35 or Milwaukee M12 PVC shear for square cuts — a 1/16-inch deviation from square causes joint failure. A hacksaw with a 32-TPI blade works as backup, but the ratcheting cutter gives the consistent square cut that primer and cement need to bond properly.
- Deburring tool: A reamer removes inner and outer burrs after cutting. Leaving burrs reduces joint strength by 40% — the primer can’t penetrate a rough surface.
- Measuring and marking: A 25-foot tape and pencil for measuring runs and marking insertion depth (½ to ¾ of the socket depth). Dry-fit first to confirm alignment.
- CPVC pipe installation tools include a level and string line for long runs — DWV requires a ¼-inch-per-foot slope minimum, and a string line catches sag before the cement sets.
Joining and testing tools we use on every job
- Primer and cement: Oatey purple primer on every joint — NYC code requires it — and the correct cement for each pipe type. CPVC gets yellow cement (Oatey 32227); PVC gets clear or gray (Oatey 30827). Mixing them causes joint failure.
- Pipe hangers: Plastic-coated cushioned hangers (Oatey 33523) for all plastic pipe — uncoated metal hangers abrade the pipe from vibration and thermal movement over time. Horizontal spacing: 4 feet max. Vertical: 32 inches.
- Pressure test gauge: We test every system at 80 psi for 30 minutes before closing walls. We’ve caught pinhole leaks from manufacturing defects that wouldn’t show until months of use — the pressure test saves customers a drywall repair bill.
- Teflon tape and pipe dope: For threaded connections on transition fittings. Hand-tighten plus ¼ turn max — plastic fittings strip at much lower torque than brass.
Does plastic pipe need expansion loops?
CPVC expands significantly with temperature changes — far more than copper — and expansion loops are required by code to prevent joint stress and cracking.
How much does CPVC expand and why loops are needed
We install expansion loops on every CPVC run longer than 30 feet because CPVC expands 0.045 inches per 10°F per 100 feet. A 50-foot run with a 100°F temperature swing expands 2.25 inches — without a loop that stress concentrates at fittings and causes cracking. CPVC expands 4.5 times more than copper, which moves only 0.01 inches per 10°F per 100 feet. The most common CPVC failure we see in NYC is a cracked fitting at a water heater connection where no expansion loop was installed; the temperature swing from cold supply to 140°F output is enough to snap a rigid joint within a year.
Expansion loop design and placement requirements
- Loop dimensions: We install U-shaped expansion loops with a 12-24 inch diameter, sized to absorb the full thermal movement of the pipe run.
- Spacing: Loops are required every 30-50 feet of straight CPVC run, at every change in direction where the pipe is constrained, and within 12 inches of water heater connections.
- NYC code: The NYC Plumbing Code requires accommodation of thermal expansion in all plastic pipe systems — expansion loops are the standard method.
- Alternative for tight spaces: In Brooklyn brownstone basements where a full loop won’t fit, we use mechanical expansion joints. Loops are preferred because they have no moving parts to fail.
Common plastic pipe installation mistakes we fix across NYC
Plastic pipe installation has specific pitfalls — we see the same mistakes repeatedly on service calls across all five boroughs, and most are preventable with proper technique.
The top 5 mistakes we see on service calls
- Using PVC for hot water near a heater: PVC is rated to 140°F max — water heaters output 120–140°F — so pipe within 18 inches of the heater warps and fails within months. Use CPVC or copper there.
- Skipping purple primer: NYC code requires purple primer on every solvent-welded joint; skipping it reduces joint strength by 60% — and inspectors check for the purple stain, so a failed inspection means cutting out and redoing every joint at your expense.
- Overtightening threaded fittings: Plastic threads strip at much lower torque than metal — hand-tighten plus a quarter turn max, with Teflon tape or pipe dope.
- Omitting expansion loops on long CPVC runs: CPVC expands 0.045 inches per 10°F per 100 feet — a 50-foot run with a 100°F swing moves 2.25 inches, and without a U-shaped loop every 30–50 feet, joints stress-crack.
- Using uncoated metal hangers: Metal hangers abrade plastic pipe from vibration and thermal movement — we use plastic-coated or cushioned hangers (Oatey 33523) on every job.
Why DIY plastic pipe installation is illegal in NYC
NYC law requires all plumbing work to be performed by or under the supervision of a Licensed Master Plumber — DIY plastic pipe installation is illegal, uninsurable, and voids your home insurance if a leak causes damage. A Licensed Master Plumber must file a DOB permit for any plumbing alteration in NYC; there’s no homeowner exemption for pipe work. We’ve been called to fix DIY jobs where the homeowner used PVC cement on CPVC joints, creating a ticking time bomb that failed at 2 AM and flooded a finished basement.
NYC code for plastic pipe support spacing and expansion
Support spacing for plastic pipe follows different rules than copper, and the NYC code is specific about distances and hanger types — getting it wrong leads to sagging, joint stress, and leaks.
Support spacing requirements per NYC Plumbing Code Table 308.5
| Pipe Material | Horizontal Support Spacing | Vertical Support Spacing | Hanger Type Required |
|---|---|---|---|
| CPVC, PVC, ABS (plastic) | 4 ft max | 32 inches max | Plastic-coated or cushioned |
| Copper | 6 ft max | 10 ft max | Metal or cushioned |
| Steel | 8 ft max | 12 ft max | Metal |
What fittings are used for PEX pipe (where legal in NYC)

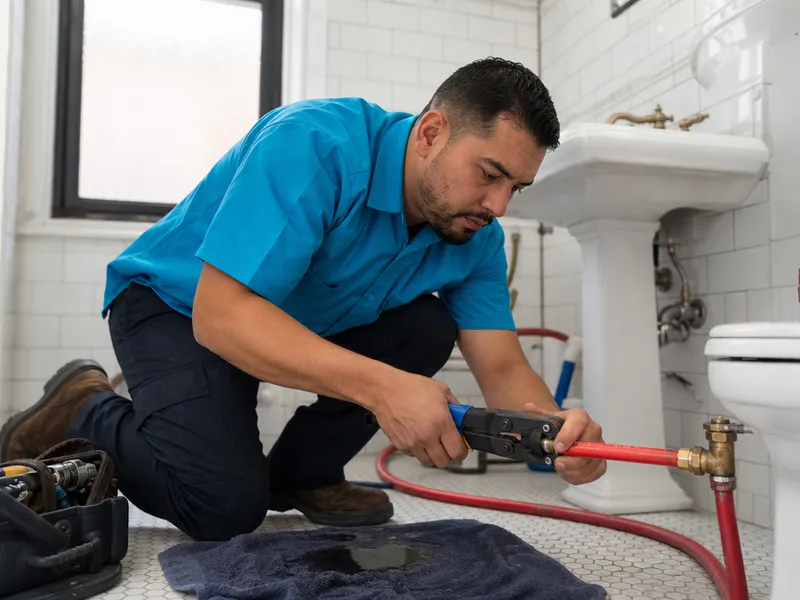

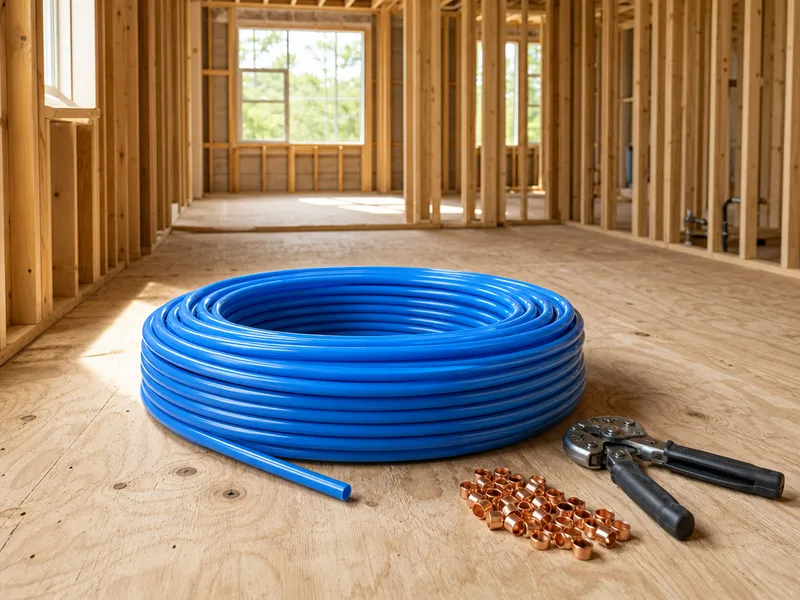

- Crimp ring fittings (PEX-B): Stainless steel crimp rings cinch over barbed fittings using a PEX crimp tool like the Ridgid 306 or Milwaukee 2676-20 — the most common method for PEX-B installations in DWV and hydronic systems.

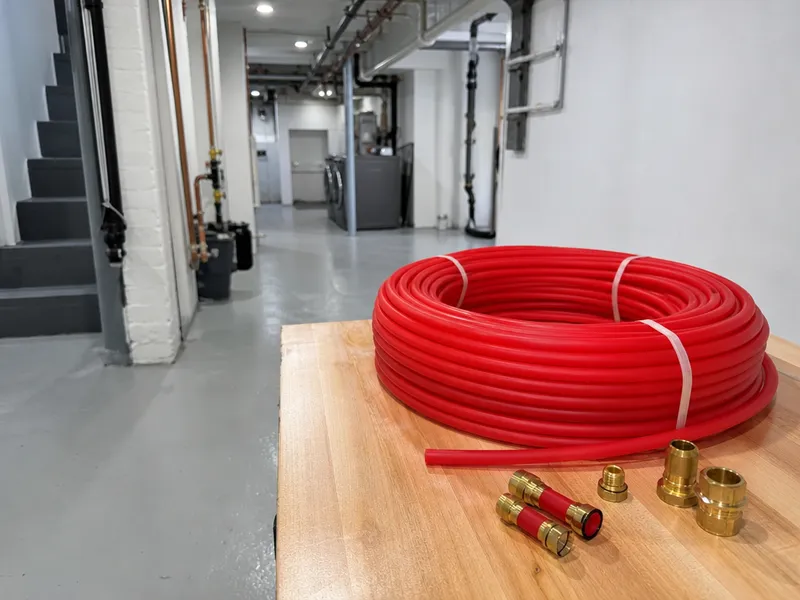

- Expansion ring fittings (PEX-A): Uponor ProPEX expansion rings are stretched with an expansion tool, then contract around the fitting with a memory fit that actually gets tighter over time, unlike crimp rings that can loosen with thermal cycling.
- Push-to-connect fittings (SharkBite): Universal fittings that work with PEX, copper, CPVC, and PVC without any tools — more expensive at $5–15 per fitting, but invaluable for tight-access repairs where a crimp tool won’t fit.
Main takeaways for plastic pipe installation in NYC
Main takeaways for plastic pipe installation in NYC
Plastic pipe installation in NYC requires knowing which materials are code-approved for each application — CPVC for water supply, PVC or ABS for DWV, and copper Type K for underground lines. CPVC (FlowGuard Gold from Charlotte Pipe) handles supply at up to 200°F, while PVC tops out at 140°F and is restricted to drain-waste-vent systems. ABS remains common in older Brooklyn brownstones and Bronx co-ops for DWV. The key to a lasting installation is following every detail: proper support spacing at 4 feet horizontal and 32 inches vertical, expansion loops on long CPVC runs, purple primer on every joint, and always hiring a Licensed Master Plumber to file the required DOB permit.
