Ductless AC SEER Ratings and Energy Efficiency in NYC
Modern ductless mini-splits achieve 16–33 SEER, far exceeding the 13–16 SEER range of central air systems — a difference that directly shapes installation decisions and long-term operating costs across NYC apartments and brownstones.
What SEER rating do ductless mini-splits achieve?
| Brand | Series / Model | Peak SEER | Notable Feature |
|---|---|---|---|
| Mitsubishi Electric | M-Series FH | 33.1 | Hyper-Heating INVERTER to -13°F |
| Daikin | Emura | 28 | Low-profile head for co-ops |
| Fujitsu | Halcyon | 28 | Cold-climate down to -15°F |
| LG | Art Cool | 22 | Wi-Fi built-in on newer models |
| Samsung | Wind-Free | 22 | Micro-hole panel for draft reduction |
| Carrier | Infinity | 20 | Strong dealer network in NYC |
| Trane | XV line | 22 | Climatuff compressor |
How SEER affects your NYC energy bills
We install systems from 16 to 33 SEER, and each point above 16 saves roughly 5–7% on annual cooling costs in NYC’s climate. A Brooklyn brownstone running AC 5+ months a year — say a 3-zone system pulling 3,000 kWh — sees about $50–$90 saved per SEER point at Con Edison rates. Higher SEER units cost 20–40% more upfront, but the payback on that brownstone is typically 3–5 years. On my read, the 22–28 SEER sweet spot (Fujitsu Halcyon or Daikin Emura) balances first cost and operating savings best for most NYC row houses.
Choosing the Right BTU Capacity for Your Room
Getting the BTU capacity right means your ductless system cools efficiently without wasting energy. Here is the sizing method we use across NYC.
BTU sizing rule of thumb for NYC apartments
| Room Size (sq ft) | Baseline BTU | Adjustment for Poor Insulation | Adjustment for South/West Windows |
|---|---|---|---|
| Up to 500 | 12,000 | 15,000 | +1,000 per large window |
| 500–800 | 18,000 | 22,000 | +1,000 per large window |
| 800–1,200 | 24,000 | 30,000 | +1,000 per large window |
NYC-specific BTU adjustments for older buildings
We size systems for pre-war Brooklyn brownstones at 25–30 BTU per square foot because single-pane windows and uninsulated walls increase cooling load by 25–50%. On my read, oversizing a unit to 24,000 BTU in a 400 sq ft room causes short-cycling, poor dehumidification, and compressor wear — that’s the most common NYC installation mistake we correct on service calls. A proper Manual J load calculation accounts for these variables and prevents that outcome entirely.
Ductless vs Central AC: Which Is Right for Your NYC Home?
The choice between a ductless mini-split and a central air system in New York City depends on your building type — ductless wins for retrofits in pre-war buildings, while central AC suits new construction with existing ductwork.
Ductless vs central AC: key differences at a glance
| Factor | Ductless Mini-Split | Central AC |
|---|---|---|
| SEER rating | 16–33 SEER | 13–16 SEER |
| Installation cost (NYC) | $3,000–$15,000 (1–4 zones) | $8,000–$20,000 (full house) |
| Zoning | Each room independently | Single zone (or expensive dampers) |
| Ductwork needed | No — 3-inch wall penetration per head | Yes — $3,000–$8,000 in NYC to install |
| Installation time | 1–2 days | 3–7 days |
| Lifespan | 15–20 years | 12–15 years |

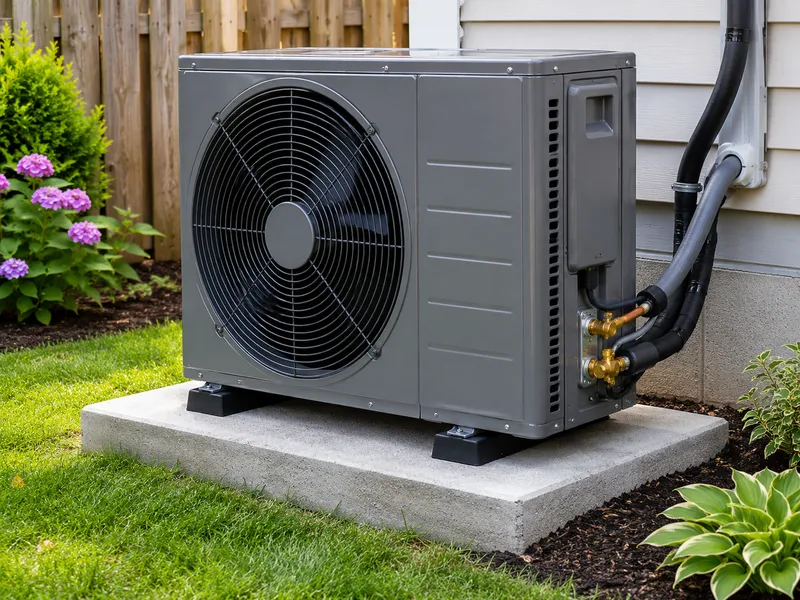

| Heating capability | Heat pump (works to -13°F) | Furnace or heat pump |
| Best for NYC | Brownstones, co-ops, apartments, additions | Single-family homes with existing ducts |
Why ductless wins in pre-war NYC buildings
We install ductless systems in pre-war Manhattan co-ops and Brooklyn brownstones because they require only a 3-inch wall penetration per head instead of running bulky ductwork through existing walls. Central AC needs large supply and return ducts that simply don’t fit in buildings built before 1940 — not without tearing out ceilings or building soffits. The efficiency gap is stark: ductless systems operate at 16–33 SEER, while central units top out at 16 SEER. And here’s what matters in NYC’s tight spaces with Con Edison rates — duct losses in central systems waste 10–30% of conditioned air, and ductless eliminates that entirely.
Ductless AC Installation in Manhattan Co-ops and Brooklyn Brownstones
The most common NYC installations — Brooklyn brownstones and Manhattan co-ops — share the ductless retrofit advantage but diverge in every regulatory and structural detail.

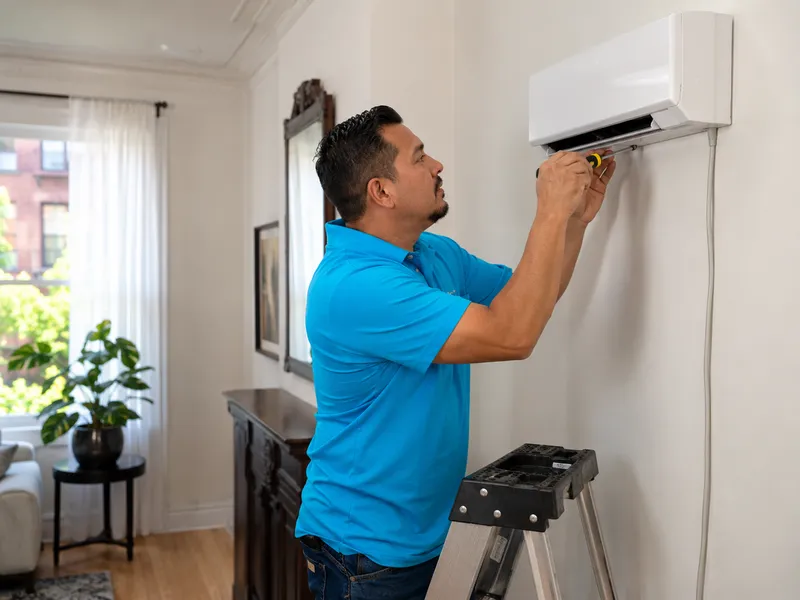

Installing ductless AC in a Brooklyn brownstone
- Structural considerations: Brownstone masonry (brick or brownstone) requires carbide-tipped masonry bits and sleeve anchors for mounting — standard wood-frame hardware won’t hold in a 12-inch Park Slope party wall.
- Line set routing: We run refrigerant lines through existing closets or along exterior walls in a line-set cover, with a 3-inch penetration per head. For a 3-floor brownstone, vertical line sets over 20 feet need oil traps every 20 feet to prevent compressor oil starvation.
- Condenser placement: Rooftop or rear-yard placement works for most brownstones. In Park Slope and Brooklyn Heights historic districts, exterior wall-mounted condensers require Landmarks Preservation Commission approval — we handle that paperwork as part of the DOB permit process.

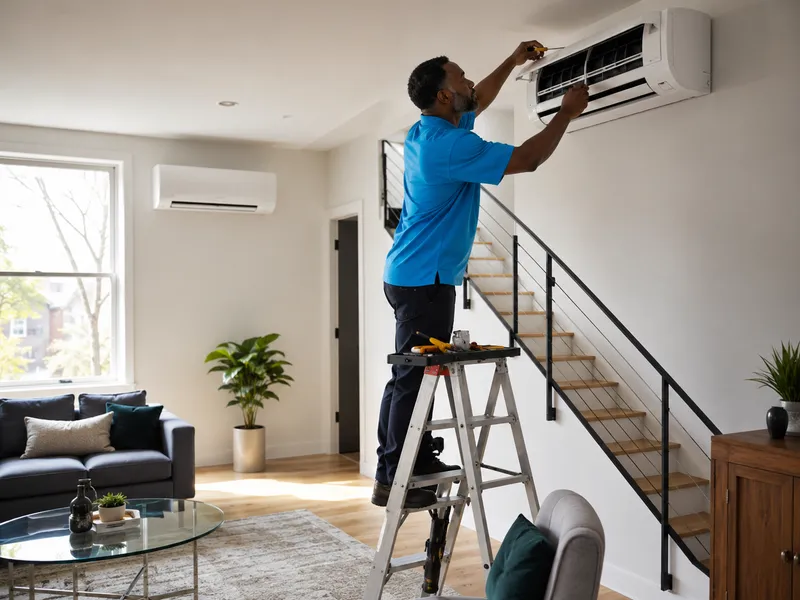

- System sizing: A typical 1,500–3,000 sq ft brownstone needs a 3–4 zone multi-ductless system. We size each head individually using Manual J, then pair the total load with an outdoor condenser matched to the connected BTU capacity.
- Older wiring: Many pre-war brownstones still run on knob-and-tube wiring. If your panel can’t handle a new dedicated circuit for the condenser, we coordinate a panel upgrade before the “ductless AC installation NYC” crew arrives.

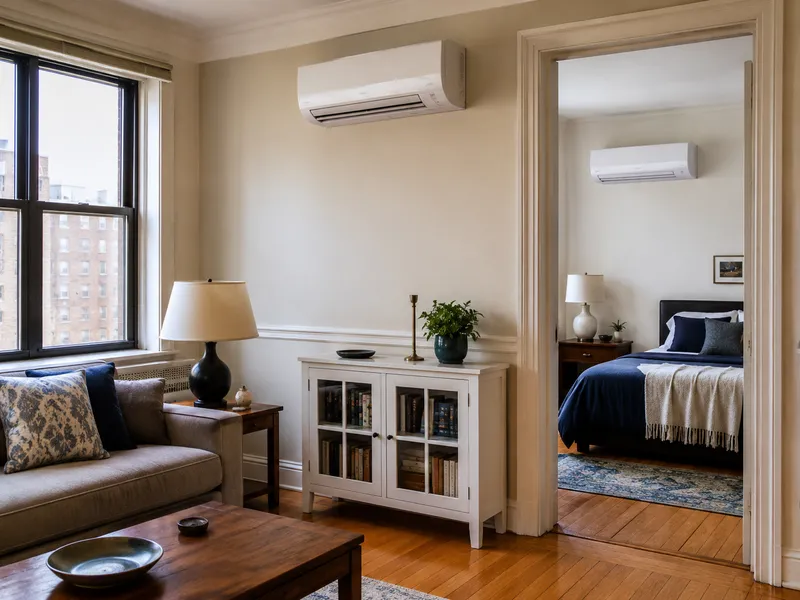

Installing ductless AC in a Manhattan co-op
- Co-op board approval: We coordinate with Manhattan co-op boards to get written approval before any installation — a process that takes 2–6 weeks and requires DOB permits. Skipping board approval can result in $500–$5,000 fines and forced removal of the unit at the owner’s expense, so we never start work without signed approval.
- Permit and insurance: NYC DOB permits are mandatory for any installation involving refrigerant lines, electrical work, or structural modification. Co-ops typically require the contractor to carry $1M+ liability insurance and name the building as an additional insured — we carry that coverage.

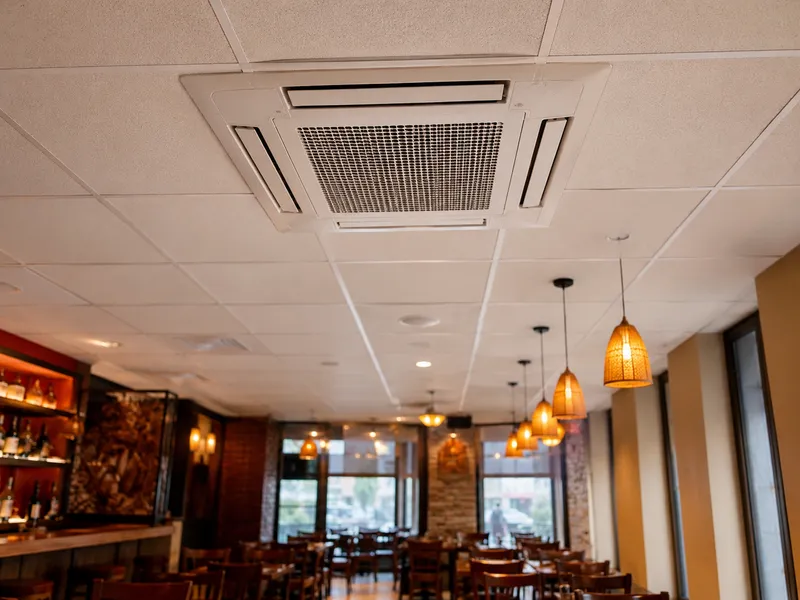

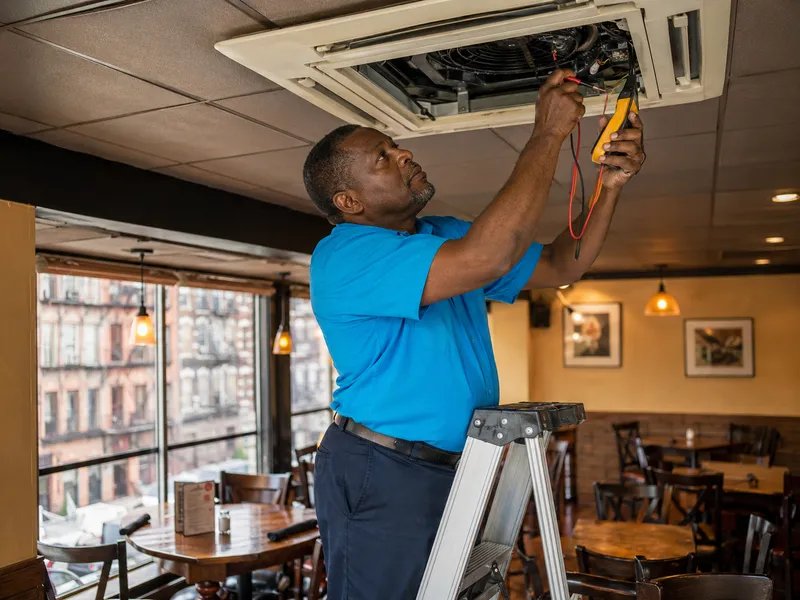

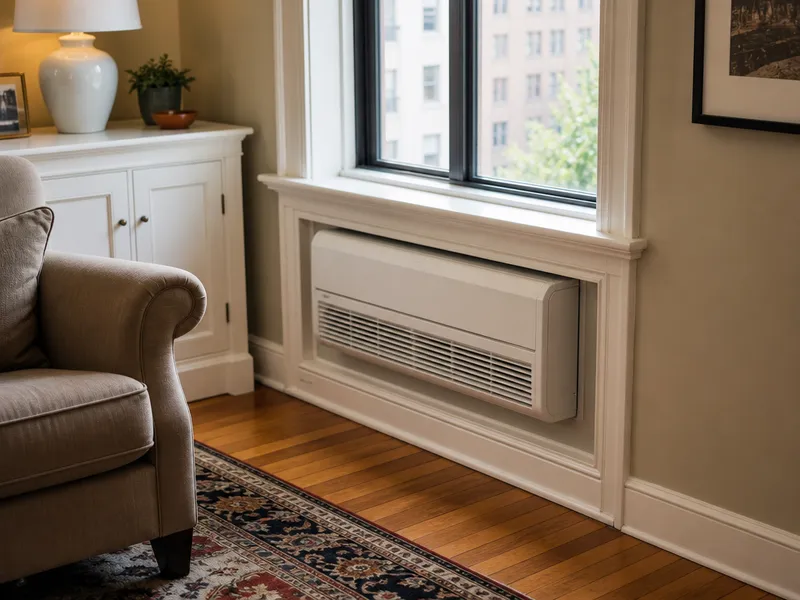

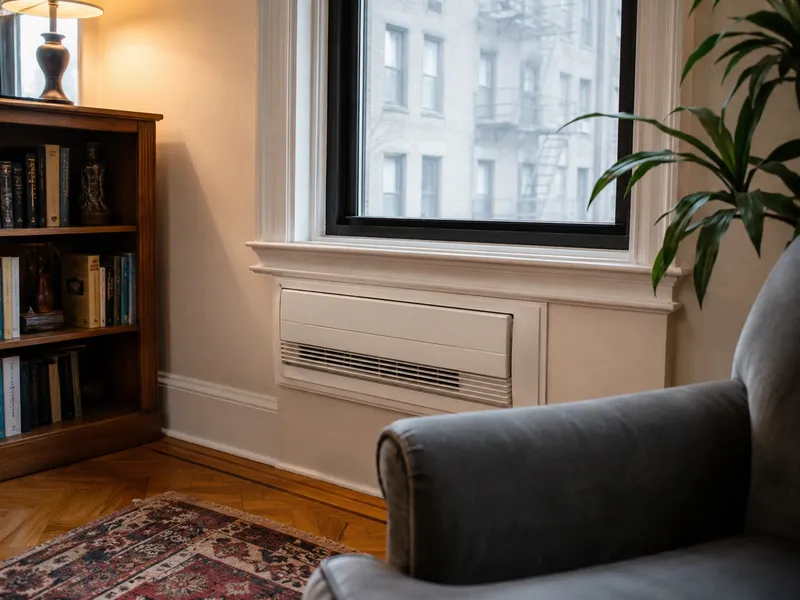

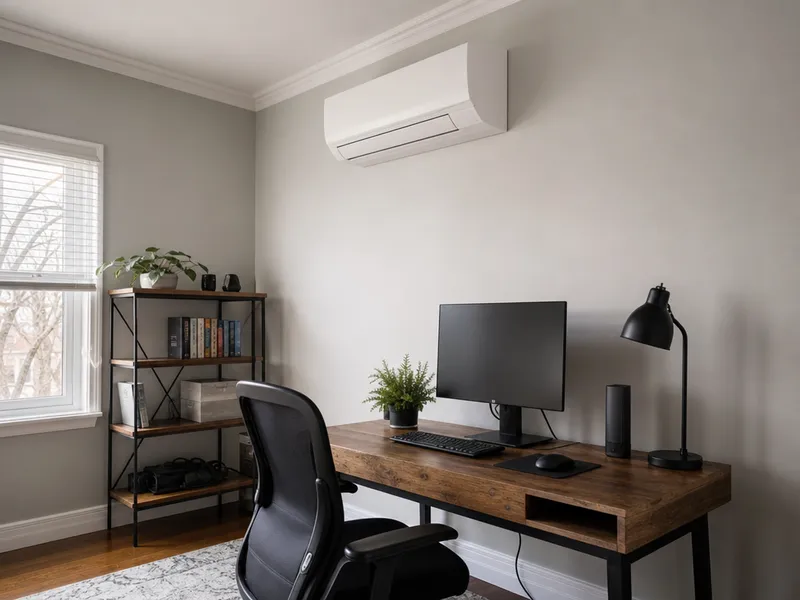

- Indoor unit options: Ceiling cassettes are preferred in co-ops with dropped ceilings — they hide the unit and all line sets completely. Wall-mounted heads work where the board allows, but the line-set cover must match the wall finish. Through-wall sleeves are another option when facade-mounted condensers are banned.

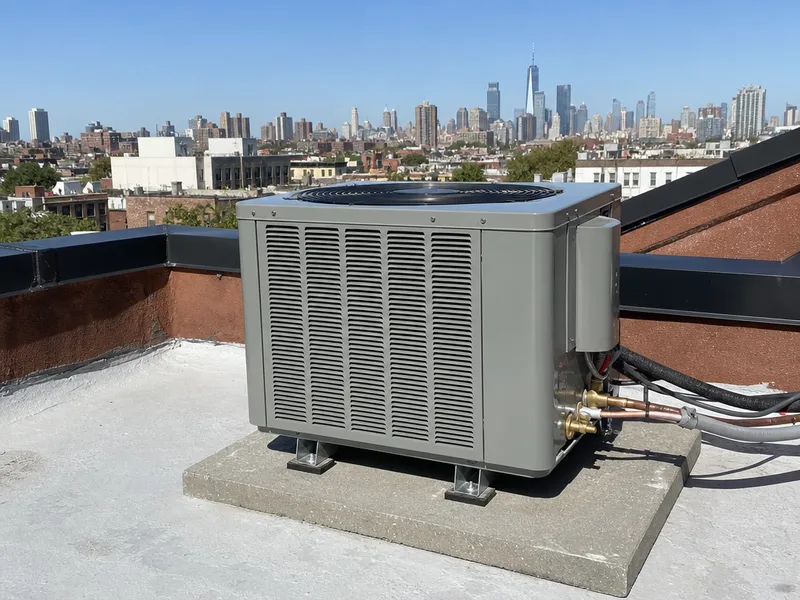

- Condenser restrictions: Most Manhattan co-ops forbid exterior condenser placement on the facade. Rooftop or terrace installation is the standard workaround. Noise restrictions during building quiet hours (often 10 PM–8 AM) also govern when we can run the final commissioning test.
- Electrical coordination: The co-op may require a licensed electrician from their approved list. We run a dedicated circuit from the building’s electrical room or the unit’s panel — a 30-amp or 60-amp disconnect box with a GFCI breaker, depending on the condenser size.
Can You Install Ductless AC Yourself to Save Money?
It’s tempting to cut costs with a DIY kit, but the real tally in NYC often lands close to what a professional charges once you add tools, permits, and the risk of voided warranties.
The real cost of DIY ductless installation in NYC
We’ve seen DIY ductless installations cost $2,400–$5,000 in parts and tools — only $600–$1,600 less than our professional install — while voiding the manufacturer warranty and risking NYC DOB fines. A DIY kit runs $1,500–$3,000, but you still need a vacuum pump ($150–$400), a manifold gauge set ($80–$200), a flaring tool ($40–$100), and an electronic leak detector ($50–$200). Add EPA-608 certification ($100–$200) if you plan to handle refrigerant, plus $300–$800 for a licensed electrician to wire the dedicated circuit. The DOB slaps fines of $500–$5,000 for unpermitted work, and most manufacturers including Mitsubishi Electric, Daikin, and Fujitsu void their warranty if a licensed professional doesn’t perform the installation, so the DIY “savings” disappear with the first compressor failure.
What’s included in our professional installation
- DOB permit application: We file the permit with NYC DOB — a $200–$500 fee that covers the inspection and keeps your installation legal.

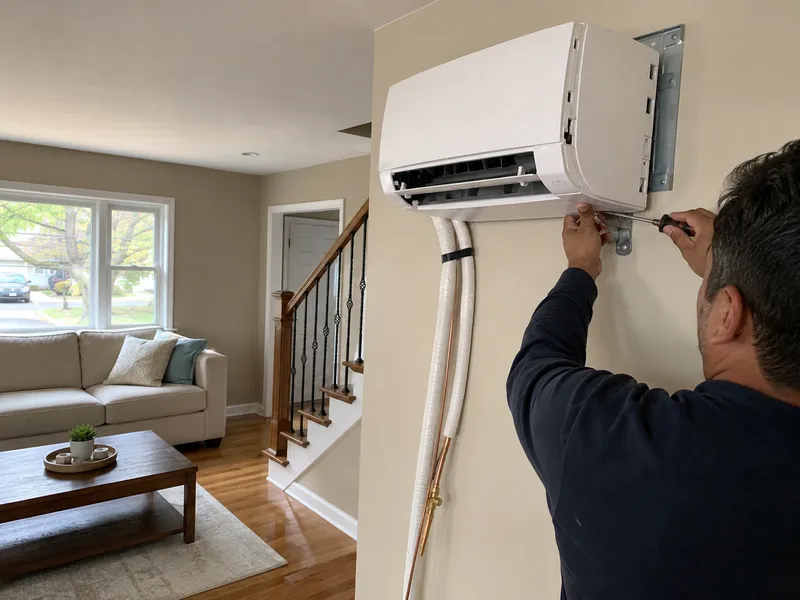

- Line set installation: Our technicians run the copper refrigerant lines (1/4-inch liquid, 3/8-inch or 1/2-inch suction), condensate drain, and communication cable through a 3-inch wall sleeve — all with proper slope and flare connections.
- Electrical connection by a licensed electrician: A dedicated circuit with GFCI breaker and disconnect box, wired to code by a NY Master Electrician — not a handyman with a multimeter.
- Refrigerant charging and system commissioning: We pull a vacuum to 500 microns, hold for 15 minutes to confirm no leaks, then charge with R-410A or R-32 and test every mode — cool, heat, fan, dry — across all heads.
- 1-year warranty on parts and labor: Every installation comes with our 365-day coverage on parts and labor — something no DIY project can match, and a single compressor failure on a $3,000 Mitsubishi unit would cost you the full replacement out of pocket.
Ductless AC Maintenance After Installation
Proper maintenance keeps your ductless system running at peak efficiency and extends its lifespan. Here’s the schedule you should follow.
Monthly and seasonal maintenance you can do yourself
- Filter cleaning (every 2–4 weeks): Pull the indoor head unit’s washable filter, vacuum it or rinse with mild soap, and dry completely before reinstalling — a 5-minute task that prevents airflow loss.
- Condensate drain check (every 3 months): Pour a cup of water through the drain pan and confirm it exits outside. A clogged drain causes water backup and mold inside the unit.
- Outdoor coil rinse (every 6 months): Spray the condenser coils with a garden hose — no pressure washer — and clear leaves or debris from around the unit. Restricted airflow drops SEER performance fast.
- Visual inspection (monthly): Look for ice buildup on the outdoor unit in winter, unusual gurgling sounds, or musty smells from the indoor head. Any of these means it’s time for a professional check.
In NYC’s high-pollen spring and dusty summer, skipping monthly filter cleaning can reduce cooling capacity by 15–20% and increase energy bills by 10% — a small habit with real savings. That’s why ductless AC maintenance starts with the filter, not the technician.
Annual professional maintenance we recommend
We recommend annual professional maintenance for every ductless system we install — deep cleaning coils and blower wheels, checking refrigerant charge, and inspecting electrical connections. Our technicians use a manifold gauge set to verify subcooling and superheat against the manufacturer’s spec sheet, then test all operating modes (cool, heat, fan, dry) to confirm the reversing valve cycles properly. A surge protector installed at the disconnect box — a $50–$100 part — prevents control board failure from NYC power fluctuations, which we see frequently in older Brooklyn brownstones and Manhattan co-ops. A $150–$250 annual service call prevents the most common post-installation failures: condensate backup from clogged drains, refrigerant leaks from loose flare nuts, and control board damage from power surges. Plan on replacing the condensate pump every five years — a $100–$200 part that’s far cheaper than the water damage it prevents.
Choosing the Right Ductless AC for Your NYC Home
Main takeaways for ductless AC installation in NYC
Choosing the right ductless AC system for a NYC home comes down to correct BTU sizing, understanding SEER ratings, and navigating co-op or brownstone-specific requirements. A 12,000 BTU head works for a standard 500 sq ft Manhattan apartment, but a 24,000 BTU unit in the same space short-cycles and fails to remove humidity — we see this regularly in pre-war buildings with single-pane windows. The SEER rating directly affects your Con Edison bill: a 20 SEER system saves roughly 20–30% annually compared to a 16 SEER baseline, though the premium for higher SEER models runs 20–40% upfront. Co-op board approval can take two to six weeks, and DOB permit fees run $200–$500 depending on scope. Professional installation protects your manufacturer warranty, ensures DOB compliance, and prevents the costly mistakes — short-cycling, refrigerant leaks, and improper line set routing — that shorten system life by years.
