What size Carrier AC do I need for my NYC apartment?
Proper sizing depends on room dimensions, building type, and insulation — we perform Manual J calculations for central systems and provide BTU recommendations for all unit types.
How we calculate the right BTU for your space
We size Carrier AC installation using 20 BTU per square foot as a baseline for NYC apartments — higher than the national average due to building heat gain from older windows and thicker pre-war walls. A 300-square-foot living room in a Manhattan pre-war with single-pane windows needs 6,000 BTU before factoring in the 10-foot ceiling height, which adds roughly 10% more load. The thicker brick walls in a Brooklyn brownstone add thermal mass that actually helps at night, but during a July afternoon the solar gain through those old windows can spike the load by another 15–20%. Oversizing by even 2,000 BTU causes short-cycling that prevents proper dehumidification, leaving your apartment feeling clammy even when the temperature reads 72°F.

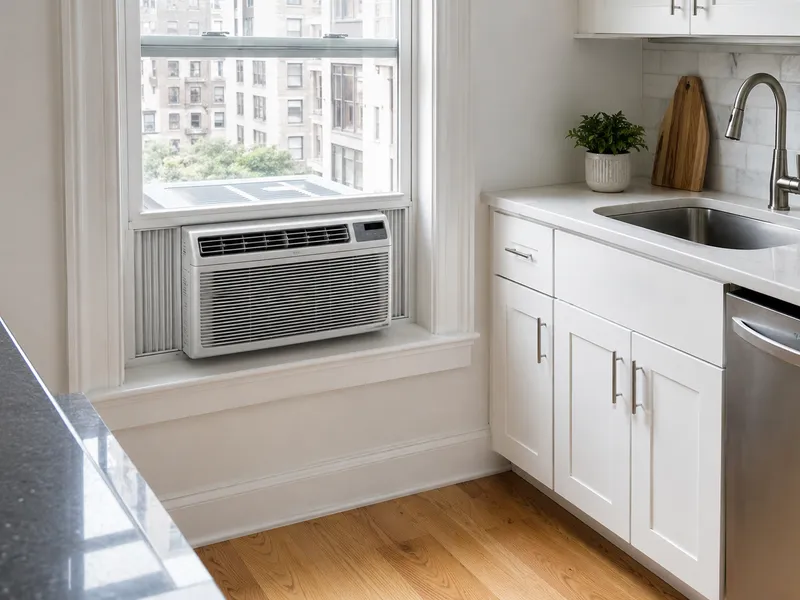

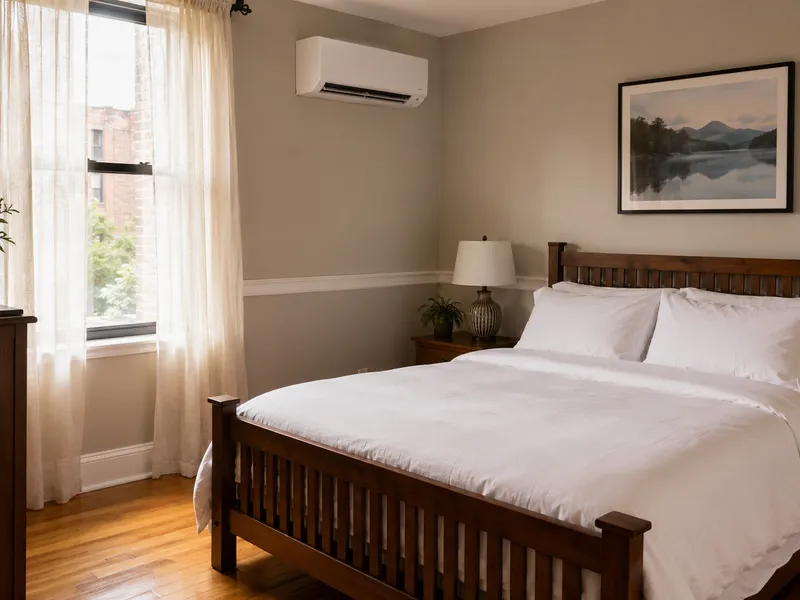

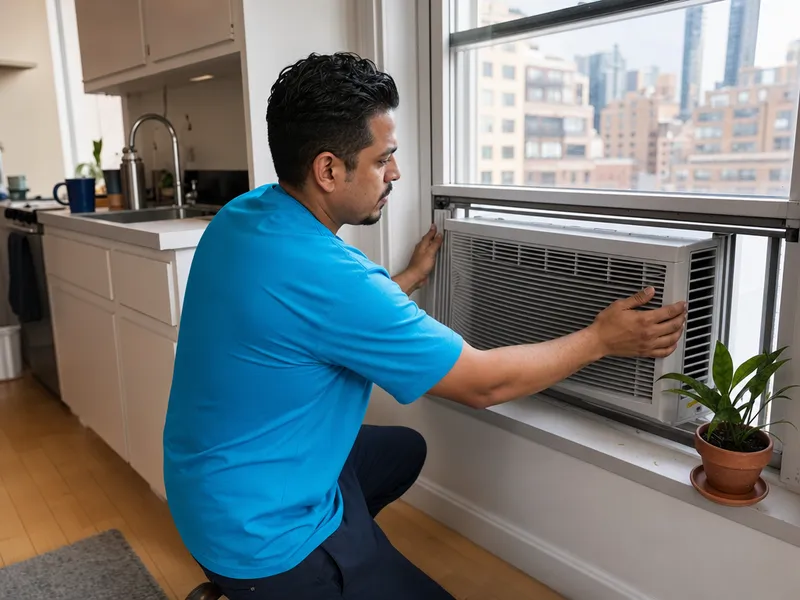

BTU ranges for Carrier window, through-the-wall, and mini-split units
| Room Size (sq ft) | Window AC (BTU) | Through-the-Wall (BTU) | Mini-Split (BTU) |
|---|---|---|---|
| 100–150 | 5,000 | 10,000 | 9,000 |
| 150–250 | 8,000 | 12,000 | 9,000 |
| 250–400 | 12,000 | 15,000 | 12,000 |
| 400–500 | — | — | 12,000 |
| 500–700 | — | — | 18,000 |

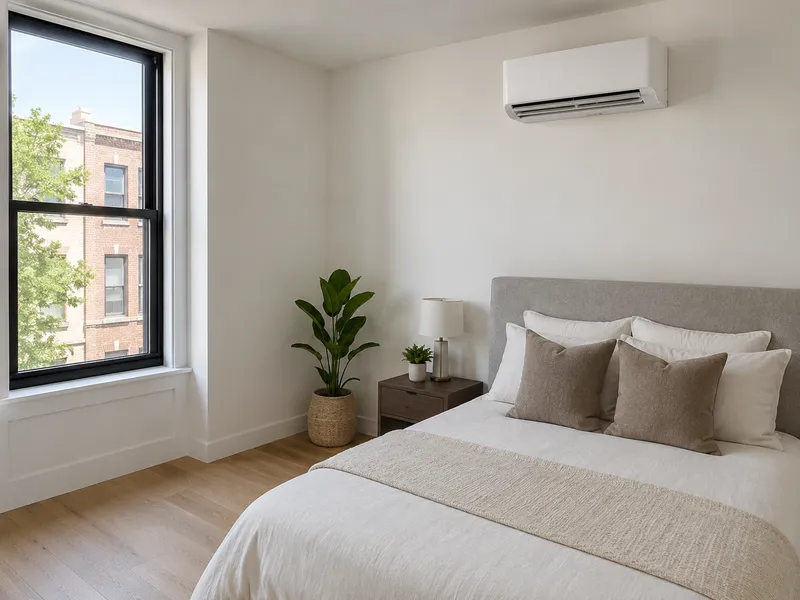

Do you install Carrier mini-splits in Brooklyn brownstones?
Brooklyn brownstones present unique installation challenges — thick brick walls, plaster interiors, and limited outdoor space. We handle these conditions with specialized equipment and techniques.

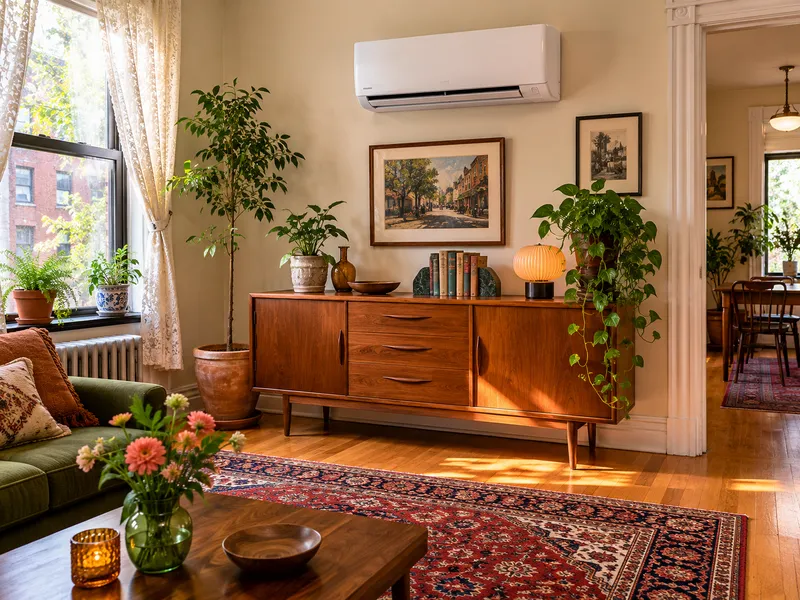

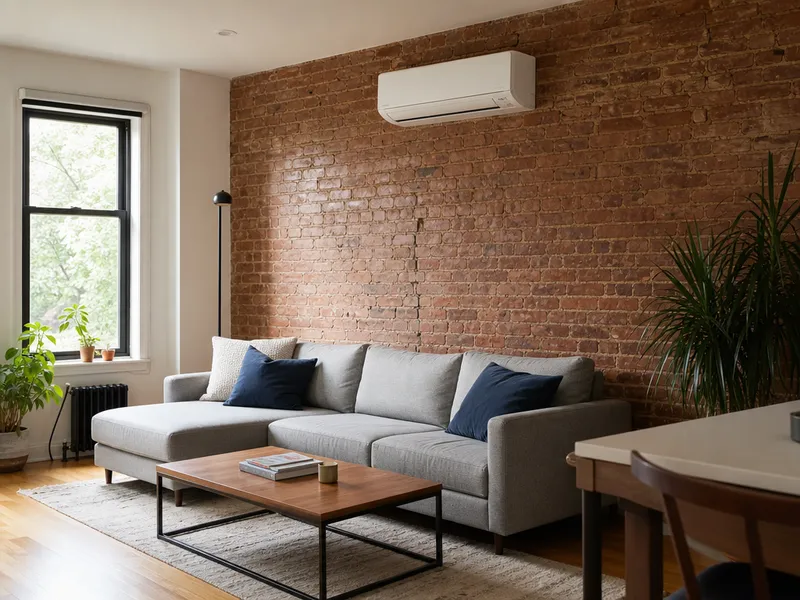

How we install Carrier mini-splits in brownstone walls
- Site survey: We assess wall construction (brick vs brownstone), electrical panel capacity, and outdoor unit placement on fire escapes, yards, or roofs — typically a 30-45 minute walkthrough.
- Core drilling: A 3-inch hole through 12–18 inches of brick requires a core drill with masonry bit; we seal the penetration with foam insulation after running the line-set.
- Indoor unit mounting: We secure the backplate to structural studs or use 50lb+ rated masonry anchors — toggle bolts alone fail under the unit’s weight on plaster walls.
- Outdoor unit placement: Concrete pad or wall brackets with vibration pads, maintaining 12 inches clearance from the wall and 24 inches above ground per NYC code.
- Refrigerant connection: Flare fittings torqued to 30–40 ft-lbs (3/8″ liquid line) and 40–50 ft-lbs (5/8″ suction line), followed by a nitrogen pressure test at 150 PSI for 15 minutes.
- Evacuation and startup: Vacuum pump to 500 microns, hold for 10 minutes — no rise confirms no leaks. Total install time: 4–6 hours for single-zone, 6–10 hours for multi-zone.

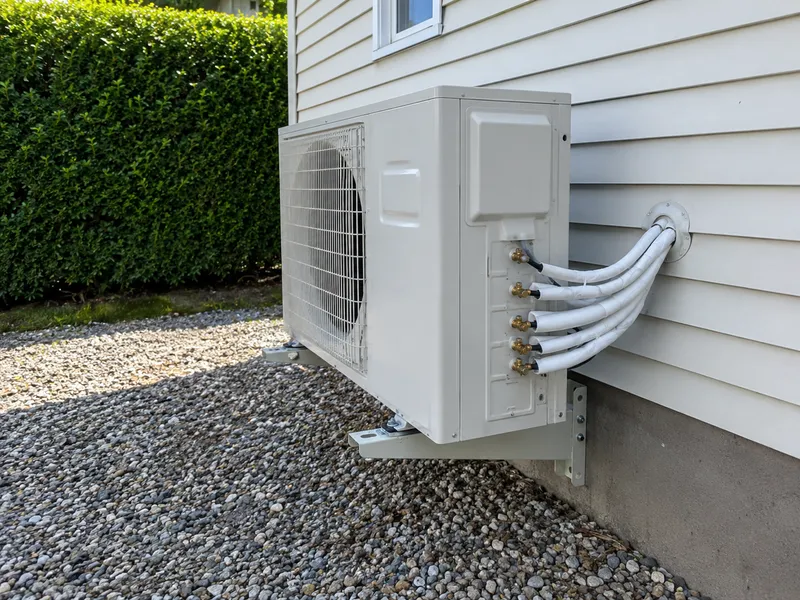

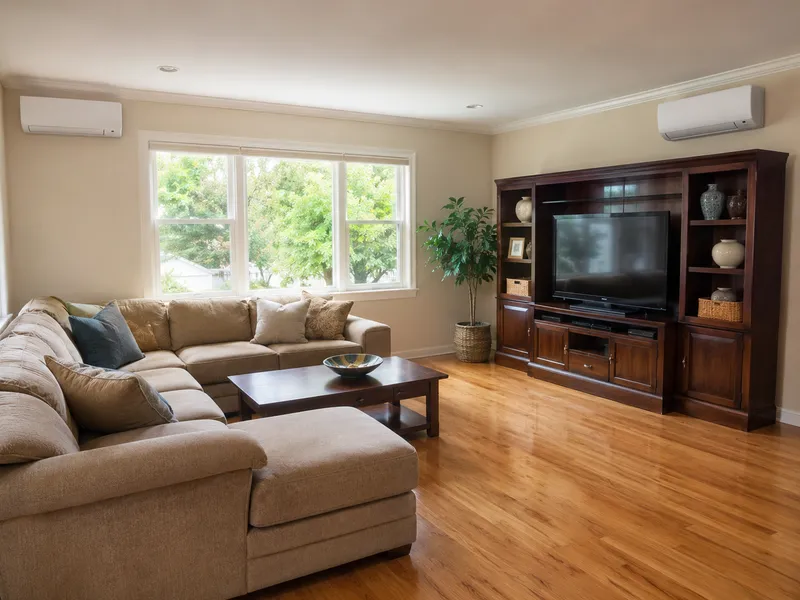

Multi-zone mini-split options for brownstone layouts
We install Carrier multi-zone mini-splits (18k, 24k, 30k, and 36k BTU outdoor units) that cool 3–4 rooms — parlor, dining, kitchen, and bedroom — from a single outdoor unit on the roof or in the yard. The 38MHR series handles up to four zones with independent temperature control, so the parlor stays cool during the day and bedrooms get separate settings at night. Brownstone layouts with open parlor floors benefit from a single 18,000 BTU indoor unit in the main living area, while closed-door bedrooms need individual units. A multi-zone setup avoids cluttering the facade with multiple condensers — especially important in brownstone historic districts where HPD restrictions limit exterior equipment visibility.
Can you install Carrier ACs in difficult NYC buildings?
Manhattan co-ops, pre-war buildings, and Bronx apartments without ductwork each require different Carrier AC solutions. We handle the specific approvals, structural challenges, and equipment choices for each scenario.

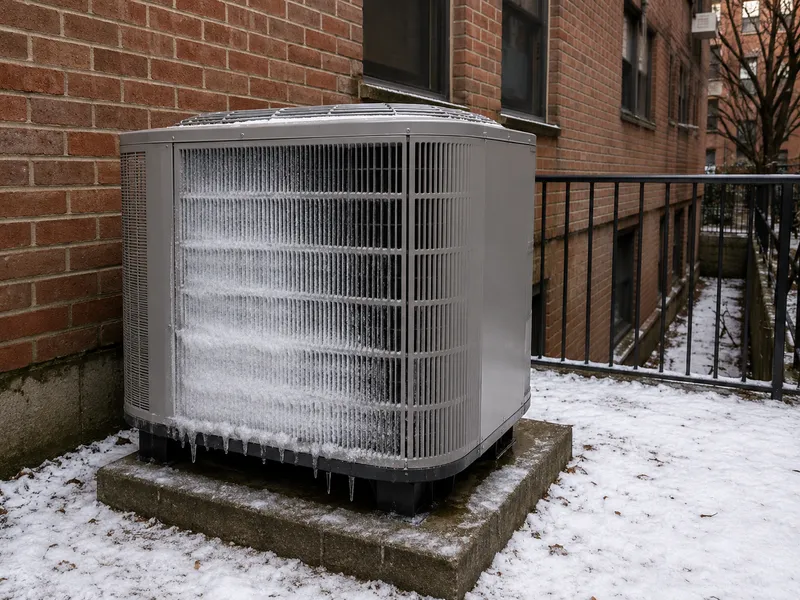

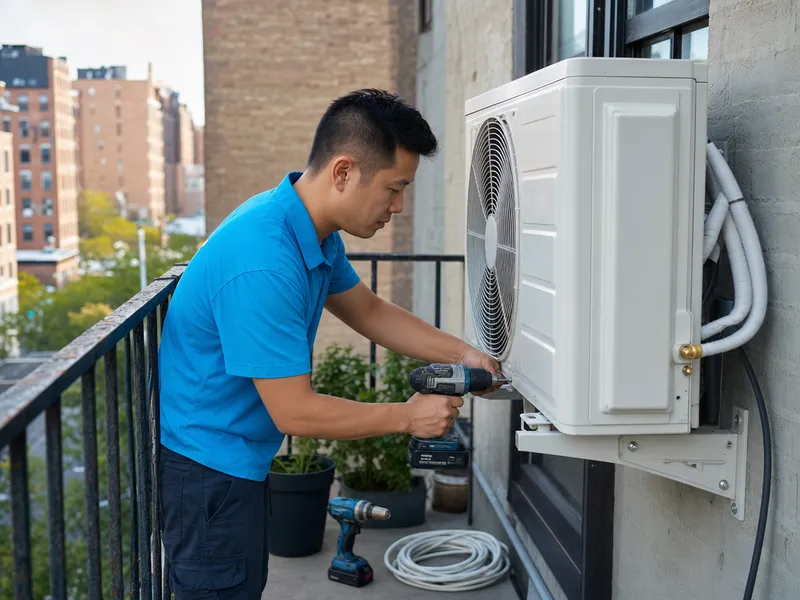

Installing Carrier heat pumps in Manhattan co-ops
- Board approval: We provide documentation for your co-op board application — equipment specs, noise ratings, and installation diagrams showing outdoor unit placement and condensate drainage.
- Electrical considerations: Most co-op apartments have 60A service panels — adding a 20A heat pump circuit may require a panel upgrade ($4,500–$6,500 for 100A to 200A).
- Condensate drainage: No floor drain in most co-op apartments — we install a condensate pump ($150–$300) with drain line routed to kitchen or bathroom plumbing.
- Outdoor unit placement: Roof mounting requires building approval; balcony placement is common but limited by available space and noise restrictions.
- Carrier heat pump pricing: $3,000–$6,000 per zone for mini-split heat pump; $6,000–$12,000 for central heat pump with existing ductwork.

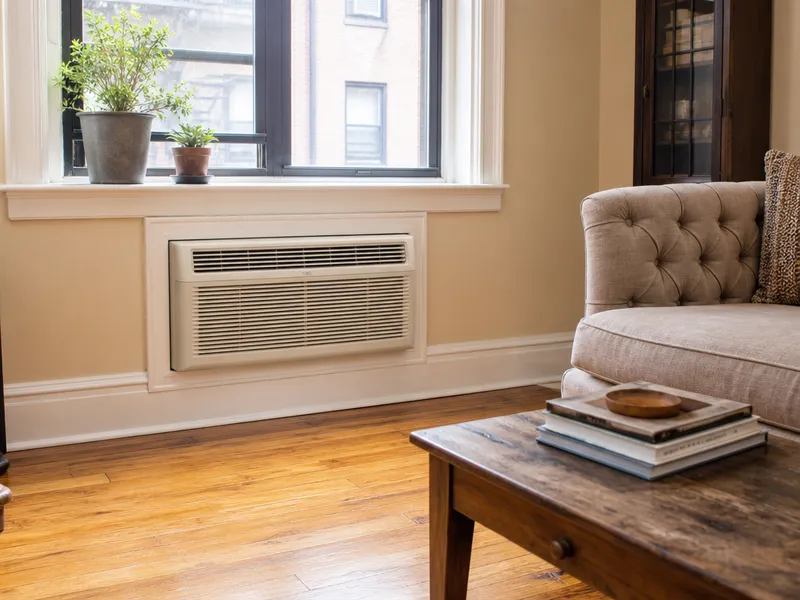

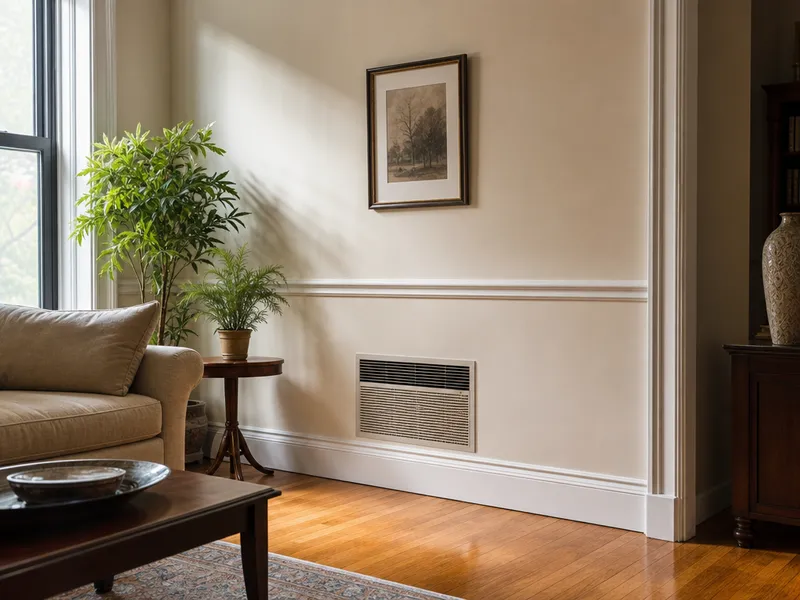

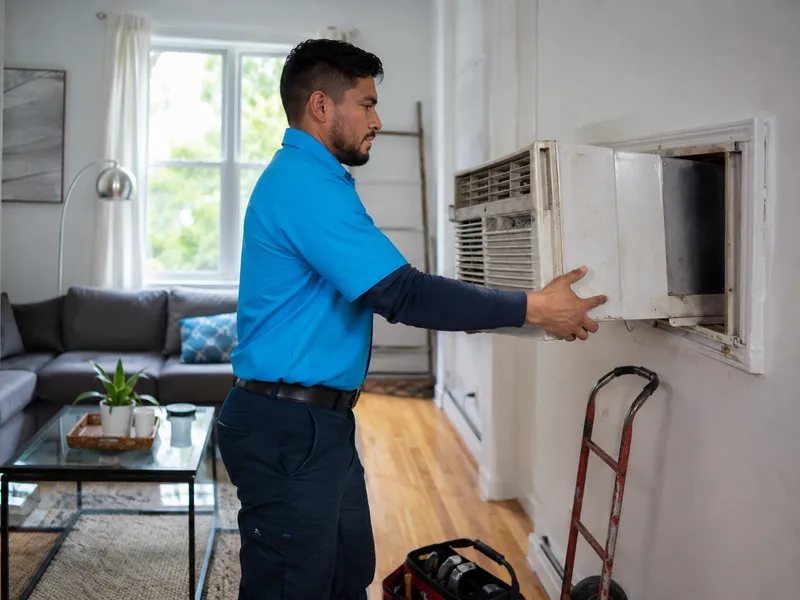

Through-the-wall Carrier AC installation in pre-war buildings
- Sleeve inspection: We check the existing wall sleeve for rust, level, and structural integrity — pre-war buildings often have 20+ year old sleeves that need replacement.
- Sleeve modification: If the existing sleeve doesn’t fit Carrier’s 26″W x 16″H dimensions, we replace it ($200–$400) and reinforce with angle iron.
- Electrical: Pre-war buildings commonly have 60A service panels and 2-wire systems — we install a dedicated 115V or 230V circuit with GFCI breaker if no ground wire exists.
- Installation: Slide the unit into the sleeve, seal gaps with foam insulation, and secure with screws — total time 2–4 hours.
- No DOB permit required: Through-the-wall installation using the same sleeve doesn’t trigger structural modification rules.
Carrier AC options for Bronx apartments with no ductwork
| AC Type | Best For | Price Range | Install Time | DOB Permit Needed? |
|---|---|---|---|---|
| Ductless mini-split (single-zone) | One room cooling | $2,500–$5,000 | 4–6 hours | No (unless wall penetration > 4″) |
| Ductless mini-split (multi-zone) | 2–4 room cooling | $5,000–$12,000 | 6–10 hours | No (unless new subpanel) |
| Through-the-wall AC | Single room, permanent | $300–$800 | 2–4 hours | No |
| Window AC | Budget single-room | $150–$400 | 1–2 hours | No |

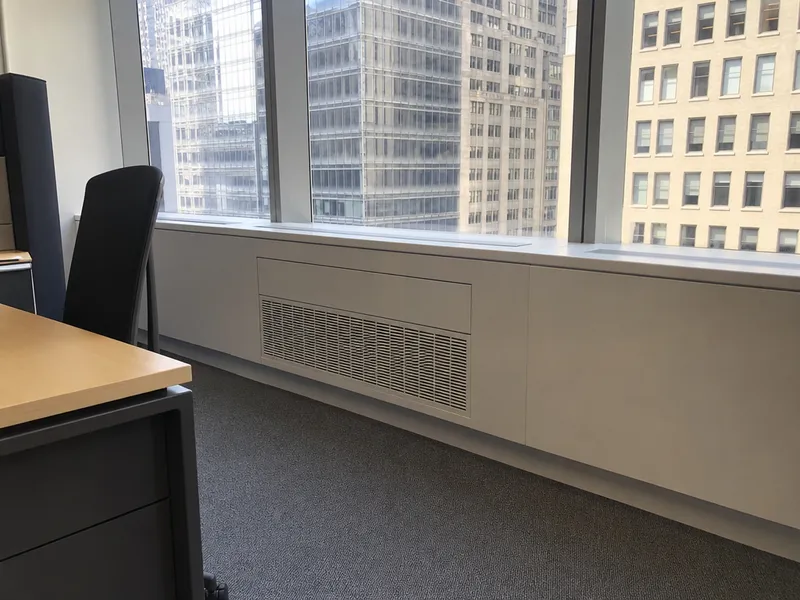

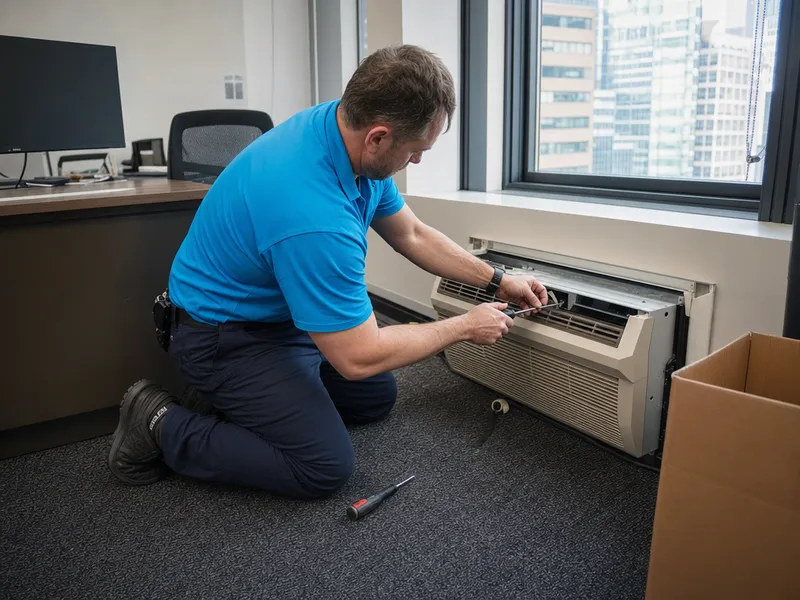

| PTAC | Single room, heat + cool | $800–$1,500 | 2–3 hours | No |
How we handle DOB permits for Carrier AC installation
DOB permits are required for certain Carrier AC installations in NYC. We handle the entire process — from application to inspection — with our licensed Master Plumber and Master Electrician on staff.
When a DOB permit is required for AC installation
- Permit required: Central AC installation (new or replacement), heat pump systems, structural modifications, new electrical circuits over 20A.
- Permit not required: Window AC, through-the-wall AC using the same sleeve, mini-splits — unless the wall penetration exceeds 4 inches or a new subpanel is needed.
- Permit cost: $150–$500 — included in our central AC installation pricing.
- Timeline: 2–4 weeks standard; 1 week expedited with an additional fee.
- Inspection: A DOB inspector verifies electrical, structural, and refrigerant compliance after the work is complete.
Our permit filing process
We file all DOB permits through our NY Master Plumber and Master Electrician — handling paperwork, fee payment, and inspection scheduling so you don’t have to coordinate with the city. The application requires detailed load calculations and equipment specs; we prepare these during the site survey so there are no delays when the permit is submitted. On our end, that means pulling the correct Carrier model data and Manual J figures before we ever submit a PW1 form. Installing a mini-split without a permit when one is required risks a $1,000–$5,000 DOB violation, insurance claim denial, and co-op board issues — we determine permit requirements during the free site survey.
Carrier vs other brands: what’s the difference?
Carrier competes with Trane, Lennox, Mitsubishi, Daikin, Goodman, and Friedrich in the NYC market. Each brand has strengths — Carrier’s advantage is parts availability and reliability in the five boroughs.
How Carrier compares to Trane, Lennox, and Mitsubishi
| Brand | Tier | Mini-Split Strength | NYC Parts Availability | Price vs Carrier |
|---|---|---|---|---|
| Carrier | Premium | Good (38MHR series) | Excellent — 3 distributors in NYC | Baseline |
| Trane | Premium | Moderate (proprietary parts) | Fair — longer lead times | Comparable |
| Lennox | Premium | Moderate | Good | 10–15% higher |
| Mitsubishi Electric | Premium | Excellent (Hyper-Heat to -13°F) | Good | 15–25% higher |
| Daikin | Premium | Excellent (inverter compressors) | Good | Comparable to Mitsubishi |
| Goodman | Budget | Limited | Good | 20–30% lower |
| Friedrich | Mid | N/A (through-the-wall specialist) | Excellent (NYC pre-war dominant) | Mid-tier |
Why Carrier is a strong choice for NYC installations
Carrier’s Infinity series with variable-speed inverter compressor delivers SEER ratings up to 26 — the highest efficiency available in NYC — and the brand’s extensive distributor network means replacement parts are typically available same-day. On a 95°F July afternoon, that matters: Trane’s proprietary parts require longer lead times, which can mean a week without cooling instead of same-day repair. In NYC’s competitive co-op market, Carrier’s lower noise profile (Infinity operates below 55 dB at low stage) and wider product range — window through central — make it easier to get board approval than brands requiring specialized outdoor unit placement.

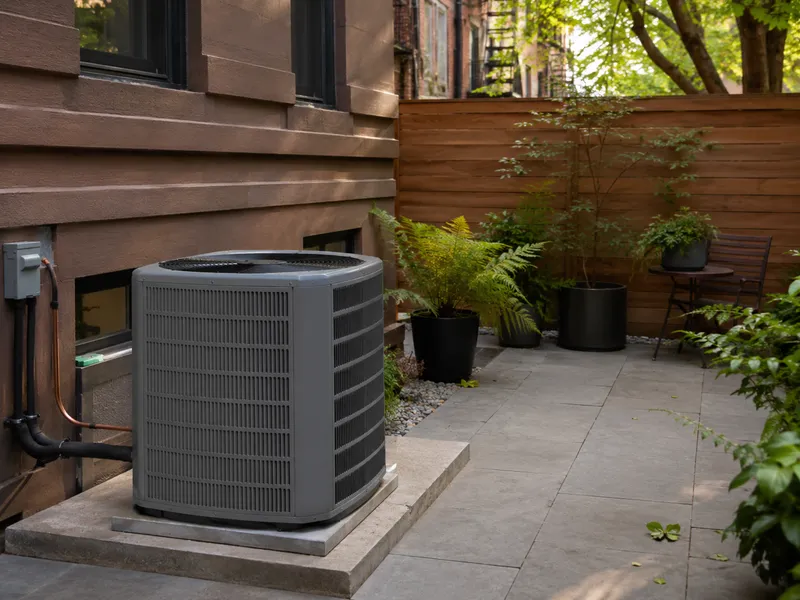

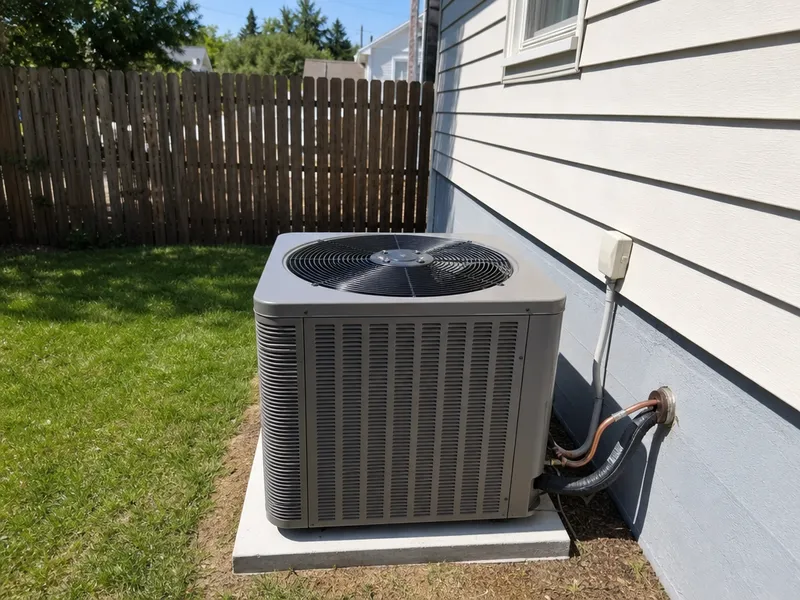

What’s included in our Carrier central AC installation in Queens?
Queens single-family homes typically need 2–3 ton Carrier central AC systems. We handle everything from Manual J load calculations to DOB permits and final commissioning.

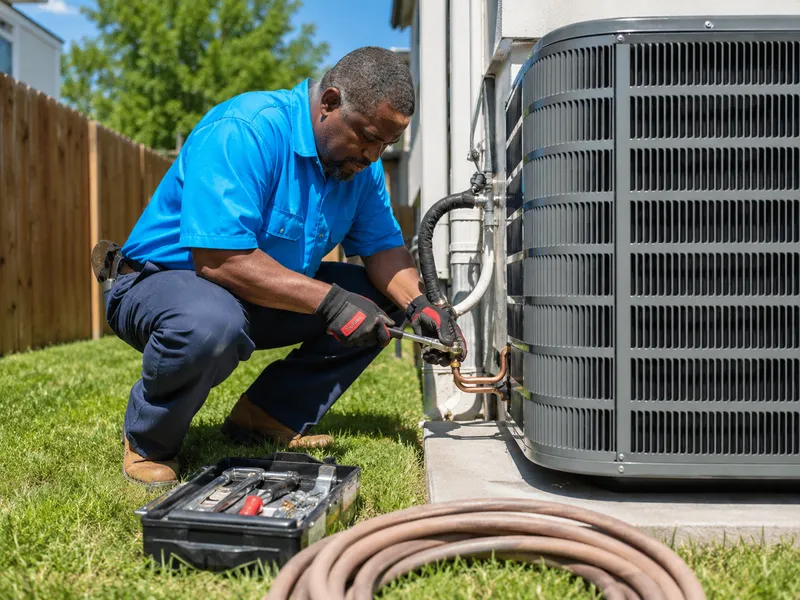

Our Carrier central AC installation process for Queens homes
- Load calculation: We perform a Manual J calculation (required for Carrier warranty) — measuring square footage, window area, insulation levels, and ceiling height.
- Air handler installation: Attic or basement placement with condensate line to drain and auxiliary drain pan (NYC code for attic units).
- Condenser placement: Concrete pad on grade or roof — 12″ clearance from house, 5″ from wall on service side. In flood zones (southern Queens), we elevate above base flood elevation.
- Refrigerant lines: Line-set installation through wall, brazing with nitrogen purge, insulation.
- Ductwork: Seal existing ducts, add returns if needed, install zone dampers for multi-zone systems.
- Electrical: 30–60A disconnect for condenser, line voltage wiring, thermostat wiring (Carrier Infinity requires 4-wire + common).
- Commissioning: Refrigerant charge adjustment, airflow measurement, thermostat programming.
- Installation time: 1–2 days with existing ductwork; 2–3 days with new ductwork.
Pricing, warranty, and what’s covered
Our Carrier central AC installation includes a 1-year warranty on parts and labor, DOB permit fees ($150–$500), and free diagnostic when you book the repair — with pricing from $4,000–$8,000 for 2–3 ton systems with existing ductwork. In Queens historic districts like Forest Hills Gardens, outdoor units must be screened from street view — we plan condenser placement accordingly during the site survey to avoid Landmarks Preservation Commission violations. The 1-year warranty covers both Carrier parts and our labor — if the condenser fan motor fails at month 11, we replace it at no cost, while manufacturer-only warranties from other installers would charge $200–$400 for the labor.
Conclusion
Here is what matters most when planning a Carrier AC installation in NYC — the system type, the building constraints, and the warranty that backs the work.
Main takeaways
Carrier AC installation in NYC comes down to matching the right system to your building type — mini-splits for brownstones and no-ductwork apartments, through-the-wall units for pre-war buildings, and central systems for single-family homes. Proper sizing prevents short-cycling and humidity issues, while DOB permits are mandatory for central AC and heat pump installations. The 1-year warranty on parts and labor covers the first year of operation, and same-day service ensures quick response. Whether you’re cooling a 500 sq ft Bronx apartment or a 2,000 sq ft Queens home, the key is choosing the right Carrier system and having it installed by technicians familiar with NYC’s building challenges.
